Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Microsoft Exchange CDF for ThreatQ is an integration that enables the ingestion of emails and attachments from an Exchange Mailbox, into ThreatQ.

The integration provides the following feed:

• Microsoft Exchange Intel Mailbox - ingests emails from Microsoft Exchange/Outlook mailbox as ThreatQ Email.

The integration ingests the following system objects:

• Events
• Files (attachments)
• Indicators

Prerequisites

The following is required to run the integration:

• A Microsoft Azure-Cloud Office365 Exchange License/Account
• Microsoft Azure App Credentials and Permissions

Generating Azure OAuth Credentials

In order to use this integration, you must be using Microsoft Azure-Cloud Office365 Exchange. This integration does not work with any on-premise deployments of Office365 Exchange. This means, your Microsoft account needs to be within an Azure-Cloud Tenant that has access to Office365 Exchange.

Below are the steps for creating an App Registration with the correct permissions for this integration:

1. Login to https://portal.azure.com as an Administrator.
2. Navigate to the App registrations Azure service.
3. Click on the New registration button to register a new App.
4. For the Name, enter ThreatQ Mail Integration.
5. For the Supported account types, select the first option, Accounts in this organizational directory only.
6. Skip the Redirect URI field and click Register.
7. On the Overview page for your App, copy your Directory (tenant) ID and your Application (client) ID to a secure location.
8. Click on the API permissions tab on the left sidebar.
9. Click on the Add a permission button and add the following permissions under the Microsoft Graph API (Type: Application): - Mail.Read - Mail.ReadBasic - MailBasic.All
10. Make sure to Grant admin consent for your Organization
11. Click on the Certificates & secrets tab on the left sidebar.
12. Click on the New client secret button and create a new secret with any name and expiration
    • Note: When the token expires, the integration will not work until a new token is applied.
13. Copy the new client secret value (not the Secret ID) to a secure location (with the other credentials you saved).

You will now use the Tenant ID, Client ID, and Client Secret with this integration.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the integration yaml file.
3. Navigate to the integrations management page on your ThreatQ instance.
4. Click on the Add New Integration button.
5. Upload the integration yaml file using one of the following methods:
   • Drag and drop the file into the dialog box
   • Select Click to Browse to locate the file on your local machine

   ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

6. The feed will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Commercial option from the Category dropdown (optional).

   If you are installing the integration for the first time, it will be located under the Disabled tab.

3. Click on the integration entry to open its details page.

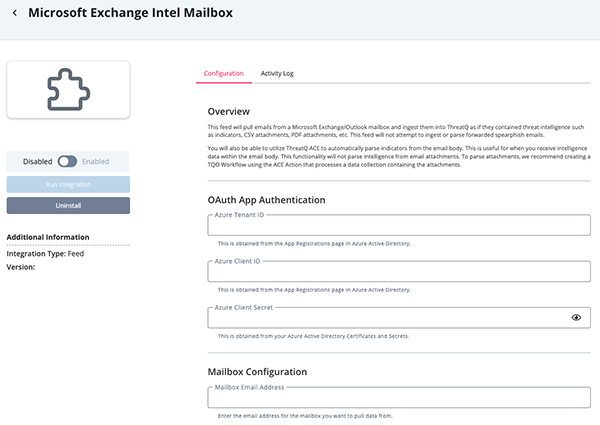

4. Enter the following parameters under the Configuration tab:

   Parameter	Description
   Tenant ID	Enter your Tenant ID found under the App Registrations page in Azure Active Directory.  See the Generating Azure OAuth Credentials section for more details.
   Client ID	Enter your Client ID found under the App Registrations page in Azure Active Directory.  See the Generating Azure OAuth Credentials section for more details.
   Client Secret	Enter your Client Secret found under the Azure Active Directory Certificates and Secrets.  See the Generating Azure OAuth Credentials section for more details.
   Mailbox Email Address	Enter the email address for the mailbox you want to pull data from.
   Folder Name	Enter the name of the folder you want to pull data from.
   Strip HTML from Email Body	Enable this option to strip any HTML formatting from the email body.
   Ingest Attachments	Enable this option to ingest email attachments into ThreatQ.  This option is enabled by default.
   Require Attachments	Enable this option to only ingest emails that include at least one attachment.  This option is disabled by default.
   Malware Lock Attachments	Enable this option to protect attachments with a malware lock once ingested into ThreatQ.  This option is enabled by default.
   Ignored Attachment MIME Types	Enter a comma-separated list of MIME types to ignore when ingesting attachments.  The default value is: image/png,image/jpeg,image/jpg,image/gif,image/bmp,image/tiff.
   Parse Indicators from Email Body	Enable this option to use ThreatQ ACE to parse IOCs from the email body. Caution, since this will be parsing unstructured data, it may not always be accurate, and may result in false positives. Always ingest IOCs into the Review state.
   Parsed Indicator Types	Select which indicator types to parse the email body for. This field will only display if the Parse Indicators from Email Body option is enabled. Options include: MD5 (default) SHA-1 (default) SHA-256 (default) SHA-384 SHA-512 (default) IP Address (default) CIDR Block FQDN URL CVE (default) Email Address Filename File Path



5. Review any additional settings, make any changes if needed, and click on Save.
6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

{
  "@odata.context": "https://graph.microsoft.com/v1.0/$metadata#users('threatq%40threatq.onmicrosoft.com')/mailFolders/Inbox/messages",
  "value": [
    {
      "@odata.etag": "W/\"CQAAABYAAABlpCmrska5TqIMPpjD6wUjAAGCPCps\"",
      "id": "AAMkADAwMzYwMmI0LTAyMjAtNGRmOS05OTAyLTM4ODEzODdmMDY3MgBGAAAAAAAwQJ--D9f2QZgyDjTFwH1rBwBlpCmrska5TqIMPpjD6wUjAAAAAAEMAABlpCmrska5TqIMPpjD6wUjAAGCK85yAAA=",
      "createdDateTime": "2022-09-06T16:15:36Z",
      "lastModifiedDateTime": "2022-09-06T16:20:38Z",
      "changeKey": "CQAAABYAAABlpCmrska5TqIMPpjD6wUjAAGCPCps",
      "categories": [],
      "receivedDateTime": "2022-09-06T16:15:37Z",
      "sentDateTime": "2022-09-06T16:15:23Z",
      "hasAttachments": true,
      "internetMessageId": "fe7f78eb-9799-4358-8689-728c5f17a10f@Spark>",
      "subject": "Microsoft unusual account activity",
      "bodyPreview": "We've detected some unusual activity on your Microsoft account!\r\n\r\n\r\n\r\n\r\nAccount:\r\nacme@roadrunner.com",
      "importance": "normal",
      "parentFolderId": "AAMkADAwMzYwMmI0LTAyMjAtNGRmOS05OTAyLTM4ODEzODdmMDY3MgAuAAAAAAAwQJ--D9f2QZgyDjTFwH1rAQBlpCmrska5TqIMPpjD6wUjAAAAAAEMAAA=",
      "conversationId": "AAQkADAwMzYwMmI0LTAyMjAtNGRmOS05OTAyLTM4ODEzODdmMDY3MgAQAI6FEMPhN1lFhPdM6oLfsBU=",
      "conversationIndex": "AQHYwgvljoUQw+E3WUWE90zqgt+wFQ==",
      "isDeliveryReceiptRequested": null,
      "isReadReceiptRequested": false,
      "isRead": false,
      "isDraft": false,
      "webLink": "https://outlook.office365.com/owa/?ItemID=AAMkADAwMzYwMmI0LTAyMjAtNGRmOS05OTAyLTM4ODEzODdmMDY3MgBGAAAAAAAwQJ%2F%2FD9f2QZgyDjTFwH1rBwBlpCmrska5TqIMPpjD6wUjAAAAAAEMAABlpCmrska5TqIMPpjD6wUjAAGCK85yAAA%3Dexvsurl=1viewmodel=ReadMessageItem",
      "inferenceClassification": "focused",
      "body": {
        "contentType": "html",
        "content": "[redacted]"
      },
      "sender": {
        "emailAddress": {
          "name": "ThreatQ User",
          "address": "threatq@threatq.com"
        }
      },
      "from": {
        "emailAddress": {
          "name": "ThreatQ User",
          "address": "threatq@threatq.com"
        }
      },
      "toRecipients": [
        {
          "emailAddress": {
            "name": "ThreatQ User",
            "address": "threatq@threatq.onmicrosoft.com"
          }
        }
      ],
      "ccRecipients": [],
      "bccRecipients": [],
      "replyTo": [],
      "flag": {
        "flagStatus": "notFlagged"
      }
    }
  ]
}

{
  "@odata.context": "https://graph.microsoft.com/v1.0/$metadata#users('threatq%40threatq.onmicrosoft.com')/messages('AAMkADAwMzYwMmI0LTAyMjAtNGRmOS05OTAyLTM4ODEzODdmMDY3MgBGAAAAAAAwQJ--D9f2QZgyDjTFwH1rBwBlpCmrska5TqIMPpjD6wUjAAAAAAEMAABlpCmrska5TqIMPpjD6wUjAAGCK851AAA%3D')/attachments",
  "value": [
    {
      "@odata.type": "#microsoft.graph.fileAttachment",
      "@odata.mediaContentType": "image/png",
      "id": "AAMkADAwMzYwMmI0LTAyMjAtNGRmOS05OTAyLTM4ODEzODdmMDY3MgBGAAAAAAAwQJ--D9f2QZgyDjTFwH1rBwBlpCmrska5TqIMPpjD6wUjAAAAAAEMAABlpCmrska5TqIMPpjD6wUjAAGCK851AAABEgAQAJL_haQBRm9CqUy8CLwnv_A=",
      "lastModifiedDateTime": "2022-09-07T15:15:35Z",
      "name": "899A338D9CB24C1EBA6C2A45762C8222.png",
      "contentType": "image/png",
      "size": 10665,
      "isInline": true,
      "contentId": "899A338D9CB24C1EBA6C2A45762C8222",
      "contentLocation": null
    },
    {
      "@odata.type": "#microsoft.graph.fileAttachment",
      "@odata.mediaContentType": "application/octet-stream",
      "id": "AAMkADAwMzYwMmI0LTAyMjAtNGRmOS05OTAyLTM4ODEzODdmMDY3MgBGAAAAAAAwQJ--D9f2QZgyDjTFwH1rBwBlpCmrska5TqIMPpjD6wUjAAAAAAEMAABlpCmrska5TqIMPpjD6wUjAAGCK851AAABEgAQAGvKvdg3sj9Htr1-cXU271k=",
      "lastModifiedDateTime": "2022-09-07T15:15:35Z",
      "name": "Test.eml",
      "contentType": "application/octet-stream",
      "size": 27409,
      "isInline": false,
      "contentId": "D3A9DCB82C56334F8C4F507EC8B2C438@namprd06.prod.outlook.com",
      "contentLocation": null
    }
  ]
}

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Microsoft Exchange Intel Mailbox

Known Issues / Limitations

• When parsing IOCs from the intelligence imported from the Intel Mailbox feed, attachments will not be parsed for IOCs. Only the main email body will be parsed.
• To parse IOCs from attachments, create a TQO Workflow using the ThreatQ ACE Action that will process a data collection containing the attachments.

Change Log

• Version 1.0.0
  • Initial release
