abuse.ch Malwarebazaar Action

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The abuse.ch Malwarebazaar action submits data collections containing MD5, SHA-1 and SHA-256 IOCs to abuse.ch MalwareBazaar and returns Indicators, TTPs and Malware. Then, abuse.ch MalwareBazaar queries the submitted objects for enrichment and returns related threat intelligence to be ingested into the ThreatQ library.

The action can perform the following function:

  • abuse.ch MalwareBazaar - submits indicators to abuse.ch MalwareBazaar to be enriched with related threat intelligence.

The action is compatible with the following indicator types:

  • MD5
  • SHA-1
  • SHA-256

The action returns the following enriched system objects:

  • Indicators
    • Indicator Attributes
  • Indicator Tags
  • Malware
  • TTP

This action is intended for use with ThreatQ TDR Orchestrator (TQO). An active TQO license is required for this feature.

Prerequisites

The action requires the following:

  • An active ThreatQ TDR Orchestrator (TQO) license.
  • A data collection containing at least one of the following indicator types:
    • MD5
    • SHA-1
    • SHA-256
  • Abuse.ch ThreatFox API Key.

Installation

This action can be installed in the My Integration section of your ThreatQ instance. See the Installing an Action topic for more details.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Actions option from the Category dropdown (optional).
  3. Click on the action entry to open its details page.
  4. Enter the following parameters under the Configuration tab:

    The configurations set on this page will be used as the default settings when inserting this action into a new workflow. Updating the configurations on this page will not update any instances of this action that have already been deployed to a workflow. In that scenario, you must update the action’s configurations within the workflow itself.

    Parameter Description
    Auth Key Your Abuse.ch ThreatFox Auth Key.
    Enable SSL Certificate Verification Enable this parameter if the feed should validate the host-provided SSL certificate.
    Disable Proxies Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.
    Ingest MalwareBazaar Tags As Select how to ingest tags returned by the action.  Options include:
    • Tags (default)
    • Attributes
    • Both
    Supporting Context Select the pieces of context to bring into ThreatQ.  Options include:
    • Fuzzy Hash
    • SHA-256 Hash
    • SHA-384 Hash
    • SHA1 Hash
    • MD5 Hash
    • First Seen
    • Last Seen
    • Malware sample's file name
    • File size in bytes
    • MIME Type
    • File type
    • Reporter
    • Country Code
    • Related Malware
    • Tags
    • Delivery Method
    • Reference
    • YARA Rule Name
    • Related C2 Servers
    • Related TTP
    Objects Per Run The max number of objects per run to send to this action.  The max value for this parameter is 50,000.

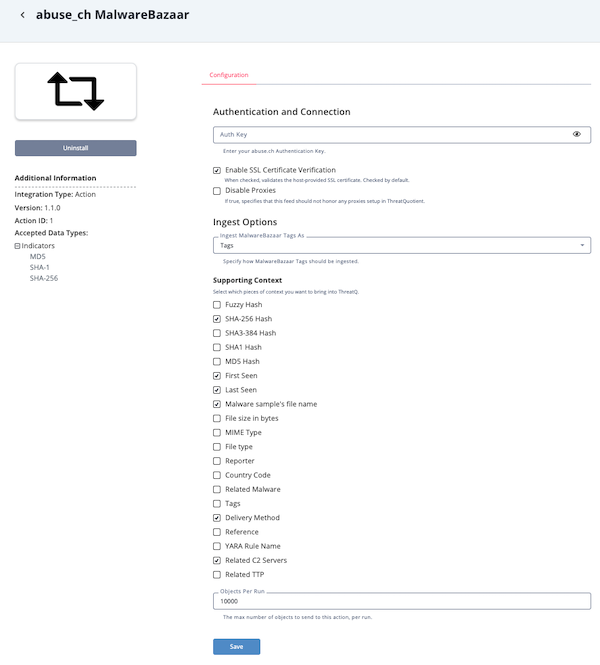

    abuse.ch MalwareBazaar Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.

Action Functions

The action provides the following functions

Function Description Object Type Object Subtype
abuse_ch MalwareBazaar Enriches IOCs using MalwareBazaar's API Indicators MD5, SHA-1, SHA-256

abuse_ch MalwareBazaar

The abuse_ch MalwareBazaar function enriches MD5, SHA-1 and SHA-256 IOCs using MalwareBazaar's API.

POST https://mb-api.abuse.ch/api/v1/

Sample Body:

Form URL-Encoded
query=get_info&hash=9cee5522a7ca2bfca7cd3d9daba23e9a30deb6205f56c12045839075f7627297

Sample Response:

{
  "data": [
    {
      "anonymous": 0,
      "archive_pw": null,
      "code_sign": [
        {
          "algorithm": "sha384WithRSAEncryption",
          "cscb_listed": true,
          "cscb_reason": "Quakbot",
          "issuer_cn": "Sectigo Public Code Signing CA R36",
          "serial_number": "626735ed30e50e3e0553986d806bfc54",
          "subject_cn": "FISH ACCOUNTING and TRANSLATING LIMITED",
          "thumbprint": "a1488004ec967faf6c66f55440bbde0de47065490f7c758f3ca1315bb0ef3b97",
          "thumbprint_algorithm": "SHA256",
          "valid_from": "2022-10-26T00:00:00Z",
          "valid_to": "2023-10-26T23:59:59Z"
        }
      ],
      "comment": null,
      "comments": null,
      "delivery_method": "Web Download",
      "dhash_icon": "b671d4ccccd46e8c",
      "file_information": [
        {
          "context": "cape",
          "value": "https://www.capesandbox.com/analysis/337299/"
        }
      ],
      "file_name": "hindmost.temp",
      "file_size": 177664,
      "file_type": "docx",
      "file_type_mime": "application\/msword",
      "first_seen": "2021-01-22 15:23:01",
      "gimphash": null,
      "imphash": "1726357b6fc2d768227af59ffbcbdfa8",
      "intelligence": {
        "clamav": [
          "SecuriteInfo.com.Win32.DangerousSig.15426.26845.UNOFFICIAL"
        ],
        "downloads": "314",
        "mail": null,
        "uploads": "2"
      },
      "last_seen": "2021-05-01 01:07:44",
      "md5_hash": "09a815f48d8a5319d88f2b8b2e4b02ab",
      "ole_information": [],
      "origin_country": "FR",
      "reporter": "Cryptolaemus1",
      "sha1_hash": "d1dfe82775c1d698dd7861d6dfa1352a74551d35",
      "sha256_hash": "9cee5522a7ca2bfca7cd3d9daba23e9a30deb6205f56c12045839075f7627297",
      "sha3_384_hash": "0896178675b3349f6890ac1a270c185ca8d2ced319768f8922e9d6b967239704fa6579d61251f3b00b01d4baaf0e9d74",
      "signature": "Heodo",
      "ssdeep": "24576:AXYkbOvnDF9dnJEd+5F6bRGiJzN8gvd4rmwd2eZL/v2mWG2mWYY:XHnDF9dnJEd+5F6bR/JzN863q/v2mWGl",
      "tags": [
        "1669024152",
        "BB07",
        "dll",
        "FISH ACCOUNTING TRANSLATING LIMITED",
        "Qakbot",
        "Quakbot",
        "signed"
      ],
      "telfhash": null,
      "tlsh": "T156256BA296149435F86CECBD243DA6062829FCB11696B583F2C07DA3B4F35D138E7E47",
      "vendor_intel": {
        "ANY.RUN": {
          "analysis_url": "https://app.any.run/tasks/57bbe8c6-a6f2-4512-8753-4416faf461df",
          "date": "2022-12-06 13:51:23",
          "file_name": "file",
          "malware_family": null,
          "tags": [
            "dll"
          ],
          "verdict": "No threats detected"
        },
        "CAPE": {
          "detection": "QakBot",
          "link": "https://www.capesandbox.com/analysis/337299/"
        },
        "CERT-PL_MWDB": {
          "detection": null,
          "link": "https://mwdb.cert.pl/sample/085f0f3f25b1328d153a7c56125e1d8a4d43bc882fe3f250d742ea5247850c02/"
        },
        "FileScan-IO": {
          "confidence": "1",
          "report_link": "https://www.filescan.io/uploads/637cf7a59c57db591d88be50/reports/1e634ed6-197b-49e8-a47b-5fbf4eaf3299/overview",
          "threatlevel": "0.5",
          "verdict": "SUSPICIOUS"
        },
        "InQuest": {
          "details": [
            {
              "category": "info",
              "description": "Found a Windows Portable Executable (PE) binary. Depending on context, the presence of a binary is suspicious or malicious.",
              "title": "Windows PE Executable"
            }
          ],
          "url": null,
          "verdict": "UNKNOWN"
        },
        "Intezer": {
          "analysis_url": "https://analyze.intezer.com/analyses/4e162ffe-f59c-4db7-ba51-a23a7a35627f?utm_source=MalwareBazaar",
          "family_name": "Qakbot",
          "verdict": "malicious"
        },
        "ReversingLabs": {
          "first_seen": "2022-11-22 16:24:10",
          "scanner_count": "26",
          "scanner_match": "16",
          "scanner_percent": "61.54",
          "status": "MALICIOUS",
          "threat_name": "Win32.Backdoor.Quakbot"
        },
        "Spamhaus_HBL": [
          {
            "detection": "suspicious",
            "link": "https://www.spamhaus.org/hbl/"
          }
        ],
        "Triage": {
          "link": "https://tria.ge/reports/221122-twcr3sdd6y/",
          "malware_config": [
            {
              "c2": "84.35.26.14:995",
              "extraction": "c2",
              "family": "qakbot"
            },
            {
              "c2": "174.45.15.123:443",
              "extraction": "c2",
              "family": "qakbot"
            }
          ],
          "malware_family": "qakbot",
          "score": "10",
          "signatures": [
            {
              "score": "10",
              "signature": "Qakbot/Qbot"
            },
            {
              "score": null,
              "signature": "Suspicious behavior: EnumeratesProcesses"
            },
            {
              "score": null,
              "signature": "Suspicious behavior: MapViewOfSection"
            },
            {
              "score": null,
              "signature": "Process spawned unexpected child process"
            }
          ],
          "tags": [
            "family:qakbot",
            "botnet:bb07",
            "campaign:1669024152",
            "banker",
            "stealer",
            "trojan"
          ]
        },
        "UnpacMe": [
          {
            "detections": [],
            "link": "https://www.unpac.me/results/9383daac-5a50-4b25-ad6d-6212a407fa6c/",
            "md5_hash": "742d7c33eed01381114e981abad801fb",
            "sha1_hash": "44f665c1408004ae67c7f4c50f80d61af6076d7c",
            "sha256_hash": "b7bd1dee74653a2f1871f9a589f2e17697ddc014b55f7e158e296601f6e00eb0"
          },
          {
            "detections": [
              "Qakbot",
              "win_qakbot_auto"
            ],
            "link": "https://www.unpac.me/results/9383daac-5a50-4b25-ad6d-6212a407fa6c/",
            "md5_hash": "cf7dcbd42a3e3b61c697e93450f78585",
            "sha1_hash": "38b2ccbc8abdd59b5cb25acce730ce26c403c589",
            "sha256_hash": "01747eb0f7df63b9df7aeff2dc51e43264adc05b4c16f4908f38352405e31342"
          },
          {
            "detections": [],
            "link": "https://www.unpac.me/results/9383daac-5a50-4b25-ad6d-6212a407fa6c/",
            "md5_hash": "09a815f48d8a5319d88f2b8b2e4b02ab",
            "sha1_hash": "e6601cb30205c8e790ac4511f0d6362b80dbb9f5",
            "sha256_hash": "085f0f3f25b1328d153a7c56125e1d8a4d43bc882fe3f250d742ea5247850c02"
          }
        ],
        "VMRay": {
          "malware_family": "QBot",
          "report_link": "https://www.vmray.com/analyses/_mb/085f0f3f25b1/report/overview.html",
          "verdict": "malicious"
        },
        "YOROI_YOMI": {
          "detection": "Malicious File",
          "score": "0.87"
        },
        "vxCube": {
          "behaviour": [
            {
              "rule": "Unauthorized injection to a system process",
              "threat_level": "suspicious"
            },
            {
              "rule": "Creating a window",
              "threat_level": "neutral"
            },
            {
              "rule": "Searching for the window",
              "threat_level": "neutral"
            },
            {
              "rule": "\u0421reating synchronization primitives",
              "threat_level": "neutral"
            },
            {
              "rule": "Launching a process",
              "threat_level": "neutral"
            },
            {
              "rule": "Searching for synchronization primitives",
              "threat_level": "neutral"
            },
            {
              "rule": "Modifying an executable file",
              "threat_level": "neutral"
            }
          ],
          "maliciousness": "62",
          "verdict": "suspicious2"
        }
      },
      "yara_rules": [
        {
          "author": "Didier Stevens (@DidierStevens)",
          "description": "Contains a valid Bitcoin address",
          "reference": "",
          "rule_name": "BitcoinAddress"
        },
        {
          "author": "kevoreilly",
          "description": "QakBot Payload",
          "reference": "",
          "rule_name": "QakBot"
        },
        {
          "author": "anonymous",
          "description": "",
          "reference": "",
          "rule_name": "QbotStuff"
        },
        {
          "author": "",
          "description": "Detects unpacked or memory-dumped QBot samples",
          "reference": "",
          "rule_name": "unpacked_qbot"
        },
        {
          "author": "Felix Bilstein - yara-signator at cocacoding dot com",
          "description": "Detects win.qakbot.",
          "reference": "",
          "rule_name": "win_qakbot_auto"
        },
        {
          "author": "Felix Bilstein - yara-signator at cocacoding dot com",
          "description": "Detects win.qakbot.",
          "reference": "",
          "rule_name": "win_qakbot_malped"
        }
      ]
    }
  ],
  "query_status": "ok"
}

ThreatQuotient provides the following default mapping for this function:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Normalization Published Date Examples
.data[0].tags Indicator.Tag / Indicator.Attribute N/A / Tag N/A / .first_seen BB07 User-configurable.
.data[0].vendor_intel.Triage.tags Indicator.Tag / Indicator.Attribute N/A / Tag N/A / .first_seen botnet:bb07 User-configurable.
.data[0].vendor_intel['ANY.RUN'].tag[] Indicator.Tag / Indicator.Attribute N/A / Tag N/A / .first_seen dll User-configurable.
.data[0].first_seen Indicator.Attribute First Seen .first_seen 2021-01-22 15:23:01 User-configurable.
.data[0].last_seen Indicator.Attribute Last Seen .first_seen 2021-05-01 01:07:44 User-configurable.
.data[0].file_size Indicator.Attribute File Size (bytes) .first_seen 177664 User-configurable.
.data[0].file_type_mime Indicator.Attribute MIME Type .first_seen application\/msword User-configurable.
.data[0].file_type Indicator.Attribute File Type .first_seen docx User-configurable.
.data[0].reporter Indicator.Attribute Reporter .first_seen Cryptolaemus1 User-configurable.
.data[0].origin_country Indicator.Attribute Origin Country .first_seen FR User-configurable.
.data[0].delivery_method Indicator.Attribute Delivery Method .first_seen Web Download User-configurable.
.data[0].file_information.value Indicator.Attribute Reference .first_seen https://www.capesandbox.com/analysis/337299/ User-configurable.
.data[0].yara_rules[].rule_name Indicator.Attribute Rule Name .first_seen win_qakbot_malped User-configurable.
.data[0].vendor_intel.Triage.malware_config.c2 Indicator.Attribute Port .first_seen 995 User-configurable. If .vendor_intel.Triage.malware_config.extraction is c2
.data[0].md5_hash Related Indicator.Value MD5 .first_seen 09a815f48d8a5319d88f2b8b2e4b02ab User-configurable.
.data[0].sha1_hash Related Indicator.Value SHA-1 .first_seen d1dfe82775c1d698dd7861d6dfa1352a74551d35 User-configurable.
.data[0].sha256_hash Related Indicator.Value SHA-256 .first_seen 9cee5522a7ca2bfca7cd3d9daba23e9a30deb6205f56c12045839075f7627297 User-configurable.
.data[0].sha3_384_hash Related Indicator.Value SHA-384 .first_seen 0896178675b3349f6890ac1a270c185ca8d2ced319768f8922e9d6b967239704fa6579d61251f3b00b01d4baaf0e9d74 User-configurable.
.data[0].file_name Related Indicator.Value Filename .first_seen hindmost.temp User-configurable.
.data[0].vendor_intel.Triage.malware_config.c2 Related Indicator.Value URL .first_seen N/A User-configurable. If .vendor_intel.Triage.malware_config.extraction is dropper
.data[0].vendor_intel.Triage.malware_config.c2 Related Indicator.Value IP Address .first_seen 84.35.26.14 User-configurable. If .vendor_intel.Triage.malware_config.extraction is c2
.data[0].value.vendor_intel.Triage.signatures.signature Related TTP.Value N/A .first_seen Process spawned unexpected child process User-configurable.
.data[0].signature Related Malware.Value N/A .first_seen Heodo User-configurable.
.data[0].ssdeep Related Indicator.Value Fuzzy Hash .first_seen 24576:AXYkbOvnDF9dnJEd+5F6bRGiJzN8gvd4rmwd2eZL/v2mWG2mWYY:XHnDF9dnJEd+5F6bR/JzN863q/v2mWGl User-configurable.

Enriched Data

Object counts and action runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Metric Result
Run Time 2 minute
Indicators 150
Indicator Attributes 1,456
Indicator Tags 25
Malware 76
TTP 35

Use Case Example

  1. A user submits a data collection using the abuse.ch MalwareBazaar action to the abuse.ch MalwareBazaar with a data collection containing 350 system objects (100 MD5, 75 SHA-1, 75 SHA-256).
  2. The abuse.ch MalwareBazaar queries the submitted data.
  3. The action returns the submitted data collection enriched with the following:
    • 99 Indicators
    • 30 Indicator Attributes
    • 20 Indicator Tags
    • 3 Malware
    • 5 TTP

Change Log

  • Version 1.1.0
    • Adds support for authenticating with the API.
    • Adds the ability to enable SSL certificate verification.
    • Adds the ability to disable proxies.
  • Version 1.0.0
    • Initial release

PDF Guides

Document ThreatQ Version
abuse.ch Malwarebazaar Action Guide v1.1.0 5.6 or Greater
abuse.ch Malwarebazaar Action Guide v1.0.0 5.6 or Greater
