STIX 2.1 Data Mapping

Although the ThreatQ STIX parser does not support version 2.1, it will parse 2.1 files in the same manner as 2.0 files. As such, it does not parse any object types introduced in STIX 2.1, except for Notes and Incident objects as well as Confidence values.

• Notes MappingNotes Mapping

  STIX 2.1 Field	ThreatQ Field Mapping	ThreatQ Name
  abstract		Object Value
  type		"note"
  external_references[]	See External References	External Reference
  content		Description
  authors		Note Author
  created	Notes.Published_At
  modified	Notes.Attribute	Modified At
  object_refs	object_marking_refs

• Incident MappingIncident Mapping

  STIX 2.1 Field	ThreatQ Field Mapping	ThreatQ Name
  name		Object Value
  type		"incident"
  external_references[]	See External References	External Reference
  description		Description
  created	Incident.Published_At
  modified	Incident.Attribute	Modified At
  object_refs	object_marking_refs

• Infrastructure MappingInfrastructure Mapping

  STIX 2.1 Field	ThreatQ Field Mapping	ThreatQ Name
  name		value
  type		"infrastructure"
  id		TQUUID
  description		Description
  created	Infrastructure.Created_At
  modified	Infrastructure.Attribute	Modified At
  infrastructure_types		infrastructure_type
  kill_chain_phases.[]	See Kill Chain Table

  • Kill Chain Phase:
  • When you import an infrastructure object that includes Kill Chain Phase information from a STIX file, this information is imported as attributes with the attribute name prefaced with the “Kill Chain:”. For example, if you import the InfraOne infrastructure item, it has an attribute of KillChain: mitre-attack.

  • When you export an infrastructure object that includes Kill Chain: attributes to a STIX file, these attributes are exported as Kill Chain Phase information.
  • Infrastructure Types:
  • When you importing an infrastructure object, we convert the list infrastructure_types from the STIX field into attributes with the name infrastructure_type (singular) and setting their respective values.
  • When you export an infrastructure object, these attributes are exported as infrastructure_types information.

External References

Common Properties

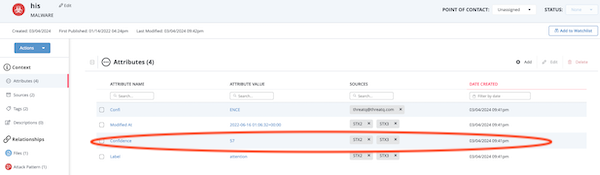

Confidence Values:

ThreatQ allows you to import system object Confidence values from STIX 2.1 files as attributes. Confidence is an optional value that specifies the confidence of the object creator in their data on a scale from zero to one hundred.
