Current ThreatQ Version Filter

UrlScan.io Operation

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The URLScan.io Operation for ThreatQuotient enables a ThreatQ user to submit URLs to URLScan.io, as well as query URLScan.io for any results on a URL.

The operation provides the following actions:

  • Search - queries URLScan.io for a specific indicator found in any public submission reports.
  • Get Report - retrieves a report for any scan IDs found in the indicator's attributes.
  • Submit - submits a URL, FQDN,or IP Address to URLScan.io.

The integration is compatible with the following indicator types:

  • FQDN
  • IP Address
  • SHA-256
  • URL

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the integration file.
  3. Navigate to the integrations management page on your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the integration file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the integration file on your local machine

    ThreatQ will inform you if the operation already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the operation contains changes to the user configuration. The new user configurations will overwrite the existing ones for the operation and will require user confirmation before proceeding.

The operation is now installed and will be displayed in the ThreatQ UI. You will still need to configure and then enable the operation.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Operation option from the Type dropdown (optional).
  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:
    Parameter Description
    API Key Your URLScan.io API key.
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

Actions

The UrlScan.io operation provides the following actions:

Action Description Object Type Object Subtype
Submit Submits a URL, FQDN, or IP Address to URLScan.io.  Indicator FQDN, IP Address, URL
Get Reports Retrieves a report for any scan IDs found in the indicator's attributes. Indicator FQDN, IP Address, URL
Search Queries URLScan.io for a specific indicator found in any public submission reports. Indicator FQDN, IP Address,  SHA-256, URL

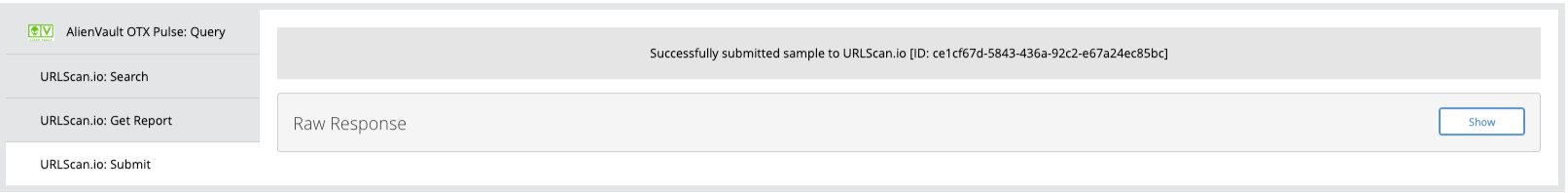

Submit

The Submit action will submit a URL or FQDN to URLScan.io. Once submitted, an attribute called URLScan.io ID will be added to the indicator.

POST https://urlscan.io/api/v1/scan/

Sample Response:

{
  "result": "https://urlscan.io/result/019cf79e-69b7-758f-9c94-c322af9f0006/",
  "api": "https://urlscan.io/api/v1/result/019cf79e-69b7-758f-9c94-c322af9f0006/",
  "message": "Submission successful",
  "uuid": "019cf79e-69b7-758f-9c94-c322af9f0006",
  "options": {},
  "visibility": "private",
  "url": "http://amazon.com/"
}

ThreatQuotient provides the following default mapping for this operation action:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.uuid Indicator.Attribute URLScan.io ID N/A 019cf79e-69b7-758f-9c94-c322af9f0006 N/A

Run Configuration Options

These configuration options are set after selecting the action to run against an object and are not set from the operation's configuration screen.

The following parameters are available for the Submit action:

Parameter Description
Public Select whether the scan will be publicly visible.  This option is not enabled by default.
Tags Enter one or more tags, in line-separated format, to be added to the submission.

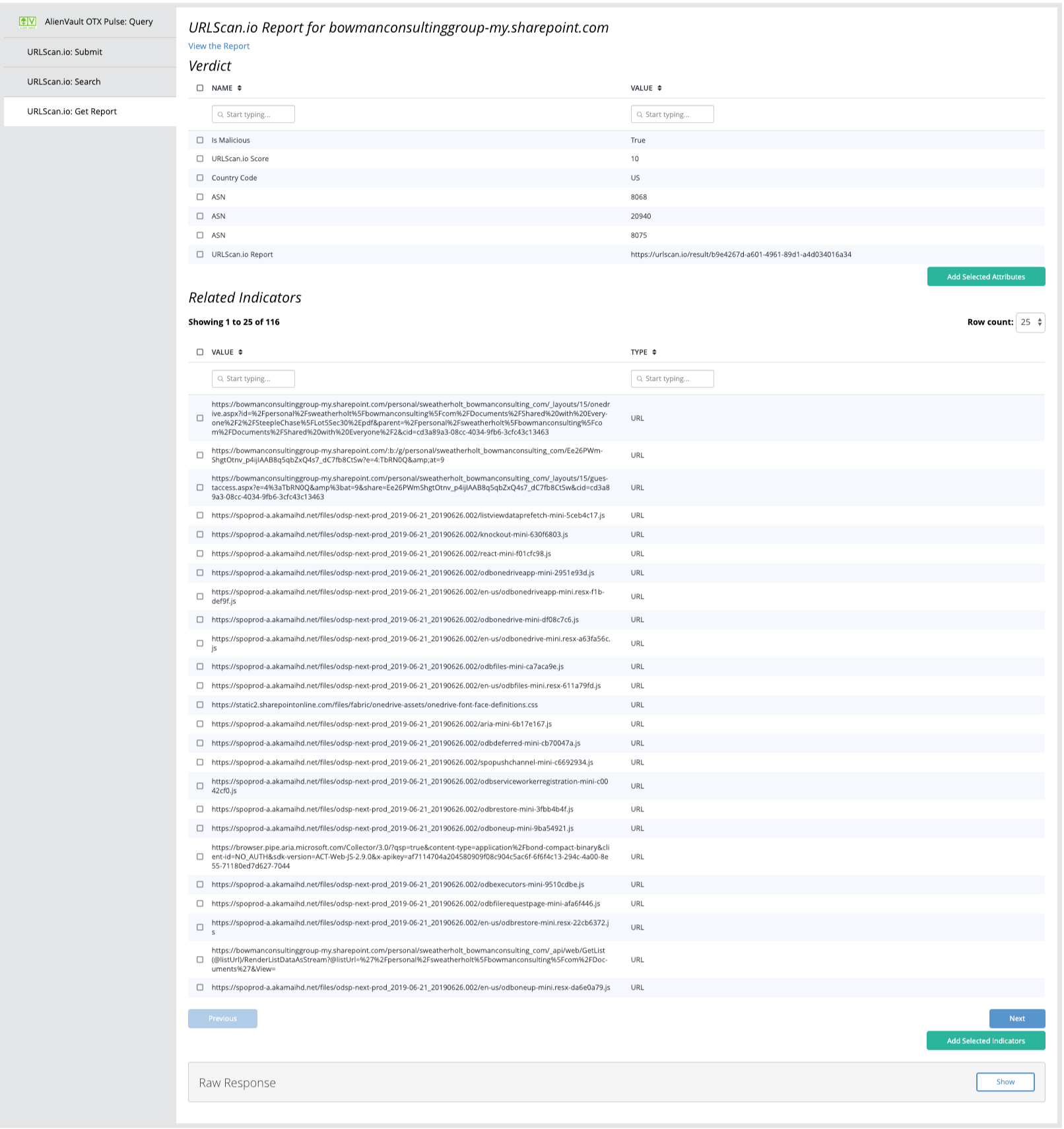

Get Reports

The Get Reports action will retrieve a report for any scan IDs found in the indicator's attributes.

GET https://urlscan.io/api/v1/result/{uuid}

Sample Response:

{
  "task": {
    "uuid": "019cf7ef-8a8c-7618-a8c1-cd3b11390427",
    "url": "http://threatq.com/",
    "reportURL": "https://urlscan.io/result/019cf7ef-8a8c-7618-a8c1-cd3b11390427/",
    "screenshotURL": "https://urlscan.io/screenshots/019cf7ef-8a8c-7618-a8c1-cd3b11390427.png"
  },
  "page": {
    "domain": "www.threatq.com",
    "ip": "198.202.211.1",
    "asn": "AS209242",
    "asnname": "CLOUDFLARESPECTRUM Cloudflare London, LLC, US",
    "country": "US",
    "city": "",
    "tlsAgeDays": 31,
    "tlsValidDays": 90,
    "url": "https://www.threatq.com/",
    "title": "ThreatQ Threat Intelligence Platform I ThreatQuotient"
  },
  "verdicts": {
    "urlscan": {
      "tags": [],
      "hasVerdicts": false,
      "categories": [],
      "score": 0,
      "brands": [],
      "malicious": false
    },
    "engines": {
      "tags": ["urlscan-ml", "urlscan-ml-60c5e22"],
      "benignTotal": 0,
      "hasVerdicts": true,
      "enginesTotal": 0,
      "categories": [],
      "maliciousTotal": 0,
      "score": -100,
      "maliciousVerdicts": [],
      "benignVerdicts": [],
      "malicious": false
    },
    "overall": {
      "tags": [],
      "hasVerdicts": true,
      "categories": [],
      "score": 0,
      "brands": [],
      "malicious": false
    },
    "community": {
      "votesBenign": 0,
      "votesMalicious": 0,
      "hasVerdicts": false,
      "votesTotal": 0,
      "score": 0,
      "malicious": false,
      "categories": [],
      "brands": []
    }
  },
  "stats": {
    "ipStats": [
      {
        "ip": "198.202.211.1",
        "domains": ["threatq.com", "www.threatq.com"],
        "asn": {
          "asn": "209242",
          "name": "CLOUDFLARESPECTRUM Cloudflare London"
        },
        "requests": 2,
        "geoip": {
          "country": "US",
          "region": "",
          "city": "",
          "ll": [37.751, -97.822]
        }
      }
    ]
  },
  "meta": {
    "processors": {
      "rdns": {
        "data": [
          {
            "ip": "192.178.155.95",
            "ptr": "yuiadrs-in-f95.1e100.net"
          }
        ]
      },
      "wappa": {
        "data": [
          {
            "app": "Sentry",
            "confidenceTotal": 100,
            "categories": [
              {
                "name": "Issue trackers"
              }
            ]
          }
        ]
      }
    }
  },
  "data": {
    "links": [
      {
        "href": "https://www.securonix.com/breach-ready-board-ready-ai-powered",
        "text": "LEARN MORE"
      }
    ]
  },
  "lists": {
    "domains": ["cdn.prod.website-files.com"],
    "linkDomains": ["www.securonix.com"],
    "urls": ["https://www.threatq.com/"],
    "hashes": [
      "8bbdc45c5dc033a915a5ded5a130a7ec41c10b0e9c7d398013e008356c3858c9"
    ],
    "ips": ["3.160.5.91"]
  }
}

The following parameters are available for the Get Reports action:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.page.domain Related Indicator.Value FQDN N/A www.threatq.com Submission Indicators
.page.ip Related Indicator.Value IP Address N/A 198.202.211.1 Submission Indicators
.page.asn Related Indicator.Value ASN N/A 209242 Submission Indicators; removes the AS prefix
.page.url Related Indicator.Value URL N/A https://www.threatq.com/ Submission Indicators
.page.asn Indicator.Attribute ASN N/A 209242 Verdict Metadata; removes the AS prefix
.page.asnname Indicator.Attribute AS Organization N/A CLOUDFLARESPECTRUM Cloudflare London, LLC, US Verdict Metadata
.page.title Indicator.Attribute Site Title N/A ThreatQ Threat Intelligence Platform I ThreatQuotient Verdict Metadata
.page.country Indicator.Attribute Country Code N/A US Verdict Metadata
.page.tlsAgeDays Indicator.Attribute TLS Age N/A 31 Verdict Metadata
.page.tlsValidDays Indicator.Attribute TLS Valid Days N/A 90 Verdict Metadata
.verdicts.overall.score Indicator.Attribute URLScan.io Score N/A 0 Verdict Metadata
.verdicts.overall.malicious Indicator.Attribute Is Malicious N/A false Verdict Metadata
.task.uuid Indicator.Attribute URLScan.io Report N/A 019cf7ef-8a8c-7618-a8c1-cd3b11390427 Verdict Metadata; used to build the report URL
.stats.ipStats[].ip Related Indicator.Value IP Address N/A 198.202.211.1 IP Details
.meta.processors.rdns.data[].ptr Related Indicator.Value FQDN N/A yuiadrs-in-f95.1e100.net Reverse DNS
.data.links[].href Related Indicator.Value URL N/A https://www.securonix.com/breach-ready-board-ready-ai-powered Outgoing Links
.stats.ipStats[].ip Related Indicator.Value IP Address N/A 198.202.211.1 GeoIP Data
.meta.processors.wappa.data[].app Indicator.Attribute Technology N/A Sentry Technologies
.lists.domains[] Related Indicator.Value FQDN N/A cdn.prod.website-files.com All Indicators
.lists.linkDomains[] Related Indicator.Value FQDN N/A www.securonix.com All Indicators
.lists.urls[] Related Indicator.Value URL N/A https://www.threatq.com/ All Indicators
.lists.hashes[] Related Indicator.Value SHA-256 N/A 8bbdc45c5dc033a915a5ded5a130a7ec41c10b0e9c7d398013e008356c3858c9 All Indicators
.lists.ips[] Related Indicator.Value IP Address N/A 3.160.5.91 All Indicators

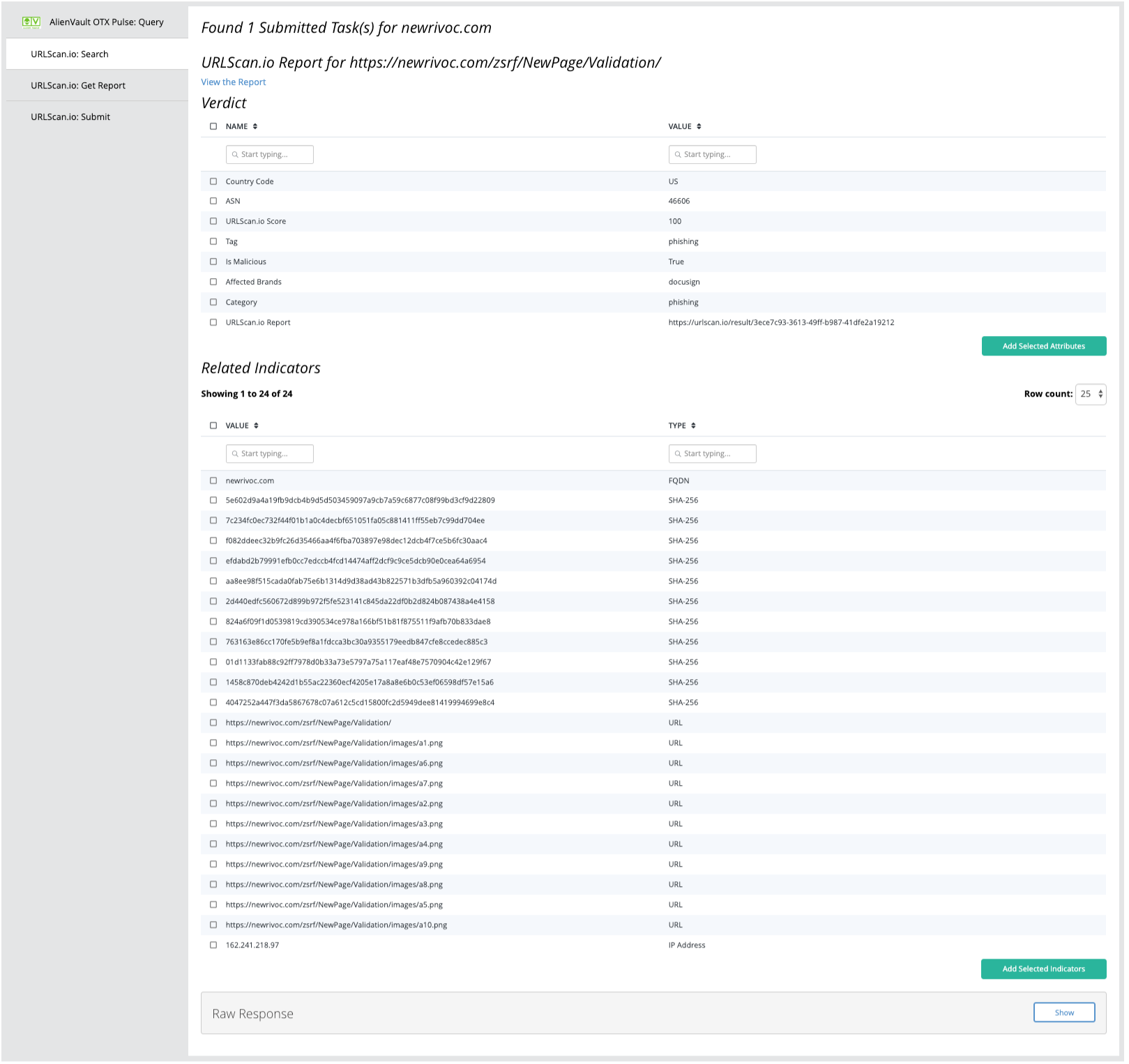

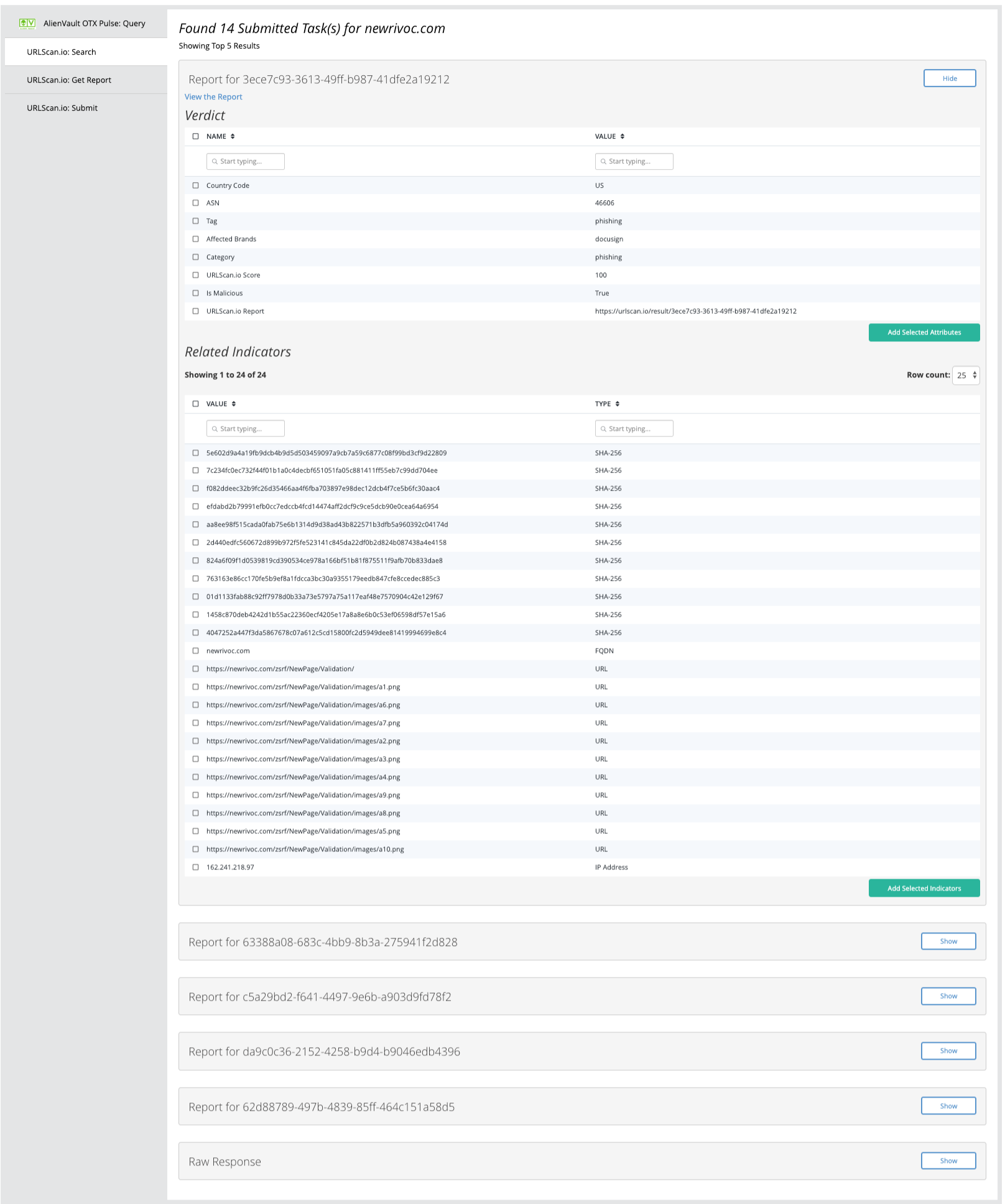

Search

The Search action queries URLScan.io for a specific indicator found in any public submission reports. For each exact match, the operation then retrieves the full report and renders it using the same output as the Get Report action.

The operation applies the same mappings shown in the Get Report section above.

GET https://urlscan.io/api/v1/search/?q={indicator}

Sample Response:

{
  "results": [
    {
      "task": {
        "url": "http://threatq.com/",
        "visibility": "private",
        "apexDomain": "threatq.com",
        "method": "api",
        "uuid": "019cf7ef-8a8c-7618-a8c1-cd3b11390427",
        "domain": "threatq.com",
        "time": "2026-03-16T18:36:54.339Z"
      },
      "stats": {
        "encodedDataLength": 8599910,
        "requests": 91,
        "dataLength": 13183123,
        "uniqCountries": 2,
        "uniqIPs": 23
      },
      "page": {
        "tlsAgeDays": 31,
        "language": "en",
        "domainAgeDays": 2855,
        "mimeType": "text/html",
        "status": "200",
        "ip": "198.202.211.1",
        "tlsIssuer": "WE1",
        "domain": "www.threatq.com",
        "url": "https://www.threatq.com/",
        "title": "ThreatQ Threat Intelligence Platform I ThreatQuotient",
        "tlsValidFrom": "2026-02-13T14:55:47.000Z",
        "asn": "AS209242",
        "tlsValidDays": 90,
        "apexDomain": "threatq.com",
        "redirected": "sub-domain",
        "country": "US",
        "server": "cloudflare",
        "apexDomainAgeDays": 4105,
        "asnname": "CLOUDFLARESPECTRUM Cloudflare London, LLC, US"
      },
      "_id": "019cf7ef-8a8c-7618-a8c1-cd3b11390427",
      "screenshot": "https://urlscan.io/screenshots/019cf7ef-8a8c-7618-a8c1-cd3b11390427.png",
      "_score": null,
      "submitter": {},
      "sort": [1773686214339, "019cf7ef-8a8c-7618-a8c1-cd3b11390427"],
      "result": "https://urlscan.io/api/v1/result/019cf7ef-8a8c-7618-a8c1-cd3b11390427/"
    }
  ]
}

Change Log

  • Version 1.1.0
    • The following additional context will now be included in returned reports:
      • Reverse DNS
      • Geolocation Info
      • Outgoing Links
      • Tech Stack Analysis
      • List of all extracted indicators
      • Screenshot of page
    • Updated the minimum ThreatQ version to 5.9.0.
  • Version 1.0.2
    • Corrected version number displayed after installation.
    • Fixed an issue where the schema was stripped from URLs.
    • Fixed an issue where the integration did not honor customer-set proxy configurations.
  • Version 1.0.0
    • Initial release

PDF Guides

Document ThreatQ Version
URLScan.io Operation Guide v1.1.0 5.9.0 or Greater
URLScan.io Operation Guide v1.0.2 4.0.0 or Greater
URLScan.io Operation Guide v1.0.0 4.20 or Greater
