ThreatQ STIX 2.1 Exporter Operation

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The STIX 2.1 Exporter Operation for ThreatQ enables an analyst to export an object and its relationships to STIX 2.1 format.

The operation includes the following actions:

  • Create Bundle - creates a STIX 2.1 bundle from an object and its relationships.
  • Create Sighting - creates a STIX 2.1 sighting from an object and its relationships.

The integration's actions are compatible with the following object types:

  • Adversary
  • Attack Pattern
  • Campaign
  • Course Of Action
  • Event
  • Exploit Target
  • Identity
  • Incident
  • Indicator
  • Intrusion Set
  • Malware
  • Report
  • Tool
  • Vulnerability

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the integration whl file.
  3. Navigate to the integrations management page on your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the integration file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the integration file on your local machine

    ThreatQ will inform you if the operation already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the operation contains changes to the user configuration. The new user configurations will overwrite the existing ones for the operation and will require user confirmation before proceeding.

The operation is now installed and will be displayed in the ThreatQ UI. You will still need to configure and then enable the operation.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Operation option from the Type dropdown (optional).
  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:
    Parameter Description
    Convert Events to Which Object Select the STIX object type to convert events to or to ignore events.
    Hostname Optional- Your ThreatQ hostname or IP address for creating links back to this instance.

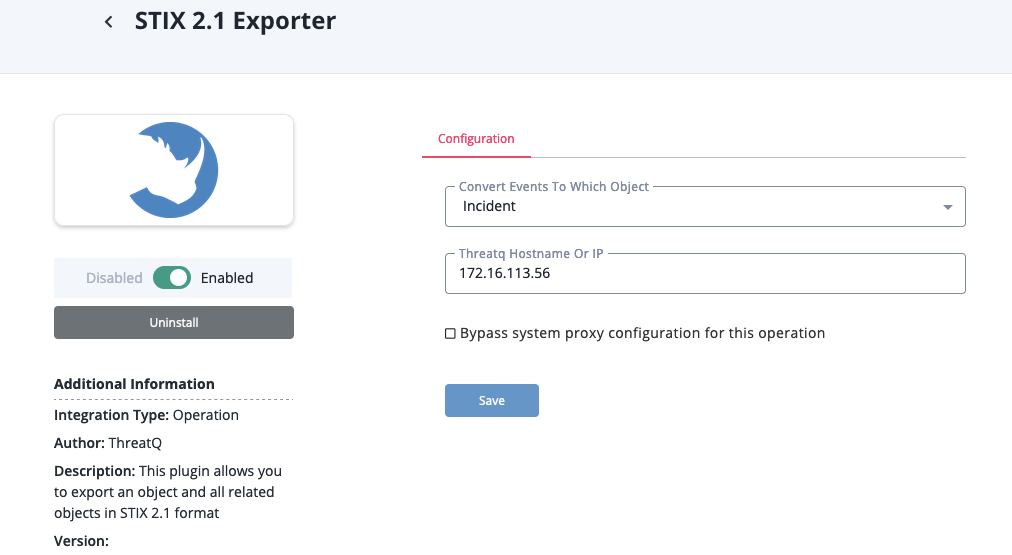

    Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

Actions

The operation provides the following actions:

Action Description Object Type Object Subtype
Create Bundle Create a STIX 2.1 bundle from an object and its' relationships. Indicator, Adversary, Attack Pattern, Campaign, Malware, Course of Action, Exploit Target, Intrusion Set, Incident, Tool, Identity N/A
Create Sighting Create a STIX 2.1 sighting from an object and its' relationships. Indicator, Incident, Event N/A

Create Bundle

The Create Bundle action creates a STIX 2.1 bundle from an Object and its' relationships.

Action Parameters

When selecting the action, you will be prompted with the following parameters:

Parameter Description
Relationships Depth Set how many relationship levels to fetch.  The max setting is 2.
TLP Selection Use the checkboxes to select which TLP designations to include with the STIX bundle.  All options are selected by default.
Hide Original Sources Use the checkbox to select if the original sources will be hidden in the export.  This parameter is unchecked by default.

Create Bundle Action Parameters

Sample Output Bundle

Below is a sample output JSON file containing the STIX 2.1 bundle. This bundle will be uploaded and related as a File in ThreatQ.

{
    "id": "bundle--d4882900-5a35-4c75-af9c-06eb6e43d6f3",
    "objects": [
        {
            "created": "2021-10-07T14:19:15.000Z",
            "external_references": [
                {
                    "description": "Intelligence exported from ThreatQ",
                    "source_name": "ThreatQ"
                },
                {
                    "description": "Intelligence reported by CrowdStrike Insight EDR - Detections",
                    "source_name": "CrowdStrike Insight EDR - Detections"
                }
            ],
            "id": "incident--e583e41d-f0fb-41f2-a0e0-4be063713bda",
            "modified": "2021-10-07T14:19:54.000Z",
            "name": "High Severity Detection on WIN10DETECTION - ldt:4c3db6145a704a179a6dacd924f6e8cc:68731692068",
            "spec_version": "2.1",
            "type": "incident"
        },
        {
            "created": "2021-10-07T14:05:58.000Z",
            "external_references": [
                {
                    "description": "Intelligence exported from ThreatQ",
                    "source_name": "ThreatQ"
                },
                {
                    "description": "Intelligence reported by CrowdStrike Insight EDR - Detections",
                    "source_name": "CrowdStrike Insight EDR - Detections"
                }
            ],
            "id": "indicator--5c66c742-b2f4-4b6b-8d15-92142cc5aac4",
            "modified": "2021-10-07T14:19:58.000Z",
            "name": "123328fe9a690ad5854c9e6d37ffbb38cd35af0e39c9b35e8567e914cdab266f",
            "pattern": "[file:hashes.'SHA-256' = '123328fe9a690ad5854c9e6d37ffbb38cd35af0e39c9b35e8567e914cdab266f']",
            "pattern_type": "stix",
            "pattern_version": "2.1",
            "spec_version": "2.1",
            "type": "indicator",
            "valid_from": "2021-10-07T14:05:58Z"
        },
        {
            "created": "2021-10-21T21:02:46.435848Z",
            "id": "relationship--8bf2b521-6791-48d3-a7fd-4fc9d3d61cd2",
            "modified": "2021-10-21T21:02:46.435848Z",
            "relationship_type": "related-to",
            "source_ref": "incident--e583e41d-f0fb-41f2-a0e0-4be063713bda",
            "spec_version": "2.1",
            "target_ref": "indicator--5c66c742-b2f4-4b6b-8d15-92142cc5aac4",
            "type": "relationship"
        },
        {
            "created": "2021-10-07T14:05:58.000Z",
            "external_references": [
                {
                    "description": "Intelligence exported from ThreatQ",
                    "source_name": "ThreatQ"
                },
                {
                    "description": "Intelligence reported by CrowdStrike Insight EDR - Detections",
                    "source_name": "CrowdStrike Insight EDR - Detections"
                }
            ],
            "id": "indicator--c4e904e9-884d-46f2-9f3c-c2adddcf9fff",
            "modified": "2021-10-07T14:19:58.000Z",
            "name": "3b35d89b10e561e05006e0a101154348",
            "pattern": "[file:hashes.'MD5' = '3b35d89b10e561e05006e0a101154348']",
            "pattern_type": "stix",
            "pattern_version": "2.1",
            "spec_version": "2.1",
            "type": "indicator",
            "valid_from": "2021-10-07T14:05:58Z"
        },
        {
            "created": "2021-10-21T21:02:46.436108Z",
            "id": "relationship--577e3b8b-5a97-4cf0-914f-7ba9677c1923",
            "modified": "2021-10-21T21:02:46.436108Z",
            "relationship_type": "related-to",
            "source_ref": "incident--e583e41d-f0fb-41f2-a0e0-4be063713bda",
            "spec_version": "2.1",
            "target_ref": "indicator--c4e904e9-884d-46f2-9f3c-c2adddcf9fff",
            "type": "relationship"
        },
        {
            "created": "2021-10-07T14:05:58.000Z",
            "external_references": [
                {
                    "description": "Intelligence exported from ThreatQ",
                    "source_name": "ThreatQ"
                },
                {
                    "description": "Intelligence reported by CrowdStrike Insight EDR - Detections",
                    "source_name": "CrowdStrike Insight EDR - Detections"
                }
            ],
            "id": "attack-pattern--de1a0a82-dc07-44d8-ba5b-11ecf5a37cf9",
            "modified": "2021-10-07T14:19:58.000Z",
            "name": "CST0005 - Indicator of Compromise",
            "spec_version": "2.1",
            "type": "attack-pattern"
        },
        {
            "created": "2021-10-21T21:02:46.437427Z",
            "id": "relationship--29c7452d-edac-4a54-8185-5bdafec27d5f",
            "modified": "2021-10-21T21:02:46.437427Z",
            "relationship_type": "related-to",
            "source_ref": "incident--e583e41d-f0fb-41f2-a0e0-4be063713bda",
            "spec_version": "2.1",
            "target_ref": "attack-pattern--de1a0a82-dc07-44d8-ba5b-11ecf5a37cf9",
            "type": "relationship"
        },
        {
            "created": "2021-10-07T14:05:58.000Z",
            "external_references": [
                {
                    "description": "Intelligence exported from ThreatQ",
                    "source_name": "ThreatQ"
                },
                {
                    "description": "Intelligence reported by CrowdStrike Insight EDR - Detections",
                    "source_name": "CrowdStrike Insight EDR - Detections"
                }
            ],
            "id": "attack-pattern--a4314d5f-7906-47d0-8829-ffcff84e939b",
            "modified": "2021-10-07T14:19:58.000Z",
            "name": "CST0008 - Cloud-based ML",
            "spec_version": "2.1",
            "type": "attack-pattern"
        },
        {
            "created": "2021-10-21T21:02:46.437647Z",
            "id": "relationship--5007d994-91ac-4a0e-8a6b-752447ff4e86",
            "modified": "2021-10-21T21:02:46.437647Z",
            "relationship_type": "related-to",
            "source_ref": "incident--e583e41d-f0fb-41f2-a0e0-4be063713bda",
            "spec_version": "2.1",
            "target_ref": "attack-pattern--a4314d5f-7906-47d0-8829-ffcff84e939b",
            "type": "relationship"
        }
    ],
    "type": "bundle"
}

Create Sighting

Create a STIX 2.1 sighting from an Object and its' relationships.

Action Parameters

When selecting the action, you will be prompted with the following parameters:

Parameter Description
Relationships Depth Set how many relationship levels to fetch.  The max setting is 2.
Hide Original Sources Use the checkbox to select if the original sources will be hidden in the export.  This parameter is unchecked by default.

Create Sighting Action Parameters

Sample Output Sighting

Below is a sample output JSON file containing the STIX 2.1 sighting. This sighting will be uploaded and related as a File in ThreatQ.

{
    "id": "bundle--d4882900-5a35-4c75-af9c-06eb6e43d6f3",
    "objects": [
        {
            "created": "2021-10-07T14:19:15.000Z",
            "external_references": [
                {
                    "description": "Intelligence exported from ThreatQ",
                    "source_name": "ThreatQ"
                },
                {
                    "description": "Intelligence reported by CrowdStrike Insight EDR - Detections",
                    "source_name": "CrowdStrike Insight EDR - Detections"
                }
            ],
            "id": "incident--e583e41d-f0fb-41f2-a0e0-4be063713bda",
            "modified": "2021-10-07T14:19:54.000Z",
            "name": "High Severity Detection on WIN10DETECTION - ldt:4c3db6145a704a179a6dacd924f6e8cc:68731692068",
            "spec_version": "2.1",
            "type": "incident"
        },
        {
            "created": "2021-10-07T14:05:58.000Z",
            "external_references": [
                {
                    "description": "Intelligence exported from ThreatQ",
                    "source_name": "ThreatQ"
                },
                {
                    "description": "Intelligence reported by CrowdStrike Insight EDR - Detections",
                    "source_name": "CrowdStrike Insight EDR - Detections"
                }
            ],
            "id": "indicator--5c66c742-b2f4-4b6b-8d15-92142cc5aac4",
            "modified": "2021-10-07T14:19:58.000Z",
            "name": "123328fe9a690ad5854c9e6d37ffbb38cd35af0e39c9b35e8567e914cdab266f",
            "pattern": "[file:hashes.'SHA-256' = '123328fe9a690ad5854c9e6d37ffbb38cd35af0e39c9b35e8567e914cdab266f']",
            "pattern_type": "stix",
            "pattern_version": "2.1",
            "spec_version": "2.1",
            "type": "indicator",
            "valid_from": "2021-10-07T14:05:58Z"
        },
        {
            "created": "2021-10-21T21:02:46.435848Z",
            "id": "relationship--8bf2b521-6791-48d3-a7fd-4fc9d3d61cd2",
            "modified": "2021-10-21T21:02:46.435848Z",
            "relationship_type": "related-to",
            "source_ref": "incident--e583e41d-f0fb-41f2-a0e0-4be063713bda",
            "spec_version": "2.1",
            "target_ref": "indicator--5c66c742-b2f4-4b6b-8d15-92142cc5aac4",
            "type": "relationship"
        },
        {
            "created": "2021-10-07T14:05:58.000Z",
            "external_references": [
                {
                    "description": "Intelligence exported from ThreatQ",
                    "source_name": "ThreatQ"
                },
                {
                    "description": "Intelligence reported by CrowdStrike Insight EDR - Detections",
                    "source_name": "CrowdStrike Insight EDR - Detections"
                }
            ],
            "id": "indicator--c4e904e9-884d-46f2-9f3c-c2adddcf9fff",
            "modified": "2021-10-07T14:19:58.000Z",
            "name": "3b35d89b10e561e05006e0a101154348",
            "pattern": "[file:hashes.'MD5' = '3b35d89b10e561e05006e0a101154348']",
            "pattern_type": "stix",
            "pattern_version": "2.1",
            "spec_version": "2.1",
            "type": "indicator",
            "valid_from": "2021-10-07T14:05:58Z"
        },
        {
            "created": "2021-10-21T21:02:46.436108Z",
            "id": "relationship--577e3b8b-5a97-4cf0-914f-7ba9677c1923",
            "modified": "2021-10-21T21:02:46.436108Z",
            "relationship_type": "related-to",
            "source_ref": "incident--e583e41d-f0fb-41f2-a0e0-4be063713bda",
            "spec_version": "2.1",
            "target_ref": "indicator--c4e904e9-884d-46f2-9f3c-c2adddcf9fff",
            "type": "relationship"
        },
        {
            "created": "2021-10-07T14:05:58.000Z",
            "external_references": [
                {
                    "description": "Intelligence exported from ThreatQ",
                    "source_name": "ThreatQ"
                },
                {
                    "description": "Intelligence reported by CrowdStrike Insight EDR - Detections",
                    "source_name": "CrowdStrike Insight EDR - Detections"
                }
            ],
            "id": "attack-pattern--de1a0a82-dc07-44d8-ba5b-11ecf5a37cf9",
            "modified": "2021-10-07T14:19:58.000Z",
            "name": "CST0005 - Indicator of Compromise",
            "spec_version": "2.1",
            "type": "attack-pattern"
        },
        {
            "created": "2021-10-21T21:02:46.437427Z",
            "id": "relationship--29c7452d-edac-4a54-8185-5bdafec27d5f",
            "modified": "2021-10-21T21:02:46.437427Z",
            "relationship_type": "related-to",
            "source_ref": "incident--e583e41d-f0fb-41f2-a0e0-4be063713bda",
            "spec_version": "2.1",
            "target_ref": "attack-pattern--de1a0a82-dc07-44d8-ba5b-11ecf5a37cf9",
            "type": "relationship"
        },
        {
            "created": "2021-10-07T14:05:58.000Z",
            "external_references": [
                {
                    "description": "Intelligence exported from ThreatQ",
                    "source_name": "ThreatQ"
                },
                {
                    "description": "Intelligence reported by CrowdStrike Insight EDR - Detections",
                    "source_name": "CrowdStrike Insight EDR - Detections"
                }
            ],
            "id": "attack-pattern--a4314d5f-7906-47d0-8829-ffcff84e939b",
            "modified": "2021-10-07T14:19:58.000Z",
            "name": "CST0008 - Cloud-based ML",
            "spec_version": "2.1",
            "type": "attack-pattern"
        },
        {
            "created": "2021-10-21T21:02:46.437647Z",
            "id": "relationship--5007d994-91ac-4a0e-8a6b-752447ff4e86",
            "modified": "2021-10-21T21:02:46.437647Z",
            "relationship_type": "related-to",
            "source_ref": "incident--e583e41d-f0fb-41f2-a0e0-4be063713bda",
            "spec_version": "2.1",
            "target_ref": "attack-pattern--a4314d5f-7906-47d0-8829-ffcff84e939b",
            "type": "relationship"
        }
    ],
    "type": "bundle"
}

Known Issues / Limitations

  • STIX 2.1 Indicator/Observable objects can have multiple "indicators" associated with them so external references will not contain a URL back to the ThreatQ platform.

Change Log

  • Version 1.1.3
    • Resolved an issue where customers encountered an Operation Setup Failure error when attempting to install the operation in an air-gapped environment.
  • Version 1.1.2
    • Resolved an export issue with Campaigns without a start or end date.
  • Version 1.1.1
    • Fixed an object reference issue for Reports.
    • Added support for Filename indicators.
  • Version 1.1.0
    • Updated the operation to ThreatQuotient Engineering standards.  The support tier has been updated from Not Supported to ThreatQ Supported.
    • The Convert Events to Incident Objects configuration parameter has been updated to Convert Events to Which Object.  You can now select the type of STIX object to convert events to or to ignore the events.  See the Configuration chapter for more details.
    • Added a new parameter to the Create Bundle Action: TLP selection.  See the Actions chapter for more details.
    • Added support for the Intrusion Set system object.
    • Fixed issues where
      • The Hide Original Source action configuration setting was not followed.
      • Exploit Target system objects were not correctly supported.
      • The Create Sighting action did not correctly support SHA-384, SHA-512, ASN, File Path, Mutex, and Registry Key types.
      • An error would occasionally occur for indicators regarding the last_seen and first_seen entries.
  • Version 1.0.0
    • Initial release
