The web format of this guide reflects the most current release. Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Current Integration Version

1.1.1

Compatible with ThreatQ Versions

>= 4.40.0

Compatible with ServiceNow Versions

Utah, Tokyo, San Diego

Support Tier

ThreatQ Supported

Introduction

The ServiceNow Operation for ThreatQuotient enables a user to perform actions, such as enrichment, against the ServiceNow API.

The operation provides the following actions:

Create Security Incident - creates a Security Incident in SNOW from a TQ Indicator. It will also add the observable to ServiceNow and relate the incident to it.
Add Observable - adds (or updates) an observable in ServiceNow based off a TQ indicator.
Add Ticket - creates (or updates) a ticket in ServiceNow from any TQ event; includes the related indicators as observables.

The operation is compatible with indicators and events.

Prerequisites

The integration requires the installation of three plugins on your ServiceNow instance.

ServiceNow Plugins Installation

There are three plugins which must be installed in the following order:

Threat Intelligence
Vulnerability Response
Security Incident Response

To install these plugins, log into your ServiceNow instance and complete the following steps:

From the filter navigation, search for plugins.
Click Plugins.
Locate each plugin, select it, and navigate to the plugin page.
Click the plugin name.
Under related links, select Activate/Update.
A progress bar indicates the progress of the activation. The modal updates when the activation is complete.
To continue installing plugins, click View Plugin List and repeat the steps above.
After you install the final plugin, select Close Reload Form.

Installation

This integration can be installed in the My Integration section of your ThreatQ instance. See the Adding an Integration topic for more details.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

Navigate to your integrations management page in ThreatQ.
Select the Operation option from the Type dropdown (optional).
Click on the integration entry to open its details page.

Enter the following parameters under the Configuration tab:

Parameter	Description
Host	Your ServiceNow hostname.
Password	Your ServiceNow password.
TQ Host	Your ThreatQ hostname.
Username	Your ServiceNow Username

Review any additional settings, make any changes if needed, and click on Save.
Click on the toggle switch, located above the Additional Information section, to enable it.

Actions

The operation uses pysnow Client and Resource to communicate with ServiceNow.

The operation provides the following actions:

Action	Description	Object Type	Object Subtype
Create Security Incident	Create Security Incident in SNOW from a TQ Indicator. It will also add the observable to ServiceNow and relate the incident to it. Lastly, it will upload the corresponding ServiceNow incident, as an Event, to ThreatQ.	Indicators	MD5, SHA-1, SHA-256, SHA-512, IP Address, FQDN, URL, Email Address, Registry Key, CIDR Block, Mutex, CVE, ASN, MAC Address, Email Subject, String
Add Observable	Add (or update) an observable in ServiceNow based off a TQ indicator	Indicators	MD5, SHA-1, SHA-256, SHA-512, IP Address, FQDN, URL, Email Address, Registry Key, CIDR Block, Mutex, CVE, ASN, MAC Address, Email Subject, String
Add Ticket	Creates (or updates) a ticket in ServiceNow from any TQ event; includes the related indicators as observables	Events	Any

Create Security Incident

This action will create a new security incident in ServiceNow. It will also add the observable to ServiceNow and relate the incident to it. Lastly, it will upload the corresponding ServiceNow incident, as an Event, to ThreatQ.

PUT https://<SNOW Host>/api/now/table/sn_si_incident to create the SNOW ticket

Sample Response:

{
        "sys_updated_by": "admin",
        "new_pir_respondents": "",
        "upon_reject": "Cancel all future Tasks",
        "special_access_read": "",
        "secure_notes": "",
        "time_worked": "",
        "pir_respondents": "",
        "department": "",
        "problem": "",
        "phish_email": "",
        "sla_suspended": "false",
        "description": "",
        "request_category": "",
        "contract": "",
        "sys_updated_on": "2021-05-04 11:47:47",
        "correlation_id": "",
        "sla_suspended_for": "",
        "affected_user": "",
        "vulnerability": "",
        "spam": "false",
        "source_ip": "",
        "sys_created_by": "admin",
        "closed_by": "",
        "comments_and_work_notes": "2021-05-04 11:47:47 - System Administrator (Automation activity)\nRisk score changed from Empty to 40 due to change in business impact, priority, severity, risk score override\n\n",
        "user_input": "",
        "automation_activity": "2021-05-04 11:47:47 - System Administrator (Automation activity)\nRisk score changed from Empty to 40 due to change in business impact, priority, severity, risk score override\n\n",
        "short_description": "Observable Sighting: 81.69.35.30",
        "malware_hash": "",
        "sla_due": "UNKNOWN",
        "active": "true",
        "approval_set": "",
        "activity_due": "UNKNOWN",
        "assignment_group": {
            "link": "https://ven04019.service-now.com/api/now/table/sys_user_group/dea26263ff0331007a6dffffffffff19",
            "display_value": "Security Incident Assignment"
        },
        "parent_security_incident": "",
        "category": null,
        "work_end": "",
        "alert_sensor": "",
        "initiated_from": "",
        "vendor_reference": "",
        "sys_created_on": "2021-05-04 11:47:47",
        "opened_at": "2021-05-04 11:47:47",
        "delivery_task": "",
        "urgency": "3 - Low",
        "risk_score": "40",
        "dest_ip": "",
        "delivery_plan": "",
        "due_date": "",
        "sys_domain_path": "/",
        "approval": "Not Yet Requested",
        "is_catalog": "false",
        "business_criticality": "3 - Non-critical",
        "pir": null,
        "cmdb_ci": "",
        "subcategory": null,
        "comments": "",
        "state": "Draft",
        "previous_agent": "",
        "caller": "",
        "expected_start": "",
        "sys_id": "94657d6b1bf7ec50cf41cbb5624bcb37",
        "other_ioc": "",
        "escalation": "Normal",
        "business_duration": "",
        "security_incident_self": {
            "link": "https://ven04019.service-now.com/api/now/table/sn_si_incident/94657d6b1bf7ec50cf41cbb5624bcb37",
            "display_value": "SIR0010052"
        },
        "additional_assignee_list": "",
        "assigned_vendor": "",
        "close_notes": "",
        "priority": "4 - Low",
        "sys_domain": {
            "link": "https://ven04019.service-now.com/api/now/table/sys_user_group/global",
            "display_value": "global"
        },
        "qualification_group": "",
        "risk_change": "Up",
        "prediction": null,
        "work_start": "",
        "knowledge": "false",
        "sys_mod_count": "0",
        "sys_class_name": "Security Incident",
        "request_type": null,
        "correlation_display": "",
        "opened_for": {
            "link": "https://ven04019.service-now.com/api/now/table/sys_user/6816f79cc0a8016401c5a33be04be441",
            "display_value": "System Administrator"
        },
        "location": "",
        "service_offering": "",
        "opened_by": {
            "link": "https://ven04019.service-now.com/api/now/table/sys_user/6816f79cc0a8016401c5a33be04be441",
            "display_value": "System Administrator"
        },
        "reassignment_count": "0",
        "template_workflow_invoked": "false",
        "malware_url": "",
        "work_notes": "",
        "sys_tags": "",
        "attack_vector": "",
        "contact_type": null,
        "number": "SIR0010052",
        "upon_approval": "Proceed to Next Task",
        "severity": "2 - Medium",
        "asset": "",
        "substate": "",
        "special_access_write": "",
        "order": "",
        "risk": "Moderate",
        "task_created": "false",
        "impact": "3 - Low",
        "external_url": "",
        "made_sla": "true",
        "assigned_to": "",
        "estimated_end": "",
        "follow_up": "",
        "change_request": "",
        "watch_list": "",
        "calendar_duration": "",
        "sla_suspended_on": "",
        "sla_suspended_reason": null,
        "parent": "",
        "company": "",
        "risk_score_override": "false",
        "referrer_url": "",
        "expected_end": "",
        "template": "",
        "skills": "",
        "billable": "false",
        "approval_history": "",
        "universal_request": "",
        "route_reason": "",
        "close_code": null,
        "business_service": "",
        "incident": "",
        "requested_due_by": "",
        "task_effective_number": "SIR0010052",
        "security_tags": "",
        "work_notes_list": "",
        "group_list": "",
        "confidence_score": "",
        "closed_at": ""
    }

This action also uses .../table/sn_ti_observable, .../sn_ti_m2m_task_observable, and .../table/sn_sec_cmn_security_annotation to create the observable, relate the observable, and add security annotations to the observable.

ThreatQuotient provides the following default mapping for this action:

Feed Data Path (table.key)	ThreatQ Entity	ThreatQ Object Type or Attribute Key
sn_si_incident.work_notes	Event	event.comments
sn_si_incident.description	Event	event.description
sn_ti_observable.value	Indicator	indicator.value
sn_ti_observable.type.display_value	Indicator	indicator.type.name
sn_sec_cmn_security_annotation.annotation	Indicator	indicator.score
sn_sec_cmn_security_annotation.annotation	Indicator	indicator.status

Action Parameters

The Create Security Incident action offers the following configuration parameters:

Parameter	Description
Short Description	Optional - Enter a title value for this incident. if left blank, `Observable Sighting: {indicator}` will be used. You can format the indicator value into your custom description by putting `{}` where you want the indicator value to go.
Description	Optional - Enter a long description for the security incident.
Category	Select a category (or None) to give to this security incident.
Setting Risk Score	Select how you want to set the Risk Score of the security incident. Options include: Map ThreatQ Score to Risk Score (default) Set to Custom Risk Score Below Do Not Set Risk Score
Custom Risk Score	Enter a custom risk score to use when `Set to Custom Risk Score Below` is selected.
Observable Finding	Select the "finding" for the observable. Options include: Malicious (default) Unknown

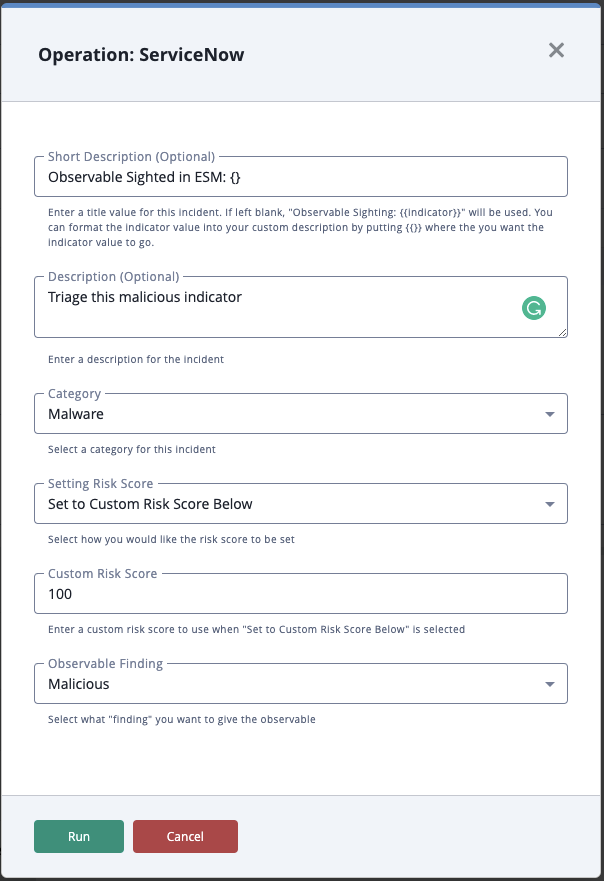

Create Security Incident Action Parameters

Add Observable

This action adds (or updates) an observable in ServiceNow.

PUT https://<SNOW Host>/api/now/table/sn_ti_observable

Sample Response:

    {
        "sys_tags": "",
        "finding": "Malicious",
        "sys_domain": {
            "display_value": "global",
            "link": "https://ven04019.service-now.com/api/now/table/sys_user_group/global"
        },
        "sys_updated_by": "admin",
        "notes": "",
        "sighting_count": "1",
        "sys_id": "c665352f1bf7ec50cf41cbb5624bcb90",
        "type": {
            "display_value": "IP address (V4)",
            "link": "https://ven04019.service-now.com/api/now/table/sn_ti_observable_type/5d0b43809f81120035c6786f957fcf71"
        },
        "sys_updated_on": "2021-05-04 11:47:54",
        "negation": "false",
        "sys_created_on": "2021-05-04 11:47:54",
        "location": "",
        "sys_created_by": "admin",
        "is_composition": "false",
        "sys_mod_count": "1",
        "operator": null,
        "security_tags": "",
        "malicious_attachment": "",
        "value": "81.69.35.30"
    },
    {
        "data": [
            {
                "type_id": 15,
                "published_at": "2021-05-04 16:27:54",
                "hash": "96ccba6f1872fe70028965da5b389ba0",
                "type": "IP Address",
                "id": 215845,
                "value": "81.69.35.30"
            }
        ],
        "total": 1
    }

ThreatQuotient provides the following default mapping for this action:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key
sn_ti_observable.value	Indicator	indicator.value
sn_ti_observable.type.display_value	Indicator	indicator.type.name

Action Parameters

The Add Obervable action offers the following configuration parameter:

Parameter	Description
Observable Finding	Select the "finding" for the observable. Options include: Malicious (default) Unknown

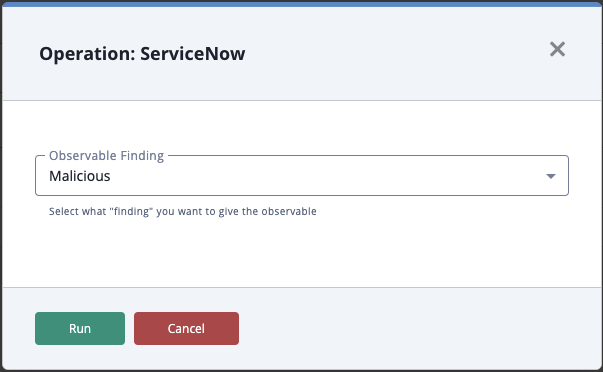

Add Observable Parameter

Add Ticket

This action adds (or updates) a ticket in ServiceNow (ie. Service Desk Incident, Security Incident, Security Task, or Security Case) based off of any TQ event. It will add the related indicators as related observables in ServiceNow.

PUT https://<SNOW Host>/api/now/table/sn_si_incident, .../incident, .../sn_si_task, or .../sn_ti_case to create the SNOW ticket

Sample Response:

    {
        "upon_approval": "Proceed to Next Task",
        "sys_created_on": "2021-05-04 10:18:13",
        "knowledge": "false",
        "group_list": "",
        "urgency": "3 - Low",
        "location": "",
        "approval": "Not Yet Requested",
        "sys_domain": {
            "link": "https://ven04019.service-now.com/api/now/table/sys_user_group/global",
            "display_value": "global"
        },
        "last_seen": "2021-05-04 10:18:15",
        "service_offering": "",
        "work_notes": "",
        "upon_reject": "Cancel all future Tasks",
        "calendar_duration": "",
        "watch_list": "",
        "user_input": "",
        "number": "SECC0001005",
        "state": "Open",
        "reassignment_count": "0",
        "comments_and_work_notes": "",
        "impact": "3 - Low",
        "active": "true",
        "company": "",
        "comments": "",
        "universal_request": "",
        "assignment_group": "",
        "delivery_plan": "",
        "due_date": "",
        "activity_due": "UNKNOWN",
        "sys_class_name": "Security Case",
        "case_type": "Campaign",
        "description": "<p>Test case</p>\n",
        "work_start": "",
        "priority": "4 - Low",
        "security_tags": "",
        "contact_type": null,
        "work_notes_list": "",
        "assigned_to": "",
        "route_reason": "",
        "sys_id": "d0e0e5a31bb7ec50cf41cbb5624bcbf8",
        "contract": "",
        "work_end": "",
        "sys_mod_count": "1",
        "follow_up": "",
        "sys_tags": "",
        "rating": "High",
        "additional_assignee_list": "",
        "sys_domain_path": "/",
        "close_notes": "",
        "short_description": "Test case",
        "sys_created_by": "admin",
        "escalation": "Normal",
        "opened_at": "2021-05-04 10:18:13",
        "expected_start": "",
        "skills": "",
        "order": "",
        "parent": "",
        "closed_at": "",
        "approval_history": "",
        "sys_updated_on": "2021-05-04 10:18:15",
        "business_service": "",
        "approval_set": "",
        "made_sla": "true",
        "correlation_display": "",
        "correlation_id": "",
        "delivery_task": "",
        "sla_due": "UNKNOWN",
        "sys_updated_by": "admin",
        "task_effective_number": "SECC0001005",
        "cmdb_ci": "",
        "business_duration": "",
        "closed_by": "",
        "time_worked": "",
        "opened_by": {
            "link": "https://ven04019.service-now.com/api/now/table/sys_user/6816f79cc0a8016401c5a33be04be441",
            "display_value": "System Administrator"
        }
    }

ThreatQuotient provides the following default mapping for this action:

Feed Data Path (Table.key)	ThreatQ Entity	ThreatQ Object Type or Attribute Key
ticket_type}.work_notes	Event	event.comments
{ticket_type}.description	Event	event.description
sn_ti_observable.value	Indicator	indicator.value
sn_ti_observable.type.display_value	Indicator	indicator.type.name
sn_sec_cmn_security_annotation.annotation	Indicator	indicator.score
sn_sec_cmn_security_annotation.annotation	Indicator	indicator.status

Depending on the ticket type chosen (Service Desk Incident, Security Incident, Security Task, or Security Case), ticket_type will be substituted with incident, sn_si_incident, sn_si_task, or sn_ti_case.

Action Parameters

The Add Ticket action offers the following configuration parameter:

Parameter	Description
Select the Type of Ticket to Create in ServiceNow	Options include: Incident Security Incident Security Incident Response Task Security Case

Add Ticket Action Parameter

Change Log

Version 1.1.1 rev-a
- Guide Update - Updated ServiceNow compatability versions.
Version 1.1.1
- Removed the HTML dependency as it is no longer used and also caused compatibility issues with the integration.
Version 1.1.0
- Added functionality to sync TQ events to ServiceNow along with their related indicators as ServiceNow Observables with Security Annotations and TQ comments as SNOW Work Notes
- Sync the new SNOW tickets back to TQ as new event with attributes
Version 1.0.0
- Initial release

PDF Guides

Document	ThreatQ Version
ServiceNow Operation Guide v1.1.1	4.40.0 or Greater
ServiceNow Operation Guide v1.1.0	4.40.0 or Greater
