Integration Details

ThreatQuotient provides the following details for this integration:

Current Integration Version	1.3.0
Compatible with ThreatQ Versions	>= 5.10.0
Support Tier	ThreatQ Supported

Introduction

The Report Emailer for ThreatQuotient Operation allows you to email a PDF report directly from an object in ThreatQ.

The operation provides the following action:

• Send - sends an email, with the PDF attachment, to the specified recipients.

The operation is compatible with the following ThreatQ objects:

• Adversaries
• Attachments
• Campaigns
• Courses of Action
• Events
• Exploit Targets
• Incidents
• Indicators
• Reports
• TTPs
• Vulnerabilities

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the integration whl file.
3. Navigate to the integrations management page on your ThreatQ instance.
4. Click on the Add New Integration button.
5. Upload the integration whl file using one of the following methods:
   • Drag and drop the file into the dialog box
   • Select Click to Browse to locate the file on your local machine

   ThreatQ will inform you if the operation already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the operation contains changes to the user configuration. The new user configurations will overwrite the existing ones for the operation and will require user confirmation before proceeding.

The operation is now installed and will be displayed in the ThreatQ UI. You will still need to configure and then enable the operation.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Operation option from the Type dropdown (optional).
3. Click on the integration entry to open its details page.
4. Enter the following parameters under the Configuration tab:

   Parameter	Description
   Sender Email	The email you want to use to send the reports from.
   Sender Password	The password associated with the sender email.
   Authenticate with Username	Enable this option if you are authenticating with a username instead of email.
   Sender Username	If you have enabled the Authenticate with Username option, enter the username to authenticate with.  This allows you to use your username if your SMTP server expects username authentication instead of email. Leave this field blank if you are authenticating with an email.
   SMTP Server	The SMTP server used by your email provider.
   SMTP Port	The port associated with the SMTP server.
   Default Recipients	A comma-delimited list of email addresses to receive the reports. This parameter can be overridden when running the operation via the action dialog box.
   Use TLS when connecting to SMTP server	Use TLS when connecting to the SMTP server. In some corporate environments, the Report Emailer operation works without authenticating with the SMTP server
   Authenticate with SMTP Server	Enable this option to authenticate with the SMTP server.  In some corporate environments, this operation may work without authenticating with the SMTP server.
   Bypass System Proxy Settings	Enable this option to bypass system proxy settings when running this operation.

5. Review any additional settings, make any changes if needed, and click on Save.
6. Click on the toggle switch, located above the Additional Information section, to enable it.

Actions

The operation provides the following action:

Action	Description	Object Type	Object Subtype
Send	Sends an email (with the PDF attachment) to the specified recipients.	Adversaries, Attachments, Campaigns, Courses of Action, Events, Exploit, Targets, Incidents, Indicators, Reports, TTPs, Vulnerabilities	N/A

Send

The Send action will send an email (with the PDF attachment) to the specified recipients.

Action Parameters

Set the optional parameters when running the operation:

Parameter	Description
Recipients (Override)	If needed, you can override the default recipients that were specified in the configuration page.
Email Subject (Optional)	You can override the auto-generated subject using this input.
Email Body (Optional)	You can set a body for the email here. By default, there is no body.
Send File as Attachment	File Object Types Only - Enable this option to attach the file to the email.
Context	Select the data to include in the PDF report.  Options include: Attributes (default) Sources (default) Tags (default) Descriptions (default)
Description Selection	Enter the source names for the descriptions to include in the PDF report.
Relationships	Select the relationships to include in the PDF report.  Options include: Adversaries (default) Assets Attack Patterns (default) Campaigns Course of Actions Events Exploit Targets Identities Incidents Indicators Intrusion Sets Investigations Malware (default) Reports (default) Signatures Tools (default) TTPs (default) Vulnerabilities (default)
Max Relationships Count	The max number of relationships to include in the report.

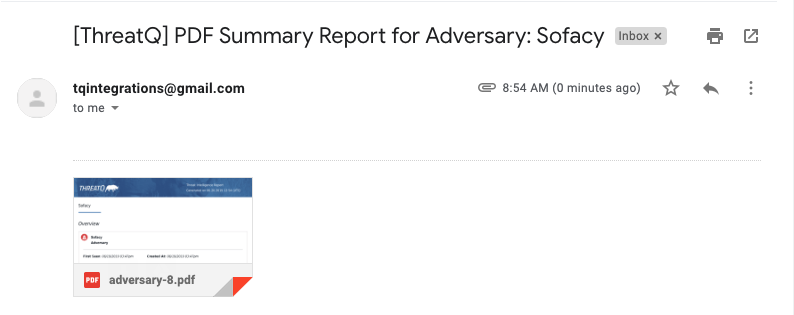

Example Email Notification

Change Log

• Version 1.3.0
  • Added the ability to include context, relationships, and description selections when generating a report.
• Version 1.2.0
  • Added the ability to authenticate using a username.
  • Updated the minimum ThreatQ version to 5.10.0.
• Version 1.1.0
  • Added the ability to send emails without authentication.
• Version 1.0.0
  • Initial release
