CrowdStrike Falcon X Sandbox Operation
The web format of this guide reflects the most current release. Guides for older iterations are available in PDF format.
Integration Details
ThreatQuotient provides the following details for this integration:
| Current Integration Version | 1.1.1 |
| Compatible with ThreatQ Versions | >= 4.41.0 |
| Support Tier | ThreatQ Supported |
Introduction
The CrowdStrike Falcon X Sandbox Operation submits files to Falcon X Sandbox for analysis and fetches detonation reports.
The CrowdStrike Falcon X Sandbox CDF, available on the ThreatQ Marketplace, is recommended to ingest reports and retrieve more context on submitted samples from Falcon X Sandbox.
The operation provides the following actions:
- Get Reports - fetches existing reports for previous detonations of file; optionally, adds Report Links and other data as attributes, and Malquery hashes as related indicators
- Submit File - uploads and submits a file for detonation with the Falcon X Sandbox service.
The operation is compatible with SHA-256 type indicators and attachments.
Prerequisites
The following is required in order to install and run the operation:
- Your CrowdStrike Client ID.
- Your CrowdStrike Client Secret.
- CrowdStrike API Client permissions configured.
CrowdStrike API Client Configuration
Users are required to create a properly scoped API Client within CrowdStrike's Falcon platform in order use the operation. API Clients can be created and configured via the API Clients and Keys page under Support.

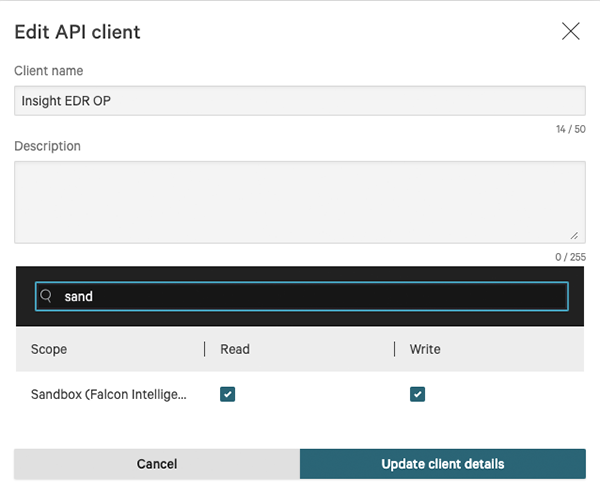

The CrowdStrike Falcon X Sandbox operation requires the following scope permission:
- Sandbox (Falcon Intelligence) - Read/Write permissions required.
Installation
Perform the following steps to install the integration:
The same steps can be used to upgrade the integration to a new version.
- Log into https://marketplace.threatq.com/.
- Locate and download the integration whl file.
- Navigate to the integrations management page on your ThreatQ instance.
- Click on the Add New Integration button.
- Upload the integration file using one of the following methods:
- Drag and drop the file into the dialog box
- Select Click to Browse to locate the integration file on your local machine
ThreatQ will inform you if the operation already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the operation contains changes to the user configuration. The new user configurations will overwrite the existing ones for the operation and will require user confirmation before proceeding.
The operation is now installed and will be displayed in the ThreatQ UI. You will still need to configure and then enable the operation.
Configuration
ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.
To configure the integration:
- Navigate to your integrations management page in ThreatQ.
- Select the Operation option from the Type dropdown (optional).
- Click on the integration entry to open its details page.
- Enter the following parameters under the Configuration tab:
Confirm that you are using the same Host/Credentials for both this feed and its operation counterpart - CrowdStrike Falcon X Sandbox Operation.
Parameter Description API Hostname Select the appropriate CrowdStrike host. Options include: - US-1:
api.crowdstrike.com - US-2:
api.us-2.crowdstrike.com(Default) - EU-1:
api.eu-1.crowdstrike.com - US-GOV-1:
api.laggar.gcw.crowdstrike.com
Client ID The CrowdStrike Falcon X Client ID used for authentication. Client Secret The CrowdStrike Falcon X Secret used for authentication. - US-1:
- Review any additional settings, make any changes if needed, and click on Save.
- Click on the toggle switch, located above the Additional Information section, to enable it.
Actions
The CrowdStrike Falcon X Sandbox operation provides the following actions:
| Action | Description | Object Type | Object Subtype |
|---|---|---|---|
| Get Reports | Fetches existing reports for previous detonations of file; optionally, adds Report Links and other data as attributes, and Malquery hashes as related indicators | Attachment, Indicator | Any (Attachment), SHA-256 (Indicator) |
| Submit File | Uploads and submits a file for detonation with the Falcon X Sandbox service | Attachment | Any |
Get Reports
Fetches reports for a given file. For reports to be fetched, the file must have been submitted (i.e., either through ThreatQ or directly through CrowdStrike Falcon X Sandbox), and detonation must have completed (typically takes around 10-15 minutes).
{HOST}/falconx/queries/reports/v1
This action makes requests to the following endpoint:
GET https://{HOST}/falconx/queries/reports/v1
Sample Response:
{
"meta": {
"query_time": 0.038525809,
"pagination": {
"offset": 0,
"limit": 10,
"total": 75
},
"powered_by": "falconx-api",
"trace_id": "b30e8593-179f-457f-aad4-47d0152771ca",
"quota": {
"total": 100,
"used": 35,
"in_progress": 0
}
},
"resources": [
"ace79a13936f4ec8ad4de36606814bfc_3f51f9d65ea34f348c1d70b5d2a54f98",
"ace79a13936f4ec8ad4de36606814bfc_e140385178184090bd58ed105ba8703c",
"ace79a13936f4ec8ad4de36606814bfc_b532180309fb47b7a0dae6be27afebcb",
"ace79a13936f4ec8ad4de36606814bfc_485bf65f80f245c9901af9e718c1c93b",
"ace79a13936f4ec8ad4de36606814bfc_92cbe2b5fcee44bdb6b8f436399f6a69",
"ace79a13936f4ec8ad4de36606814bfc_750e30c94fff40798d78d924742a24b7",
"ace79a13936f4ec8ad4de36606814bfc_f93360a892df43f6ae3e3add5b56186f",
"ace79a13936f4ec8ad4de36606814bfc_4d49dd7582be4a02a47966667280716d",
"ace79a13936f4ec8ad4de36606814bfc_cfc5b9956c6e4958bafa989abb6fdd4a",
"ace79a13936f4ec8ad4de36606814bfc_95b49b6f295b41619b4a127022fb4f3b"
],
"errors": []
}
{HOST}/falconx/entities/reports/v1?ids={report-id}
Additionally, each report's details are fetched from the following endpoint:
GET https://{HOST}/falconx/entities/reports/v1?ids={report-id}
Sample Response:
{
"meta": {
"query_time": 0.050169045,
"powered_by": "falconx-api",
"trace_id": "a58fe97c-3ca5-4c7c-a400-465381318d80",
"quota": {
"total": 100,
"used": 40,
"in_progress": 0
}
},
"resources": [
{
"id": "ace79a13936f4ec8ad4de36606814bfc_9026dc9993a940c1b5e0a2a320de2307",
"cid": "ace79a13936f4ec8ad4de36606814bfc",
"created_timestamp": "2020-09-17T15:25:12Z",
"origin": "apigateway",
"verdict": "malicious",
"ioc_report_strict_csv_artifact_id": "cb1aed69e6f4b1ebd2c59ad4470353328e103ef99013094cb823cfee3d63e1b4",
"ioc_report_broad_csv_artifact_id": "5f47aa91082a5f534007a766b675debe41f03ede9da75126fd0956e15bd6973c",
"ioc_report_strict_json_artifact_id": "584089ced7394f0304b12cc432e0c123f9775ae607ba2afeb5ce093cb969b9e3",
"ioc_report_broad_json_artifact_id": "9eb0acde3ac1e75f91e880fb924e4b93126b54709b8e1dbb4a87727d1e591260",
"ioc_report_strict_stix_artifact_id": "f62cab644b83372efa7ba2e20042ba798b05c6694b78e14f53aed5116b071ad5",
"ioc_report_broad_stix_artifact_id": "87c6f4802fa4eaa85b33d6c707ebb9c879b36639e6a9d7ca9ec0824ce7420ac9",
"ioc_report_strict_maec_artifact_id": "fff4482b39642d93e3a07071ed6c2243bb506be5745ebf0f73d7b9e5187928b8",
"ioc_report_broad_maec_artifact_id": "c200269ffaca437fbe8b8b43977f87441ae0fec317e5512f7a567ef1e1c3e015",
"sandbox": [
{
"sha256": "4e87a0794bf73d06ac1ce4a37e33eb832ff4c89fb9e4266490c7cef9229d27a7",
"environment_id": 100,
"environment_description": "Windows 7 32 bit",
"file_size": 786432,
"file_type": "PE32 executable (GUI) Intel 80386, for MS Windows",
"file_type_short": [
"peexe",
"executable"
],
"classification_tags": [
"criminal",
"informationstealer",
"kpotstealer"
],
"submit_name": "trojan_ponystealer",
"submission_type": "file",
"verdict": "malicious",
"threat_score": 99,
"windows_version_name": "Windows 7",
"windows_version_edition": "Professional",
"windows_version_service_pack": "Service Pack 1",
"windows_version_version": "6.1 (build 7601)",
"windows_version_bitness": 32,
"incidents": [
{
"name": "Remote Access",
"details": [
"Reads terminal service related keys (often RDP related)"
]
}
],
"file_metadata": {
"file_compositions": [
"1 .BAS (Pseudo-Code) Files compiled with C2.EXE 6.0 (Visual Basic 6) (build: 9782)",
"16 .BAS Files compiled with C2.EXE 5.0 (Visual Basic 6) (build: 8783)",
"1 .ASM Files assembled with MASM 6.13 (Visual Studio 6 SP1) (build: 7299)"
],
"file_analysis": [
"File contains Visual Basic code",
"File contains assembly code",
"File is the product of a medium codebase (18 files)"
]
},
"classification": [
"82.7% (.EXE) Win32 Executable Microsoft Visual Basic 6",
"6.6% (.DLL) Win32 Dynamic Link Library (generic)",
"4.5% (.EXE) Win32 Executable (generic)",
"2.0% (.EXE) OS/2 Executable (generic)",
"2.0% (.EXE) Generic Win/DOS Executable"
],
"dns_requests": [
{
"domain": "ajax.googleapis.com",
"address": "172.217.9.138",
"country": "United States"
}
],
"contacted_hosts": [
{
"address": "172.217.5.14",
"port": 443,
"protocol": "TCP",
"associated_runtime": [
{
"name": "iexplore.exe",
"pid": 2424
}
],
"country": "United States"
}
],
"http_requests": [
{
"host": "seeyouonlineservice.com",
"host_ip": "173.239.5.6",
"host_port": 80,
"url": "/config.php",
"method": "GET",
"header": "GET /config.php HTTP/1.1\nAccept: text/html, application/xhtml+xml, */*\nHost: seeyouonlineservice.com\nAccept-Language: en-US\nUser-Agent: Mozilla/5.0 (Windows NT 6.1; Trident/7.0; rv:11.0) like Gecko\nAccept-Encoding: gzip, deflate\nDNT: 1\nConnection: Keep-Alive"
}
],
"extracted_files": [
{
"name": "Kip1.exe",
"file_path": "%ALLUSERSPROFILE%\\Kip1.exe",
"file_size": 786432,
"sha256": "ca11b8ffbc782df697f34a26df930970b1ced2efbf89a34c506ae80a1cdc43bf",
"md5": "b211348f8784ea450e1364c053046a6c",
"sha1": "70df9df1ffe20e7eac54e424c2e76242696904d2",
"runtime_process": "trojan_ponystealer.exe",
"type_tags": [
"peexe",
"executable"
],
"threat_level_readable": "no specific threat",
"description": "PE32 executable (GUI) Intel 80386, for MS Windows"
}
],
"extracted_interesting_strings": [
{
"value": "!1;for(w=0;w<t.length;w++)C=h(t[w]),null!=C&&(F=!0,M.appendChild(C));if(!F)return null}return u?(t=document.createDocumentFragment(),t.appendChild(M),t.appendChild(u),t):M}d=void 0===d?!1:d;e=void 0===e?null:e;f=void 0===f?[]:f;var k=lk(a.s),l=[],m=!!Sj(c,b,\"ctc.cott\"),p=!!Sj(c,b,\"ctd\"),r={},v=(r[1]=[],r[2]=[],r);r=S();a=h(a.l||{},r,f.join(\" \"));a||(a=document.createElement(\"span\"),a.id=r);return{rootElement:a,ej:l,vi:r}}",
"type": "Ansi",
"source": "Dropped File",
"filename": "caf_1_.js"
},
{
"value": "Version",
"type": "Unicode",
"source": "Runtime Data",
"process": "iexplore.exe"
}
],
"signatures": [
{
"threat_level_human": "informative",
"category": "General",
"identifier": "mutant-0",
"type": 4,
"relevance": 3,
"name": "Creates mutants",
"description": "\"\\Sessions\\1\\BaseNamedObjects\\Local\\ZonesCacheCounterMutex\"\n \"\\Sessions\\1\\BaseNamedObjects\\Local\\ZonesLockedCacheCounterMutex\"\n \"Local\\ZonesLockedCacheCounterMutex\"\n \"Local\\ZonesCacheCounterMutex\"\n \"\\Sessions\\1\\BaseNamedObjects\\IsoScope_a60_IE_EarlyTabStart_0x7e0_Mutex\"\n \"\\Sessions\\1\\BaseNamedObjects\\{5312EE61-79E3-4A24-BFE1-132B85B23C3A}\"\n \"\\Sessions\\1\\BaseNamedObjects\\IsoScope_a60_IESQMMUTEX_0_303\"\n \"\\Sessions\\1\\BaseNamedObjects\\IsoScope_a60_IESQMMUTEX_0_331\"\n \"\\Sessions\\1\\BaseNamedObjects\\{66D0969A-1E86-44CF-B4EC-3806DDDA3B5D}\"\n \"IsoScope_a60_IESQMMUTEX_0_303\"\n \"{5312EE61-79E3-4A24-BFE1-132B85B23C3A}\"\n \"IsoScope_a60_IESQMMUTEX_0_519\"\n \"Local\\URLBLOCK_FILEMAPSWITCH_MUTEX_2656\"\n \"{66D0969A-1E86-44CF-B4EC-3806DDDA3B5D}\"",
"origin": "Created Mutant"
}
],
"processes": [
{
"uid": "00152739-00003312",
"parent_uid": "00152502-00003404",
"name": "schtasks.exe",
"normalized_path": "%WINDIR%\\System32\\schtasks.exe",
"command_line": "/Create /SC MINUTE /TN \"Eburin\" /TR \"\\\"%ALLUSERSPROFILE%\\Kip1.exe\\\"\"",
"sha256": "15018d0093befabba8b927743191030d1f8c17bb97fdb48c2fc3eab20e2d4b3d",
"pid": 3312,
"process_flags": [
{
"name": "Reduced Monitoring"
}
],
"registry": [
{
"operation": "Open",
"path": "HKLM\\SYSTEM\\CURRENTCONTROLSET\\CONTROL\\SESSION MANAGER\\"
}
],
"mutants": [
"Local\\ZonesLockedCacheCounterMutex",
"Local\\ZonesCacheCounterMutex"
],
"handles": [
{
"id": 4,
"type": "KeyHandle",
"path": "HKLM\\SYSTEM\\ControlSet001\\Control\\Session Manager"
}
],
"file_accesses": [
{
"type": "CREATE",
"path": "%WINDIR%\\Globalization\\Sorting\\SortDefault.nls",
"mask": "GENERIC_READ | FILE_READ_ATTRIBUTES"
}
]
}
],
"screenshots_artifact_ids": [
"bf278d0febd27579a9f181dc369b9eb3f56cf6581f291e2193f5812385d061b7",
"ac574d7f094cc9e096a1f04ab9b93fba19c15081d41c1f2c225da0247545a658",
"dcea35624ebfba0376db2d0cddfa4f4351944936389fea32898d1713245f1dd4"
],
"file_imports": [
{
"module": "MSVBVM60.DLL",
"functions": [
"__vbaAryDestruct",
"__vbaChkstk",
"__vbaCopyBytes"
]
}
],
"architecture": "32 Bit",
"version_info": [
{
"id": "InternalName",
"value": "dagdrmmen"
},
{
"id": "FileVersion",
"value": "3.04.0001"
}
],
"sample_flags": [
"Multi-Process",
"Network Traffic",
"Extracted Files",
"Sample Crashed",
"Decrypted SSL traffic"
],
"mitre_attacks": [
{
"tactic": "Persistence",
"technique": "Kernel Modules and Extensions",
"attack_id": "T1215",
"informative_identifiers": [
"Opens the Kernel Security Device Driver (KsecDD) of Windows"
]
},
{
"tactic": "Persistence",
"technique": "Hooking",
"attack_id": "T1179",
"suspicious_identifiers": [
"Installs hooks/patches the running process"
]
},
{
"tactic": "Privilege Escalation",
"technique": "Process Injection",
"attack_id": "T1055",
"malicious_identifiers": [
"Writes data to a remote process",
"Allocates virtual memory in a remote process"
],
"suspicious_identifiers": [
"Scans for the windows taskbar (may be used for explorer injection)",
"Found a string that may be used as part of an injection method"
]
},
{
"tactic": "Privilege Escalation",
"technique": "Hooking",
"attack_id": "T1179",
"suspicious_identifiers": [
"Installs hooks/patches the running process"
]
},
{
"tactic": "Defense Evasion",
"technique": "Process Injection",
"attack_id": "T1055",
"malicious_identifiers": [
"Writes data to a remote process",
"Allocates virtual memory in a remote process"
],
"suspicious_identifiers": [
"Scans for the windows taskbar (may be used for explorer injection)",
"Found a string that may be used as part of an injection method"
]
},
{
"tactic": "Lateral Movement",
"technique": "Remote Desktop Protocol",
"attack_id": "T1076",
"suspicious_identifiers": [
"Reads terminal service related keys (often RDP related)"
]
},
{
"tactic": "Command and Control",
"technique": "Data Encoding",
"attack_id": "T1132",
"informative_identifiers": [
"HTTP request contains Base64 encoded artifacts"
]
},
{
"tactic": "Command and Control",
"technique": "Commonly Used Port",
"attack_id": "T1043",
"suspicious_identifiers": [
"Sends traffic on typical HTTP outbound port, but without HTTP header"
]
}
],
"pcap_report_artifact_id": "55c83b8e854766d3988fd9cc514f0c5f20d5b926d672c2ce7704eda866d6918e",
"memory_strings_artifact_id": "9d09b343414be8031ba6aabc5fd5d025b12d8276c53e740370c26fef7bb4e087"
}
],
"malquery": [
{
"verdict": "unknown",
"input": "7.14.22.69",
"type": "ip",
"resources": [
{
"sha256": "009609f749677e0dfd71efd4cadfa91c41738bc304f34b235514be3e9731ab93",
"md5": "7a1a988de1c9d8fc6ef69be1d032e1c4",
"sha1": "43f72c02249131f3890915d983f8d5ddd080080f",
"label": "unknown",
"file_size": 65536,
"file_type": "TEXT",
"first_seen_timestamp": "2020-09-10T00:00:00Z"
}
]
},
{
"verdict": "whitelisted",
"input": "http://a.ad",
"type": "url"
},
{
"verdict": "unknown",
"input": "http://a.gg",
"type": "url",
"resources": [
{
"sha256": "0602d9de2e545e6a34349f2c5802d360f2b01f7968eaf52b5c283713ed24591d",
"md5": "67720774f58d7dde07aec038764400b9",
"sha1": "8712ab7a736f257b4e2b831fec47419a4982947a",
"label": "unknown",
"file_size": 753836,
"file_type": "DALVIK",
"first_seen_timestamp": "2014-10-01T00:00:00Z"
}
]
}
],
"threat_graph": {
"indicators": [
{
"type": "sha256",
"value": "ca11b8ffbc782df697f34a26df930970b1ced2efbf89a34c506ae80a1cdc43bf",
"global_prevalence": "common"
}
]
},
"tags": [
"informationstealer",
"kpotstealer",
"occamy",
"iframeref",
"criminal"
]
}
],
"errors": []
}
ThreatQuotient provides the following default mapping:
| Feed Data Path | ThreatQ Entity | ThreatQ Object Type or Attribute Key | Published Date | Examples |
|---|---|---|---|---|
| resources[].id | Report.Attribute | Falcon X Sandbox Report Summary Link | https://falcon.crowdstrike.com/intelligence/ sandbox/report/ace79a13936f4ec8ad4de36 606814bfc_9026dc9993a940c1b5e0a2a320d e2307/report-summary |
Report URL is formatted from the Report ID sent by CrowdStrike |
| .resources[].sandbox[].sha256 | Indicator.Value | SHA-256 | 4e87a0794bf73d06ac1ce4a37e33eb832ff4c8 9fb9e4266490c7cef9229d27a7w |
Only displayed if the Action is executed on a file object |
| .resources[].malquery[].resources[].sha256 | Indicator.Value | SHA-256 | 4e87a0794bf73d06ac1ce4a37e33eb832ff4c8 9fb9e4266490c7cef9229d27a7 |
|
| .resources[].malquery[].resources[].sha1 | Indicator.Value | SHA-1 | dee01d843ebb9c51ae17386f7be7a0ad4d6387fe | |
| .resources[].malquery[].resources[].md5 | Indicator.Value | MD5 | dd16ac44f33559f1bf194133d15bceba | |
| .resources[].sandbox[].resources[].origin | Report.Attribute | Origin | apigateway | |
| .resources[].sandbox[].classification_tags[] | Report.Attribute | Tag | APT | |
| .resources[].sandbox[].verdict | Report.Attribute | Verdict | malicious | |
| .resources[].sandbox[].file_type | Report.Attribute | File Type | PE32 executable (GUI) Intel 80386, for MS Windows |
Submit File
Uploads a file to CrowdStrike Falcon X Sandbox and submits it for detonation.
Note that while this action completes quickly, the detonation and report generation typically takes 10-15 minutes.
{HOST}/samples/entities/samples/v2
This action makes requests to the following endpoints:
POST https://{HOST}/samples/entities/samples/v2
Sample Response:
{
"meta": {
"query_time": 1.16e-7,
"trace_id": "b3f2142f-eec7-4394-aba9-6ba2e815acce"
},
"resources": [
{
"sha256": "4e87a0794bf73d06ac1ce4a37e33eb832ff4c89fb9e4266490c7cef9229d27a7",
"file_name": "trojan-ponystealer"
}
],
"errors": []
}
{HOST}/falconx/entities/submissions/v1
POST https://{HOST}/falconx/entities/submissions/v1
Sample Response:
{
"meta": {
"query_time": 0.116349733,
"powered_by": "falconx-api",
"trace_id": "29aad17d-001c-4d47-9d5a-cd54f96b77de",
"quota": {
"total": 100,
"used": 35,
"in_progress": 2
}
},
"resources": [
{
"id": "ace79a13936f4ec8ad4de36606814bfc_eebc849ccc8646fba61f1580eeb384ec",
"cid": "ace79a13936f4ec8ad4de36606814bfc",
"origin": "apigateway",
"state": "created",
"created_timestamp": "2020-09-17T15:25:14Z",
"sandbox": [
{
"sha256": "4e87a0794bf73d06ac1ce4a37e33eb832ff4c89fb9e4266490c7cef9229d27a7",
"environment_id": 100,
"submit_name": "trojan_ponystealer"
}
]
}
],
"errors": []
}
Change Log
- Version 1.1.1 rev-a
- Guide Update - added a new Prerequisites section to the guide.
- Version 1.1.1
- Updated the API Host configuration parameter to function as dropdown option.
- Version 1.1.0
- Added a new API Host configuration parameter that will allow you to enter a CrowdStrike host. See step 4 in the Configuration chapter for more information.
- Version 1.0.0
- Initial release
PDF Guides
| Document | ThreatQ Version |
|---|---|
| CrowdStrike Falcon X Sandbox Operation Guide v1.1.1 | 4.41.0 or Greater |
| CrowdStrike Falcon X Sandbox Operation Guide v1.1.0 | 4.41.0 or Greater |
| CrowdStrike Falcon X Sandbox Operation Guide v1.0.0 | 4.41.0 or Greater |
