Integration Details

ThreatQuotient provides the following details for this integration:

Current Integration Version	2.1.0
Compatible with ThreatQ Versions	>= 5.6.0
Python Version	>= 3.10
Third-Party Application	Maltego Desktop Application
Support Tier	ThreatQ Supported

Introduction

The Maltego TRX Integration for ThreatQ is a comprehensive transform library that enables seamless bi-directional communication between ThreatQ and Maltego. It empowers analysts to perform contextual lookups for indicators of compromise (IOCs) and other object types—such as relationships, tags, and attributes—providing deeper visibility into their ThreatQ threat intelligence repository.

With over 450 transforms, the integration allows interaction with a wide range of IOC types and custom entities representing objects within ThreatQ. Additionally, it offers compatibility with select entities from the official STIX2 plugin, further enhancing analytical capabilities within Maltego.

Prerequisites

The following is required by the integration:

• ThreatQ Login Credentials. Options authenticated methods are accepted:

  You cannot use user-based authentication if the user account was created through SSO or if the user account has MFA/2-step verification enabled. You must use the OAuth Client Credentials authentication method in those instances.

  • User-Based Authentication - Your ThreatQ Username, Password, and Client ID that be located under your ThreatQ user profile.
  • OAuth Client Credentials - OAuth Client ID and Secret generated via ThreatQ CLI commands.
• Maltego Desktop Client - you can download Maltego for free at: https://www.maltego.com/downloads/.
• Installing into a TDS Instance specific:
  • Transforms Server with Docker.

    If you do not have Docker installed, you can find the installation instructions at: https://docs.docker.com/get-docker/

  • TDS instance.
  • The ThreatQ integration files (kept in their respective directories):

    These integration files are bundled together and can be downloaded from the ThreatQ Marketplace under the Maltego TRX for ThreatQ entry.

    • artifacts/mtz/securonix-entities.mtz
    • artifacts/csv/securonix-transforms.csv
    • artifacts/csv/securonix-settings.csv
    • dependencies/threatqsdk-*-py3-none-any.whl
    • dependencies/maltego_threatq_trx-*-py3-none-any.whl
    • docker-compose.yml
    • app.env
• Installing Locally into Maltego Using Docker specific:
  • Docker - you can find installation instructions at: https://docs.docker.com/get-docker/
  • The following integration files (kept in their respective directories):
    • dependencies/threatqsdk-*-py3-none-any.whl
    • dependencies/maltego_threatq_trx-*-py3-none-any.whl
    • docker-compose.yml
    • app.env
• Installing Locally into Maltego Into a Python Virtual Environment specific:
  • A Python v3.10+ Virtual Environment.
  • The following integration files (kept in their respective directories):
    • dependencies/threatqsdk-*-py3-none-any.whl
    • dependencies/maltego_threatq_trx-*-py3-none-any.whl

Generating ThreatQ OAuth Credentials

You will need to generate oauth2 client credentials in order to successfully have the app authenticate with ThreatQ. This is performed using the command line of the ThreatQ appliance.

Installation

Use the following steps to setup and install the integration.

1. Determine your ThreatQ authentication type (local vs OAuth) and collect the required credentials based on your selection. See the Prerequisites section for more details.
2. Download the integration files from the ThreatQ Marketplace at: https://marketplace.threatq.com/details/maltego-trx-for-threatq.
3. Extract the integrations files to a directory on your server/workstation. The folder structure should resemble the following:

   threatq-maltego-integration/
   ├── artifacts
   │   ├── mtz
   │   │   ├── securonix-transforms.mtz
   │   │   └── securonix-entities.mtz
   │   ├── csv
   │   │   ├── securonix-settings.csv
   │   │   └── securonix-transforms.csv
   ├── dependencies
   │   ├── threatqsdk-*-py3-none-any.whl
   │   └── maltego_trx-*-py3-none-any.whl
   ├── app.env
   └── docker-compose.yml


   These files will be required for the installation process on your TDS instance or local Maltego client.

Installing into a TDS Instance

The following steps will instruct you on how to install the ThreatQ transforms into your TDS instance. Review and confirm that you completed all prerequisites before proceeding.

Running the ThreatQ TRX App

The ThreatQ TRX app must be running in order to use the transforms. You can run the server using docker (recommended) or directly on your machine. The following steps will guide you through running the server using docker:

1. Navigate into the extracted integration files directory in your terminal.
2. Optional - If you want to utilize a single set of credentials that all clients can use, while also not exposing those credentials to clients, you can modify the app.env file. You can set the environment variables for user-based authentication or OAuth client credentials. The following variables are available:

   Variable	Description
   TQ_HOST	The hostname or IP address of your ThreatQ instance.  Example: example.threatq.online.
   TQ_VERIFY_SSL	Set to true to verify SSL certificates, or false to disable SSL verification. This is not recommended for production.
   TQ_USERNAME	The username for ThreatQ login if using the user-based authentication method.
   TQ_PASSWORD	The password for ThreatQ user above if using the user-based authentication method.
   TQ_CID	The Client ID for the ThreatQ user if using the user-based authentication method.
   TQ_OAUTH_CLIENT_ID	Your OAuth Client ID if using the OAuth authentication method.
   TQ_OAUTH_CLIENT_SECRET	Your OAuth Client Secret if using the OAuth authentication method.

   If you do not set these variables, clients will need to provide them when running the transforms.

3. Build and run the ThreatQ TRX app using Docker Compose:
   docker compose up -d

   Copy Code

   The server should now be running on port 8080 by default. You can access the server by navigating to http://<your-server-ip>:8080 in your web browser. If you would like to change the port, you can modify the docker-compose.yml file to map a different port on your host machine to port 8080 in the container.

4. Proceed to Generating the Artifacts.

Generating the Artifacts

Once the ThreatQ TRX app is running, you will need to generate the artifacts needed for Maltego. This includes the .mtz files and the .csv files for the transforms. These artifacts will be used to import the transforms into your TDS instance.

The integration package comes with pre-generated artifacts, but you'll want to regenerate them to ensure they are up-to-date and include your particular transforms host URL.

Run the following command to generate the artifacts:

Replace <your-transforms-host> with the hostname or IP address of your Transforms Server. This is what will be used in the securonix-transforms.csv file so clients can connect to the transforms server.

macOS/Linux:

Copy Code

Windows:

Copy Code

You may see a handful of WARNING logs. They can be ignored. The required files will be generated in the artifacts/mtz and artifacts/csv directories.

Proceed to Setting up the TDS Instance section.

Setting Up the TDS Instance

You'll need the integration files that were downloaded from the ThreatQ Marketplace.

1. Log into your TDS instance.
2. Navigate to the Paired Configurations tab and click on the Add New Paired Configuration button.
3. Set the Name field to Securonix.
4. Use the Choose File button to select the securonix-entities.mtz package.
5. Click on the Add Paired Configuration button to save.
6. Navigate to the Transform Settings tab and click on the Import Transform Settings button (up arrow) located at the top right corner.
7. Use the Choose File button to select the securonix-settings.csv file.
8. Click the Import Transform Settings button to save.
9. Navigate to the Seeds tab and click the Add Seed button.
10. Set the Seed Name field to Securonix
11. Set the Seed URL field to whatever identifier you want (i.e. securonix).
12. Select the Securonix paired configuration from the dropdown.
13. Click on the Add Seed button to save.
14. Navigate to the Transforms tab and click the import button (up arrow) in the top right corner.
15. Use the Choose File button to select the securonix-transforms.csv file.

    If you are upgrading from a previous version, you will need to check the Override existing rows with the same 'Name' column. checkbox. If you do not, it may create duplicate transforms.

16. Click on the Import Transform button to save.

    This request may timeout, but the transforms will still be imported. You can verify this by checking the Transforms tab.

    If you would like to set the default settings for the transforms, you can do so by navigating to the Transform Settings tab and clicking the Edit button next to each of the transform settings you want to set default values for. If you do not set the default values, users will need to set the values manually when running the transforms. We recommend setting a default value for the 'Securonix Host' setting at a minimum. Keep in mind, the default values you set for settings will be visible to all clients.

17. Proceed to Configuring the Transforms in your Maltego Client.

Configuring the Transforms in your Maltego Client

You will need to configure your local Maltego client to use the transforms once your organization has installed the transforms into your TDS instance.

1. Open Maltego and navigate to the Transforms tab.
2. Select the Maltego Data Hub option in the tool bar.
3. Scroll to the bottom of the list to find the Internal Hub Items section.
4. Click the + button to add a new hub item.
5. Fill out the form with the following information:

   Field	Details
   ID	securonix
   Name	Securonix
   Seed URL	<Your TDS instance URL>/runner/showseed/<seed-id> Replace <seed-id> with the identifier that was configured as the Seed URL in the TDS instance (e.g. threatq). Alternatively, copy the URL from the Seeds tab in your TDS instance, replacing the hostname with your TDS instance URL.
   Description	Enter Securonix transforms for Maltego.
   Icon URL	Download the icon from the following: https://cdn.prod.website-files.com/67672dff14ccdaa30a20f455/67fe7f196994c29ae159c875_ThreatQuotient-2025-rhino-head.png.

6. Click on OK to save the hub item.

Once the hub item is created, the transforms and entities should sync to your Maltego client automatically. If they do not, you can manually refresh the transforms by clicking the Refresh button when you mouse-over the ThreatQ hub item you created.

Installing Locally into Maltego Using Docker

The following steps will instruct you on how to install and configure the integration with ThreatQ, using Docker. Please make sure that all the prerequisites listed below are completed prior to starting these steps.

1. Navigate into the extracted integration files directory in your terminal.
2. Locate the app.env file and open it in a text editor.
3. Complete the following environment variables based on the authentication method (user-based vs OAuth):

   Variable	Description
   TQ_HOST	The hostname or IP address of your ThreatQ instance.  Example: example.threatq.online.
   TQ_VERIFY_SSL	Set to true to verify SSL certificates, or false to disable SSL verification. This is not recommended for production.
   TQ_USERNAME	The username for ThreatQ login if using the user-based authentication method.
   TQ_PASSWORD	The password for ThreatQ user above if using the user-based authentication method.
   TQ_CID	The Client ID for the ThreatQ user if using the user-based authentication method.
   TQ_OAUTH_CLIENT_ID	Your OAuth Client ID if using the OAuth authentication method.
   TQ_OAUTH_CLIENT_SECRET	Your OAuth Client Secret if using the OAuth authentication method.

4. Save your changes.
5. Build and run the ThreatQ TRX app using Docker Compose:
   docker compose up -d

   Copy Code

6. Run the following command to generate the artifacts needed for Maltego:

   macOS/Linux:

   docker exec -it maltego-threatq-trx maltego-threatq-trx-generate-artifacts --cmd "$(which docker)"

   Copy Code

   Windows:

   docker exec -it maltego-threatq-trx maltego-threatq-trx-generate-artifacts --cmd "$(Get-Command docker | Select-Object -ExpandProperty Source)" --cwd "$(Get-Location)"

   Copy Code

   You may see a handful of WARNING logs. They can be ignored. The required files will be generated in the artifacts/mtz directory.

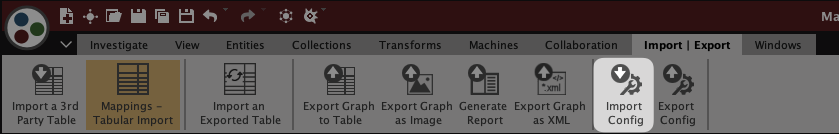

7. Open Maltego and navigate to the Import | Export tab, and click on the Import Config button.



8. Use the file browser to locate the .mtz files in ./artifacts/mtz.
9. Select the securonix-entities.mtz package and click on Next.
10. Use the checkboxes to select what you want to import and then click on Next.
11. Complete the import.
12. Repeat steps 9-11 with the securonix-transforms.mtz package.

You should now be able to run the ThreatQ transforms on your Maltego entities

Installing Locally into Maltego In a Python Virtual Environment

The following steps will instruct you on how to install and configure the integration with ThreatQ using a Python virtual environment. Please make sure that all the prerequisites listed below are completed prior to starting these steps.

1. Navigate into the extracted integration files directory in your terminal.
2. Create a configuration file named threatquotient.cfg in the current directory.
3. Paste the following content into the threatquotient.cfg file and fill out the fields as needed:

   [threatquotient]
   securonix_host=
   securonix_verify_ssl=true
   # OAuth Client Credentials
   securonix_oauth_client_id=
   securonix_oauth_client_secret=
   # User Authentication
   securonix_username=
   securonix_password=
   securonix_clientid=


   Enter either OAuth Client Credentials or User Authentication credentials based on your selected authentication method.

4. Create a Python v3.10 or newer virtual environment in the current directory.
5. Install Python 3.10 or newer if you haven't already.
   python3 -m venv venv

   Copy Code

6. Activate the virtual environment:

   macOS/Linux:

   source venv/bin/activate

   Copy Code

   Windows:

   .\venv\Scripts\Activate.ps1

   Copy Code

7. Install the required dependencies from the dependencies directory:

   pip install dependencies/threatqsdk-*-py3-none-any.whl
   pip install dependencies/maltego_threatq_trx-*-py3-none-any.whl

   Copy Code

8. Run the following command to generate the artifacts needed for Maltego:

   macOS/Linux:

   maltego-threatq-trx-generate-artifacts --cmd "$(which maltego-threatq-trx)" --cwd "$(pwd)" --params ""

   Copy Code

   Windows:

   maltego-threatq-trx-generate-artifacts --cmd "$(Get-Command maltego-threatq-trx | Select-Object -ExpandProperty Source)" --cwd "$(Get-Location)" --params ""

   Copy Code

   You may see a handful of WARNING logs. They can be ignored. The required files will be generated in the artifacts/mtz directory.

9. Open Maltego and navigate to the Import | Export tab, and click on the Import Config button.



10. Use the file browser to locate the .mtz files in ./artifacts/mtz.
11. Select the securonix-entities.mtz package and click on Next.
12. Use the checkboxes to select what you want to import and then click on Next.

13. Complete the import

14. Repeat steps 10-13 with the securonix-transforms.mtz package.

You should now be able to run the ThreatQ transforms on your Maltego entities.

Docker Shared Directories

The ./artifacts directory is mounted as a shared volume between the host and container, when using Docker:

• Host path: ./artifacts
• Container path: /app/artifacts
• Purpose: Persistent storage for generated artifacts (e.g., .mtz files, .csv files) that can be used in Maltego.

The ./config directory is mounted as a shared volume between the host and container:

• Host path: ./config
• Container path: /app/config
• Purpose: Persistent storage for configuration files, such as threatquotient.cfg, which contains the ThreatQ connection details and other settings. This file is optional and can be used instead of the app.env file for configuration.

Transforms

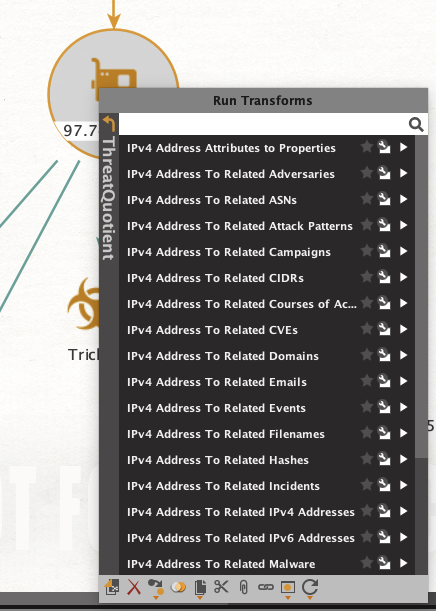

This integration comes with over 500 transforms. You'll be able to execute the following transforms on a variety of entity types:

• IOC -> Object Relationships
• Object -> Object Relationships
• STIX2 Object -> Object Relationships
  • Supported STIX2 Object Types: Attack Pattern, Course of Action, Threat Actor, Malware, Tool
• Fetch IOC Attributes as Properties
  • This includes attributes, tags, score, status, type, description, etc.
• Fetch Object Attributes as Properties
  • This includes attributes, tags, status, type, description, etc.

Upgrading the App

These steps will guide you through upgrading the ThreatQ TRX App to the latest version (after v2.1.0). If you are upgrading from a version prior to v2.1.0, please refer to the Migrating from Previous Versions section.

1. Make a copy of your existing app.env file (or /config/threatquotient.cfg) to preserve your settings.
2. Download the latest integration files from the ThreatQ Marketplace: https://marketplace.threatq.com/details/maltego-trx-for-threatq.
3. Extract the files to a directory on your server (or workstation).
4. Navigate into the extracted integration files directory in your terminal.
5. Run the following command to stop and remove the existing Docker container:
   docker compose down -v --rmi all

   Copy Code

   This will stop the existing container and remove the associated volumes and images.

6. Copy your configurations from the previous app.env file (or /config/threatquotient.cfg) into the new app.env file (or /config/threatquotient.cfg) in the extracted directory.
   • Avoid replacing the entire file, as it may contain new settings that are required for the latest version.
7. Run the following command to build and start the new Docker container:
   docker compose up -d

   Copy Code

8. Follow the steps in the Setting Up the TDS Instance section to import the updated transforms into your TDS instance.

   • Or follow the steps (6+) in the Installing Locally into Maltego Using Docker section to import the updated transforms into your local Maltego client.

Migrating from Previous Versions

If you are upgrading from version 2.0.0 (or older) to version 2.1.0, you will need to perform the full installation steps again. This is due to the changes in how the transforms are packaged and run. The new version uses Docker to run the integration, which is a significant change from the previous version, which ran the app from the source code directly.

These changes were done to standardize the installation process as well as improve overall user-install experience. Now, python environments & dependencies are managed within the Docker container, and the transforms can be run on both TDS instances and local Maltego clients. In addition, installation on macOS vs. Linux vs. Windows is now consistent, as the Docker container abstracts away the differences in the underlying operating systems.

Ensure that you have backed up any configurations/settings (i.e. ThreatQ credentials) you may have set for the app prior to upgrading.

Development

Testing with a TDS Instance

If you do not have access to an TDS instance, you can still test the transforms using Maltego's Public TDS instance. This is useful for development and testing purposes. The public TDS instance mimics a standard TDS instance, acting as a proxy to your local transform server.

1. Register for an account on Maltego's Public TDS instance: http://public-tds.paterva.com/.
2. Install ngrok or a similar tool (i.e. cloudflared) to expose your local ThreatQ TRX app to the internet.

   On macOS, you can install ngrok using Homebrew:

   brew install ngrok

   Copy Code

3. Add the ngrok authtoken generate on the ngrok website (run this command only once):
   ngrok config add-authtoken <TOKEN>

   Copy Code

4. Run ngrok to expose your local ThreatQ TRX app:
   ngrok http 8080

   Copy Code

   This will provide you with a public URL that you can use to access your local ThreatQ TRX app. This URL should only be used for development purposes.

5. Make a copy of the artifacts/csv/securonix-transforms.csv file and modify the URL column to point to your ngrok URL (e.g. https://<your-ngrok-url>/run/<transform>).

   You can do this in bulk by using a text editor's Find & Replace functionality, replacing example.threatq.online with your ngrok hostname.

6. Follow the steps in the Installing into an TDS Instance section to import the transforms into your TDS instance.

   Use the modified securonix-transforms.csv file from step 5.

Packaging the TRX App for Distribution

To package the TRX app for distribution, you need to rebuild the package, generate new artifacts, and then compress the files into a tarball.

1. (One-Time): In your Python environment, install the build package:
   pip install build

   Copy Code

2. (Optional) Download the latest ThreatQ SDK .whl file and place it in the dependencies directory.

3. Run the packaging script which will install the package locally, generate updated artifacts, generate a new .whl file, and create a tarball for distribution:

   # If you haven't yet, make the script executable
   chmod +x package.sh
   ./package.sh


   This will create a threatq-maltego-trx-{VERSION}.tgz file that can be distributed.

Known Issues / Limitations

• Maltego transforms that retrieve related domains (like IPv4 Address To Related Domains) automatically deduplicate domain variants. For instance, if ThreatQ returns both www.amazon.co.jp and www.amazon.com, the transform will only output the canonical Maltego entity, amazon.com.

Change Log

• Version 2.1.0
  • Added support for running transforms on a TDS instance.
  • Fixed STIX 2.1 object compatibility issues affecting certain transforms.
  • Standardized installation process for both TDS and local Maltego deployments.
  • Updated application to run in a Docker container using docker-compose.
  • Improved error handling for transform execution.
• Version 2.0.0
  • Complete rewrite of the integration based on the new Maltego TRX SDK.
  • Added support for running transforms on ThreatQ custom objects
  • Added transform to fetch object metadata (context: Attributes, Tags, Relationships, etc.)
  • Added transform to create an entity (i.e. Indicator, Malware, etc.) in ThreatQ.
  • Added support for running transforms on more entity types
• Version 1.0.0
  • Initial release
