Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

ThreatQ v6 Users – while the connector’s overall operation remains the same, installation and usage commands for ThreatQ v6 users will differ from what is listed in this guide. See the Installing Custom Connectors in ThreatQ v6 and Installing Custom Connectors on Another Instance topics for additional information.

OpenIOC File Export custom connector allows you to export Data Collections from ThreatQ into OpenIOC 1.1 and OpenIOC 1.0 formats.

Current Supported IOC Types include:

Prerequisites

Review the following requirements before attempting to install the connector.

Time Zone

The time zone steps are for ThreatQ v5 only.  ThreatQ v6 users should skip these steps.

You should ensure all ThreatQ devices are set to the correct time, time zone, and date (UTC is recommended), and using a clock source available to all.

To identify which time zone is closest to your present location, use the timedatectl command with the list-timezones command line option.

For example, enter the following command to list all available time zones in Europe:

Enter the following command, as root, to change the time zone to UTC:

Integration Dependencies

The integration must be installed in a python 3.6 environment.

The following is a list of required dependencies for the integration.  These dependencies are downloaded and installed during the installation process.  If you are an Air Gapped Data Sync (AGDS) user, or run an instance that cannot connect to network services outside of your infrastructure, you will need to download and install these dependencies separately as the integration will not be able to download them during the install process.

Items listed in bold are pinned to a specific version.  In these cases, you should download the version specified to ensure proper function of the integration.

Installation

The following provides you with steps on installing a Python 3 Virtual Environment and installing the connector.

Creating a Python 3.6 Virtual Environment

Run the following commands to create the virtual environment:

Proceed to Installing the Connector.

Installing the Connector

Upgrading Users - Review the Change Log for updates to configuration parameters before updating.  If there are changes to the configuration file (new/removed parameters), you must first delete the previous version's configuration file before proceeding with the install steps listed below.  Failure to delete the previous configuration file will result in the connector failing.

1. Navigate to the ThreatQ Marketplace and download the .whl file for the integration.
2. Activate the virtual environment if you haven't already:
   source /opt/tqvenv/<environment_name>/bin/activate
3. Transfer the whl file to the /tmp directory on your ThreatQ instance.
4. Install the connector on your ThreatQ instance:
   pip install /tmp/tq_conn_<wheel_name>-<version>-py3-none-any.whl

   A driver called tq-conn-openioc-export will be installed.   After installing, a script stub will appear in /opt/tqvenv/<environment_name>/bin/tq-conn-openioc-export.

5. Once the application has been installed, a directory structure must be created for all configuration, logs and files, using the mkdir -p command. Use the commands below to create the required directories:
   mkdir -p /etc/tq_labs/
   mkdir -p /var/log/tq_labs/
6. Perform an initial run using the following command:
   /opt/tqvenv/<environment_name>/bin/tq-conn-openioc-export -ll /var/log/tq_labs/ -c /etc/tq_labs/ -v3
7. Enter the following parameters when prompted:

   Parameter	Description
   ThreatQ Host	This is the host of the ThreatQ instance, either the IP Address or Hostname as resolvable by ThreatQ.
   ThreatQ Client ID	This is the OAuth id that can be found at Settings Gear → User Management → API details within the user’s details.
   ThreatQ Username	This is the Email Address of the user in the ThreatQ System for integrations.
   ThreatQ Password	The password for the above ThreatQ account.
   Status	This is the default status for objects that are created by this Integration.

   Example Output

   /opt/tqvenv/<environment_name>/bin/tq-conn-openioc-export -ll /var/log/tq_labs/ -c /etc/tq_labs/ -v3
   ThreatQ Host: <ThreatQ Host IP or Hostname>
   ThreatQ Client ID: <ClientID>
   ThreatQ Username: <EMAIL ADDRESS>
   ThreatQ Password: <PASSWORD>
   Status: Review
   Connector configured. Set information in UI

You will still need to configure and then enable the connector.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

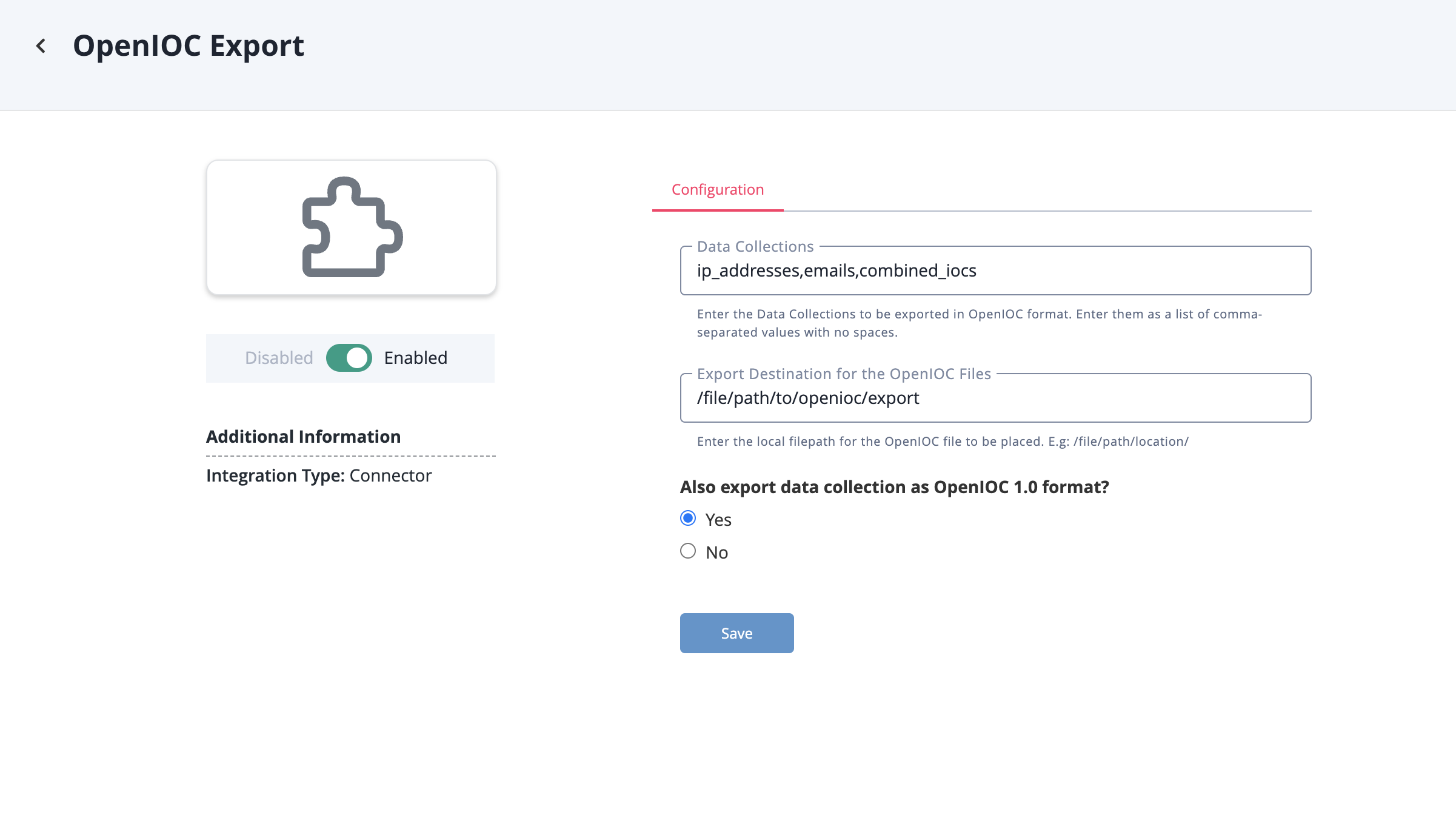

To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Labs option from the Category dropdown (optional).
3. Click on the integration entry to open its details page.
4. Enter the following parameters under the Configuration tab:

   Parameter	Description
   Data Collections	List of Data Collections to be exported in OpenIOC format.
   Export Destination for the OpenIOC Files	The filepath on the hosted TQ instance where the openIOC files will be exported to.
   Also Export Data Collection as OpenIOC 1.0 Format	Enable export of Data Collections as OpenIOC 1.0 format.



5. Review any additional settings, make any changes if needed, and click on Save.
6. Click on the toggle switch, located above the Additional Information section, to enable it.

Usage

Use the following command to execute the driver:

Command Line Arguments

This connector supports the following custom command line arguments:

Known Issues / Limitations

• Exported files get saved to hosted TQ instance and must then be moved out.
• Only limited IOCs are supported currently.

Change Log

• Version 1.0.1
  • Added FQDN as a supported indicator type for OpenIOC 1.0 documents.
• Version 1.0.0
  • Initial release
