Integration Details

ThreatQuotient provides the following details for this integration:

Current Integration Version	1.1.0
Compatible with ThreatQ Versions	>= 6.5.0
Support Tier	ThreatQ Supported

Introduction

The Volexity Threat Intelligence CDF enables users to ingest threat intelligence including, but not limited to, indicators, vulnerabilities, and YARA signatures from Volexity.

Volexity’s solutions provide advanced analytics about the state of your devices and rapid insights into the risk those devices pose to your organization. These solutions are used by organizations across the globe including leading technology companies in Silicon Valley, the Fortune 500, and the largest government institutions.

The integration provides the following feeds:

• Volexity - Entities - ingests IOCs from Volexity.
• Volexity - Tags - ingests Adversaries, Campaigns, Vulnerabilities, Reports and Malware type objects from Volexity.
• Volexity - Signatures - ingests Yara Signatures from Volexity.
• Volexity - Reports - ingests Volexity Reports.

The integration ingests the following system object types:

• Adversaries
• Campaigns
• Indicators
  • Email Address
  • FQDN
  • MD5
  • SHA-1
  • SHA-256
• Malware
• Vulnerabilities
• Reports
• Signatures
  • Yara
  • Snort

Prerequisites

The following is required to utilize the feeds provided by the integration:

• A Volexity Username.
• A Volexity API Key.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the integration yaml file.
3. Navigate to the integrations management page on your ThreatQ instance.
4. Click on the Add New Integration button.
5. Upload the integration yaml file using one of the following methods:
   • Drag and drop the file into the dialog box
   • Select Click to Browse to locate the file on your local machine
6. Select the individual feeds to install, when prompted, and click Install.

   ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

The feed(s) will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Commercial option from the Category dropdown (optional).

   If you are installing the integration for the first time, it will be located under the Disabled tab.

3. Click on the integration entry to open its details page.
4. Enter the following parameters under the Configuration tab:

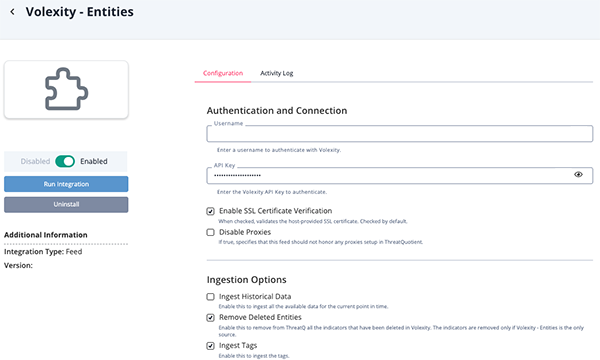

   Volexity Entities Parameters

   Parameter	Description
   Username	Your Volexity username.
   API Key	Your Volexity API Key.
   Enable SSL Certificate Verification	Enable this parameter if the feed should validate the host-provided SSL certificate.
   Disable Proxies	Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.
   Ingest Historical Data	Enable this to ingest all the available data for the current point in time. This parameter is disabled by default.
   Remove Deleted Objects	Enable this parameter to remove all indicators from ThreatQ that have been deleted in Volexity.  This parameter is enabled by default.   The signatures are removed only if Volexity - Entities is the only source. This parameter is only accessible if the Ingest Historical Data parameter is disabled.
   Ingest Tags	Enable this parameter to ingest the tags. This parameter is enabled by default.

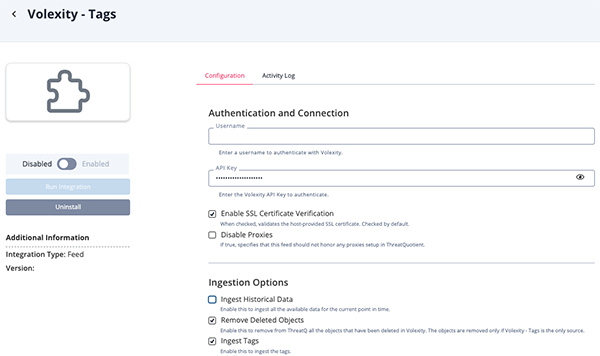

   Volexity Tags Parameters

   Parameter	Description
   Username	Your Volexity username.
   API Key	Your Volexity API Key.
   Enable SSL Certificate Verification	Enable this parameter if the feed should validate the host-provided SSL certificate.
   Disable Proxies	Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.
   Ingest Historical Data	Enable this to ingest all the available data for the current point in time. This parameter is disabled by default.
   Remove Deleted Objects	Enable this parameter to remove all objects from ThreatQ that have been deleted in Volexity.  This parameter is enabled by default.   The signatures are removed only if Volexity - Tags is the only source. This parameter is only accessible if the Ingest Historical Data parameter is disabled.
   Ingest Tags	Enable this parameter to ingest the tags. This parameter is enabled by default.

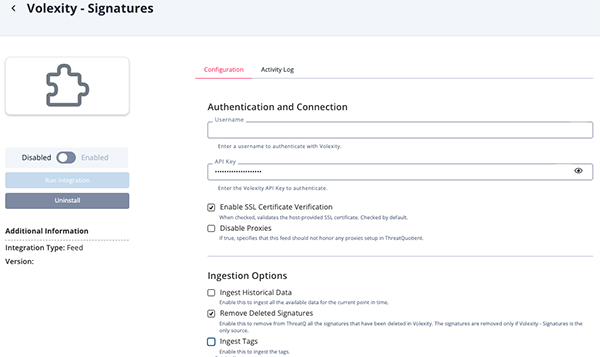

   Volexity Signatures Parameters

   Parameter	Description
   Username	Your Volexity username.
   API Key	Your Volexity API Key.
   Enable SSL Certificate Verification	Enable this parameter if the feed should validate the host-provided SSL certificate.
   Disable Proxies	Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.
   Ingest Historical Data	Enable this to ingest all the available data for the current point in time. This parameter is disabled by default.
   Remove Deleted Signatures	Enable this parameter to remove all the signatures from ThreatQ that have been deleted in Volexity.  This parameter is enabled by default.   The signatures are removed only if Volexity - Signatures is the only source. This parameter is only accessible if the Ingest Historical Data parameter is disabled.
   Ingest Tags	Enable this parameter to ingest the tags. This parameter is enabled by default.

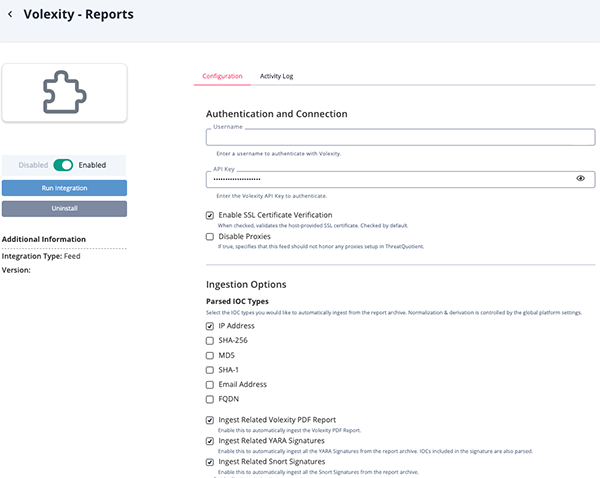

   Volexity Reports Parameters

   Parameter	Description
   Username	Your Volexity username.
   API Key	Your Volexity API Key.
   Enable SSL Certificate Verification	Enable this parameter if the feed should validate the host-provided SSL certificate.
   Disable Proxies	Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.
   Parsed IOC Types	Select the IOC types to automatically ingest from the report archive. IP Address (Default) SHA-256 (Default) MD5  SHA-1 Email Address (Default) FQDN (Default) Normalization and derivation is controlled by the global platform settings.
   Ingest Related Volexity PDF Report	Enable this parameter to automatically ingest the Volexity PDF Report. This parameter is disabled by default.
   Ingest Related YARA Signatures	Enable this parameter to automatically ingest all the YARA Signatures from the report archive. This parameter is disabled by default. IOCs included in the signature are also parsed.
   Ingest Related Snort Signatures	Enable this parameter to automatically ingest all the Snort Signatures from the report archive. This parameter is disabled by default.



5. Review any additional settings, make any changes if needed, and click on Save.
6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Volexity - Entities

The Volexity - Entities feed feed ingests Volexity entities as ThreatQ Indicators. The feed gives the option to ingest all the data for the current point in time or to ingest only the data that was created or updated since the feed start date. The user configuration Ingest Historical Data is used to decide what data to ingest.

If the Ingest Historical Data user configuration is enabled, the API value for .action is deleted.

Ingest All Data

GET https://intel-api.volexity.com/entities

Sample Parameters:

{
  "limit": 500,
  "sort": "last_modified,entity_id"
}

Sample Response:

{
    "after": "2024-02-12T14:57:44Z,11db9815-fd7c-432e-9f49-2853ed18a296",
    "data": [
        {
            "attributes": {
                "md5": "c445d2c98d85325377a92342ee70b078",
                "sha1": "024767fa9c5678ed0f1dc12977562b7b050df324",
                "sha256": "a1f9b76ddfdafc47d4a63a04313c577c0c2ffc6202083422b52a00803fd8193d",
                "size": -1
            },
            "created": "2020-07-09T12:02:11Z",
            "description": "Initial historical data import.",
            "entity_id": "0e85b534-182b-4f34-bc46-92548fc54520",
            "entity_type": "file",
            "is_indicator": true,
            "last_modified": "2021-09-10T11:00:02Z",
            "severity": "malicious",
            "tags": [
                "Unclassified"
            ],
            "value": "a1f9b76ddfdafc47d4a63a04313c577c0c2ffc6202083422b52a00803fd8193d"
        },
        {
            "attributes": {
                "is_compromised": false
            },
            "created": "2020-04-22T00:00:00Z",
            "description": "Initial data import",
            "entity_id": "ffbe81cd-64cc-42d0-950d-0a1c750b5312",
            "entity_type": "hostname",
            "is_indicator": true,
            "last_modified": "2021-09-12T00:23:30Z",
            "severity": "malicious",
            "tags": [
                "APT",
                "OceanLotus"
            ],
            "value": "dmkatti.com"
        },
        {
            "attributes": {
                "asname": "AS-CHOOPA, US",
                "asnumber": 20473,
                "cc": "KR"
            },
            "created": "2022-01-17T11:14:08Z",
            "description": "SHADOWPAD IP discovered based on default response data",
            "entity_id": "002b479b-160e-4d8a-8f1f-6ed307b2994f",
            "is_indicator": false,
            "last_modified": "2023-07-05T18:30:03Z",
            "severity": "malicious",
            "tags": [
                "APT",
                "ShadowPad"
            ],
            "entity_type": "ipaddress",
            "value": "158.247.227.6"
        },
        {
            "attributes": {},
            "created": "2022-06-23T06:54:17Z",
            "description": "Attacker controlled domain and sender associated with Ukraine themed phishing campaign with a RAR file containing a malicious LNK file that was observed 2022-06-22. The LNK file is designed to download code from ustreamiptv.com that appears to be a variant of Nerbian RAT.",
            "entity_id": "82c692a3-e2aa-4de1-8ee1-08a0fb68eea0",
            "is_indicator": true,
            "last_modified": "2022-07-04T19:29:42Z",
            "severity": "malicious",
            "tags": [
                "NERBIANRAT",
                "CharcoalGrass"
            ],
            "entity_type": "emailsender",
            "value": "donate@donateforfuture.com"
        }
    ],
    "sort": "last_modified,entity_id"
}

Ingest Only Updated/Created/Deleted Data

GET https://intel-api.volexity.com/feeds/entities

Request Parameters

{
  "listen": "false",
  "timestamp": "2025-04-20T00:00:00.000Z"
}

Sample Response

{"action":"created","data":{"attributes":{"is_compromised":false},"created":"2025-04-28T01:32:40Z","description":"Remcos discovered configured in malware sample: 99b39fdb3c9a16077c908bd0bda929cafaf93a2578d5cc43d7dc52c3de7ed50a","entity_id":"5e122755-52ac-4c1c-8bd7-67d9cd994c70","is_indicator":true,"last_modified":"2025-04-27T14:00:03Z","severity":"malicious","tags":["REMCOS"],"entity_type":"hostname","value":"wealthybank.ddns.net"},"timestamp":"2025-04-27T14:00:03Z"}
{"action":"updated","data":{"attributes":{"asname":"DIGITALOCEAN-ASN, US","asnumber":14061,"cc":"SG"},"created":"2024-10-27T04:00:18Z","description":"Detects certificates generated using Metasploit's SSL generation algorithm. This uses the Faker library wordlists.","entity_id":"ce98e33e-b439-460f-b6a2-f1d06b0b0507","is_indicator":false,"last_modified":"2025-04-27T16:30:03Z","severity":"malicious","tags":["Metasploit"],"entity_type":"ipaddress","value":"157.245.144.118"},"timestamp":"2025-04-27T16:30:03Z"}

Entities Mapping Table

ThreatQuotient provides the following default mapping for both request types for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
data[].entity_type	Indicator.Type	SHA-256, FQDN, IP Address, Email Address	data[].created	IP Address	N/A
data[].value	Indicator.Value	N/A	data[].created	158.247.227.6	N/A
data[].description	Indicator.description	N/A	data[].created	Initial historical data import.	N/A
data[].severity	Indicator.Attribute	Severity	data[].created	malicious	Updatable
data[].tags	Indicator.Tags	N/A	data[].created	NERBIANRAT	N/A
data[].attributes.asname	Indicator.Attribute	ASN Name	data[].created	AS-CHOOPA, US	Only for IP Addresses
data[].attributes.asnumber	Indicator.Attribute	ASN Number	data[].created	20473	Only for IP Addresses
data[].attributes.cc	Indicator.Attribute	Country Code	data[].created	KR	Only for IP Addresses
data[].attributes.is_compromised	Indicator.Attribute	Is Compromised	data[].created	False	Only for FQDN, Updatable
data[].attributes.md5	Related.Indicator.Value	MD5	data[].created	c445d2c98d85325377a92342ee70b078	Only for SHA-256
data[].attributes.sha1	Related.Indicator.Value	SHA-1	data[].created	024767fa9c5678ed0f1dc12977562b7b050df324	Only for SHA-256
data[].attributes.sha256	Related.Indicator.Value	SHA-256	data[].created	a1f9b76ddfdafc47d4a63a04313c577c0c2ffc6202083422b52a00803fd8193d	Only for SHA-256

Volexity - Tags

The Volexity - Tags feed ingests Volexity tags as ThreatQ objects. The feed gives the option to ingest all the data for the current point in time or to ingest only the data that was created or updated since the feed start date. The user configuration Ingest Historical Data is used to decide what data to ingest.

If the Ingest Historical Data user configuration is enabled, the API value for .action is deleted.

Ingest All Data

GET https://intel-api.volexity.com/tags

Request Parameters:

{
  "limit": 500,
  "sort": "last_modified,tag_id"
}

Sample Response:

{
    "after": "2024-02-12T14:57:44Z,11db9815-fd7c-432e-9f49-2853ed18a296",
    "data": [
        {
            "aliases": [
                "NINEBLOG"
            ],
            "attributes": {
                "malware_type": "remote_access_trojan"
            },
            "created": "2021-09-10T10:27:19Z",
            "description": "The 9BLOG malware family has been in use for nearly 8 years with only minimal changes. It is a VBE (VBScript encoded) based malware with a range of initial functionality, and is typically deploy by malicious macro documents. It is used exclusively by the TEMP_JEWEL threat actor.",
            "hyperlinks": [
                "https://www.fireeye.com/blog/threat-research/2013/08/the-curious-case-of-encoded-vb-scripts-apt-nineblog.html"
            ],
            "last_modified": "2021-09-10T10:27:19Z",
            "related_tags": [
                "DiamondGrass",
                "TIB-20200629"
            ],
            "tag_id": "04c65b36-02b1-430d-a47c-a1e260db39a6",
            "tag_name": "9BLOG",
            "tag_type": "malware_family"
        },
        {
            "aliases": [],
            "attributes": {},
            "created": "2021-09-10T10:27:20Z",
            "description": "This is a generic tag to label anything related to advanced persistent threats (APT).",
            "hyperlinks": [
                "https://en.wikipedia.org/wiki/Advanced_persistent_threat"
            ],
            "last_modified": "2021-09-10T10:27:20Z",
            "related_tags": [
                "ACROCLOUD",
                "DARKDROP",
                "MAR-20240221",
                "MAR-20240708",
                "Nightdoor",
                "TIB-20240221",
                "TIB-20240412",
                "TIB-20240910",
                "TIB-20240919",
                "TIB-20241011",
                "TIB-20241113",
                "UTA0208",
                "UTA0233",
                "UTA0238",
                "UTA0240",
                "UTA0252",
                "UTA0304"
            ],
            "tag_id": "0934d98e-2ca7-448c-b7a7-8ab7da77fd7a",
            "tag_name": "APT",
            "tag_type": "informational"
        },
        {
            "aliases": [],
            "attributes": {},
            "created": "2021-09-10T10:27:39Z",
            "description": "DarkHalo was the initial campaign name given to the infamous SolarWinds hack in 2021. A previously undocumented threat actor implanted malware into legitimate third-party source code to infect the third-party's customers. These Trojanized files that were distributed to customers were used to perform reconaissance against the victims, allowing Dark Halo to further infect machines they deemed worthy.",
            "hyperlinks": [
                "https://www.volexity.com/blog/2020/12/14/dark-halo-leverages-solarwinds-compromise-to-breach-organizations/",
                "https://blogs.microsoft.com/on-the-issues/2021/05/27/nobelium-cyberattack-nativezone-solarwinds/",
                "https://www.fireeye.com/blog/threat-research/2020/12/evasive-attacker-leverages-solarwinds-supply-chain-compromises-with-sunburst-backdoor.html"
            ],
            "last_modified": "2021-09-10 10:27:39+00:00",
            "related_tags": [
                "TIB-20201214"
            ],
            "tag_id": "5f933dfd-1d5f-40e9-b1e1-0377f2b96438",
            "tag_name": "DarkHalo",
            "tag_type": "campaign"
        },
        {
            "aliases": [],
            "attributes": {
                "affected_product": "Office"
            },
            "created": "2021-09-10T10:27:38Z",
            "description": "CVE-2021-40444 is a vulnerability for Microsoft Word which was disclosed on the 7th September 2021. It relies on a vulnerability in the MSHTML processing engine. Since it's release multiple researchers have been able to reproduce the exploit and its likely that malicious actors will quickly add it to their capabilities.",
            "hyperlinks": [
                "https://msrc.microsoft.com/update-guide/vulnerability/CVE-2021-40444"
            ],
            "last_modified": "2021-09-22 11:11:50+00:00",
            "related_tags": [
                "TIB-20210908"
            ],
            "tag_id": "3d081dd1-c874-4eb9-aea5-3e07f0364f0a",
            "tag_name": "CVE-2021-40444",
            "tag_type": "exploit"
        },
        {
            "aliases": [],
            "attributes": {
                "actor_type": "unknown",
                "attacker_origin": "unknown",
                "target_countries": ["HK"]
            },
            "created": "2021-09-23T09:33:22Z",
            "description": "This tag suggests that the related entity is not currently classified as either APT or Crime related.",
            "hyperlinks": [],
            "last_modified": "2021-10-04 16:08:11+00:00",
            "related_tags": [
                "CEFLOADER"
            ],
            "tag_id": "6705d522-64d7-415e-b14b-0a944b12e016",
            "tag_name": "Unclassified",
            "tag_type": "threat_actor"
        },
        {
            "aliases": [],
            "attributes": {
                "report_title": "TIB-20210218 | OceanLotus Creates Fake Tor App"
            },
            "created": "2021-11-19T16:55:39Z",
            "description": "Volexity has continued to track the Vietnamese threat group OceanLotus and identified a new fake website, set up by the group, purporting to be created by the Tor Project. The website was designed to appear as if it were providing access to a program called \"Torchat\" that could help an individual chat freely without monitoring, supervision, or censorship. In reality, the website was run by OceanLotus and was pushing malware for systems running Windows, OSX, and Android. Volexity\u00e2\u20ac\u2122s previous research identified fake websites distributing Windows and OSX malware in a similar fashion. However, this is the first website Volexity has encountered that added a mobile platform as one of the malicious download options alongside the desktop platforms.",
            "hyperlinks": [],
            "last_modified": "2023-01-23 15:24:56+00:00",
            "related_tags": [
                "OceanLotus",
                "PHANTOMLANCE"
            ],
            "tag_id": "1e43d264-062e-46c3-915c-3f16099f6175",
            "tag_name": "TIB-20210218",
            "tag_type": "volexity_report"
        },
        {
            "aliases": [
                "SuperJump",
                "KMA VPN",
                "UTA0269",
                "SuperJumpers"
            ],
            "attributes": {},
            "created": "2024-12-23T16:36:18Z",
            "description": "Proxy network used by Chinese threat actors. Reported by PWC who claim the network is small (<500 hosts) and comprised of VPS and compromised pfSense devices. Initially observed by PWC in 2021. Associated with exploitation of Citrix, Ivanti, Fortinet, OWA and Atlassian servers.\n\nNetworking over a random port in the 10,000 - 20,000 range.",
            "hyperlinks": [],
            "last_modified": "2024-12-23 16:36:18+00:00",
            "related_tags": [
                "DiplomaticBamboo",
                "IcedBamboo",
                "Potential ORB Network IP",
                "SatelliteBamboo",
                "SleepyBamboo"
            ],
            "tag_id": "53bb5c72-df0f-413c-9102-4e8e3c224aa2",
            "tag_name": "RelayBulb0002",
            "tag_type": "orb"
        }
    ],
    "sort": "last_modified,tag_id"
}

Ingest Only Updated/Created/Deleted Data

Request Parameters:

{
  "listen": "false",
  "timestamp": "2025-04-20T00:00:00.000Z"
}

Sample Response:

{"action":"created","data":{"aliases":[],"attributes":{"actor_type":"apt","attacker_origin":"unknown","target_countries":["US","LT","UA","RO","PL"]},"created":"2025-04-02T20:15:45Z","description":"Threat actor conducting OAuth phishing using insiders.vscode.dev to retrieve the subsequent auth code.","hyperlinks":[],"tag_id":"9af6a414-29f4-4bf3-978c-81d221b0b676","last_modified":"2025-04-02T20:15:45Z","tag_name":"UTA0352","related_tags":["TIB-20250402","TIB-20250404"],"tag_type":"threat_actor"},"timestamp":"2025-04-02T20:15:45Z"}
{"action":"updated","data":{"aliases":["Elfin","HOLMIUM","Refined Kitten"],"attributes":{"actor_type":"apt","attacker_origin":"IR","target_countries":["KR","SA","US"]},"created":"2021-09-10T10:27:22Z","description":"UTA0101 is an Iranian origin threat actor best known as APT33.","hyperlinks":["https://symantec-enterprise-blogs.security.com/blogs/threat-intelligence/elfin-indictments-iran-espionage","https://www.crowdstrike.com/blog/who-is-refined-kitten/"],"tag_id":"56a09f4d-8fa7-4d91-a6d5-2ddc073fd72e","last_modified":"2025-04-03T13:25:21Z","tag_name":"UTA0101","related_tags":["PupyRAT","ScotchCypress"],"tag_type":"threat_actor"},"timestamp":"2025-04-03T13:25:21Z"}

Tags Mapping Table

ThreatQuotient provides the following default mapping for both request types for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
data[].tag_name	Object.Value	Malware, Adversary, Campaign, Vulnerability	data[].created	9BLOG	Depending on the value in tag_type the object is set
data[].description	Object.description	N/A	data[].created	The 9BLOG malware family has been in...	N/A
data[].related_tags[]	Object.Tags	N/A	data[].created	DiamondGrass	N/A
data[].hyperlinks[]	Object.Attribute	Hyperlink	data[].created	https://www.fireeye.com/blog/threat-resear...	N/A
data[].aliases[]	Object.Attribute	Alias	data[].created	NINEBLOG	N/A
data[].attributes.malware_type	Malware.Attribute	Malware Type	data[].created	remote_access_trojan	Only for "tag_type"=="malware_family"
data[].attributes.actor_type	Adversary.Attribute	Actor Type	data[].created	unknown	Only for "tag_type"=="threat_actor"
data[].attributes.attacker_origin	Adversary.Attribute	Attacker Origin	data[].created	unknown	Only for "tag_type"=="threat_actor"
data[].attributes.target_countries	Adversary.Attribute	Target Country	data[].created	HK	Only for "tag_type"=="threat_actor"
data[].attributes.affected_product	Vulnerability.Attribute	Affected Product	data[].created	Office	Only for "tag_type"=="exploit"

Tag Type to ThreatQ Object Mapping

The following tables provides the Volexity Tag Type to ThreatQ Object Type mapping.

tag_type	ThreatQ Object Type
malware_family	Malware
informational	Adversary
threat_actor	Adversary
orb	Adversary
campaign	Campaign
exploit	Vulnerability
volexity_report	Report

Volexity - Signatures

The Volexity - Signatures feed ingests Volexity Yara signatures as ThreatQ signatures. The feed gives the option to ingest all the data for the current point in time or to ingest only the data that was created or updated since the feed start date. The user configuration Ingest Historical Data is used to decide what data to ingest.

If the Ingest Historical Data user configuration is enabled, the API value for .action is deleted.

Ingest All Data

GET https://intel-api.volexity.com/yara

Request Parameters:

{
  "limit": 500,
  "sort": "last_modified,rule_id"
}

Sample Response:

{
    "data": [
        {
            "created": "2021-08-13T10:35:59Z",
            "rule_id": 5838,
            "last_modified": "2021-08-19T14:58:27Z",
            "name": "cf_office_macro_audiofile",
            "os": [
                "android",
                "darwin",
                "linux",
                "win"
            ],
            "os_arch": [
                "arm",
                "x86",
                "x64",
                "mips"
            ],
            "raw_rule": "rule cf_office_macro_audiofile: Unclassified\n{\n    meta:\n        author = \"threatintel@volexity.com\"\n        description = \"Looks for macro content in MHT documents used by possible APT actor.\"\n        date = \"2021-08-13\"\n        hash1 = \"507c319c6c0650497a297d9ca0d46ca0595c59f8aa466d599cc4839d9fe0c1bc\"\n        scan_context = \"file\"\n        last_modified = \"2021-08-19T14:58:27.748156Z\"\n        license = \"Please see the license at the head of this rules file for acceptable use. If you did not receive a license please contact threatintel@volexity.com\"\n        rule_id = 5838\n        version = 3\n\n    strings:\n        $s1 = \"fileStream.Write Chr( AscB( MidB( objHTTP\" ascii\n        $s2 = \"Call objHTTP.Open(\\\"POST\\\", strURL, FALSE)\" ascii\n        $s3 = \".Calc()\" ascii\n\n    condition:\n        2 of them\n}",
            "scan_context": [
                "file"
            ],
            "tags": [
                "Unclassified"
            ]
        },
        {
            "created": "2021-08-13T10:31:42Z",
            "rule_id": 5837,
            "last_modified": "2021-08-19T14:58:28Z",
            "name": "general_office_mht_with_activemime",
            "os": [
                "android",
                "darwin",
                "linux",
                "win"
            ],
            "os_arch": [
                "arm",
                "x86",
                "x64",
                "mips"
            ],
            "raw_rule": "rule general_office_mht_with_activemime: General\n{\n    meta:\n        author = \"threatintel@volexity.com\"\n        description = \"Looks for MHT documents exported from Word containing ActiveMime objects.\"\n        date = \"2021-08-13\"\n        hash1 = \"507c319c6c0650497a297d9ca0d46ca0595c59f8aa466d599cc4839d9fe0c1bc\"\n        scan_context = \"file\"\n        last_modified = \"2021-08-19T14:58:28.644144Z\"\n        license = \"Please see the license at the head of this rules file for acceptable use. If you did not receive a license please contact threatintel@volexity.com\"\n        rule_id = 5837\n        version = 3\n\n    strings:\n        $mht_header = \"MIME-Version:\"\n        $word = \"Generator content=3D\\\"Microsoft Word\"\n        $base64_hdr = \"QWN0aXZlTWltZQAAAfAEAAAA\" ascii\n\n    condition:\n        $mht_header in (0..32) and\n        $word and\n        $base64_hdr\n}",
            "scan_context": [
                "file"
            ],
            "tags": [
                "General"
            ]
        },
        {
            "created": "2021-08-11T11:07:26Z",
            "rule_id": 5830,
            "last_modified": "2021-08-19T14:58:34Z",
            "name": "apt_win_csloader_gonet_b",
            "os": [
                "android",
                "darwin",
                "linux",
                "win"
            ],
            "os_arch": [
                "arm",
                "x86",
                "x64",
                "mips"
            ],
            "raw_rule": "rule apt_win_csloader_gonet_b: Unclassified\n{\n    meta:\n        author = \"threatintel@volexity.com\"\n        description = \"Detects a custom CobaltStrike loader.\"\n        date = \"2021-08-11\"\n        hash1 = \"595c15c61ddad76dfbca456a54ef499c1f86ed0d65b1d5a3dc10dfc5017430e3\"\n        scan_context = \"file\"\n        last_modified = \"2021-08-19T14:58:34.551181Z\"\n        license = \"Please see the license at the head of this rules file for acceptable use. If you did not receive a license please contact threatintel@volexity.com\"\n        rule_id = 5830\n        version = 4\n\n    strings:\n        $mutex = \"!@#afssafasfasfs\" wide\n\n        $s_method1 = \"GetModuleHandle\" ascii fullword\n        $s_method2 = \"LoadLibrary\" ascii fullword\n        $s_method3 = \"VirtualAlloc\" ascii fullword\n        $s_method4 = \"GetProcAddress\" ascii fullword\n        $s_method5 = \"A_mutex\" ascii\n        $s_xor_key = {546388ff635174e963}\n    condition:\n        $mutex or\n        (\n            all of ($s*) and\n            filesize < 250KB\n        )\n}",
            "scan_context": [
                "file"
            ],
            "tags": [
                "Unclassified"
            ]
        }
    ],
    "after": "2021-08-19T14:58:34Z,5830",
    "sort": "last_modified,rule_id"
}

Ingest Only Updated/Created/Deleted Data

Request Parameters

{
  "listen": "false",
  "timestamp": "2025-04-20T00:00:00.000Z"
}

Sample Response

{"action":"created","data":{"created":"2022-10-03T12:58:42Z","rule_id":8422,"last_modified":"2022-10-03T12:58:42Z","maximum_yara_ver":"4.5.2","minimum_yara_ver":"3.5.0","name":"apt_win_unc_cn_delphi_loader","os":["android","darwin","linux","win"],"os_arch":["arm","x86","x64","mips"],"raw_rule":"rule apt_win_unc_cn_delphi_loader: Unclassified\n{\n    meta:\n        author = \"threatintel@volexity.com\"\n        description = \"Detects a Delphi loader used to load an unspecified .dat file.\"\n        date = \"2022-10-03\"\n        hash1 = \"df9a2471c23790a381e286bb96ea3401b94686b7ca067297a7920a76a7202112\"\n        // Note that in the reference this file is listed as loading NBTScan but that cannot\n        // be verified at this time.\n        reference = \"https://symantec-enterprise-blogs.security.com/blogs/threat-intelligence/espionage-asia-governments\"\n        scan_context = \"file,memory\"\n        severity = \"critical\"\n        last_modified = \"2022-10-03T12:58:42Z\"\n        license = \"Please see the license at the head of this rules file for acceptable use. If you did not receive a license please contact threatintel@volexity.com\"\n        rule_id = 8422\n        version = 1\n\n    strings:\n        $w1 = \"fail to open .dat file\" wide\n        $w2 = \"fail to get the file size\" wide\n        $w3 = \"fail to read file\" wide\n\n    condition:\n        2 of them\n}","scan_context":["file","memory"],"tags":["Unclassified"]},"timestamp":"2022-10-03T12:58:42Z"}

Signatures Mapping Table

ThreatQuotient provides the following default mapping for both request types for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
data[].name	Signature.Name	N/A	data[].created	apt_win_csloader_gonet_b	N/A
data[].raw_rule	Signature.Value	N/A	data[].created	rule apt_win_csloader_gonet_b: Uncla...	N/A
data[].tags[]	Signature.Tags	N/A	data[].created	Unclassified	N/A
data[].scan_context[]	Signature.Attribute	Scan Context	data[].created	file	N/A
data[].os_arch[]	Signature.Attribute	Operating System Architecture	data[].created	arm	N/A
data[].os[]	Signature.Attribute	Operating System	data[].created	darwin	N/A

Volexity - Reports

The Volexity - Reports feed ingests Volexity Reports. For each Volexity Report is created a ThreatQ Report Object.

The following objects can be related to the ThreatQ Report depending on user configurations:

GET https://intel-api.volexity.com/reports

• The PDF generated by Volexity for the Report - it is ingested as a ThreatQ File object if Ingest Related Volexity PDF Report is enabled.
• The indicators present in the PDF Report and in the YARA related rules - they are ingested according to the values enabled in Parsed IOC Types configuration.
• The YARA signatures referenced in the PDF Report - they are ingested if Ingest Related YARA Signatures is enabled.
• The Snort signatures referenced in the PDF Report - they are ingested if Ingest Related Snort Signatures is enabled.

Request Parameters

{
  "sort": "id",
  "modified":"2025-05-01T00:00:00Z"
}

Sample Response

{
  "data": [
    {
      "id": "kA1Pg0000000ZH7KAM",
      "attachments": [
        "rules.yar",
        "rules.rules",
        "iocs.csv"
      ],
      "last_modified": "2025-04-29T13:12:06Z",
      "report_title": "TIB-20240227 | MACMA-GIMMICK Fusion and RELOADEXT Chrome Extension Analysis",
      "report_tag": "TIB-20240227",
      "topics": [
        "RELOADEXT",
        "StormBamboo",
        "China",
        "GIMMICK",
        "MACMA"
      ]
    }
  ],
  "sort": "id"
}

Reports Mapping Table

ThreatQ provides the following default mapping for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
data[].report_title	Report.Value	Report	N/A	TIB-20240227 \| MACMA-GIMMICK Fusion and RELOADEXT Chrome Extension Analysis	N/A
data[].topics[]	Report.Attribute	Topic	N/A	RELOADEXT	N/A

iocs.csv

CSV files having iocs or indicators in their name in data[].attachments[] are parsed to ingest the indicators according to Parsed IOC Types configuration

Example of iocs.csv file:

value,entity_type,description
singist.xyz,hostname,"Check-in domain for Charming Kitten maldoc"
bookreadersale.xyz,hostname,"C2 domain for PowerStar backdoor"
1thebstack1.xyz,hostname,"Related Charming Kitten infrastructure"

ThreatQ provides the following default mapping for CSV files:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
token(0)	Indicator.Value	token(1)	N/A	singist.xyz	Type found using table Volexity Entities Indicator Type Mapping
token(2)	Indicator.Description	N/A	N/A	Check-in domain for Charming Kitten maldoc	N/A

rules.yar

YAR files from data[].attachments[] are parsed to ingest YARA signatures and indicators. Indicators are parsed according to Parsed IOC Types configuration

Example of rules.yar file:

rule apt_win_powerstar : CharmingKitten
{
    meta:
        author = "threatintel@volexity.com"
        description = "Custom PowerShell backdoor used by Charming Kitten."
        date = "2021-10-13"
        hash1 = "de99c4fa14d99af791826a170b57a70b8265fee61c6b6278d3fe0aad98e85460"
        memory_suitable = 1
        severity = critical
    strings:
        $appname = "[AppProject.Program]::Main()" ascii wide // caller for C# code
        $langfilters1 = "*shar*" ascii wide
        $langfilters2 = "*owers*" ascii wide
        $definitions1 = "[string]$language" ascii wide
        $definitions2 = "[string]$Command" ascii wide
        $definitions3 = "[string]$ThreadName" ascii wide
        $definitions4 = "[string]$StartStop" ascii wide
        $sess = "$session = $v + \";;\" + $env:COMPUTERNAME + $mac;" ascii wide
    condition:
        $appname or
        all of ($langfilters*) or
        all of ($definitions*) or
        $sess
}

ThreatQ provides the following default mapping for YAR files:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
*	Signature.Value	YARA	meta.date	N/A	Entire text.
rule * : {TAG}	Signature.Tag	N/A	N/A	CharmingKitten	Value after : is added as tag.
rule *	Signature.Name	YARA	meta.date	apt_win_powerstar	N/A
meta	Signature.Attribute	All values before = sign except of description, date, hash*. Title cased.	meta.date	N/A	Attributes Severity and Last Modified are updatable if present.
meta.description	Signature.Description	N/A	N/A	Custom PowerShell backdoor used by Charming Kitten.	N/A
meta.hash*	Related Indicator.Value	Type determined based on length.	meta.date	de99c4fa14d99af791826a170b57a70b8265fee61c6b6278d3fe0aad98e85460	User-configurable.

rules.rules

Rules files from data[].attachments[] are parsed to ingest Snort signatures.

Example of rules.rules file:

alert http $EXTERNAL_NET any -> $HOME_NET any (msg:"Volex - PowerStar Sleep response (NoComm) at 0"; http.response_body;content:"NoComm"; offset:0; depth:6; isdataat:!1,relative; sid:2021101301; priority:2;)
alert http $HOME_NET any -> $EXTERNAL_NET any (msg:"VLX - CharmingCypress meeting URI pattern - Nov 24"; http.method; content:"GET"; http.uri; content:"/join-meeting?v="; startswith; sid:2024120601; rev:3; metadata:created_at 2024_12_06,updated_at 2024_12_06,signature_severity Major;)

ThreatQ provides the following default mapping for YAR files:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
*	Signature.Value	Snort	N/A	N/A	Entire text.
msg	Signature.Name	Snort	N/A	Volex - PowerStar Sleep response (NoComm) at 0	N/A
metadata	Signature.Attribute	All values before sign except of tag in the metadata section.	N/A	N/A	Attributes Severity and Last Modified are updatable if present.

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Volexity - Entities

Scenario - Ingest Historical Data parameter is enabled.

Metric	Result
Run Time	2 hours 20 minutes
Indicators	336,832
Indicator Attributes	852,270

Scenario - Ingest Historical Data parameter is disabled.

Metric	Result
Run Time	2 minutes
Indicators	500
Indicator Attributes	1,280

Volexity - Tags

Scenario - Ingest Historical Data parameter is enabled.

Metric	Result
Run Time	2 min
Adversaries	365
Adversaries Attributes	3,221
Campaigns	24
Campaigns Attributes	28
Malware	781
Malware Attributes	1,994
Vulnerabilities	73
Vulnerabilities Attributes	186

Scenario - Ingest Historical Data parameter is disabled.

Metric	Result
Run Time	1 min
Adversaries	3
Adversaries Attributes	40

Volexity - Signatures

Scenario - Ingest Historical Data parameter is enabled.

Metric	Result
Run Time	2 minutes
Signature	5,044
Signature Attributes	17,200

Scenario - Ingest Historical Data parameter is disabled.

Metric	Result
Run Time	1 minute
Signatures	6
Signature Attributes	18

Volexity - Reports

Metric	Result
Run Time	2 minutes
Files	6
Indicators	100
Reports	6
Report Attributes	30
Signatures	10
Signature Attributes	40

Change Log

• Version 1.1.0
  • Added the ability to choose whether to ingest historical or new data.
  • Added the ability to remove from ThreatQ objects deleted by Volexity.
  • Removed functionality to ingest reports from Get Tags feed.
  • Removed the following configuration parameters:
    • Objects per page
    • Number of Pages
  • Volexity Entities - added the following configuration parameters:
    • Ingest Historical Data: ingest all the available data for the current point in time.
    • Ingest Tags: ingest the tags.
    • Remove Deleted Entities: remove from ThreatQ all the indicators with a sole source of  Volexity - Entities that have been deleted in Volexity.
  • Volexity Tags - added the following configuration parameters:
    • Ingest Historical Data: ingest all the available data for the current point in time.
    • Ingest Tags: ingest the tags.
    • Remove Deleted Entities: remove from ThreatQ all the objects with a sole source of Volexity - Tags that have been deleted in Volexity.
  • Volexity Signatures - added the following configuration parameters:
    • Ingest Historical Data: ingest all the available data for the current point in time.
    • Ingest Tags: ingest the tags.
    • Remove Deleted Entities: remove from ThreatQ all the indicators with a sole source of Volexity - Signatures that have been deleted in Volexity.
  • Added a new feed: Volexity - Reports.
• Version 1.0.0
  • Initial release
