Current ThreatQ Version Filter


VirusTotal IOC Stream CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The VirusTotal IOC Stream CDF returns different types of objects (files, URLs, domains, IP addresses) coming from multiple origins. Depending on the origin of the notification there will be different context attributes added to these objects.

The integration provides the following feed:

  • VirusTotal IOC Stream -  ingests IOCs from the VirusTotal IOC Stream feed and stores them along with selected Context attributes.

The integration ingests following object types:

  • Indicators
    • Filename
    • Fuzzy Hash
    • IP Address
    • MD5
    • SHA-1
    • SHA-256
  • Malware

Prerequisites

The integration requires a VirusTotal API key.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the integration yaml file.
  3. Navigate to the integrations management page on your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the integration yaml file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the integration file on your local machine

    ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

  6. The feed will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Commercial option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:
    Parameter Description
    API Key Enter your VirusTotal API key.
    Context Filter Select the pieces of context you want to ingest along with the IPs.  Options include:
    • Magic (default)
    • Meaningful Name (default)
    • Reputation (default)
    • Description Type
    • Extension Type
    • File Extension (default)
    • Analysis Result
    • File Type Probability
    • Last Analysis Date (default)
    • Last Modification Date (default)
    • Notification Context Tags (default)
    • Object ID
    • Object Source ID

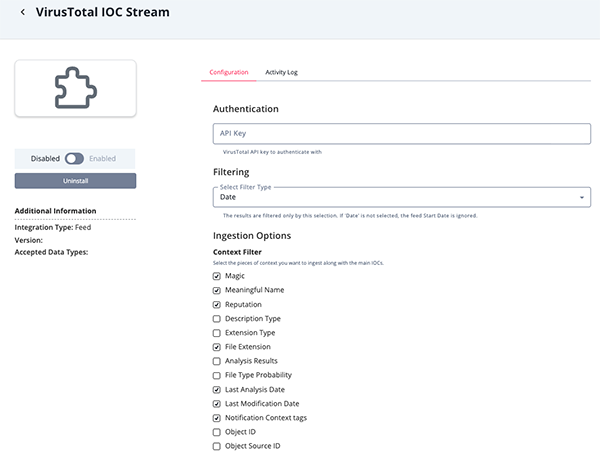

    Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

VirusTotal IOC Stream

The VirusTotal IOC Stream feed ingests IOCs from the VirusTotal IOC Stream feed and stores them along with selected Context attributes.

GET https://www.virustotal.com/api/v3/ioc_stream

Sample Response:

{
  "meta": {
    "cursor": "eJyrCa9yNfIPSTf1DXE09M1KLvZ09qzwzYqs9HdJNvEPSTbxdfZKAQDpQQwc",
    "count": 76
  },
  "data": [
    {
      "attributes": {
        "whois": "NetRange: 10.0.0.0 - 10.255.255.255\nCIDR: 10.0.0.0/8\nNetName: PRIVATE-ADDRESS-ABLK-RFC1918-IANA-RESERVED\nNetHandle: NET-10-0-0-0-1\nParent: ()\nNetType: IANA Special Use\nOriginAS: \nOrganization: Internet Assigned Numbers Authority (IANA)\nRegDate: \nUpdated: 2013-08-30\nComment: These addresses are in use by many millions of independently operated networks, which might be as small as a single computer connected to a home gateway, and are automatically configured in hundreds of millions of devices. They are only intended for use within a private context and traffic that needs to cross the Internet will need to use a different, unique address.\r\nComment: \r\nComment: These addresses can be used by anyone without any need to coordinate with IANA or an Internet registry. The traffic from these addresses does not come from ICANN or IANA. We are not the source of activity you may see on logs or in e-mail records. Please refer to http://www.iana.org/abuse/answers\r\nComment: \r\nComment: These addresses were assigned by the IETF, the organization that develops Internet protocols, in the Best Current Practice document, RFC 1918 which can be found at:\r\nComment: http://datatracker.ietf.org/doc/rfc1918\nRef: https://rdap.arin.net/registry/ip/10.0.0.0\nOrgName: Internet Assigned Numbers Authority\nOrgId: IANA\nAddress: 12025 Waterfront Drive\r\nAddress: Suite 300\nCity: Los Angeles\nStateProv: CA\nPostalCode: 90292\nCountry: US\nRegDate: \nUpdated: 2012-08-31\nRef: https://rdap.arin.net/registry/entity/IANA\nOrgAbuseHandle: IANA-IP-ARIN\nOrgAbuseName: ICANN\nOrgAbusePhone: +1-310-301-5820 \nOrgAbuseEmail: abuse@iana.org\nOrgAbuseRef: https://rdap.arin.net/registry/entity/IANA-IP-ARIN\nOrgTechHandle: IANA-IP-ARIN\nOrgTechName: ICANN\nOrgTechPhone: +1-310-301-5820 \nOrgTechEmail: abuse@iana.org\nOrgTechRef: https://rdap.arin.net/registry/entity/IANA-IP-ARIN\n",
        "whois_date": 1652963616,
        "last_analysis_date": 1698893708,
        "tags": [
          "private"
        ],
        "last_analysis_stats": {
          "harmless": 56,
          "malicious": 0,
          "suspicious": 0,
          "undetected": 33,
          "timeout": 0
        },
        "threat_severity": {
          "threat_severity_level": "SEVERITY_NONE",
          "threat_severity_data": {
            "has_bad_communicating_files_high": true,
            "has_bad_communicating_files_medium": true
          },
          "last_analysis_date": "1698894041",
          "version": "I2",
          "level_description": "Severity NONE because it has no detections."
        },
        "reputation": 0,
        "last_analysis_results":
        {
          "Bkav": {
            "category": "undetected",
            "result": "unrated",
            "method": "blacklist",
            "engine_name": "Bkav"
          },
          "CMC Threat Intelligence":
          {
              "category": "harmless",
              "result": "clean",
              "method": "blacklist",
              "engine_name": "CMC Threat Intelligence"
          }
        },
        "last_modification_date": 1698921525,
        "total_votes": {
          "harmless": 0,
          "malicious": 0
        }
      },
      "type": "ip_address",
      "id": "10.127.0.3",
      "links": {
        "self": "https://www.virustotal.com/api/v3/ip_addresses/10.127.0.3"
      },
      "context_attributes": {
        "notification_id": "12558362696",
        "origin": "hunting",
        "hunting_info": {
          "rule_name": "IpsContactedByADetectedFile"
        },
        "tags": [
          "untitled_yara_ruleset",
          "ipscontactedbyadetectedfile"
        ],
        "sources": [
          {
            "type": "hunting_ruleset",
            "id": "12682106570",
            "label": "Untitled YARA ruleset"
          }
        ],
        "notification_date": 1698921520
      }
    }
  ],
    "links": {
        "self": "https://www.virustotal.com/api/v3/ioc_stream",
        "next": "https://www.virustotal.com/api/v3/ioc_stream?cursor=eJyrCa9yNfIPSTf1DXE09M1KLvZ09qzwzYqs9HdJNvEPSTbxdfZKAQDpQQwc"
    }
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.data[].id Indicator Value IP Address .data[].attributes.last_
submission_date
'10.127.0.3' If type is not file
.data[].attributes.type_description +"_"+ data[].attributes.tlsh Indicator Value Filename .data[].attributes.last_
submission_date
N/A If type is file
.data[].attributes.type_description +"_"+ data[].id Indicator Value Filename .data[].attributes.last_
submission_date
N/A If type is file and we dont have data[].attributes.tlsh
.data[].attributes.magic Indicator Attribute Magic .data[].attributes.last_
submission_date
N/A
.data[].attributes.meaningful_name Indicator Attribute Meaningful Name .data[].attributes.last_
submission_date
N/A
.data[].attributes.reputation Indicator Attribute Reputation .data[].attributes.last_
submission_date
'0'
.data[].attributes.type_description Indicator Attribute Description Type .data[].attributes.last_
submission_date
N/A
.data[].attributes.type_extension Indicator Attribute Extension Type .data[].attributes.last_
submission_date
N/A
.data[].attributes.last_analysis_date Indicator Attribute Last Analysis Date .data[].attributes.last_
submission_date
'1698894041' Timestamp format. Updates at ingestion time.
.data[].attributes.last_modification_date Indicator Attribute Last Modification Date .data[].attributes.last_
submission_date
N'1698921525' Timestamp format. Updates at ingestion time.
.data[].attributes.trid[].file_type + .data[].attributes.trid[].probability Indicator Attribute File Type Probability .data[].attributes.last_
submission_date
N/A
.data[].attributes.exiftool.FileTypeExtension Indicator Attribute File Extension .data[].attributes.last_
submission_date
n/A
.data[].attributes.last_analysis_results.(key).result Indicator Attribute (key) Analysis Result .data[].attributes.last_
submission_date
'unrated' The name of this attribute is dynamically set with the value found on (key). We only add this attribute if the value is not null.
.data[].attributes.tags[] Indicator Tag N/A .data[].attributes.last_
submission_date
'apk'
.data[].attributes.last_analysis_results.(key).result Related.Malware N/A .data[].attributes.last_
submission_date
'clean' If the value corresponds to a type of malware, then a Malware object is ingested instead of ingesting the '(key) Analysis Result' signature attribute.
.data[].attributes.last_analysis_results.(key).engine_name Related.Malware.
Attribute
Analysis Engine .data[].attributes.last_
submission_date
'CMC Threat Intelligence'
.data[].attributes.md5 Related.Indicator MD5 .data[].attributes.last_
submission_date
N/A
.data[].attributes.sha1 Related.Indicator SHA-1 .data[].attributes.last_
submission_date
N/A
.data[].attributes.sha256 Related.Indicator SHA-256 .data[].attributes.last_
submission_date
N/A
.data[].attributes.ssdeep Related.Indicator Fuzzy Hash .data[].attributes.last_
submission_date
N/A
.data[].attributes.main_icon.raw_md5 Related.Indicator MD5 .data[].attributes.last_
submission_date
N/A
.data[].attributes.tlsh Related.Indicator Fuzzy Hash .data[].attributes.last_
submission_date
N/A

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Metric Result
Run Time 3 minutes
Indicators 3,026
Indicator Attributes 3,655
Malware 3,962
Malware Attributes 4,687

Known Issues / Limitations

  • When filtering the results by any context information other than Date, the feed's Start Date will be ignored and the results will not be filtered by Date.
  • The API will occasionally respond with a 500 error when the feed times run long.

Change Log

  • Version 1.0.3
    • Resolved an error that would occur when the last_analysis_results or type_description is empty.
  • Version 1.0.2
    • Resolved the following Undefined Error: ("'dict object' has no attribute 'tlsh'")
  • Version 1.0.1
    • Resolved a parsing attribute issue that would cause a Cannot parse argument of type None error.
  • Version 1.0.0
    • Initial release

PDF Guides

Document ThreatQ Version
VirusTotal IOC Stream CDF Guide v1.0.3 5.22.0 or Greater
VirusTotal IOC Stream CDF Guide v1.0.1 5.22.0 or Greater
VirusTotal IOC Stream CDF Guide v1.0.0 5.22.0 or Greater
