VirusTotal Collections CDF
The web format of this guide reflects the most current release. Guides for older iterations are available in PDF format.
Integration Details
ThreatQuotient provides the following details for this integration:
| Current Integration Version | 1.0.3 |
| Compatible with ThreatQ Versions | >= 4.49.0 |
| Support Tier | ThreatQ Supported |
Introduction
The VirusTotal Collections feed allows a user to ingest all IoCs (IP Address, Domains, URLs, and Hashes) and related attributes from one or multiple VirusTotal collections.
The integration provides the following endpoint:
- VirusTotal Collections -
GET https://www.virustotal.com/api/v3/collections/{collection_id}
Based on the response of the collection, the integration will then execute four additional GET requests:
- IP Address -
GET https://www.virustotal.com/api/v3/collections/{collection_id}/ip_addresses - Domains -
GET https://www.virustotal.com/api/v3/collections/{collection_id}/domains - URLs -
GET https://www.virustotal.com/api/v3/collections/{collection_id}/urls - Files -
GET https://www.virustotal.com/api/v3/collections/{collection_id}/files
The CDF ingests indicators and indicator attributes.
Installation
Perform the following steps to install the integration:
The same steps can be used to upgrade the integration to a new version.
- Log into https://marketplace.threatq.com/.
- Locate and download the integration yaml file.
- Navigate to the integrations management page on your ThreatQ instance.
- Click on the Add New Integration button.
- Upload the integration yaml file using one of the following methods:
- Drag and drop the file into the dialog box
- Select Click to Browse to locate the file on your local machine
ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.
- The feed will be added to the integrations page.
You will still need to configure and then enable the feed.
Configuration
ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.
To configure the integration:
- Navigate to your integrations management page in ThreatQ.
- Select the Commercial option from the Category dropdown (optional).
If you are installing the integration for the first time, it will be located under the Disabled tab.
- Click on the integration entry to open its details page.

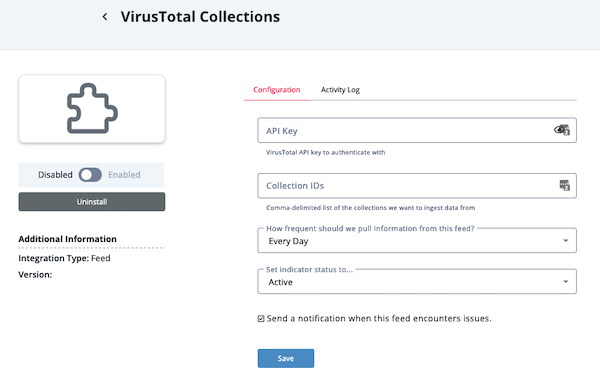

- Enter the following parameters under the Configuration tab:
Parameter Description API Key Your VirusTotal API Key. Collection IDs A comma-delimited list of the collections to ingest data from. The number and size of the collections can affect the performance of the integration. A large number of collections or large collection sizes can extend the amount of time to ingest all data.
- Review any additional settings, make any changes if needed, and click on Save.
- Click on the toggle switch, located above the Additional Information section, to enable it.
ThreatQ Mapping
VirusTotal Collections
The VirusTotal Collections feed ingests information about a VirusTotal collection.
GET https://www.virustotal.com/api/v3/collections/{collection_id}
Sample Response:
{
"data": {
"attributes": {
"alt_names": [
"Geodo",
"Heodo"
],
"autogenerated_tags": [
"cve-2018-20250",
"cve-2017-11882",
"upx",
],
"creation_date": 1612569600,
"description": "While [i]Emotet[/i] historically was a banking malware organized in a botnet, nowadays Emotet is mostly seen as infrastructure as a service for content delivery. For example, since mid 2018 it is used by Trickbot for installs, which may also lead to ransomware attacks using Ryuk, a combination observed several times against high-profile targets.\r\nIt is always stealing information from victims but what the criminal gang behind it did, was to open up another business channel by selling their infrastructure delivering additional malicious software. From malware analysts it has been classified into epochs depending on command and control, payloads, and delivery solutions which change over time.",
"description_html": "While <em>Emotet</em> historically was a banking malware organized in a botnet, nowadays Emotet is mostly seen as infrastructure as a service for content delivery. For example, since mid 2018 it is used by Trickbot for installs, which may also lead to ransomware attacks using Ryuk, a combination observed several times against high-profile targets.\r\nIt is always stealing information from victims but what the criminal gang behind it did, was to open up another business channel by selling their infrastructure delivering additional malicious software. From malware analysts it has been classified into epochs depending on command and control, payloads, and delivery solutions which change over time.",
"domains_count": 0,
"files_count": 3688,
"ip_addresses_count": 0,
"last_modification_date": 1613148085,
"link": "https://malpedia.caad.fkie.fraunhofer.de/details/win.emotet",
"name": "Emotet",
"references_count": 129,
"status": "COMPUTED",
"tags": [
"upx"
],
"targeted_countries": ["United States"],
"targeted_industries": ["Finance"],
"tlp": "WHITE",
"top_icon_md5": [
"647ca034cb6c763363b636269047a4c0",
"da87510c3aabe7851c7c5d0493dbb14a",
"d2d15e1e362ef2edda7238e165376112"
],
"urls_count": 0
},
"id": "malpedia_win_emotet",
"links": {
"self": "https://virustotal.com/api/v3/collections/malpedia_win_emotet"
},
"type": "collection"
}
}ThreatQ provides the following default mapping for this feed:
| Feed Data Path | ThreatQ Entity | ThreatQ Object Type or Attribute Key | Examples | Notes |
|---|---|---|---|---|
| .data.id | Indicator.Attribute | VirusTotal Collection ID | malpedia_win_emotet | N/A |
| .data.attributes.name | Indicator.Attribute | VirusTotal Collection Name | Emotet | N/A |
| .data.attributes.creation_date | Indicator.Attribute | VirusTotal Collection Creation Date | 2021-02-06 12:00:00-00:00 | Uses timestamp to convert from datetime to standardized |
| .data.attributes.targeted_countries[] | Indicator.Attribute | Targeted Country | United States | One attribute for each country |
| .data.attributes.targeted_industries[] | Indicator.Attribute | Targeted Industry | Finance | One attribute for each industry |
| .data.attributes.tags[] | Indicator.Tag | N/A | upx | N/A |
| .data.attributes.autogenerated_tags[] | Indicator.Tag | N/A | cve-2018-20250 | N/A |
| .data.attributes.tlp | Indicator.TLP | N/A | WHITE | N/A |
These attributes and tags are then added to each IoC ingested into ThreatQ. See the GET Requests section for more details.
GET Requests
Based on the response from the collection, the integration will then execute 4 other GET requests for the IoC data:
Get IP Addresses
The Get IP Address suppplemental feed ingests IP Addresses from a VirtualTotal Collection
GET https://www.virustotal.com/api/v3/collections/{collection_id}/ip_addresses
Sample Response:
{
"meta": {
"count": 300,
"cursor": "eyJsaW1pdCI6IDIsICJvZmZzZXQiOiAyfQ=="
},
"data": [
{
"attributes": {
"as_owner": "Strato AG",
"asn": 6724,
"continent": "EU",
"country": "DE",
"jarm": "27d40d40d29d40d1dc42d43d00041d4689ee210389f4f6b4b5b1b93f92252d",
"last_analysis_results": {
"ADMINUSLabs": {
"category": "harmless",
"engine_name": "ADMINUSLabs",
"method": "blacklist",
"result": "clean"
},
"AegisLab WebGuard": {
"category": "harmless",
"engine_name": "AegisLab WebGuard",
"method": "blacklist",
"result": "clean"
},
"AlienVault": {
"category": "harmless",
"engine_name": "AlienVault",
"method": "blacklist",
"result": "clean"
},
"Antiy-AVL": {
"category": "harmless",
"engine_name": "Antiy-AVL",
"method": "blacklist",
"result": "clean"
},
"AutoShun": {
"category": "harmless",
"engine_name": "AutoShun",
"method": "blacklist",
"result": "clean"
}
},
"last_analysis_stats": {
"harmless": 5,
"malicious": 0,
"suspicious": 0,
"timeout": 0,
"undetected": 0
},
"last_https_certificate": {
"cert_signature": {
"signature": "97ef5af5e6e898ba4ec4b04644954ed60ba16b82e6f9c56967b90b5abc9a559bc3a912af382a1073c4793d75749035597b341efec1073c17bd8b5e03714781c6e9f11b1ce39ecc74afcb8319b9f6f1d9f6c484400bd58374fc0addf7d05f743cdba94a21ebee3d4ea074282a7662eec26171092a69fd60158cd72dd647146de7eb8ae2b5db6257588acc98429eb40f6b393fcbad71139ba11671370d41cbb5f6ca6a18506fccf26d05c3c555377d03946d9e01cdefedbd55c66f34276113885a77babb64ccea9fe16bfac6f2be823bce6d698aed09c3cc02c2c39127d6418c21dbacd723d8f5fa465ce72a8778eee58bf5603a8f42d4afc4c10b0470cef4b244",
"signature_algorithm": "sha256RSA"
},
"extensions": {
"1.3.6.1.4.1.11129.2.4.2": "0481f300f1007700e2694bae26e8e94009e8861bb63b83d43ee7fe7488fba48f",
"CA": true,
"authority_key_identifier": {
"keyid": "a84a6a63047dddbae6d139b7a64565eff3a8eca1"
},
"ca_information_access": {
"CA Issuers": "http://cert.int-x3.letsencrypt.org/",
"OCSP": "http://ocsp.int-x3.letsencrypt.org"
},
"certificate_policies": [
"2.23.140.1.2.1",
"1.3.6.1.4.1.44947.1.1.1"
],
"extended_key_usage": [
"serverAuth",
"clientAuth"
],
"key_usage": [
"ff"
],
"subject_alternative_name": [
"www.ufos-hosting.de"
],
"subject_key_identifier": "f522cd9c9a4ccdf5d1ec3f925013bf1185e0bc0c"
},
"issuer": {
"C": "US",
"CN": "Let's Encrypt Authority X3",
"O": "Let's Encrypt"
},
"public_key": {
"algorithm": "RSA",
"rsa": {
"exponent": "010001",
"key_size": 2048,
"modulus": "00d1722efe2a2605072f27013b4f9371f1926464dc1c4285f38138a523dc09f0b9ae8578aa70934141bf14893921a2b754a5747a7c71ef9a29501f839a2fe3d052b1434a2fbd0d3149eb1bbe4eef14583791ea7cde3bee2babc5f7114a0fe1ab0c5c5f07701330056b510e020154cca0385a93955684d4d99b74904a44e1ad93f035ebe02bd6e9721285855cbe8f6ce4aaf83ade044b6bc8bd8424ce41f21cf72a1d4ce42ae539fb202efcc791ef810fa49e1c791d4edf4fb83f468cc78b76b5f70333280681f034b80613438f1b0a387e3bdb0dd324e63905d96d1dc810498d5d157d12fc87d4dee9b2abc264b5b6bd7b1e00b838735270e614e15c2c72babb99"
}
},
"serial_number": "36feb381e87e4ed9b5ee53c76bdaccfabc0",
"signature_algorithm": "sha256RSA",
"size": 1379,
"subject": {
"CN": "www.ufos-hosting.de"
},
"thumbprint": "b796e1d3210edcf97290e147d1245cfc9a78132c",
"thumbprint_sha256": "988858e7387a90af438c9d1edad64fa01e0e85666ebf88ae458b1ceb553c5760",
"validity": {
"not_after": "2019-10-10 14:36:27",
"not_before": "2019-07-12 14:36:27"
},
"version": "V3"
},
"last_https_certificate_date": 1566463571,
"last_modification_date": 1591890478,
"network": "81.169.128.0/17",
"regional_internet_registry": "RIPE NCC",
"reputation": 0,
"tags": [],
"total_votes": {
"harmless": 0,
"malicious": 0
},
"whois": "NetRange: 31.0.0.0 - 31.255.255.255\nCIDR: 31.0.0.0/8\nNetName: 31-RIPE\nNetHandle: NET-31-0-0-0-1\nParent: ()\nNetType: Allocated to RIPE NCC\nOriginAS: \nOrganization: RIPE Network Coordination Centre (RIPE)\nRegDate: \nUpdated: 2009-03-25\nComment: These addresses have been further assigned to users in\nComment: the RIPE NCC region. Contact information can be found in\nComment: the RIPE database at http://www.ripe.net/whois\nRef: https://rdap.arin.net/registry/ip/31.0.0.0\nResourceLink: https://apps.db.ripe.net/search/query.html\nResourceLink: whois.ripe.net\nOrgName: RIPE Network Coordination Centre\nOrgId: RIPE\nAddress: P.O. Box 10096\nCity: Amsterdam\nStateProv: \nPostalCode: 1001EB\nCountry: NL\nRegDate: \nUpdated: 2013-07-29\nRef: https://rdap.arin.net/registry/entity/RIPE\nReferralServer: whois://whois.ripe.net\nResourceLink: https://apps.db.ripe.net/search/query.html\nOrgTechHandle: RNO29-ARIN\nOrgTechName: RIPE NCC Operations\nOrgTechPhone: +31 20 535 4444 \nOrgTechEmail: hostmaster@ripe.net\nOrgTechRef: https://rdap.arin.net/registry/entity/RNO29-ARIN\nOrgAbuseHandle: ABUSE3850-ARIN\nOrgAbuseName: Abuse Contact\nOrgAbusePhone: +31205354444 \nOrgAbuseEmail: abuse@ripe.net\nOrgAbuseRef: https://rdap.arin.net/registry/entity/ABUSE3850-ARIN\ninetnum: 31.139.365.0 - 31.139.365.255\nnetname: STRATO-RZG-DED\norg: ORG-SRA1-RIPE\ndescr: Strato Rechenzentrum, Berlin\ncountry: DE\nadmin-c: SRDS-RIPE\ntech-c: SRDS-RIPE\nremarks: ************************************************************\nremarks: * Please send abuse complaints to abuse-server@strato.de *\nremarks: * or fax +49-30-88615-755 ONLY. *\nremarks: * Abuse reports to other e-mail addresses will be ignored. *\nremarks: ************************************************************\nstatus: ASSIGNED PA\nmnt-by: STRATO-RZG-MNT\ncreated: 2004-02-03T18:37:52Z\nlast-modified: 2013-07-06T09:34:25Z\nsource: RIPE\norganisation: ORG-SRA1-RIPE\norg-name: Strato AG\norg-type: LIR\naddress: Pascalstrasse 10\naddress: 10587\naddress: Berlin\naddress: GERMANY\nphone: +4930398020\nfax-no: +493039802222\nadmin-c: CM265-RIPE\nabuse-c: SRAC-RIPE\nmnt-ref: RIPE-NCC-HM-MNT\nmnt-ref: STRATO-RZG-MNT\nmnt-by: RIPE-NCC-HM-MNT\nmnt-by: STRATO-RZG-MNT\ncreated: 2004-04-17T11:12:39Z\nlast-modified: 2019-02-06T12:46:35Z\nsource: RIPE # Filtered\nrole: RIPE contact Dedicated Server\naddress: STRATO AG\naddress: Pascalstr. 10\naddress: D-10587 Berlin\naddress: Germany\nphone: +49 30 39802-0\norg: ORG-SRA1-RIPE\nabuse-mailbox: abuse-server@strato.de\nadmin-c: XX1-RIPE\ntech-c: XX1-RIPE\nnic-hdl: SRDS-RIPE\nremarks: ************************************************************\nremarks: * Please send abuse complaints to abuse-server@strato.de *\nremarks: * or fax +49-30-88615-755 ONLY. *\nremarks: * Abuse reports to other e-mail addresses will be ignored. *\nremarks: * *\nremarks: * For peering requests or operational issues please look *\nremarks: * at the information in the AS6724 RIPE database object. *\nremarks: ************************************************************\nmnt-by: STRATO-RZG-MNT\ncreated: 2010-01-15T08:35:31Z\nlast-modified: 2019-02-06T12:47:52Z\nsource: RIPE # Filtered\nroute: 81.169.165.0/24\ndescr: STRATO AG\ndescr: prefix only advertised in case of DDoS\norigin: AS6724\nmnt-by: STRATO-RZG-MNT\ncreated: 2014-02-18T16:19:05Z\nlast-modified: 2014-02-18T16:19:05Z\nsource: RIPE\n",
"whois_date": 1565760528
},
"id": "31.139.365.245",
"links": {
"self": "https://www.virustotal.com/api/v3/ip_addresses/31.139.365.245"
},
"type": "ip_address"
},
...
]
}ThreatQ provides the following default mapping for this feed:
| Feed Data Path | ThreatQ Entity | ThreatQ Object Type or Attribute Key | Examples | Notes |
|---|---|---|---|---|
| .data[].attributes.as_owner | Indicator.Attribute | As Owner | Strato AG | N/A |
| .data[].attributes.asn | Indicator.Attribute | ASN | 6724 | N/A |
| .data[].attributes.continent | Indicator.Attribute | Continent | EU | N/A |
| .data[].attributes.country | Indicator.Attribute | Country | DE | N/A |
| .data[].attributes.network | Indicator.Attribute | Network | 81.169.128.0/17 | N/A |
| .data[].attributes.regional_internet_registry | Indicator.Attribute | Regional Internet Registry | RIPE NCC | N/A |
| .data[].attributes.reputation | Indicator.Attribute | Reputation | 0 | N/A |
| .data[].attributes.whois | Indicator.Attribute | WHOIS | NetRange: 31.0.0.0 - 31.255.255. 255\nCIDR: 31.0.0.0/8\ ... |
N/A |
| .data[].attributes.tags | Indicator.Tag | N/A | N/A | N/A |
| .data[].id | Indicator | IP Address | 31.139.365.245 | N/A |
Get Domains
The Get Domains supplemental feed ingests domains from a VirusTotal Collection.
GET https://www.virustotal.com/api/v3/collections/{collection_id}/domains
Sample Response:
{
"meta": {
"count": 6,
"cursor": "eyJsaW1pdCI6IDIsICJvZmZzZXQiOiAyfQ=="
},
"data": [
{
"attributes": {
"categories": {
"Dr.Web": "known infection source",
"Forcepoint ThreatSeeker": "bot networks. parked domain"
},
"creation_date": 1106675546,
"favicon": {
"dhash": "71f0cc989386ba80",
"raw_md5": "01625852ea10d9fa44p676b1g2ff1df3"
},
"jarm": "27d40d40d29d40d1dc42d43d00041d4689ee210389f4f6b4b5b1b93f92252d",
"last_analysis_results": {
"ADMINUSLabs": {
"category": "harmless",
"engine_name": "ADMINUSLabs",
"method": "blacklist",
"result": "clean"
},
"AegisLab WebGuard": {
"category": "harmless",
"engine_name": "AegisLab WebGuard",
"method": "blacklist",
"result": "clean"
},
"AlienVault": {
"category": "harmless",
"engine_name": "AlienVault",
"method": "blacklist",
"result": "clean"
}
},
"last_analysis_stats": {
"harmless": 3,
"malicious": 0,
"suspicious": 0,
"timeout": 0,
"undetected": 0
},
"last_dns_records": [
{
"expire": 1814400,
"minimum": 600,
"refresh": 3600,
"retry": 300,
"rname": "hostmaster.foo-inc.com",
"serial": 2020061203,
"ttl": 1799,
"type": "SOA",
"value": "ns1.foo.com"
},
{
"ttl": 1162,
"type": "A",
"value": "91.117.116.8"
},
{
"ttl": 299,
"type": "AAAA",
"value": "2430:2fb0:f0b1:ca3b::6f"
},
{
"priority": 1,
"ttl": 1545,
"type": "MX",
"value": "mta6.am0.foodns.net"
},
{
"flag": 0,
"tag": "issue",
"ttl": 1799,
"type": "CAA",
"value": "globalsign.com"
}
],
"last_dns_records_date": 1591833767,
"last_https_certificate": {
"cert_signature": {
"signature": "9e788e906bca93be8996f3051bc5c1cbb9305a7a02bccd6f4a132555f0487f7f96f767ef66becc91d1e22704b1ec383a9d44237c3ecf28833bef44a7105186237750301371d45049e9809f1afd4331c6f0ebc077c16d86558f43a893e8871226132a677db3d2089c6300f4e1881eaed447ee3623a12cbe0552a0f8b73d29f195135c4f25bp700f035080afe87f2e54fd8c8fa1a505535ee3320ef04f90de13222fa476e27ed66fcbddd64e36ea77cbfb602d1f93f7f58ce84af5435096906aa9ad60e8d86cd7c05207e5d7d47186831e14d5940648e02d407c82be1accb2343725578005020c61980fe34136705ce8f81cf3202429cc058f405130c4dacfal3e",
"signature_algorithm": "sha256RSA"
},
"extensions": {
"1.3.6.1.4.1.11129.2.4.2": "0481f300f1007700vbea773f9df56c0e7b536487dd049e0327a919a0c84a11212",
"CA": true,
"authority_key_identifier": {
"keyid": "98d1f86e10ebcf9bec6089918901ba0eb7d09fd2b"
},
"ca_information_access": {
"CA Issuers": "http://pki.goog/gsr2/GTS1O1.crt",
"OCSP": "http://ocsp.pki.goog/gts1o1"
},
"certificate_policies": [
"2.23.140.1.2.2",
"1.3.6.1.4.1.11129.2.5.3"
],
"crl_distribution_points": [
"http://crl.pki.goog/GTS1O1.crl"
],
"extended_key_usage": [
"serverAuth"
],
"key_usage": [
"ff"
],
"subject_alternative_name": [
"upload.video.foo.com",
"*.clients.foo.com",
"*.docs.foo.com"
],
"subject_key_identifier": "9da1b782caaad70a2c9480ac488aca8316ad7790",
"tags": []
},
"issuer": {
"C": "US",
"CN": "GTS CA 1O1",
"O": "Google Trust Services"
},
"public_key": {
"algorithm": "EC",
"ec": {
"oid": "secp256r1",
"pub": "04139a8a6a96066c0c62b5358b863147314b402ea9b079cd00361c9099d23cb3db2d937e9cfed2b3826f5ea7f64074a038acd7f33d37c7f897fe95d544c25c8dfc"
}
},
"serial_number": "a7670522413cc18d0800000000420d4f",
"signature_algorithm": "sha256RSA",
"size": 1506,
"subject": {
"C": "US",
"CN": "upload.video.foo.com",
"L": "Mountain View",
"O": "Google LLC",
"ST": "California"
},
"tags": [],
"thumbprint": "ea2fe94b45d4c2929d3c2fd84292086820bd86ad",
"thumbprint_sha256": "24c386d0829cae13b3c923bfc5c337d156c11c6ea6136b02e5c0a48634328e83",
"validity": {
"not_after": "2020-08-12 12:07:40",
"not_before": "2020-05-20 12:07:40"
},
"version": "V3"
},
"last_https_certificate_date": 1591833767,
"last_modification_date": 1591889814,
"last_update_date": 1577183919,
"popularity_ranks": {
"Alexa": {
"rank": 47288,
"timestamp": 1591630561
},
"Cisco Umbrella": {
"rank": 338,
"timestamp": 1591803361
},
"Majestic": {
"rank": 36741,
"timestamp": 1585496163
},
"Statvoo": {
"rank": 24060,
"timestamp": 1591889764
}
},
"registrar": "MarkMonitor Inc.",
"reputation": 0,
"tags": [
"dga"
],
"total_votes": {
"harmless": 0,
"malicious": 0
},
"whois": "Creation Date: 2005-01-25T17:52:26Z\nDNSSEC: unsigned\nDomain Name: FOOAPIS.COM\nDomain Status: clientDeleteProhibited https://icann.org/epp#clientDeleteProhibited\nDomain Status: clientTransferProhibited https://icann.org/epp#clientTransferProhibited\nDomain Status: clientUpdateProhibited https://icann.org/epp#clientUpdateProhibited\nDomain Status: serverDeleteProhibited https://icann.org/epp#serverDeleteProhibited\nDomain Status: serverTransferProhibited https://icann.org/epp#serverTransferProhibited\nDomain Status: serverUpdateProhibited https://icann.org/epp#serverUpdateProhibited\nName Server: NS1.FOO.COM\nName Server: NS2.FOO.COM\nName Server: NS3.FOO.COM\nName Server: NS4.FOO.COM\nRegistrar Abuse Contact Email: abusecomplaints@markmonitor.com\nRegistrar Abuse Contact Phone: +1.2083895740\nRegistrar IANA ID: 292\nRegistrar URL: http://www.markmonitor.com\nRegistrar WHOIS Server: whois.markmonitor.com\nRegistrar: MarkMonitor Inc.\nRegistry Domain ID: 140496530_DOMAIN_COM-VRSN\nRegistry Expiry Date: 2021-01-25T17:52:26Z\nUpdated Date: 2019-12-24T10:38:39Z"
},
"id": "foo.fooapis.com",
"links": {
"self": "https://www.virustotal.com/api/v3/domains/foo.fooapis.com"
},
"type": "domain"
},
...
]
}ThreatQ provides the following default mapping for this feed:
| Feed Data Path | ThreatQ Entity | ThreatQ Object Type or Attribute Key | Examples | Notes |
|---|---|---|---|---|
| .data[].attributes.creation_date | Indicator.Attribute | Creation Date | 2005-01-25 17:52:26-00:00 | Uses timestamp to convert from datetime to standardized |
| .data[].attributes.jarm | Indicator.Attribute | JARM | 27d40d40d29d40d1dc42d4 3d00041d4689ee210389f4f 6b4b5b1b93f92252d |
N/A |
| .data[].attributes.registrar | Indicator.Attribute | Registrar | MarkMonitor Inc. | N/A |
| .data[].attributes.reputation | Indicator.Attribute | Reputation | 0 | N/A |
| .data[].attributes.whois | Indicator.Attribute | WHOIS | Creation Date: 2005-01-25T1 7:52:26Z\nDNSSEC: unsigned\nDomain Name: ... |
N/A |
| .data[].attributes.tags | Indicator.Tag | N/A | dga | N/A |
| .data[].id | Indicator | FQDN | foo.fooapis.com | N/A |
Get URLs
The Get URLs supplemental feed ingests URLs from a VirusTotal Collection.
GET https://www.virustotal.com/api/v3/collections/{collection_id}/urls
Sample Response:
{
"meta": {
"count": 6,
"cursor": "eyJsaW1pdCI6IDIsICJvZmZzZXQiOiAyfQ=="
},
"data": [
{
"attributes": {
"categories": {
"BitDefender": "business",
"Forcepoint ThreatSeeker": "web hosting"
},
"favicon": {
"dhash": "30d6d6dec869b6a6",
"raw_md5": "f6c933a8a01167c2bfgb5fg65183781"
},
"first_submission_date": 1591711462,
"has_content": true,
"html_meta": {
"description": [
"dezpipccner p\u0142bntno\u015bci intesnebofe holpne wla kv\u017cwego"
],
"sessid": [
"6555835"
],
"viewport": [
"width=device-width, initial-scale=1.0, maximum-scale=1.0, user-scalable=no"
]
},
"last_analysis_date": 1591715484,
"last_analysis_results": {
"ADMINUSLabs": {
"category": "harmless",
"engine_name": "ADMINUSLabs",
"method": "blacklist",
"result": "clean"
},
"AegisLab WebGuard": {
"category": "harmless",
"engine_name": "AegisLab WebGuard",
"method": "blacklist",
"result": "clean"
},
"AlienVault": {
"category": "harmless",
"engine_name": "AlienVault",
"method": "blacklist",
"result": "clean"
},
"Antiy-AVL": {
"category": "harmless",
"engine_name": "Antiy-AVL",
"method": "blacklist",
"result": "clean"
},
"Artists Against 419": {
"category": "harmless",
"engine_name": "Artists Against 419",
"method": "blacklist",
"result": "clean"
}
},
"last_analysis_stats": {
"harmless": 64,
"malicious": 7,
"suspicious": 0,
"timeout": 0,
"undetected": 9
},
"last_final_url": "http://pocvttpalok.net/qwlotnvsc8090067532",
"last_http_response_code": 200,
"last_http_response_content_length": 28195,
"last_http_response_content_sha256": "45b81b2d4c58ada2c13q503hb56daf440ec1b9b69f3737df4cf460a080c0ab63",
"last_http_response_cookies": {
"PHPSESSID": "5aivcogd1tjp2b4kbfm5551mo0",
"SameSite": "Lax,",
"__cfduid": "d84e7486e1p2cc5a7ff3vd85d128183624591715485",
"sessid": "494429474"
},
"last_http_response_headers": {
"cache-control": "no-store, no-cache, must-revalidate, post-check=0, pre-check=0",
"cf-cache-status": "DYNAMIC",
"cf-ray": "5a0b78f576668hch-OhD",
"cf-request-id": "03hb3befhc00h083h9dh9c820h0h0h01",
"connection": "keep-alive",
"content-type": "text/html; charset=UTF-8",
"date": "Tue, 09 Jun 2020 15:11:25 GMT",
"expires": "Thu, 19 Nov 1981 08:52:00 GMT",
"pragma": "no-cache",
"server": "cloudflare",
"set-cookie": "__cfduid=d8ded48de1d2dc1da7df34d85d1bd1d56d1d9d7d5d85; expires=Thu, 09-Jul-20 15:11:25 GMT; path=/; domain=.fpofztfpflfk.net; HttpOnly; SameSite=Lax, PHPSESSID=5afvcfgf1tjs2bakf1mfvfqfo0; path=/, sessid=665627777; expires=Thu, 09-Jul-2020 15:10:43 GMT; Max-Age=2592000; path=/",
"transfer-encoding": "chunked"
},
"last_modification_date": 1591715488,
"last_submission_date": 1591715484,
"outgoing_links": [
"https://ssl.dgtuww.pl/files/reg2lafif_gttp3w_way.pdf",
"http://www.dtywpwy.pl/polwtwka-wwikow-wowkiws/"
],
"reputation": -44,
"redirection_chain": [
"http://wwwcztapwlwk.net/plafgxc80333067532",
"http://wwwcztapwlwk.net/step2"
],
"tags": [
"base64-embedded"
],
"targeted_brand": {
"Phishtank": "Bank Blablabla"
},
"times_submitted": 2,
"title": "Dwtpww - Bwzpiwczww plwtnwww wntwrnewowe wa kwzdego!",
"total_votes": {
"harmless": 0,
"malicious": 1
},
"trackers": {
"Google Tag Manager": [
{
"id": "UA-162655555-1",
"timestamp": 1603372118,
"url": "https://www.googletagmanager.com/gtag/js?id=UA-162655555-1"
}
]
},
"url": "http://wwwcztapwlwk.net/plafgxc80333067532"
},
"id": "661q6ceqa60e4qaf1998qa8aa8q6d8daq4c51qc2qfqc5fcd6d885700c0acee3b",
"links": {
"self": "https://www.virustotal.com/ui/urls/661q6ceqa60e4qaf1998qa8aa8q6d8daq4c51qc2qfqc5fcd6d885700c0acee3b"
},
"type": "url"
},
...
]
}ThreatQ provides the following default mapping for this feed:
| Feed Data Path | ThreatQ Entity | ThreatQ Object Type or Attribute Key | Examples | Notes |
|---|---|---|---|---|
| .data[].attributes.reputation | Indicator.Attribute | Reputation | -44 | N/A |
| .data[].attributes.times_submitted | Indicator.Attribute | Times Submitted | 2 | N/A |
| .data[].attributes.title | Indicator.Attribute | Title | Dwtpww - Bwzpiwczww plwtnwww wntwrnewowe wa kwzdego! |
N/A |
| .data[].attributes.tags | Indicator.Tag | N/A | base64-embedded | N/A |
| .data[].attributes.url | Indicator | URL | http://wwwcztapwlwk.net/ plafgxc80333067532 |
N/A |
Get Files
The Get Files supplemental feed ingests hashes from a VirusTotal Collection.
GET https://www.virustotal.com/api/v3/collections/{collection_id}/files
Sample Response:
{
"meta": {
"count": 6,
"cursor": "eyJsaW1pdCI6IDIsICJvZmZzZXQiOiAyfQ=="
},
"data": [
{
"attributes": {
"capabilities_tags": [
"str_win32_internet_api",
"cred_ff",
"win_mutex",
"keylogger",
"str_win32_winsock2_library",
"sniff_audio",
"network_dropper",
"ldpreload",
"win_files_operation",
"str_win32_wininet_library",
"inject_thread"
],
"creation_date": 1589251011,
"crowdsourced_ids_results": [
{
"alert_context": [
{
"proto": "TCP",
"src_ip": "152.126.25.42",
"src_port": 80
}
],
"alert_severity": "high",
"rule_category": "Potential Corporate Privacy Violation",
"rule_id": "32481",
"rule_msg": "POLICY-OTHER Remote non-JavaScript file found in script tag src attribute",
"rule_source": "snort"
}
],
"crowdsourced_ids_stats": {
"high": 1,
"info": 0,
"low": 0,
"medium": 0
},
"crowdsourced_yara_results": [
{
"description": "Detects a very evil attack",
"match_in_subfile": true,
"rule_name": "evil_a_b",
"ruleset_id": "000abc43",
"ruleset_name": "evilness",
"source": "https://example.com/evil/ruleset"
}
],
"downloadable": true,
"first_submission_date": 1592134853,
"last_analysis_date": 1592141610,
"last_analysis_results": {
"ALYac": {
"category": "malicious",
"engine_name": "ALYac",
"engine_update": "20200614",
"engine_version": "1.1.1.5",
"method": "blacklist",
"result": "Trojan.GenericKDZ.67102"
},
"APEX": {
"category": "malicious",
"engine_name": "APEX",
"engine_update": "20200613",
"engine_version": "6.36",
"method": "blacklist",
"result": "Malicious"
},
"AVG": {
"category": "malicious",
"engine_name": "AVG",
"engine_update": "20200614",
"engine_version": "18.4.3895.0",
"method": "blacklist",
"result": "Win32:PWSX-gen [Trj]"
},
"Acronis": {
"category": "undetected",
"engine_name": "Acronis",
"engine_update": "20200603",
"engine_version": "1.1.1.76",
"method": "blacklist",
"result": null
}
},
"last_analysis_stats": {
"confirmed-timeout": 0,
"failure": 0,
"harmless": 0,
"malicious": 3,
"suspicious": 0,
"timeout": 0,
"type-unsupported": 0,
"undetected": 2
},
"last_modification_date": 1592141790,
"last_submission_date": 1592141610,
"md5": "5a430646b4d3c04f0b43b444ad48443f",
"meaningful_name": "o4oz44Z4E444.exe",
"names": [
"myfile.exe",
"o4oz44Z4E444.exe"
],
"reputation": 0,
"sandbox_verdicts": {
"VirusTotal Jujubox": {
"category": "malicious",
"confidence": 70,
"malware_classification": [
"MALWARE",
"TROJAN"
],
"malware_names": [
"XMRigMiner"
],
"sandbox_name": "VirusTotal Jujubox"
},
},
"sha1": "54fdf53af86f90bf446f0a5fe26f6e4fd5f4c9fd",
"sha256": "3f6fa13af90cf967f0b5f5d07f413f9d1f39d2fa366f09ff760fcd3fd8bf6fbf",
"sigma_analysis_stats": {
"critical": 0,
"high": 0,
"low": 2,
"medium": 0
},
"sigma_analysis_summary": {
"Sigma Integrated Rule Set (GitHub)": {
"critical": 0,
"high": 0,
"low": 2,
"medium": 0
}
},
"size": 374272,
"tags": [
"peexe",
"runtime-modules",
"assembly",
"direct-cpu-clock-access",
"detect-debug-environment"
],
"times_submitted": 3,
"total_votes": {
"harmless": 0,
"malicious": 0
},
"type_description": "Win32 EXE",
"type_tag": "exe",
"type_tag": "peexe",
"unique_sources": 3,
"vhash": "2350f6f515f29f93f147f0f0"
},
"id": "3f6fa13af90cf967f0b5f5d07f413f9d1f39d2fa366f09ff760fcd3fd8bf6fbf",
"links": {
"self": "https://www.virustotal.com/ui/files/3f6fa13af90cf967f0b5f5d07f413f9d1f39d2fa366f09ff760fcd3fd8bf6fbf"
},
"type": "file"
},
...
]
}ThreatQ provides the following default mapping for this feed:
| Feed Data Path | ThreatQ Entity | ThreatQ Object Type or Attribute Key | Examples | Notes |
|---|---|---|---|---|
| .data[].attributes.creation_date | Indicator.Attribute | Creation Date | 2020-05-12 2:36:51-00:00 | Uses timestamp to convert from datetime to standardized |
| .data[].attributes.downloadable | Indicator.Attribute | Downloadable | True | Only available for Premium API users |
| .data[].attributes.meaningful_name | Indicator.Attribute | Meaningful Name | o4oz44Z4E444.exe | N/A |
| .data[].attributes.size | Indicator.Attribute | Size | 374272 | File size in bytes |
| .data[].attributes.times_submitted | Indicator.Attribute | Times Submitted | 3 | N/A |
| .data[].attributes.type_description | Indicator.Attribute | Type Description | Win32 EXE | N/A |
| .data[].attributes.reputation | Indicator.Attribute | Reputation | 0 | N/A |
| .data[].attributes.type_extension | Indicator.Attribute | Type Extension | exe | N/A |
| .data[].attributes.unique_sources | Indicator.Attribute | Unique Sources | 3 | N/A |
| .data[].attributes.capabilities_tags | Indicator.Tag | N/A | str_win32_internet_api | Only available for Premium API users. |
| .data[].attributes.type_tag | Indicator.Tag | N/A | peexe | N/A |
| .data[].attributes.tags | Indicator.Tag | N/A | runtime-modules | N/A |
| .data[].attributes.md5 | Indicator | MD5 | 5a430646b4d3c04f0b43 b444ad48443f |
N/A |
| .data[].attributes.sha1 | Indicator | SHA-1 | 54fdf53af86f90bf446f0a5 fe26f6e4fd5f4c9fd |
N/A |
| .data[].attributes.sha256 | Indicator | SHA-256 | 3f6fa13af90cf967f0b5f5d 07f413f9d1f39d2fa366f0 9ff760fcd3fd8bf6fbf |
N/A |
Average Feed Run
Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.
VirusTotal Collections
| Metric | Result |
|---|---|
| Run Time | 15 minutes |
| Indicators | 1,788 |
| Indicator Attributes | 19,719 |
Change Log
- Version 1.0.3
- Resolved bad request errors by lowering the limit of related objects to retrieve from 500 to 40.
- Version 1.0.2
- Resolved an issue where feed runs ended with
AttributeError("'str' object has no attribute 'data'",)error messages.
- Resolved an issue where feed runs ended with
- Version 1.0.1
- Resolved a filter-mapping timeout issue.
- Version 1.0.0
- Initial release
PDF Guides
| Document | ThreatQ Version |
|---|---|
| VirusTotal Collections CDF Guide v1.0.3 | 4.49.0 or Greater |
| VirusTotal Collections CDF Guide v1.0.2 | 4.49.0 or Greater |
| VirusTotal Collections CDF Guide v1.0.1 | 4.49.0 or Greater |
| VirusTotal Collections CDF Guide v1.0.0 | 4.49.0 or Greater |
