Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The VMware Carbon Black EDR CDF for ThreatQ enables the automatic ingestion of Triage Alerts from VMware Carbon Black EDR into the ThreatQ platform.

The integration provides the following feed:

• VMware Carbon Black EDR - enables the automatic ingestion of Triage Alerts.

The integration ingests the following system system objects:

• Assets
• Events
• Indicators

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the integration yaml file.
3. Navigate to the integrations management page on your ThreatQ instance.
4. Click on the Add New Integration button.
5. Upload the integration file using one of the following methods:
   • Drag and drop the yaml file into the dialog box
   • Select Click to Browse to locate the integration yaml file on your local machine

   ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

6. The feed will be added to the integrations page.

You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Commercial option from the Category dropdown (optional).

   If you are installing the integration for the first time, it will be located under the Disabled tab.

3. Click on the integration entry to open its details page.

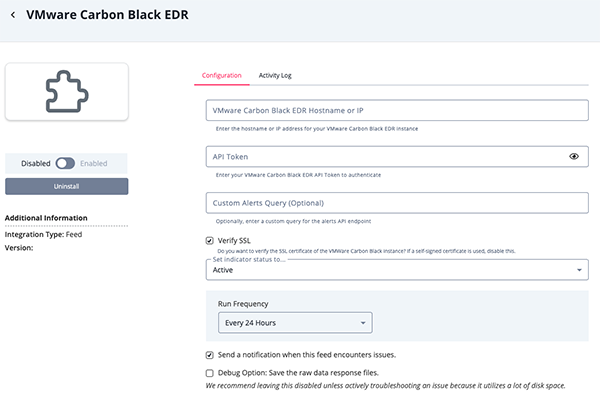

4. Enter the following parameters under the Configuration tab:

   Parameter	Description
   VMware Carbon Black EDR Hostname or IP	Enter the hostname or IP address for your VMware Carbon Black EDR instance.
   API Token	Enter your VMware Carbon Black EDR API Token to authenticate.
   Custom Alerts Query	Optional - enter a custom query for the alerts API endpoint.
   Verify SSL	Enable/Disable the Verify SSL feature.  This option should be disabled if you are using a self-signed certificate.



5. Review any additional settings, make any changes if needed, and click on Save.
6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

{
    "results": [
        {
            "unique_id": "ae524e9e-7ef4-42cc-a78e-295e902771cb",
            "created_time": "2021-12-09T20:20:31.477Z",
            "alert_type": "watchlist.hit.ingress.process",
            "status": "Unresolved",
            "sensor_criticality": 3,
            "feed_rating": 3,
            "ioc_confidence": 0.5,
            "report_score": 100,
            "os_type": "windows",
            "username": "DESKTOP-RIS67BS\\Admin",
            "process_name": "curl.exe",
            "process_path": "c:\\windows\\system32\\curl.exe",
            "modload_count": 14,
            "filemod_count": 0,
            "regmod_count": 0,
            "netconn_count": 1,
            "childproc_count": 0,
            "crossproc_count": 1,
            "md5": "1c3645ebddbe2da6a32a5f9fb43a3c23",
            "sha256": "0ba1c44d0ee5b34b45b449074cda51624150dc16b3b3c38251df6c052adba205",
            "process_unique_id": "00000003-0000-2640-01d7-ed3a0d3d7414-017da0dac3ea",
            "feed_name": "abusech",
            "feed_id": 10,
            "watchlist_name": "feodoipblocklist",
            "watchlist_id": "feodoipblocklist",
            "ioc_type": "ipv4",
            "ioc_value": "158.69.118.130",
            "ioc_attr": "{\"local_ip\":\"-1062727933\",\"protocol\":\"TCP\",\"remote_ip\":\"-1639614846\",\"port\":\"49927\",\"local_port\":\"49927\",\"remote_port\":\"80\",\"direction\":\"Outbound\"}",
            "process_id": "00000003-0000-2640-01d7-ed3a0d3d7414",
            "segment_id": 1639081231338,
            "hostname": "desktop-ris67bs",
            "group": "default group",
            "sensor_id": 3,
            "comms_ip": "10.13.0.1",
            "interface_ip": "192.168.15.3",
            "alert_severity": 67.5,
            "_version_": 1718701241451675600,
            "total_hosts": 0,
            "description": "Feodo IP Blocklist",
            "link": "https://feodotracker.abuse.ch/downloads/ipblocklist.csv",
            "report_ignored": false
        }
    ],
    "facets": {},
    "filtered": {},
    "highlights": [],
    "elapsed": 0.016037702560424805,
    "start": 0,
    "total_results": 10,
    "terms": [
        "created_time:[2021-12-01T22:15:00 TO 2021-12-09T23:00:00]"
    ],
    "all_segments": true,
    "comprehensive_search": true,
    "incomplete_results": false
}

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Change Log

• Version 1.0.0
  • Initial release
