Current ThreatQ Version Filter


Trellix ePO Events CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Trellix ePO Events CDF brings in assets (hosts/devices) with threat events from Trellix ePO Saas.

The integration provides the following feed:

  • Trellix ePO Events - This feed brings in assets (hosts/devices) with threat events from Trellix ePO Saas.

The integration ingests the following system objects:

  • Indicators
  • Assets
  • Events

Prerequisites

The following is required in order to install and run the integration:

  • Access to Trellix ePO Saas
  • API Key, Client ID, and Client Secret Credentials with the following scope permissions: epo.device.r epo.device.w epo.tags.r epo.tags.w epo.evt.r

    See the Generating Credentials for Trellix ePO Saas section for more details.

  • The Asset object type.  The Asset object was seeded with ThreatQ v5.10.0.  If you are running a ThreatQ instance 5.9.0 or earlier, you will need to install the Asset object prior to installing the integration.

Generating Credentials for Trellix ePO Saas

In order to use this integration, you will need to obtain an API Key, Client ID, and Client Secret from the Trellix Developer Portal.

Below are instructions on how you can obtain these credentials to use with the integration:

  1. Log into your Trellix ePO Saas instance
  2. Navigate to Trellix's Developer Portal: https://developer.manage.trellix.com/
  3. Click on the Documentation tab and then click on the Trellix API link.
  4. On the sidebar, click the Self-Service tab, and then the API Access Management sub-tab.
  5. From the API Access Management page, you'll be able to view your Trellix API Key and generate a Client ID and Secret.
  6. Enter a client name and the following scopes when requesting for your client credentials: epo.device.r epo.device.w epo.tags.r epo.tags.w epo.evt.r
  7. Once submitted, Trellix will need to approve the credentials. Once that is completed, they can be used with this integration.
  8. Once you can access your account, get Api Key from: https://developer.manage.trellix.com/mvision/selfservice/access_manag

Asset Object

The integration requires the Asset object.  The Asset installation files are included with the integration download on the ThreatQ Marketplace.  The Asset object must be installed prior to installing the integration.

You do not have to install the Asset object if you are running ThreatQ version 5.10.0 or greater as the object has been seeded as a default system object.

See the Custom Objects topic for steps on how to install the required custom object.

Installation

The CDF requires the installation of the Asset object before installing the actual CDF if your are on ThreatQ version 5.9.0 or earlier.  See the Prerequisites chapter for more details.  The Asset object must be installed prior to installing the CDF.  Attempting to install the CDF without the Asset object will cause the CDF install process to fail.

This integration can be installed in the My Integration section of your ThreatQ instance. See the Adding an Integration topic for more details.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Commercial option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:
    Parameter Description
    Client ID Your Trellix Client ID used to authenticate.
    Client Secret Your rellix Client Secret used to authenticate.
    API Key Your Trellix API Key retrieved from the Developer Portal (x-api-token).  See the Generating Credentials for Trellix ePO Saas section for more details.

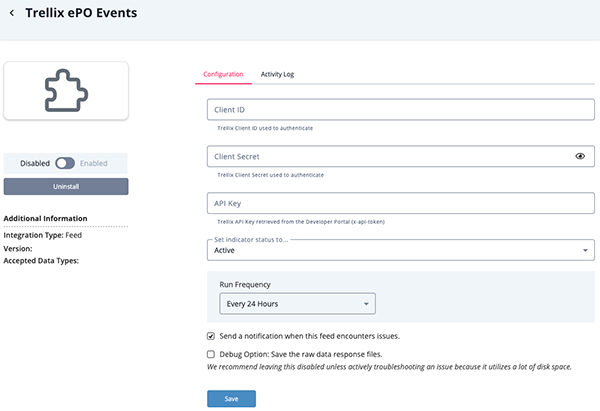

    Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Trellix ePO Events

The Rellix ePO Events bring in assets (hosts/devices) with threat events from Trellix ePO.

GET https://api.manage.trellix.com/epo/v2/events

Sample Response:

{
  "data": [
    {
      "id": "093d6883-d4aa-485a-92bc-e1e91c351b13",
      "type": "MVEvents",
      "links": {
        "self": "/epo/v2/events/093d6883-d4aa-485a-92bc-e1e91c351b13"
      },
      "attributes": {
        "timestamp": "2023-05-04T08:11:40.345Z",
        "autoguid": "ba5d6605-0d85-407b-9bac-962f299605a8",
        "detectedutc": "1683187699000",
        "receivedutc": "1683187900345",
        "agentguid": "674cef00-21b7-4905-87a9-3d10606e5edd",
        "analyzer": "ENDP_AM_1070",
        "analyzername": "Trellix Endpoint Security",
        "analyzerversion": "10.7.0.5200",
        "analyzerhostname": "windows-new",
        "analyzeripv4": "172.16.114.109",
        "analyzeripv6": "/0:0:0:0:0:ffff:ac10:726d",
        "analyzermac": "fa163e6f6827",
        "analyzerdatversion": "5151.0",
        "analyzerengineversion": "6600.9927",
        "analyzerdetectionmethod": "On-Access Scan",
        "sourcehostname": null,
        "sourceipv4": "172.16.114.109",
        "sourceipv6": "/0:0:0:0:0:ffff:ac10:726d",
        "sourcemac": null,
        "sourceusername": null,
        "sourceprocessname": "C:\\Windows\\explorer.exe",
        "sourceurl": null,
        "targethostname": null,
        "targetipv4": "172.16.114.109",
        "targetipv6": "/0:0:0:0:0:ffff:ac10:726d",
        "targetmac": null,
        "targetusername": "WINDOWS-NEW\\Admin",
        "targetport": null,
        "targetprotocol": null,
        "targetprocessname": null,
        "targetfilename": "C:\\Users\\Admin\\AppData\\Local\\Temp\\2\\Temp1_eicar_com.zip\\eicar.com",
        "threatcategory": "av.detect",
        "threateventid": 1278,
        "threatseverity": "2",
        "threatname": "EICAR test file",
        "threattype": "test",
        "threatactiontaken": "IDS_ALERT_ACT_TAK_DEL",
        "threathandled": true,
        "nodepath": "1\\4655257\\12172011",
        "targethash": "44d88612fea8a8f36de82e1278abb02f",
        "sourceprocesshash": null,
        "sourceprocesssigned": null,
        "sourceprocesssigner": null,
        "sourcefilepath": null
      }
    }
  ]
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.data[].attributes.[analyzername, threatname, threatseverity, analyzeripv4] Event.Title Sighting .data[].attributes.
detectedutc		 Trellix Endpoint Security detected a threat - EICAR test file (Severity: Critical) - 172.16.114.109 N/A
.data[].attributes.agentguid Event.Attribute Agent GUID .data[].attributes.
timestamp		 674cef00-21b7-4905-87a9-
3d10606e5edd		 N/A
.data[].attributes.analyzername Event.Attribute Analyzer .data[].attributes.
timestamp		 Trellix Endpoint Security N/A
.data[].attributes.analyzerdetectionmethod Event.Attribute Analyzed Detection Method .data[].attributes.
timestamp		 On-Access Scan N/A
.data[].attributes.threatactiontaken Event.Attribute Action Taken .data[].attributes.
timestamp		 IDS_ALERT_ACT_TAK_DEL N/A
.data[].attributes.targetusername Event.Attribute Target Username .data[].attributes.
timestamp		 WINDOWS-NEW\Admin N/A
.data[].attributes.targetport Event.Attribute Target Port .data[].attributes.
timestamp		 N/A N/A
.data[].attributes.targetfilename Indicator.Value File Path .data[].attributes.
timestamp		 C:\Users\Admin\AppData\
Local\Temp\2\Temp1_eicar
_com.zip\eicar.com		 N/A
.data[].attributes.targethash Indicator.Value MD5 .data[].attributes.
timestamp		 44d88612fea8a8f36de82e1
278abb02f		 N/A
.data[].attributes.sourceipv4 Indicator.Value IP Address .data[].attributes.
timestamp		 172.16.114.109 As long as it's not the same as the device IP
.data[].attributes.targetipv4 Indicator.Value IP Address .data[].attributes.
timestamp		 172.16.114.109 As long as it's not the same as the device IP
.data[].attributes.targetprocessname Indicator.Value Filename .data[].attributes.
timestamp		 N/A N/A
.data[].attributes.threatname Event.Attribute, Indicator.Attribute Threat Name .data[].attributes.
timestamp		 EICAR test file N/A
.data[].attributes.threatcategory Event.Attribute, Indicator.Attribute Threat Category .data[].attributes.
timestamp		 av.detect N/A
.data[].attributes.threattype Event.Attribute, Indicator.Attribute Threat Type .data[].attributes.
timestamp		 test N/A
.data[].attributes.threatseverity Event.Attribute, Indicator.Attribute Severity .data[].attributes.
timestamp		 2 Mapped by using the Threat Severity mapping table below

Trellix to ThreatQ Severity Mapping

ThreatQuotient provides the following Severity Mapping:

Trellix Threat Severity ThreatQ attribute Value
1 Alert
2 Critical
3 Warning
4 Unknown
5 Notice
6 Info

The Threat Severity can be found in .data[].attributes.threatseverity.

Trellix ePO Device by Agent ID (Supplemental)

The Trellix ePO Device by Agent ID supplemental feed fetches a single device by its ID from the Trellix ePO Saas.

GET https://api.manage.trellix.com/epo/v2/devices

Sample Response:

{
    "data": [
        {
            "id": "2496624",
            "type": "devices",
            "links": {
                "self": "https://api.manage.trellix.com/epo/v2/devices/2496624"
            },
            "attributes": {
                "name": "TIS-EPO-TESTSER",
                "parentId": 5387625,
                "agentGuid": "32EDA829-0106-451D-9273-E099D04D81AE",
                "lastUpdate": "2023-05-04T09:41:26.067+00:00",
                "agentState": 0,
                "nodePath": null,
                "agentPlatform": "Windows Server 2012 R2:6:3:0",
                "agentVersion": "5.7.9.139",
                "nodeCreatedDate": "2022-02-11T15:49:02.637+00:00",
                "managed": "1",
                "tenantId": 32713,
                "tags": "Server, Test",
                "excludedTags": "",
                "managedState": 1,
                "computerName": "TIS-EPO-TESTSER",
                "domainName": "WORKGROUP",
                "ipAddress": "172.16.114.30",
                "osType": "Windows Server 2012 R2",
                "osVersion": "6.3",
                "osBuildNumber": 9600,
                "cpuType": "Intel Xeon E312xx (Sandy Bridge, IBRS update)",
                "cpuSpeed": 2600,
                "numOfCpu": 2,
                "totalPhysicalMemory": 4294414336,
                "macAddress": "FA163E088958",
                "userName": "N/A",
                "osPlatform": "Server",
                "ipHostName": "tis-epo-testser.threatq.com",
                "subnetAddress": "",
                "isPortable": "non-portable",
                "systemSerialNumber": "393d2d36-46f1-4682-b6c8-957c49a4a589",
                "systemRebootPending": 0,
                "systemModel": "OpenStack Compute",
                "systemManufacturer": "RDO",
                "systemBootTime": "2023-02-21T15:15:50.000+00:00"
            },
            "relationships": {
                "assignedTags": {
                    "links": {
                        "self": "https://api.manage.trellix.com/epo/v2/devices/2496624/relationships/assignedTags",
                        "related": "https://api.manage.trellix.com/epo/v2/devices/2496624/assignedTags"
                    }
                },
                "installedProducts": {
                    "links": {
                        "self": "https://api.manage.trellix.com/epo/v2/devices/2496624/relationships/installedProducts",
                        "related": "https://api.manage.trellix.com/epo/v2/devices/2496624/installedProducts"
                    }
                }
            }
        }
    ],
    "links": {
        "first": "https://api.manage.trellix.com/epo/v2/devices?page[limit]=20",
        "last": "https://api.manage.trellix.com/epo/v2/devices?page[limit]=20"
    },
    "meta": {
        "totalResourceCount": 3
    }
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.data[].attributes.domainName + '/' + .data[].attributes.name] Asset.Value N/A .data[].attributes.
nodeCreatedAt		 WORKGROUP/TIS-EPO-TESTSER Keys concatenated together
.data[].attributes.tags Asset.Tag N/A N/A Server, Test N/A
.data[].attributes.agentGuid Asset.Attribute Agent GUID .data[].attributes.
nodeCreatedAt		 32EDA829-0106-451D-9273-E099D04D81AE N/A
.data[].attributes.agentPlatform Asset.Attribute Agent Platform .data[].attributes.
nodeCreatedAt		 Windows Server 2012 R2:6:3:0 N/A
.data[].attributes.agentState Asset.Attribute Agent State .data[].attributes.
nodeCreatedAt		 0 Online if .data[].
attributes.agentState = 1, else is Offline
.data[].attributes.computerName Asset.Attribute Computer Name .data[].attributes.
nodeCreatedAt		 TIS-EPO-TESTSER N/A
.data[].attributes.cpuType Asset.Attribute CPU Type .data[].attributes.
nodeCreatedAt		 Intel Xeon E312xx (Sandy Bridge, IBRS update) N/A
.data[].attributes.domainName Asset.Attribute Domain Name .data[].attributes.
nodeCreatedAt		 WORKGROUP N/A
.data[].attributes.ipAddress Asset.Attribute IP Address .data[].attributes.
nodeCreatedAt		 172.16.114.30 N/A
.data[].attributes.numOfCpu Asset.Attribute Number of CPUs .data[].attributes.
nodeCreatedAt		 2 N/A
.data[].attributes.osPlatform Asset.Attribute OS Platform .data[].attributes.
nodeCreatedAt		 Server N/A
.data[].attributes.osType Asset.Attribute Operating System .data[].attributes.
nodeCreatedAt		 Windows Server 2012 R2 N/A
.data[].attributes.userName Asset.Attribute Username .data[].attributes.
nodeCreatedAt		 N/A N/A
.data[].attributes.managedState Asset.Attribute Is Managed .data[].attributes.
nodeCreatedAt		 1 bool -> string

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Trellix ePO Events

Metric Result
Run Time 1 min
Asset 1
Asset Attributes 12
Events 2
Event Attributes 18
Indicators 2
Indicator Attributes 8

Change Log

  • Version 1.0.0
    • Initial release

PDF Guides

Document ThreatQ Version
Trellix ePO Events CDF Guide v1.0.0 4.35.0 or Greater
