Team Cymru Recon CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Team Cymru Recon CDF ingests indicator objects published by Team Cymru.

The integration provides the following feed:

  • Team Cymru Recon - retrieves job IDs which will further on be used in the Team Cymru Recon supplemental feed.

The integration ingests indicator type objects.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the integration file.
  3. Navigate to the integrations management page on your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the integration file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the integration file on your local machine

    ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

  6. The feed will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Commercial option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:
    Parameter Description
    Team Cymru Instance The URL of the Team Cymru instance you are connecting to with integration. The default value is recon.cymru.com.
    API Key Your Team Cymru Recon API Key used for authentication.
    Enable SSL Certificate Verification Enable this option if the feed should verify the SSL certificate.
    Disable Proxies Enable this option to have the feed ignore proxies set in the ThreatQ UI.
    Search Optional - enter a search string for matching on the job name, job description, or the submitter's username.
    Group ID Optional - enter a Group ID to filter the results by a specific grouping.
    Job Origin Select the origin of the jobs to fetch. Options include:
    • Any
    • API Only (default)
    • Web Only

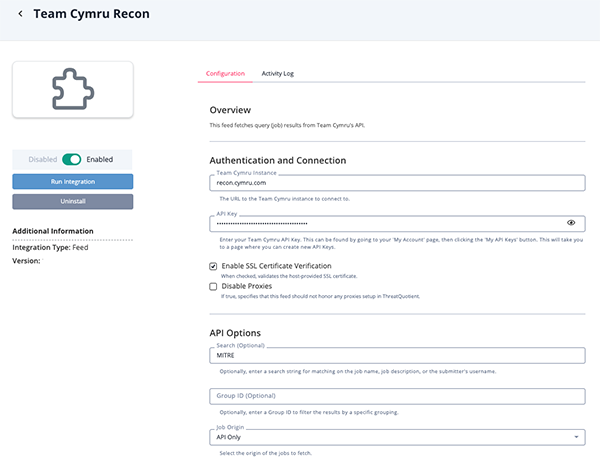

    Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Team Cymru Recon

Main feed used to retrieve job ids which will further on be used in the Team Cymru Recon supplemental feed.

GET https://{CYMRU_INSTANCE}.cymru.com/api/jobs

Sample Response:

{
  {
    "current_page"`: 1,
    "data"`: [
        {
            "id"`: 994822,
            "name"`: "zombieants.biz",
            "description"`: "FQDN Seach: zombieants.biz",
            "user_id"`: 46605,
            "username"`: "wchiange",
            "organization_id"`: 42970,
            "organization_name"`: "ThreatQ",
            "group_id"`: null,
            "group_name"`: null,
            "input"`: "{\"uuid\"`: \"8c06b5ed-0b5c-4b30-8cc5-663abc530626\", \"limit\"`: 2000000, \"queries\"`: [{\"ptr\"`: \"zombieants.biz\", \"query_type\"`: \"banners_ptr\"}, {\"qname\"`: \"zombieants.biz\", \"query_type\"`: \"dns_query\"}, {\"dnsrr\"`: \"zombieants.biz\", \"query_type\"`: \"nmap_dnsrr\"}, {\"qname\"`: \"zombieants.biz\", \"query_type\"`: \"pdns\"}, {\"qname\"`: \"zombieants.biz\", \"query_type\"`: \"pdns_nxd\"}, {\"hostname\"`: \"zombieants.biz\", \"query_type\"`: \"pdns_other\"}, {\"dnsrr\"`: \"zombieants.biz\", \"query_type\"`: \"apt_dns\"}, {\"dnsrr\"`: \"zombieants.biz\", \"query_type\"`: \"apt_dnsrr\"}, {\"hostname\"`: \"zombieants.biz\", \"query_type\"`: \"apt_hostname\"}, {\"query_type\"`: \"ddos_attacks\", \"target_hostname\"`: \"zombieants.biz\"}, {\"query_type\"`: \"ddos_commands\", \"target_hostname\"`: \"zombieants.biz\"}, {\"hostname\"`: \"zombieants.biz\", \"query_type\"`: \"bars_controllers\"}, {\"query_type\"`: \"dns_derived_domains_via_domain\", \"query_domain\"`: \"zombieants.biz\"}, {\"query_type\"`: \"dns_derived_ips_via_domain\", \"query_domain\"`: \"zombieants.biz\"}, {\"hostname\"`: \"zombieants.biz\", \"query_type\"`: \"x509\"}, {\"hostname\"`: \"zombieants.biz\", \"query_type\"`: \"malware_sandbox\"}, {\"fqdn\"`: \"zombieants.biz\", \"query_type\"`: \"spam_domains\"}, {\"url\"`: \"zombieants.biz\", \"query_type\"`: \"urls\"}], \"timeout\"`: 14400, \"end_date\"`: \"12/16/2020 20:15:18\", \"job_name\"`: \"zombieants.biz\", \"start_date\"`: \"12/17/2019 20:15:18\", \"system_origin\"`: \"api\", \"limit_realtime\"`: 2000000, \"job_description\"`: \"FQDN Seach: zombieants.biz\", \"limit_flowsonar\"`: 2000000}",
            "total_bytes"`: 155648,
            "origin"`: "api",
            "updated_at"`: "2020-12-16 20:24:55",
            "created_at"`: "2020-12-16 20:15:21",
            "scheduled_interval"`: [],
            "status"`: "Completed"
        },
        .....]
}
}

No field is mapped from the main feed response. The .id field is used for the supplemental call.

Team Cymru Recon Details (Supplemental):

Supplemental feed called once per each job id returned by the Team Cymru Recon feed.

GET https://{CYMRU_INSTANCE}.cymru.com/api/jobs/{id}

Sample Response:

{"start_time":"2020-10-30 06:40:22","src_ip_addr":"104.248.88.112","src_cc":"NL","dst_ip_addr":"31.184.254.94","dst_cc":"RU","proto":6,"src_port":45647,"dst_port":80,"tcp_flags":2,"num_pkts":4,"num_octets":240,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-10-30 11:38:06","src_ip_addr":"145.220.24.215","src_cc":"NL","dst_ip_addr":"31.184.254.94","dst_cc":"RU","proto":17,"src_port":43395,"dst_port":53,"tcp_flags":0,"num_pkts":1,"num_octets":73,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-10-31 15:34:48","src_ip_addr":"139.59.245.162","src_cc":"SG","dst_ip_addr":"31.184.254.94","dst_cc":"RU","proto":6,"src_port":31337,"dst_port":1287,"tcp_flags":2,"num_pkts":8192,"num_octets":327680,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-10-31 15:34:48","src_ip_addr":"139.59.245.162","src_cc":"SG","dst_ip_addr":"31.184.254.94","dst_cc":"RU","proto":6,"src_port":31337,"dst_port":1088,"tcp_flags":2,"num_pkts":3000,"num_octets":120000,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-06 17:37:08","src_ip_addr":"31.184.254.94","src_cc":"RU","dst_ip_addr":"27.147.131.150","dst_cc":"BD","proto":6,"src_port":80,"dst_port":44367,"tcp_flags":25,"num_pkts":2,"num_octets":553,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-09 22:32:33","src_ip_addr":"31.184.254.94","src_cc":"RU","dst_ip_addr":"192.241.234.142","dst_cc":"US","proto":6,"src_port":587,"dst_port":37890,"tcp_flags":18,"num_pkts":8192,"num_octets":393216,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-10 09:28:43","src_ip_addr":"145.220.0.46","src_cc":"NL","dst_ip_addr":"31.184.254.94","dst_cc":"RU","proto":17,"src_port":26592,"dst_port":3544,"tcp_flags":0,"num_pkts":1,"num_octets":68,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-12 01:15:08","src_ip_addr":"128.199.105.148","src_cc":"SG","dst_ip_addr":"31.184.254.94","dst_cc":"RU","proto":6,"src_port":45458,"dst_port":22,"tcp_flags":16,"num_pkts":8192,"num_octets":425984,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-13 11:42:25","src_ip_addr":"31.184.254.94","src_cc":"RU","dst_ip_addr":"103.16.26.160","dst_cc":"HK","proto":6,"src_port":21746,"dst_port":9001,"tcp_flags":2,"num_pkts":1,"num_octets":40,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-14 11:53:00","src_ip_addr":"104.248.126.166","src_cc":"US","dst_ip_addr":"31.184.254.94","dst_cc":"RU","proto":6,"src_port":58370,"dst_port":22,"tcp_flags":24,"num_pkts":8192,"num_octets":557056,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-14 21:16:58","src_ip_addr":"31.184.254.94","src_cc":"RU","dst_ip_addr":"168.167.91.69","dst_cc":"BW","proto":1,"src_port":0,"dst_port":778,"tcp_flags":0,"num_pkts":1,"num_octets":68,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-14 22:30:34","src_ip_addr":"31.184.254.94","src_cc":"RU","dst_ip_addr":"165.227.164.190","dst_cc":"DE","proto":6,"src_port":20264,"dst_port":65372,"tcp_flags":16,"num_pkts":3000,"num_octets":120000,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-15 04:25:18","src_ip_addr":"31.184.254.94","src_cc":"RU","dst_ip_addr":"168.167.91.69","dst_cc":"BW","proto":1,"src_port":0,"dst_port":778,"tcp_flags":0,"num_pkts":1,"num_octets":68,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-16 00:19:07","src_ip_addr":"31.184.254.94","src_cc":"RU","dst_ip_addr":"168.167.91.69","dst_cc":"BW","proto":1,"src_port":0,"dst_port":778,"tcp_flags":0,"num_pkts":1,"num_octets":68,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-16 03:18:00","src_ip_addr":"31.184.254.94","src_cc":"RU","dst_ip_addr":"23.160.193.39","dst_cc":"US","proto":1,"src_port":0,"dst_port":778,"tcp_flags":0,"num_pkts":1,"num_octets":68,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-16 21:18:53","src_ip_addr":"31.184.254.94","src_cc":"RU","dst_ip_addr":"168.167.91.69","dst_cc":"BW","proto":1,"src_port":0,"dst_port":778,"tcp_flags":0,"num_pkts":1,"num_octets":68,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-17 02:17:21","src_ip_addr":"31.184.254.94","src_cc":"RU","dst_ip_addr":"167.71.225.166","dst_cc":"US","proto":1,"src_port":0,"dst_port":778,"tcp_flags":0,"num_pkts":3000,"num_octets":204000,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-17 12:50:44","src_ip_addr":"192.42.116.15","src_cc":"NL","dst_ip_addr":"31.184.254.94","dst_cc":"RU","proto":6,"src_port":60874,"dst_port":993,"tcp_flags":27,"num_pkts":10,"num_octets":1139,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-17 14:02:11","src_ip_addr":"27.0.180.89","src_cc":"IN","dst_ip_addr":"31.184.254.94","dst_cc":"RU","proto":6,"src_port":62133,"dst_port":445,"tcp_flags":2,"num_pkts":1,"num_octets":52,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-18 21:24:23","src_ip_addr":"87.120.254.105","src_cc":"BG","dst_ip_addr":"31.184.254.94","dst_cc":"RU","proto":6,"src_port":36286,"dst_port":22,"tcp_flags":2,"num_pkts":3,"num_octets":180,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-19 00:37:39","src_ip_addr":"31.184.254.94","src_cc":"RU","dst_ip_addr":"167.172.49.139","dst_cc":"US","proto":6,"src_port":22,"dst_port":48440,"tcp_flags":16,"num_pkts":8192,"num_octets":425984,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"start_time":"2020-11-19 01:18:06","src_ip_addr":"31.184.254.94","src_cc":"RU","dst_ip_addr":"165.232.45.141","dst_cc":"US","proto":1,"src_port":0,"dst_port":771,"tcp_flags":0,"num_pkts":8192,"num_octets":720896,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"timestamp":"2020-10-20 19:00:01","dnsrr":"weather-online.hopto.org","ip_addr":"58.158.177.102","cc":"JP","type":"A","ttl":60,"query_type":"apt_dns"}
{"start_time":"2020-11-19 22:26:49","src_ip_addr":"188.226.188.45","src_cc":"NL","dst_ip_addr":"31.184.254.94","dst_cc":"RU","proto":6,"src_port":52372,"dst_port":22,"tcp_flags":17,"num_pkts":8192,"num_octets":425984,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"timestamp":"2020-03-02 10:59:58","dnsrr":"ftp.jpgdowngaussip.ddns.info","confidence":50,"query_type":"apt_dnsrr"}
{"timestamp":"2021-03-02 19:08:56","hostname":"http:\/\/send.mofa.ns01.info:53\/update?id=00528208","query_type":"apt_hostname"}
{"timestamp":"2020-01-01 00:14:19","ip_addr":"219.85.40.59","cc":"TW","query_type":"apt_ip"}
{"timestamp":"2020-11-30 23:10:01","ip_addr":"52.219.120.147","cc":"US","asn":"16509","ptr":"s3-website-us-west-1.amazonaws.com","query_type":"banners_ptr"}
{"timestamp":"2021-03-22 23:55:01","ip_addr":"123.58.210.170","cc":"CN","port":22,"type":"ssh","data":"{\n   \"banner\" : \"SSH-2.0-OpenSSH_7.4\",\n   \"key_type\" : \"ssh_rsa\",\n   \"auth_list\" : [\n      \"publickey\",\n      \"password\"\n   ],\n   \"key_fingerprint\" : \"e5:e4:1d:e6:02:5e:c2:2d:a2:cb:cb:bb:b3:d1:26:91\"\n}\n","sub_type":"Net::SSH2","asn":"","ssl":true,"query_type":"banners"}
{"hostname":"us-east-1-a.route.herokuapp.com","ip_addr":"18.211.160.51","cc":"US","proto":6,"port":80,"controller_uri":"http:\/\/us-east-1-a.route.herokuapp.com\/","type":"http","family":"vertexnet","subfamily":"controller v1","first_seen":"2019-07-05 03:35:06","last_seen":"2020-03-01 05:50:34","active":false,"query_type":"bars_controllers"}
{"timestamp":"2021-03-30 02:37:27","host_ip_addr":"45.179.206.24","host_cc":"BR","proto":6,"port":38485,"controller":"http:\/\/sonic4us.ru\/http\/image.php","controller_ip_addr":"184.105.192.2","controller_cc":"US","controller_port":80,"reputation_score":90,"asn":"269100","family":"smokeloader","subfamily":"controller v1","query_type":"bars_victims"}
{"timestamp":"2021-03-27 00:00:28","ip_addr":"134.122.113.222","cc":"US","asn":"14061","comment":"ssh","rir":"arin","src_port":null,"malware":null,"query_type":"compromised_hosts"}
{"timestamp":"2021-03-27 00:00:30","ip_addr":"135.125.23.66","cc":"FR","asn":"16276","comment":"ssh","rir":"ripencc","src_port":null,"malware":null,"query_type":"compromised_hosts"}{"timestamp":"2021-01-03 07:38:24","client_ip_addr":"183.2.200.133","client_cc":"CN","server_ip_addr":"47.246.16.254","server_cc":"HK","server_comment":"download.alicdn.com.danuoyi.tbcache.com","server_port":80,"proto":6,"query_type":"beacons"}
{"timestamp":"2020-11-30 07:58:36","src_ip_addr":"164.68.112.178","src_cc":"DE","src_port":59943,"application_proto":"s7comm","data":"{\"type\": \"CONNECTION_LOST\"}","query_type":"conpot_honeypot"}
{"timestamp":"2020-06-29 07:38:15","src_ip_addr":"45.125.65.118","src_cc":"HK","src_port":34657,"dst_ip_addr":"208.112.30.120","dst_cc":"US","dst_port":80,"host":"www.fabtechdrillingequipment.com","uri":"GET /Contact-Us","user_agent":"Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/58.0.3029.110 Safari/537.36 Edge/16.16299","referer":"http://www.fabtechdrillingequipment.com/Contact-Us","language":null,"cookie":"dnn_IsMobile=False; language=en-US","cookie_sha1":"cfa3c4fbe0d5547397df85e6becf7bc400dffafa","query_type":"cookies"}
{"timestamp":"2020-09-18 15:44:21","src_ip_addr":"31.184.254.94","src_cc":"RU","src_port":8602,"dst_port":23,"proto":6,"length":null,"ip_version":4,"query_type":"darknet"}
{"start_time":"2021-03-14 00:00:02","end_time":"2021-03-14 00:00:03","commands":null,"credentials":"[]","dst_port":22,"logged_in":"{root,123}","src_ip_addr":"45.227.255.205","src_cc":"PA","src_port":65332,"unknown_commands":null,"query_type":"cowrie_honeypot"}
{"begin_time":"2021-03-01 00:00:58","end_time":"2021-03-01 00:00:58","target_hostname":"tcp:\/\/42.193.216.140:10002","target_ip_addr":"42.193.216.140","target_cc":"CN","subtarget":null,"controller":"tcp:\/\/www1.gggatat456.com:1522","controller_ip_addr":"51.68.183.108","controller_cc":"CN","controller_port":1522,"command":"Type: aux_ddos\nData: KsHYjBInAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABQAAAAIAAAB4AwAA","family":"xorddos","subfamily":"controller v1","query_type":"ddos_attacks"}
{"results":null,"query_type":"ddos_commands"}
{"observed_at":"2020-11-16 02:02:06","fqdn":"215t8vwczjo.cg12r.com","message_id":"c49ab7ff4ca7428ea1843b3e85589f24@2a98cb2b5c3248f3b0d9eb1de17044cb","query_type":"spam_domains"}
{"timestamp":"2021-02-25 13:00:03","application_proto":"pcap","proto":"tcp","connection_type":"reject","dst_port":33747,"src_ip_addr":"45.135.232.109","src_cc":"RU","src_port":42234,"query_type":"dionaea_honeypot"}
{"timestamp":"2020-12-08 20:32:52","proto":17,"src_ip_addr":"112:111:113:242","src_cc":"US","dst_ip_addr":"20:50:23:2","dst_cc":"US","qname":"worstyear2020.com","class":"IN","type":"DS","zone":"com","query_type":"dns_query"}
{"timestamp":"2020-09-11 00:00:00","ip_addr":"110.180.243.61","cc":"CN","fingerprint":"TIMEOUT  id unavailable (query timed out)","query_type":"dns_fingerprint"}
{"start_time":"2020-10-30 11:38:06","src_ip_addr":"145.220.24.215","src_cc":"NL","dst_ip_addr":"31.184.254.94","dst_cc":"RU","proto":17,"src_port":43395,"dst_port":53,"tcp_flags":0,"num_pkts":1,"num_octets":73,"sample_algo":null,"sample_interval":null,"query_type":"flows"}
{"timestamp":"2021-04-01 00:02:40","ip_addr":"154.182.117.254","cc":"EG","dnsrr":"host-154.182.254.117-static.tedata.net","query_type":"nmap_dnsrr"}
{"timestamp":"2020-11-16 17:55:24","ip_addr":"31.184.254.94","cc":"RU","os":"Host: splitstore; OS: Unix","query_type":"nmap_fingerprint"}
{"timestamp":"2021-04-01 00:02:40","ip_addr":"178.89.155.145","cc":"KZ","proto":"tcp","port":53,"service":"tcpwrapped","version":"","query_type":"nmap_port"}
{"timestamp":"2021-04-20 00:14:59","src_ip_addr":"5.89.44.199","src_cc":"IT","version":"4","processor":"unknown","system":"UNIX","stratum":5,"refid":"91.80.35.139","refid_cc":"IT","raw":"version=\"4\", processor=\"unknown\", system=\"UNIX\", leap=0, stratum=5, precision=-21, rootdelay=, rootdisp=, refid=91.80.35.139, reftime=0xE4289561.A7F8063A, clock=0xE4289B83.A96FAA0B, peer=5271, tc=10, mintc=3, offset=, frequency=, sys_jitter=, clk_jitter=, clk_wander=","query_type":"ntp_server"}
{"timestamp":"2021-04-02 04:34:56","ip_addr":"168.233.48.220","cc":"US","proto":"tcp","port":179,"service":null,"data":null,"asn":"40380","asname":"SIERRATRADINGPOST, US","query_type":"open_ports"}
{"timestamp":"2020-06-30 04:54:50","src_ip_addr":"208.112.30.1","src_cc":"","proto":null,"section":"answer","aa":null,"qname":"tommybishop.com","class":"IN","type":"A","ttl":null,"rdata":"208.112.30.120","rdata_cc":"US","query_type":"pdns"}
{"timestamp":"2020-09-18 17:29:11","src_ip_addr":"31.184.254.94","src_cc":"RU","dst_ip_addr":"31.184.254.95","dst_cc":"US","scan_type":"portscan","scan_msg":"TCP Filtered Portsweep","connection_count":31,"ip_count":7,"ip_range":"149.9.145.178:149.9.226.126","port_proto_count":1,"port_proto_range":"23:23","query_type":"portscan"}
{"timestamp":"2020-10-31 22:37:32","client_ip_addr":"195.154.179.3","client_port":40717,"server_ip_addr":"54.252.239.180","server_port":3389,"client_cc":"FR","server_cc":"AU","client_name":null,"cookie":"EXAMPLE\\a","client_build":null,"keyboard_layout":null,"desktop_width":null,"desktop_height":null,"requested_color_depth":null,"result":null,"security_protocol":null,"cert_type":null,"client_dig_product_id":null,"client_asn":"{12876}","server_asn":"{16509}","query_type":"rdp_traffic"}
{"timestamp":"2020-01-08 23:03:05","ip_addr":"175.29.143.106","cc":"BD","vendor":"Cisco Systems","os_version":null,"processor":null,"query_type":"router"}
{"ip_addr":"31.184.254.94","cc":"RU","proto":6,"ports":"{23}","interval_probes_unique_dst_ip":56,"interval_probes_unique_ports":1,"interval_slash8_visited":3,"total_ips_probed":56,"asn":"49505","query_type":"scanner"}
{"timestamp":"2020-10-28 00:00:38","src_ip_addr":"62.210.78.81","src_cc":"FR","dst_ip_addr":"38.229.70.92","dst_cc":"US","sip_response":"INVITE","sip_response_code":0,"server":null,"user_agent":null,"allow":null,"accept":null,"response":null,"from_display":"","from_number":"81","from_ip_addr":"38.229.70.92","from_cc":"US","from_port":5060,"to_display":"","to_number":"901146842002926","to_port":5060,"to_ip_addr":"38.229.70.92","to_cc":"US","contact_display":"","contact_number":"81","contact_ip_addr":"62.210.78.81","contact_cc":"FR","contact_port":61426,"session_owner":"81","query_type":"sip"}
{"timestamp":"2020-06-24 08:24:37","src_ip_addr":"93.174.93.133","src_cc":"NL","src_port":40413,"dst_ip_addr":"208.112.30.120","dst_cc":"US","dst_port":80,"url":"http://caaofbecmcc.org/xmlrpc.php","query_type":"urls"}
{"timestamp":"2021-01-07 01:00:01","ip_addr":"41.139.235.243","cc":"KE","version":2,"oid_string":"ipAdEntAddr.41.139.235.243 = IpAddress: 41.139.235.243","query_type":"snmp"}
{"timestamp":"2020-11-16 16:02:09","ip_addr":"31.184.254.94","cc":"RU","hostname":"31.184.254.94","port":995,"cn":"splitastore.ru","altnames":"","c":"XX","o":"XX","email":"root@splitastore.ru","subject":"C=XX, ST=XX, L=XX, O=XX, OU=XX, CN=splitastore.ru, emailAddress=root@splitastore.ru","not_after":"2030-11-03 13:11:06","not_before":"2020-11-05 13:11:06","version":2,"md5":"4C:75:AA:5B:7C:4F:03:67:F5:12:86:1E:B5:BF:5F:B9","sha1":"3C:16:E1:05:A1:3A:5C:AA:F4:6F:20:8E:76:9D:73:37:71:36:9D:37","issuer":"C=XX, ST=XX, L=XX, O=XX, OU=XX, CN=splitastore.ru, emailAddress=root@splitastore.ru","issuer_cn":"splitastore.ru","issuer_c":"XX","issuer_o":"XX","sig_algo":"sha256WithRSAEncryption","serial":"CE37FFBE045E57C7","pem":"-----BEGIN CERTIFICATE-----\nMIICyjCCAjOgAwIBAgIJAM43\/74EXlfHMA0GCSqGSIb3DQEBCwUAMH4xCzAJBgNV\nBAYTAlhYMQswCQYDVQQIDAJYWDELMAkGA1UEBwwCWFgxCzAJBgNVBAoMAlhYMQsw\nCQYDVQQLDAJYWDEXMBUGA1UEAwwOc3BsaXRhc3RvcmUucnUxIjAgBgkqhkiG9w0B\nCQEWE3Jvb3RAc3BsaXRhc3RvcmUucnUwHhcNMjAxMTA1MTMxMTA2WhcNMzAxMTAz\nMTMxMTA2WjB+MQswCQYDVQQGEwJYWDELMAkGA1UECAwCWFgxCzAJBgNVBAcMAlhY\nMQswCQYDVQQKDAJYWDELMAkGA1UECwwCWFgxFzAVBgNVBAMMDnNwbGl0YXN0b3Jl\nLnJ1MSIwIAYJKoZIhvcNAQkBFhNyb290QHNwbGl0YXN0b3JlLnJ1MIGfMA0GCSqG\nSIb3DQEBAQUAA4GNADCBiQKBgQDtHFd96KQvm\/NxKhnG7OcJYpZHGashbO8uIxkh\necs6u9fZ2VVUCSwq0DQGwCvIn\/DCeq1aKVod+S4ecgzn2FS4ulxyrFBguCkAxJPK\nSRmzyCcEFVIFEoo931qFxb+vrjLPxhmOMaNaeeM9XKgTsZdubUXDRXI\/cw46scQv\nHLAcowIDAQABo1AwTjAdBgNVHQ4EFgQU40umwYhXDFN2IYq5e85GNOx8gPowHwYD\nVR0jBBgwFoAU40umwYhXDFN2IYq5e85GNOx8gPowDAYDVR0TBAUwAwEB\/zANBgkq\nhkiG9w0BAQsFAAOBgQASkbcAzq36yAU7nWLhzJsaZrf0eoPkuuel7p5+BoKdVYG5\nVqkfMl22P7u7WhwcoO7NZ2QKMqXcybyPg4MMTdyLKWF+f7XCHzv8laRpXXf9VAnV\nRWroLZ4KWpP\/oXvahWt2N81rulX7pdFbm1jXxOG7OgKKx1kHdVXuyI3d4w62Tw==\n-----END CERTIFICATE-----\n","query_type":"x509"}
{"timestamp":"2020-06-28 06:19:43","src_ip_addr":"95.143.193.125","src_cc":"SE","src_port":41813,"x_forwarded_for":null,"via":null,"dst_ip_addr":"208.112.30.120","dst_cc":"US","dst_port":80,"user_agent":"Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/71.0.3563.0 Safari/537.36","cpu":null,"languages":"en-US,en;q=0.9","character_sets":null,"query_type":"useragents"}
{"begin_time":"2021-03-31 23:59:05","end_time":"2021-03-31 23:59:05","target_hostname":"tcp:\/\/103.122.92.135:80","target_ip_addr":"103.122.92.135","target_cc":"HK","subtarget":null,"controller":"tcp:\/\/ppp.xxxatat456.com:6002","controller_ip_addr":"51.89.70.86","controller_cc":"YE","controller_port":6002,"command":"Type: aux_ddos\nData: Z3pch1AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABQAAAAIAAAB4AwAA","family":"xorddos","subfamily":"controller v1","query_type":"ddos_attacks"}
{"scan_timestamp":"2019-02-22 23:55:11","md5":"4657573a39e00e1774227a530135c3fd","sha1":"ebda05de6a897c855f89e18258e9ec34fe722aa4","sha256":"672a857e036c85364437210ca85ee88561a26cef631f27f58de68d21505ab815","dns":"[{\"dnsrr\": \"ocsp.pki.goog\", \"answer\": [{\"data\": \"pki-goog.l.google.com\", \"answer_cc\": \"\"}, {\"data\": \"172.217.22.3\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"pagead2.googlesyndication.com\", \"answer\": [{\"data\": \"pagead46.l.doubleclick.net\", \"answer_cc\": \"\"}, {\"data\": \"216.58.208.34\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"fotowettbewerb.hispeed.ch\", \"answer\": null}, {\"dnsrr\": \"www.thenorthdevontimes.co.uk\", \"answer\": null}, {\"dnsrr\": \"www.bevscafe.com\", \"answer\": [{\"data\": \"bevscafe.com\", \"answer_cc\": \"\"}, {\"data\": \"72.167.241.180\", \"answer_cc\": \"US\"}]}, {\"dnsrr\": \"pagead2.googlesyndication.com\", \"answer\": [{\"data\": \"pagead46.l.doubleclick.net\", \"answer_cc\": \"\"}, {\"data\": \"216.58.208.34\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"www.automotorblog.com\", \"answer\": [{\"data\": \"automotorblog.com\", \"answer_cc\": \"\"}, {\"data\": \"96.30.8.216\", \"answer_cc\": \"US\"}]}, {\"dnsrr\": \"histomobile.com\", \"answer\": null}, {\"dnsrr\": \"tinypic.com\", \"answer\": [{\"data\": \"209.17.68.209\", \"answer_cc\": \"US\"}]}, {\"dnsrr\": \"ocsp.pki.goog\", \"answer\": [{\"data\": \"pki-goog.l.google.com\", \"answer_cc\": \"\"}, {\"data\": \"172.217.22.3\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"www.1948chevy.com\", \"answer\": [{\"data\": \"66.36.163.41\", \"answer_cc\": \"US\"}]}, {\"dnsrr\": \"importsports.net\", \"answer\": [{\"data\": \"104.17.206.66\", \"answer_cc\": \"US\"}, {\"data\": \"104.17.227.66\", \"answer_cc\": \"US\"}]}, {\"dnsrr\": \"www.download.windowsupdate.com\", \"answer\": [{\"data\": \"2-01-3cf7-0009.cdx.cedexis.net\", \"answer_cc\": \"\"}, {\"data\": \"download.windowsupdate.com.edgesuite.net\", \"answer_cc\": \"\"}, {\"data\": \"a767.dspw65.akamai.net\", \"answer_cc\": \"\"}, {\"data\": \"2.16.186.56\", \"answer_cc\": \"DE\"}, {\"data\": \"2.16.186.81\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"i421.photobucket.com\", \"answer\": [{\"data\": \"i124.photobucket.com\", \"answer_cc\": \"\"}, {\"data\": \"f2.shared.us-eu.fastly.net\", \"answer_cc\": \"\"}, {\"data\": \"151.101.114.2\", \"answer_cc\": \"US\"}]}, {\"dnsrr\": \"moviespics.wcgame.ru\", \"answer\": [{\"data\": \"194.85.61.76\", \"answer_cc\": \"RU\"}, {\"data\": \"109.70.26.37\", \"answer_cc\": \"RU\"}]}, {\"dnsrr\": \"lh3.ggpht.com\", \"answer\": [{\"data\": \"photos-ugc.l.googleusercontent.com\", \"answer_cc\": \"\"}, {\"data\": \"172.217.16.193\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"i47.photobucket.com\", \"answer\": [{\"data\": \"i24.photobucket.com\", \"answer_cc\": \"\"}, {\"data\": \"f2.shared.us-eu.fastly.net\", \"answer_cc\": \"\"}, {\"data\": \"151.101.114.2\", \"answer_cc\": \"US\"}]}, {\"dnsrr\": \"accounts.google.com\", \"answer\": [{\"data\": \"172.217.22.109\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"www.modifiedcars.com\", \"answer\": [{\"data\": \"91.195.240.126\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"i51.tinypic.com\", \"answer\": [{\"data\": \"oi51.tinypic.com\", \"answer_cc\": \"\"}, {\"data\": \"209.17.68.209\", \"answer_cc\": \"US\"}]}, {\"dnsrr\": \"www.download.windowsupdate.com\", \"answer\": [{\"data\": \"2-01-3cf7-0009.cdx.cedexis.net\", \"answer_cc\": \"\"}, {\"data\": \"download.windowsupdate.com.edgesuite.net\", \"answer_cc\": \"\"}, {\"data\": \"a767.dspw65.akamai.net\", \"answer_cc\": \"\"}, {\"data\": \"2.16.186.81\", \"answer_cc\": \"DE\"}, {\"data\": \"2.16.186.56\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"www.catamountstadium.com\", \"answer\": [{\"data\": \"208.112.30.120\", \"answer_cc\": \"US\"}]}, {\"dnsrr\": \"www.blogger.com\", \"answer\": [{\"data\": \"blogger.l.google.com\", \"answer_cc\": \"\"}, {\"data\": \"172.217.21.233\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"www.download.windowsupdate.com\", \"answer\": [{\"data\": \"2-01-3cf7-0009.cdx.cedexis.net\", \"answer_cc\": \"\"}, {\"data\": \"download.windowsupdate.com.edgesuite.net\", \"answer_cc\": \"\"}, {\"data\": \"a767.dspw65.akamai.net\", \"answer_cc\": \"\"}, {\"data\": \"2.16.186.81\", \"answer_cc\": \"DE\"}, {\"data\": \"2.16.186.56\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"static.wix.com\", \"answer\": [{\"data\": \"a2.shared.global.fastly.net\", \"answer_cc\": \"\"}, {\"data\": \"151.101.113.132\", \"answer_cc\": \"US\"}]}, {\"dnsrr\": \"www.covercars.com\", \"answer\": [{\"data\": \"91.195.240.126\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"www.vwot.org\", \"answer\": [{\"data\": \"vwot.org\", \"answer_cc\": \"\"}, {\"data\": \"199.48.135.146\", \"answer_cc\": \"US\"}]}, {\"dnsrr\": \"keywebtracker.com\", \"answer\": [{\"data\": \"209.126.123.12\", \"answer_cc\": \"US\"}]}, {\"dnsrr\": \"img1.blogblog.com\", \"answer\": [{\"data\": \"blogger.l.google.com\", \"answer_cc\": \"\"}, {\"data\": \"172.217.21.233\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"apis.google.com\", \"answer\": [{\"data\": \"plus.l.google.com\", \"answer_cc\": \"\"}, {\"data\": \"216.58.210.14\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"www.hanzoautobuzz.com\", \"answer\": [{\"data\": \"199.191.50.185\", \"answer_cc\": \"VG\"}]}, {\"dnsrr\": \"resources.blogblog.com\", \"answer\": [{\"data\": \"blogger.l.google.com\", \"answer_cc\": \"\"}, {\"data\": \"172.217.21.233\", \"answer_cc\": \"DE\"}]}, {\"dnsrr\": \"squareberry.moi-nonpl.us\", \"answer\": null}, {\"dnsrr\": \"moviespics.wcgame.ru\", \"answer\": null}, {\"dnsrr\": \"i421.photobucket.com\", \"answer\": null}, {\"dnsrr\": \"importsports.net\", \"answer\": null}, {\"dnsrr\": \"\", \"answer\": null}, {\"dnsrr\": \"www.automotorblog.com\", \"answer\": null}, {\"dnsrr\": \"www.bevscafe.com\", \"answer\": null}, {\"dnsrr\": \"i51.tinypic.com\", \"answer\": null}, {\"dnsrr\": \"i47.photobucket.com\", \"answer\": null}]","connections":"[{\"dst_cc\": \"DE\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.21.233\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.21.233\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.22.3\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.22.3\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.22.3\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"2.16.186.56\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"2.16.186.81\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"2.16.186.81\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"209.126.123.12\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"209.126.123.12\", \"dst_byte_transfer\": 747, \"src_byte_transfer\": 572}, {\"dst_cc\": \"DE\", \"dst_port\": 445, \"protocol\": \"tcp\", \"dst_ip_addr\": \"216.58.208.34\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 445, \"protocol\": \"tcp\", \"dst_ip_addr\": \"216.58.208.34\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 445, \"protocol\": \"tcp\", \"dst_ip_addr\": \"216.58.208.34\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 139, \"protocol\": \"tcp\", \"dst_ip_addr\": \"216.58.208.34\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 139, \"protocol\": \"tcp\", \"dst_ip_addr\": \"216.58.208.34\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 139, \"protocol\": \"tcp\", \"dst_ip_addr\": \"216.58.208.34\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"216.58.210.14\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"216.58.210.14\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"DE\", \"dst_port\": 445, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.21.233\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"72.167.241.180\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"US\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"104.17.206.66\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"US\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"104.17.206.66\", \"dst_byte_transfer\": 7, \"src_byte_transfer\": 124}, {\"dst_cc\": \"US\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"104.17.206.66\", \"dst_byte_transfer\": 7, \"src_byte_transfer\": 124}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.22.3\", \"dst_byte_transfer\": 1439, \"src_byte_transfer\": 458}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"2.16.186.81\", \"dst_byte_transfer\": 56909, \"src_byte_transfer\": 217}, {\"dst_cc\": \"DE\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"216.58.210.14\", \"dst_byte_transfer\": 28000, \"src_byte_transfer\": 1696}, {\"dst_cc\": \"US\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"104.17.206.66\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 56}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"66.36.163.41\", \"dst_byte_transfer\": 121656, \"src_byte_transfer\": 345}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"104.17.206.66\", \"dst_byte_transfer\": 316, \"src_byte_transfer\": 359}, {\"dst_cc\": \"US\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"104.17.206.66\", \"dst_byte_transfer\": 7, \"src_byte_transfer\": 124}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"209.126.123.12\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 0}, {\"dst_cc\": \"US\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"104.17.206.66\", \"dst_byte_transfer\": 7, \"src_byte_transfer\": 124}, {\"dst_cc\": \"RU\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"194.85.61.76\", \"dst_byte_transfer\": 1281, \"src_byte_transfer\": 366}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"151.101.114.2\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 367}, {\"dst_cc\": \"DE\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.21.233\", \"dst_byte_transfer\": 5755, \"src_byte_transfer\": 603}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"96.30.8.216\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 385}, {\"dst_cc\": \"DE\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.21.233\", \"dst_byte_transfer\": 15196, \"src_byte_transfer\": 1595}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"2.16.186.56\", \"dst_byte_transfer\": 56909, \"src_byte_transfer\": 217}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"209.17.68.209\", \"dst_byte_transfer\": 608, \"src_byte_transfer\": 336}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"91.195.240.126\", \"dst_byte_transfer\": 370, \"src_byte_transfer\": 357}, {\"dst_cc\": \"DE\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.21.233\", \"dst_byte_transfer\": 3941, \"src_byte_transfer\": 653}, {\"dst_cc\": \"DE\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"216.58.210.14\", \"dst_byte_transfer\": 70242, \"src_byte_transfer\": 1323}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"2.16.186.81\", \"dst_byte_transfer\": 56909, \"src_byte_transfer\": 217}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"209.17.68.209\", \"dst_byte_transfer\": 4260, \"src_byte_transfer\": 336}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"72.167.241.180\", \"dst_byte_transfer\": 488, \"src_byte_transfer\": 371}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"151.101.113.132\", \"dst_byte_transfer\": 127840, \"src_byte_transfer\": 370}, {\"dst_cc\": \"DE\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.21.233\", \"dst_byte_transfer\": 3621, \"src_byte_transfer\": 653}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.16.193\", \"dst_byte_transfer\": 1207, \"src_byte_transfer\": 407}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"91.195.240.126\", \"dst_byte_transfer\": 370, \"src_byte_transfer\": 360}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"151.101.114.2\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 370}, {\"dst_cc\": \"DE\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.21.233\", \"dst_byte_transfer\": 61866, \"src_byte_transfer\": 2469}, {\"dst_cc\": \"DE\", \"dst_port\": 443, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.22.109\", \"dst_byte_transfer\": 2820, \"src_byte_transfer\": 1946}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.22.3\", \"dst_byte_transfer\": 2155, \"src_byte_transfer\": 684}, {\"dst_cc\": \"VG\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"199.191.50.185\", \"dst_byte_transfer\": 459, \"src_byte_transfer\": 375}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"104.17.206.66\", \"dst_byte_transfer\": 316, \"src_byte_transfer\": 359}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"151.101.114.2\", \"dst_byte_transfer\": 0, \"src_byte_transfer\": 363}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.21.233\", \"dst_byte_transfer\": 505, \"src_byte_transfer\": 348}, {\"dst_cc\": \"DE\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"172.217.22.3\", \"dst_byte_transfer\": 1439, \"src_byte_transfer\": 458}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"199.48.135.146\", \"dst_byte_transfer\": 516, \"src_byte_transfer\": 376}, {\"dst_cc\": \"US\", \"dst_port\": 80, \"protocol\": \"tcp\", \"dst_ip_addr\": \"208.112.30.120\", \"dst_byte_transfer\": 291, \"src_byte_transfer\": 376}, {\"dst_cc\": \"DE\", \"dst_port\": 0, \"protocol\": \"icmp\", \"dst_ip_addr\": \"216.58.208.34\", \"dst_byte_transfer\": 32, \"src_byte_transfer\": 32}]","urls":"[{\"url\": \"http://importsports.net/Ling/canon/dut/CRW_1375-1600.jpg\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://importsports.net/Ling/canon/dut/CRW_1443-1600.jpg\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://lh3.ggpht.com/-5F-7pwPiaA4/TgCG83mPjvI/AAAAAAAACkw/es8Y-OEEvY8/BUDEL%2525202011%252520010.JPG\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://img1.blogblog.com/img/icon18_email.gif\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://ocsp.pki.goog/gsr2/ME4wTDBKMEgwRjAJBgUrDgMCGgUABBTgXIsxbvr2lBkPpoIEVRE6gHlCnAQUm+IHV2ccHsBqBt5ZtJot39wZhi4CDQHjqTAc/HIGOD+aUx0=\", \"method\": \"GET\", \"user_agent\": \"Microsoft-CryptoAPI/6.1\"}, {\"url\": \"http://ocsp.pki.goog/GTSGIAG3/MEkwRzBFMEMwQTAJBgUrDgMCGgUABBT27bBjYjKBmjX2jXWgnQJKEapsrQQUd8K4UJpndnaxLcKG0IOgfqZ+uksCCAPdvb6v2PrR\", \"method\": \"GET\", \"user_agent\": \"Microsoft-CryptoAPI/6.1\"}, {\"url\": \"http://ocsp.pki.goog/GTSGIAG3/MEkwRzBFMEMwQTAJBgUrDgMCGgUABBT27bBjYjKBmjX2jXWgnQJKEapsrQQUd8K4UJpndnaxLcKG0IOgfqZ+uksCCC6746+1A1A7\", \"method\": \"GET\", \"user_agent\": \"Microsoft-CryptoAPI/6.1\"}, {\"url\": \"http://ocsp.pki.goog/gsr2/ME4wTDBKMEgwRjAJBgUrDgMCGgUABBTgXIsxbvr2lBkPpoIEVRE6gHlCnAQUm+IHV2ccHsBqBt5ZtJot39wZhi4CDQHjqTAc/HIGOD+aUx0=\", \"method\": \"GET\", \"user_agent\": \"Microsoft-CryptoAPI/6.1\"}, {\"url\": \"http://ocsp.pki.goog/GTSGIAG3/MEkwRzBFMEMwQTAJBgUrDgMCGgUABBT27bBjYjKBmjX2jXWgnQJKEapsrQQUd8K4UJpndnaxLcKG0IOgfqZ+uksCCBLM7xVZVoGy\", \"method\": \"GET\", \"user_agent\": \"Microsoft-CryptoAPI/6.1\"}, {\"url\": \"http://ocsp.pki.goog/gsr2/ME4wTDBKMEgwRjAJBgUrDgMCGgUABBTgXIsxbvr2lBkPpoIEVRE6gHlCnAQUm+IHV2ccHsBqBt5ZtJot39wZhi4CDQHjqTAc/HIGOD+aUx0=\", \"method\": \"GET\", \"user_agent\": \"Microsoft-CryptoAPI/6.1\"}, {\"url\": \"http://ocsp.pki.goog/GTSGIAG3/MEkwRzBFMEMwQTAJBgUrDgMCGgUABBT27bBjYjKBmjX2jXWgnQJKEapsrQQUd8K4UJpndnaxLcKG0IOgfqZ+uksCCBLM7xVZVoGy\", \"method\": \"GET\", \"user_agent\": \"Microsoft-CryptoAPI/6.1\"}, {\"url\": \"http://moviespics.wcgame.ru/data/2011-07-18/used-cars-movie.jpg\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://www.hanzoautobuzz.com/v1/wp-content/uploads/nissan_gtr_2012_2.jpg\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://www.vwot.org/community/modules/Gallery/albums/albus88/IMG_1262.jpg\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://www.download.windowsupdate.com/msdownload/update/v3/static/trustedr/en/authrootstl.cab\", \"method\": \"GET\", \"user_agent\": \"Microsoft-CryptoAPI/6.1\"}, {\"url\": \"http://www.catamountstadium.com/Images/Graham_Trudo_Pose-Mackey_Watts.JPG\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://keywebtracker.com/?if=1&scr_w=800&scr_h=600&blog=file:///C:/Users/Phil/AppData/Local/Temp/ebda05de6a897c855f89e18258e9ec34fe722aa4.html&ref=&l=cars\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://i51.tinypic.com/98u5bd.jpg\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://www.1948chevy.com/images/48sp-7.gif\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://www.bevscafe.com/wp-content/uploads/2011/06/BevsCoffeeCup.jpg\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://www.covercars.com/cars/pictures/high/130241.jpg\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://www.modifiedcars.com/pix/cars_high/24046_42827.jpg\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://www.download.windowsupdate.com/msdownload/update/v3/static/trustedr/en/authrootstl.cab\", \"method\": \"GET\", \"user_agent\": \"Microsoft-CryptoAPI/6.1\"}, {\"url\": \"http://i421.photobucket.com/albums/pp297/morganchoo/Image019.jpg\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://www.automotorblog.com/wp-content/uploads/2011/04/Dodge-Viper-V10-engine.jpg\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://www.download.windowsupdate.com/msdownload/update/v3/static/trustedr/en/authrootstl.cab\", \"method\": \"GET\", \"user_agent\": \"Microsoft-CryptoAPI/6.1\"}, {\"url\": \"http://tinypic.com/images/404.gif\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://static.wix.com/media/586508f831479308f3fc6602fb169207.wix_mp\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://i421.photobucket.com/albums/pp297/morganchoo/08022009107.jpg\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}, {\"url\": \"http://i47.photobucket.com/albums/f156/chiefski/P2110176.jpg\", \"method\": \"GET\", \"user_agent\": \"Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Win64; x64; Trident/4.0; .NET CLR 2.0.50727; SLCC2; .NET CLR 3.5.30729; .NET CLR 3.0.30729; Media Center PC 6.0)\"}]","query_type":"malware_sandbox"}
{"observed_at":"2021-02-23 00:00:02","src_ip_addr":"69.75.148.206","src_cc":"US","src_port":33026,"dst_port":25,"from_name":"\"Kunlun Energy\"","from_email":"shil1allen@hotmail.com","to_addrs":"Kaliyaha51@icloud.com","cc_addrs":"","rcpt_to_addrs":"kaliyaha51@icloud.com","subject":"Employment Opportunities Job","message_id":null,"query_type":"spam_headers"}
{"timestamp":"2021-05-11 22:05:45","src_ip_addr":null,"src_cc":"","proto":null,"section":"authority","aa":null,"qname":"betterfuturekkp.com","class":"IN","type":"NS","ttl":null,"rdata":"ns1.server04controlserver.co.in","query_type":"pdns_other"}
{"timestamp":"2021-03-17 21:00:00","proto":17,"src_ip_addr":"61.211.226.41","src_cc":"JP","dst_ip_addr":"209.160.0.11","dst_cc":"US","dst_port":53,"qname":"0.0.160.209.in-addr.arpa","class":"IN","type":"A","zone":"0.160.209.in-addr.arpa","query_type":"pdns_nxd"}
{"results":null,"query_type":"ddos_commands"}
{"timestamp":"2021-05-11 12:38:10","ip_addr":"91.90.155.70","cc":"DE","os_version":"Ubuntu-4ubuntu0.2","ssh_version":"SSH-2.0-OpenSSH_8.2p1","type":"ssh-rsa","key":"AAAAB3NzaC1yc2EAAAADAQABAAABgQDKrRi2oN4OO6fcMyYGHbtDSDqcr7QIClQXL0VnmfTnyj3ixxZhRYpjCYZQgIzHzetN+3EEy\/T0gKVKh2FhRE35fwj1znWm7U6JEZYir0e94jbW5pKw3MpYPBd5OjK3WE\/y4txBnCn79V0NRm000KyV9s95Y7K89RdX6r+pE2Qxl1oQd1HyakmsaV8R0QOEDiZwXal3C3svRYSBkELNC076zB0Nvhh58gqhZ88zddmyff0CsW9TX0rWN0nF0Ru0rpQuw5CBbbmxRAoIw+liq6VEreCCDCMZvWKDhI9bNubo+2NaxMPtVs6bAB49A0etxAeIKlsR6EVGjL1Yr2j6zZyc6nazfqf1DElcpESK7IVxPBpFQbJ4bndNnqkU+U1guql9wpKsrqWxgqmBY6nD16EM\/kD0Sbe3tpJcvxU6v4fbuZOvPQxGzhYlp6jOCCdx8EsPXdxFMP8NYQiXYORZ9J7PlCbFwfkQduuER6+b2mvtkpgbRC3Ifgm5uFyrQFDSCWs=","city":null,"asn":"41412","add_timestamp":"2021-05-11 13:00:03","query_type":"ssh"}
{"timestamp":"2021-05-12 14:02:01","router_name":"nestor00patof","ip_addr":"144.172.153.165","cc":"CA","ipv6_addr":null,"ipv6_cc":"","or_port":1337,"dir_port":0,"platform":"Linux","bandwidth":292,"uptime":2282367,"fingerprint":"FFFB FB50 A83A 414C C21B 4CDA 93A9 674B 0047 05E8","authority":false,"hs_dir":false,"exit":false,"fast":true,"guard":false,"named":false,"stable":true,"running":true,"valid":true,"v2_dir":true,"hibernating":false,"bad_exit":false,"version":"0.4.5.7","portlist":"reject 1-65535","contact":"nestor00patof@ptaff.ca","published":"2021-05-12 07:49:33","weight":51,"query_type":"tor"}
.......

Query Type Mapping

Team Cymru query_type value ThreatQ Attribute Value
apt_dns Team Cymru APT Threats DNS
apt_dnsrr Team Cymru APT Threats DNS RR
apt_hostname Team Cymru APT Threats Hostnames
apt_ip Team Cymru APT Threats IPs
banners Team Cymru Banners
banners_ptr Team Cymru Banners PTR
bars_controllers Team Cymru BARS Botnet Controllers
bars_victims Team Cymru BARS Botnet Victims
beacons Team Cymru Beacons
compromised_hosts Team Cymru Compromised Hosts
conpot_honeypot Team Cymru Conpot
cookies Team Cymru Cookies
cowrie_honeypot Team Cymru Cowrie
darknet Team Cymru Darknet
ddos_attacks Team Cymru BARS Observed DDoS Attacks
ddos_commands Team Cymru Observed DDoS Attack Commands
dionaea_honeypot Team Cymru Dionaea
dns_fingerprint Team Cymru DNS Server Fingerprinting
dns_derived_domains_via_domain Team Cymru DNS Derived Domains Via Domains
dns_derived_domains_via_ip Team Cymru DNS Derived Domains Via IPs
dns_derived_ips_via_domain Team Cymru DNS Derived IPs Via Domains
dns_derived_ips_via_ip Team Cymru DNS Derived IPs Via IPs
dns_query Team Cymru DNS Queries
flows Team Cymru Network Flows
nmap_dnsrr Team Cymru NMap Reverse DNS Lookups
nmap_fingerprint Team Cymru NMap OS Fingerprinting
nmap_port Team Cymru NMap Open Ports
ntp_server Team Cymru NTP Server Info
open_ports Team Cymru Open Ports
open_resolvers Team Cymru Open Resolvers
pdns Team Cymru PDNS
pdns_nxd Team Cymru PDNS NXDomain
pdns_other Team Cymru PDNS Other Records
portscan Team Cymru Port Scan
rdp_traffic Team Cymru RDP
router Team Cymru Router Information
scanner Team Cymru Scanner
sip Team Cymru SIP Info
snmp Team Cymru SNMP Info
spam_domains Team Cymru Spam Domains
spam_headers Team Cymru Spam Headers
ssh Team Cymru SSH Info
tor Team Cymru Tor Public
urls Team Cymru URLs
useragents Team Cymru UserAgents
x509 Team Cymru x509 Certs
malware_sandbox Team Cymru Malware Sandbox

ThreatQ provides the following default mapping for this feed, based on the .query_type value of each line.

The attributes corresponding to each indicator are present after the row containing the actual indicator.

.query_type is apt_dns

If .query_type is "apt_dns":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.dnsrr Related Indicator.Value FQDN 'weather-online.hopto.org'
.query_type Related Indicator.Attribute Query Type 'Team Cymru APT Threats DNS' Maps the value of .query_type key to a string based on the Query Type Mapping below. If no match is found, the indicator and corresponding attributes are not ingested.
.ttl Related Indicator.Attribute TTL '60' Updatable
.type Related Indicator.Attribute DNS Record Type 'A'
.ip_addr Related Indicator.Value IP Address '58.158.177.102'
.cc Related Indicator.Attribute Country Code 'JP'

.query_type is apt_dnsrr

If .query_type is "apt_dnsrr":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.dnsrr Indicator.Value FQDN 'ftp.jpgdowngaussip.ddns.info'
.query_type Indicator.Attribute Query Type 'Team Cymru APT Threats DNS RR' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.confidence Indicator.Attribute Confidence '50' Updatable

.query_type is apt_hostname

If .query_type is "apt_hostname":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.hostname Indicator.Value URL 'http://send.mofa.ns01.info:53/update?id=00528208'
.query_type Indicator.Attribute Query Type 'Team Cymru APT Threats Hostnames' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.

.query_type is apt_ip

If .query_type is "apt_ip":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ip_addr Indicator.Value IP Address '219.85.40.59'
.query_type Indicator.Attribute Query Type 'Team Cymru APT Threats IPs' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.cc Indicator.Attribute Country Code 'TW'

.query_type is banners

If .query_type is "banners":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ip_addr Indicator.Value IP Address '123.58.210.170'
.query_type Indicator.Attribute Query Type 'Team Cymru Banners' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.cc Indicator.Attribute Country Code 'CN'
.asn Indicator.Attribute ASN
.port Indicator.Attribute Port '22'
.type Indicator.Attribute Type 'ssh'
.sub_type Indicator.Attribute Sub-Type 'Net::SSH2'

.query_type is banners_ptr

If .query_type is "banners_ptr":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ip_addr Indicator.Value IP Address '52.219.120.147'
.query_type Indicator.Attribute Query Type 'Team Cymru Banners PTR' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.cc Indicator.Attribute Country Code 'US'
.asn Indicator.Attribute ASN '16509'
.ptr Indicator.Attribute PTR Record 's3-website-us-west-1.amazonaws.com'

.query_type is bars_controllers

If .query_type is "bars_controllers":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published At Examples Notes
.ip_addr Related Indicator.Value IP Address .first_seen '18.211.160.51'
.query_type Related Indicator.Attribute Query Type .first_seen 'Team Cymru BARS Botnet Controllers' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.cc Related Indicator.Attribute Country Code .first_seen 'US'
.family Related Indicator.Attribute Malware Family .first_seen 'vertexnet'
.subfamily Related Indicator.Attribute Malware Sub-Family .first_seen 'controller v1'
.port Related Indicator.Attribute Port .first_seen '80'
.proto Related Indicator.Attribute Protocol .first_seen '6'
.type Related Indicator.Attribute Protocol Type .first_seen 'http'
.controller_uri Related Indicator.Value URL .first_seen 'http://us-east-1-a.route.herokuapp.com/'
.hostname Related Indicator.Value FQDN .first_seen 'us-east-1-a.route.herokuapp.com'

.query_type is bars_victims

  • If .query_type is "bars_victims":
Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.controller_ip_addr Related Indicator.Value IP Address '184.105.192.2'
.query_type Related Indicator.Attribute Query Type 'Team Cymru BARS Botnet Victims' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.asn Related Indicator.Attribute ASN '269100'
.controller_cc Related Indicator.Attribute Country Code 'US'
.controller Related Indicator.Attribute Controller 'http://sonic4us.ru/http/image.php'
.controller_port Related Indicator.Attribute Port '80'
.family Related Indicator.Attribute Malware Family 'smokeloader'
.subfamily Related Indicator.Attribute Malware Sub-Family 'controller v1'
.host_ip_addr Related Indicator.Value IP Address '45.179.206.24'
.host_cc Related Indicator.Attribute Country Code 'BR'
.proto Related Indicator.Attribute Protocol '6'

.query_type is beacons

If .query_type is "beacons":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.server_ip_addr Related Indicator.Value IP Address '47.246.16.254'
.query_type Related Indicator.Attribute Query Type 'Team Cymru Beacons' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.server_port Related Indicator.Attribute Port '80'
.server_comment Related Indicator.Attribute Server Comment 'download.alicdn.com.danuoyi.tbcache.com'
.server_cc Related Indicator.Attribute Country Code 'HK'
.proto Related Indicator.Attribute Protocol '6'
.client_ip_addr Related Indicator.Value IP Address '183.2.200.133'
.client_cc Related Indicator.Attribute Country Code 'CN'

.query_type is compromised_hosts

If .query_type is "compromised_hosts":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ip_addr Indicator.Value IP Address '135.125.23.66'
.query_type Indicator.Attribute Query Type 'Team Cymru Compromised Hosts' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.asn Indicator.Attribute ASN '16276'
.comment Indicator.Attribute Comment 'ssh'
.cc Indicator.Attribute Country Code 'FR'
.malware Indicator.Attribute Malware Family 'null'
.rir Indicator.Attribute Regional Internet Registry 'ripencc'
.src_port Indicator.Attribute Port 'null'

.query_type is conpot_honeypot

If .query_type is "conpot_honeypot":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.src_ip_addr Indicator.Value IP Address '164.68.112.178'
.query_type Indicator.Attribute Query Type 'Team Cymru Conpot' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.application_proto Indicator.Attribute Application Protocol 's7comm'
.data Indicator.Attribute Data '{"type"`: "CONNECTION_LOST"}'
.src_cc Indicator.Attribute Country Code 'DE'
.src_port Indicator.Attribute Port '59943'

.query_type is cookies

If .query_type is "cookies":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.dst_ip_addr Related Indicator.Value IP Address '135.125.23.66'
.query_type Related Indicator.Attribute Query Type 'Team Cymru Cookies' Mapped based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.dst_cc Related Indicator.Attribute Country Code 'HK'
.dst_port Related Indicator.Attribute Port '80'
.host Related Indicator.Value FQDN or IP Address 'www.fabtechdrilli
ngequipment.com'
.query_type Related Indicator.Attribute Query Type 'Team Cymru Cookies'
.language Related Indicator.Attribute Language 'null'
.referer Related Indicator.Attribute Referer '"http://www.fabtechd
rillingequipment.com/
Contact-Us'
.uri Related Indicator.Attribute URI 'GET /Contact-Us'
.src_ip_addr Related Indicator.Value IP Address '45.125.65.118'
.query_type Related Indicator.Attribute Query Type 'Team Cymru Cookies'
.src_cc Related Indicator.Attribute Country Code 'HK'
.src_port Related Indicator.Attribute Port '34657'

.query_type is cowrie_honeypot

If .query_type is "cowrie_honeypot":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.src_ip_addr Indicator.Value IP Address '45.227.255.205'
.query_type Indicator.Attribute Query Type 'Team Cymru Cowrie' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.src_cc Indicator.Attribute Country Code 'PA'
.src_port Indicator.Attribute Port '65332'
.dst_port Indicator.Attribute Destination Port '22'
.commands Indicator.Attribute Commands 'null'
.credentials Indicator.Attribute Credentials '[]'
.logged_in Indicator.Attribute Logged In '{root,123}'
.unknown_commands Indicator.Attribute Unknown Commands 'null'

.query_type is darknet

If .query_type is "darknet":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.src_ip_addr Indicator.Value IP Address '31.184.254.94'
.query_type Indicator.Attribute Query Type 'Team Cymru Darknet' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.src_cc Indicator.Attribute Country Code 'RU'
.src_port Indicator.Attribute Port '8602'
.dst_port Indicator.Attribute Destination Port '23'
.ip_version Indicator.Attribute IP Version '4'
.length Indicator.Attribute Packet Length 'null'
.proto Indicator.Attribute Protocol '6'

.query_type is ddos_attacks

If .query_type is "ddos_attacks":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.controller_ip_addr Related Indicator.Value IP Address '51.68.183.108'
.query_type Related Indicator.Attribute Query Type 'Team Cymru BARS Observed DDoS Attacks' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.controller Related Indicator.Attribute Controller 'tcp://www1.gggatat456.com:1522'
.controller_cc Related Indicator.Attribute Country Code 'CN'
.controller_port Related Indicator.Attribute Port '1522'
.family Related Indicator.Attribute Malware Family 'xorddos'
.subfamily Related Indicator.Attribute Malware Sub-Family 'controller'
.subtarget Related Indicator.Attribute Sub-target 'null'
.attack_command Related Indicator.Attribute Commands
.controller_port Related Indicator.Attribute Port '6002'
.command Related Indicator.Attribute Commands 'Type: aux_ddos\nData:
Z3pch1AAAAA'
.target_cc Related Indicator.Attribute Target Country Code 'CN'
.target_hostname Related Indicator.Value FQDN 'tcp://42.193.216.140:10002'
.target_ip_addr Related Indicator.Value IP Address '42.193.216.140'
.target_cc Related Indicator.Attribute Target Country Code 'CN'

.query_type is ddos_commands

If .query_type is "ddos_commands":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.controller_ip_addr Related Indicator.Value IP Address
.query_type Related Indicator.Attribute Query Type 'Team Cymru Observed DDoS Attack Commands' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.controller Related Indicator.Attribute Controller
.controller_cc Related Indicator.Attribute Country Code
.controller_port Related Indicator.Attribute Port
.controller_type Related Indicator.Attribute Controller Type
.subtarget Related Indicator.Attribute Sub-target
.attack_command Related Indicator.Attribute Commands
.target_hostname Related Indicator.Value FQDN
.target_ip_addr Related Indicator.Value IP Address
.target_cc Related Indicator.Attribute Target Country Code

.query_type is dionaea_honeypot

If .query_type is "dionaea_honeypot":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.src_ip_addr Indicator.Value IP Address '45.135.232.109'
.query_type Indicator.Attribute Query Type 'Team Cymru Dionaea' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.src_cc Indicator.Attribute Country Code 'RU'
.src_port Indicator.Attribute Port '42234'
.application_proto Indicator.Attribute Application Protocol 'pcap'
.connection_type Indicator.Attribute Connection Type 'reject'
.dst_port Indicator.Attribute Destination Port '33747'
.proto Indicator.Attribute Protocol 'tcp'

.query_type is dns_derived_domains_via_domain

If .query_type is "dns_derived_domains_via_domain":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.query_term Related Indicator.Value FQDN
.query_type Related Indicator.Attribute Query Type 'Team Cymru DNS Derived Domains Via Domains' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.related_domain Related Indicator.Value FQDN

.query_type is dns_derived_domains_via_ip

If .query_type is "dns_derived_domains_via_ip":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.query_term Related Indicator.Value FQDN
.query_type Related Indicator.Attribute Query Type 'Team Cymru DNS Derived Domains Via IPs' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.related_cc Related Indicator.Attribute Country Code
.related_domain Related Indicator.Value FQDN

.query_type is dns_derived_ips_via_domain

If .query_type is "dns_derived_ips_via_domain":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.query_term Related Indicator.Value FQDN or IP Address
.query_type Related Indicator.Attribute Query Type 'Team Cymru DNS Derived IPs Via Domains' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.related_cc Related Indicator.Attribute Country Code
.related_ip_addr Related Indicator.Value FQDN

.query_type is dns_derived_ips_via_ip

If .query_type is "dns_derived_ips_via_ip":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.query_term Related Indicator.Value FQDN or IP Address
.query_type Related Indicator.Attribute Query Type 'Team Cymru DNS Derived IPs Via IPs' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.query_term_cc Related Indicator.Attribute Country Code
.related_ip_addr Related Indicator.Value IP Address
.related_cc Related Indicator.Attribute Country Code

.query_type is dns_query

If .query_type is "dns_query":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.dst_ip_addr Related Indicator.Value IP Address '20:50:23:2'
.query_type Related Indicator.Attribute Query Type 'Team Cymru DNS Queries' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.dst_cc Related Indicator.Attribute Country Code 'US'
.qname Related Indicator.Value FQDN 'worstyear2020.com'
.proto Related Indicator.Attribute Protocol '17'
.type Related Indicator.Attribute DNS Record Type 'DS'
.zone Related Indicator.Attribute Response Policy Zone 'com'
.src_ip_addr Related Indicator.Value IP Address '112:111:113:242'
.src_cc Related Indicator.Attribute Country Code 'US'

.query_type is dns_fingerprint

If .query_type is "dns_fingerprint":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ip_addr Indicator.Value IP Address '110.180.243.61'
.query_type Indicator.Attribute Query Type 'Team Cymru DNS Server Fingerprinting' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.cc Indicator.Attribute Country Code 'CN'
.fingerprint Indicator.Attribute Fingerprint 'TIMEOUT id unavailable (query timed out)'

.query_type is flows

If .query_type is "flows":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.dst_ip_addr Related Indicator.Value IP Address '31.184.254.94'
.query_type Related Indicator.Attribute Query Type 'Team Cymru Network Flows' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.dst_cc Related Indicator.Attribute Country Code 'RU'
.src_ip_addr Related Indicator.Value IP Address '145.220.24.215'
.src_cc Related Indicator.Attribute Country Code 'NL'

.query_type is malware_sandbox

If .query_type is "malware_sandbox":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.md5 Related Indicator.Value MD5 '4657573a39e00e1774227a530135c3fd'
.query_type Related Indicator.Attribute Query Type 'Team Cymru Malware Sandbox' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.sha1 Related Indicator.Value SHA-1 'ebda05de6a897c855f89e
18258e9ec34fe722aa4'
.sha256 Related Indicator.Value SHA-256 '672a857e036c853644372
10ca85ee88561a26cef631f
27f58de68d21505ab815'
.connections[].dst_ip_addr Related Indicator.Value IP Address '172.217.21.233'
.connections[].dst_cc Related Indicator.Attribute Country Code 'DE'
.connections[].protocol Related Indicator.Attribute Protocol 'tcp'
.urls[].url Related Indicator.Value URL 'http://importsports.net/Ling/canon/dut/CRW_1375-1600.jpg'
.dns[].dnsrr Related Indicator.Value FQDN 'ocsp.pki.goog'

.query_type is nmap_dnsrr

If .query_type is "nmap_dnsrr":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ip_addr Indicator.Value IP Address '154.182.117.254'
.query_type Indicator.Attribute Query Type 'Team Cymru NMap Reverse DNS Lookups' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.cc Indicator.Attribute Country Code 'EG'
.dnsrr Indicator.Attribute DNS Resource Record 'host-154.182.254.117-static.tedata.net'

.query_type is nmap_fingerprint

If .query_type is "nmap_fingerprint":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ip_addr Indicator.Value IP Address '31.184.254.94'
.query_type Indicator.Attribute Query Type 'Team Cymru NMap OS Fingerprinting' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.cc Indicator.Attribute Country Code 'RU'
.os Indicator.Attribute Operating System 'Host: splitstore; OS: Unix'

.query_type is nmap_port

If .query_type is "nmap_port":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ip_addr Indicator.Value IP Address '178.89.155.145'
.query_type Indicator.Attribute Query Type 'Team Cymru NMap Open Ports' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.cc Indicator.Attribute Country Code 'KZ'
.service Indicator.Attribute Service 'tcpwrapped'
.port Indicator.Attribute Port '53'
.proto Indicator.Attribute Protocol 'tcp'

.query_type is ntp_server

If .query_type is "ntp_server":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.src_ip_addr Indicator.Value IP Address '5.89.44.199'
.query_type Indicator.Attribute Query Type 'Team Cymru NTP Server Info' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.src_cc Indicator.Attribute Country Code 'IT'
.processor Indicator.Attribute Processor 'unknown'
.raw Indicator.Attribute Raw NTP Server Response 'version="4'
.refid Indicator.Attribute NTP Reference ID '91.80.35.139'
.system Indicator.Attribute System 'UNIX'
.version Indicator.Attribute NTP Version '4'

.query_type is open_ports

If .query_type is "open_ports":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ip_addr Indicator.Value IP Address '168.233.48.220'
.query_type Indicator.Attribute Query Type 'Team Cymru Open Ports' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.cc Indicator.Attribute Country Code 'US'
.data Indicator.Attribute Data 'null'
.port Indicator.Attribute Port '179'
.proto Indicator.Attribute Protocol 'tcp'
.service Indicator.Attribute Service 'null'
.asn Indicator.Attribute ASN '40380'
.asname Indicator.Attribute AS Name 'SIERRATRADINGPOST'

.query_type is open_resolvers

If .query_type is "open_resolvers":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.src_ip_addr Indicator.Value IP Address '168.233.48.220'
.query_type Indicator.Attribute Query Type 'Team Cymru Open Resolvers' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.src_cc Indicator.Attribute Country Code 'US'

.query_type is pdns

If .query_type is "pdns":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.qname Related Indicator.Value FQDN 'tommybishop.com'
.query_type Related Indicator.Attribute Query Type 'Team Cymru PDNS' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.aa Related Indicator.Attribute Authoritative Answer 'null'
.proto Related Indicator.Attribute Protocol 'null'
.section Related Indicator.Attribute DNS Section 'answer'
.ttl Related Indicator.Attribute TTL 'null'
.type Related Indicator.Attribute Type 'A'
.rdata Related Indicator.Value IP Address or FQDN '208.112.30.120'
.rdata_cc Related Indicator.Attribute Country Code 'US'
.src_ip_addr Related Indicator.Value IP Address '208.112.30.1'
.src_cc Related Indicator.Attribute Country Code

.query_type is pdns_nxd

If .query_type is "pdns_nxd":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.qname Related Indicator.Value FQDN '0.0.160.209.in-addr.arpa'
.query_type Related Indicator.Attribute Query Type 'Team Cymru PDNS NXDomain' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.type Related Indicator.Attribute Type 'A'
.proto Related Indicator.Attribute Protocol '17'
.zone Related Indicator.Attribute Response Policy Zone '0.160.209.in-addr.arpa'
.type Related Indicator.Attribute DNS Record Type 'A'
.src_ip_addr Related Indicator.Value IP Address '61.211.226.41'
.src_cc Related Indicator.Attribute Country Code 'JP'
.dst_ip_addr Related Indicator.Value IP Address '209.160.0.11'
.dst_cc Related Indicator.Attribute Country Code 'US'
.dst_port Related Indicator.Attribute Port '53'

.query_type is pdns_other

If .query_type is "pdns_other":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.qname Related Indicator.Value FQDN 'betterfuturekkp.com'
.query_type Related Indicator.Attribute Query Type 'Team Cymru PDNS Other Records' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.aa Related Indicator.Attribute Authoritative Answer 'null'
.type Related Indicator.Attribute DNS Record Type 'NS'
.proto Related Indicator.Attribute Protocol 'null'
.ttl Related Indicator.Attribute TTL 'null'
.section Related Indicator.Attribute DNS Section 'authority'
.rdata Related Indicator.Value IP Address or FQDN 'ns1.server04controlserver.co.in'
.src_ip_addr Related Indicator.Value IP Address 'null

.query_type is portscan

If .query_type is "portscan":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.src_ip_addr Related Indicator.Value IP Address '31.184.254.94'
.query_type Related Indicator.Attribute Query Type 'Team Cymru Port Scan' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.src_cc Related Indicator.Attribute Country Code 'RU'
.ip_range Related Indicator.Attribute IP Range '149.9.145.178:149.9.226.126'
.port_proto_range Related Indicator.Attribute Port Range '23:23'
.scan_msg Related Indicator.Attribute Scan Message 'TCP Filtered Portsweep'
.scan_type Related Indicator.Attribute Scan Type 'portscan'
.dst_ip_addr Related Indicator.Value IP Address '31.184.254.95'
.dst_cc Related Indicator.Attribute Country Code 'US'
.connection_count Related Indicator.Attribute Connection Count '31'

.query_type is rdp_traffic

If .query_type is "rdp_traffic":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.client_ip_addr Related Indicator.Value IP Address '195.154.179.3'
.query_type Related Indicator.Attribute Query Type 'Team Cymru RDP' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.client_cc Related Indicator.Attribute Country Code 'FR'
.client_asn Related Indicator.Attribute ASN '{12876}'
.client_build Related Indicator.Attribute RDP Client Version 'RU'
.client_dig_product_id Related Indicator.Attribute Digital Product ID 'null'
.client_name Related Indicator.Attribute Name 'null'
.client_port Related Indicator.Attribute Port '40717'
.cookie Related Indicator.Attribute Cookie 'EXAMPLE\a'
.desktop_height Related Indicator.Attribute Remote Desktop Height 'null'
.desktop_width Related Indicator.Attribute Remote Desktop Width 'null'
.keyboard_layout Related Indicator.Attribute Remote Desktop Keyboard Layout 'null'
.requested_color_depth Related Indicator.Attribute Remote Desktop Request Color Depth 'RU'
.server_ip_addr Related Indicator.Value IP Address '54.252.239.180'
.server_cc Related Indicator.Attribute Country Code 'AU'
.server_port Related Indicator.Attribute Port '3389'
.server_asn Related Indicator.Attribute ASN '{16509}'
.security_protocol Related Indicator.Attribute Security Protocol 'null'

.query_type is router

If .query_type is "router":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ip_addr Indicator.Value IP Address '175.29.143.106'
.query_type Indicator.Attribute Query Type 'Team Cymru Router Information' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.cc Indicator.Attribute Country Code 'BD'
.os_version Indicator.Attribute Operating System Version 'null'
.processor Indicator.Attribute Processor 'null'
.vendor Indicator.Attribute Vendor 'Cisco Systems'

.query_type is scanner

If .query_type is "scanner":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ip_addr Indicator.Value IP Address '31.184.254.94'
.query_type Indicator.Attribute Query Type 'Team Cymru Scanner' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.cc Indicator.Attribute Country Code 'RU'
.asn Indicator.Attribute ASN '49505'
.interval_probes_unique_dst_ip Indicator.Attribute Unique Dest. IPs Probed '56' Updatable
.interval_probes_unique_ports Indicator.Attribute Unique Ports Scanned '1' Updatable
.interval_slash8_visited Indicator.Attribute Slash8 Visited '3'
.ports Indicator.Attribute Port '{23}'
.proto Indicator.Attribute Protocol '6'
.total_ips_probed Indicator.Attribute Total IPs Probed '56' Updatable

.query_type is sip

If .query_type is "sip":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.contact_ip_addr Related Indicator.Value IP Address '62.210.78.81'
.query_type Related Indicator.Attribute Query Type 'Team Cymru SIP Info' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.contact_cc Related Indicator.Attribute Country Code 'FR'
.contact_display Related Indicator.Attribute Display Name
.contact_number Related Indicator.Attribute Contact Number '81'
.contact_port Related Indicator.Attribute Contact Port '61426'
.dst_ip_addr Related Indicator.Value IP Address '38.229.70.92'
.dst_cc Related Indicator.Attribute Country Code 'US'
.from_ip_addr Related Indicator.Value IP Address '38.229.70.92'
.from_cc Related Indicator.Attribute Country Code 'US'
.from_display Related Indicator.Attribute Display Name
.from_number Related Indicator.Attribute Contact Number '81'
.from_port Related Indicator.Attribute Port '5060'
.src_ip_addr Related Indicator.Value IP Address '62.210.78.81'
.src_cc Related Indicator.Attribute Country Code 'FR'
.to_ip_addr Related Indicator.Value IP Address '38.229.70.92'
.to_cc Related Indicator.Attribute Country Code 'US'
.to_display Related Indicator.Attribute Display Name
.to_number Related Indicator.Attribute Contact Number '901146842002926'
.to_port Related Indicator.Attribute Port '5060'

.query_type is snmp

If .query_type is "snmp":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ip_addr Indicator.Value IP Address '41.139.235.243'
.query_type Indicator.Attribute Query Type 'Team Cymru SNMP Info' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.cc Indicator.Attribute Country Code 'KE'
.oid_string Indicator.Attribute OID String 'ipAdEntAddr.41.139.235.243 = IpAddress: 41.139.235.243'
.version Indicator.Attribute SNMP Version '2'

.query_type is spam_domains

If .query_type is "spam_domains":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.fqdn Indicator.Value FQDN '215t8vwczjo.cg12r.com'
.query_type Indicator.Attribute Query Type 'Team Cymru Spam Domains' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.

.query_type is spam_headers

If .query_type is "spam_headers":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.src_ip_addr Indicator.Value IP Address '69.75.148.206'
.query_type Indicator.Attribute Query Type 'Team Cymru Spam Headers' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.cc_addrs Indicator.Attribute Email Address
.dst_port Indicator.Attribute Port '25'
.from_email Indicator.Attribute Email Address 'shil1allen@hotmail.com'
.from_name Indicator.Attribute From Name '"Kunlun Energy"'
.rcpt_to_addrs Indicator.Attribute Email Address
.src_cc Indicator.Attribute Country Code 'US'
.src_port Indicator.Attribute Port '33026'
.subject Indicator.Attribute Email Subject
.to_addrs Indicator.Attribute Email Subject 'Kaliyaha51@icloud.com'

.query_type is ssh

If .query_type is "ssh":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ip_addr Indicator.Value IP Address '91.90.155.70'
.query_type Indicator.Attribute Query Type 'Team Cymru SSH Info' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.cc Indicator.Attribute Country Code 'DE'
.city Indicator.Attribute City 'null'
.key Indicator.Attribute SSH Key 'AAAAB3NzaC'
.os_version Indicator.Attribute OS Version 'Ubuntu-4ubuntu0.2'
.ssh_version Indicator.Attribute SSH Version
.type Indicator.Attribute SSH Key Type 'ssh-rsa'
.asn Indicator.Attribute ASN '41412'

.query_type is tor

If .query_type is "tor":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ipv6_addr Related Indicator.Value IP Address 'null'
.query_type Related Indicator.Attribute Query Type 'Team Cymru Tor Public' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.ipv6_cc Related Indicator.Attribute Country Code
.ip_addr Related Indicator.Value IP Address '144.172.153.165'
.authority Related Indicator.Attribute Authority 'false' Updatable
.bad_exit Related Indicator.Attribute Bad Exit 'false' Updatable
.bandwidth Related Indicator.Attribute Bandwidth '292' Updatable
.cc Related Indicator.Attribute Country Code 'CA'
.contact Related Indicator.Attribute Contact 'nestor00patof@ptaff.ca'
.dir_port Related Indicator.Attribute Port '0'
.exit Related Indicator.Attribute Exit 'false' Updatable
.fast Related Indicator.Attribute Fast 'true' Updatable
.fingerprint Related Indicator.Attribute Fingerprint 'FFFB FB50 A83A 414C C21B 4CDA 93A9 674B 0047 05E8'
.guard Related Indicator.Attribute Guard 'false' Updatable
.hibernating Related Indicator.Attribute Hibernating 'false' Updatable
.hs_dir Related Indicator.Attribute HS Directory 'false' Updatable
.named Related Indicator.Attribute Named 'false' Updatable
.or_port Related Indicator.Attribute Port '1337'
.platform Related Indicator.Attribute Platform 'Linux'
.router_name Related Indicator.Attribute Router Name 'nestor00patof'
.running Related Indicator.Attribute Running 'true' Updatable
.stable Related Indicator.Attribute Stable 'true' Updatable
.v2_dir Related Indicator.Attribute v2 Directory Protocol 'true' Updatable
.valid Related Indicator.Attribute Valid 'true' Updatable
.version Related Indicator.Attribute Version '0.4.5.7'
.weight Related Indicator.Attribute Weight '51'

.query_type is urls

If .query_type is "urls":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.dst_ip_addr Related Indicator.Value IP Address '208.112.30.120'
.query_type Related Indicator.Attribute Query Type 'Team Cymru URLs' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.dst_cc Related Indicator.Attribute Country Code 'US'
.dst_port Related Indicator.Attribute Port '80'
.src_ip_addr Related Indicator.Value IP Address '93.174.93.133'
.src_cc Related Indicator.Attribute Country Code 'NL'
.src_port Related Indicator.Attribute Port '40413'
.url Related Indicator.Value URL 'http://caaofbecmcc.org/xmlrpc.php'

.query_type is useragents

If .query_type is "useragents":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.dst_ip_addr Related Indicator.Value IP Address '208.112.30.120'
.query_type Related Indicator.Attribute Query Type 'Team Cymru UserAgents' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.dst_cc Related Indicator.Attribute Country Code 'US'
.dst_port Related Indicator.Attribute Port '80'
.src_ip_addr Related Indicator.Value IP Address '95.143.193.125'
.src_cc Related Indicator.Attribute Country Code 'SE'
.src_port Related Indicator.Attribute Port '41813'
.languages Related Indicator.Attribute Languages 'en-US,en;q=0.9'
.user_agent Related Indicator.Attribute User-Agent 'Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/71.0.3563.0 Safari/537.36'
.via Related Indicator.Attribute Via 'null'
.x_forwarded_for Related Indicator.Attribute X-Forwarded For 'null'
.character_sets Related Indicator.Attribute Character Sets 'null'
.cpu Related Indicator.Attribute CPU 'null'

.query_type is x509

If .query_type is "x509":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
.ip_addr Related Indicator.Value IP Address '31.184.254.94'
.query_type Related Indicator.Attribute Query Type 'Team Cymru x509 Certs' Maps the value of .query_type key to a string based on the Query Type Mapping. If no match is found, the indicator and corresponding attributes are not ingested.
.hostname Related Indicator.Value FQDN or IP Address '31.184.254.94'
.altnames Related Indicator.Attribute Certificate Owner Alternate Common Name
.cc Related Indicator.Attribute Country Code 'RU'
.cn Related Indicator.Attribute Certificate Owner Common Name 'splitastore.ru'
.email Related Indicator.Attribute Certificate Owner Email Address 'root@splitastore.ru'
.issuer Related Indicator.Attribute Certificate Authority Signing Certificate 'C=XX, ST=XX, L=XX, O=XX, OU=XX, CN=splitastore.ru, emailAddress=root@splitastore.ru'
.issuer_c Related Indicator.Attribute Certificate Authority Country 'XX'
.issuer_cn Related Indicator.Attribute Issuer Common Name 'splitastore.ru'
.issuer_o Related Indicator.Attribute Issuer Organization 'XX'
.o Related Indicator.Attribute Certificate Owner Organization Name 'XX'
.pem Related Indicator.Attribute PEM Certificate '-----BEGIN CERTIFICATE-----\
nMIICyjCCAjOgAwIBAgIJAM43
/74EXlfHMA0GCSqGSIb3DQEB
CwUAMH4xCzAJyI3d4w62
Tw==\n-----END CERTIFICATE-----\n'
.port Related Indicator.Attribute Port '995'
.serial Related Indicator.Attribute Serial 'CE37FFBE045E57C7'
.sig_algo Related Indicator.Attribute Signature Algorithm 'sha256WithRSAEncryption'
.subject Related Indicator.Attribute Certificate Owner Distinguished Name 'C=XX, ST=XX, L=XX, O=XX, OU=XX, CN=splitastore.ru, emailAddress=root@splitastore.ru'
.sha1 Related Indicator.Value SHA-1 '3C:16:E1:05:A1:3A:5C:AA:F4:6F:20:8E:
76:9D:73:37:71:36:9D:37'

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Team Cymru Recon

Metric Result
Run Time 5 hours
Indicators 44,398
Indicator Attributes 89,425

Change Log

  • Version 1.1.0
    • Resolved a filter-mapping error caused by null timestamps.
    • Added the following new configuration options:
      • Search (Optional) - enter a search string for matching on the job name, job description, or the submitter's username.
      • Group ID (Optional) - enter a Group ID to filter the results by a specific grouping.
      • Job Origin - select the origin of the jobs to fetch.
  • Version 1.0.1
    • Added ingestion update rules for specific attributes.
    • Added the ability to configure the Team Cymru instance URL.
    • Added the following new configuration parameters:
      • Team Cymru Instance - allows user to enter the Team Cymru instance to connect to with the integration.
      • Enable SSL Certificate Verification - determine if the feed should verify the SSL certificate.
      • Disable Proxies - determine if the feed should ignore proxies set in the ThreatQ UI.
    • Updated the minimum ThreatQ version to 5.29.0.
  • Version 1.0.0
    • Initial release

PDF Guides

Document ThreatQ Version
Team Cymru Recon CDF Guide v1.1.0 5.29.0 or Greater
Team Cymru Recon CDF Guide v1.0.1 5.29.0 or Greater
Team Cymru Recon CDF Guide v1.0.0 4.34.0 or Greater
