Current ThreatQ Version Filter

Silent Push CDF

The web format of this guide reflects the most current release. Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Current Integration Version

1.0.0

Compatible with ThreatQ Versions

>= 5.10.0

Support Tier

ThreatQ Supported

Introduction

The Silent Push CDF integration ingests FQDNs and related IP Addresses from the Silent Push provider.

The integration provides the following feed:

Silent Push Domains - ingests FQNs and their associated IP Addresses from Silent Push.

The integration ingests indicator type system objects.

Prerequisites

You will need a Silent Push API Key to use the integration.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

Log into https://marketplace.threatq.com/.
Locate and download the integration yaml file.
Navigate to the integrations management page on your ThreatQ instance.
Click on the Add New Integration button.
Upload the integration yaml file using one of the following methods:
- Drag and drop the file into the dialog box
- Select Click to Browse to locate the file on your local machine
Select the individual feeds to install, when prompted and click Install.
ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

The feed(s) will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

Navigate to your integrations management page in ThreatQ.
Select the Commercial option from the Category dropdown (optional).
If you are installing the integration for the first time, it will be located under the Disabled tab.
Click on the integration entry to open its details page.

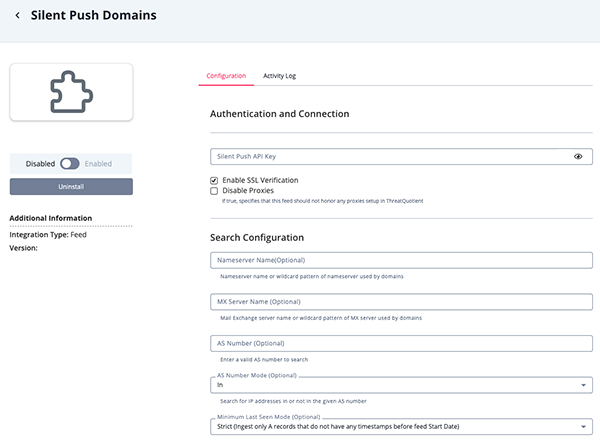

Enter the following parameters under the Configuration tab:

Parameter	Description
Silent Push API Key	Enter your Silent Push API Key used to connect to Silent Push.
Enable SSL Verification	Enable this parameter for the feed to validate the host-provided SSL certificate. This option is enabled by default.
Disable Proxies	Enable this option if the feed should not honor proxies set in the ThreatQ UI.
Nameserver Name	Optional - Enter the Nameserver name or wildcard pattern of nameserver used by domains.
MX Server Name	Optional - Enter the Mail Exchange server name or wildcard pattern of MX server used by domains.
AS Number	Optional - Enter a valid AS number to search.
AS Number Mode	Optional - Search for IP addresses in or not in the given AS number. Options are: In Not In
Minimum Last Seen Mode	Optional - Search for IP address seen or not before feed Start Date. Options are: Any (Ingest A records that have at least one timestamp after feed Start Date) Strict (Ingest only A records that do not have any timestamps before feed Start Date)
Maximum Last Seen Mode	Optional - Search for IP address seen or not before feed End Date. Options are: Any (Ingest A records that have at least one timestamp after feed End Date) Strict (Ingest only A records that do not have any timestamps before feed End Date)
Registrar	Optional - Enter the name or partial name of registrar used to register domains. Wildcards are not allowed, the given string is used in partial match. This is a slow search option
Certificates Issuer	Optional - Enter the SSL certificate issuer to ingest domains from. If this parameter is used, only domains from the supplied issuer will be ingested. The use of wildcards is allowed. Use the `+` symbol to represent spaces.
ASN Diversity	Optional - Enter the ASN Diversity (integer). This is an exact match.
Minimum ASN Diversity	Optional - Enter the minimum ASN Diversity limit (integer).
Maximum ASN Diversity	Optional - Enter the maximum ASN Diversity limit (integer).
IP Diversity All	Optional - IP Diversity All (integer). This is an exact match.
Minimum IP Diversity All	Optional - Enter the Minimum IP Diversity All limit (integer).
Maximum IP Diversity All	Optional - Enter the maximum IP Diversity All limit (integer).
IP Diversity Groups	Optional - Enter the IP Diversity Groups (integer). This is an exact match.
Minimum IP Diversity Groups	Optional - Enter the Minimum IP Diversity Groups limit (integer).
Maximum IP Diversity Groups	Optional - Enter the Maximum IP Diversity Groups limit (integer).
Max Pages	Enter the maximum number of pages to return. Each page contains 100 indicators. Silent Push without any search criteria can return a large number of results.
FQDN Context	Select which pieces of context to bring in with each FQDN. Options include: ASN Diversity IP Diversity IP Diversity Groups
Fetch Related IP Addresses	Enable this parameter to ingest IP addresses associated with each FQDN.
IP Context	Select which pieces of context to bring in with each related IP Address. Options include: ASN AS Name Last Seen

Review any additional settings, make any changes if needed, and click on Save.
Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Silent Push Domains

The Silient Push Domains feed ingests FQDN and their associated IP Addresses from Silent Push.

GET https://api.silentpush.com/api/v1/merge-api/explore/domain/search

Sample Request Parameters:

{
  "with_metadata": "1",
  "timeline": "1",
  "prefer": "result",
  "max_wait": "25",
  "last_seen_min": "2024-12-01",
  "last_seen_max": "2024-12-03",
  "last_seen_min_mode": "strict",
  "last_seen_max_mode": "strict",
  "ip_diversity_all_min": "5"
}

Sample Response:

{
  "status_code": 200,
  "error": null,
  "response": {
    "metadata": {
      "job_id": "e274b7e9-bf7e-4037-8236-377a180f885a",
      "query_name": "padns/search/ipdiversity",
      "results_returned": 100,
      "results_total_at_least": 104,
      "timestamp": 1733402483,
      "with_metadata": 1
    },
    "records": [
      {
        "asn_diversity": 18,
        "host": "0-168.com.a.bdydns.com",
        "ip_diversity_all": 38,
        "ip_diversity_groups": 8,
        "timeline": [
          {
            "asn": 38283,
            "asname": "CHINANET-SCIDC-AS-AP CHINANET SiChuan Telecom Internet Data",
            "first_seen": "2022-08-25 20:23:44",
            "ip": "182.140.225.35",
            "last_seen": "2024-11-29 03:08:16"
          },
          {
            "asn": 4134,
            "asname": "CHINANET-BACKBONE No.31,Jin-rong Street, CN",
            "first_seen": "2024-07-01 04:29:52",
            "ip": "121.14.156.35",
            "last_seen": "2024-12-01 14:07:01"
          }
        ]
      }
    ]
  }
}

ThreatQuotient provides the following default mapping for this feed:

This mapping is based on each item within the .response.records from the HTTP response.

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
`.host`	Indicator	FQDN	N/A	`0-168.com.a.bdydns.com`	N/A
`.asn_diversity`	Indicator.Attribute	ASN Diversity	N/A	`18`	Updatable
`.ip_diversity_all`	Indicator.Attribute	IP Diversity	N/A	`38`	Updatable
`.ip_diversity_groups`	Indicator.Attribute	IP Diversity Groups	N/A	`8`	Updatable
`.timeline.ip`	Related Indicator	IP Address	`.timeline.first_seen`	`182.140.225.35`	N/A
`.timeline.asname`	Related Indicator Attribute	AS Name	`.timeline.first_seen`	`CHINANET-SCID-AS-AP CHINANET...`	N/A
`.timeline.asn`	Related Indicator Attribute	ASN	`.timeline.first_seen`	`38283`	N/A
`.timeline.last_seen`	Related Indicator Attribute	Last Seen	`.timeline.first_seen`	`2024-11-29 03:08:16`	Updatable

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Metric	Result
Run Time	2 minutes
Indicators	206
Indicator Attributes	424

Known Issues / Limitations

API usage is limited to your Silent Push API rate limit. Users should be aware of their limit and adjust the Max Pages configuration parameter accordingly. A request will be made for each page.
ThreatQuotient highly recommends using the search configuration parameters to ingest your selected data as Silent Push returns large amounts of data.

Change Log

Version 1.0.0
- Initial release

PDF Guides

Document	ThreatQ Version
Silent Push CDF Guide v1.0.0	5.10.0 or Greater
