Rapid7 InsightVM CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Rapid7 insightVM integration for ThreatQ provides you with the ability to automatically track sites and assets registered within Rapid7 insightVM to monitor their vulnerabilities and overall risk.

The integration ingests threat intelligence data from the following endpoints:

  • Rapid7 insightVM - Sites - automatically pulls sites & assets registered with Rapid7 insightVM.
  • Get Site Assets (supplemental) - fetches the associated assets for a given site.
  • Get Asset Vulnerabilities (supplemental) - fetches the vulnerabilities for a given asset.
  • Get Tags (supplemental) - fetches the tags for a given asset or site.

The integration ingests the following system object types:

  • Assets
    • Asset Attributes
  • Indicators
    • Indicator Attributes
  • Reports
    • Report Attributes

Prerequisites

Review the following prerequisites before attempting to install the integration:



  • Rapid7 InsightVM Security Console username and password.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the integration yaml file.
  3. Navigate to the integrations management page on your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the yaml file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the file on your local machine

    ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

  6. The feed will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Commercial option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:
    Parameter Description
    Rapid7 insightVM Host / IP (and port) Enter your Rapid7 insightVM hostname or IP address.
    Rapid7 insightVM Username Enter your Rapid7 insightVM username to authenticate with the API.
    Rapid7 insightVM Password Enter your Rapid7 insightVM password to authenticate with the API.
    Only Ingest Vulnerable Sites / Assets Enable this option to only ingest sites with vulnerabilities.
    Importance Filter Filter the sites to ingest by importance level.  Options include:
    • Very Low
    • Low
    • Normal
    • High
    • Very High
    Minimum Risk Score Threshold Enter the minimum score required to ingest a site or asset.
    Scan Template Filter Enter a comma-separated list of scan template IDs for the feed to specifically ingest. Leave this field blank to ingest any.
    Verify SSL Certificate Enable or disable SSL certificate verification.  This option is enabled by default.
    Disable Proxies Enable this parameter to specify that the feed should not honor proxies set in the ThreatQ platform.  This option is disabled by default.

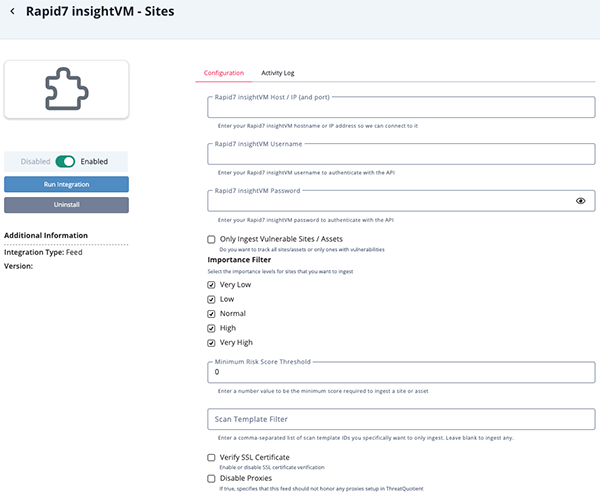

    Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Rapid7 insightVM - Sites

The Rapid7 insightVM - Sites feed automatically pulls sites & assets registered with Rapid7 insightVM

GET https://<host>:<port>/api/3/sites

Sample Response:

{
  "resources": [
    {
      "assets": 1,
      "id": 2,
      "importance": "high",
      "lastScanTime": "2019-03-22T17:36:39.122Z",
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2",
          "rel": "self"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/alerts",
          "rel": "Alerts"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/scan_engine",
          "rel": "Scan Engine"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/scan_schedules",
          "rel": "Schedules"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/organization",
          "rel": "Organization"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/tags",
          "rel": "Tags"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/users",
          "rel": "Users"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/scan_template",
          "rel": "Template"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/site_credentials",
          "rel": "Site Credentials"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/shared_credentials",
          "rel": "Assigned Shared Credentials"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/web_authentication/html_forms",
          "rel": "Web HTML Forms Authentication"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/web_authentication/http_headers",
          "rel": "Web HTTP Headers Authentication"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/assets",
          "rel": "Assets"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/included_targets",
          "rel": "Included Targets"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/excluded_targets",
          "rel": "Excluded Targets"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/included_asset_groups",
          "rel": "Included Asset Groups"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/2/excluded_asset_groups",
          "rel": "Excluded Asset Groups"
        }
      ],
      "name": "ThreatQ Instance (ESXi)",
      "riskScore": 13107.0,
      "scanEngine": 3,
      "scanTemplate": "full-audit-without-web-spider",
      "type": "static",
      "vulnerabilities": {
        "critical": 0,
        "moderate": 9,
        "severe": 24,
        "total": 33
      }
    },
    {
      "assets": 1,
      "id": 1,
      "importance": "high",
      "lastScanTime": "2019-03-25T05:03:54.400Z",
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1",
          "rel": "self"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/alerts",
          "rel": "Alerts"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/scan_engine",
          "rel": "Scan Engine"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/scan_schedules",
          "rel": "Schedules"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/organization",
          "rel": "Organization"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/tags",
          "rel": "Tags"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/users",
          "rel": "Users"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/scan_template",
          "rel": "Template"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/site_credentials",
          "rel": "Site Credentials"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/shared_credentials",
          "rel": "Assigned Shared Credentials"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/web_authentication/html_forms",
          "rel": "Web HTML Forms Authentication"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/web_authentication/http_headers",
          "rel": "Web HTTP Headers Authentication"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/assets",
          "rel": "Assets"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/included_targets",
          "rel": "Included Targets"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/excluded_targets",
          "rel": "Excluded Targets"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/included_asset_groups",
          "rel": "Included Asset Groups"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/sites/1/excluded_asset_groups",
          "rel": "Excluded Asset Groups"
        }
      ],
      "name": "ThreatQ Website",
      "riskScore": 7405.0,
      "scanEngine": 3,
      "scanTemplate": "full-audit-without-web-spider",
      "type": "static",
      "vulnerabilities": {
        "critical": 5,
        "moderate": 2,
        "severe": 22,
        "total": 29
      }
    }
  ],
  "page": {
    "number": 0,
    "size": 10,
    "totalResources": 2,
    "totalPages": 1
  },
  "links": [
    {
      "href": "https://10.13.0.65:3780/api/3/sites?page=0&size=10&sort=id,asc",
      "rel": "self"
    }
  ]
}

ThreatQuotient provides the following default mapping for this feed:

The following mapping is based on the data pulled from the resources list from the API response

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.vulnerability.* Description Report N/A N/A HTML is built from the fields in this dict
.tags[] Tag N/A N/A N/A N/A
.name Value Report .lastScanTime N/A Concatenated with Rapid7 insightVM Site Report:
.importance Attribute Importance N/A High Title-cased. Updated at ingestion
.scanTemplate Attribute Scan Template N/A N/A N/A
.type Attribute Scan Type N/A static N/A
.vulnerabilities.total Attribute Total Vulnerabilities N/A 32 Updated at ingestion
.id Attribute Site Link N/A N/A Concatenated with host user field

Get Site Assets (Supplemental)

The Get Site Assets supplemental feed will fetch the associated assets for a given site.

GET https://<host>:<port>/api/3/sites/<id>/assets

Sample Response:

{
  "resources": [
    {
      "addresses": [
        {
          "ip": "10.12.0.101"
        }
      ],
      "assessedForPolicies": false,
      "assessedForVulnerabilities": true,
      "history": [
        {
          "date": "2019-03-22T17:11:00.842Z",
          "scanId": 1,
          "type": "SCAN",
          "version": 1
        },
        {
          "date": "2019-03-23T05:03:42.208Z",
          "scanId": 3,
          "type": "SCAN",
          "version": 2
        },
        {
          "date": "2019-03-24T05:03:37.782Z",
          "scanId": 4,
          "type": "SCAN",
          "version": 3
        },
        {
          "date": "2019-03-25T05:03:37.458Z",
          "scanId": 5,
          "type": "SCAN",
          "version": 4
        }
      ],
      "hostName": "threatq.com",
      "hostNames": [
        {
          "name": "threatq.com",
          "source": "user"
        }
      ],
      "id": 1,
      "ip": "10.12.0.101",
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/assets/1",
          "rel": "self"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/assets/1/software",
          "rel": "Software"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/assets/1/files",
          "rel": "Files"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/assets/1/users",
          "rel": "Users"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/assets/1/user_groups",
          "rel": "User Groups"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/assets/1/databases",
          "rel": "Databases"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/assets/1/services",
          "rel": "Services"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/assets/1/tags",
          "rel": "Tags"
        }
      ],
      "os": "Linux 2.6.X",
      "osFingerprint": {
        "description": "Linux 2.6.X",
        "family": "Linux",
        "id": 4,
        "product": "Linux",
        "systemName": "Linux",
        "type": "General",
        "vendor": "Linux",
        "version": "2.6.X"
      },
      "rawRiskScore": 7404.6845703125,
      "riskScore": 7404.6845703125,
      "services": [
        {
          "configurations": [
            {
              "name": "bind.version",
              "value": "9.9.4-RedHat-9.9.4-61.el7"
            }
          ],
          "family": "BIND",
          "links": [
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/udp/53",
              "rel": "self"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/udp/53/configurations",
              "rel": "Configurations"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/udp/53/databases",
              "rel": "Databases"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/udp/53/users",
              "rel": "Users"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/udp/53/user_groups",
              "rel": "User Groups"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/udp/53/web_applications",
              "rel": "Web Applications"
            }
          ],
          "name": "DNS",
          "port": 53,
          "product": "BIND",
          "protocol": "udp",
          "version": "9.9.4-RedHat-9.9.4-61.el7"
        },
        {
          "configurations": [
            {
              "name": "bind.version",
              "value": "9.9.4-RedHat-9.9.4-61.el7"
            }
          ],
          "family": "BIND",
          "links": [
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/tcp/53",
              "rel": "self"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/tcp/53/configurations",
              "rel": "Configurations"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/tcp/53/databases",
              "rel": "Databases"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/tcp/53/users",
              "rel": "Users"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/tcp/53/user_groups",
              "rel": "User Groups"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/tcp/53/web_applications",
              "rel": "Web Applications"
            }
          ],
          "name": "DNS",
          "port": 53,
          "product": "BIND",
          "protocol": "tcp",
          "version": "9.9.4-RedHat-9.9.4-61.el7"
        },
        {
          "links": [
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/udp/123",
              "rel": "self"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/udp/123/configurations",
              "rel": "Configurations"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/udp/123/databases",
              "rel": "Databases"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/udp/123/users",
              "rel": "Users"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/udp/123/user_groups",
              "rel": "User Groups"
            },
            {
              "href": "https://10.13.0.65:3780/api/3/assets/1/services/udp/123/web_applications",
              "rel": "Web Applications"
            }
          ],
          "name": "NTP",
          "port": 123,
          "protocol": "udp"
        }
      ],
      "vulnerabilities": {
        "critical": 5,
        "exploits": 6,
        "malwareKits": 0,
        "moderate": 2,
        "severe": 22,
        "total": 29
      }
    }
  ],
  "page": {
    "number": 0,
    "size": 10,
    "totalResources": 1,
    "totalPages": 1
  },
  "links": [
    {
      "href": "https://10.13.0.65:3780/api/3/sites/1/assets?page=0&size=10&sort=id,asc",
      "rel": "self"
    }
  ]
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.vulnerability.* Description Asset N/A N/A HTML is built from the fields in this dict
.tags[] Tag N/A N/A N/A N/A
.tags[] Attribute <Tag Type> N/A N/A Tag Type is determined by the .tags[].type field. Ignored if type is custom
.services[].vendor/product/name Attribute Installed Service N/A OpenBSD - OpenSSH - SSH Keys are concatenated together if they exist
.ip/hostName Asset Value N/A N/A <hostName> (<ip>) if hostName exists, otherwise, just <ip>
.ip Attribute IP Address N/A N/A N/A
.hostName Attribute Hostname N/A N/A N/A
.id Attribute ID N/A N/A N/A
.id Attribute insightVM Link N/A N/A Concatenated with the user field, host
.os Attribute Operating System N/A N/A N/A
.type Attribute Asset Type N/A N/A N/A
.vulnerabilities.total Attribute Total Vulnerabilities N/A N/A Updated at ingestion
.assessedForPolicies Attribute Assessed for Policies N/A N/A Mapped to string. Updated at ingestion
.assessedForVulnerabilities Attribute Assessed for Vulnerabilities N/A N/A Mapped to string. Updated at ingestion

These mappings are based on the data pulled from the resources list from the API response.

Get Asset Vulnerabilities (Supplemental)

The Get Asset Vulnerabilities supplemental feed will fetch the vulnerabilities for a given asset.

GET https://<host>:<port>/api/3/assets/<id>/vulnerabilities

Sample Response:

{
  "resources": [
    {
      "id": "apache-httpd-cve-2016-4975",
      "instances": 3,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/apache-httpd-cve-2016-4975",
          "rel": "self"
        },
        {
          "id": "apache-httpd-cve-2016-4975",
          "href": "https://10.13.0.65:3780/api/3/vulnerabilities/apache-httpd-cve-2016-4975",
          "rel": "Vulnerability"
        },
        {
          "id": "apache-httpd-cve-2016-4975",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/apache-httpd-cve-2016-4975/validations",
          "rel": "Vulnerability Validations"
        },
        {
          "id": "apache-httpd-cve-2016-4975",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/apache-httpd-cve-2016-4975/solution",
          "rel": "Vulnerability Solutions"
        }
      ],
      "results": [
        {
          "port": 8443,
          "proof": "<p><ul><li>Running HTTPS service</li><li>Product HTTPD exists -- Apache HTTPD 2.4.6</li><li>Vulnerable version of product HTTPD found -- Apache HTTPD 2.4.6</li></ul></p>",
          "protocol": "tcp",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        },
        {
          "port": 443,
          "proof": "<p><ul><li>Running HTTPS service</li><li>Product HTTPD exists -- Apache HTTPD 2.4.6</li><li>Vulnerable version of product HTTPD found -- Apache HTTPD 2.4.6</li></ul></p>",
          "protocol": "tcp",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        },
        {
          "port": 80,
          "proof": "<p><ul><li>Running HTTP service</li><li>Product HTTPD exists -- Apache HTTPD 2.4.6</li><li>Vulnerable version of product HTTPD found -- Apache HTTPD 2.4.6</li></ul></p>",
          "protocol": "tcp",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        }
      ],
      "since": "2019-03-22T17:36:22.611Z",
      "status": "vulnerable"
    },
    {
      "id": "apache-httpd-cve-2017-15710",
      "instances": 3,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/apache-httpd-cve-2017-15710",
          "rel": "self"
        },
        {
          "id": "apache-httpd-cve-2017-15710",
          "href": "https://10.13.0.65:3780/api/3/vulnerabilities/apache-httpd-cve-2017-15710",
          "rel": "Vulnerability"
        },
        {
          "id": "apache-httpd-cve-2017-15710",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/apache-httpd-cve-2017-15710/validations",
          "rel": "Vulnerability Validations"
        },
        {
          "id": "apache-httpd-cve-2017-15710",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/apache-httpd-cve-2017-15710/solution",
          "rel": "Vulnerability Solutions"
        }
      ],
      "results": [
        {
          "port": 8443,
          "proof": "<p><ul><li>Running HTTPS service</li><li>Product HTTPD exists -- Apache HTTPD 2.4.6</li><li>Vulnerable version of product HTTPD found -- Apache HTTPD 2.4.6</li></ul></p>",
          "protocol": "tcp",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        },
        {
          "port": 443,
          "proof": "<p><ul><li>Running HTTPS service</li><li>Product HTTPD exists -- Apache HTTPD 2.4.6</li><li>Vulnerable version of product HTTPD found -- Apache HTTPD 2.4.6</li></ul></p>",
          "protocol": "tcp",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        },
        {
          "port": 80,
          "proof": "<p><ul><li>Running HTTP service</li><li>Product HTTPD exists -- Apache HTTPD 2.4.6</li><li>Vulnerable version of product HTTPD found -- Apache HTTPD 2.4.6</li></ul></p>",
          "protocol": "tcp",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        }
      ],
      "since": "2019-03-22T17:36:22.611Z",
      "status": "vulnerable"
    },
    {
      "id": "apache-httpd-cve-2018-1301",
      "instances": 3,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/apache-httpd-cve-2018-1301",
          "rel": "self"
        },
        {
          "id": "apache-httpd-cve-2018-1301",
          "href": "https://10.13.0.65:3780/api/3/vulnerabilities/apache-httpd-cve-2018-1301",
          "rel": "Vulnerability"
        },
        {
          "id": "apache-httpd-cve-2018-1301",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/apache-httpd-cve-2018-1301/validations",
          "rel": "Vulnerability Validations"
        },
        {
          "id": "apache-httpd-cve-2018-1301",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/apache-httpd-cve-2018-1301/solution",
          "rel": "Vulnerability Solutions"
        }
      ],
      "results": [
        {
          "port": 8443,
          "proof": "<p><ul><li>Running HTTPS service</li><li>Product HTTPD exists -- Apache HTTPD 2.4.6</li><li>Vulnerable version of product HTTPD found -- Apache HTTPD 2.4.6</li></ul></p>",
          "protocol": "tcp",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        },
        {
          "port": 443,
          "proof": "<p><ul><li>Running HTTPS service</li><li>Product HTTPD exists -- Apache HTTPD 2.4.6</li><li>Vulnerable version of product HTTPD found -- Apache HTTPD 2.4.6</li></ul></p>",
          "protocol": "tcp",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        },
        {
          "port": 80,
          "proof": "<p><ul><li>Running HTTP service</li><li>Product HTTPD exists -- Apache HTTPD 2.4.6</li><li>Vulnerable version of product HTTPD found -- Apache HTTPD 2.4.6</li></ul></p>",
          "protocol": "tcp",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        }
      ],
      "since": "2019-03-22T17:36:22.611Z",
      "status": "vulnerable"
    },
    {
      "id": "apache-httpd-cve-2018-1312",
      "instances": 3,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/apache-httpd-cve-2018-1312",
          "rel": "self"
        },
        {
          "id": "apache-httpd-cve-2018-1312",
          "href": "https://10.13.0.65:3780/api/3/vulnerabilities/apache-httpd-cve-2018-1312",
          "rel": "Vulnerability"
        },
        {
          "id": "apache-httpd-cve-2018-1312",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/apache-httpd-cve-2018-1312/validations",
          "rel": "Vulnerability Validations"
        },
        {
          "id": "apache-httpd-cve-2018-1312",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/apache-httpd-cve-2018-1312/solution",
          "rel": "Vulnerability Solutions"
        }
      ],
      "results": [
        {
          "port": 8443,
          "proof": "<p><ul><li>Running HTTPS service</li><li>Product HTTPD exists -- Apache HTTPD 2.4.6</li><li>Vulnerable version of product HTTPD found -- Apache HTTPD 2.4.6</li></ul></p>",
          "protocol": "tcp",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        },
        {
          "port": 443,
          "proof": "<p><ul><li>Running HTTPS service</li><li>Product HTTPD exists -- Apache HTTPD 2.4.6</li><li>Vulnerable version of product HTTPD found -- Apache HTTPD 2.4.6</li></ul></p>",
          "protocol": "tcp",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        },
        {
          "port": 80,
          "proof": "<p><ul><li>Running HTTP service</li><li>Product HTTPD exists -- Apache HTTPD 2.4.6</li><li>Vulnerable version of product HTTPD found -- Apache HTTPD 2.4.6</li></ul></p>",
          "protocol": "tcp",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        }
      ],
      "since": "2019-03-22T17:36:22.611Z",
      "status": "vulnerable"
    },
    {
      "id": "centos_linux-cve-2018-17972",
      "instances": 1,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/centos_linux-cve-2018-17972",
          "rel": "self"
        },
        {
          "id": "centos_linux-cve-2018-17972",
          "href": "https://10.13.0.65:3780/api/3/vulnerabilities/centos_linux-cve-2018-17972",
          "rel": "Vulnerability"
        },
        {
          "id": "centos_linux-cve-2018-17972",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/centos_linux-cve-2018-17972/validations",
          "rel": "Vulnerability Validations"
        },
        {
          "id": "centos_linux-cve-2018-17972",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/centos_linux-cve-2018-17972/solution",
          "rel": "Vulnerability Solutions"
        }
      ],
      "results": [
        {
          "proof": "<p><p>Vulnerable OS: CentOS Linux 7.6.1810<p></p></p><p><ul><li><ContainerBlockElement>kernel - version 3.10.0-957.5.1.el7 is installed</ContainerBlockElement></li></ul></p></p>",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        }
      ],
      "since": "2019-03-22T17:36:22.611Z",
      "status": "vulnerable"
    },
    {
      "id": "centos_linux-cve-2018-18445",
      "instances": 1,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/centos_linux-cve-2018-18445",
          "rel": "self"
        },
        {
          "id": "centos_linux-cve-2018-18445",
          "href": "https://10.13.0.65:3780/api/3/vulnerabilities/centos_linux-cve-2018-18445",
          "rel": "Vulnerability"
        },
        {
          "id": "centos_linux-cve-2018-18445",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/centos_linux-cve-2018-18445/validations",
          "rel": "Vulnerability Validations"
        },
        {
          "id": "centos_linux-cve-2018-18445",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/centos_linux-cve-2018-18445/solution",
          "rel": "Vulnerability Solutions"
        }
      ],
      "results": [
        {
          "proof": "<p><p>Vulnerable OS: CentOS Linux 7.6.1810<p></p></p><p><ul><li><ContainerBlockElement>kernel - version 3.10.0-957.5.1.el7 is installed</ContainerBlockElement></li></ul></p></p>",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        }
      ],
      "since": "2019-03-22T17:36:22.611Z",
      "status": "vulnerable"
    },
    {
      "id": "centos_linux-cve-2018-9568",
      "instances": 1,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/centos_linux-cve-2018-9568",
          "rel": "self"
        },
        {
          "id": "centos_linux-cve-2018-9568",
          "href": "https://10.13.0.65:3780/api/3/vulnerabilities/centos_linux-cve-2018-9568",
          "rel": "Vulnerability"
        },
        {
          "id": "centos_linux-cve-2018-9568",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/centos_linux-cve-2018-9568/validations",
          "rel": "Vulnerability Validations"
        },
        {
          "id": "centos_linux-cve-2018-9568",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/centos_linux-cve-2018-9568/solution",
          "rel": "Vulnerability Solutions"
        }
      ],
      "results": [
        {
          "proof": "<p><p>Vulnerable OS: CentOS Linux 7.6.1810<p></p></p><p><ul><li><ContainerBlockElement>kernel - version 3.10.0-957.5.1.el7 is installed</ContainerBlockElement></li></ul></p></p>",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        }
      ],
      "since": "2019-03-22T17:36:22.611Z",
      "status": "vulnerable"
    },
    {
      "id": "centos_linux-cve-2019-6133",
      "instances": 1,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/centos_linux-cve-2019-6133",
          "rel": "self"
        },
        {
          "id": "centos_linux-cve-2019-6133",
          "href": "https://10.13.0.65:3780/api/3/vulnerabilities/centos_linux-cve-2019-6133",
          "rel": "Vulnerability"
        },
        {
          "id": "centos_linux-cve-2019-6133",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/centos_linux-cve-2019-6133/validations",
          "rel": "Vulnerability Validations"
        },
        {
          "id": "centos_linux-cve-2019-6133",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/centos_linux-cve-2019-6133/solution",
          "rel": "Vulnerability Solutions"
        }
      ],
      "results": [
        {
          "proof": "<p><p>Vulnerable OS: CentOS Linux 7.6.1810<p></p></p><p><ul><li><ContainerBlockElement>polkit - version 0.112-18.el7 is installed</ContainerBlockElement></li></ul></p></p>",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable-version"
        }
      ],
      "since": "2019-03-22T17:36:22.611Z",
      "status": "vulnerable"
    },
    {
      "id": "certificate-common-name-mismatch",
      "instances": 2,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/certificate-common-name-mismatch",
          "rel": "self"
        },
        {
          "id": "certificate-common-name-mismatch",
          "href": "https://10.13.0.65:3780/api/3/vulnerabilities/certificate-common-name-mismatch",
          "rel": "Vulnerability"
        },
        {
          "id": "certificate-common-name-mismatch",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/certificate-common-name-mismatch/validations",
          "rel": "Vulnerability Validations"
        },
        {
          "id": "certificate-common-name-mismatch",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/certificate-common-name-mismatch/solution",
          "rel": "Vulnerability Solutions"
        }
      ],
      "results": [
        {
          "port": 8443,
          "proof": "<p><p>The subject common name found in the X.509 certificate does not seem to match the scan target:<ul><li>Subject CN *.threatq.com does not match target name specified in the site.</li><li>Subject CN *.threatq.com could not be resolved to an IP address via DNS lookup</li><li>Subject Alternative Name *.threatq.com does not match target name specified in the site.</li><li>Subject Alternative Name threatq.com does not match target name specified in the site.</li></ul></p></p>",
          "protocol": "tcp",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable"
        },
        {
          "port": 443,
          "proof": "<p><p>The subject common name found in the X.509 certificate does not seem to match the scan target:<ul><li>Subject CN *.threatq.com does not match target name specified in the site.</li><li>Subject CN *.threatq.com could not be resolved to an IP address via DNS lookup</li><li>Subject Alternative Name *.threatq.com does not match target name specified in the site.</li><li>Subject Alternative Name threatq.com does not match target name specified in the site.</li></ul></p></p>",
          "protocol": "tcp",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable"
        }
      ],
      "since": "2019-03-22T17:36:22.611Z",
      "status": "vulnerable"
    },
    {
      "id": "generic-icmp-timestamp",
      "instances": 1,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/generic-icmp-timestamp",
          "rel": "self"
        },
        {
          "id": "generic-icmp-timestamp",
          "href": "https://10.13.0.65:3780/api/3/vulnerabilities/generic-icmp-timestamp",
          "rel": "Vulnerability"
        },
        {
          "id": "generic-icmp-timestamp",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/generic-icmp-timestamp/validations",
          "rel": "Vulnerability Validations"
        },
        {
          "id": "generic-icmp-timestamp",
          "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities/generic-icmp-timestamp/solution",
          "rel": "Vulnerability Solutions"
        }
      ],
      "results": [
        {
          "proof": "<p><p>Able to determine remote system time.</p></p>",
          "since": "2019-03-22T17:36:22.611Z",
          "status": "vulnerable"
        }
      ],
      "since": "2019-03-22T17:36:22.611Z",
      "status": "vulnerable"
    }
  ],
  "page": {
    "number": 0,
    "size": 10,
    "totalResources": 33,
    "totalPages": 4
  },
  "links": [
    {
      "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities?page=0&size=10&sort=id,asc",
      "rel": "first"
    },
    {
      "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities?page=0&size=10&sort=id,asc",
      "rel": "self"
    },
    {
      "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities?page=1&size=10&sort=id,asc",
      "rel": "next"
    },
    {
      "href": "https://10.13.0.65:3780/api/3/assets/2/vulnerabilities?page=3&size=10&sort=id,asc",
      "rel": "last"
    }
  ]
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Normalization Published Date Examples Notes
.id Indicator Value CVE N/A N/A N/A Parsed from the ID of the vulnerability
.proof[] Description Asset N/A N/A N/A HTML is built from the values within the proof key

These mappings are based on the data pulled from the resources list from the API response.

Get Tags (Supplemental)

The Get Tags supplemental feed will fetch the tags for a given asset or site.

GET https://<host>:<port>/api/3/<entity type>/<id>/tags

Sample Response:

{
  "resources": [
    {
      "color": "default",
      "created": "2019-03-21T21:02:38.439Z",
      "id": 2,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/tags/2",
          "rel": "self"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/2/assets",
          "rel": "Tag Assets"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/2/asset_groups",
          "rel": "Tag Asset Groups"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/2/sites",
          "rel": "Tag Sites"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/2/search_criteria",
          "rel": "Tag Search Criteria"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/users/0",
          "rel": "Tag Creator"
        }
      ],
      "name": "High",
      "riskModifier": "1.5",
      "source": "built-in",
      "sources": [
        {
          "source": "tag"
        }
      ],
      "type": "criticality"
    },
    {
      "color": "default",
      "created": "2021-11-22T18:32:31.590Z",
      "id": 7,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/tags/7",
          "rel": "self"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/7/assets",
          "rel": "Tag Assets"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/7/asset_groups",
          "rel": "Tag Asset Groups"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/7/sites",
          "rel": "Tag Sites"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/7/search_criteria",
          "rel": "Tag Search Criteria"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/users/1",
          "rel": "Tag Creator"
        }
      ],
      "name": "on-prem",
      "source": "custom",
      "sources": [
        {
          "source": "tag"
        }
      ],
      "type": "location"
    },
    {
      "color": "default",
      "created": "2021-11-22T18:32:35.543Z",
      "id": 8,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/tags/8",
          "rel": "self"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/8/assets",
          "rel": "Tag Assets"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/8/asset_groups",
          "rel": "Tag Asset Groups"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/8/sites",
          "rel": "Tag Sites"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/8/search_criteria",
          "rel": "Tag Search Criteria"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/users/1",
          "rel": "Tag Creator"
        }
      ],
      "name": "TIE",
      "source": "custom",
      "sources": [
        {
          "source": "tag"
        }
      ],
      "type": "owner"
    },
    {
      "color": "blue",
      "created": "2021-11-22T18:32:45.337Z",
      "id": 9,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/tags/9",
          "rel": "self"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/9/assets",
          "rel": "Tag Assets"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/9/asset_groups",
          "rel": "Tag Asset Groups"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/9/sites",
          "rel": "Tag Sites"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/9/search_criteria",
          "rel": "Tag Search Criteria"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/users/1",
          "rel": "Tag Creator"
        }
      ],
      "name": "threatq-demo",
      "source": "custom",
      "sources": [
        {
          "source": "tag"
        }
      ],
      "type": "custom"
    },
    {
      "color": "orange",
      "created": "2021-11-22T18:33:03.265Z",
      "id": 10,
      "links": [
        {
          "href": "https://10.13.0.65:3780/api/3/tags/10",
          "rel": "self"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/10/assets",
          "rel": "Tag Assets"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/10/asset_groups",
          "rel": "Tag Asset Groups"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/10/sites",
          "rel": "Tag Sites"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/tags/10/search_criteria",
          "rel": "Tag Search Criteria"
        },
        {
          "href": "https://10.13.0.65:3780/api/3/users/1",
          "rel": "Tag Creator"
        }
      ],
      "name": "validated",
      "source": "custom",
      "sources": [
        {
          "source": "tag"
        }
      ],
      "type": "custom"
    }
  ],
  "links": [
    {
      "href": "https://10.13.0.65:3780/api/3/assets/2/tags",
      "rel": "self"
    }
  ]
}

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Rapid7 insightVM - Sites

Metric Result
Run Time 1 minute
Assets 2
Asset Attributes 24
Indicators 45
Reports 2
Report Attributes 10

Change Log

  • Version 1.0.3
    • Resolved an issue with the Rapid7 insightVM - Sites feed where users would encounter an error if the services key was missing.
  • Version 1.0.2
    • Resolved an issue that would occur when the Rapid7 API returned nested vulnerability lists.
    • Updated the integration to allow certain attributes to be updated upon ingestion.
    • Added the following new configuration parameters:
      • Only Ingest Vulnerable Sites / Assets - provides the option to track all sites / assets or only the ones with vulnerabilities.
      • Importance Filter - set the importances levels for sites to ingest.
      • Minimum Risk Score Threshold - enter the minimum score required to ingest a site or asset.
      • Scan Template Filter -enter a comma-separated list of scan template IDs to ingest.
      • Disable Proxies - select whether or not to honor the proxy setting configured in the ThreatQ platform.
    • Updated support tier to ThreatQ Supported.
    • Updated the minimum ThreatQ version to 5.10.0
  • Version 1.0.0
    • Initial release

PDF Guides

Document ThreatQ Version
Rapid7 insightVM CDF Guide v1.0.3 5.10.0 or Greater
Rapid7 insightVM CDF Guide v1.0.2 5.10.0 or Greater
Rapid7 insightVM CDF Guide v1.0.0 4.35.0 or Greater
