Current ThreatQ Version Filter

Qualys Scanner CDF

The web format of this guide reflects the most current release. Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Current Integration Version

1.0.0

Compatible with ThreatQ Versions

>= 5.10.0

Support Tier

ThreatQ Supported

Introduction

The Qualys Scanner CDF collects information about Qualys scans executed in the past user-set days, including all CVEs related to those vulnerabilities, and ingests them into the ThreatQ platform.

The integration provides the following feeds:

Qualys Scanner - ingests vulnerabilities, indicators and assets from Qualys scans
Qualys Unrelate Patched QIDs (supplemental) - unrelates patched vulnerabilities and indicators of type CVE from assets
Qualys Get TQObjects (supplemental) - retrieves objects from ThreatQ Threat Library.
Qualys Scanner CVE Knowledge Base (supplemental) - queries the Qualys database to obtain more information about a vulnerability
Qualys Scanner Query QIDs (supplemental) - submits vulnerabilities batches identified by QID (Qualys ID) to Qualys Scanner CVE Knowledge Base feed

The integration ingests the following system objects:

Assets
Indicators
Vulnerabilities

Installation

This integration can be installed in the My Integration section of your ThreatQ instance. See the Adding an Integration topic for more details.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

Navigate to your integrations management page in ThreatQ.
Select the Commercial option from the Category dropdown (optional).
If you are installing the integration for the first time, it will be located under the Disabled tab.
Click on the integration entry to open its details page.

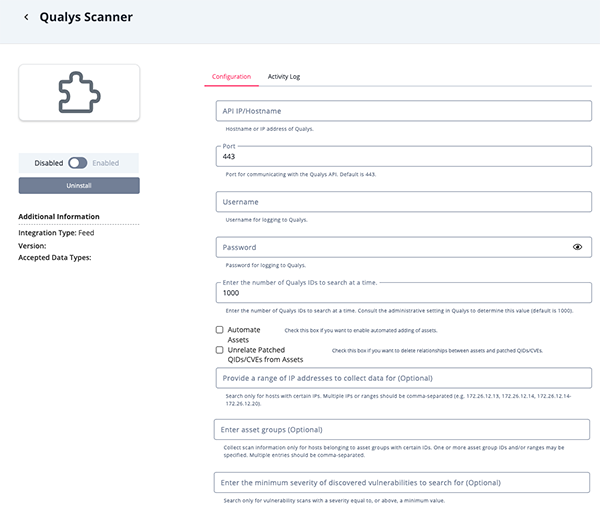

Enter the following parameters under the Configuration tab:

Parameter	Description
API IP/Hostname	The Hostname or IP address of Qualys.
Port	The port for communicating with the Qualys API. The default setting is 443.
Username	Your Qualys username.
Password	The password associated with the username above.
Enter the Number of Qualys IDs to Search at a Time	Enter the number of Qualys IDs to search at a time. Consult the administrative setting in Qualys to determine this value. The default value is 1000.
Automate Assets	Select this option to enable automated adding of assets.
Unrelate Patched QIDs/CVEs from Assets	Select this option to delete relationships between assets and patched QIDs/CVEs.
Provide a Range of IP Addresses to Collect Data for	Optional - Search only for hosts with certain IPs. Multiple IPs or ranges should be comma-separated (e.g. 172.26.12.13, 172.26.12.14, 172.26.12.14-172.26.12.20).
Enter Asset Groups	Optional - Collect scan information only for hosts belonging to asset groups with certain IDs. One or more asset group IDs and/or ranges may be specified. Multiple entries should be comma-separated.
Enter the Minimum Severity of Discovered Vulnerabilities in Search for	Optional - Search only for vulnerability scans with a severity equal to, or above, a minimum value.

Review any additional settings, make any changes if needed, and click on Save.
Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Qualys Scanner

The Qualys Scanner feed ingests vulnerabilities, indicators and assets from Qualys scans.

GET https://{HOSTNAME}:{PORT}/api/2.0/fo/asset/host/vm/detection/

Sample Request Parameters:

{
    "action": "list"
    "show_results": 1,
    "output_format": "XML",
    "show_igs": 1,
    "status": "New,Active,Re-Opened,Fixed",
    "vm_scan_date_after": "2023-07-13T11:51:00Z",
    "severities": "2"
}

Truncated Sample Response:

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE HOST_LIST_VM_DETECTION_OUTPUT SYSTEM
        "https://qualysapi.qg2.apps.qualys.com/api/2.0/fo/asset/host/vm/detection/dtd/output.dtd">
<!-- This report was generated with an evaluation version of  //-->
<HOST_LIST_VM_DETECTION_OUTPUT>
    <RESPONSE>
        <DATETIME>2023-07-13T13:15:11Z</DATETIME>
        <!-- keep-alive for HOST_LIST_VM_DETECTION_OUTPUT  -->
        <HOST_LIST>
            <HOST>
                <ID>503005297</ID>
                <IP>172.16.114.111</IP>
                <DNS>
                    <![CDATA[ec2-18-233-226-119.compute-1.amazonaws.com]]>
                </DNS>
                <TRACKING_METHOD>IP</TRACKING_METHOD>
                <LAST_SCAN_DATETIME>2023-07-13T11:53:02Z</LAST_SCAN_DATETIME>
                <LAST_VM_SCANNED_DATE>2023-07-13T11:51:32Z</LAST_VM_SCANNED_DATE>
                <LAST_VM_SCANNED_DURATION>7919</LAST_VM_SCANNED_DURATION>
                <DETECTION_LIST>
                    <DETECTION>
                        <QID>6</QID>
                        <TYPE>Info</TYPE>
                        <SEVERITY>1</SEVERITY>
                        <RESULTS>
                            <![CDATA[IP address	Host name 172.16.114.111	No registered hostname]]>
                        </RESULTS>
                        <FIRST_FOUND_DATETIME>2023-07-13T10:59:28Z</FIRST_FOUND_DATETIME>
                        <LAST_FOUND_DATETIME>2023-07-13T11:51:32Z</LAST_FOUND_DATETIME>
                        <TIMES_FOUND>2</TIMES_FOUND>
                        <IS_DISABLED>0</IS_DISABLED>
                        <LAST_PROCESSED_DATETIME>2023-07-13T11:53:02Z</LAST_PROCESSED_DATETIME>
                    </DETECTION>
                </DETECTION_LIST>
            </HOST>
        </HOST_LIST>
    </RESPONSE>
</HOST_LIST_VM_DETECTION_OUTPUT>
        <!-- This report was generated with an evaluation version of  //-->
        <!-- CONFIDENTIAL AND PROPRIETARY INFORMATION. Qualys provides the QualysGuard Service "As Is," without any warranty of any kind. Qualys makes no warranty that the information contained in this report is complete or error-free. Copyright 2023, Qualys, Inc. //-->

Assets are ingested only is user configuration Automate Assets is checked.

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
HOST_LIST_VM_DETECTION_ OUTPUT.RESPONSE.HOST_LIST.HOST[].IP	Asset Value	N/A	N/A	172.16.114.111	N/A
HOST_LIST_VM_DETECTION_ OUTPUT.RESPONSE.HOST_LIST.HOST[].ID	Asset Attribute	Host ID	N/A	503005297	N/A
HOST_LIST_VM_DETECTION_ OUTPUT.RESPONSE.HOST_LIST.HOST[]. TRACKING_METHOD	Asset Attribute	Tracking Method	N/A	IP	N/A
HOST_LIST_VM_DETECTION_OUTPUT. RESPONSE.HOST_LIST.HOST[].DNS	Asset Attribute	DNS Hostname	N/A	ec2-18-233-226-119.compute-1. amazonaws.com	N/A

The values from HOST_LIST_VM_DETECTION_OUTPUT.RESPONSE.HOST_LIST.HOST[].DETECTION_LIST.DETECTION[].QID will be sent to the feed Qualys Scanner Query QIDs to bring information about the vulnerability associated with this Qualys ID (QID) if the following conditions are true:

HOST_LIST_VM_DETECTION_OUTPUT.RESPONSE.HOST_LIST.HOST[].DETECTION_LIST.DETECTION[].STATUS does not exist or its value is different from Fixed
HOST_LIST_VM_DETECTION_OUTPUT.RESPONSE.HOST_LIST.HOST[].DETECTION_LIST.DETECTION[].STATUS exists and has the value Fixed but more recent data is not fixed

The values from HOST_LIST_VM_DETECTION_OUTPUT.RESPONSE.HOST_LIST.HOST[].DETECTION_LIST.DETECTION[].QID will be sent to the feed Qualys Unrelate Patched QIDs if HOST_LIST_VM_DETECTION_OUTPUT.RESPONSE.HOST_LIST.HOST[].DETECTION_LIST.DETECTION[].STATUS exists and has the value Fixed and also there is no recent data that is not fixed.

Qualys Unrelate Patched QIDs (Supplemental)

The Qualys Unrelate Patched QIDs supplemental feed receives a list of QIDs of fixed vulnerabilities, and it uses the API filter from Pynoceros to unrelate them from assets.

First, the feed will call the Qualys Get TQObjects supplemental feed to get a list of assets from ThreatQ Library.
The feed will then iterate over the assets extracted from ThreatQ Library and delete the relationships with the list of received fixed vulnerabilities and their associated indicators.

DELETE https://{THREATQ_HOSTNAME}/asset/{ASSET_ID}/vulnerability/{FIXED_VULN_PIVOT_ID} DELETE https://{THREATQ_HOSTNAME}/asset/{ASSET_ID}/indicators/{FIXED_VULN_RELATED_INDICATOR_PIVOT_ID}

The feed is executed only if the user configuration Unrelate Patched QIDs/CVEs from Assets is enabled.

Qualys Get TQObjects (Supplemental)

The Qualys Get TQObjects supplemental feed uses the API filter from Pynoceros to get all the existing assets from ThreatQ Library for which at least one of the sources is Qualys Scanner.

GET https://{THREATQ_HOSTNAME}/asset

Sample API Request:

{
    "sources.name": "Qualys Scanner"
    "withp": "indicators,vulnerability,vulnerability.attributes,vulnerability.indicators"
}

Qualys Scanner CVE Knowledge Base (Supplemental)

The Qualys Scanner CVE Knowledge Base supplemental feed queries Qualys database to obtain more information about a vulnerability.

GET https://{HOSTNAME}:{PORT}/api/2.0/fo/knowledge_base/vuln/

Sample API Request:

{
    "action": "list"
    "details": "Basic",
    "ids": "38173"
}

Truncated Sample Request:

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE KNOWLEDGE_BASE_VULN_LIST_OUTPUT SYSTEM
        "https://qualysapi.qg2.apps.qualys.com/api/2.0/fo/knowledge_base/vuln/knowledge_base_vuln_list_output.dtd">
<!-- This report was generated with an evaluation version of  //-->
<KNOWLEDGE_BASE_VULN_LIST_OUTPUT>
    <RESPONSE>
        <DATETIME>2023-08-17T07:36:41Z</DATETIME>
        <VULN_LIST>
            <VULN>
                <QID>38173</QID>
                <VULN_TYPE>Vulnerability or Potential Vulnerability</VULN_TYPE>
                <SEVERITY_LEVEL>2</SEVERITY_LEVEL>
                <TITLE>
                    <![CDATA[SSL Certificate - Signature Verification Failed Vulnerability]]>
                </TITLE>
                <CATEGORY>General remote services</CATEGORY>
                <LAST_SERVICE_MODIFICATION_DATETIME>2022-02-28T13:28:19Z</LAST_SERVICE_MODIFICATION_DATETIME>
                <PUBLISHED_DATETIME>2003-01-29T20:37:41Z</PUBLISHED_DATETIME>
                <PATCHABLE>0</PATCHABLE>
                <SOFTWARE_LIST>
                    <SOFTWARE>
                        <PRODUCT>
                            <![CDATA[dns_server]]>
                        </PRODUCT>
                        <VENDOR>
                            <![CDATA[multi-vendor]]>
                        </VENDOR>
                    </SOFTWARE>
                </SOFTWARE_LIST>
                <VENDOR_REFERENCE_LIST>
                    <VENDOR_REFERENCE>
                        <ID>
                            <![CDATA[Joomla! Security]]>
                        </ID>
                        <URL>
                            <![CDATA[https://developer.joomla.org/security-centre/894-20230201-core-improper-access-check-in-webservice-endpoints.html]]>
                        </URL>
                    </VENDOR_REFERENCE>
                </VENDOR_REFERENCE_LIST>
                <CVE_LIST>
                    <CVE>
                        <ID>
                            <![CDATA[CVE-2023-23752]]>
                        </ID>
                        <URL>
                            <![CDATA[http://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2023-23752]]>
                        </URL>
                    </CVE>
                </CVE_LIST>
                <DIAGNOSIS>
                    <![CDATA[An SSL Certificate associates an entity (person, organization, host, etc.) with a Public Key. ]]>
                </DIAGNOSIS>
                <CONSEQUENCE>
                    <![CDATA[By exploiting this vulnerability, man-in-the-middle attacks in tandem with DNS cache poisoning can occur.]]>
                </CONSEQUENCE>
                <SOLUTION>
                    <![CDATA[Please install a server certificate signed by a trusted third-party Certificate Authority.]]>
                </SOLUTION>
                <PCI_FLAG>1</PCI_FLAG>
                <THREAT_INTELLIGENCE>
                    <THREAT_INTEL id="5">
                        <![CDATA[Easy_Exploit]]>
                    </THREAT_INTEL>
                    <THREAT_INTEL id="8">
                        <![CDATA[No_Patch]]>
                    </THREAT_INTEL>
                </THREAT_INTELLIGENCE>
                <DISCOVERY>
                    <REMOTE>1</REMOTE>
                </DISCOVERY>
            </VULN>
        </VULN_LIST>
    </RESPONSE>
</KNOWLEDGE_BASE_VULN_LIST_OUTPUT>
        <!-- This report was generated with an evaluation version of  //-->
        <!-- CONFIDENTIAL AND PROPRIETARY INFORMATION. Qualys provides the QualysGuard Service "As Is," without any warranty of any kind. Qualys makes no warranty that the information contained in this report is complete or error-free. Copyright 2023, Qualys, Inc. //-->

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].TITLE	Related Vulnerability Value	N/A	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	Certificate - Signature Verification Failed Vulnerability	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].DIAGNOSIS	Related Vulnerability Description	N/A	N/A	An SSL Certificate associates an entity (person, organization, host, etc.) with a Public Key.	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].QID	Related Vulnerability Attribute	Qualys Id	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	38173	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].VULN_TYPE	Related Vulnerability Attribute	Vulnerability Type	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	Vulnerability or Potential Vulnerability	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].SEVERITY_ LEVEL	Related Vulnerability Attribute	Severity	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	2	If the attribute already exists, the value will be updated.
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].CATEGORY	Related Vulnerability Attribute	Category	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	General remote services	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].PATCHABLE	Related Vulnerability Attribute	Patchable	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	NO	Mapped to YES/NO. If the attribute already exists, the value will be updated.
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].PCI_FLAG	Related Vulnerability Attribute	PCI Flag	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	1	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].LAST_ SERVICE_MODIFICATION_ DATETIME	Related Vulnerability Attribute	Last Server Modification Time	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	2022-02-28T13:28:19Z	If the attribute already exists, the value will be updated.
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].SOFTWARE_ LIST.SOFTWARE[].PRODUCT	Related Vulnerability Attribute	Product	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	dns_server	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].SOFTWARE_ LIST.SOFTWARE[].VENDOR	Related Vulnerability Attribute	Vendor	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	multi-vendor	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].VENDOR_ REFERENCE_LIST.VENDOR_ REFERENCE.ID	Related Vulnerability Attribute	Vendor Reference Id	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	Joomla! Security	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].VENDOR_ REFERENCE_LIST.VENDOR_ REFERENCE.URL	Related Vulnerability Attribute	Vendor Reference URL	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	https://developer.joomla.org/ security-centre/894- 20230201-core-improper- access-check-in-webservice- endpoints.html	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].CVSS.BASE	Related Vulnerability Attribute	CVSS Score	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	N/A	If the attribute already exists, the value will be updated.
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].CVSS. TEMPORAL	Related Vulnerability Attribute	CVSS Temporal	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	N/A	If the attribute already exists, the value will be updated.
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].CVSS. ACCESS.VECTOR	Related Vulnerability Attribute	Access Vector	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	N/A	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].CVSS. ACCESS.COMPLEXITY	Related Vulnerability Attribute	Access Complexity	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	N/A	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].CVSS. IMPACT.CONFIDENTIALITY	Related Vulnerability Attribute	Confidentiality Impact	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	N/A	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].CVSS. IMPACT.INTEGRITY	Related Vulnerability Attribute	Integrity Impact	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	N/A	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].CVSS. IMPACT.AVAILABILITY	Related Vulnerability Attribute	Availability Impact	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	N/A	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].CVSS. AUTHENTICATION	Related Vulnerability Attribute	Authentication	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	N/A	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].CVSS. EXPLOITABILITY	Related Vulnerability Attribute	Exploitability	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	N/A	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].CVSS. REMEDIATION_LEVEL	Related Vulnerability Attribute	Remediation Level	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	N/A	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].CVSS. REPORT_CONFIDENCE	Related Vulnerability Attribute	Report Confidence	KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN.PUBLISHED_ DATETIME	N/A	N/A
KNOWLEDGE_BASE_VULN_ LIST_OUTPUT.RESPONSE. VULN_LIST.VULN[].CVE_ LIST.CVE[].ID	Related Indicator Value	CVE	N/A	CVE-2023-23752	N/A
N/A	Related Indicator Attribute	Vulnerability found by Qualys	N/A	Yes	N/A

Qualys Scanner Query QIDs (Supplemental)

The Qualys Scanner Query QIDs supplemental feed receives a list of QIDs from Qualys Scanner that should be enriched. The feed splits them into batches according to the user configuration Enter the number of Qualys IDs to search at a time and sends them to Qualys Scanner CVE Knowledge Base feed.

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Qualys Scanner

Metric	Result
Run Time	1 min
Assets	31
Asset Attributes	64
Indicators	90
Indicator Attributes	90
Vulnerabilities	129
Vulnerability Attributes	1,286

Change Log

Version 1.0.0
- Initial release

PDF Guides

Document	ThreatQ Version
Qualys Scanner CDF Guide v1.0.0	5.10 or Greater
