Current ThreatQ Version Filter


PolySwarm CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The PolySwarm CDF for ThreatQ enables the automatic ingestion of results from the live hunt and historical hunt feeds.

The integration provides the following feeds:

  • PolySwarm Live Hunt - periodically pulls all live results for live PolySwarm hunt, into ThreatQ.
  • PolySwarm Historical Hunt - lists the historical hunt in the account.
  • PolySwarm Historical Details (Supplemental) - retrieves historical hunt details for a PolySwarm hunt and ingests associated YARA rules into ThreatQ.
  • PolySwarm Historical Results List (Supplemental) - retrieves all historical results for a PolySwarm hunt and ingests the data into ThreatQ.

The integration ingests the following system objects:

  • Indicators
    • Indicator Attributes
    • Indicator Tags
  • Signatures

Prerequisites

The integration requires a PolySwarm Basic or Enterprise license and API key.

Installation

This integration can be installed in the My Integration section of your ThreatQ instance. See the Adding an Integration topic for more details.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Commercial option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:
    Parameter Description
    PolySwarm API Key Enter your API Key for PolySwarm to authenticate with the API.

    This must be a basic or enterprise plan.
    Minimum PolyScore Threshold Enter the minimum PolyScore for a result to be ingested into ThreatQ. This should be a number between 0 and 1.  The default value is 0.5.
    Rule Name Filter Optional - filter hunt results on the provided rule name (exact match).

    This parameter can be used to only bring back hunt results matching the rule created by ThreatQ.
    Malware Family Filter Optional - filter hunt results on the provided malware family (exact match).
    Context Filter Use the parameter provided to filter the context to be ingested into ThreatQ.  Options include:
    • Tags (default)
    • Malware Family (Attribute) (default)
    • PolyScore (default)
    • Rule Name (default)
    • Malicious Detections
    • Benign Detections

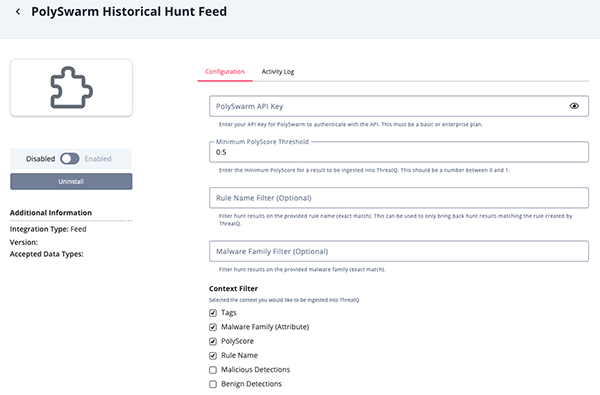

    Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

PolySwarm Live Hunt

The PolySwarm Live Hunt feed periodically pulls all live results for live PolySwarm hunt, into ThreatQ.

GET https://api.polyswarm.network/v3/hunt/live/list

Sample Response:

{
    "has_more": true,
    "limit": 100,
    "offset": "gAAAAABi1seOzAGTP13qPr5yGG9b_AZppVv1mm2gl0gPwq3AtzQ8NTMUsp1--DS5AQJXbuYBLV6hHrXuXpNdaKWC3PSreV2IcnXqoP1SmPUzAMn4c4tr0kp8b8iXivi05zvr00pAtbss",
    "result": [
        {
            "created": "2022-07-19T12:32:17.656340",
            "detections": {
                "benign": 6,
                "malicious": 6,
                "total": 12
            },
            "download_url": null,
            "id": "14381491890173570",
            "instance_id": "45777877121770335",
            "livescan_id": "13626756552838383",
            "malware_family": "HgIASvcA",
            "polyscore": 0.9998364323055465,
            "rule_name": "discordaio",
            "sha256": "9fcb6558474426d1a6a6491bade5dd554fe74e23aeb514a98b969aecc9d5b54d",
            "tags": "{}",
            "yara": null
        },
        {
            "created": "2022-07-19T11:31:19.349184",
            "detections": {
                "benign": 6,
                "malicious": 7,
                "total": 13
            },
            "download_url": null,
            "id": "18281909959628115",
            "instance_id": "4518589306451487",
            "livescan_id": "13626756552838383",
            "malware_family": "HgIASvcA",
            "polyscore": 0.9999373601547417,
            "rule_name": "discordaio",
            "sha256": "dd5f9af7752be090beb2acbaa0c8aa06c02810fa0cf2e4472dcc740fc0b6eea2",
            "tags": "{}",
            "yara": null
        },
        {
            "created": "2022-07-18T21:44:45.159177",
            "detections": {
                "benign": 7,
                "malicious": 6,
                "total": 13
            },
            "download_url": null,
            "id": "75860636920369830",
            "instance_id": "6207483134542754",
            "livescan_id": "13626756552838383",
            "malware_family": "HgIASvQA",
            "polyscore": 0.9998364323055465,
            "rule_name": "discordaio",
            "sha256": "f177a8dcfd7c383a5ce1a4877284e67f40a1503e1ae3b801d4d9428b4ead2294",
            "tags": "{}",
            "yara": null
        }
    ]
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.sha256 Indicator Value SHA-256 .created 'dd5f9af7752be090beb2acbaa
0c8aa06c02810fa0cf2e4472dcc
740fc0b6eea2'		 N/A
.malware_family Attribute Malware Family N/A HgIASvcA N/A
.polyscore Attribute PolyScore N/A 0.9998364323055465 Converted to a string with 2 decimals. It gets updated at each run.
.rule_name Attribute Rule Name N/A discordaio N/A
.detections.benign Attribute Benign Detections N/A 6 Converted to a string. It gets updated at each run.
.detections.malicious Attribute Malicious Detections N/A 6 Converted to a string. It gets updated at each run.
.tags Tag N/A N/A N/A N/A

PolySwarm Historical Hunt

The PolySwarm Historical Hunt feed lists the historical hunt in the account.

GET https://api.polyswarm.network/v3/hunt/historical/list

Sample Response:

{
    "has_more": true,
    "limit": 10,
    "offset": "gAAAAABk7EFpa3K5tiIuX-DaN6_B_f3J9XGNYdsNW_6oRjIQMbFh0elp8AfLcxNQhiEyqzgdEzy2GEBx090IWxSGFNrOwD2d9Eq0hrZ3MTdxOMHK76W0JfM=",
    "result": [
        {
            "created": "2023-07-27T08:43:14.110384",
            "id": "83966264955167759",
            "progress": 100.00000000000001,
            "results_csv_uri": null,
            "ruleset_name": "university",
            "status": "COMPLETED",
            "summary": {
                "count": 4,
                "rule": {
                    "university": {
                        "count": 4
                    }
                }
            },
            "yara": null
        },
        {
            "created": "2023-07-27T08:43:13.761797",
            "id": "59018977163239070",
            "progress": 100.00000000000001,
            "results_csv_uri": null,
            "ruleset_name": "svcready_packed",
            "status": "COMPLETED",
            "summary": {
                "count": 1,
                "rule": {
                    "SVCReady_Packed": {
                        "count": 1
                    }
                }
            },
            "yara": null
        }
    ],
    "status": "OK"
}

This feed does not have a mapping table, the result[].id is used in the API of the next supplemental feeds.

PolySwarm Historical Details (Supplemental)

The PolySwarm Historical Details supplemental feed retrieves historical hunt details for a PolySwarm hunt and ingests associated YARA rules into ThreatQ.

GET https://api.polyswarm.network/v3/hunt/historical?id={hunt_id}

Sample Response:

{
    "result": {
        "created": "2023-07-27T08:43:14.110384",
        "id": "83966264955167759",
        "progress": 100.00000000000001,
        "results_csv_uri": "https://s3.us-east-2.amazonaws.com/ps-storage-prodv2-historical/94/f5/d7/94f5d75d19ff1948cc5f29375729909a423cdf36fadf98a447334d846a072d41c9f175c9127560d08a89444f62c1f00e3394e395d9ede0e856c021f036b1c35e4984d97a?response-content-disposition=attachment%3Bfilename%3D83966264955167759.csv&response-content-type=application%2Foctet-stream&X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIARD7S6WCVBXF6ZSO5%2F20230828%2Fus-east-2%2Fs3%2Faws4_request&X-Amz-Date=20230828T115904Z&X-Amz-Expires=3600&X-Amz-SignedHeaders=host&X-Amz-Signature=0ad70519910b2b74d7f2ab348072787a728182fc1b13405f9c62c76267d57088",
        "ruleset_name": "university",
        "status": "COMPLETED",
        "summary": {
            "count": 4,
            "rule": {
                "university": {
                    "count": 4
                }
            }
        },
        "yara": "rule university\n{\n    meta:\n        author = \"Intel471\"\n        description = \"Detects unpacked university stealer samples\"\n\n    strings:\n        $y0 = \"youtube.GetYouData\" ascii\n        $y1 = \"youtube.tokenExtractor\" ascii\n        $y2 = \"bot.GenerateToken\" ascii\n        $y3 = \"parse.Chromium\" ascii\n        $y4 = \"parse.GeckoParse\" ascii\n        $s0 = \"University/bot\" ascii\n        $s1 = \"University/core/\" ascii\n        $s2 = \"University/core/parse\" ascii\n        $s3 = \"University/core/cryptos\" ascii\n        $s4 = \"University/core/youtube\" ascii\n\n    condition:\n         uint16(0) == 0x5a4d and (3 of ($y*)) and (2 of ($s*))\n}"
    },
    "status": "OK"
}

The mapping for this feed is contained in the mapping table for the PolySwarm Historical Results Supplemental feed.

PolySwarm Historical Results List (Supplemental)

The PolySwarm Historical Results List feed retrieves all historical results for a PolySwarm hunt and ingests the data into ThreatQ.

GET https://api.polyswarm.network/v3/hunt/historical/results/list?id={hunt_id}

Sample Response:

{
    "has_more": false,
    "limit": 50,
    "result": [
        {
            "created": "2023-07-27T10:53:44.848800",
            "detections": {
                "benign": 5,
                "malicious": 9,
                "total": 14
            },
            "download_url": null,
            "historicalscan_id": "83966264955167759",
            "id": "77871670233119644",
            "instance_id": "76231850134176078",
            "malware_family": "Wingo",
            "polyscore": 0.9999445756446724,
            "rule_name": "university",
            "sha256": "b4830b3135327366eef7c2fd4164c5253a34785c0e021b3fbebfb829f5efc17e",
            "tags": "{}",
            "yara": null
        },
        {
            "created": "2023-07-27T10:26:22.185699",
            "detections": {
                "benign": 5,
                "malicious": 8,
                "total": 13
            },
            "download_url": null,
            "historicalscan_id": "83966264955167759",
            "id": "94071587811020700",
            "instance_id": "96391432665847294",
            "malware_family": "WinGo",
            "polyscore": 0.9999352826306565,
            "rule_name": "university",
            "sha256": "2b86dbdda07a91f208a278a0012a6d06175469833feee42c2ee0b41ea240c8ab",
            "tags": "{}",
            "yara": null
        }
    ],
    "status": "OK"
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.result[].sha256 Indicator Value SHA-256 .result[].created b4830b3135327366eef7c2fd4164c5
253a34785c0e021b3fbebfb829f5efc17e		 N/A
.result[].malware_family Attribute Malware Family N/A HgIASvcA N/A
.result[].polyscore Attribute PolyScore N/A 0.9999445756446724 Converted to a string with 2 decimals. It gets updated at each run.
.result[].rule_name Attribute Rule Name N/A Wingo N/A
.result[].detections.benign Attribute Benign Detections N/A 5 Converted to a string. It gets updated at each run.
.result[].detections.malicious Attribute Malicious Detections N/A 9 Converted to a string. It gets updated at each run.
.result[].tags[] Tag N/A N/A N/A N/A
.result.yara Signature Value YARA .result.created rule university\n{\n meta:\n author = \"Intel471\"\n description = \"Detects unpacked university stealer samples\"\n\n N/A
.result.ruleset_name Signature Name YARA .result.created university N/A

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

PolySwarm Live Hunt

Metric Result
Run Time 5 minutes
Indicators 4,747
Indicator Attributes 26,269

PolySwarm Historical Hunt

Metric Result
Run Time 19 minutes
Indicators 19,613
Indicator Attributes 76,571
Signatures 19

Change Log

  • Version 1.0.0
    • Initial release

PDF Guides

Document ThreatQ Version
PolySwarm CDF Guide v1.0.0 5.6.0 or Greater
