MalBeacon CDF

The web format of this guide reflects the most current release. Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The MalBeacon CDF integration enables organizations to leverage deception-based threat intelligence to enhance their security posture. By ingesting IPs, hostnames, emails, and hashes associated with malicious activity, the feed provides actionable insights into real-world attacker behavior. MalBeacon uses decoy systems to lure and observe attackers, allowing security teams to analyze their tactics, techniques, and procedures (TTPs) and proactively strengthen defenses.

The integration provides the following feeds:

  • MalBeacon Actor Beacons - ingests IPs and hostnames associated with threat actors and their command-and-control (C2) beacons.
  • MalBeacon Malware C2 - ingests IPs and hostnames gathered from IPv4 scans identifying malware C2 infrastructure.
  • MalBeacon Email Beacons - ingests emails, IPs, and hostnames from attacker-controlled email accounts.
  • MalBeacon Document Beacons - ingests IPs and hostnames extracted from malware sandbox–based document beacons.

The integration ingests the following object types:

  • Indicators
    • Indicator Attributes
  • Malware

Prerequisites

The following is required to install and operate the integration:

Installation

Perform the following steps to install the integration:

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the integration YAML file.
  3. Navigate to the integrations management page in your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the integration YAML file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the file
  6. Select the individual feeds to install when prompted, then click Install.

    ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

The feed(s) will be added to the integrations page. You will still need to configure and enable the feeds.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Commercial option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:

    MalBeacon Actor Beacons

    Parameter Description
    API Key Enter your MalBeacon API Key.
    Context Filter Select the context filter to apply to the feed to ingest only the subset of data that is most relevant to your organization. Options include:
    • Tags (default)
    • Malware Family (default)
    • Actor Lat/Lng
    • Actor Country Code (default)
    • Actor City
    • Actor Region
    • Actor AS Organization
    • C2 Lat/Lng
    • C2 Country Code (default)
    • C2 City
    • C2 Region
    • C2 AS Organization
    Enable SSL Certificate Verification Enable this parameter if the feed should validate the host-provided SSL certificate.
    Disable Proxies Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.

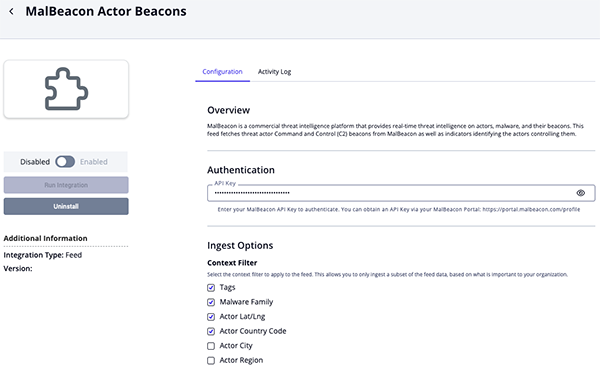

    Actor Beacons Configuration Screen

    MalBeacon Malware C2

    Parameter Description
    API Key Enter your MalBeacon API Key.
    Context Filter Select the context filter to apply to the feed to ingest only the subset of data that is most relevant to your organization. Options include:
    • Tags (default)
    • C2 Hostname (default)
    • Malware Hashes (default)
    • Malware Family (default)
    • C2 Lat/Lng
    • C2 Country Code (default)
    • C2 City
    • C2 Region
    • C2 AS Organization
    • C2 Port
    C2 Hostname Status Select the status to apply to hostnames that are associated with the C2 IPs. Options include:
    • Active
    • Review
    • Indirect (default)
    Enable SSL Certificate Verification Enable this parameter if the feed should validate the host-provided SSL certificate.
    Disable Proxies Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.

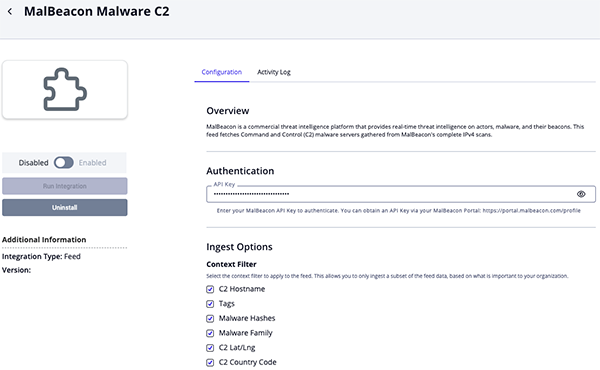

    Malware C2 Configuration Screen

    MalBeacon Email Beacons

    Parameter Description
    API Key Enter your MalBeacon API Key.
    Context Filter Select the context filter to apply to the feed to ingest only the subset of data that is most relevant to your organization. Options include:
    • Tags (default)
    • Malware Hashes (default)
    • Malware Family (default)
    • Actor Lat/Lng
    • Actor Country Code (default)
    • Actor City
    • Actor Region
    • Actor AS Organization
    • Actor Hostname
    • Email Domain (Attribute)
    Actor Hostname Status Select the status to apply to hostnames that are associated with the actors. Options include:
    • Active
    • Review
    • Indirect (default)
    Enable SSL Certificate Verification Enable this parameter if the feed should validate the host-provided SSL certificate.
    Disable Proxies Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.

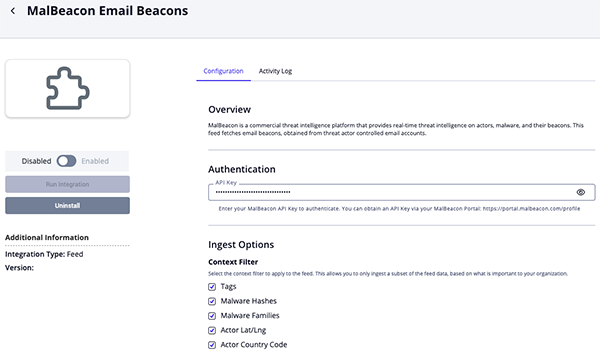

    Email Beacons Configuration Screen

    MalBeacon Document Beacons

    Parameter Description
    API Key Enter your MalBeacon API Key.
    Context Filter Select the context filter to apply to the feed to ingest only the subset of data that is most relevant to your organization. Options include:
    • Tags (default)
    • Malware Hashes (default)
    • Malware Family (default)
    • Actor Lat/Lng
    • Actor Country Code (default)
    • Actor City
    • Actor Region
    • Actor AS Organization
    • Actor Hostname
    • Actor Source Port
    Actor Hostname Status Select the status to apply to hostnames that are associated with the actors. Options include:
    • Active
    • Review
    • Indirect (default)
    Enable SSL Certificate Verification Enable this parameter if the feed should validate the host-provided SSL certificate.
    Disable Proxies Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.
    Document Beacons Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

MalBeacon Actor Beacons

The MalBeacon Actor Beacons feed retrieves IPs and hostnames tied to Threat Actors and their C2 infrastructure.

GET https://api.malbeacon.com/v1/c2/feed/json

Sample Response:

[
    {
        "actorloc": "50.8837,4.4730",
        "actorcountrycode": "BE",
        "useragent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/124.0.0.0 Safari/537.36",
        "c2domainresolved": "185.70.186.153",
        "c2region": "North Holland",
        "tags": "NA",
        "c2domain": "185.70.186.153",
        "actorcity": "Zaventem",
        "actorip": "37.120.143.202",
        "c2countrycode": "NL",
        "c2hostname": "NA",
        "actorasnorg": "AS9009 M247 Europe SRL",
        "tstamp": "2024-04-27 14:46:32",
        "c2": "http://185.70.186.153/",
        "cookie_id": "NA",
        "c2loc": "52.3740,4.8897",
        "c2asnorg": "AS57043 HOSTKEY B.V.",
        "actorhostname": "NA",
        "c2city": "Amsterdam",
        "actorregion": "Flanders",
        "actortimezone": "Europe/Brussels",
        "c2timezone": "Europe/Amsterdam"
    },
    {
        "actorloc": "50.1155,8.6842",
        "actorcountrycode": "DE",
        "useragent": "Mozilla/5.0 (X11; Linux x86_64; rv:125.0) Gecko/20100101 Firefox/125.0",
        "c2domainresolved": "128.199.113.162",
        "c2region": "Singapore",
        "tags": "NA",
        "c2domain": "128.199.113.162",
        "actorcity": "Frankfurt am Main",
        "actorip": "178.218.144.64",
        "c2countrycode": "SG",
        "c2hostname": "NA",
        "actorasnorg": "AS212508 Lowhosting services of Davide Gennari",
        "tstamp": "2024-04-27 14:15:31",
        "c2": "http://128.199.113.162/",
        "cookie_id": "6s8pl82qujvbt7ifdapgshb1m0",
        "c2loc": "1.3215,103.6957",
        "c2asnorg": "AS14061 DigitalOcean, LLC",
        "actorhostname": "178.218.144.64.lowhosting.org",
        "c2city": "Singapore",
        "actorregion": "Hesse",
        "actortimezone": "Europe/Berlin",
        "c2timezone": "Asia/Singapore"
    }
]

ThreatQuotient provides the following default mapping for this feed based on each item within the API response's array:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.actorip Indicator.Value IP Address .tstamp N/A N/A
.actorhostname Indicator.Value FQDN .tstamp N/A N/A
.c2domain Indicator.Value FQDN .tstamp N/A N/A
.c2hostname Indicator.Value FQDN .tstamp N/A N/A
.url Indicator.Value URL .tstamp N/A N/A
.c2domainresolved Indicator.Value IP Address .tstamp N/A N/A
.tags Malware.Value N/A .tstamp lokibot User-Configurable. Extracted from tags with the family: prefix
.tags Tag.Name N/A .tstamp malware:infostealer User-Configurable. Parsed from comma-separated list of tags
.c2asnorg Indicator.Attribute AS Organization .tstamp AS9009 M247 Europe SRL User-Configurable. Applied to C2 indicators
.c2region Indicator.Attribute Region .tstamp Singapore User-Configurable. Applied to C2 indicators
.c2city Indicator.Attribute City .tstamp Amsterdam User-Configurable. Applied to C2 indicators
.c2countrycode Indicator.Attribute Country Code .tstamp NL User-Configurable. Applied to C2 indicators
.c2loc Indicator.Attribute Longitude .tstamp 52.3740 User-Configurable. Applied to C2 indicators; Parsed from comma-separated coordinates
.c2loc Indicator.Attribute Latitude .tstamp 4.8897 User-Configurable. Applied to C2 indicators; Parsed from comma-separated coordinates
.actorasnorg Indicator.Attribute AS Organization .tstamp AS9009 M247 Europe SRL User-Configurable. Applied to Actor indicators
.actorregion Indicator.Attribute Region .tstamp Singapore User-Configurable. Applied to Actor indicators
.actorcity Indicator.Attribute City .tstamp Frankfurt am Main User-Configurable. Applied to Actor indicators
.actorcountrycode Indicator.Attribute Country Code .tstamp DE User-Configurable. Applied to Actor indicators
.actorloc Indicator.Attribute Longitude .tstamp 52.3740 User-Configurable. Applied to Actor indicators; Parsed from comma-separated coordinates
.actorloc Indicator.Attribute Latitude .tstamp 4.8897 User-Configurable. Applied to Actor indicators; Parsed from comma-separated coordinates
N/A Tag.Name N/A N/A actor Applied to Actor indicators
N/A Tag.Name N/A N/A c2 Applied to C2 indicators

MalBeacon Malware C2

The MalBeacon Malware C2 feed ingests IPs and hostnames gathered from complete IPv4 scans for malware C2 and other malicious threats.

GET https://api.malbeacon.com/v1/onlyscans/feed/json

Sample Response:

[
    {
        "c2_ip": "98.142.95.254",
        "c2_family": "metasploit",
        "c2_timezone": "America/Chicago",
        "c2_loc": "41.1544,-96.0422",
        "tags": "malware:metasploit",
        "c2_asnorg": "AS17378 TierPoint, LLC",
        "c2_countrycode": "US",
        "malhashes": "NA",
        "c2_port": "3790",
        "c2_city": "Papillion",
        "c2_hostname": "NA",
        "c2_region": "Nebraska"
    },
    {
        "c2_ip": "95.216.201.166",
        "c2_family": "metasploit",
        "c2_timezone": "Europe/Helsinki",
        "c2_loc": "60.1695,24.9354",
        "tags": "malware:metasploit",
        "c2_asnorg": "AS24940 Hetzner Online GmbH",
        "c2_countrycode": "FI",
        "malhashes": "NA",
        "c2_port": "3790",
        "c2_city": "Helsinki",
        "c2_hostname": "static.166.201.216.95.clients.your-server.de",
        "c2_region": "Uusimaa"
    },
    {
        "c2_ip": "94.23.43.228",
        "c2_family": "metasploit",
        "c2_timezone": "Europe/Paris",
        "c2_loc": "50.6330,3.0586",
        "tags": "malware:metasploit",
        "c2_asnorg": "AS16276 OVH SAS",
        "c2_countrycode": "FR",
        "malhashes": "NA",
        "c2_port": "3790",
        "c2_city": "Lille",
        "c2_hostname": "pedagogyk.decanet.fr",
        "c2_region": "Hauts-de-France"
    }
]

ThreatQuotient provides the following default mapping for this feed based on each item within the API response's array:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.c2_ip Indicator.Value IP Address N/A N/A N/A
.c2_hostname Indicator.Value FQDN N/A N/A User-Configurable.
.tags Malware.Value N/A N/A lokibot User-Configurable. Extracted from tags with the family: prefix
.tags Tag.Name N/A N/A malware:infostealer User-Configurable. Parsed from comma-separated list of tags
.c2_asnorg Indicator.Attribute AS Organization N/A AS9009 M247 Europe SRL User-Configurable. Applied to C2 indicators
.c2_region Indicator.Attribute Region N/A Singapore User-Configurable. Applied to C2 indicators
.c2_city Indicator.Attribute City N/A Amsterdam User-Configurable. Applied to C2 indicators
.c2_countrycode Indicator.Attribute Country Code N/A NL User-Configurable. Applied to C2 indicators
.c2_port Indicator.Attribute Port N/A 50050 User-Configurable. Applied to C2 indicators
.c2_loc Indicator.Attribute Longitude N/A 52.3740 User-Configurable. Applied to C2 indicators; Parsed from comma-separated coordinates
.c2_loc Indicator.Attribute Latitude N/A 4.8897 User-Configurable. Applied to C2 indicators; Parsed from comma-separated coordinates
N/A Tag.Name N/A N/A c2 Applied to C2 indicators
.c2_family Malware.Value N/A N/A metasploit User-Configurable. N/A
.malhashes Indicator.Value MD5, SHA-1, or SHA-256 N/A N/A User-Configurable. Parsed from comma-separated list of hashes

MalBeacon Email Beacons

The MalBeacon Email Beacons feed ingests emails, IPs and hostnames gathered from threat actor controlled email accounts.

GET https://api.malbeacon.com/v1/email/feed/json

Sample Response:

[
    {
        "emaildomasnorg": "NA",
        "refcity": "NA",
        "emaildomcity": "NA",
        "emaildomresolved": "lookup failed",
        "actorip": "105.113.9.240",
        "actortimezone": "Africa/Lagos",
        "tags": "malware:infostealer,family:agenttesla",
        "useragent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/125.0.0.0 Safari/537.36",
        "emaildomregion": "NA",
        "refhostname": "NA",
        "refasnorg": "NA",
        "malhashes": "1ade01f01abf865c52e375857cccf0b8edadc83569c006bcd3a23c2bb452228c",
        "tstamp": "2024-06-10 10:16:05",
        "cookie_id": "2fi2a32ij78h5umckihg2ftug2",
        "emailaddress": "thanhoa@alite-lightlng.com",
        "referrer": "NA",
        "refdomain": "NA",
        "emaildomtimezone": "NA",
        "emaildomhostname": "NA",
        "refdomainresolved": null,
        "emaildomcountrycode": "NA",
        "emaildomloc": "NA",
        "actorloc": "4.7774,7.0134",
        "actorasnorg": "AS36873 Airtel Networks Limited",
        "refcountrycode": "NA",
        "actorregion": "Rivers State",
        "refregion": "NA",
        "actorcity": "Port Harcourt",
        "refloc": "NA",
        "actorcountrycode": "NG",
        "actorhostname": "NA",
        "reftimezone": "NA",
        "emaildomain": "alite-lightlng.com"
    },
    {
        "emaildomasnorg": "NA",
        "refcity": "NA",
        "emaildomcity": "NA",
        "emaildomresolved": "5.255.255.50",
        "actorip": "37.9.102.244",
        "actortimezone": "Europe/Moscow",
        "tags": "malware:infostealer,family:agenttesla",
        "useragent": "Mozilla/5.0 (compatible; YandexImageResizer/2.0; +http://yandex.com/bots)",
        "emaildomregion": "NA",
        "refhostname": "NA",
        "refasnorg": "NA",
        "malhashes": "5c3476257a9d920def565bb2414209467cc7b60dddeeb4d8d9bef3a0a9aae0c7",
        "tstamp": "2024-06-10 09:21:10",
        "cookie_id": "NA",
        "emailaddress": "morrishome1@yandex.com",
        "referrer": "NA",
        "refdomain": "NA",
        "emaildomtimezone": "NA",
        "emaildomhostname": "NA",
        "refdomainresolved": null,
        "emaildomcountrycode": "NA",
        "emaildomloc": "NA",
        "actorloc": "55.7522,37.6156",
        "actorasnorg": "AS13238 YANDEX LLC",
        "refcountrycode": "NA",
        "actorregion": "Moscow",
        "refregion": "NA",
        "actorcity": "Moscow",
        "refloc": "NA",
        "actorcountrycode": "RU",
        "actorhostname": "proxy-mds52sas.avatars.yandex.net",
        "reftimezone": "NA",
        "emaildomain": "yandex.com"
    }
]

ThreatQuotient provides the following default mapping for this feed based on each item within the API response's array:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.email Indicator.Value Email Address .tstamp N/A N/A
.actorip Indicator.Value IP Address .tstamp N/A N/A
.actorhostname Indicator.Value FQDN .tstamp N/A User-Configurable.
.tags Malware.Value N/A .tstamp lokibot User-Configurable. Extracted from tags with the family: prefix
.tags Tag.Name N/A .tstamp malware:infostealer User-Configurable. Parsed from comma-separated list of tags
.actorasnorg Indicator.Attribute AS Organization .tstamp AS9009 M247 Europe SRL User-Configurable. Applied to Actor indicators
.actorregion Indicator.Attribute Region .tstamp Singapore User-Configurable. Applied to Actor indicators
.actorcity Indicator.Attribute City .tstamp Frankfurt am Main User-Configurable. Applied to Actor indicators
.actorcountrycode Indicator.Attribute Country Code .tstamp DE User-Configurable. Applied to Actor indicators
.actorloc Indicator.Attribute Longitude .tstamp 52.3740 User-Configurable. Applied to Actor indicators; Parsed from comma-separated coordinates
.actorloc Indicator.Attribute Latitude .tstamp 4.8897 User-Configurable. Applied to Actor indicators; Parsed from comma-separated coordinates
N/A Tag.Name N/A N/A actor Applied to Actor indicators
emaildomain Indicator.Attribute Email Domain .tstamp c2 User-Configurable. N/A
.malhashes Indicator.Value MD5, SHA-1, or SHA-256 N/A N/A User-Configurable. Parsed from comma-separated list of hashes

MalBeacon Document Beacons

The MalBeacon Document Beacons feed ingests IPs and hostnames gathered from threat actor document beacons, exfiltrated from MalBeacon's Malware Sandbox.

GET https://api.malbeacon.com/v1/document/feed/json

Sample Response:

[
    {
        "actorcity": "Zhukovka",
        "actorregion": "Bryansk Oblast",
        "referrer": "NA",
        "actorip": "93.171.181.161",
        "refregion": "NA",
        "actortimezone": "Europe/Moscow",
        "refhostname": "NA",
        "actorhostname": "NA",
        "actorsourceport": "51177",
        "cookie_id": "NA",
        "refcountrycode": "NA",
        "tags": "sandbox_exfiltrated_document",
        "reftimezone": "NA",
        "malhashes": "NA",
        "actorasnorg": "AS48949 Media-TV Ltd.",
        "refdomainresolved": null,
        "actorloc": "53.5338,33.7308",
        "refasnorg": "NA",
        "useragent": "Mozilla/4.0 (compatible; MSIE 7.0; Windows NT 6.1; WOW64; Trident/4.0; Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1; ms-office; MSOffice 14) ; SLCC2; .NET CLR 2.0.50727; .NET CLR 3.5.30729; ",
        "refcity": "NA",
        "refloc": "NA",
        "tstamp": "2024-06-11 11:31:16",
        "actorcountrycode": "RU",
        "refdomain": "NA"
    }
]

ThreatQuotient provides the following default mapping for this feed based on each item within the API response's array:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.actorip Indicator.Value IP Address .tstamp N/A N/A
.actorhostname Indicator.Value FQDN .tstamp N/A User-Configurable.
.tags Malware.Value N/A .tstamp lokibot User-Configurable. Extracted from tags with the family: prefix
.tags Tag.Name N/A .tstamp malware:infostealer User-Configurable. Parsed from comma-separated list of tags
.actorasnorg Indicator.Attribute AS Organization .tstamp AS9009 M247 Europe SRL User-Configurable. Applied to Actor indicators
.actorregion Indicator.Attribute Region .tstamp Singapore User-Configurable. Applied to Actor indicators
.actorcity Indicator.Attribute City .tstamp Frankfurt am Main User-Configurable. Applied to Actor indicators
.actorcountrycode Indicator.Attribute Country Code .tstamp DE User-Configurable. Applied to Actor indicators
.actorloc Indicator.Attribute Longitude .tstamp 52.3740 User-Configurable. Applied to Actor indicators; Parsed from comma-separated coordinates
.actorloc Indicator.Attribute Latitude .tstamp 4.8897 User-Configurable. Applied to Actor indicators; Parsed from comma-separated coordinates
N/A Tag.Name N/A N/A actor Applied to Actor indicators
.actorsourceport Indicator.Attribute Source Port .tstamp 8000 User-Configurable. Applied to Actor indicators
.malhashes Indicator.Value MD5, SHA-1, or SHA-256 N/A N/A User-Configurable. Parsed from comma-separated list of hashes

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

MalBeacon Actor Beacons

Run Time 1 minute
Indicators 34
Indicator Attributes 198
Malware 1

MalBeacon Malware C2

Run Time 1 minute
Indicators 1,327
Indicator Attributes 7,971
Malware 20

MalBeacon Email Beacons

Run Time 1 minute
Indicators 11
Indicator Attributes 56
Malware 1

MalBeacon Document Beacons

Run Time 1 minute
Indicators 1
Indicator Attributes 5

Known Issues / Limitations

  • c2 and actor tags are ingested by default even if tag ingestion is disabled in user configuration.

Change Log

  • Version 1.0.0
    • Initial release

PDF Guides

Document ThreatQ Version
MalBeacon CDF User Guide v1.0.0 5.12.1 or Greater
