Infoblox Threat Intelligence Data Exchange (TIDE) CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Infoblox Threat Intelligence Data Exchange (TIDE) CDF allows ThreatQ to ingest several dozen threat intelligence feeds from Infoblox (i.e. SURBL, Exploit Kits, EECN, DHS AIS NCCIC, TOR, DoT/DoH, etc.), as well as numerous optional 3rd party threat indicator feeds.

Additional open source, public, or private feeds can also be integrated through the Infoblox TIDE feature to further enhance ThreatQ capabilities.

The integration ingests Indicator system object types and offers the following feeds:

  • Infoblox TIDE - allows a user to ingest lookalike FQDN indicators from the Infoblox TIDE database.
  • Infoblox TIDE Lookalike Domains - allows a user to ingest FQDNs that have similar spelling as popular FQDNs.

The integration ingests indicator and indicator attribute object types.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the integration file.
  3. Navigate to the integrations management page on your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the integration file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the integration file on your local machine
  6. Select the individual feeds to install, when prompted, and click Install.

    ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

  7. The feed will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Commercial option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:

    Infoblox TIDE Configuration Parameters

    Parameter Description
    Infoblox TIDE Hostname The Infoblox TIDE Hostname.
    API Key The Infoblox TIDE API key.
    Enable SSL Certificate Verification Enable this parameter if the feed should validate the host-provided SSL certificate.
    Disable Proxies Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.
    Threat Classes Filter Enter a line-separated list of TIDE class names to filter the data by the threat class. Common properties include: Malicious, Phishing, APT, Bot, MalwareC2, MalwareDownload, Proxy, Sinkhole, Scam, and InternetInfrastructure.

    ThreatQuotient recommends utilizing this parameter.  Leaving this field blank will result in ingesting data from all threat classes.
    Profile Names Filter Optional - Enter a line-separated list of TIDE profile names to filter the data by which organization submitted the data. Common profiles include FarsightSecurity, IID, iSIGHTPARTNERS, SURBL, CrowdStrike, ThreatTrackSecurity, EmergingThreats, and AISCOMM.

    Leaving this field blank will result in ingesting data from all profiles.
    Threat Properties Filter Optional - Enter a line-separated list of TIDE threat property names to filter the data by the type of threat intelligence. Common properties are MalwareC2_Generic, Phishing_Generic, Phishing_COVID19, and MalwareDownload_Generic.

    Leaving this field blank will result in ingesting data from all property types.
    Require Threat Label Enable this parameter to only include indicators that have a threat label.
    Only Major Threats Enable this parameter to only include indicators that are considered major threats.
    Minimum Threat Level Threshold Enter a numeric value to represent the minimum threat level required to ingest an indicator. ThreatQuotient recommends using the default value of 80 to only ingest indicators that are considered high or critical threats. Setting this value to 0 will result in the ingestion of all reported indicators.
    Minimum Confidence Threshold Enter a numeric value to represent the minimum confidence score required to ingest an indicator. ThreatQuotient recommends using the default value of 100 to only ingest indicators with a confirmed confidence level. Setting this value to 0 will result in the ingestion of all reported indicators.
    Only Ingest Indicators That Are Up Enable this parameter to filter out indicators that are detected as down and only ingest indicators that are currently up. This parameter is enabled by default.
    Ingested Indicator Types Select which types of indicators to ingest into ThreatQ. This allows you to customize what is brought into ThreatQ based on what is relevant and important to your organization. Options include:
    • FQDNs (default)
    • IP Addresses (default)
    • URLs (default)
    Attribute Selection Select which pieces of context to ingest into ThreatQ. This allows you customize what is brought into ThreatQ based on what is relevant and important to your organization. Options include:
    • Target (default)
    • Confidence Score (default)
    • Threat Score (default)
    • Threat Type (default)
    • Threat Property
    • Profile
    • TLD
    • Detected At
    • Received At
    • Expires At (default)
    • Is DGA (default)
    Normalize Confidence Scores Enable this parameter to normalize the Confidence Score and Threat Score from the default 0-100 range to a human readable value. The normalization will be based on the mapping field below. This is useful for developing a ThreatQ Scoring Policy that is based on these normalized values.
    Confidence Score Normalization Mapping Enter line-separated mapping, in csv format, to normalize the numeric confidence score values to the scorable attribute: Normalized Confidence Score. The raw Confidence Score value will always be ingested. This mapping should contain the following: Minimum, Maximum, Normalized values. The default mapping is:
    0,39,Low
40,79,Medium
0,99,High
100,100,Confirmed

    This parameter is only accessible if the Normalize Confidence Scores parameter is enabled.
    Normalize Threat Scores Enable this parameter to normalize the Threat Score from the default 0-100 range to a human readable value. The normalization will be based on the mapping table provided in the Threat Score Normalization Mapping parameter.

    This parameter is useful for developing a ThreatQ Scoring Policy that is based on these normalized values.
    Threat Score Normalization Mapping Enter your line-separated mapping, in csv format, to the scorable attribute: Normalized Threat Score. The raw Threat Score value will always be ingested. This mapping should contain a line-separated CSV formatted string with the following: Minimum, Maximum, Normalized values. The default mapping is:
    0,39,Low
40,79,Medium
80,94,High
95,100,Critical

    This parameter is only accessible if the Normalize Threat Scores parameter is enabled.

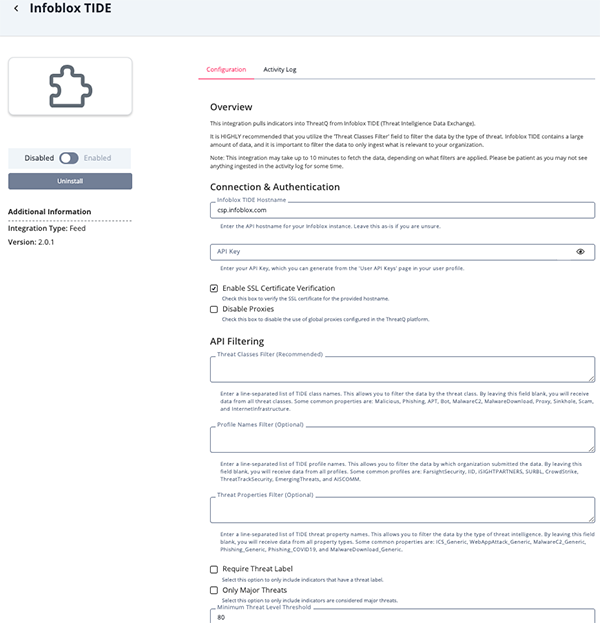

    TIDE Configuration Screen

    Infoblox TIDE Lookalike Domains Configuration Parameters

    Parameter Description
    Infoblox TIDE Hostname The Infoblox TIDE Hostname.
    API Key The Infoblox TIDE API key.
    Enable SSL Certificate Verification Enable this parameter if the feed should validate the host-provided SSL certificate.
    Disable Proxies Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.
    Watched / Target Domains Enter a line-separated list TIDE target domains to specify the domain(s) to search for and return data on the lookalike domains. You can pick domains from the list that are configured in Infoblox as your 'Custom Watched Domains', defined at: https://csp.infoblox.com/#/threat_intelligence/lookalike/custom_watched_domains.

    Multiple Domain names should be entered in a comma-delimited format.

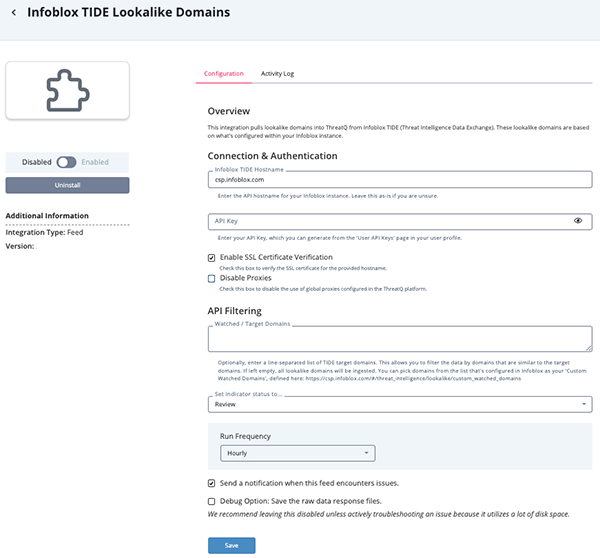

    TIDE Lookalike Domains Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Infoblox TIDE

The Infoblox TIDE and TIDE Lookalike Domains feed ingest lookalike FQDN indicators from the Infoblox TIDE database.

GET https://csp.infoblox.com/tide/api/data/threats

Sample JSON Response:

{
  "record_count": 3,
  "threat": [
    {
      "batch_id": "7d1d6343-eeaf-11ef-9ad1-5b0ed9e4cc77",
      "class": "Scam",
      "confidence": 100,
      "detected": "2025-02-19T10:50:49.813Z",
      "dga": false,
      "domain": "sdcne.com",
      "expiration": "2025-06-19T10:50:49.813Z",
      "extended": {
        "cyberint_guid": "4e1efcb72dcf46322085bffbd8a6023b",
        "notes": "Scam advertised via SMS. Lures victims to put their money into fake investments."
      },
      "full_profile": "IID:ANALYST",
      "host": "sdcne.com",
      "id": "7d21d01c-eeaf-11ef-9ad1-5b0ed9e4cc77",
      "imported": "2025-02-19T10:51:35.776Z",
      "profile": "IID",
      "property": "Scam_Generic",
      "received": "2025-02-19T10:51:35.776Z",
      "threat_level": 100,
      "tld": "com",
      "type": "HOST",
      "up": true
    },
    {
      "batch_id": "e1f37c79-eeb0-11ef-b3ff-7bc3b35e5bcf",
      "class": "Scam",
      "confidence": 100,
      "detected": "2025-02-19T11:00:31.608Z",
      "dga": false,
      "domain": "usdcuu.com",
      "expiration": "2025-06-19T11:00:31.608Z",
      "extended": {
        "cyberint_guid": "36ff41945ab9068f082464bb424fb989",
        "notes": "Scam advertised via SMS. Lures victims to put their money into fake investments."
      },
      "full_profile": "IID:ANALYST",
      "host": "usdcuu.com",
      "id": "e1f48dfe-eeb0-11ef-b3ff-7bc3b35e5bcf",
      "imported": "2025-02-19T11:01:34.428Z",
      "profile": "IID",
      "property": "Scam_Generic",
      "received": "2025-02-19T11:01:34.428Z",
      "threat_level": 100,
      "tld": "com",
      "type": "HOST",
      "up": true
    },
    {
      "batch_id": "e1f37c79-eeb0-11ef-b3ff-7bc3b35e5bcf",
      "class": "Scam",
      "confidence": 100,
      "detected": "2025-02-19T11:00:31.608Z",
      "dga": false,
      "domain": "btouqw.com",
      "expiration": "2025-06-19T11:00:31.608Z",
      "extended": {
        "cyberint_guid": "be10d82503db516bfa271a710baefd72",
        "notes": "Scam advertised via SMS. Lures victims to put their money into fake investments."
      },
      "full_profile": "IID:ANALYST",
      "host": "btouqw.com",
      "id": "e1f48e0f-eeb0-11ef-b3ff-7bc3b35e5bcf",
      "imported": "2025-02-19T11:01:34.428Z",
      "profile": "IID",
      "property": "Scam_Generic",
      "received": "2025-02-19T11:01:34.428Z",
      "threat_level": 100,
      "tld": "com",
      "type": "HOST",
      "up": true
    }
  ]
}

ThreatQuotient provides the following default mapping for these feeds:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.threat[].host,.threat
[].ip, .threat[].url		 Indicator.
Value		 FQDN, IP Address, URL .threat[].imported facebookfor
americans.com		 User-Configurable
.threat[].target Indicator.
Attribute		 Target .threat[].imported facebook.com User-Configurable
.threat[].confidence Indicator.
Attribute		 Confidence Score .threat[].imported 7.8 Updatable
.threat[].confidence Indicator.
Attribute		 Normalized Confidence .threat[].imported Confirmed Normalized based on user-field mapping. User-Configurable. Updatable
.threat[].threat_level Indicator.
Attribute		 Threat Score .threat[].imported 3.5 User-Configurable. Updatable
.threat[].threat_level Indicator.
Attribute		 Normalized Threat Score .threat[].imported High Normalized based on user-field mapping. User-Configurable. Updatable
.threat[].class Indicator.
Attribute		 Threat Type .threat[].imported Policy User-Configurable
.threat[].property Indicator.
Attribute		 Threat Property .threat[].imported Policy_Looka
likeDomains		 User-Configurable
.threat[].profile Indicator.
Attribute		 Profile .threat[].imported IID User-Configurable
.threat[].tld Indicator.
Attribute		 TLD .threat[].imported pl User-Configurable
.threat[].detected Indicator.
Attribute		 Detected At .threat[].imported 2020-06-08 08:27:50-00:00 User-Configurable. Updatable
.threat[].received Indicator.
Attribute		 Received At .threat[].imported 2020-06-09 11:07:24-00:00 User-Configurable. Updatable
.threat[].expiration Indicator.
Attribute		 Expires At .threat[].imported 2020-06-09 08:10:33-00:00 User-Configurable. Updatable
.threat[].dga Indicator.
Attribute		 Is DGA .threat[].imported false User-Configurable
.threat[].extended.reason,
.threat[].extended.notes		 Indicator.
Description		 N/A N/A N/A If .threat[].extended key is in ['protocol', 'references', 'attack_chain', 'registration_date']

Infoblox TIDE Lookalike Domains

The Infoblox TIDE Lookalike Domains feed ingest FQDNs that have similar spelling as popular FQDNs.

GET https://csp.infoblox.com/api/tdlad/v1/lookalike_domains

Sample JSON Response:

{
    "results": [
        {
            "detected_at": "2025-07-23T18:39:55Z",
            "lookalike_domain": "adamsapplesupport.com.au",
            "lookalike_host": "adamsapplesupport.com.au",
            "reason": "Domain is a lookalike to apple.com. The creation or first seen date is 2013-10-15.",
            "target_domain": "apple.com"
        },
        {
            "detected_at": "2025-07-23T18:39:55Z",
            "lookalike_domain": "aiappletools.com",
            "lookalike_host": "aiappletools.com",
            "reason": "Domain is a lookalike to apple.com. The creation or first seen date is 2024-08-18.",
            "target_domain": "apple.com"
        },
        {
            "detected_at": "2025-07-23T18:39:55Z",
            "lookalike_domain": "applers.ch",
            "lookalike_host": "applers.ch",
            "reason": "Domain is a lookalike to apple.com. The creation or first seen date is 2021-02-16.",
            "target_domain": "apple.com"
        }
    ]
}

ThreatQuotient provides the following default mapping for these feeds:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.lookalike_domain Indicator.Value FQDN .detected_at facebookforamericans.com N/A
.lookalike_host Indicator.Value FQDN .detected_at facebookforamericans.com Only ingested if different from the domain
.reason Indicator.Description N/A N/A Domain is a lookalike to apple.com. The creation or first seen date is 2013-10-15. Only ingested if different from the domain
.target_domain Indicator.Attribute Target Domain .detected_at apple.com N/A
.detected_at Indicator.Attribute Detected At .detected_at 2025-07-23 18:39:55 Updatable; UTC

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

With Target Domains: google.com

Metric Result
Run Time 5 minutes
Indicators 1,164
Indicator Attributes 17,564

With Target Domains: google.com,bing.com

Metric Result
Run Time 6 minutes
Indicators 1,241
Indicator Attributes 18,862

With Target Domains: google.com,bing.com,yahoo.com

Metric Result
Run Time 10 minutes
Indicators 3,062
Indicator Attributes 46,436

Lookalike Domains

Metric Result
Run Time 2 minutes
Indicators 1,402
Indicator Attributes 2,904

Known Issues / Limitations

  • Occasionally during a feed run, the connector is unable to connect to the Infoblox server, resulting in the feed run completing without ingesting any indicators.

Change Log

  • Version 2.0.1
    • Performed the following updates on the TIDE Lookalike Domains feed:
      • Resolved a pulling issue.
      • The feed now pulls from its own endpoint, GET https://csp.infoblox.com/api/tdlad/v1/lookalike_domains, opposed to using the TIDE endpoint.
      • Removed the following configuration parameters:
        • Threat Classes Filter
        • Profile Names Filter
        • Only Major Threats
        • Minimum Threat Level Threshold
        • Minimum Confidence Threshold
        • Only Ingest Indicators that are Up
        • Attribute Selection
        • Normalize Confidence Scores
        • Confidence Score Normalization Mapping
        • Normalize Threat Scores
        • Threat Score Normalization Mapping
  • Version 2.0.0
    • Added ingestion rules that allow for certain attributes to be updated.
    • Added ability to normalize the confidence score and the threat score to a scorable attribute. This is useful for utilizing the Threat Score or Confidence Score in your ThreatQ Scoring Policy.
    • Added ability to select the pieces of context to ingest with each indicator.
    • Added ability to select which indicator types to ingest.
    • Increased the feed timeout to 10 minutes to prevent timeouts.
    • Indicator descriptions are now rich text that includes any notes or reasons, as well as any "extended" fields that are returned from the API.
    • Replaced the Confidence Rating and Threat Rating dropdowns for threshold fields as the Infoblox API no longer supports filtering on these fields.
    • Infoblox TIDE feed configuration updates:
      • added the following new configuration parameters:
        • Verify SSL - determine if the feed should verify the SSL certificate.
        • Disable Proxies - determine if the feed should ignore proxies set in the ThreatQ UI.
        • Threat Classes Filter - filter incoming data by the threat class.
        • Require Threat Label - configure the feed to only include indicators that have a threat label.
        • Only Major Threats - configure the feed to only include indicators are considered major threats.
        • Minimum Threat Level Threshold - enter a numeric value to represent the minimum threat level required to ingest an indicator.
        • Minimum Confidence Threshold - enter a numeric value to represent the minimum confidence score required to ingest an indicator. Set this to 0 to ingest all reported indicators.
        • Only Ingest Indicators that are Up - configure the feed to only ingest indicators that are currently up.
        • Ingested Indicator Types - select the indicator types to ingest.
        • Attribute Selection - select which pieces of context to ingest into ThreatQ.
        • Normalize Confidence Scores - normalize the Confidence Score and Threat Score from the default 0-100 range to a human readable value.
        • Confidence Score Normalization Mapping -  enter the values to use to normalize the numeric confidence score values to the scorable attribute, Normalized Confidence Score.
        • Normalize Threat Scores - normalize the Threat Score from the default 0-100 range to a human readable value.
        • Threat Score Normalization Mapping - enter the values to use to normalize the numeric confidence score values to the scorable attribute, Normalize Threat Scores.
      • Removed the following configuration parameters as that type of filtering is no longer supported by the Infoblox API:

        Threshold filtering is now done within the feed when processing the results.

        • Threat Score Rating
        • Risk Score Rating
        • Confidence Score Rating
    • Infoblox TIDE Lookalike Domains feed configuration updates:
      • added the following new configuration parameters:
        • Verify SSL - determine if the feed should verify the SSL certificate.
        • Disable Proxies - determine if the feed should ignore proxies set in the ThreatQ UI.
        • Threat Classes Filter - filter incoming data by the threat class.
        • Only Major Threats - configure the feed to only include indicators are considered major threats.
        • Minimum Threat Level Threshold - enter a numeric value to represent the minimum threat level required to ingest an indicator.
        • Minimum Confidence Threshold - enter a numeric value to represent the minimum confidence score required to ingest an indicator. Set this to 0 to ingest all reported indicators.
        • Only Ingest Indicators that are Up - configure the feed to only ingest indicators that are currently up.
        • Attribute Selection - select which pieces of context to ingest into ThreatQ.
        • Normalize Confidence Scores - normalize the Confidence Score and Threat Score from the default 0-100 range to a human readable value.
        • Confidence Score Normalization Mapping -  enter the values to use to normalize the numeric confidence score values to the scorable attribute, Normalized Confidence Score.
        • Normalize Threat Scores - normalize the Threat Score from the default 0-100 range to a human readable value.
        • Threat Score Normalization Mapping - enter the values to use to normalize the numeric confidence score values to the scorable attribute, Normalize Threat Scores.
    • Updated the minimum ThreatQ version to 5.5.0.
  • Version 1.1.0
    • Added new threat feed: Infoblox TIDE
    • Added additional parameters for new threat feed.
  • Version 1.0.0
    • Document rebuilt to reflect product naming update
    • Initial Release (06/16/2020
