Hybrid Analysis CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Hybrid Analysis CDF for ThreatQ allows a ThreatQ user to ingest sample reports from the public feed, as well as automatically ingest reports for samples submitted through ThreatQ, via the Hybrid Analysis Operation.

The CDF provides the following feeds:

  • Hybrid Analysis Public Feed - enables the ingestion of public reports from Hybrid Analysis using their public feed.
  • Hybrid Analysis Submissions Feed - enables the ingestion of reports from samples submitted through the Hybrid Analysis Operation from the ThreatQ platform.
  • Hybrid Analysis Quick Scans - ingests quick scan results and sandbox reports for samples or URLs submitted by the Hybrid Analysis Operation.

The CDF ingests the following system objects:

  • Attack Patterns
    • Attack Pattern Attributes
  • Indicators
    • Indicator Attributes

Prerequisites

The following is required to use the integration:

  • A Hybrid Analysis domain name and API Key.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the integration yaml file.
  3. Navigate to the integrations management page on your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the yaml file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the file on your local machine
  6. Select the feed(s) to install when prompted and click on Install.

    ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

  7. The feed(s) will be added to the integrations page. You will still need to configure and then enable the feed(s).

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the OSINT option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:

    Public Feed and Submissions Parameters

    Parameter Description
    Domain The domain of your Hybrid Analysis instance.
    API Key Your Hybrid Analysis API Key for authentication.
    User Agent The User-agent for the API.  The default setting is Falcon Sandbox.

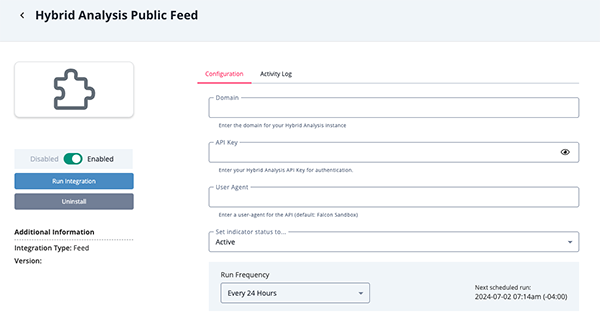

    Hybrid Analysis Configuration Screen

    Quick Scans Parameters

    Parameter Description
    Domain The domain of your Hybrid Analysis instance
    API Key Your Hybrid Analysis API Key for authentication.
    User Agent The User-agent for the API.  The default setting is Falcon Sandbox.
    Quick Scan Context Select the pieces of information about a quick to bring in from Hybrid Analysis.
    Ingest Sandbox Report Ingest the Sandbox Report associated with the quick scan.

    Each report will add +1 API calls per quick scan.

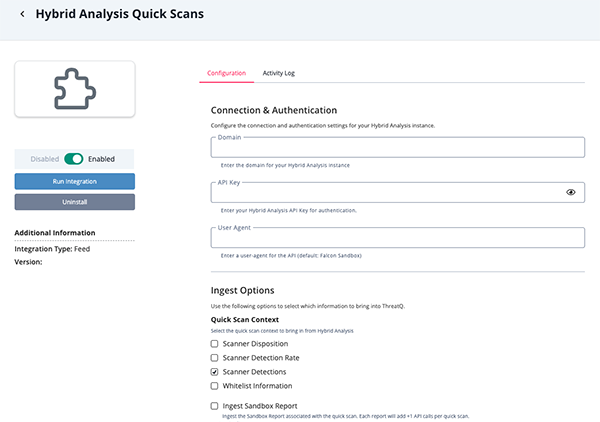

    Hybrid Analysis Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

ThreatQuotient provides feed urls, sample responses, and default ThreatQ mapping.

Hybrid Analysis Public Feed

The Hybrid Analysis Public Feed enables the ingestion of public reports from Hybrid Analysis using their public feed.

GET https://hybrid-analysis.com/api/v2/feed/latest

Sample Response:

{
  "count": 174,
  "status": "ok",
  "data": [
    {
      "job_id": "5ebeb84be7702b60fe113eeb",
      "md5": "3e7488819b26ac88e372ac19d415d445",
      "sha1": "f5d5ad71a231afe21f5ba045ec5b597ebdcc4786",
      "sha256": "b71f228ade7b30e6e431c872a53b007d6bf7ff8604255c4e6a9276ca13651440",
      "interesting": false,
      "analysis_start_time": "2020-05-15 15:42:09",
      "threat_score": 18,
      "threat_level": 1,
      "threat_level_human": "suspicious",
      "unknown": true,
      "submit_name": "https://medium.com/@kopapic176/watch-britains-got-talent-season-14-episodes-6-6b83e2bce89e",
      "url_analysis": true,
      "domains": [
        "a16180790160.cdn.optimizely.com",
        "cdn-client.medium.com",
        "cdn-static-1.medium.com",
        "cdn.optimizely.com",
        "glyph.medium.com",
        "logx.optimizely.com",
        "medium.com",
        "miro.medium.com",
        "ocsp.pki.goog"
      ],
      "hosts": [
        "104.16.123.127",
        "104.16.120.145",
        "104.16.119.145",
        "104.16.118.145",
        "172.217.7.174",
        "172.217.15.99",
        "34.199.177.216"
      ],
      "hosts_geolocation": [
        {
          "ip": "104.16.123.127",
          "latitude": "37.7621",
          "longitude": "-122.3971",
          "country": "USA"
        },
        {
          "ip": "104.16.120.145",
          "latitude": "37.7621",
          "longitude": "-122.3971",
          "country": "USA"
        },
        {
          "ip": "104.16.119.145",
          "latitude": "37.7621",
          "longitude": "-122.3971",
          "country": "USA"
        }
      ],
      "environment_id": 100,
      "environment_description": "Windows 7 32 bit",
      "shared_analysis": false,
      "reliable": true,
      "report_url": "/sample/b71f228ade7b30e6e431c872a53b007d6bf7ff8604255c4e6a9276ca13651440/5ebeb84be7702b60fe113eeb",
      "extracted_files": [
        {
          "name": "urlblockindex_1_.bin",
          "file_size": 16,
          "sha1": "e4f30e49120657d37267c0162fd4a08934800c69",
          "sha256": "775853600060162c4b4e5f883f9fd5a278e61c471b3ee1826396b6d129499aa7",
          "md5": "fa518e3dfae8ca3a0e495460fd60c791",
          "type_tags": ["data"],
          "description": "data",
          "threat_level": 0,
          "threat_level_readable": "no specific threat",
          "av_matched": 0,
          "av_total": 70,
          "file_available_to_download": false
        },
        {
          "name": "en-US.2",
          "file_path": "%LOCALAPPDATA%\\Microsoft\\Internet Explorer\\DomainSuggestions\\en-US.2",
          "file_size": 18176,
          "sha1": "3c96c993500690d1a77873cd62bc639b3a10653f",
          "sha256": "c6a5377cbc07eece33790cfc70572e12c7a48ad8296be25c0cc805a1f384dbad",
          "md5": "5a34cb996293fde2cb7a4ac89587393a",
          "type_tags": ["data"],
          "description": "data",
          "runtime_process": "iexplore.exe",
          "threat_level": 0,
          "threat_level_readable": "no specific threat",
          "file_available_to_download": false
        }
      ],
      "processes": [
        {
          "uid": "562548150-00001272",
          "name": "rundll32.exe",
          "normalized_path": "%WINDIR%\\System32\\rundll32.exe",
          "command_line": "\"%WINDIR%\\System32\\ieframe.dll\",OpenURL C:\\b71f228ade7b30e6e431c872a53b007d6bf7ff8604255c4e6a9276ca13651440.url",
          "sha256": "3fa4912eb43fc304652d7b01f118589259861e2d628fa7c86193e54d5f987670"
        },
        {
          "uid": "562548293-00001964",
          "parentuid": "562548150-00001272",
          "name": "iexplore.exe",
          "normalized_path": "%PROGRAMFILES%\\Internet Explorer\\iexplore.exe",
          "command_line": "https://medium.com/@kopapic176/watch-britains-got-talent-season-14-episodes-6-6b83e2bce89e",
          "sha256": "8abc7daa81c8a20bfd88b6a60ecc9ed1292fbb6cedbd6f872f36512d9a194bba"
        },
        {
          "uid": "562548314-00001712",
          "parentuid": "562548293-00001964",
          "name": "iexplore.exe",
          "normalized_path": "%PROGRAMFILES%\\Internet Explorer\\iexplore.exe",
          "command_line": "SCODEF:1964 CREDAT:275457 /prefetch:2",
          "sha256": "8abc7daa81c8a20bfd88b6a60ecc9ed1292fbb6cedbd6f872f36512d9a194bba"
        }
      ]
    }
  ]
}

Hybrid Analysis Submissions

The Hybrid Analysis Submissions Feed enables the ingestion of reports from samples submitted through the Hybrid Analysis Operation within ThreatQ. In order for this feed to ingest data, it is mandatory that ThreatQ Threat Library to contain indicators that have the Hybrid Analysis Verdict and Scan Link attributes. These attributes can be added using the Hybrid Analysis ThreatQ Operation. The feed will retrieve all the indicators having these attributes and queries Hybrid Analysis to get Sandbox reports.

GET https://hybrid-analysis.com/api/v2/report/{sha256}:{environmentId}/summary

Sample Response:

{
    "job_id": "5ebeb84be7702b60fe113eeb",
    "md5": "3e7488819b26ac88e372ac19d415d445",
    "sha1": "f5d5ad71a231afe21f5ba045ec5b597ebdcc4786",
    "sha256": "b71f228ade7b30e6e431c872a53b007d6bf7ff8604255c4e6a9276ca13651440",
    "interesting": false,
    "analysis_start_time": "2020-05-15 15:42:09",
    "threat_score": 18,
    "threat_level": 1,
    "threat_level_human": "suspicious",
    "unknown": true,
    "submit_name": "https://medium.com/@kopapic176/watch-britains-got-talent-season-14-episodes-6-6b83e2bce89e",
    "url_analysis": true,
    "domains": [
    "a16180790160.cdn.optimizely.com",
    "cdn-client.medium.com",
    "cdn-static-1.medium.com",
    "cdn.optimizely.com",
    "glyph.medium.com",
    "logx.optimizely.com",
    "medium.com",
    "miro.medium.com",
    "ocsp.pki.goog"
    ],
    "hosts": [
    "104.16.123.127",
    "104.16.120.145",
    "104.16.119.145",
    "104.16.118.145",
    "172.217.7.174",
    "172.217.15.99",
    "34.199.177.216"
    ],
    "hosts_geolocation": [
    {
        "ip": "104.16.123.127",
        "latitude": "37.7621",
        "longitude": "-122.3971",
        "country": "USA"
    },
    {
        "ip": "104.16.120.145",
        "latitude": "37.7621",
        "longitude": "-122.3971",
        "country": "USA"
    },
    {
        "ip": "104.16.119.145",
        "latitude": "37.7621",
        "longitude": "-122.3971",
        "country": "USA"
    }
    ],
    "environment_id": 100,
    "environment_description": "Windows 7 32 bit",
    "shared_analysis": false,
    "reliable": true,
    "report_url": "/sample/b71f228ade7b30e6e431c872a53b007d6bf7ff8604255c4e6a9276ca13651440/5ebeb84be7702b60fe113eeb",
    "extracted_files": [
    {
        "name": "urlblockindex_1_.bin",
        "file_size": 16,
        "sha1": "e4f30e49120657d37267c0162fd4a08934800c69",
        "sha256": "775853600060162c4b4e5f883f9fd5a278e61c471b3ee1826396b6d129499aa7",
        "md5": "fa518e3dfae8ca3a0e495460fd60c791",
        "type_tags": ["data"],
        "description": "data",
        "threat_level": 0,
        "threat_level_readable": "no specific threat",
        "av_matched": 0,
        "av_total": 70,
        "file_available_to_download": false
    },
    {
        "name": "en-US.2",
        "file_path": "%LOCALAPPDATA%\\Microsoft\\Internet Explorer\\DomainSuggestions\\en-US.2",
        "file_size": 18176,
        "sha1": "3c96c993500690d1a77873cd62bc639b3a10653f",
        "sha256": "c6a5377cbc07eece33790cfc70572e12c7a48ad8296be25c0cc805a1f384dbad",
        "md5": "5a34cb996293fde2cb7a4ac89587393a",
        "type_tags": ["data"],
        "description": "data",
        "runtime_process": "iexplore.exe",
        "threat_level": 0,
        "threat_level_readable": "no specific threat",
        "file_available_to_download": false
    }
    ],
    "processes": [
    {
        "uid": "562548150-00001272",
        "name": "rundll32.exe",
        "normalized_path": "%WINDIR%\\System32\\rundll32.exe",
        "command_line": "\"%WINDIR%\\System32\\ieframe.dll\",OpenURL C:\\b71f228ade7b30e6e431c872a53b007d6bf7ff8604255c4e6a9276ca13651440.url",
        "sha256": "3fa4912eb43fc304652d7b01f118589259861e2d628fa7c86193e54d5f987670"
    },
    {
        "uid": "562548293-00001964",
        "parentuid": "562548150-00001272",
        "name": "iexplore.exe",
        "normalized_path": "%PROGRAMFILES%\\Internet Explorer\\iexplore.exe",
        "command_line": "https://medium.com/@kopapic176/watch-britains-got-talent-season-14-episodes-6-6b83e2bce89e",
        "sha256": "8abc7daa81c8a20bfd88b6a60ecc9ed1292fbb6cedbd6f872f36512d9a194bba"
    },
    {
        "uid": "562548314-00001712",
        "parentuid": "562548293-00001964",
        "name": "iexplore.exe",
        "normalized_path": "%PROGRAMFILES%\\Internet Explorer\\iexplore.exe",
        "command_line": "SCODEF:1964 CREDAT:275457 /prefetch:2",
        "sha256": "8abc7daa81c8a20bfd88b6a60ecc9ed1292fbb6cedbd6f872f36512d9a194bba"
    }
    ]
}

Public Feed and Submissions Mapping

The Hybrid Analysis Public Feed and Submissions feed share the same mapping table listed below.

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
data[].mitre_attcks[].
attck_id/technique		 Related Attack Pattern N/A data[].analysis_start_time T100 - Some MITRE Technique Formatted string
data[].processes[].
normalized_path		 Indicator Value File Path data[].analysis_start_time N/A N/A
data[].domains[] Indirect Indicator Value FQDN data[].analysis_start_time blahblah.google.com Indirect because they may be common hosts
data[].hosts_
geolocation[].ip		 Indirect Indicator Value IP Address data[].analysis_start_time N/A Indirect because they may be common host IPs
data[].extracted_
files[].file_path		 Indicator Value File Path data[].analysis_start_time N/A N/A
data[].extracted_
files[].md5		 Indicator Value MD5 data[].analysis_start_time N/A N/A
data[].extracted_
files[].name		 Indicator Value Filename data[].analysis_start_time N/A N/A
data[].extracted_
files[].sha256		 Indicator Value SHA-256 data[].analysis_start_time N/A N/A
data[].submit_name Indicator Value Filename/URL data[].analysis_start_time N/A Type depends on 'url_analysis' flag
data[].compromised_
hosts[]		 Indicator Value IP Address data[].analysis_start_time N/A N/A
data[].md5 Indicator Value MD5 data[].analysis_start_time N/A N/A
data[].sha1 Indicator Value SHA-1 data[].analysis_start_time N/A N/A
data[].sha256 Indicator Value SHA-256 data[].analysis_start_time N/A N/A
data[].sha512 Indicator Value SHA-512 data[].analysis_start_time N/A N/A
data[].threat_score Indicator Attribute Threat Score data[].analysis_start_time 65 If the attribute already exists, the value will be updated
data[].threat_level Indicator Attribute Threat Level data[].analysis_start_time 2 Numerical representation of "verdict"
data[].verdict Indicator Attribute Hybrid Analysis Verdict data[].analysis_start_time Malicious Readable representation of "threat_level", if the attribute already exists, the value will be updated
data[].environment_
description		 Indicator Attribute Scan Environment data[].analysis_start_time Windows 7 32 bit N/A
data[].av_detect Indicator Attribute Detection Rate data[].analysis_start_time 22% Percentage
data[].vx_family Indicator Attribute Malware Family data[].analysis_start_time Trojan.RP.Generic N/A
data[].type_short[] Indicator Attribute File Type data[].analysis_start_time peexe N/A
data[].size Indicator Attribute File Size data[].analysis_start_time 100020 N/A
data[].extracted_
files[].description		 Indicator Attribute Description data[].analysis_start_time N/A N/A
data[].extracted_
files[].threat_level		 Indicator Attribute Threat Level data[].analysis_start_time 1 Numerical representation of "threat_level_readable"
data[].extracted_
files[].threat_level_
readable		 Indicator Attribute Hybrid Analysis Verdict data[].analysis_start_time Suspicious Readable representation of "threat_level", if the attribute already exists, the value will be updated
data[].extracted_
files[].av_label		 Indicator Attribute AV Label data[].analysis_start_time Unrated site N/A
data[].extracted_
files[].av_matched/
av_total		 Indicator Attribute Detections data[].analysis_start_time 22 / 84 Formatted string
data[].extracted_
files[].file_size		 Indicator Attribute File Size data[].analysis_start_time 123455 N/A
data[].hosts_
geolocation[].country		 Indicator Attribute Country data[].analysis_start_time USA N/A
data[].mitre_attcks[].tactic Attack Pattern Attribute Tactic data[].analysis_start_time N/A N/A

Hybrid Analysis Quick Scans

The Hybrid Analysis Quick Scans Feed enables the ingestion of quick scan results and sandbox reports for samples or URLs submitted through the Hybrid Analysis Operation within ThreatQ. For this feed to ingest data it is mandatory that ThreatQ Library contains indicators having the attribute Hybrid Analysis Quick Scan ID. This attribute can be added using the Hybrid Analysis ThreatQ Operation. The feed gets all the indicators having this attribute and queries Hybrid Analysis to get quick scan results.

GET https://hybrid-analysis.com/api/v2/quick-scan/{hybdrid_analysis_quick_scan_id}

Sample Response:

{
  "id": "667d15f7e46d689e7e0ac4b6",
  "sha256": "a2a28705f577b928c211130f2d779604c58c7ea82a25dfae7f29308d0e166d69",
  "scanners": [
    {
      "name": "Metadefender",
      "status": "clean",
      "error_message": null,
      "progress": 100,
      "total": 23,
      "positives": 0,
      "percent": 0,
      "anti_virus_results": []
    }
  ],
  "scanners_v2": {
    "crowdstrike_ml": null,
    "virustotal": null,
    "metadefender": {
      "name": "Metadefender",
      "status": "clean",
      "error_message": null,
      "progress": 100,
      "total": 23,
      "positives": 0,
      "percent": 0,
      "anti_virus_results": []
    }
  },
  "whitelist": [
    {
      "id": "internal",
      "value": false
    }
  ],
  "reports": [
    "5b8413ab7ca3e13e5c4aece3"
  ],
  "finished": true
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.scanners_v2[].{SCANNER_NAME}.status Indicator.Attribute {SCANNER_NAME} Disposition N/A Clean Mapped using the table Hybrid Analysis Scan Status. If enabled in used config.
.scanners_v2[].{SCANNER_NAME}.percent Indicator.Attribute {SCANNER_NAME} Detection Rate N/A 0% % is appended. If enabled in used config.
.scanners_v2[].{SCANNER_NAME}.positives, .scanners_v2[].{SCANNER_NAME}.total Indicator.Attribute {SCANNER_NAME} Detections N/A 0/23 Concatenated using /. If enabled in used config.
.whitelist[].id, .whitelist[].value Indicator.Attribute {WHITELIST_ID} Whitelisted N/A No Mapped to Yes or No.
.sha256 Related Indicator.Value SHA-256 N/A a2a28705f577b928c211130f2d779604c58c7ea82a25dfae7f29308d0e166d69 N/A

If the Ingest Sandbox Report configuration option is enabled, .sha256 is used to get the Sandbox Report. The SandBox Report has the same mapping as Hybrid Analysis Submissions feed.

Hybrid Analysis Scan Status Mapping

The following table outlines the Hybrid Analysis Scan Status to ThreatQ Disposition Attribute mapping.

Hybrid Analysis Scan Status ThreatQ Disposition Attribute
no-result No Result
no-classification No Classification
in-queue In Queue
clean Clean
malicious Malicious
unsure Unsure

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Hybrid Analytics Public Feed

Metric Result
Run Time 2 minutes
Indicators 1,200
Indicator Attributes 4,800
Attack Patterns 20
Attack Pattern Attributes 25

Hybrid Analytics Submissions

Metric Result
Run Time 2 minutes
Indicators 1,200
Indicator Attributes 4,800
Attack Patterns 20
Attack Pattern Attributes 25

Hybrid Analytics Quick Scans

Metric Result
Run Time 2 minutes
Indicators 500
Indicator Attributes 7,00

Known Issues / Limitations

  • API usage is subject to Hybrid Analysis' rate limiting per-API-key. You should stagger feed runs to reduce API usage.

Change Log

  • Version 1.2.3
    • Added a new feed: Hybrid Analysis Quick Scans.
  • Version 1.2.2
    • Added ingest rules for the Hybrid Analysis Verdict and Threat Score attributes.
    • Rename the Verdict attribute to Hybrid Analysis Verdict.
  • Version 1.2.1
    • Upgraded the integration for compatibility with ThreatQ version 5.22.0 and later.
    • Updated the minimum ThreatQ version to 5.11.0.
  • Version 1.2.0
    • Fixed a bug that that would result in calling an endpoint without the required query parameters.
    • Added improvement safeguards for the integration.
  • Version 1.1.0
    • Fixed a filter mapping bug.
  • Version 1.0.0
    • Initial release

PDF Guides

Document ThreatQ Version
Hybrid Analysis CDF Guide v1.2.3 5.11.0 or Greater
Hybrid Analysis CDF Guide v1.2.2 5.11.0 or Greater
Hybrid Analysis CDF Guide v1.2.1 5.11.0 or Greater
Hybrid Analysis CDF Guide v1.2.0 4.30.0 or Greater
Hybrid Analysis CDF Guide v1.1.0 4.30.0 or Greater
Hybrid Analysis CDF Guide v1.0.0 4.30.0 or Greater
