Darktrace CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Darktrace CDF ingests alerts from Darktrace as AI Analyst and Model Breach Events with devices as related indicators and assets.

The integration provides the following feeds:

  • Darktrace AIAnalyst Incident Events - ingests Darktrace alerts related to a group of anomalies or network activity investigated by Cyber AI Analyst.
  • Darktrace Model Breaches - ingests Darktrace alerts related to model breaches.

The integration ingests the following object types:

  • Assets
  • Events
  • Indicators

Prerequisites

The following is required to run the integration:

  • A Darktrace Instance
  • A Public and Private Darktrace token.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the integration yaml file.
  3. Navigate to the integrations management page on your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the integration yaml file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the file on your local machine
  6. Select the individual feeds to install, when prompted and click Install.

    ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

The feed(s) will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Commercial option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:
    Parameter Description
    Darktrace Host The Domain/Host of your Darktrace instance.
    Darktrace Public Token Your Darktrace public token.
    Darktrace Private Token Your Darktrace private token.
    Enable SSL Verification When checked, validates the host-provided SSL certificate.  This option is enabled by default.
    Disable Proxies Enable this option if the feed should not honor proxies set in the ThreatQ UI.

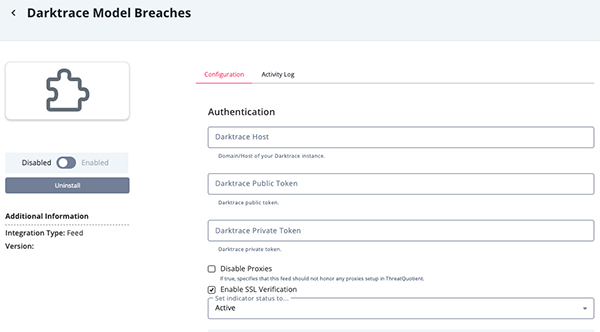

    Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Darktrace AIAnalyst Incident Events

The Darktrace AIAnalyst Incident Events feed ingests Darktrace alerts related to a group of anomalies or network activity investigated by Cyber AI Analyst. The threat data is ingested into ThreatQ as AI Analyst Events with devices as related indicators and assets.

GET https://{host}/aianalyst/incidentevents

Sample Response:

[
    {
        "summariser": "HttpAgentSummary",
        "acknowledged": false,
        "pinned": true,
        "createdAt": 1646162137536,
        "attackPhases": [
            2
        ],
        "mitreTactics": [
            "command-and-control"
        ],
        "title": "Possible HTTP Command and Control",
        "id": "58b1c336-01b2-4418-86f8-3a53b0856aaa",
        "incidentEventUrl": "https://usw1-54655-01.cloud.darktrace.com/#aiaincidentevent/58b1c336-01b2-4418-86f8-3a53b0856aaa",
        "children": [
            "58b1c336-01b2-4418-86f8-3a53b0856aaa"
        ],
        "category": null,
        "currentGroup": null,
        "groupCategory": null,
        "groupScore": null,
        "groupPreviousGroups": null,
        "activityId": "da39a3ee",
        "groupingIds": [
            "9e6a55b6"
        ],
        "groupByActivity": false,
        "userTriggered": false,
        "externalTriggered": false,
        "aiaScore": 41.915465465599745,
        "summary": "The device wef.windomain.local was observed making an HTTP connection to the rare external endpoint 35.178.78.199, without a user agent header.\n\nThe lack of this header suggests that this activity was initiated by a standalone software process as opposed to a web browser.\n\nIf such behaviour is unexpected, further investigation may be required to determine if this activity represents malicious command and control as opposed to legitimate telemetry of some form.",
        "periods": [
            {
                "start": 1646155303577,
                "end": 1646155303577
            }
        ],
        "sender": null,
        "breachDevices": [
            {
                "identifier": "wef.windomain.local",
                "hostname": "wef.windomain.local",
                "ip": "192.168.1.3",
                "mac": "06:7b:81:5d:4b:5c",
                "subnet": null,
                "did": 18,
                "sid": 3
            }
        ],
        "relatedBreaches": [
            {
                "modelName": "Device / Suspicious Domain",
                "pbid": 1777,
                "threatScore": 33.0,
                "timestamp": 1646158351000
            }
        ],
        "details": [
            [
                {
                    "header": "Suspicious Endpoints Contacted by Application",
                    "contents": [
                        {
                            "key": "Time",
                            "type": "timestampRange",
                            "values": [
                                {
                                    "start": 1646155303577,
                                    "end": 1646155303577
                                }
                            ]
                        }
                    ]
                }
            ]
        ]
    }
]

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.title (Event UUID:.id) Event.Title AI Analyst .createdAt Possible HTTP Command and Control (Event UUID:58b1c336-01b2-4418-86f8-3a53b0856aaa) N/A
.summary Event.Description N/A .createdAt The device wef.windomain.local was observed making an HTTP connection ... N/A
.acknowledged, .userTriggered,.externalTriggered Event.Tags N/A .createdAt N/A .acknowledged, .userTriggered,.externalTriggered key is set as tag if the value is True
.breachDevices.mac Related Indicator Mac Address .createdAt 06:7b:81:5d:4b:5c N/A
.breachDevices.ip Related Indicator/ Related Asset IP Address .createdAt 192.168.1.3 If ip is private Asset is ingested, if not Indicator
.breachDevices.hostname Related Indicator/ Related Asset FQDN .createdAt wef.windomain.local If hostname is not a valid domain Asset will be ingested, if not Indicator
.incidentEventUrl Event.Attribute Incident Event URL .createdAt https://usw1-54655-01.cloud.darktrace.com/#aiaincidentevent/58b1c336-01b2-4418-86f8-3a53b0856aaa N/A
.attackPhases Event.Attribute Attack Phases .createdAt 2 N/A
.category Event.Attribute Category .createdAt N/A N/A
.aiaScore Event.Attribute AI Analyst Score .createdAt 41.915465465599745 N/A

Darktrace Model Breaches

The Darktrace Model Breaches feed ingests Darktrace alerts related to model breaches. The threat data is ingested into ThreatQ as Model Breach Events with devices as related indicators and assets.

GET https://{host}/modelbreaches

Sample Response:

[
    {
        "breachUrl": "https://usw1-54655-01.cloud.darktrace.com/#modelbreach/53001",
        "commentCount": 0,
        "pbid": 53001,
        "time": 1723070608000,
        "creationTime": 1723070607000,
        "model": {
            "then": {
                "name": "System::System",
                "pid": 530,
                "phid": 4861,
                "uuid": "1c3f429b-ccb9-46a2-b864-868653bc780a",
                "logic": {
                    "data": [
                        9686
                    ],
                    "type": "componentList",
                    "version": 1
                },
                "throttle": 10,
                "sharedEndpoints": false,
                "actions": {
                    "alert": true,
                    "antigena": {},
                    "breach": true,
                    "model": true,
                    "setPriority": false,
                    "setTag": false,
                    "setType": false
                },
                "tags": [],
                "interval": 0,
                "delay": 0,
                "sequenced": true,
                "active": true,
                "modified": "2021-11-24 18:04:19",
                "activeTimes": {
                    "devices": {},
                    "tags": {},
                    "type": "exclusions",
                    "version": 2
                },
                "autoUpdatable": true,
                "autoUpdate": true,
                "autoSuppress": true,
                "description": "An issue with the system has been detected. This system alert is generated for system information that may merit further investigation. This may be due to things like probes failing to connect.\n\nAction: Review the system message. Use the status page to see additional system information that may help with diagnostics.",
                "behaviour": "decreasing",
                "defeats": [],
                "created": {
                    "by": "System"
                },
                "edited": {
                    "by": "System"
                },
                "version": 16,
                "priority": 3,
                "category": "Informational",
                "compliance": false
            },
            "now": {
                "name": "System::System",
                "pid": 530,
                "phid": 4861,
                "uuid": "1c3f429b-ccb9-46a2-b864-868653bc780a",
                "logic": {
                    "data": [
                        9686
                    ],
                    "type": "componentList",
                    "version": 1
                },
                "throttle": 10,
                "sharedEndpoints": false,
                "actions": {
                    "alert": true,
                    "antigena": {},
                    "breach": true,
                    "model": true,
                    "setPriority": false,
                    "setTag": false,
                    "setType": false
                },
                "tags": [],
                "interval": 0,
                "delay": 0,
                "sequenced": true,
                "active": true,
                "modified": "2021-11-24 18:04:19",
                "activeTimes": {
                    "devices": {},
                    "tags": {},
                    "type": "exclusions",
                    "version": 2
                },
                "autoUpdatable": true,
                "autoUpdate": true,
                "autoSuppress": true,
                "description": "An issue with the system has been detected. This system alert is generated for system information that may merit further investigation. This may be due to things like probes failing to connect.\n\nAction: Review the system message. Use the status page to see additional system information that may help with diagnostics.",
                "behaviour": "decreasing",
                "defeats": [],
                "created": {
                    "by": "System"
                },
                "edited": {
                    "by": "System"
                },
                "message": "Updated model filters and logic",
                "version": 16,
                "priority": 3,
                "category": "Informational",
                "compliance": false
            }
        },
        "triggeredComponents": [
            {
                "time": 1723070607000,
                "cbid": 54607,
                "cid": 9686,
                "chid": 15251,
                "size": 1,
                "threshold": 0,
                "interval": 3600,
                "logic": {
                    "data": {
                        "left": {
                            "left": "A",
                            "operator": "AND",
                            "right": "B"
                        },
                        "operator": "OR",
                        "right": {
                            "left": {
                                "left": "A",
                                "operator": "AND",
                                "right": "C"
                            },
                            "operator": "OR",
                            "right": {
                                "left": {
                                    "left": "A",
                                    "operator": "AND",
                                    "right": "D"
                                },
                                "operator": "OR",
                                "right": {
                                    "left": {
                                        "left": "A",
                                        "operator": "AND",
                                        "right": "E"
                                    },
                                    "operator": "OR",
                                    "right": {
                                        "left": "A",
                                        "operator": "AND",
                                        "right": "F"
                                    }
                                }
                            }
                        }
                    },
                    "version": "v0.1"
                },
                "metric": {
                    "mlid": 206,
                    "name": "dtsystem",
                    "label": "System"
                },
                "triggeredFilters": [
                    {
                        "cfid": 111299,
                        "id": "A",
                        "filterType": "Event details",
                        "arguments": {
                            "value": "analyze credential ignore list"
                        },
                        "comparatorType": "does not contain",
                        "trigger": {
                            "value": "Probe erebus-pull-mode-vsensor (54.155.33.146) last contact was 67 hours ago"
                        }
                    }
                ]
            }
        ],
        "percentscore": 73,
        "score": 0.728,
        "device": {
            "did": -1
        },
        "did": -1
    }
]

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.model.now.name on .device.ip (Policy Breach ID: .pbid) Event.Title Model Breach .creationTime System::System on -1 (Policy Breach ID: 53001) N/A
.description Event.Description N/A .creationTime An issue with the system has been detected. ... N/A
.sharedEndpoints, .sequenced,.active,.compliance, .autoUpdatable,.autoUpdate, .autoSuppress Event.Tags N/A .creationTime N/A Key is set as tag if the value for that key is True
.model.now.tags Event.Tags N/A .creationTime N/A N/A
.device.mac Related Indicator Mac Address .creationTime N/A N/A
.device.ip Related Indicator/ Related Asset IP Address .creationTime N/A If ip is private Asset is ingested, if not Indicator
.device.ips[].ip Related Indicator/ Related Asset IP Address .creationTime N/A If ip is private Asset is ingested, if not Indicator
N/A Related Indicator Tag/ Related Asset Tag N/A .creationTime Current If ip is from the path .device.ip
N/A Related Indicator Tag/ Related Asset Tag N/A .creationTime Historic If ip is from the path .device.ips[].ip
.device.hostname Related Indicator/ Related Asset FQDN .creationTime N/A If hostname is not a valid domain Asset will be ingested, if not Indicator
.pbid Event.Attribute Policy Breach ID .creationTime 53001 N/A
.score Event.Attribute Score .creationTime 0.728 N/A
.breachUrl Event.Attribute Breach URL .creationTime https://usw1-54655-01.cloud.darktrace.com/#modelbreach/53001 N/A
.model.now.pid Event.Attribute Policy ID .creationTime 530 N/A
.model.now.throttle Event.Attribute Throttle .creationTime 10 N/A
.model.now.interval Event.Attribute Interval .creationTime 3600 N/A
.model.now.priority Event.Attribute Priority .creationTime 3 Updated at ingestion
.model.now.category Event.Attribute Category d .creationTime Informational Updated at ingestion
.model.now.behaviour Event.Attribute Behaviour .creationTime decreasing Updated at ingestion
.model.now.version Event.Attribute Version .creationTime 16 Updated at ingestion

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Darktrace AI Analyst Incident Events

Metric Result
Run Time 1 minute
Events 5
Event Attributes 18
Indicators 2
Assets 3

Darktrace Model Breaches

Metric Result
Run Time 2 minutes
Events 1,183
Event Attributes 9,464
Indicators 4
Assets 39

Change Log

  • Version 1.0.0
    • Initial release
