DNS Twister CDF

The web format of this guide reflects the most current release. Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Current Integration Version

1.0.0

Compatible with ThreatQ Versions

>= 5.24.1

Support Tier

ThreatQ Supported

Introduction

DNS fuzzing is an automated workflow that aims to uncover potentially malicious domains that target your organization by generating a comprehensive list of permutations based on a provided domain name, and subsequently verifies whether any of these permutations are in use in DNS currently.

The DNS Twister CDF can ingest all variations or just currently active variants. Additionally, you can add known-good variants to avoid creating unwanted indicators.

The integration provides the following feed:

DNS Twister - performs fuzzing of corporate domains and lookup in DNS.

The integration ingests indicator system objects.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

Log into https://marketplace.threatq.com/.
Locate and download the integration yaml file.
Navigate to the integrations management page on your ThreatQ instance.
Click on the Add New Integration button.
Upload the integration yaml file using one of the following methods:
- Drag and drop the file into the dialog box
- Select Click to Browse to locate the file on your local machine
Select the individual feeds to install, when prompted and click Install.
ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

The feed(s) will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

Navigate to your integrations management page in ThreatQ.
Select the OSINT option from the Category dropdown (optional).
If you are installing the integration for the first time, it will be located under the Disabled tab.
Click on the integration entry to open its details page.

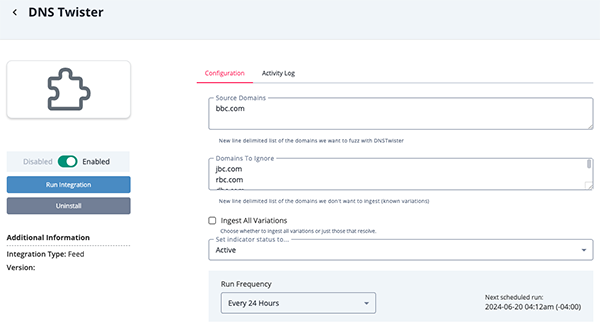

Enter the following parameters under the Configuration tab:

Parameter	Description
Source Domain	Enter a line-delimited list of domains to fuzz with DNS Twister.
Domains to Ignore	Enter a line-delimited list of domains to ignore. Example: If your primary domain is `brandname.com`, you might already have `brandname.org` and `brandname.net` that you wouldn't want to ingest each time. These alternatives can be added to the list to be skipped.
Ingest All Variations	Enable this option to ingest all variations. This option is not enabled by default, which means the integration will ingest only those variations that have DNS entries to resolve. Exercise caution before enabling this configuration option.

Review any additional settings, make any changes if needed, and click on Save.
Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

DNS Twister

The DNS Twister feed takes the FQDN provided and converts it to the hexadecimal format required by the fuzzer.

GET https://dnstwister.report/api/to_hex/<domain>

Sample Response:

{
    "domain": "bbc.com",
    "domain_as_hexadecimal": "6262632e636f6d",
    "fuzz_url": "https://dnstwister.report/api/fuzz/6262632e636f6d",
    "has_mx_url": "https://dnstwister.report/api/mx/6262632e636f6d",
    "parked_score_url": "https://dnstwister.report/api/parked/6262632e636f6d",
    "resolve_ip_url": "https://dnstwister.report/api/ip/6262632e636f6d",
    "url": "https://dnstwister.report/api/to_hex/bbc.com"
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
`main`	Attribute	Original Domain	N/A	`bbc.com`	This represents the original domain that seeded the fuzzer. It's added as an attribute rather than indicator to avoid needing to store whitelisted indicators.

Get Domain Fuzz (Supplemental)

The Get Domain Fuzz supplemental feed generates a list of fuzzed domains based on the hexadecimal variant of your initial brand domain.

GET https://dnstwister.report/api/fuzz/<domain-as-hex>

Sample Response:

{
    "domain": "bbc.com",
    "domain_as_hexadecimal": "6262632e636f6d",
    "fuzzy_domains":
    [
        {
            "domain": "bbc.com",
            "domain_as_hexadecimal": "6262632e636f6d",
            "fuzz_url": "https://dnstwister.report/api/fuzz/6262632e636f6d",
            "fuzzer": "Original",
            "has_mx_url": "https://dnstwister.report/api/mx/6262632e636f6d",
            "parked_score_url": "https://dnstwister.report/api/parked/6262632e636f6d",
            "resolve_ip_url": "https://dnstwister.report/api/ip/6262632e636f6d"
        },
        {
            "domain": "cbc.com",
            "domain_as_hexadecimal": "6362632e636f6d",
            "fuzz_url": "https://dnstwister.report/api/fuzz/6362632e636f6d",
            "fuzzer": "Bitsquatting",
            "has_mx_url": "https://dnstwister.report/api/mx/6362632e636f6d",
            "parked_score_url": "https://dnstwister.report/api/parked/6362632e636f6d",
            "resolve_ip_url": "https://dnstwister.report/api/ip/6362632e636f6d"
        },
        {
            "domain": "fbc.com",
            "domain_as_hexadecimal": "6662632e636f6d",
            "fuzz_url": "https://dnstwister.report/api/fuzz/6662632e636f6d",
            "fuzzer": "Bitsquatting",
            "has_mx_url": "https://dnstwister.report/api/mx/6662632e636f6d",
            "parked_score_url": "https://dnstwister.report/api/parked/6662632e636f6d",
            "resolve_ip_url": "https://dnstwister.report/api/ip/6662632e636f6d"
        }
    ],
    "has_mx_url": "https://dnstwister.report/api/mx/6262632e636f6d",
    "parked_score_url": "https://dnstwister.report/api/parked/6262632e636f6d",
    "resolve_ip_url": "https://dnstwister.report/api/ip/6262632e636f6d",
    "url": "https://dnstwister.report/api/fuzz/6262632e636f6d"
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
`fuzzy_domains[].domain`	Indicator	FQDN	N/A	`cbc.com`	Primary output from the feed, a domain created by fuzzing the original
`fuzzy_domains[].domain_as_hexadecimal`	Attribute	Domain as Hex	N/A	`6362632e636f6d`	An unambiguous representation of the fuzzed domain ingested.
`fuzzy_domains[].fuzzer`	Attribute	Fuzz Method	N/A	`Bitsquatting`	The method used to turn the original domain into the ingested domain.

Get Domain IP (Supplemental)

The Get Domain IP supplemental feed collects the IP that is behind the domain, if it resolves.

GET https://dnstwister.report/api/ip/<domain-as-hex>

Sample Response:

{
    "domain": "cbc.com",
    "domain_as_hexadecimal": "6362632e636f6d",
    "error": false,
    "fuzz_url": "https://dnstwister.report/api/fuzz/6362632e636f6d",
    "has_mx_url": "https://dnstwister.report/api/mx/6362632e636f6d",
    "ip": "121.78.127.249",
    "parked_score_url": "https://dnstwister.report/api/parked/6362632e636f6d",
    "url": "https://dnstwister.report/api/ip/6362632e636f6d"
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
`ip`	Indicator	IP	N/A	`121.78.127.249`	Secondary output from the feed, an IP that the fuzzed domain maps to. Added as Indirect status

Get Domain MX (supplemental)

GET https://dnstwister.report/api/mx/<domain-as-hex>

Sample Response:

{
    "domain": "cbc.com",
    "domain_as_hexadecimal": "6362632e636f6d",
    "error": false,
    "fuzz_url": "https://dnstwister.report/api/fuzz/6362632e636f6d",
    "mx": true,
    "parked_score_url": "https://dnstwister.report/api/parked/6362632e636f6d",
    "resolve_ip_url": "https://dnstwister.report/api/ip/6362632e636f6d",
    "url": "https://dnstwister.report/api/mx/6362632e636f6d"
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
`mx`	Attribute	Domain has MX	N/A	`Yes`	Whether the domain has an MX record for this domain, the value of true or false is mapped to "Yes" or "No", respectively.

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Metric	Result
Run Time	3 minutes
Indicators	150
Indicator Attributes	600

Known Issues / Limitations

Excessive use can result in temporary rejection of requests due to rate limiting. The feed has some built-in rate limiting to assist with this.

Change Log

Version 1.0.0
- Initial release
