Cyware CSAP CDF

The web format of this guide reflects the most current release. Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Current Integration Version

1.0.0

Compatible with ThreatQ Versions

>= 5.25.0

Support Tier

ThreatQ Supported

Introduction

The Cyware CSAP CDF integration enables the automatic and periodic ingestion of alerts from Cyware CSAP. These alerts come into ThreatQ as Report objects, along with context such as tags, related malware, related threat actors, related indicators, attribution, and more.

Cyware CSAP is a platform for sharing threat information and collaborating on security incidents. It gathers alerts from various sources, analyzes them, and helps security teams prioritize and respond to threats more quickly. This improves situational awareness and allows teams to work together effectively to defend against cyberattacks.

The integration provides the following feed:

Cyware CSAP Alerts - ingests alerts from Cyware CSAP.

The integration ingests the following system objects:

Adversaries
Attack Patterns
Indicators
- Indicator Attributes
Malware
Reports
- Report Attributes
Tags
Vulnerabilities

Prerequisites

The following is required in order to install and run the integration:

Cyware CSAP API Credentials.
Your ThreatQ instance's egress IP address must be whitelisted in Cyware CSAP.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

Log into https://marketplace.threatq.com/.
Locate and download the integration yaml file.
Navigate to the integrations management page on your ThreatQ instance.
Click on the Add New Integration button.
Upload the integration yaml file using one of the following methods:
- Drag and drop the file into the dialog box
- Select Click to Browse to locate the file on your local machine
ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.
The feed will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

Navigate to your integrations management page in ThreatQ.
Select the Commercial option from the Category dropdown (optional).
If you are installing the integration for the first time, it will be located under the Disabled tab.
Click on the integration entry to open its details page.

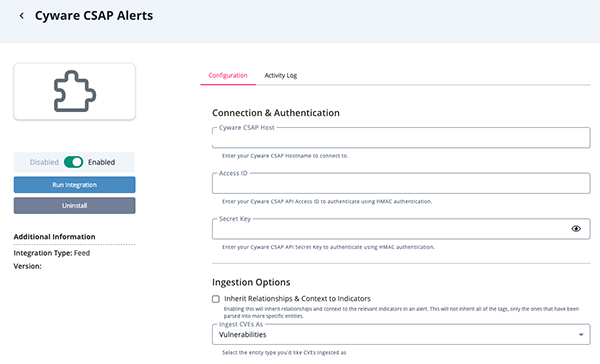

Enter the following parameters under the Configuration tab:

Parameter	Description
Cyware CSAP Host	Enter your Cyware CSAP Hostname.
Access ID	Enter your Cyware CSAP API Access ID to authenticate using HMAC authentication.
Secret Key	Enter your Cyware CSAP API Secret Key to authenticate using HMAC authentication.
Inherit Relationships & Context to Indicators	Enabling this parameter option to inherit relationships and context to the relevant indicators in an alert. This parameter is disabled by default. This will not inherit all of the tags, only the ones that have been parsed into more specific entities.
Ingest CVEs As	Select how to ingest CVEs as in the ThreatQ platform. Options include: Indicators (CVE) Vulnerabilities (default)

Review any additional settings, make any changes if needed, and click on Save.
Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Cyware CSAP Alerts

The Cyware CSAP Alerts feed feed ingests alerts from Cyware CSAP. Cyware CSAP provides report content as well as tags with each of the alerts. ThreatQ will parse these tags, looking for relevant threat actors, malware, attack patterns, vulnerabilities, and more. Parsing this context will allow you to better manage the threat intelligence, resulting in faster times to detection and response.

GET https://{tenant}.cyware.com/api/csap/v1/list_alert/

Sample Response:

{
  "count": 2,
  "data": [
    {
      "short_id": "80d38c75",
      "title": "ZeroFox Intelligence Brief - Article 23 and Risks to Foreign Nationals in Hong Kong",
      "status": "PUBLISHED",
      "published_time": 1711469354
    },
    {
      "short_id": "64cd1c71",
      "title": "Top Malware Reported in the Last 24 Hours",
      "status": "PUBLISHED",
      "published_time": 1711466108
    }
  ]
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
`.title`	Report Value	N/A	`.published_time`	N/A	N/A
`.content`, `.card_info`, `.recommendation`, `.attachments[]`, `.optional_fields.description`, `.optional_fields.additional_info`, `.optional_fields.response_action`	Report Description	N/A	N/A	N/A	Fields are concatenated to form description HTML
`.card_tag[].tag_name`	Malware Value	N/A	`.published_time`	`Jasmin Ransomware`	Parsed based on tag value
`.card_tag[].tag_name`	Adversary Name	N/A	`.published_time`	`APT28`	Parsed based on tag value
`.card_tag[].tag_name`	Attack Pattern Value	N/A	`.published_time`	`T1041 - XXXXX`	Parsed based on tag value
`.card_tag[].tag_name`	Indicator Value	CVE	`.published_time`	`CVE-2024-12345`	Parsed based on tag value; If `Ingest CVEs As` user field is set to `Indicators`
`.card_tag[].tag_name`	Vulnerability Value	N/A	`.published_time`	`CVE-2024-12345`	Parsed based on tag value; If `Ingest CVEs As` user field is set to `Vulnerabilities`
`.card_tag[].tag_name`	Attribute	Tactic	`.published_time`	`Initial Access`	Parsed based on tag value
`.card_tag[].tag_name`	Attribute	Affected Sector	`.published_time`	`Healthcare`	Parsed based on tag value
`.card_tag[].tag_name`	Tag	N/A	`.published_time`	`Cyber Threats`	If no other entity is parsed from the tag
`.indicators.{type}. blacklisted[]`	Indicator	Mapped from `.indicators.{type}`	`.published_time`	N/A	Default Indicator Status is applied
`.indicators.{type}. whitelisted[]`	Indicator	Mapped from `.indicators.{type}`	`.published_time`	N/A	Whitelisted Status is applied
`.info_source[]. source_name`	Attribute	`Source`	`.published_time`	`Flashpoint`	N/A
`.card_group[]. group_name`	Attribute	`Alert Group`	`.published_time`	`All CSAP Portal Users (MMost Users)`	Only applied to Report
`.cyber_threat_method [].cyber_threat_method _name`	Attribute	`Cyber Threat Method`	`.published_time`	`Compromised User Accounts`	N/A
`.physical_threat_method [].physical_threat_method _name`	Attribute	`Physical Threat Method`	`.published_time`	N/A	Only applied to Report
`.threat_actor[].threat_ actor_name`	Adversary Name	N/A	`.published_time`	N/A	N/A
`.reportsource[]. reportsource_name`	Attribute	`Source`	`.published_time`	`Government Organisation`	N/A
`.detectionmethod[]. detectionmethod_name`	Attribute	`Detection Method`	`.published_time`	N/A	N/A
`.vulnerability_type[]`	Attribute	N/A	`.published_time`	N/A	Only applied to Report
`.targeted_sector[]`	Attribute	`Target Sector`	`.published_time`	N/A	N/A
`.content`, `.card_info`	Indicator Value	CVE	`.published_time`	N/A	CVEs parsed from description; If `Ingest CVEs As` user field is set to `Indicators`
`.content`, `.card_info`	Vulnerability Value	N/A	`.published_time`	N/A	CVEs parsed from description; If `Ingest CVEs As` user field is set to `Vulnerabilities`
`.credibility. credibility_name`	Attribute	`Credibility`	`.published_time`	`Verified`	Updated at ingestion
`.card_category. category_name`	Attribute	`Category`	`.published_time`	`Malware`	N/A
`.confidence. confidence_name`	Attribute	Confidence	`.published_time`	N/A	Updated at ingestion
`.urgency.urgency_name`	Attribute	Urgency	`.published_time`	N/A	Updated at ingestion
`.severity.severity_name`	Attribute	Severity	`.published_time`	N/A	Updated at ingestion
`.priority.priority_name`	Attribute	Priority	`.published_time`	N/A	Updated at ingestion
`.risk.risk_name`	Attribute	Risk	`.published_time`	N/A	N/A

Cyware CSAP Indicator Type Mapping

ThreatQuotient provides the following Cyware CSAP Indicator Type to ThreatQ mapping:

Cyware CSAp Indicator	ThreatQ Indicator Type
md5	MD5
sha1	SHA-1
sha256	SHA-256
sha512	SHA-512
ipv4	IP Address
ip	IP Address
ipv6	IPv6 Address
fqdn	FQDN
host	FQDN
hostname	FQDN
domain	FQDN
url	URL

Cyware CSAP - Get Alert (Supplemental)

The Get Alert supplemental feed fetches an attachment's content by its ID and its parent's report ID.

GET https://{tenant}.cyware.com/api/csap/v1/get_alert_detail/{alert.short_id}

Sample Response:

{
    "short_id": "0a586299",
    "title": "Alpha Ransomware Emerges from NetWalker Ashes",
    "content": "<html><body><p>Alpha, a new ransomware that first appeared in February 2023 has intensified its activities in recent weeks and strongly resembles the now defunct NetWalker ransomware that vanished in January 2021.</p></body></html>",
    "status": "PUBLISHED",
    "tlp": "CLEAR",
    "card_group": [
        {
            "group_id": "70455e0f",
            "group_name": "All CSAP Portal Users (MMost Users)",
            "group_tlp": "RED",
            "group_type": "CUSTOM"
        }
    ],
    "card_category": {
        "category_id": "910364bb",
        "category_name": "Partner Advisory"
    },
    "card_info": "To view additional indicators provided by RiskIQ, click <a href=https://community.riskiq.com/article/507ee0d6>https://community.riskiq.com/article/507ee0d6</a> to set up an account.<br><br>",
    "info_source": [
        {
            "source_id": "da07127f",
            "source_name": "RiskIQ"
        }
    ],
    "card_image": null,
    "push_required": true,
    "push_email_notification": true,
    "published_time": 1708459200,
    "optional_fields": {
        "threat_indicators": "0bad18cb64b14a689965540126e0adbc952f090f1fb7b6447fe897a073860cdb 1c12ff296e7d9f90391e45f8a1d82d8140edf98d616a7da28741094d60d4779d 2d07f0425dc465b3a1267a672c1293f9a3d0cd23106b7be490807fea490978ea 46569bf23a2f00f6bac5de6101b8f771feb972d104633f84e13d9bc98b844520 480cf54686bd50157701d93cc729ecf70c14cd1acd2cb622b38fc25e23dfbc26 5f3bf9c07eedde053f19ce134caa7587f8fb6c466e33256e1253f3a9450b7110 6462b8825e02cf55dc905dd42f0b4777dfd5aa4ff777e3e8fe71d57b7d9934e7 6e204e39121109dafcb618b33191f8e977a433470a0c43af7f39724395f1343e 89bfcbf74607ad6d532495de081a1353fc3cf4cd4a00df7b1ba06c10c2de3972 9c71500a9472814f7bf97a462fe9822cf93dc41e2e34cc068734586d5e5146ef 9d6ed8396ee79ae92a5e6cef718add321226def3461711cf585e0fd302c961ae a8d350bbe8d9ccfbb0c3e9c2dd9251c957d18ce13ae405ceb2f2d087c115db15 ab317c082c910cfe89214b31a0933eaab6c766158984f7aafb9943aef7ec6cbb b2adf8ec7ab5193c7358f6acb30b003493466daee33ea416e3f703e744f73b7d b7ca6d401b051712cb5b1a388a2135921a4420db8fe41842d51d2ec27380b479 c00fbf3fb992e7f237c396d69081246570cbd60d6c7a2262c01ae4d8e6f17ddd c5f7492a3e763b4456afbb181248fdb8e652575cea286db7861e97ffcd1b72e4 df15266a9967320405b3771d0b7353dc5a4fb1cbf935010bc3c8c0e2fe17fb94 e43b1e06304f39dfcc5e59cf42f7a17f3818439f435ceba9445c56fe607d59ea e573d2fec8731580ab620430f55081ceb7153d0344f2094e28785950fb17f499 e68dd7f20cd31309479ece3f1c8578c9f93c0a7154dcf21abce30e75b25da96b f3858d29073ae90f90c9bb284913752533fe1a6437edd6536e4b1775fc8f6db4 f5d25777331ba55d80e064dea72240c1524ffcd3870555a8c34ff5377def3729"
    },
    "indicators": {
        "sha256": {
            "whitelisted": [],
            "blacklisted": [
                "1c12ff296e7d9f90391e45f8a1d82d8140edf98d616a7da28741094d60d4779d",
                "6462b8825e02cf55dc905dd42f0b4777dfd5aa4ff777e3e8fe71d57b7d9934e7"
            ]
        }
    },
    "credibility": null,
    "confidence": null,
    "announcement_type": null,
    "risk": null,
    "urgency": null,
    "severity": null,
    "priority": null,
    "kill_chain_phase": null,
    "exploit_likelihood": null,
    "exploited_wild": null,
    "systemsaffected": null,
    "threat_actor": [],
    "threat_method": [],
    "detectionmethod": [],
    "root_cause": [],
    "card_intel_source": [
        {
            "source_id": "da07127f",
            "info_source_id": "da07127f",
            "card_count": 462,
            "info_source_name": "RiskIQ",
            "alert_count": 462,
            "created": "2022-08-02T18:55:42.009932Z",
            "modified": "2022-08-02T18:55:42.010177Z",
            "source_name": "RiskIQ",
            "is_editable": false,
            "is_active": true,
            "index": 0
        }
    ],
    "cyber_threat_method": [],
    "physical_threat_method": [],
    "document_type": [],
    "vendorsnproduct": [],
    "reportsource": [],
    "vulnerability_type": [],
    "vulnerability_source": [],
    "targeted_sector": [],
    "card_tag": [
        {
            "tag_name": "Alpha",
            "tag_id": "9475209d-1313-49a0-9a19-9f5cca3dc2ac",
            "is_active": true,
            "tag_slug": "alpha"
        },
        {
            "tag_name": "T1056 - Input Capture",
            "tag_id": "5bb0b5e8-57b6-4bd9-b44a-7cd75715eb7e",
            "is_active": true,
            "tag_slug": "t1056-input-capture"
        },
        {
            "tag_name": "OSINT",
            "tag_id": "41b726a3-3298-4c46-a089-b796dadcbad2",
            "is_active": true,
            "tag_slug": "osint"
        },
        {
            "tag_name": "Ransomware",
            "tag_id": "caeeb35d-a009-498a-93f8-a36fcb390054",
            "is_active": true,
            "tag_slug": "ransomware"
        }
    ],
    "previous_base_card": null,
    "child_cards": null,
    "tactic_technique_pairs_data": [],
    "custom_fields": {},
    "tracking_id": "42729d71-ddb9-49b4-8931-72df2751bdac",
    "attachments": [],
    "event": null,
    "intel_id": null,
    "rfi_id": null
}

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Metric	Result
Run Time	7 minutes
Adversaries	12
Indicators	172
Indicator Attributes	390
Malware	16
Reports	65
Report Attributes	205
Vulnerabilities	13

Known Issues / Limitations

Cyware CSAP has a rate limit on how many API calls you can make within an hour. If you are requesting historical data, you may hit this limit, which will cause a feed run error.

Change Log

Version 1.0.0
- Initial release

PDF Guides

Document	ThreatQ Version
Cyware CSAP CDF Guide v1.0.0	5.25.0 or Greater
