Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Cyberint Argos Edge CDF for ThreatQ allows the automatic ingestion of intelligence from the Cyberint Argos Edge platform. Intelligence such as alerts and/or CVEs can be pulled into ThreatQ to drive incident response and prioritization.

The integration provides the following feeds:

• Cyberint Argos Edge - Alerts - pulls alerts from the Cyberint Argos Edge platform.
• Cyberint Argos Edge - CVEs - pulls relevant CVEs from the Cyberint Argos Edge platform.

The integration ingests the following system object types:

• Assets
• Adversaries
• Attack Patterns
• Events
• Indicators
• Tools
• Identities

Prerequisites

The following is required in order to use the integration:

• A Cyberint Argos Edge account with an API Access Token.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the integration yaml file.
3. Navigate to the integrations management page on your ThreatQ instance.
4. Click on the Add New Integration button.
5. Upload the integration yaml file using one of the following methods:
   • Drag and drop the file into the dialog box
   • Select Click to Browse to locate the file on your local machine
6. Select the feeds to install, when prompted, and click Install. The feed(s) will be added to the integrations page.

   ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Commercial option from the Category dropdown (optional).

   If you are installing the integration for the first time, it will be located under the Disabled tab.

3. Click on the integration entry to open its details page.
4. Enter the following parameters under the Configuration tab:

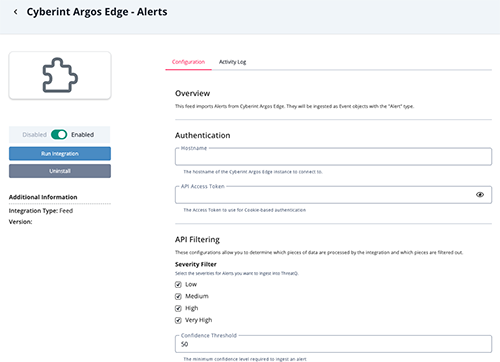

   Alerts Configuration Parameters

   Parameter	Description
   Hostname	The hostname of your Cyberint Argos Edge instance.
   API Access Token	Your Access Token to use for Cookie-based authentication.
   Severity Filter	Select the severities for Alerts you want to ingest into ThreatQ.  Options include: Low Medium High Very High
   Confidence Threshold	Select the minimum confidence level required to ingest an alert. The default value is 50.
   Alert Type Filter	Select the Alert Types you want to ingest into ThreatQ. Options include: All (default) Refund Fraud Carding Coupon Fraud Money Laundering Victim Report Malicious Insider Extortion Phishing Email Phishing Kit Phishing Website Lookalike Domain Phishing Target List Malicious File Reconnaissance Automated Attack Tools Business Logic Bypass Target List Official Social Mediua Profile Impersonation Intellectual Property Infringement Unauthorized Trading Negative Sentiment Fake Job Posting Defacement Compromised PII Internal Information Disclosure Compromised Payment Cards Compromised Employee Credentials Compromised Customer Credentials Compromised Access Token Ransomware Exposed Web Interfaces Hijackable Subdomains Website Vulnerabilities Exposed Cloud Storage Exploitable Ports Mail Servers in Blacklist Server Connected to Botnet Email Security Issues Certificate Authority Issues SSL/TLS User Defined Saved Query Vendor Incident Other
   Context Filter	Select the pieces context you want to ingest into ThreatQ with each alert. Options include: Environment (default) Tags (default) Confidence (default) Severity (default) Category (default) Alert Type (default) Impact (default) Source Category Target Vector (default) Target Brand (default)
   Relationship Filter	Select the relationships you want to ingest into ThreatQ with each alert. Options include: IOCs (default) Threat Actors (default) MITRE ATT&CK Techniques (default) Assets (default)  Related CVEs (default) Related Tools Leaked/Compromised Credentials (Identities)
   Alert Context Filter	Select the pieces alert data context you want to ingest into ThreatQ with each alert. Options include: Detection Reasons (default) Detection Source (default) IP Reputation (default) Affected Products (default) Cyberint Score (default) Nameservers Registrar Site Title  A Record Interface Type Mail Server Blacklist Repository Hosting Provider Vendor Name Exposed Code Link  Not all pieces of context will be available for certain alert types.
   Include Leaked Credentials Password	Enable this parameter to include the password for leaked credentials (Identities). This parameter is disabled by default.
   Include Raw Alert Data in Description	Enable this to include the Raw Alert Data in the Event Description. The integration will attempt to parse as much details out of the raw alert data as possible. However, new fields that have introduced after the release of this integration may not be parsed.
   Ingest CVEs As	Select the ThreatQ object type to ingest the CVEs into ThreatQ as. Options include: Vulnerabilities (default) and Indicators (CVE).
   Verify SSL	Enable this option if the feed should verify the SSL certificate.
   Disable Proxies	Enable this option to have the feed ignore proxies set in the ThreatQ UI.

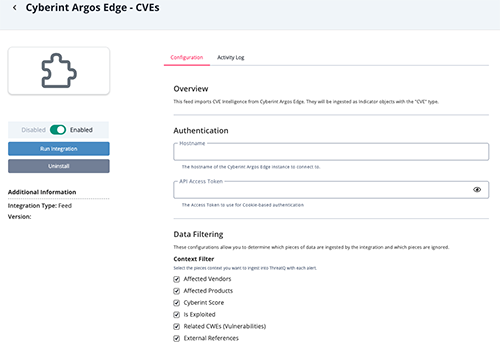

   CVEs Configuration Parameters

   Parameter	Description
   Hostname	The hostname of your Cyberint Argos Edge instance.
   API Access Token	Your Access Token to use for Cookie-based authentication.
   Context Filter	Select the pieces context you want to ingest into ThreatQ. Options include: Affected Vendors (default) Affected Products (default) Cyberint Score (default) Is Exploited (default) Related CWEs (Vulnerabilities) (default) External References
   CVSS Version	Select the CVSS version to use when parsing CVSS data. Options include: CVSS v2 CVSS v3 (default)
   CVSS Context Filter	Select the CVSS context to ingest into ThreatQ. Options include: Impact Score (default) Exploitability Score (default) Vector String (default) Attack Vector Attack Complexity Privileges Required User Interaction Scope Confidentiality Impact Integrity Impact Availability Impact Base Score (default) Base Severity (default)
   Ingest CVEs As	Select the ThreatQ object type to ingest the CVEs into ThreatQ as. Options include: Vulnerabilities (default) and Indicators (CVE).
   Language	Enter the language (code) to choose when parsing contextual data. The default setting is en.
   Verify SSL	Enable this option if the feed should verify the SSL certificate.
   Disable Proxies	Enable this option to have the feed ignore proxies set in the ThreatQ UI.



5. Review any additional settings, make any changes if needed, and click on Save.
6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

{
  "total": 1,
  "alerts": [
    {
      "environment": "ThreatQ",
      "ref_id": "THR-623",
      "confidence": 90,
      "status": "open",
      "severity": "high",
      "created_date": "2023-09-07T11:15:17",
      "created_by": {
        "email": "system"
      },
      "category": "data",
      "type": "compromised_customer_credentials",
      "source_category": "malware_log",
      "source": "RedLine Malware Logs",
      "targeted_vectors": ["customer"],
      "targeted_brands": ["ThreatQ"],
      "related_entities": ["example.com"],
      "impacts": [
        "data_compromise",
        "unauthorized_access",
        "account_takeover",
        "revenue_loss",
        "brand_degradation",
        "customer_churn",
        "financial_penalties"
      ],
      "acknowledged_date": null,
      "acknowledged_by": null,
      "publish_date": "2021-09-05T10:44:44",
      "title": "Company Customer Credentials Exposed",
      "alert_data": {
        "csv": {
          "id": 1509034,
          "name": "company_customer_credentials_exposed.csv",
          "mimetype": "text/csv",
          "is_safe": true,
          "content": null
        },
        "application": null,
        "total_credentials": 2,
        "hashed_attachment_content_csv": "d84a34a201fc9b34e401a8d06301bda30ef998502f95c4974b3933a224988b27"
      },
      "iocs": [],
      "ticket_id": null,
      "threat_actor": null,
      "modification_date": "2023-09-07T11:15:17",
      "closure_date": null,
      "closed_by": null,
      "closure_reason": null,
      "closure_reason_description": null,
      "description": "Compromised customer credentials for a company interface have been detected. The credentials seem to have been obtained by credential harvesting malware, which has infected the customer's machine and is sending user input logs, including harvested credentials, to the Command & Control (C&C) server operator. Therefore, the malware logs contain user credentials not only for the company login interface, but for other site login interfaces as well. Compromised customer credentials may be used by threat actors to perform fraudulent account activity on the customer's behalf, including unauthorized transactions, exposing the company to both financial impact and legal claims.",
      "recommendation": "Best practices include enforcing password reset for the compromised account and analyzing for fraudulent activity. In addition, consider implementing MFA in order to prevent account takeover with malware-harvested credentials. Note that the victim might still be infected by malware, so it is likely that new credentials will be harvested again. Therefore, consider contacting the customer and recommending they clean the infected machine. If fraudulent activity is found within the account's records, any IOCs should be flagged within the company's systems.",
      "tags": [],
      "analysis_report": null,
      "attachments": [],
      "mitre": ["T1593", "T1594", "T1589"],
      "related_assets": [
        {
          "name": "example.com",
          "id": "domain/ThreatQ/example.com",
          "type": "domain"
        }
      ]
    }
  ]
}

{
  "environment": "ThreatQ",
  "ref_id": "THR-623",
  "confidence": 90,
  "status": "open",
  "severity": "high",
  "created_date": "2023-09-07T11:15:17",
  "created_by": {
    "email": "system"
  },
  "category": "data",
  "type": "compromised_customer_credentials",
  "source_category": "malware_log",
  "source": "RedLine Malware Logs",
  "targeted_vectors": ["customer"],
  "targeted_brands": ["ThreatQ"],
  "related_entities": ["example.com"],
  "impacts": [
    "data_compromise",
    "unauthorized_access",
    "account_takeover",
    "revenue_loss",
    "brand_degradation",
    "customer_churn",
    "financial_penalties"
  ],
  "acknowledged_date": null,
  "acknowledged_by": null,
  "publish_date": "2021-09-05T10:44:44",
  "title": "Company Customer Credentials Exposed",
  "alert_data": {
    "csv": {
      "id": 1509034,
      "name": "company_customer_credentials_exposed.csv",
      "mimetype": "text/csv",
      "is_safe": true,
      "content": null
    },
    "application": null,
    "total_credentials": 2,
    "hashed_attachment_content_csv": "d84a34a201fc9b34e401a8d06301bda30ef998502f95c4974b3933a224988b27"
  },
  "iocs": [],
  "ticket_id": null,
  "threat_actor": null,
  "modification_date": "2023-09-07T11:15:17",
  "closure_date": null,
  "closed_by": null,
  "closure_reason": null,
  "closure_reason_description": null,
  "description": "Compromised customer credentials for a company interface have been detected. The credentials seem to have been obtained by credential harvesting malware, which has infected the customer's machine and is sending user input logs, including harvested credentials, to the Command & Control (C&C) server operator. Therefore, the malware logs contain user credentials not only for the company login interface, but for other site login interfaces as well. Compromised customer credentials may be used by threat actors to perform fraudulent account activity on the customer's behalf, including unauthorized transactions, exposing the company to both financial impact and legal claims.",
  "recommendation": "Best practices include enforcing password reset for the compromised account and analyzing for fraudulent activity. In addition, consider implementing MFA in order to prevent account takeover with malware-harvested credentials. Note that the victim might still be infected by malware, so it is likely that new credentials will be harvested again. Therefore, consider contacting the customer and recommending they clean the infected machine. If fraudulent activity is found within the account's records, any IOCs should be flagged within the company's systems.",
  "tags": [],
  "analysis_report": null,
  "attachments": [],
  "mitre": ["T1593", "T1594", "T1589"],
  "related_assets": [
    {
      "name": "example.com",
      "id": "domain/ThreatQ/example.com",
      "type": "domain"
    }
  ]
}

{
  "data": {
    "page_size": 20,
    "page_number": 1,
    "cves": [
      {
        "id": "CVE-2022-41073",
        "cve": {
          "data_type": "CVE",
          "data_format": "MITRE",
          "data_version": "4.0",
          "cve_data_meta": {
            "id": "CVE-2022-41073",
            "assigner": "secure@microsoft.com"
          },
          "problem_type": {
            "problem_type_data": [
              {
                "description": [
                  {
                    "lang": "en",
                    "value": "CWE-787"
                  }
                ]
              }
            ]
          },
          "references": {
            "reference_data": [
              {
                "url": "https://msrc.microsoft.com/update-guide/vulnerability/CVE-2022-41073",
                "name": "https://msrc.microsoft.com/update-guide/vulnerability/CVE-2022-41073",
                "reference_source": "MISC",
                "tags": []
              },
              {
                "url": "http://packetstormsecurity.com/files/174528/Microsoft-Windows-Privilege-Escalation.html",
                "name": "http://packetstormsecurity.com/files/174528/Microsoft-Windows-Privilege-Escalation.html",
                "reference_source": "MISC",
                "tags": []
              }
            ]
          },
          "description": {
            "description_data": [
              {
                "lang": "en",
                "value": "Windows Print Spooler Elevation of Privilege Vulnerability"
              }
            ]
          }
        },
        "configurations": {
          "cve_data_version": "4.0",
          "nodes": [
            {
              "operator": "OR",
              "negate": null,
              "children": [],
              "cpe_match": [
                {
                  "version_start_excluding": null,
                  "version_start_including": null,
                  "version_end_excluding": null,
                  "version_end_including": null,
                  "vulnerable": true,
                  "cpe23_uri": "cpe:2.3:o:microsoft:windows_server_2008:r2:sp1:*:*:*:*:x64:*",
                  "cpe_name": []
                },
                {
                  "version_start_excluding": null,
                  "version_start_including": null,
                  "version_end_excluding": null,
                  "version_end_including": null,
                  "vulnerable": true,
                  "cpe23_uri": "cpe:2.3:o:microsoft:windows_server_2012:r2:*:*:*:*:*:*:*",
                  "cpe_name": []
                }
              ]
            }
          ]
        },
        "impact": {
          "base_metric_v3": {
            "cvss_v3": {
              "version": "3.1",
              "vector_string": "CVSS:3.1/AV:L/AC:L/PR:L/UI:N/S:U/C:H/I:H/A:H",
              "attack_vector": "LOCAL",
              "attack_complexity": "LOW",
              "privileges_required": "LOW",
              "user_interaction": "NONE",
              "scope": "UNCHANGED",
              "confidentiality_impact": "HIGH",
              "integrity_impact": "HIGH",
              "availability_impact": "HIGH",
              "base_score": 7.8,
              "base_severity": "HIGH"
            },
            "exploitability_score": 1.8,
            "impact_score": 5.9
          },
          "base_metric_v2": null
        },
        "published_date": "2022-11-09T22:15:00+00:00",
        "last_modified_date": "2023-09-06T21:15:00+00:00",
        "cyberint_score": 9.80063,
        "research_content": {
          "analysis": "",
          "recommendation": "",
          "is_notable": true,
          "alias": [""],
          "updated_date": "2022-11-13T14:57:56.378035"
        },
        "known_exploited_vulnerability": true,
        "cpes": [
          {
            "vendor": "microsoft",
            "product": "windows_server_2008",
            "version": ["r2"],
            "version_start_excluding": null,
            "version_start_including": null,
            "version_end_excluding": null,
            "version_end_including": null,
            "vulnerable": null
          },
          {
            "vendor": "microsoft",
            "product": "windows_server_2012",
            "version": ["r2"],
            "version_start_excluding": null,
            "version_start_including": null,
            "version_end_excluding": null,
            "version_end_including": null,
            "vulnerable": null
          }
        ]
      }
    ]
  }
}

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Alerts

CVEs

Known Issues / Limitations

• Alert Data will be parsed, but due to the vast number of alert types, not all fields may be parsed. You can use the Include Raw Alert Data in Description option to include the raw alert data in the Event Description.
• The new MITRE filter uses cache memory to load all MITRE ATT&CK data, with the cache being refreshed every 24 hours.

Change Log

• Version 1.1.1
  • Resolved an error for Cyberint Argos Edge - CVEs caused by missing CVE values in problem_type_data.
• Version 1.1.0
  • Added a new MITRE Filter designed to streamline the handling of MITRE ATT&CK data and improve efficiency.
  • Updated minimum ThreatQ version to 6.5.0.
• Version 1.0.1
  • Resolved a Type Error that resulted in a Cannot parse argument of type None message.
  • All Cyberint Argos Edge feeds - added two new configuration parameters: Enable SSL Verification and Disable Proxies.
• Version 1.0.0
  • Initial release
