Integration Details

ThreatQuotient provides the following details for this integration:

Current Integration Version	1.0.0
Compatible with ThreatQ Versions	>= 5.24.0
Support Tier	ThreatQ Supported

Introduction

The Brandefense CDF provides users with ability to ingest data from Brandefense.

The integration provides the following feeds:

• Brandefense Incidents - ingests Incidents from Brandefense back to ThreatQ.
• Brandefense Indicators of Compromise - ingests IOCs from Brandefense back to ThreatQ.
• Brandefense CTI Rules - ingests YARA Signatures from Brandefense back to ThreatQ.
• Brandefense Assets - ingests Assets from Brandefense back to ThreatQ.

The feeds included with this integration ingest the following object types:

• Assets
  • Assets Attributes
• Incidents
  • Incidents Attributes
• Indicators
  • Indicator Attributes
• Organizations
  • Organization Attributes
• Signatures
  • Signatures Attributes

Prerequisites

The integration requires the following:

• Brandefense Token
• Organization Custom Object

  The Organization custom object must be installed prior to installing the CDF.

Organization Custom Object

The integration requires the Organization custom object.

Installation

The integration requires that the Organization custom object be installed on the ThreatQ platform first.  Attempting to install the integration prior to installing Organization custom object will result in failure.

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the integration zip file.
3. Extract and install the Organization custom object if you have not done so already.
4. Navigate to the integrations management page on your ThreatQ instance.
5. Click on the Add New Integration button.
6. Upload the integration yaml file using one of the following methods:
   • Drag and drop the file into the dialog box
   • Select Click to Browse to locate the file on your local machine
7. Select the individual feeds to install, when prompted and click Install.

   ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

The feed(s) will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Commercial option from the Category dropdown (optional).

   If you are installing the integration for the first time, it will be located under the Disabled tab.

3. Click on the integration entry to open its details page.
4. Enter the following parameters under the Configuration tab:

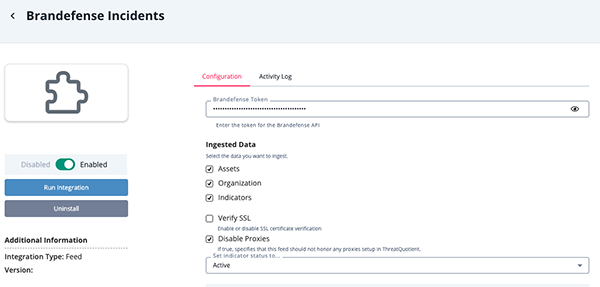

   Brandefense Incident Parameters

   Parameter	Description
   Brandefense Token	Your Brandefense Token.
   Ingested Data	Select the data to ingest.  Options include: Assets Organization Indicators
   Disable Proxies	Enable this option to have the feed ignore proxies set in the ThreatQ UI.
   Verify SSL	Enable this option if the feed should verify the SSL certificate.

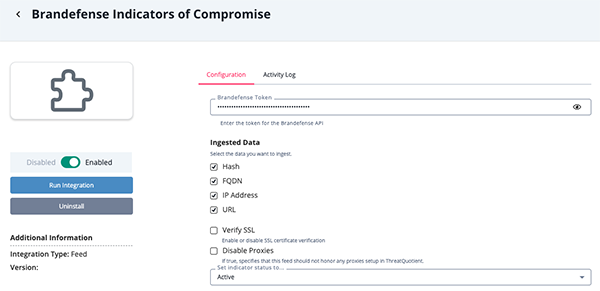

   Brandefense Indicators of Compromise Parameters

   Parameter	Description
   Brandefense Token	Your Brandefense Token.
   Ingested Data (Incident & Indicator of Compromise feeds only)	Select the data to ingest.  Options include: Hash FQDN IP Address URL
   Disable Proxies	Enable this option to have the feed ignore proxies set in the ThreatQ UI.
   Verify SSL	Enable this option if the feed should verify the SSL certificate.

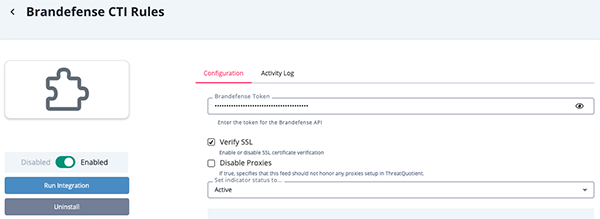

   Brandefense CTI Rules Parameters

   Parameter	Description
   Brandefense Token	Your Brandefense Token.
   Disable Proxies	Enable this option to have the feed ignore proxies set in the ThreatQ UI.
   Verify SSL	Enable this option if the feed should verify the SSL certificate.

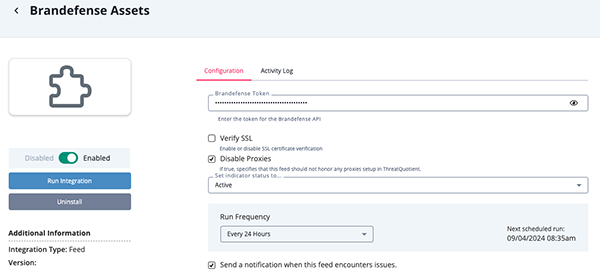

   Brandefense Assets Parameters

   Parameter	Description
   Brandefense Token	Your Brandefense Token.
   Disable Proxies	Enable this option to have the feed ignore proxies set in the ThreatQ UI.
   Verify SSL	Enable this option if the feed should verify the SSL certificate.



5. Review any additional settings, make any changes if needed, and click on Save.
6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Brandefense Incidents

The Brandfense Incidents feed ingests Incident and Incident related indicators into the ThreatQ platform

Fetch Incidents

GET https://api.brandefense.io/api/v1/incidents

Sample Response:

{
    "count": 7890,
    "next": "https://api.brandefense.io/api/v1/incidents?page=2",
    "previous": null,
    "results": [
        {
            "id": 545052,
            "code": "BRNDE-ASM-306",
            "created_at": "2024-08-21T00:59:42.148079Z",
            "status": "OPEN",
            "asset": {
                "id": 1639,
                "asset": "brandefense.io",
                "type": "DOMAIN",
                "status": "ACTIVE"
            },
            "organization": {
                "id": 15,
                "name": "PS BRANDEFENSE DEMO",
                "short_code": "BRNDE",
                "code": "brandefense-demo",
                "is_active": true,
                "is_mssp": false,
                "license_type": "LICENSED"
            },
            "title": "Daily Discovered Entity Updates",
            "assignees": [],
            "indicator_count": 45,
            "attachment_count": 0,
            "comment_count": 0,
            "category": "EXPOSURE_MANAGEMENT",
            "module": "ATTACK_SURFACE",
            "network_type": "SURFACE_WEB",
            "type": "SECURITY_SCAN",
            "tags": [],
            "mitre_tactics": [
                "RECONNAISSANCE",
                "DISCOVERY"
            ],
            "severity": "INFO"
        }
    ]
}

Fetch Incident Details

GET https://api.brandefense.io/api/v1/incidents/{code}

Sample Response:

{
    "id": 545052,
    "code": "BRNDE-ASM-306",
    "created_at": "2024-08-21T00:59:42.148079Z",
    "status": "OPEN",
    "risk_score": 15,
    "asset": {
        "id": 1639,
        "asset": "brandefense.io",
        "type": "DOMAIN",
        "status": "ACTIVE"
    },
    "organization": {
        "id": 15,
        "name": "PS BRANDEFENSE DEMO",
        "short_code": "BRNDE",
        "code": "brandefense-demo",
        "is_active": true,
        "is_mssp": false,
        "license_type": "LICENSED"
    },
    "title": "Daily Discovered Entity Updates",
    "description": "<p>This incident provides an overview of the latest findings in the attack surface monitoring over the last 24 hours. It includes details of exposed panels, new JavaScript files, subdomain changes, SSL certificate registrations, DNS record updates, open ports, service changes on ports and WHOIS record modifications.</p>",
    "evidence": {
        "Total_Entity_Count": "<a href=\"/modules/attack-surface/entities/ip-addresses?page=1&page_size=20first_seen__range=2024-08-20T01:00:48.779Z,2024-08-21T00:59:41.538Z\">Exposed IP Address: 1/<a><br><a href=\"/modules/attack-surface/entities/dns-records?page=1&page_size=20first_seen__range=2024-08-20T01:00:48.779Z,2024-08-21T00:59:41.539Z\">DNS Record Found: 45</a><br>",
        "Daily_Discovered_Entity_Details": "<a href=\"/modules/attack-surface/updates?page=1&page_size=20last_seen__range=2024-08-20T01:00:48.779Z,2024-08-21T00:59:41.550Z\"> See All</a>"
    },
    "solution_title": "Verify and Approve Daily Discovered Entity Updates",
    "solution": "

This incident report uses a general overview and consolidates various findings into categories, offering a structured method for reporting daily attack surface discoveries. Therefore, it is strongly advised to:

• Verify and Investigate: All new findings should be thoroughly verified and investigated to determine their authenticity and potential security impact.
• Secure and Monitor: Implement necessary security measures to protect against identified risks and continuously monitor for any suspicious activity.
• Update and Patch: Ensure all systems and software are up to date with the latest patches to mitigate vulnerabilities.

", "assignees": [], "indicator_count": 45, "attachment_count": 0, "comment_count": 0, "category": "EXPOSURE_MANAGEMENT", "module": "ATTACK_SURFACE", "network_type": "SURFACE_WEB", "type": "SECURITY_SCAN", "tags": [], "mitre_tactics": [], "severity": "INFO" }

Fetch Incident Related Indicators

GET https://api.brandefense.io/api/v1/incidents/{code}/indicators

Sample Response:

{
    "next": null,
    "previous": null,
    "count": 45,
    "results": [
        {
            "_id": 117704372,
            "Date": "2024-08-20T07:04:53",
            "Entity": "docs.brandefense.io",
            "Finding": "DNS Record Found",
            "Description": "New A Record: 34.251.194.182 found on docs.brandefense.io",
            "_entity_params": [
                "Entity"
            ]
        },
        {
            "_id": 1177042,
            "Domain": "docs.brandefense.io"
        },
        {
            "id": 171096,
            "created_at": "2023-07-18T09:46:06.584460Z",
            "content_object": [
                {
                  "data": "pncbankartscenter.org",
                  "data_source": "certstream",
                  "detection_id": 16441,
                  "detection_date": "2021-09-29",
                  "is_domain": true,
                  "register_date": "2012-03-30",
                  "risk_score": 55,
                  "last_analyze_date": "2021-09-29"
                },
                {
                    "botnet_id": "",
                    "breached_date": "2023-11-05",
                    "data": "",
                    "id": 5168943,
                    "username": "olivier.pacaud@threatq.com"
                }
            ],
            "status": "POTENTIAL",
            "takedown_status": "NOT_REQUESTED"
        },
        {
                "IP_Address": "3.217.205.239",
                "_id": 121212336
        }
    ]
}{
    "next": null,
    "previous": null,
    "count": 45,
    "results": [
        {
            "_id": 117704372,
            "Date": "2024-08-20T07:04:53",
            "Entity": "docs.brandefense.io",
            "Finding": "DNS Record Found",
            "Description": "New A Record: 34.251.194.182 found on docs.brandefense.io",
            "_entity_params": [
                "Entity"
            ]
        },
        {
            "_id": 1177042,
            "Domain": "docs.brandefense.io"
        },
        {
            "id": 171096,
            "created_at": "2023-07-18T09:46:06.584460Z",
            "content_object": [
                {
                  "data": "pncbankartscenter.org",
                  "data_source": "certstream",
                  "detection_id": 16441,
                  "detection_date": "2021-09-29",
                  "is_domain": true,
                  "register_date": "2012-03-30",
                  "risk_score": 55,
                  "last_analyze_date": "2021-09-29"
                },
                {
                    "botnet_id": "",
                    "breached_date": "2023-11-05",
                    "data": "",
                    "id": 5168943,
                    "username": "olivier.pacaud@threatq.com"
                }
            ],
            "status": "POTENTIAL",
            "takedown_status": "NOT_REQUESTED"
        },
        {
                "IP_Address": "3.217.205.239",
                "_id": 121212336
        }
    ]
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
results[].code + results[].title	Incident.Value	N/A	results[].created_at	BRNDE-ASM-306 - Daily Discovered Entity Updates	The value of the Incident is formed by concatenating both keys
results[].created_at	Incident.Published_at	N/A	results[].created_at	2024-08-21T00:59:42.148079Z	N/A
results[].created_at	Incident.Started_at	N/A	results[].created_at	2024-08-21T00:59:42.148079Z	N/A
results[].created_at	Incident.Ended_at	N/A	results[].created_at	2024-08-21T00:59:42.148079Z	N/A
results[].description + results[].evidence.description + results[].solution_title + results[].solution	Incident.Description	N/A	results[].created_at	This incident provides an overview...	The description of the Incident is formed by concatenating the keys
results[].code	Incident.Attribute	Code	results[].created_at	BRNDE-ASM-306	N/A
results[].status	Incident.Attribute	Incident Status	results[].created_at	OPEN	Updatable
results[].risk_score	Incident.Attribute	Incident Risk Score	results[].created_at	15	Updatable
results[].category	Incident.Attribute	Incident Category	results[].created_at	EXPOSURE_MANAGEMENT	N/A
results[].module	Incident.Attribute	Incident Module	results[].created_at	ATTACK_SURFACE	N/A
results[].network_type	Incident.Attribute	Incident Network Type	results[].created_at	SURFACE_WEB	N/A
results[].type	Incident.Attribute	Incident Type	results[].created_at	SECURITY_SCAN	N/A
results[].severity	Incident.Attribute	Incident Severity	results[].created_at	INFO	Updatable
results[].asset.asset	Related Asset.Value	N/A	results[].created_at	brandefense.io	N/A
results[].asset.type	Related Asset.Attribute	Asset Type	results[].created_at	DOMAIN	N/A
results[].asset.status	Related Asset.Attribute	Asset Status	results[].created_at	ACTIVE	N/A
results[].organization.name	Related Organization.Value	N/A	results[].created_at	PS BRANDEFENSE DEMO	N/A
results[].organization.short_code	Related Organization.Attribute	Organization Short Code	results[].created_at	BRNDE	N/A
results[].organization.code	Related Organization.Attribute	Organization Code	results[].created_at	brandefense-demo	N/A
results[].organization.license_type	Related Organization.Attribute	Organization License Type	results[].created_at	LICENSED	N/A
results[].Entity	Related Indicator.Value	FQDN	results[].Date	docs.brandefense.io	N/A
results[].Finding	Related Indicator.Attribute	Indicator Finding	results[].Date	DNS Record Found	N/A
results[].Description	Related Indicator.Description	N/A	results[].Date	New A Record: 34.251.194.182 found on docs.brandefense.io	N/A
results[].content_object.data	Related Indicator.Value	FQDN	results[].created_at	pncbankartscenter.org	N/A
results[].content_object.data_source	Related Indicator.Attribute	Indicator Data Source	results[].created_at	certstream	N/A
results[].content_object.risk_score	Related Indicator.Attribute	Indicator Risk Score	results[].created_at	55	N/A
results[].status	Related Indicator.Attribute	Indicator Status	results[].created_at	POTENTIAL	N/A
results[].takedown_status	Related Indicator.Attribute	Indicator Takedown Status	results[].created_at	NOT_REQUESTED	N/A
results[].IP_Address	Related Indicator.Value	IP Address	results[].created_at	3.217.205.239	N/A
results[].content_object.username	Related Indicator.Value	Email Address	results[].created_at	demo@threatq.com	N/A

Brandefense Indicators of Compromise

The Brandefense Indicators of Compromise feed ingests indicators into the ThreatQ platform.

GET https://api.brandefense.io/api/v1/threat-intelligence/iocs?ioc_type={ioc_type}

Sample Response:

{
    "count": 282082,
    "previous": null,
    "next": "https://api.brandefense.io/api/v1/threat-intelligence/iocs?ioc_type=ip_address&page=2",
    "results": [
        {
            "data": "104.210.133.240",
            "type": "ipv4",
            "category": "online_scanners",
            "module": "sans_research",
            "severity": "medium",
            "data_source_type": "isc.sans.edu",
            "extras": {
                "added_date": "2024-08-21",
                "type": "openai",
                "as": "AS8075 Microsoft Corporation",
                "asname": "MICROSOFT-CORP-MSN-AS-BLOCK",
                "country": "United States",
                "countryCode": "US",
                "isp": "Microsoft Corporation",
                "lat": 29.4167,
                "lon": -98.5
            },
            "last_seen": "2024-08-22T09:29:03.564998+00:00",
            "first_seen": "2024-08-22T09:29:03.564998+00:00",
            "count": 1
        }
    ]
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
results[].data	Indicator.Value	results[].type	results[].first_seen	104.210.133.240	We use the value on results[].type to determinate the IOC type
results[].category	Indicator.Attribute	Indicator Category	results[].first_seen	online_scanners	N/A
results[].module	Indicator.Attribute	Indicator Module	results[].first_seen	sans_research	N/A
results[].severity	Indicator.Attribute	Indicator Severity	results[].first_seen	sans_research	Updatable
results[].data_source_type	Indicator.Attribute	Indicator Data Source Type	results[].first_seen	isc.sans.edu	N/A
results[].extras.type	Indicator.Attribute	Type	results[].first_seen	openai	N/A
results[].extras.as	Indicator.Attribute	AS	results[].first_seen	AS8075 Microsoft Corporation	N/A
results[].extras.asname	Indicator.Attribute	AS Name	results[].first_seen	MICROSOFT-CORP-MSN-AS-BLOCK	N/A
results[].extras.country	Indicator.Attribute	Country	results[].first_seen	United States	N/A
results[].extras.countryCode	Indicator.Attribute	Country Code	results[].first_seen	US	N/A
results[].extras.isp	Indicator.Attribute	ISP	results[].first_seen	Microsoft Corporation	N/A
results[].extras.lat	Indicator.Attribute	Latitude	results[].first_seen	29.4167	N/A
results[].extras.lon	Indicator.Attribute	Longitude	results[].first_seen	-98.5	N/A

Brandefense CTI Rules

The Brandefense CTI Rules feed ingests signatures.

GET https://api.brandefense.io/api/v1/threat-intelligence/rules

Sample Response:

{
    "count": 8169,
    "previous": null,
    "next": "https://api.brandefense.io/api/v1/threat-intelligence/rules?page=2",
    "results": [
        {
            "tags": [
                "Oyster Backdoor"
            ],
            "id": 16025,
            "type": "rule_yara",
            "identifier": "RULE_YARA-8035",
            "source": "BRANDEFENSE",
            "content": "rule MAL_Backdoor_Oyster_Backdoor_Win_DLL_July26{\n    meta:\n        author = \"Gokhan FIRAT\"\n        source = \"brandefense.io\"\n        date = \"26.07.2024\"\n    strings:\n        $s1 = \"Boost.Beast/351\" ascii\n        $s2 = \"C:\\\\Users\\\\postman\\\\Desktop\\\\NZT\\\\ProjectD_cpprest\\\\\n        CleanUp\\\\Release\\\\CleanUp.pdb\" ascii\n        $s3 = \"WORKGROUP\" wide\n        $h1 = { 0F B6 02 8D 52 FF 8A 0C 37 0F B6 80 ?? ?? ?? ?? 88 04 37 46 0F B6 C1 0F B6 80 ?? ?? ?? ?? 88 42 01 3B 75 B4 7C DA }\n        $h2 = { 8A 0C 38 8D 52 FF 0F B6 42 01 8B 75 FC 0F B6 80 ?? ?? ?? ?? 88 04 3E 47 0F B6 C1 0F B6 80 ?? ?? ?? ?? 88 42 01 8B C6 3B FB 7C D5 }\n        $h3 = { 0F B6 02 8D 52 FF 8A 0C 37 8A 80 ?? ?? ?? ?? 88 04 37 46 0F B6 C1 8A 80 ?? ?? ?? ?? 88 42 01 3B B5 54 FE FF FF 7C D9 }\n    condition:\n        uint16(0) == 0x5A4D and\n        any of ($s*) and\n        2 of ($h*)\n}",
            "created_at": "2024-08-19T06:17:27.257113+00:00",
            "updated_at": "2024-08-19T06:17:27.257113+00:00"
        }
    ]
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
results[].content	Signature.Name	N/A	results[].created_at	MAL_Backdoor_Oyster_Backdoor_Win_DLL_July26	We extract the name from results[].content
results[].content	Signature.Value	N/A	results[].created_at	rule MAL_Backdoor_Oyster_Backdoor_Win_DLL_July26...	N/A
results[].tags	Signature.Tag	N/A	results[].created_at	Oyster Backdoor	N/A
results[].identifier	Signature.Attribute	Identifier	results[].created_at	RULE_YARA-8035	N/A
results[].source	Signature.Attribute	External Source	results[].created_at	BRANDEFENSE	N/A

Brandefense Assets

The Brandefense Assets feed ingests assets and related organizations into the ThreatQ platform.

GET https://api.brandefense.io/api/v1/assets

Sample Response:

{
    "count": 227,
    "next": "https://api.brandefense.io/api/v1/assets?page=2",
    "previous": null,
    "results": [
        {
            "id": 204449,
            "status": "SUGGESTED",
            "modules": [
                {
                    "name": "Attack Surface",
                    "code": "attack-surface",
                    "short_code": "ASM",
                    "category": "exposure-management"
                }
            ],
            "created_by": {
                "id": 3,
                "name": "Automation",
                "email": "automation@brandefense.io",
                "role": "ADMIN"
            },
            "type": "DOMAIN",
            "severity": "MEDIUM",
            "organization": {
                "id": 722,
                "name": "ThreatQuotient",
                "short_code": "THRTQ",
                "code": "threatquotient",
                "is_active": true,
                "is_mssp": false,
                "license_type": "PROOF_OF_CONCEPT",
                "country": [
                    "US"
                ],
                "industries": [
                    "Technology",
                    "Retail",
                    "Information Technology",
                    "Cyber Security",
                    "Business and Legal Services"
                ]
            },
            "parent": null,
            "created_at": "2024-08-27T00:10:55.831642Z",
            "possible_types": [],
            "description": "The suggested asset was discovered on threatq.com with reverse WHOIS searching method. It is suggested because WHOIS record matches with the original WHOIS record's email (will.fitch@threatq.com) value.",
            "asset": "threatq.ninja",
            "properties": {}
        }
    ]
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
results[].asset	Asset.Name	N/A	results[].created_at	threatq.ninja	N/A
results[].description	Asset.Description	N/A	results[].created_at	The suggested asset was discovered on threatq.com...	N/A
results[].status	Asset.Attribute	Asset Status	results[].created_at	SUGGESTED	Updatable
results[].type	Asset.Attribute	Asset Type	results[].created_at	DOMAIN	N/A
results[].severity	Asset.Attribute	Asset Severity	results[].created_at	MEDIUM	Updatable
results[].created_by.name/email/role	Asset.Attribute	Created By	results[].created_at	Automation - automation@brandefense.io - ADMIN	We concatenate the values into one.
results[].modules.name	Asset.Attribute	Asset Module Name	results[].created_at	Attack Surface	N/A
results[].modules.code	Asset.Attribute	Asset Module Code	results[].created_at	attack-surface	N/A
results[].modules.short_code	Asset.Attribute	Asset Module Short Code	results[].created_at	ASM	N/A
results[].modules.category	Asset.Attribute	Asset Module Category	results[].created_at	exposure-management	N/A
results[].organization.name	Related Organization.Value	N/A	results[].created_at	ThreatQuotient	N/A
results[].organization.short_code	Related Organization.Attribute	Organization Short Code	results[].created_at	THRTQ	N/A
results[].organization.code	Related Organization.Attribute	Organization Code	results[].created_at	threatquotient	N/A
results[].organization.license_type	Related Organization.Attribute	Organization License Type	results[].created_at	PROOF_OF_CONCEPT	N/A
results[].organization.country	Related Organization.Attribute	Organization Country	results[].created_at	US	N/A
results[].organization.industries	Related Organization.Attribute	Organization Industry	results[].created_at	Technology	N/A

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Brandefense Incidents

Metric	Result
Run Time	20 minutes
Indicators	245
Indicator Attributes	320
Organizations	55
Organization Attributes	103
Assets	74
Asset Attributes	120
Incidents	7,890
Incident Attributes	9,466

Brandefense Indicators of Compromise

Metric	Result
Run Time	10 minutes
Indicators	6,168
Indicator Attributes	26,299

Brandefense CTI Rules

Metric	Result
Run Time	3 minutes
Indicators	90
Indicator Attributes	180

Brandefense Assets

Metric	Result
Run Time	3 minutes
Assets	90
Assets Attributes	180
Organizations	90
Organization Attributes	180

Change Log

• Version 1.0.0
  • Initial release
