ArcSight Case Management CDF

The web format of this guide reflects the most current release. Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Current Integration Version

1.0.1

Compatible with ThreatQ Versions

>= 4.35.0

Support Tier

Developer Supported

Introduction

The ArcSight Case Management CDF for ThreatQuotient enables ThreatQ to automatically ingest cases, events, and indicators from ArcSight, ultimately, alerting analysts of any threats within their environment.

The integration provides the following feeds:

ArcSight Case Management - fetches all case IDs within ArcSight.
Get Case (Supplemental) - fetches the (almost) full details of an ArcSight case, by its' ID.
Get Events (Supplemental) - fetches a list of events based on a list of event IDs.

The integration ingests the following system objects:

Indicators
Events
Event Attributes

Prerequisites

You will need the following to run the integration:

An ArcSight ESM Hostname/IP along with port.
An ArcSight ESM username and password.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

Log into https://marketplace.threatq.com/.
Locate and download the integration yaml file.
Navigate to the integrations management page on your ThreatQ instance.
Click on the Add New Integration button.
Upload the integration yaml file using one of the following methods:
- Drag and drop the file into the dialog box
- Select Click to Browse to locate the file on your local machine
ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.
The feed will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

Navigate to your integrations management page in ThreatQ.
Select the Commercial option from the Category dropdown (optional).
If you are installing the integration for the first time, it will be located under the Disabled tab.
Click on the integration entry to open its details page.

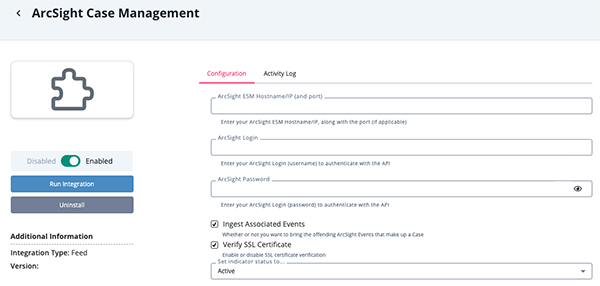

Enter the following parameters under the Configuration tab:

Parameter		Description
ArcSight ESM Hostname/IP (and port)		Your ArcSight ESM Hostname/IP, along with the port (if applicable).
ArcSight Login		Your ArcSight Login (username) to authenticate with the API.
ArcSight Password		Your ArcSight Login (password) to authenticate with the API.
Ingested Associated Events		Configure whether or not to bring the offending ArcSight Events that make up a Case.
Verify SSL Certificate		Enable or disable SSL certificate verification.

Review any additional settings, make any changes if needed, and click on Save.
Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

ArcSight Case Management (Feed)

The ArcSight Case Management feed fetches all case IDs within ArcSight.

There is no way to fetch a time-fenced list of cases or their IDs. For each case ID returned by the API, the integration will need to fetch the case details using the Get Case supplemental feed. Once it has been verified that the case has been updated since its last run, the integration fetch the events using the Get Events supplemental feed. From there, the reporting data is built out into events, attributes, and indicators. The below mapping will include all mappings after all supplemental feed data has been fetched.

GET https://{{host}}/detect-api/rest/cases/allIds

Sample Response:

[
    "7ioxmxngBABCbqbxclEodmA==",
    "7vralVnkBABDl04n55EGTXw=="
]

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Normalization	Published Date	Examples	Notes
`.name`	Attribute	Case Name	N/A	`.createdTimestamp`	ArcSight Case: Sighting of Trickbot Indicator	This is whatever the analyst makes it
`.alias`	Attribute	Alias	N/A	`.createdTimestamp`	N/A	N/A
`.creator`	Attribute	ArcSight Creator	N/A	`.createdTimestamp`	N/A	N/A
`.ticketType`	Attribute	Ticket Type	N/A	`.createdTimestamp`	INCIDENT	N/A
`.stage`	Attribute	Stage	N/A	`.createdTimestamp`	INITIAL	N/A
`.frequency`	Attribute	Frequency	N/A	`.createdTimestamp`	NEVER_OR_ONCE	N/A
`.operationalImpact`	Attribute	Operational Impact	N/A	`.createdTimestamp`	HIGH_PRIORITY _IMPACT	N/A
`.securityClassification`	Attribute	Security Classification	N/A	`.createdTimestamp`	SECRET	N/A
`.consequenceSeverity`	Attribute	Consequence Severity	N/A	`.createdTimestamp`	CRITICAL	N/A
`.sensitivity`	Attribute	Sensitivity	N/A	`.createdTimestamp`	SECRET	N/A
`.associatedImpact`	Attribute	Associated Impact	N/A	`.createdTimestamp`	INTEGRITY	N/A
`.action`	Attribute	Action	N/A	`.createdTimestamp`	BLOCK_OR_ SHUTDOWN	N/A
`.securityClassifi cationCode`	Attribute	Security Classification Code	N/A	`.createdTimestamp`	I O E S I B	N/A
`.history`	Attribute	History	N/A	`.createdTimestamp`	KNOWN_ OCCURENCE	N/A
`.resistance`	Attribute	Resistance	N/A	`.createdTimestamp`	HIGH	N/A
`.reportingLevel`	Attribute	Reporting Level	N/A	`.createdTimestamp`	3	N/A
`.numberOfOccurences`	Attribute	Number of Occurences	N/A	`.createdTimestamp`	0	N/A
`.actionsTaken`	Attribute	Actions Taken	N/A	`.createdTimestamp`	N/A	N/A
`.plannedActions`	Attribute	Planned Actions	N/A	`.createdTimestamp`	N/A	N/A
`.recommendedActions`	Attribute	Recommended Actions	N/A	`.createdTimestamp`	N/A	N/A
`.followupContact`	Attribute	Follow-up Contact	N/A	`.createdTimestamp`	N/A	N/A
`.conclusions`	Attribute	Conclusions	N/A	`.createdTimestamp`	N/A	N/A
`.incidentSource1`	Attribute	Incident Source	N/A	`.createdTimestamp`	N/A	N/A
`.incidentSource2`	Attribute	Incident Source	N/A	`.createdTimestamp`	N/A	N/A
`.inspectionResults`	Attribute	Inspection Results	N/A	`.createdTimestamp`	N/A	N/A
`.vulnerability`	Attribute	Vulnerability	N/A	`.createdTimestamp`	ENVIRONMENT	N/A
`.vulnerabilityType1`	Attribute	Vulnerability Type	N/A	`.createdTimestamp`	ACCIDENTAL	N/A
`.vulnerabilityType2`	Attribute	Vulnerability Type	N/A	`.createdTimestamp`	EMI_RFI	N/A
`.vulnerabilityEvidence`	Attribute	Vulnerability Evidence	N/A	`.createdTimestamp`	N/A	N/A
`.vulnerabilitySource`	Attribute	Vulnerability Source	N/A	`.createdTimestamp`	N/A	N/A
`.vulnerabilityData`	Attribute	Vulnerability Data	N/A	`.createdTimestamp`	N/A	N/A
`.attackMechanism`	Attribute	Attack Mechanism	N/A	`.createdTimestamp`	INFORMATIONAL	N/A
`.attackAgent`	Attribute	Attack Agent	N/A	`.createdTimestamp`	OUTSIDER	N/A
`.attackTarget`	Attribute	Attack Target	N/A	`.createdTimestamp`	N/A	N/A
`.attackService`	Attribute	Attack Service	N/A	`.createdTimestamp`	N/A	N/A
`.attackProtocol`	Attribute	Attack Protocol	N/A	`.createdTimestamp`	N/A	N/A
`.attackOS`	Attribute	Attack OS	N/A	`.createdTimestamp`	N/A	N/A
`.attackProgram`	Attribute	Attack Program	N/A	`.createdTimestamp`	N/A	N/A
`.attackImpact`	Attribute	Attack Impact	N/A	`.createdTimestamp`	N/A	N/A
`.disabled`	Attribute	Is Disabled	Boolean -> String	`.createdTimestamp`	false	N/A
`.inactive`	Attribute	Is Inactive	Boolean -> String	`.createdTimestamp`	false	N/A
`.deprecated`	Attribute	Is Deprecated	Boolean -> String	`.createdTimestamp`	false	N/A
`.initialized`	Attribute	Is Initialized	Boolean -> String	`.createdTimestamp`	true	N/A
`.detectionTime`	Attribute	Detection Time	Dict -> String	`.createdTimestamp`	N/A	N/A
`.estimatedStartTime`	Attribute	Estimated Start Time	Dict -> String	`.createdTimestamp`	N/A	N/A
`.estimatedRestoreTime`	Attribute	Estimated Restore Time	Dict -> String	`.createdTimestamp`	N/A	N/A
`.attackTime`	Attribute	Attack Time	Dict -> String	`.createdTimestamp`	N/A	N/A
`.lastOccurenceTime`	Attribute	Last Occurence Time	Dict -> String	`.createdTimestamp`	N/A	N/A
`.events[].type`	Attribute	Event Type	N/A	`.events[].startTime`	BASE	N/A
`.events[].objectTypeName`	Attribute	Event Object Type	N/A	`.events[].startTime`	SecurityEvent	N/A
`.events[].name`	Attribute	Event Name	N/A	`.events[].startTime`	TCP_DENIED	N/A
`.events[].originator`	Attribute	Origination	N/A	`.events[].startTime`	SOURCE	N/A
`.events[]. assetCriticality`	Attribute	Asset Criticality	N/A	`.events[].startTime`	0	N/A
`.events[].file.name`	Attribute	Active Channel	N/A	`.events[].startTime`	N/A	Only if `.events[]. file.type == 'ActiveChannel'`
`.events[]. modelConfidence`	Attribute	Model Confidence	N/A	`.events[].startTime`	0	N/A
`.events[].priority`	Attribute	Priority	N/A	`.events[].startTime`	7	N/A
`.events[].relevance`	Attribute	Relevance	N/A	`.events[].startTime`	10	N/A
`.events[].severity`	Attribute	Severity	N/A	`.events[].startTime`	0	N/A
`.events[].agentSeverity`	Attribute	Agent Severity	N/A	`.events[].startTime`	3	N/A
`.events[].agent.name`	Attribute	Agent Name	N/A	`.events[].startTime`	N/A	N/A
`.events[].agent.type`	Attribute	Agent Type	N/A	`.events[].startTime`	squid_file	N/A
`.events[].agent. hostName`	Attribute	Agent Hostname	N/A	`.events[].startTime`	N/A	N/A
`.events[].category. behavior`	Attribute	Category Behavior	N/A	`.events[].startTime`	/Access/Start	N/A
`.events[].category. deviceGroup`	Attribute	Category Device Group	N/A	`.events[].startTime`	/Application	N/A
`.events[].category. object`	Attribute	Category Object	N/A	`.events[].startTime`	/Host/Resource	N/A
`.events[].category. significance`	Attribute	Category Significance	N/A	`.events[].startTime`	/Informational/ Warning	N/A
`.events[].category. outcome`	Attribute	Category Outcome	N/A	`.events[].startTime`	/Failure	N/A
`.events[].category. deviceType`	Attribute	Category Device Type	N/A	`.events[].startTime`	Web Filtering	N/A
`.events[].source. address`	Value	Indicator (IP Address)	Transformed using `ip` filter	`.events[].startTime`	N/A	Private IPs are ignored
`.events[].destination. address`	Value	Indicator (IP Address)	Transformed using `ip` filter	`.events[].startTime`	N/A	Private IPs are ignored
`.events[].*`	Title	Event (ArcSight Event)	Title built by formatting multiple keys together	`.events[].startTime`	N/A	N/A
`.displayName`	Title	Event (ArcSight `.typeName ?? Case`)	N/A	`.createdTimestamp`	N/A	N/A
`.description`	Description	Event	N/A	`.createdTimestamp`	N/A	N/A

Get Case (Supplemental)

The Get Case supplemental feed will fetch the (almost) full details of an ArcSight case by its ID.

GET https://{{host}}/detect-api/rest/cases/{{case_id}}

Sample Response:

[
    {
        "action": "BLOCK_OR_SHUTDOWN",
        "associatedImpact": "INTEGRITY",
        "attackAgent": "OUTSIDER",
        "attackMechanism": "INFORMATIONAL",
        "attackTime": null,
        "attributeInitializationInProgress": false,
        "consequenceSeverity": "CRITICAL",
        "createdTimestamp": "2021-04-12 14:05:12-00:00",
        "creatorName": "admin",
        "deprecated": false,
        "detectionTime": "2021-4-10 15:23:31 Etc/UTC",
        "disabled": false,
        "displayID": 1,
        "displayName": "ArcSight Case: Sighting of Trickbot Indicator",
        "estimatedRestoreTime": null,
        "estimatedStartTime": "2021-4-10 15:21:53 Etc/UTC",
        "eventIDs": [
            7203010,
            7203080
        ],
        "frequency": "NEVER_OR_ONCE",
        "history": "KNOWN_OCCURENCE",
        "inCache": false,
        "inactive": false,
        "initialized": true,
        "isAdditionalLoaded": false,
        "lastOccurenceTime": null,
        "localID": 30064771073,
        "modificationCount": 8,
        "modifiedTimestamp": "2021-05-10 15:23:31-00:00",
        "modifierName": "admin",
        "name": "ArcSight Case: Sighting of Trickbot Indicator",
        "numberOfOccurences": 0,
        "operationalImpact": "HIGH_PRIORITY_IMPACT",
        "reference": {
            "id": "7ioxmxngBABCbqbxclEodmA==",
            "isModifiable": true,
            "managerID": "92EpNXgBABCAYBuppdOPcA==",
            "referenceName": "Case",
            "referenceString": "<Resource URI=\"/All Cases/All Cases/Personal/admin's Cases/ArcSight Case: Sighting of Trickbot Indicator\" ID=\"7ioxmxngBABCbqbxclEodmA==\"/>",
            "referenceType": 7,
            "uri": "/All Cases/All Cases/Personal/admin's Cases/ArcSight Case: Sighting of Trickbot Indicator"
        },
        "reportingLevel": 3,
        "resistance": "HIGH",
        "resourceId": "7ioxmxngBABCbqbxclEodmA==",
        "securityClassification": "SECRET",
        "securityClassificationCode": "I O   E S I B ",
        "sensitivity": "SECRET",
        "signature": {
            "id": "7ioxmxngBABCbqbxclEodmA==",
            "modificationCount": 8
        },
        "stage": "INITIAL",
        "state": 2,
        "ticketType": "INCIDENT",
        "type": 7,
        "typeName": "Case",
        "uri": "/All Cases/All Cases/Personal/admin's Cases/ArcSight Case: Sighting of Trickbot Indicator",
        "vulnerability": "ENVIRONMENT",
        "vulnerabilityType1": "ACCIDENTAL",
        "vulnerabilityType2": "EMI_RFI"
    },
    {
        "action": "BLOCK_OR_SHUTDOWN",
        "alias": "Sighting of Malware",
        "associatedImpact": "AVAILABILITY",
        "attackAgent": "INSIDER",
        "attackMechanism": "PHYSICAL",
        "attackTime": null,
        "attributeInitializationInProgress": false,
        "consequenceSeverity": "MARGINAL",
        "createdTimestamp": "2021-05-10 14:22:52-00:00",
        "creatorName": "admin",
        "deprecated": false,
        "description": "This is a mlicious event sighting. Write that down.",
        "detectionTime": null,
        "disabled": false,
        "displayID": 2,
        "displayName": "Sighting of Malware",
        "estimatedRestoreTime": "2021-4-10 14:20:20 Etc/UTC",
        "estimatedStartTime": null,
        "events": [],
        "frequency": "NEVER_OR_ONCE",
        "history": "KNOWN_OCCURENCE",
        "inCache": true,
        "inactive": false,
        "initialized": true,
        "isAdditionalLoaded": false,
        "lastOccurenceTime": null,
        "localID": 30064771074,
        "modificationCount": 0,
        "modifiedTimestamp": "2021-05-10 14:22:52-00:00",
        "modifierName": "admin",
        "name": "ArcSight Malicious Event Sighting",
        "numberOfOccurences": 0,
        "operationalImpact": "HIGH_PRIORITY_IMPACT",
        "reference": {
            "id": "7vralVnkBABDl04n55EGTXw==",
            "isModifiable": true,
            "managerID": "92EpNXgBABCAYBuppdOPcA==",
            "referenceName": "Case",
            "referenceString": "<Resource URI=\"/All Cases/All Cases/Personal/admin's Cases/Sighting of Malware\" ID=\"7vralVnkBABDl04n55EGTXw==\"/>",
            "referenceType": 7,
            "uri": "/All Cases/All Cases/Personal/admin's Cases/Sighting of Malware"
        },
        "reportingLevel": 2,
        "resistance": "HIGH",
        "resourceId": "7vralVnkBABDl04n55EGTXw==",
        "securityClassification": "CONFIDENTIAL",
        "securityClassificationCode": "P I   D U A B ",
        "sensitivity": "UNCLASSIFIED",
        "signature": {
            "id": "7vralVnkBABDl04n55EGTXw==",
            "modificationCount": 0
        },
        "stage": "INITIAL",
        "state": 2,
        "ticketType": "INCIDENT",
        "type": 7,
        "typeName": "Case",
        "uri": "/All Cases/All Cases/Personal/admin's Cases/Sighting of Malware",
        "vulnerability": "DESIGN",
        "vulnerabilityType1": "ACCIDENTAL",
        "vulnerabilityType2": "EMI_RFI"
    }
]

Get Events (Supplemental)

The Get Events supplemental feed will fetch a list of events based on a list of event IDs.

POST https://{{host}}/detect-api/rest/events/retrieve

Sample Response:

[
    {
        "agent": {
            "address": 168624229,
            "addressAsBytes": "Cg0AZQ==",
            "assetId": "43GEpNXgBABCAXca3khNRMw==",
            "assetLocalId": 17179869185,
            "assetName": "10.13.0.101",
            "hostName": "10.13.0.101",
            "id": "3IWIpNXgBABCAZpa1BlSONA==",
            "macAddress": -9223372036854776000,
            "mutable": true,
            "name": "Manager Internal Agent",
            "translatedAddress": -9223372036854776000,
            "type": "arcsight_security_manager",
            "version": "7.4.0.2675.0",
            "zone": {
                "id": "ML8022AABABCDTFpYAT3UdQ==",
                "isModifiable": true,
                "managerID": "92EpNXgBABCAYBuppdOPcA==",
                "referenceID": 2083,
                "referenceName": "Zone",
                "referenceString": "<Resource URI=\"/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255\" ID=\"ML8022AABABCDTFpYAT3UdQ==\"/>",
                "referenceType": 29,
                "uri": "/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255"
            }
        },
        "agentReceiptTime": -9223372036854776000,
        "agentSeverity": 1,
        "aggregatedEventCount": 1,
        "assetCriticality": 0,
        "baseEventCount": 1,
        "bytesIn": -2147483648,
        "bytesOut": -2147483648,
        "category": {
            "behavior": "/Execute/Query",
            "deviceGroup": "/Application",
            "mutable": true,
            "object": "/Host/Application",
            "outcome": "/Success",
            "significance": "/Normal"
        },
        "concentratorAgents": [
            {
                "address": 168624229,
                "addressAsBytes": "Cg0AZQ==",
                "assetId": "43GEpNXgBABCAXca3khNRMw==",
                "assetLocalId": 17179869185,
                "assetName": "10.13.0.101",
                "hostName": "10.13.0.101",
                "id": "3IWIpNXgBABCAZpa1BlSONA==",
                "macAddress": -9223372036854776000,
                "mutable": true,
                "name": "Manager Internal Agent",
                "translatedAddress": -9223372036854776000,
                "type": "arcsight_security_manager",
                "version": "7.4.0.2675.0",
                "zone": {
                    "id": "ML8022AABABCDTFpYAT3UdQ==",
                    "isModifiable": true,
                    "managerID": "92EpNXgBABCAYBuppdOPcA==",
                    "referenceID": 2083,
                    "referenceName": "Zone",
                    "referenceString": "<Resource URI=\"/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255\" ID=\"ML8022AABABCDTFpYAT3UdQ==\"/>",
                    "referenceType": 29,
                    "uri": "/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255"
                }
            }
        ],
        "concentratorDevices": [
            {
                "address": 168624229,
                "addressAsBytes": "Cg0AZQ==",
                "assetId": "43GEpNXgBABCAXca3khNRMw==",
                "assetLocalId": 17179869185,
                "assetName": "10.13.0.101",
                "hostName": "tie-dev-arcsight",
                "macAddress": -9223372036854776000,
                "mutable": true,
                "product": "ArcSight",
                "translatedAddress": -9223372036854776000,
                "vendor": "ArcSight",
                "version": "7.4.0.2675.0",
                "zone": {
                    "id": "ML8022AABABCDTFpYAT3UdQ==",
                    "isModifiable": true,
                    "managerID": "92EpNXgBABCAYBuppdOPcA==",
                    "referenceID": 2083,
                    "referenceName": "Zone",
                    "referenceString": "<Resource URI=\"/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255\" ID=\"ML8022AABABCDTFpYAT3UdQ==\"/>",
                    "referenceType": 29,
                    "uri": "/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255"
                }
            }
        ],
        "correlatedEventCount": 0,
        "destination": {
            "address": 168624229,
            "addressAsBytes": "Cg0AZQ==",
            "assetId": "43GEpNXgBABCAXca3khNRMw==",
            "assetLocalId": 17179869185,
            "assetName": "10.13.0.101",
            "geo": {
                "latitude": 0,
                "latitudeLong": 0,
                "longitude": 0,
                "longitudeLong": 0,
                "mutable": true
            },
            "hostName": "10.13.0.101",
            "macAddress": -9223372036854776000,
            "mutable": true,
            "port": 8443,
            "processId": -2147483648,
            "translatedAddress": -9223372036854776000,
            "translatedPort": -2147483648,
            "userId": "1oDcnNXgBABCA26-LEyzrew==",
            "userName": "admin",
            "zone": {
                "id": "ML8022AABABCDTFpYAT3UdQ==",
                "isModifiable": true,
                "managerID": "92EpNXgBABCAYBuppdOPcA==",
                "referenceID": 2083,
                "referenceName": "Zone",
                "referenceString": "<Resource URI=\"/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255\" ID=\"ML8022AABABCDTFpYAT3UdQ==\"/>",
                "referenceType": 29,
                "uri": "/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255"
            }
        },
        "device": {
            "address": 168624229,
            "addressAsBytes": "Cg0AZQ==",
            "assetId": "43GEpNXgBABCAXca3khNRMw==",
            "assetLocalId": 17179869185,
            "assetName": "10.13.0.101",
            "hostName": "tie-dev-arcsight",
            "macAddress": -9223372036854776000,
            "mutable": true,
            "product": "ArcSight",
            "translatedAddress": -9223372036854776000,
            "vendor": "ArcSight",
            "version": "7.4.0.2675.0",
            "zone": {
                "id": "ML8022AABABCDTFpYAT3UdQ==",
                "isModifiable": true,
                "managerID": "92EpNXgBABCAYBuppdOPcA==",
                "referenceID": 2083,
                "referenceName": "Zone",
                "referenceString": "<Resource URI=\"/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255\" ID=\"ML8022AABABCDTFpYAT3UdQ==\"/>",
                "referenceType": 29,
                "uri": "/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255"
            }
        },
        "deviceCustom": {
            "mutable": true,
            "string2Label": "Configuration Resource"
        },
        "deviceCustomDate1": -9223372036854776000,
        "deviceCustomDate2": -9223372036854776000,
        "deviceCustomFloatingPoint1": 5e-324,
        "deviceCustomFloatingPoint2": 5e-324,
        "deviceCustomFloatingPoint3": 5e-324,
        "deviceCustomFloatingPoint4": 5e-324,
        "deviceCustomNumber1": -9223372036854776000,
        "deviceCustomNumber2": -9223372036854776000,
        "deviceCustomNumber3": -9223372036854776000,
        "deviceCustomString2": "<Resource URI=\"/All Active Channels/ArcSight Administration/ESM/System Health/Events/System Events Last Hour\" ID=\"QjZvvPPsAABCAEcWZ6-B1EQ==\"/>",
        "deviceDirection": -2147483648,
        "deviceEventCategory": "/Active Channel/Attached",
        "deviceEventClassId": "channel:001",
        "deviceProcessId": -2147483648,
        "deviceReceiptTime": 1620660113611,
        "deviceSeverity": "Warning",
        "domainDate1": -9223372036854776000,
        "domainDate2": -9223372036854776000,
        "domainDate3": -9223372036854776000,
        "domainDate4": -9223372036854776000,
        "domainDate5": -9223372036854776000,
        "domainDate6": -9223372036854776000,
        "domainFp1": 5e-324,
        "domainFp2": 5e-324,
        "domainFp3": 5e-324,
        "domainFp4": 5e-324,
        "domainFp5": 5e-324,
        "domainFp6": 5e-324,
        "domainFp7": 5e-324,
        "domainFp8": 5e-324,
        "domainIpv4addr1": -9223372036854776000,
        "domainIpv4addr2": -9223372036854776000,
        "domainIpv4addr3": -9223372036854776000,
        "domainIpv4addr4": -9223372036854776000,
        "domainNumber1": -9223372036854776000,
        "domainNumber10": -9223372036854776000,
        "domainNumber11": -9223372036854776000,
        "domainNumber12": -9223372036854776000,
        "domainNumber13": -9223372036854776000,
        "domainNumber2": -9223372036854776000,
        "domainNumber3": -9223372036854776000,
        "domainNumber4": -9223372036854776000,
        "domainNumber5": -9223372036854776000,
        "domainNumber6": -9223372036854776000,
        "domainNumber7": -9223372036854776000,
        "domainNumber8": -9223372036854776000,
        "domainNumber9": -9223372036854776000,
        "dummyField": "dummyField",
        "endTime": 1620660113611,
        "eventAnnotation": {
            "auditTrail": "1,1620660216190,,,,8,,\n1,1615800140091,root,Queued,,,,\n",
            "endTime": 1620660216190,
            "eventId": 7203010,
            "flags": 8,
            "managerReceiptTime": 1620660113611,
            "modificationTime": 1620660216190,
            "stage": {
                "id": "R9MHiNfoAABCASsxbPIxG0g==",
                "isModifiable": false,
                "managerID": "92EpNXgBABCAYBuppdOPcA==",
                "referenceID": 2207,
                "referenceName": "Stage",
                "referenceString": "<Resource URI=\"/All Stages/Queued\" ID=\"R9MHiNfoAABCASsxbPIxG0g==\"/>",
                "referenceType": 34,
                "uri": "/All Stages/Queued"
            },
            "stageUpdateTime": 1620660216190,
            "version": 2
        },
        "eventId": 7203010,
        "file": {
            "createTime": -9223372036854776000,
            "modificationTime": -9223372036854776000,
            "name": "System Events Last Hour",
            "path": "/All Active Channels/ArcSight Administration/ESM/System Health/Events/System Events Last Hour",
            "size": -9223372036854776000,
            "type": "ActiveChannel"
        },
        "finalDevice": {
            "address": 168624229,
            "addressAsBytes": "Cg0AZQ==",
            "assetId": "43GEpNXgBABCAXca3khNRMw==",
            "assetLocalId": 17179869185,
            "assetName": "10.13.0.101",
            "hostName": "tie-dev-arcsight",
            "macAddress": -9223372036854776000,
            "mutable": true,
            "product": "ArcSight",
            "translatedAddress": -9223372036854776000,
            "vendor": "ArcSight",
            "version": "7.4.0.2675.0",
            "zone": {
                "id": "ML8022AABABCDTFpYAT3UdQ==",
                "isModifiable": true,
                "managerID": "92EpNXgBABCAYBuppdOPcA==",
                "referenceID": 2083,
                "referenceName": "Zone",
                "referenceString": "<Resource URI=\"/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255\" ID=\"ML8022AABABCDTFpYAT3UdQ==\"/>",
                "referenceType": 29,
                "uri": "/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255"
            }
        },
        "flexDate1": -9223372036854776000,
        "flexNumber1": -9223372036854776000,
        "flexNumber2": -9223372036854776000,
        "locality": 0,
        "managerId": -128,
        "managerReceiptTime": 1620660113611,
        "modelConfidence": 4,
        "name": "Channel [System Events Last Hour] got attached",
        "objectTypeName": "SecurityEvent",
        "originalAgent": {
            "address": 168624229,
            "addressAsBytes": "Cg0AZQ==",
            "assetId": "43GEpNXgBABCAXca3khNRMw==",
            "assetLocalId": 17179869185,
            "assetName": "10.13.0.101",
            "hostName": "10.13.0.101",
            "id": "3IWIpNXgBABCAZpa1BlSONA==",
            "macAddress": -9223372036854776000,
            "mutable": true,
            "name": "Manager Internal Agent",
            "translatedAddress": -9223372036854776000,
            "type": "arcsight_security_manager",
            "version": "7.4.0.2675.0",
            "zone": {
                "id": "ML8022AABABCDTFpYAT3UdQ==",
                "isModifiable": true,
                "managerID": "92EpNXgBABCAYBuppdOPcA==",
                "referenceID": 2083,
                "referenceName": "Zone",
                "referenceString": "<Resource URI=\"/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255\" ID=\"ML8022AABABCDTFpYAT3UdQ==\"/>",
                "referenceType": 29,
                "uri": "/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255"
            }
        },
        "originator": "SOURCE",
        "persistence": -2147483648,
        "priority": 3,
        "relevance": 10,
        "sessionId": -9223372036854776000,
        "severity": 0,
        "source": {
            "address": 168624188,
            "addressAsBytes": "Cg0APA==",
            "assetId": "46ByWg3gBABCbJmdfYAV+lw==",
            "assetLocalId": 17179869188,
            "assetName": "10.13.0.60",
            "geo": {
                "latitude": 0,
                "latitudeLong": 0,
                "longitude": 0,
                "longitudeLong": 0,
                "mutable": true
            },
            "hostName": "10.13.0.60",
            "macAddress": -9223372036854776000,
            "mutable": true,
            "port": -2147483648,
            "processId": -2147483648,
            "serviceName": "/XmlRpc",
            "translatedAddress": -9223372036854776000,
            "translatedPort": -2147483648,
            "zone": {
                "id": "ML8022AABABCDTFpYAT3UdQ==",
                "isModifiable": false,
                "managerID": "92EpNXgBABCAYBuppdOPcA==",
                "referenceID": 2083,
                "referenceName": "Zone",
                "referenceString": "<Resource URI=\"/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255\" ID=\"ML8022AABABCDTFpYAT3UdQ==\"/>",
                "referenceType": 29,
                "uri": "/All Zones/ArcSight System/Private Address Space Zones/RFC1918: 10.0.0.0-10.255.255.255"
            }
        },
        "startTime": 1620660113611,
        "ttl": 10,
        "type": "BASE"
    }
]

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

ArcSight Case Management Feed

Metric	Result
Run Time	1 minute
Indicators	3
Events	7
Event Attributes	143

Known Issues / Limitations

There is currently no way to time fence queries to the API when fetching cases. Due to this limitation, the integration will fetch all cases using their IDs and drop the ones that haven't been updated.

Change Log

Version 1.0.1
- Resolved an issue where the feed would respond with an Error Applying Filter error if the Get Events supplemental feed returned an empty list from ArcSight.
Version 1.0.0 rev-a
- Updated installation steps as users are no longer required to install the IP filter manually.
Version 1.0.0
- Initial release

PDF Guides

Document	ThreatQ Version
ArcSight Case Management CDF Guide v1.0.1	4.35 or Greater
ArcSight Case Management CDF Guide v1.0.0	4.35 or Greater
