VMRay Action
The web format of this guide reflects the most current release. Guides for older iterations are available in PDF format.
Integration Details
ThreatQuotient provides the following details for this integration:
| Current Integration Version | 1.0.1 |
| Compatible with ThreatQ Versions | >= 5.25.0 |
| ThreatQ TQO License Required | Yes |
| Support Tier | ThreatQ Supported |
Introduction
The VMRay action for ThreatQ submits a data collection of URL objects to the VMRay provider to query and analyze.
The integration provides the following action:
- VMRay - Submit IOCs - export IOCs to the VMRay platform for analysis.
The integration is compatible and returns enriched URL type indicators.
This action is intended for use with ThreatQ TDR Orchestrator (TQO). An active TQO license is required for this feature.
Prerequisites
- An active ThreatQ TDR Orchestrator (TQO) license.
- A data collection containing URL type indicators.
- Your VMRay API key.
Installation
Perform the following steps to install the integration:
The same steps can be used to upgrade the integration to a new version.
- Log into https://marketplace.threatq.com/.
- Locate and download the action zip file.
- Navigate to the integrations management page on your ThreatQ instance.
- Click on the Add New Integration button.
- Upload the action zip file using one of the following methods:
- Drag and drop the zip file into the dialog box
- Select Click to Browse to locate the zip file on your local machine
ThreatQ will inform you if the action already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the action contains changes to the user configuration. The new user configurations will overwrite the existing ones for the action and will require user confirmation before proceeding.
You will still need to configure the action.
Configuration
ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.
To configure the integration:
- Navigate to your integrations management page in ThreatQ.
- Select the Actions option from the Category dropdown (optional).
- Click on the action entry to open its details page.

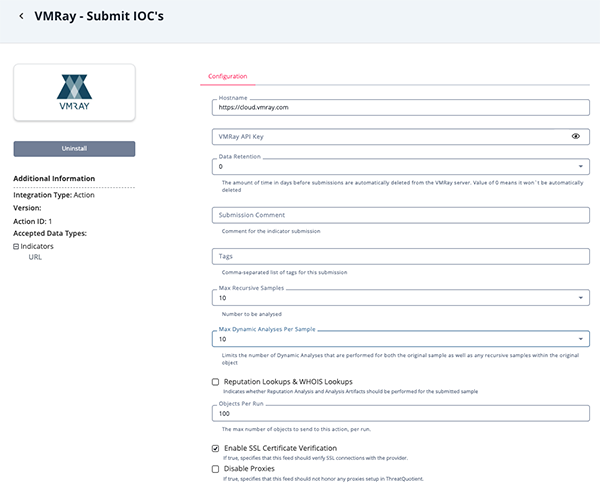

- Enter the following parameters under the Configuration tab:
The configurations set on this page will be used as the default settings when inserting this action into a new workflow. Updating the configurations on this page will not update any instances of this action that have already been deployed to a workflow. In that scenario, you must update the action’s configurations within the workflow itself.
Parameter Description Hostname Enter your VMRay Hostname. The default value is https://cloud.vmray.com. VMRay API Key Enter your VMRay API Key. Data Retention Enter the amount of time in days before submissions are automatically deleted from the VMRay server. Submission Comment Enter a comment for the indicator submission. Tags Enter, in a comma-separated format, tags to attach to the submitted indicator. Max Recursive Samples Select the number of samples to be analyzed. Options include: - 0
- 1
- 5
- 10
- 15
- 20
- 50
Max Dynamic Analyses Per Sample Limits the number of Dynamic Analyses that are performed for both the original sample as well as any recursive samples within the original object. You can select from a range of 0 - 10. Reputation Lookups & WHOIS Lookups Enable this parameter if Reputation Analysis and Analysis Artifacts should be performed for the submitted sample. Objects Per Run The max number of objects to send to this action, per run. Enable SSL Certificate Verification Enable or disable verification of the server's SSL certificate. Disable Proxies Enable this option if the action should not honor proxies set in the ThreatQ UI.
- Review any additional settings, make any changes if needed, and click on Save.
Actions
The following action is available:
| Action | Description | Object Type | Object Subtype |
|---|---|---|---|
| VMRay - Submit IOCs | Export IOC's to VMRay platform to be analyzed. | Indicators | URL |
VMRay - Submit IOCs
The VMRay - Submit IOCs action exports IOCs to VMRay platform to be analyzed
POST https://cloud.vmray.com/rest/sample/submit
Sample Response:
{
"data": {
"errors": [],
"jobs": [],
"md_jobs": [],
"reputation_jobs": [],
"samples": [
{
"sample_child_sample_ids": [],
"sample_container_type": null,
"sample_created": "2016-06-01T14:21:53",
"sample_display_url": "http://google.com",
"sample_emailhash": null,
"sample_filename": "sample.url",
"sample_filesize": 17,
"sample_id": 597114,
"sample_imphash": null,
"sample_is_multipart": false,
"sample_md5hash": "c7b920f57e553df2bb68272f61570210",
"sample_parent_sample_ids": [],
"sample_password_protected": false,
"sample_pe_signature": null,
"sample_priority": 5,
"sample_sha1hash": "234988566c9a0a9cf952cec82b143bf9c207ac16",
"sample_sha256hash": "aa2239c17609b21eba034c564af878f3eec8ce83ed0f2768597d2bc2fd4e4da5",
"sample_ssdeephash": "3:N1KZK3uK:C03uK",
"sample_type": "URL",
"sample_url": "http://google.com",
"sample_webif_url": "https://cloud.vmray.com/samples/597114",
"submission_filename": "google.com"
}
],
"static_jobs": [],
"submissions": [
{
"submission_analysis_cache_ids": [
13185823
],
"submission_analyzer_mode_analysis_caching": "smart",
"submission_analyzer_mode_analyzer_mode": "static_dynamic",
"submission_analyzer_mode_archive_action": "sample",
"submission_analyzer_mode_detonate_links_in_documents": "smart",
"submission_analyzer_mode_detonate_links_in_emails": "smart",
"submission_analyzer_mode_disk_image_action": "compound_sample",
"submission_analyzer_mode_enable_reputation": false,
"submission_analyzer_mode_enable_whois": false,
"submission_analyzer_mode_id": 5238854,
"submission_analyzer_mode_known_benign": false,
"submission_analyzer_mode_known_malicious": false,
"submission_analyzer_mode_max_dynamic_analyses_per_sample": "1",
"submission_analyzer_mode_max_recursive_samples": "1",
"submission_analyzer_mode_ml_based_phishing_detection": "normal",
"submission_analyzer_mode_triage": "custom",
"submission_analyzer_mode_triage_error_handling": null,
"submission_api_key_id": 2162,
"submission_billing_type": "analyzer",
"submission_comment": null,
"submission_created": "2024-03-14T11:36:24",
"submission_deletion_date": "2024-05-13T11:36:24",
"submission_dll_call_mode": null,
"submission_dll_calls": null,
"submission_document_password": null,
"submission_enable_custom_av": false,
"submission_enable_local_av": true,
"submission_filename": "google.com",
"submission_finish_time": "2024-03-14T11:36:24",
"submission_finished": true,
"submission_has_errors": false,
"submission_has_recursive_errors": false,
"submission_id": 14295353,
"submission_interface_name": "VMRAY-Hamsters",
"submission_ip_id": 3887692,
"submission_ip_ip": "89.238.232.178",
"submission_job_cache_ids": [],
"submission_known_configuration": false,
"submission_number_cached_analyses": 1,
"submission_number_created_jobs": 0,
"submission_original_filename": null,
"submission_original_url": "google.com",
"submission_parent_submission_id": null,
"submission_prescript_force_admin": false,
"submission_prescript_id": null,
"submission_priority": 3,
"submission_quota_type": "report",
"submission_recursive": false,
"submission_reputation_job_cache_id": null,
"submission_reputation_lookup_cache_id": null,
"submission_reputation_mode": "disabled",
"submission_retention_period": 60,
"submission_sample_id": 597114,
"submission_sample_md5": "c7b920f57e553df2bb68272f61570210",
"submission_sample_sha1": "234988566c9a0a9cf952cec82b143bf9c207ac16",
"submission_sample_sha256": "aa2239c17609b21eba034c564af878f3eec8ce83ed0f2768597d2bc2fd4e4da5",
"submission_sample_ssdeep": "3:N1KZK3uK:C03uK",
"submission_score": 0,
"submission_severity": "not_suspicious",
"submission_shareable": false,
"submission_status": "success",
"submission_submission_metadata": "{}",
"submission_submitter_email": null,
"submission_system_time": null,
"submission_tags": [],
"submission_triage_error_handling": null,
"submission_triage_stage": null,
"submission_triaged": null,
"submission_type": "api",
"submission_used_cache": true,
"submission_user_account_id": 1514,
"submission_user_account_name": "ThreatQuotient",
"submission_user_account_subscription_mode": null,
"submission_user_account_type": "partner_demo",
"submission_user_email": "ed.young@threatq.com",
"submission_user_id": 6209,
"submission_verdict": "clean",
"submission_verdict_reason_code": null,
"submission_verdict_reason_description": null,
"submission_webif_url": "https://cloud.vmray.com/samples/597114",
"submission_whois_mode": "disabled"
}
],
"vt_jobs": [],
"whois_jobs": []
},
"result": "ok"
}ThreatQuotient provides the following default mapping for this action:
| Feed Data Path | ThreatQ Entity | ThreatQ Object Type or Attribute Key | Published Date | Examples | Notes |
|---|---|---|---|---|---|
| data.submissions[].submission_sample_id | Indicator.Attribute | VMRay Submission ID | N/A | 597114 | N/A |
Enriched Data
Object counts and action runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and action runtime may vary based on system resources and load.
| Metric | Result |
|---|---|
| Run Time | 1 minute |
| Indicators | 100 |
| Indicator Attributes | 100 |
Known Issues / Limitations
- It is recommended to use smaller collection sets (100 objects per run) when running this action.
Change Log
- Version 1.0.1
- Users can now configure the hostname utilized by the integration.
- Added the following new configuration parameters:
- Hostname - allows you to enter the VMRay hostname for the integration to use.
- Enable SSL Certificate Verification - enable or disable verification of the server's SSL certificate.
- Disable Proxies - determine if the action should honor proxy settings set in the ThreatQ UI.
- Version 1.0.0
- Initial release
PDF Guides
| Document | ThreatQ Version |
|---|---|
| VMRay Action Guide v1.0.1 | 5.25.0 or Greater |
| VMRay Action Guide v1.0.0 | 5.25.0 or Greater |
