Universal CSV Parser Action
The web format of this guide reflects the most current release. Guides for older iterations are available in PDF format.
Integration Details
ThreatQuotient provides the following details for this integration:
| Current Integration Version | 1.0.0 |
| Compatible with ThreatQ Versions | >= 5.12.1 |
| ThreatQ TQO License Required | Yes |
| Support Tier | ThreatQ Supported |
Introduction
The Universal CSV Parser Action parses selected CSV files using ThreatQ default mappings for the columns.
Input CSV files must have the column headers present in the file.
The action will parse the CSV file and create indicators based on the columns present in the file as well as normalize the data in the columns to the appropriate data types.
The integration provides the following action:
- Universal CSV Parser - parses CSV files and creates indicators, attributes, and relationships based on the columns present in the file.
The action is compatible with File object types (CSV files).
The action returns the following enriched system objects:
- Adversaries
- Attack Patterns
- Indicators
- Malware
- Tags
This action is intended for use with ThreatQ TDR Orchestrator (TQO). An active TQO license is required for this feature.
Prerequisites
- An active ThreatQ TDR Orchestrator (TQO) license.
- A data collection containing CSV Files.
Installation
Perform the following steps to install the integration:
The same steps can be used to upgrade the integration to a new version.
- Log into https://marketplace.threatq.com/.
- Locate and download the action zip file.
- Navigate to the integrations management page on your ThreatQ instance.
- Click on the Add New Integration button.
- Upload the action zip file using one of the following methods:
- Drag and drop the zip file into the dialog box
- Select Click to Browse to locate the zip file on your local machine
ThreatQ will inform you if the action already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the action contains changes to the user configuration. The new user configurations will overwrite the existing ones for the action and will require user confirmation before proceeding.
You will still need to configure the action.
Configuration
ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.
To configure the integration:
- Navigate to your integrations management page in ThreatQ.
- Select the Actions option from the Category dropdown (optional).
- Click on the action entry to open its details page.

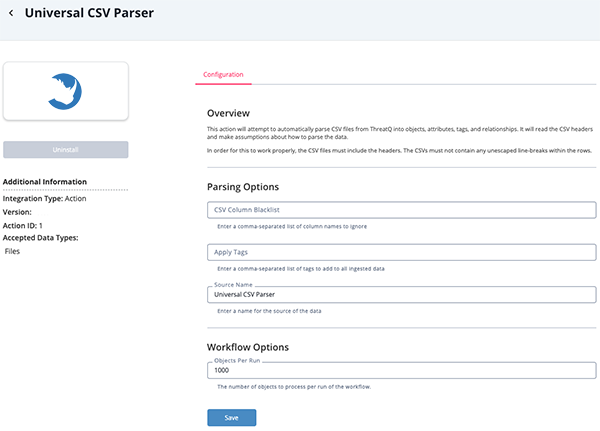

- Enter the following parameters under the Configuration tab:
The configurations set on this page will be used as the default settings when inserting this action into a new workflow. Updating the configurations on this page will not update any instances of this action that have already been deployed to a workflow. In that scenario, you must update the action’s configurations within the workflow itself.
Parameter Description CSV Column Blacklist Enter a comma-separated list of column names to ignore. Apply Tags Enter a comma-separated list of tags to add to all ingested data Source Names Enter a name for the source of the data. The default value is Universal CSV Parser. Objects Per Run The maximum number of objects to process per run.
- Review any additional settings, make any changes if needed, and click on Save.
Actions
The following actions are available:
| Action | Description | Object Type | Object Subtype |
|---|---|---|---|
| Universal CSV Parser | Parses IOCs and Context out of CSV files saved in ThreatQ. | Files | CSV - Generic Text |
Universal CSV Parser
The Universal CSV Parser action takes input CSV files from the ThreatQ Threat Library and parses them for IOCs, relationships, attributes, and other context.
This action uses sensible default mappings for columns in the CSV file. CSVs without column headers will not be parsed correctly, and likely ignored. If you are not seeing data being mapped properly, please ensure that the column headers are present in the CSV first.
API Mapping
The following is a list of the default mappings for the columns in the CSV file to the ThreatQ API objects.
| Column Name | Object Type | Object Subtype |
|---|---|---|
| title | Report | |
| report | Report | |
| type | Subtype | |
| ioc_type | Subtype | |
| entity_type | Subtype | |
| indicator_type | Subtype | |
| indicatortype | Subtype | |
| value | Indicator | |
| data | Indicator | |
| indvalue | Indicator | |
| indval | Indicator | |
| ind_value | Indicator | |
| indicator_value | Indicator | |
| ind_val | Indicator | |
| ind | Indicator | |
| ioc | Indicator | |
| indicator | Indicator | |
| observable | Indicator | |
| hash | Indicator | |
| sample | Indicator | |
| file | Indicator | |
| c2 | Indicator | IP Address |
| c2_server | Indicator | IP Address |
| ip_dst | Indicator | IP Address |
| ip_src | Indicator | IP Address |
| source_ip | Indicator | IP Address |
| destination_ip | Indicator | IP Address |
| ip_source | Indicator | IP Address |
| ip_destination | Indicator | IP Address |
| dst_ip | Indicator | IP Address |
| src_ip | Indicator | IP Address |
| ip | Indicator | IP Address |
| ip_address | Indicator | IP Address |
| ipv4 | Indicator | IP Address |
| address | Indicator | IP Address |
| ip_attacker | Indicator | IP Address |
| ipv6 | Indicator | IPv6 Address |
| url | Indicator | URL |
| asn | Indicator | ASN |
| domain | Indicator | FQDN |
| fqdn | Indicator | FQDN |
| host | Indicator | FQDN |
| dns | Indicator | FQDN |
| md5 | Indicator | MD5 |
| md5_hash | Indicator | MD5 |
| sha1 | Indicator | SHA-1 |
| sha1_hash | Indicator | SHA-1 |
| sha_1 | Indicator | SHA-1 |
| sha256 | Indicator | SHA-256 |
| sha256_hash | Indicator | SHA-256 |
| sha_256 | Indicator | SHA-256 |
| sha512 | Indicator | SHA-512 |
| sha512_hash | Indicator | SHA-512 |
| sha_512 | Indicator | SHA-512 |
| sha384 | Indicator | SHA-384 |
| sha384_hash | Indicator | SHA-384 |
| sha_384 | Indicator | SHA-384 |
| hash_md5 | Indicator | MD5 |
| hash_sha1 | Indicator | SHA-1 |
| hash_sha256 | Indicator | SHA-256 |
| hash_sha512 | Indicator | SHA-512 |
| hash_sha384 | Indicator | SHA-384 |
| filehash_md5 | Indicator | MD5 |
| filehash_sha1 | Indicator | SHA-1 |
| filehash_sha256 | Indicator | SHA-256 |
| filehash_sha512 | Indicator | SHA-512 |
| filehash_sha384 | Indicator | SHA-384 |
| mutex | Indicator | Mutex |
| cve | Indicator | CVE |
| vulnerability | Indicator | CVE |
| Indicator | Email Address | |
| email_address | Indicator | Email Address |
| file_name | Indicator | Filename |
| filename | Indicator | Filename |
| campaign | Campaign | |
| adversary | Adversaries | |
| adversaries | Adversaries | |
| threat_actor | Adversaries | |
| actor | Adversaries | |
| handle | Adversaries | |
| malware | Malware | |
| family | Malware | |
| families | Malware | |
| malware_family | Malware | |
| malware_families | Malware | |
| malware_class | Malware | |
| signature | Malware | |
| tag | Tag | |
| tags | Tag | |
| date | Published At | |
| dateins | Published At | |
| date_discovered | Published At | |
| timestamp | Published At | |
| dateadded | Published At | |
| published | Published At | |
| created | Published At | |
| last_seen | Published At | |
| first_seen | Published At | |
| date_discovered | Published At | |
| discovered_at | Published At | |
| published_at | Published At | |
| created_at | Published At | |
| first_seen_utc | Published At | |
| description | Description | |
| descriptions | Description | |
| short_description | Description | |
| long_description | Description | |
| overview | Description | |
| summary | Description | |
| tlp | TLP | |
| country | Attribute | Country |
| country_code | Attribute | Country Code |
| status | Status | |
| status_name | Status | |
| attack_pattern | Attack Pattern | |
| attack_patterns | Attack Pattern |
Enriched Data
Object counts and action runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and action runtime may vary based on system resources and load.
| Metric | Result |
|---|---|
| Run Time | 24 minutes |
| Indicators | 10 |
| Indicator Attributes | 30 |
Use Case Example
- I receive Threat Intelligence via a CSV file from a third-party vendor. I need the data to be parsed and converted into ThreatQ objects for further analysis. I also want to maintain the supporting context from the columns in the CSV file, to the corresponding indicator/object.
- I have an intelligence mailbox setup to receive Threat Intelligence reports from third-party vendors. I want to automatically have those files parsed and converted into ThreatQ objects for further analysis.
Known Issues / Limitations
- Input CSV files must have the column headers present in the file in order for the action to work.
Change Log
- Version 1.0.0
- Initial release
