Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Trend Micro Deep Security Action integration is designed to export a ThreatQ data collection comprised of IP Addresses, CIDR Blocks, IPv6 Addresses from ThreatQ to a Trend Micro Deep Security on-premise or cloud instance. These data collections are accepted as IP Lists within Trend Micro and are typically used for policies.

The integration provides the following action:

• Trend Micro Deep Security - Export Indicators - uploads indicators to an IP List in Trend Micro.

The action is compatible with Asset and Indicator type system objects.

This action is intended for use with ThreatQ TDR Orchestrator (TQO). An active TQO license is required for this feature.

Prerequisites

• An active ThreatQ TDR Orchestrator (TQO) license.
• A data collection containing at least one of the following object types:
  • Asset
  • Indicator
• A Trend Micro Deep Security Instance.
• A Trend Micro Deep Security API Key.  See the following links, based your environment type, for additional information:
  • Cloud Instances - https://cloudone.trendmicro.com/docs/workload-security/api-reference/tag/IP-Lists#operation/createIPList
  • On-Premise Instance -  https://automation.deepsecurity.trendmicro.com/article/20_0/api-reference

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the action zip file.
3. Navigate to the integrations management page on your ThreatQ instance.
4. Click on the Add New Integration button.
5. Upload the action zip file using one of the following methods:
   • Drag and drop the zip file into the dialog box
   • Select Click to Browse to locate the zip file on your local machine

   ThreatQ will inform you if the action already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the action contains changes to the user configuration. The new user configurations will overwrite the existing ones for the action and will require user confirmation before proceeding.

You will still need to configure the action.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.


To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Actions option from the Category dropdown (optional).
3. Click on the action entry to open its details page.

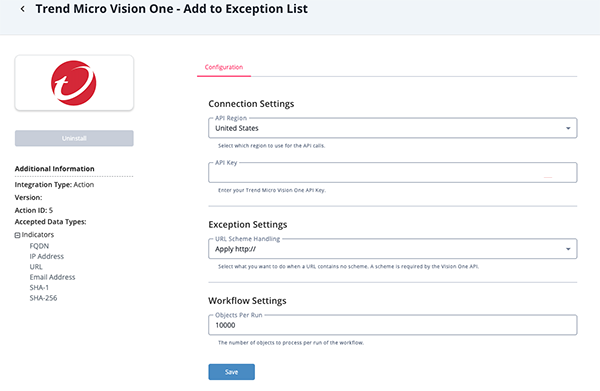

4. Enter the following parameters under the Configuration tab:

   The configurations set on this page will be used as the default settings when inserting this action into a new workflow. Updating the configurations on this page will not update any instances of this action that have already been deployed to a workflow. In that scenario, you must update the action’s configurations within the workflow itself.

   Parameter	Description
   Trend Micro Deep Security Instance	The URL to the Trend Micro Deep Security instance. The pattern for cloud instance is as follows: workload.<region>.cloudone.trendmicro.com. On-Premise instances should specify the port.
   API Key	The API Key generated within your Trend Micro Deep Security Manager instance.
   Authentication Header Parameter Name	Select the name of the header used for authentication. Options include: Authorization api-secret-key Users should select api-secret-key for an on-premise instance. For cloud instances, the selection depends on the API Key type.  Select Authorization for a Trend Micro Cloud One API Key or api-secret-key for a Legacy API Key.
   Enable SSL Certificate Verification	Enable this parameter if the action should validate the host-provided SSL certificate.
   Disable Proxies	Enable this parameter if the action should not honor proxies set in the ThreatQ UI.
   IP List Name	Specify the name of the IP List where the input collection is uploaded to in Trend Micro.
   Clear IP List on Manual Run	Enabling this will automatically clear the IP List on manual runs before exporting new objects to it. This is done to ensure that the category is always up-to-date with the ThreatQ data collection.
   Objects per run	Maximum number of objects to process per-run.



5. Review any additional settings, make any changes if needed, and click on Save.

Actions

The following action is available:

{
  "name": "threatq_collection_0",
  "description": "Data Collection sent from ThreatQ at 2025-02-10 10:00:00",
  "items": [
    "1.2.3.4",
    "5.15.134.0/24",
    "2606:4700:4700:0000:0000:0000:0000:1111"
  ]
}

{
  "ip_list": {
    "ID": 65,
    "description": "Data Collection sent from ThreatQ at 2025-02-10 10:00:00",
    "items": [
      "1.2.3.4",
      "5.15.134.0/24",
      "2606:4700:4700:0000:0000:0000:0000:1111"
    ]
  }
}

Use Case Example

1. A Threat Analyst identifies a collection of IP Address he would like to upload to Trend Micro.
2. The Threat Analyst adds the Trend Micro Deep Security action to a Workflow.
3. The Threat Analyst configures the action with the desired parameters and enables the Workflow.
4. The Workflow executes all actions in the graph, including Trend Micro Deep Security.
5. The uploads the input collection to an IP List in Trend Micro.

Known Issues / Limitations

• Trend Micro allows IP Lists to have a maximum of 32,000 characters. Due to this limitation, the data from the collection is split in multiples parts. The name of each part is built by appending to the value of the user field IP List Name the number of the part from the ThreatQ collection that is uploaded (e.g list_0, list_1 and so on). Even if the ThreatQ collection does not exceed the Trend Micro limit the name of the list will have _0 appended.
• Trend Micro allows a maximum of 5000 IP Lists in their platform.
• The entire batch (100 items) will fail to upload if the input collection contains Assets that are not valid private IP Addresses or CIDR Blocks.

Change Log

• Version 1.0.0
  • Initial release
