Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Hive Action enables a user to create cases in The Hive with ThreatQ indicators attached as case observables.

The integration provides the following action:

• The Hive Create Case - Creates cases and observables in The Hive based on ThreatQ objects. For each object an observable will be attached to the created case.

The action is compatible with the following object types:

• Adversaries
• Assets
• Attack Patterns
• Campaigns
• Course of Actions
• Exploit of Targets
• Identities
• Indicators
  • ASN
  • IP Address
  • IPv6 Address
  • CIDR Block
  • MD5
  • SHA-1
  • SHA-256
  • SHA-384
  • SHA-512
  • URL
  • FQDN
  • Filename
  • Email Address
  • Email Subject
• Intrusion Sets
• Malware
• Reports
• Tools
• TTPs
• Vulnerabilities

The action returns the following enriched system objects:

• Adversaries
• Assets
• Attack Patterns
• Campaigns
• Course of Actions
• Exploit of Targets
• Identities
• Indicators
• Intrusion Sets
• Malware
• Reports
• Tools
• TTPs
• Vulnerabilities

This action is intended for use with ThreatQ TDR Orchestrator (TQO). An active TQO license is required for this feature.

Prerequisites

• An active ThreatQ TDR Orchestrator (TQO) license.
• A data collection containing at least one of the following object types:
  • Adversaries
  • Assets
  • Attack Patterns
  • Campaigns
  • Course of Actions
  • Exploit of Targets
  • Identities
  • Indicators
    • ASN
    • IP Address
    • IPv6 Address
    • CIDR Block
    • MD5
    • SHA-1
    • SHA-256
    • SHA-384
    • SHA-512
    • URL
    • FQDN
    • Filename
    • Email Address
    • Email Subject
  • Intrusion Sets
  • Malware
  • Reports
  • Tools
  • TTPs
  • Vulnerabilities
• The Hive API Key with the following permissions:
  • ManageCase/create
  • ManageObservable
  • ManageTag
• The following observable types must exist in The Hive: autonomous-system, ip, hash, url, fqdn, filename, mail, mail-subject.
  • To add or update observable types login as an administrator and go to {{THE_HIVE_URL}}/administration/entities/observables)
  • The ThreatQ indicators are uploaded to The Hive according to the mapping table presented in the Actions section of this guide.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the action zip file.
3. Navigate to the integrations management page on your ThreatQ instance.
4. Click on the Add New Integration button.
5. Upload the action zip file using one of the following methods:
   • Drag and drop the zip file into the dialog box
   • Select Click to Browse to locate the zip file on your local machine

   ThreatQ will inform you if the action already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the action contains changes to the user configuration. The new user configurations will overwrite the existing ones for the action and will require user confirmation before proceeding.

You will still need to configure the action.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.


To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Actions option from the Category dropdown (optional).
3. Click on the action entry to open its details page.

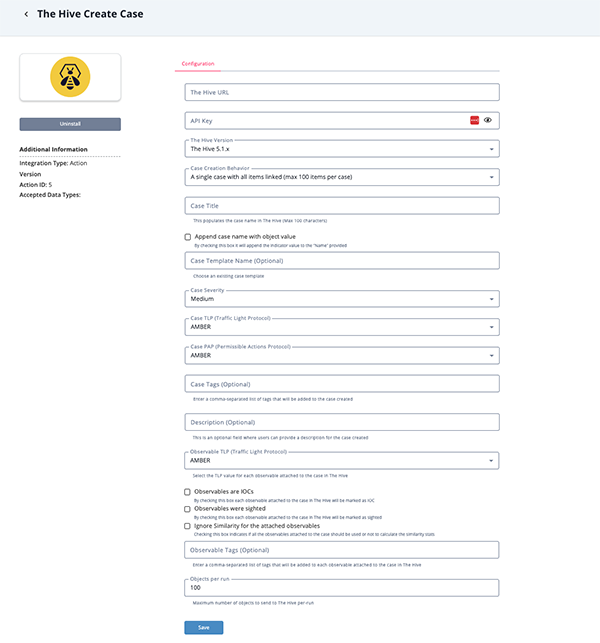

4. Enter the following parameters under the Configuration tab:

   The configurations set on this page will be used as the default settings when inserting this action into a new workflow. Updating the configurations on this page will not update any instances of this action that have already been deployed to a workflow. In that scenario, you must update the action’s configurations within the workflow itself.

   Parameter	Description
   The Hive URL	The URL for your The Hive instance.
   API Key	Your The Hive API Key.
   The Hive Version	Select your version of The Hive.  Options include: The Hive 5.2.x (default) The Hive 5.1.x  The Hive 4.x
   Case Creation Behavior	Select the case creation behavior. Options include: A single case with all items linked (default). The maximum is 100 items per case. Individual Cases per item
   Case Title	This populates the case name in The Hive. Maximum length is 100 characters.
   Append case name with object value	Enabling this parameter it will append the indicator value to the case name provided.   Total length must be less than 400 characters.
   Case Template Name (Optional)	Enter an existing case template from The Hive.
   Case Severity	Select the severity for the new case.  Options include: Low Medium (default) High Critical
   Case TLP (Traffic Light Protocol)	Select the TLP value for the new case.  Options include: White Green Amber (default) Amber+Strict Red
   Case PAP (Permissible Actions Protocol)	Select the PAP value for the new case. Options include: White Green Amber (default) Red
   Case Tags (Optional)	Enter a comma-separated list of tags that will be added to the case created.
   Description (Optional)	This is an optional field where users can provide a description for the case created.
   Observable TLP (Traffic Light Protocol)	Select the TLP value for each observable attached to the case in The Hive. Options include: White Green Amber (default) Amber+Strict Red
   Observables are IOCs	Enabling this parameter with result in each observable attached to the case in The Hive to be marked as IOC.
   Observables were sighted	Enabling this parameter will result in each observable attached to the case in The Hive to be marked as Sighted.
   Ignore Similarity for the attached observables	Enabling this parameter will result in all observables attached to the case being used to calculate the similarity stats.
   Observable Tags	Optional - enter a comma-separated list of tags that will be added to each observable attached to the case in The Hive.
   Objects per run	Maximum number of objects to send to The Hive per-run.



5. Review any additional settings, make any changes if needed, and click on Save.

Actions

The integration provides the following action:

{
  "title": "Block IPs: 1.2.3.4, 1.2.3.5",
  "description": "Case generated using ThreatQ Platform.",
  "tlp": 2,
  "pap": 2,
  "severity": 3,
  "tags": [
    "malicious_traffic"
  ]
}

{
  "_id": "~23423",
  "_type": "Case",
  "_createdBy": "username@org",
  "_createdAt": 1695642985743,
  "title": "Block IP: 1.2.3.4",
  "description": "Case generated using ThreatQ Platform.",
  "severity": 3,
  "tlp": 2,
  "pap": 2,
  "number": 22,
  "startDate": 1695642985743,
  "tags": [
    "malicious_traffic"
  ],
  "status": "Open",
  "assignee": "username@org",
  "flag": false,
  "tasks": [],
  "customFields": {}
}

{
  "dataType": "ip",
  "data": "1.2.3.4",
  "tlp": 2,
  "ioc": false,
  "sighted": false,
  "ignoreSimilarity": false,
  "tags": [
    "ddos"
  ]
}

{
  "_createdAt": 1695649235959,
  "_createdBy": "username@org",
  "_id": "~327692408",
  "_type": "Observable",
  "data": "1.2.3.4",
  "dataType": "ip",
  "extraData": {},
  "ioc": false,
  "reports": {},
  "sighted": false,
  "startDate": 1695649235959,
  "tags": [
    "ddos"
  ],
  "tlp": 2
}

Enriched Data

Object counts and action runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and action runtime may vary based on system resources and load.

Known Issues / Limitations

• The option Append case name with object value appends the value of the objects only if their total length is less than 400 characters.

Change Log

• Version 1.1.1
  • Added support for The Hive v5.2.x which includes support for TLP 2.0.
• Version 1.1.0
  • Added support for the following object types: adversary, Asset, Attack Pattern, Campaign, Course of Action, Exploit Target, Identity, Intrusion Set, Malware, Report, Tool, TTP, and Vulnerability.
  • Updated minimum ThreatQ version to 5.20.0.
• Version 1.0.0
  • Initial release
