Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Intel 471 Reports Action Bundle integration enriches ThreatQ objects with threat intelligence reports from the feeds published by Intel 471.

The integration provides the following actions:

• Intel 471 Reports Enrichment - queries data against Intel 471 Reports.
• Intel 471 Breach Alerts Enrichment - queries data against Intel 471 Breach Alerts.
• Intel 471 Spot Reports Enrichment - queries data against Intel 471 Spot Reports.

The actions are compatible with the following object types:

• Adversary
• Indicator
• Malware

The actions return the following enriched system objects:

• Adversary
• Attack Pattern
• Indicator
• Malware
• Report

This action is intended for use with ThreatQ TDR Orchestrator (TQO). An active TQO license is required for this feature.

Prerequisites

• An active ThreatQ TDR Orchestrator (TQO) license.
• A data collection containing at least one of the following object types:
  • Adversary
  • Indicator
  • Malware
• An Intel 471 API Key and associated Email account.
• The ThreatQ MITRE Enterprise ATT&CK CDF, MITRE Mobile CDF, and MITRE PRE-ATT&CK feeds should be installed on your ThreatQ instance.  These three feeds are provided by the MITRE ATT&CK CDF integration, which is available on the ThreatQ Marketplace.

  MITRE ATT&CK attack patterns must have already been ingested by a previous run of the MITRE ATT&CK feeds in order for the MITRE TIDs extracted from Actor Profiles to be mapped to the corresponding MITRE ATT&CK attack patterns.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the action zip file.
3. Navigate to the integrations management page on your ThreatQ instance.
4. Click on the Add New Integration button.
5. Upload the action zip file using one of the following methods:
   • Drag and drop the zip file into the dialog box
   • Select Click to Browse to locate the zip file on your local machine

   ThreatQ will inform you if the action already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the action contains changes to the user configuration. The new user configurations will overwrite the existing ones for the action and will require user confirmation before proceeding.

You will still need to configure the action(s).

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.


To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Actions option from the Category dropdown (optional).
3. Click on the action entry to open its details page.
4. Enter the following parameters under the Configuration tab:

   The configurations set on this page will be used as the default settings when inserting this action into a new workflow. Updating the configurations on this page will not update any instances of this action that have already been deployed to a workflow. In that scenario, you must update the action’s configurations within the workflow itself.

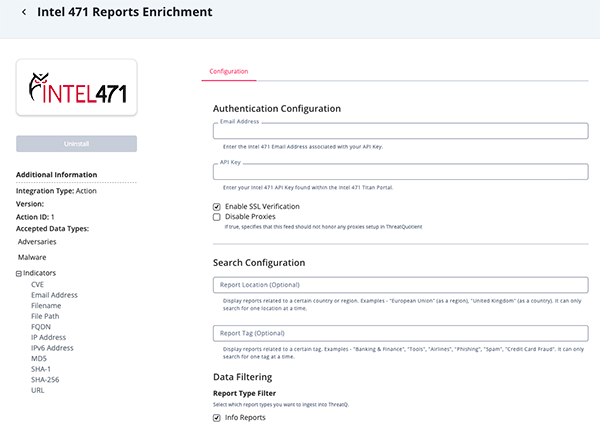

   Reports Enrichment Parameters

   Parameter	Description
   Email Address	Enter the Intel 471 Email Address associated with your API Key.
   API Key	Enter your Intel 471 API Key found within the Intel 471 Titan Portal.
   Enable SSL Verification	Enable or Disable Host SSL certificate verification.
   Disable Proxies	Enable this option if the action should not honor proxies set in the ThreatQ UI.
   Report Location	Optional - Display reports related to a certain country or region. Examples include: "European Union" (as a region), "United Kingdom" (as a country). This parameter can only search for one location at a time.
   Report Tag	Optional - Display reports related to a certain tag. Examples include: "Banking & Finance", "Tools", "Airlines", "Phishing", "Spam", "Credit Card Fraud". This parameter can only search for one tag at a time.
   Report Type Filter	Select which report types to ingest into ThreatQ when the Fetch Related Reports parameter is enabled.  Options include: Info Reports Breach Reports Intelligence Bulletins Underground Pulses Whitepapers Threat Briefs Intelligence Summaries Malware Campaigns Actor Profiles
   Fetch Related Reports	When enabled, related reports will be fetched, parsed, and ingested. Enabling this parameter will require additional API calls and may increase the chance of timeout errors.
   Related Report Family Filter	Select which related report types to ingest into ThreatQ when the Fetch Related Reports parameter is enabled.  Options include Info Reports Finished Intelligence Spot Reports
   Attribute Filter	Select which pieces of context to ingest into ThreatQ.  Options include: GIRs Victims Victim Country Victim Industry Region Information Country Information Confidence Level Admiralty Codes Motivations Source Characterization Sensitive Source Portal URL First Activity Last Activity
   Ingest Tags	Enable this parameter to ingest tags.
   Fetch GIR Names	When enabled, GIR names will be fetched and used.  Example: 5.2.1 - Initial Access Tactic. When disabled, GIRs names will be left in their raw format.  Example: 3.1.1.
   Relationship Filter	Select which relationship context to ingest into ThreatQ.  Options include: Actors Subject of Report Actor or Group Handles (Adversaries) Malware Families
   Indicator Filter	Select which indicators to ingest into ThreatQ.  Options include: Malicious URLs Malicious Domains IP Addresses CVE IDs MD5 Hashes SHA-1 Hashes SHA-256 Hashes Actor Domains Actor Websites URLs File Paths Filenames Email Addresses Jabber Usernames Telegram Usernames
   URL Status (Non-Malicious)	Select the status to use for URLs.  Options include: Indirect (default) Active Review Whitelisted The Indirect option is selected by default because the URLs are typically not malicious.
   Actor Domain Status	Select the status to use for actor domains. Options include: Indirect (default) Active Review Whitelisted The Indirect option is selected by default because the actor domains are typically not malicious.
   Actor Website Status	Select the status to use for actor websites. Options include: Indirect (default) Active Review Whitelisted The Indirect option is selected by default because the actor websites are typically not malicious.
   Objects Per Run	The number of objects to process per run of the workflow.

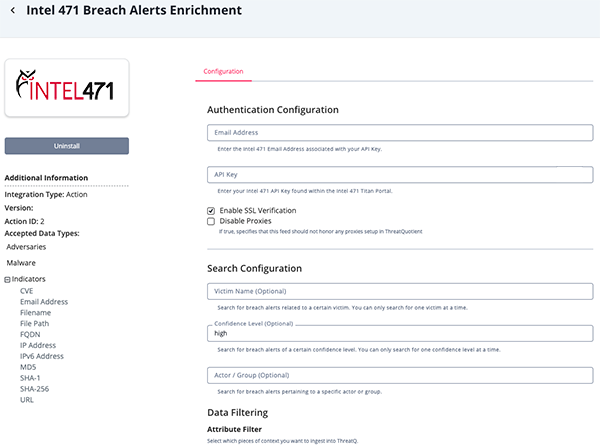

   Breach Alerts Enrichment Parameters

   Parameter	Description
   Email Address	Enter the Intel 471 Email Address associated with your API Key.
   API Key	Enter your Intel 471 API Key found within the Intel 471 Titan Portal.
   Enable SSL Verification	Enable or Disable Host SSL certificate verification.
   Disable Proxies	Enable this option if the action should not honor proxies set in the ThreatQ UI.
   Victim Name	Optional - Search for breach alerts related to a certain victim. You can only search for one victim at a time.
   Confidence Level	Optional - Search for breach alerts of a certain confidence level. You can only search for one confidence level at a time.
   Actor / Group	Optional - Search for breach alerts pertaining to a specific actor or group.
   Attribute Filter	Select which pieces of context to ingest into ThreatQ. Options include: GIRs Victims Victim Industries Victim Countries Confidence Level First Activity Date Last Activity Date
   Fetch GIR Names	When enabled, GIR names will be fetched and used.  Example: 5.2.1 - Initial Access Tactic. When disabled, GIRs names will be left in their raw format.  Example: 3.1.1.
   Relationship Filter	Select which relationship context to ingest into ThreatQ.  Options include: Actors Subject of Report Actor or Group Handles (Adversaries) Malware Families
   Indicator Filter	Select which indicators to ingest into ThreatQ.  Options include: Malicious URLs Malicious Domains IP Addresses CVE IDs MD5 Hashes SHA-1 Hashes SHA-256 Hashes Actor Domains Actor Websites URLs File Paths Filenames Email Addresses Jabber Usernames Telegram Usernames
   URL Status (Non-Malicious)	Select the status to use for URLs.  Options include: Indirect (default) Active Review Whitelisted The Indirect option is selected by default because the URLs are typically not malicious.
   Actor Domain Status	Select the status to use for actor domains. Options include: Indirect (default) Active Review Whitelisted The Indirect option is selected by default because the actor domains are typically not malicious.
   Actor Website Status	Select the status to use for actor websites. Options include: Indirect (default) Active Review Whitelisted The Indirect option is selected by default because the actor websites are typically not malicious.
   Objects Per Run	The number of objects to process per run of the workflow.

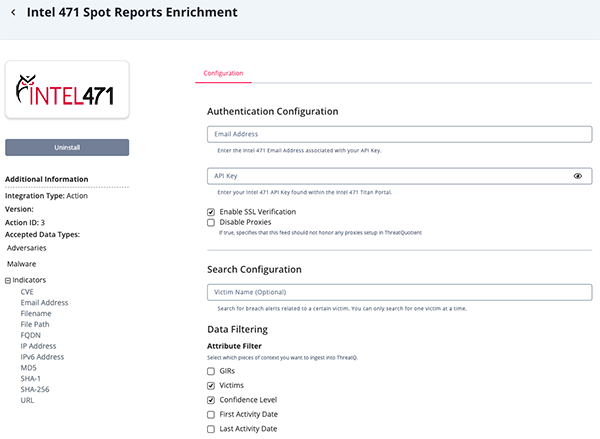

   Spot Reports Enrichment Parameters

   Parameter	Description
   Email Address	Enter the Intel 471 Email Address associated with your API Key.
   API Key	Enter your Intel 471 API Key found within the Intel 471 Titan Portal.
   Enable SSL Verification	Enable or Disable Host SSL certificate verification.
   Disable Proxies	Enable this option if the action should not honor proxies set in the ThreatQ UI.
   Victim Name	Optional - Search for breach alerts related to a certain victim. You can only search for one victim at a time.
   Attribute Filter	Select which pieces of context to ingest into ThreatQ. Options include: GIRs Victims Confidence Level First Activity Date Last Activity Date
   Fetch GIR Names	When enabled, GIR names will be fetched and used.  Example: 5.2.1 - Initial Access Tactic. When disabled, GIRs names will be left in their raw format.  Example: 3.1.1.
   Relationship Filter	Select which relationship context to ingest into ThreatQ.  Options include: Actors Subject of Report Actor or Group Handles (Adversaries) Malware Families
   Indicator Filter	Select which indicators to ingest into ThreatQ.  Options include: Malicious URLs Malicious Domains IP Addresses CVE IDs MD5 Hashes SHA-1 Hashes SHA-256 Hashes Actor Domains Actor Websites URLs File Paths Filenames Email Addresses Jabber Usernames Telegram Usernames
   URL Status (Non-Malicious)	Select the status to use for URLs.  Options include: Indirect (default) Active Review Whitelisted The Indirect option is selected by default because the URLs are typically not malicious.
   Actor Domain Status	Select the status to use for actor domains. Options include: Indirect (default) Active Review Whitelisted The Indirect option is selected by default because the actor domains are typically not malicious.
   Actor Website Status	Select the status to use for actor websites. Options include: Indirect (default) Active Review Whitelisted The Indirect option is selected by default because the actor websites are typically not malicious.
   Objects Per Run	The number of objects to process per run of the workflow.



5. Review any additional settings, make any changes if needed, and click on Save.

Actions

The following actions are available:

{
  "uid": "cf1d3297dba669b0cbf13c275f973135cd27a4de279899aadb4f7cbde80e04c7",
  "documentFamily": "INFOREP",
  "documentType": "INFOREP",
  "admiraltyCode": "B2",
  "motivation": [
    "CC"
  ],
  "subject": "Russian actor, bulletproof hoster yalishanda (aka downlow, stas_vl) adds 12 front-end proxies to fast-flux offering; Current proxy-net size sits at 250 IP addresses",
  "created": 1686921777000,
  "dateOfInformation": 1686873600000,
  "sourceCharacterization": "Information was derived from a reliable source in direct contact with yalishanda and visibility into the actor’s bulletproof hosting service.",
  "relatedReports": [
    {
      "uid": "63c31296bcb43fd226513fb15bb1db08a76dd36d8c3cbb30b434a4d0beab4210",
      "documentFamily": "INFOREP"
    },
    {
      "uid": "1c895446738ca1280fae73fb1ba3219480a606e469f543ab985a05b1155585c3",
      "documentFamily": "INFOREP"
    }
  ],
  "entities": [
    {
      "type": "SHA256",
      "value": "4c9b551910643eb2c5a4adaf517f41cf1c5035c1526b11f108accd970e675e31"
    },
    {
      "type": "MaliciousDomain",
      "value": "amazo-ne.com-system-1359650.xyz"
    },
    {
      "type": "MaliciousDomain",
      "value": "amazo-ne.com-system-7558190.xyz"
    },
    {
      "type": "MaliciousDomain",
      "value": "babypetstore.shop"
    },
    {
      "type": "IPAddress",
      "value": "109.234.38.205"
    },
    {
      "type": "Handle",
      "value": "yalishanda"
    }
  ],
  "locations": [
    {
      "region": "Oceania",
      "country": "Australia",
      "link": "impacts"
    },
    {
      "region": "North America",
      "country": "Canada",
      "link": "impacts"
    },
    {
      "region": "Europe",
      "country": "Germany",
      "link": "impacts"
    },
    {
      "region": "Europe",
      "country": "Netherlands",
      "link": "impacts"
    },
    {
      "region": "Europe",
      "country": "Russia",
      "link": "impacts"
    },
    {
      "region": "Europe",
      "country": "United Kingdom",
      "link": "impacts"
    },
    {
      "region": "North America",
      "country": "United States",
      "link": "impacts"
    },
    {
      "region": "Europe",
      "country": "Russia",
      "link": "originated_from"
    }
  ],
  "tags": [
    "Banking & Finance",
    "Bulletproof Hosting",
    "Bulletproof Hosting Tracking",
    "Extortion",
    "Malware - Usage",
    "Phishing",
    "Ransomware"
  ],
  "portalReportUrl": "https://titan.intel471.com/report/inforep/0d7f4312db15947e3ac8e330a8e55175",
  "lastUpdated": 1686921779000,
  "actorSubjectOfReport": [
    {
      "handle": "yalishanda"
    }
  ],
  "classification": {
    "intelRequirements": [
      "3.1.1"
    ]
  },
  "reportAttachments": [
    {
      "url": "https://api.intel471.com/v1/reports/download/0d7f4312db15947e3ac8e330a8e55175/d7481f4c2a545304d4d806d586a62bc53c0f33ed2b39ea35066d424f48957dd0",
      "fileName": "2023-06-16_yalishanda.csv",
      "malicious": false,
      "mimeType": "text/csv",
      "fileSize": 955544
    }
  ],
  "researcherComments": "<p>[Redacted]</p>",
  "executiveSummary": "<p>As of 10 a.m. GMT, June 16, 2023, the actor <strong>yalishanda’s </strong>fast-flux network stands at 250 total hosts. There were 12 hosts added to the network in the last 24 hours, while 15 hosts were dropped during this period.</p><p>The actor hosted phishing campaigns targeting Amazon and National Australia Bank (NAB) customers, and PrivateLoader malware samples.</p>"
}

{
  "activity": {
    "first": 1687264522000,
    "last": 1687268325000
  },
  "last_updated": 1687268325000,
  "uid": "4f38ec47e6a75e28c532171237b039cd",
  "data": {
    "breach_alert": {
      "date_of_information": 1686960000000,
      "confidence": {
        "level": "high",
        "description": "Assessment is based upon high-quality, corroborated intelligence from trustworthy sources."
      },
      "intel_requirements": [
        "1.1.1",
        "1.2.2",
        "4.2.5",
        "5.2.9",
        "5.2.11",
        "5.2.12",
        "5.5.3",
        "5.5.4",
        "6.1.6.4",
        "6.2.6.5",
        "6.2.6",
        "6.1.6"
      ],
      "released_at": 1687264522000,
      "title": "Akron-Summit County Public Library possibly compromised by actor/group Akira on Jun 17, 2023",
      "victim": {
        "name": "Akron-Summit County Public Library",
        "industries": [
          {
            "industry": "Education",
            "sector": "Public sector"
          }
        ],
        "urls": ["http://www.akronlibrary.org/"],
        "country": "United States",
        "revenue": "US $25.8 Million",
        "region": "North America"
      },
      "summary": "<p>On June 17, 2023, Intel 471 collected a sample of the Akira ransomware with the 57e4a5c937bc58b01622997ca2acaa91cea2ff5cc9e7f9c4c8bf82349c23e0a9 SHA-256. Our monitoring of ransomware attacker communication revealed the sample likely was used in an attack against the Ohio, U.S.-based Akron-Summit County Public Library at the akronlibrary.org website. The perpetrators allegedly deployed the ransomware on or about May 30, 2023, exfiltrated about 71.2 GB of data and demanded US $300,000 in ransom. They also shared a complete listing of stolen files with the victim as the proof of the claim.</p>",
      "actor_or_group": "Akira"
    },
    "entities": [
      {
        "type": "SHA256",
        "value": "57e4a5c937bc58b01622997ca2acaa91cea2ff5cc9e7f9c4c8bf82349c23e0a9"
      },
      {
        "type": "Handle",
        "value": "Akira"
      },
      {
            "type":"BitcoinAddress",
            "value":"bc1ql5f3m75qx3ueu2pz5eeveyqsw6pdjs3ufk8r20"
        },
      {
        "type": "MalwareFamily",
        "value": "Akira"
      }
    ]
  }
}

{
  "activity": {
    "first": 1646665224000,
    "last": 1646747082000
  },
  "last_updated": 1646747082000,
  "uid": "053ba72b1878c5b43241037a18cc781d",
  "data": {
    "spot_report": {
      "uid": "053ba72b1878c5b43241037a18cc781d",
      "spot_report_data": {
        "related_reports": [
          "94fa5d7114312f942173821ab0cc8458",
          "99313d87ca836e9aaaf761cedd75c66f",
          "fc2300976c64b6e5b175e8c48e9a20bd"
        ],
        "victims": [
          {
            "name": "Saudia",
            "urls": [
              "http://www.saudia.com/"
            ]
          }
        ],
        "date_of_information": 1646352000000,
        "text": "[POSSIBLE BREACH ALERT] On March 4, 2022, the actor behind the Telegram channel AnonyMous IslaMic at @anony_islamic claimed a data breach impacting the Saudi Arabia-based airline Saudia, formerly Saudi Arabian Airlines, at the saudia.com website. The post credited the actor The Yemeni Ghost for the breach and mentioned 2 GB of information allegedly was leaked. The actor also posted several resume files of Saudi citizens and a data sample that contained credit card information as proof of the breach, however, the information provided was insufficient to prove the claim.",
        "intel_requirements": [
          "5.5.3",
          "6.1.1.2",
          "6.2.5.11",
          "4.2.3",
          "4.2.5",
          "5.2.9",
          "5.2.11"
        ],
        "version": "1",
        "links": [
          {
            "type": "internal",
            "url": "https://titan.intel471.com/ims_thread/c8461bf13fca8a2b9912ab2eb1668e4b?message_uid=84e377651e5fbae47900c71e664a5cb3",
            "title": "Telegram post"
          }
        ],
        "released_at": 1646665224000,
        "title": "Actor The Yemeni Ghost claims data breach impacting Saudia"
      }
    },
    "entities": [
      {
        "type": "Telegram",
        "value": "@anony_islamic"
      },
      {
        "type": "Handle",
        "value": "AnonyMous IslaMic"
      },
      {
        "type": "Handle",
        "value": "The Yemeni Ghost"
      }
    ]
  }
}

Enriched Data

Object counts and action runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and action runtime may vary based on system resources and load.

Intel 471 Reports Enrichment

Intel 471 Breach Alerts Enrichment

Intel 471 Spot Reports Enrichment

Use Case Example

Intel 471 Reports Enrichment

1. A Threat Analyst identifies a collection of indicators they would like to enrich with Intel 471 Reports data.
2. The Threat Analyst configures the action with the desired parameters and enables the workflow.
3. The workflow executes the action and ingests all the reports found for the input values.

Intel 471 Breach Alerts Enrichment

1. A Threat Analyst identifies a collection of indicators they would like to enrich with Intel 471 Reports Breach Alerts.
2. The Threat Analyst configures the action with the desired parameters and enables the workflow.
3. The workflow executes the actions and ingests all the reports found for the input values.

Intel 471 Spot Reports Enrichment

1. A Threat Analyst identifies a collection of indicators they would like to enrich with Intel 471 Spot Reports data.
2. The Threat Analyst configures the action with the desired parameters and enables the workflow.
3. The workflow executes the action and ingests all the reports found for the input values.

Known Issues / Limitations

• API usage is limited to your Intel 471 rate limit. Be conscious of that limit and adjust the Objects Per Run configurations accordingly. An API call is made for each object.

• Images will be removed if the description is too long.  This is due to a ThreatQ platform limitation.

• MITRE ATT&CK data is loaded from the cache memory that is refreshed every 24 hours.

Change Log

• Version 1.0.0
  • Initial release
