IBM QRadar SOAR Action

The web format of this guide reflects the most current release. Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Current Integration Version

1.0.0

Compatible with ThreatQ Versions

>= 6.5.0

ThreatQ TQO License Required

Yes

Support Tier

ThreatQ Supported

Introduction

The IBM QRadar SOAR action allows updating events from ThreatQ to your Resilient instance. It has the ability to push new indicators and comments from updated Resilient events in ThreatQ to Resilient as artifacts and comments, respectively.

The integration provides the following action:

IBM QRadar SOAR - Update Events - pushes indicators and comments from updated Resilient events in ThreatQ to Resilient.

The action is compatible with event object types.

This action is intended for use with ThreatQ TDR Orchestrator (TQO). An active TQO license is required for this feature.

Prerequisites

An IBM QRadar SOAR instance.
A username and password for the IBM QRadar SOAR instance.
An active ThreatQ TDR Orchestrator (TQO) license.
A data collection containing the event object type.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

Log into https://marketplace.threatq.com/.
Locate and download the action zip file.
Navigate to the integrations management page on your ThreatQ instance.
Click on the Add New Integration button.
Upload the action zip file using one of the following methods:
- Drag and drop the zip file into the dialog box
- Select Click to Browse to locate the zip file on your local machine
ThreatQ will inform you if the action already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the action contains changes to the user configuration. The new user configurations will overwrite the existing ones for the action and will require user confirmation before proceeding.

You will still need to configure the action.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

Navigate to your integrations management page in ThreatQ.
Select the Actions option from the Category dropdown (optional).
Click on the action entry to open its details page.

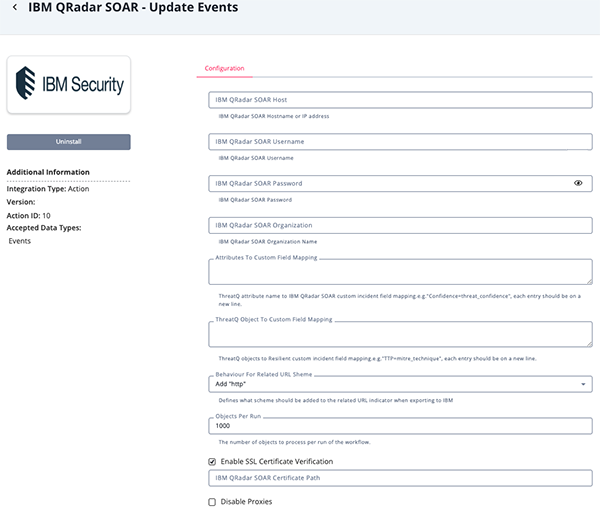

Enter the following parameters under the Configuration tab:

The configurations set on this page will be used as the default settings when inserting this action into a new workflow. Updating the configurations on this page will not update any instances of this action that have already been deployed to a workflow. In that scenario, you must update the action’s configurations within the workflow itself.

Parameter

Description

IBM QRadar SOAR Host

Enter your IBM QRadar SOAR Hostname or IP Address.

IBM QRadar SOAR Username

Enter your IBM QRadar SOAR Username.

IBM QRadar SOAR Password

Enter your IBM QRadar SOAR Password.

IBM QRadar SOAR Organization

Enter your IBM QRadar SOAR Organization Name.

Attributes to Custom Field Mapping

Enter the ThreatQ attribute name to IBM QRadar SOAR custom incident field mapping. Each entry should be on its own line.

Example: Confidence=threat_confidence

ThreatQ Object To Custom Field Mapping

Enter the ThreatQ objects to Resilient custom incident field mapping. Each entry should be on its own line.

Example: TTP=mitre_technique

Supported ThreatQ objects types are:

Adversary
Assets
Attack Pattern
Campaign
Course of Action
Events
Exploit Target
Files
Identity
Incident

Indicators
Intrusion Set
Malware
Notes
Report
Signatures
Tasks
Tool
TTP
Vulnerability

Behaviour for related URL scheme

Define what scheme should be added to the related URL indicator when exporting to IBM. Options include:

Add "http"
Add "https"

Enable SSL Certificate Verification

Enable this for the action to validate the host-provided SSL certificate.

IBM QRadar SOAR Certificate Path

Enter the path to your IBM QRadar SOAR certificate.

Disable Proxies

Enable this option if the action should not honor proxies set in the ThreatQ UI.

Review any additional settings, make any changes if needed, and click on Save.

Actions

The following action is available:

Action	Description	Object Type	Object Subtype
IBM QRadar SOAR - Update Events	Pushes indicators and comments from updated Resilient events in ThreatQ to Resilient	Events	Incidents

IBM QRadar SOAR - Update Events

The IBM QRadar SOAR - Update Events action pushes indicators and comments from updated Resilient events in ThreatQ to Resilient

Get ORG ID

The Get ORG ID retrieves the ORG ID in order to fetch the incidents.

POST https://{host}/rest/session

Sample Response:

{
    "orgs": [
        {
            "id": 201,
            "name": "Organization_X",
            "addr": null,
            "addr2": null,
            "city": null,
            "state": null,
            "zip": null,
            "attachments_enabled": true,
            "final_phase_required": false,
            "tasks_private": false,
            "has_saml": false,
            "require_saml": false,
            "twofactor_auth_domain": null,
            "has_available_twofactor": false,
            "authorized_ldap_group": null,
            "supports_ldap": false,
            "incident_deletion_allowed": true,
            "configuration_type": "standard",
            "parent_org": null,
            "session_timeout": 1200,
            "last_modified_by": {
                "id": 1,
                "type": "user",
                "name": "test@threatq.com",
                "display_name": "User Test"
            },
            "last_modified_time": 1726070182493,
            "uuid": "692649b6-f8e6-449e-ad93-8dbecae7bd4f",
            "timezone": null,
            "cloud_account": null,
            "perms": {
                "master_administrator": true,
                "administrator": true,
                "observer": false,
                "create_incs": true,
                "create_shared_layout": true
            },
            "effective_permissions": [
                139,
                140
            ],
            "role_handles": [
                1003,
                1002,
                1001
            ],
            "instance_roles": [
                {
                    "role_handles": [
                        1003,
                        1002,
                        1001
                    ],
                    "effective_permissions": [
                        105,
                        104
                    ],
                    "typed_object": {
                        "parent": null,
                        "object_id": 201,
                        "object_name": "Organization_X",
                        "type_id": 7,
                        "type_name": "organization"
                    }
                }
            ],
            "enabled": true,
            "twofactor_cookie_lifetime_secs": 0
        }
    ],
    "password_expiration_date": 1743425721904,
    "user_id": 1,
    "user_fname": "User",
    "user_lname": "Test",
    "user_displayname": "User Test",
    "user_email": "test@threatq.com",
    "saml_alias": null,
    "csrf_token": "60d3165ae17cad9a97401dff12ce5b50",
    "session_ip": "10.10.10.10",
    "next_nps_survey_date": null,
    "preferred_org_id": null,
    "effective_system_permissions": [],
    "is_saml": false,
    "is_ldap": false
}

Get Incident ID

The Get Incident ID uses the ID from the ThreatQ Event Title to get the specific Incident from IBM.

GET https://{host}/rest/orgs/{org_id}/incidents/{incident_id}

Sample Response:

{
    "dtm": {},
    "cm": {
        "unassigneds": [],
        "total": 0,
        "geo_counts": {}
    },
    "regulators": {
        "ids": [
            149
        ]
    },
    "hipaa": {
        "hipaa_adverse": null,
        "hipaa_misused": null,
        "hipaa_acquired": null,
        "hipaa_additional_misuse": null,
        "hipaa_breach": null,
        "hipaa_adverse_comment": "",
        "hipaa_misused_comment": "",
        "hipaa_acquired_comment": "",
        "hipaa_additional_misuse_comment": "",
        "hipaa_breach_comment": ""
    },
    "tasks": null,
    "artifacts": null,
    "name": "TestAction",
    "description": "<div class=\"soar-rte-content\"><p>Incident Test</p></div>",
    "phase_id": 1004,
    "inc_training": false,
    "vers": 3,
    "addr": null,
    "city": null,
    "creator": {
        "id": 1,
        "fname": "Valentin",
        "lname": "Todorov",
        "display_name": "Valentin Todorov",
        "status": "A",
        "email": "valentin@threatq.com",
        "locked": false,
        "password_changed": false,
        "is_external": false,
        "ui_theme": "verydarkmode",
        "is_ldap": false,
        "is_saml": false
    },
    "creator_principal": {
        "id": 1,
        "type": "user",
        "name": "valentin@threatq.com",
        "display_name": "Valentin Todorov"
    },
    "exposure_type_id": 1,
    "incident_type_ids": [
        16
    ],
    "reporter": null,
    "state": null,
    "country": null,
    "zip": null,
    "workspace": 1,
    "exposure": 0,
    "org_handle": 201,
    "members": [],
    "negative_pr_likely": null,
    "perms": {
        "read": true,
        "write": true,
        "comment": true,
        "assign": true,
        "close": true,
        "change_members": true,
        "attach_file": true,
        "read_attachments": true,
        "delete_attachments": true,
        "create_milestones": true,
        "list_milestones": true,
        "create_artifacts": true,
        "list_artifacts": true,
        "delete": true,
        "change_workspace": true
    },
    "confirmed": true,
    "task_changes": {
        "added": [],
        "removed": []
    },
    "assessment": "<?xml version=\"1.0\" encoding=\"UTF-8\" standalone=\"yes\"?>\n<assessment>\n    <rollups/>\n    <optional>There are 1 required and 0 optional tasks from 1 regulators.</optional>\n</assessment>\n",
    "data_compromised": null,
    "draft": false,
    "properties": {
        "sn_snow_record_link": null,
        "sn_snow_table_name": null,
        "threatq_link": null,
        "sn_snow_record_id": null,
        "internal_customizations_field": null
    },
    "resolution_id": null,
    "resolution_summary": null,
    "pii": {
        "data_compromised": null,
        "determined_date": 1736842753000,
        "harmstatus_id": 2,
        "data_encrypted": null,
        "data_contained": null,
        "impact_likely": null,
        "ny_impact_likely": null,
        "or_impact_likely": null,
        "wa_impact_likely": null,
        "dc_impact_likely": null,
        "data_source_ids": [],
        "data_format": null,
        "assessment": "<?xml version=\"1.0\" encoding=\"UTF-8\" standalone=\"yes\"?>\n<assessment>\n    <rollups/>\n    <optional>There are 1 required and 0 optional tasks from 1 regulators.</optional>\n</assessment>\n",
        "exposure": 0,
        "gdpr_harm_risk": null,
        "gdpr_lawful_data_processing_categories": [],
        "alberta_health_risk_assessment": null,
        "california_health_risk_assessment": null,
        "new_zealand_risk_assessment": null,
        "singapore_risk_assessment": null
    },
    "gdpr": {
        "gdpr_breach_circumstances": [],
        "gdpr_breach_type": null,
        "gdpr_personal_data": null,
        "gdpr_identification": null,
        "gdpr_consequences": null,
        "gdpr_final_assessment": null,
        "gdpr_breach_type_comment": null,
        "gdpr_personal_data_comment": null,
        "gdpr_identification_comment": null,
        "gdpr_consequences_comment": null,
        "gdpr_final_assessment_comment": null,
        "gdpr_subsequent_notification": null
    },
    "regulator_risk": {},
    "score": null,
    "inc_last_modified_date": 1736930054495,
    "comments": null,
    "actions": [],
    "playbooks": [
        {
            "playbook_handle": 90,
            "display_name": "Qualys VM: Manage Restricted IPs"
        },
        {
            "playbook_handle": 81,
            "display_name": "Qualys VM: Asset Group Add"
        },
        {
            "playbook_handle": 82,
            "display_name": "Qualys VM: Asset Group Delete"
        },
        {
            "playbook_handle": 83,
            "display_name": "Qualys VM: Asset Group List"
        },
        {
            "playbook_handle": 84,
            "display_name": "Qualys VM: Asset Tracked Address Add"
        },
        {
            "playbook_handle": 85,
            "display_name": "Qualys VM: Host - List"
        },
        {
            "playbook_handle": 86,
            "display_name": "Qualys VM: IP - List"
        },
        {
            "playbook_handle": 88,
            "display_name": "Qualys VM: List Vulnerabilities"
        },
        {
            "playbook_handle": 89,
            "display_name": "Qualys VM: List Vulnerabilities of Host"
        },
        {
            "playbook_handle": 87,
            "display_name": "Qualys VM: List Hosts With Vulnerabilities"
        },
        {
            "playbook_handle": 91,
            "display_name": "Qualys VM: Report List"
        },
        {
            "playbook_handle": 92,
            "display_name": "Qualys VM: Scan Launch"
        },
        {
            "playbook_handle": 93,
            "display_name": "Qualys VM: Scan List"
        },
        {
            "playbook_handle": 94,
            "display_name": "Qualys VM: Scan Manage"
        },
        {
            "playbook_handle": 100,
            "display_name": "SNOW: Create New Incident (PB)"
        },
        {
            "playbook_handle": 102,
            "display_name": "SNOW: Create New Security Incident (PB)"
        },
        {
            "playbook_handle": 54,
            "display_name": "ThreatQ: Export Incident"
        }
    ],
    "timer_field_summarized_incident_data": [],
    "admin_id": null,
    "creator_id": 1,
    "crimestatus_id": 5,
    "employee_involved": null,
    "end_date": null,
    "exposure_dept_id": null,
    "exposure_individual_name": null,
    "exposure_vendor_id": null,
    "jurisdiction_name": null,
    "jurisdiction_reg_id": null,
    "start_date": null,
    "inc_start": null,
    "org_id": 201,
    "is_scenario": false,
    "hard_liability": 0,
    "nist_attack_vectors": [],
    "id": 2120,
    "sequence_code": null,
    "discovered_date": 1736842753000,
    "due_date": null,
    "create_date": 1736929251055,
    "owner_id": 1,
    "severity_code": 4,
    "plan_status": "A"
}

Get/Add/Update/Delete Comment

Get All Comments - GET https://{host}/rest/orgs/{org_id}/incidents/{incident_id}/comments

Add a New Comment - PUT https://{host}/rest/orgs/{org_id}/incidents/{incident_id}/comments

Update a Comment - POST https://{host}/rest/orgs/{org_id}/incidents/{incident_id}/comments/{comment_id}

Delete a Comment - https://{host}/rest/orgs/{org_id}/incidents/{incident_id}/comments/{comment_id}

Sample Response:

{
    "type": "incident",
    "id": 134,
    "parent_id": null,
    "user_id": 1,
    "user_fname": "Valentin",
    "user_lname": "Todorov",
    "text": "<div class=\"rte\"><div>[TQ4]</div><div><p>Test comment ThreatQ</p></div></div>",
    "create_date": 1737025949996,
    "modify_date": 1737025949996,
    "children": [],
    "mentioned_users": [],
    "is_deleted": false,
    "modify_user": {
        "id": 1,
        "first_name": "Valentin",
        "last_name": "Todorov"
    },
    "actions": [],
    "playbooks": [
        {
            "playbook_handle": 104,
            "display_name": "SNOW: Send as Additional Comment (PB)"
        },
        {
            "playbook_handle": 105,
            "display_name": "SNOW: Send as Work Note (PB)"
        }
    ],
    "inc_id": 2120,
    "inc_name": "TestAction",
    "task_id": null,
    "task_name": null,
    "task_custom": null,
    "task_members": null,
    "task_at_id": null,
    "inc_owner": 1,
    "user_name": "Valentin Todorov",
    "modify_principal": {
        "id": 1,
        "type": "user",
        "name": "valentin@threatq.com",
        "display_name": "Valentin Todorov"
    },
    "comment_perms": {
        "update": true,
        "delete": true
    }
}

Get All Indicators, Add a New Indicator

Get All Indicators - GET https://{host}/rest/orgs/{org_id}/incidents/{incident_id}/artifacts

Add a New Indicator - POST https://{host}/rest/orgs/{org_id}/incidents/{incident_id}/artifacts

Sample Response:

{
        "id": 195,
        "type": 2,
        "value": "iploc.ru",
        "description": "Added by ThreatQ in Postman",
        "attachment": null,
        "parent_id": null,
        "creator": {
            "id": 1,
            "fname": "Valentin",
            "lname": "Todorov",
            "display_name": "Valentin Todorov",
            "status": "A",
            "email": "valentin@threatq.com",
            "locked": false,
            "password_changed": false,
            "is_external": false,
            "ui_theme": "verydarkmode",
            "is_ldap": false,
            "is_saml": false
        },
        "inc_id": 2123,
        "inc_name": "ACT_TQ_Test",
        "inc_owner": 1,
        "hits": [],
        "created": 1737451402072,
        "last_modified_time": 1737451402080,
        "last_modified_by": {
            "id": 1,
            "type": "user",
            "name": "valentin@threatq.com",
            "display_name": "Valentin Todorov"
        },
        "pending_sources": [],
        "perms": {
            "read": true,
            "write": true,
            "delete": true
        },
        "properties": null,
        "actions": [],
        "playbooks": [
            {
                "playbook_handle": 71,
                "display_name": "ThreatQ: Add Tags to Artifact"
            },
            {
                "playbook_handle": 79,
                "display_name": "ThreatQ: Find Related Malware (Example)"
            },
            {
                "playbook_handle": 75,
                "display_name": "ThreatQ: Export Artifact"
            },
            {
                "playbook_handle": 70,
                "display_name": "ThreatQ: Add Attribute to Artifact"
            },
            {
                "playbook_handle": 77,
                "display_name": "ThreatQ: Find Artifact Hits"
            },
            {
                "playbook_handle": 78,
                "display_name": "ThreatQ: Find Related Artifacts"
            },
            {
                "playbook_handle": 80,
                "display_name": "ThreatQ: Set Artifact Status"
            }
        ],
        "hash": "e7231d43f070a6ca63fb6ca99be71ac10eebdb849f13ba1504be7921ebb10570",
        "relating": true,
        "creator_principal": {
            "id": 1,
            "type": "user",
            "name": "valentin@threatq.com",
            "display_name": "Valentin Todorov"
        },
        "related_incident_count": null,
        "pending_scan_result": false,
        "global_info": null,
        "ip": {
            "source": null,
            "destination": null
        },
        "global_artifact": []
    }

Update Custom Attributes/Objects

PATCH https://{host}/rest/orgs/{org_id}/incidents/{incident_id}

Sample Request:

{
    "changes":[
        {
            "field": {"name":"threatq_link"},
            "old_value": {},
            "new_value": {
                        "text": "new_val"
                    }
        }
    ]
}

Sample Response:

{
    "success": true,
    "title": null,
    "message": null,
    "hints": []
}

Known Issues / Limitations

The ThreatQ Object to Custom Field Mapping configuration field supports the following ThreatQ object types:

Adversary
Assets
Attack Pattern
Campaign
Course of Action
Events
Exploit Target
Files
Identity
Incident

Indicators
Intrusion Set
Malware
Notes
Report
Signatures
Tasks
Tool
TTP
Vulnerability

Change Log

Version 1.0.0
- Initial release

PDF Guides

Document	ThreatQ Version
IBM QRadar SOAR Action Guide v1.0.0	6.5.0 or Greater
