Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Google SecOps IOC Exporter Action for ThreatQ enables the automatic dissemination of IOCs from a ThreatQ data collection to Google SecOps. The exported IOCs are exported in the UDM format, as entities. The UDM format is a universal JSON format that is compatible with SecOps' API. These entities can then be used within SecOps's rules editor (YARA-L) to create rules to trigger alerts.

The integration provides the following action:

• Google SecOps IOC Exporter - enables the automatic dissemination of IOCs from a ThreatQ data collection to Google SecOps.

The action is compatible with the following indicator types:

• Email Address
• FQDN
• IP Address
• IPv6 Address
• MD5
• SHA-1
• SHA-256
• URL

This action is intended for use with ThreatQ TDR Orchestrator (TQO). An active TQO license is required for this feature.

Prerequisites

• A Google SecOps account.
• An active ThreatQ TDR Orchestrator (TQO) license.
• A data collection containing at least one of the the following indicator objects:
  • Email Address
  • FQDN
  • IP Address
  • IPv6 Address
  • MD5
  • SHA-1
  • SHA-256
  • URL

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the action zip file.
3. Navigate to the integrations management page on your ThreatQ instance.
4. Click on the Add New Integration button.
5. Upload the action zip file using one of the following methods:
   • Drag and drop the zip file into the dialog box
   • Select Click to Browse to locate the zip file on your local machine

   ThreatQ will inform you if the action already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the action contains changes to the user configuration. The new user configurations will overwrite the existing ones for the action and will require user confirmation before proceeding.

You will still need to configure the action.

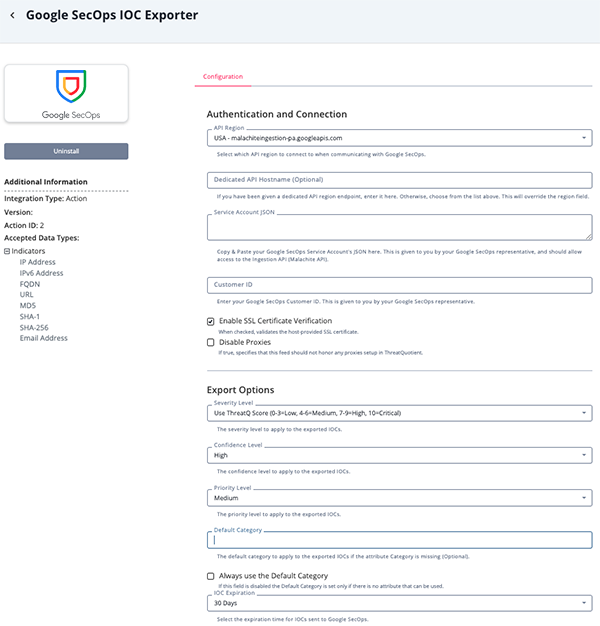

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.


To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Actions option from the Category dropdown (optional).
3. Click on the action entry to open its details page.
4. Enter the following parameters under the Configuration tab:

   The configurations set on this page will be used as the default settings when inserting this action into a new workflow. Updating the configurations on this page will not update any instances of this action that have already been deployed to a workflow. In that scenario, you must update the action’s configurations within the workflow itself.

   Parameter	Description
   API Region	Select the API region to connect to when communicating with Google SecOps.  Options include: USA - malachiteingestion-pa.googleapis.com (default) Europe - europe-malachiteingestion-pa.googleapis.com London - europe-west2-malachiteingestion-pa.googleapis.com Singapore - asia-southeast1-malachiteingestion-pa.googleapis.com
   Dedicated API Hostname	Optional - Enter a dedicated API region endpoint.  Any entry in this field will override the selection made in the API Region field above.
   Service Account JSON	Enter your Google SecOps Service Account's JSON.
   Customer ID	Enter your Google SecOps Customer ID.
   Enable SSL Certificate Verification	Enable this parameter if the action should validate the host-provided SSL certificate.
   Disable Proxies	Enable this parameter if the action should not honor proxies set in the ThreatQ UI.
   Severity Level	Select the default severity level to apply to IOCs.  Options include: Use ThreatQ Score (0-3=Low, 4-6=Medium, 7-9=High, 10=Critical) (default) Low Medium High Critical Informational Unknown
   Confidence Level	Select the default confidence level to apply to IOCs.  Options include: Low Medium High (default) Unknown
   Priority Level	Select the default priority level to apply to IOCs.  Options include: Low Medium (default) High Unknown
   Default Category	Optional - enter a default category to be applied if the attribute category is missing.
   Always Use the Default Category	Enable this parameter if the default category should always be set using the Default Category value. Disable this parameter to only set the default category is there is no attribute that can be used. This parameter is disabled by default.
   IOC Expiration	Select the expiration time for IOCs sent to Google SecOps. Options include: 7 Days 30 Days (default) 60 Days 90 Days 180 Days 365 Days 0 Days Never
   Attributes to Export	Enter a comma-separated list of attributes that should be exported as detection fields. The default value is Is Bot, Is TOR, Is VPN, VPN Service, Actor, Organization.
   Use Original Source	Enable this parameter to have the IOC's source listed first in ThreatQ. Disabling this parameter will result to source being listed as ThreatQ. This parameter is disabled by default.
   Export Tags	Enable this parameter to export tags as either tags or labels based on their entity type. This parameter is disabled by default.
   Export Related Adversaries	Enable this parameter to export a related adversary as an association. This parameter is disabled by default.
   Export Related Malware	Enable this parameter to export related malware as an association. This parameter is disabled by default.
   ThreatQ Hostname	Enter your ThreatQ instance's Hostname or IP Address.
   Objects Per Run	The max number of objects to send to this action per run. The default value is 100.



5. Review any additional settings, make any changes if needed, and click on Save.

Actions

The following action is available:

[
  {
    "customer_id": "12345",
    "entities": [
      {
        "entity": {
          "file": {
            "sha1": "4b6224893be96a22e448caefb51803f783d06567",
            "tags": [
              "malicious"
            ],
            "attribute": {
              "labels": []
            }
          }
        },
        "metadata": {
          "collected_timestamp": "2024-04-12T11:54:05Z",
          "description": "",
          "entity_type": "FILE",
          "vendor_name": "ThreatQuotient",
          "product_name": "ThreatQ",
          "source_labels": [
            {
              "key": "threat_source",
              "value": "Cisco Threat Grid"
            }
          ],
          "threat": {
            "about": {
              "file": {
                "sha1": "4b6224893be96a22e448caefb51803f783d06567",
                "tags": [
                  "malicious"
                ]
              }
            },
            "category": "SOFTWARE_MALICIOUS",
            "category_details": [
              "Botnet"
            ],
            "confidence": "HIGH_CONFIDENCE",
            "detection_fields": [
              {
                "key": "threatq_Is_Tor",
                "value": "False"
              }
            ],
            "severity": "LOW",
            "priority": "MEDIUM_PRIORITY",
            "alert_state": "NOT_ALERTING",
            "threat_status": "ACTIVE",
            "threat_name": "Malware - QAQ",
            "threat_feed_name": "Cisco Threat Grid",
            "threat_id": "1",
            "url_back_to_product": "https://threatq.online/indicators/1/details"
          },
          "interval": {
            "start_time": "2024-04-17T14:01:37Z",
            "end_time": "2024-04-24T14:01:37Z"
          }
        }
      }
    ]
  }
]

Use Case Example

1. A Threat Analyst identifies a collection of supported objects they would like to enrich.
2. The Threat Analyst adds the Google SecOps IOC Exporter Action to a Workflow.
3. The Threat Analyst configures the action with the desired parameters, and enables the Workflow.
4. The Workflow executes all Actions in the graph, including Google SecOps IOC Exporter.

Change Log

• Version 1.1.0
  • Rebranded the integration name from Google Chronicle IOC Exporter Action to Google SecOps IOC Exporter Action.
  • Added the following configuration parameters:
    • Enable SSL Certificate Verification - determine if the action should validate the host-provided SSL certificate.
    • Disable Proxies - determine if the action should honor proxies set in the ThreatQ UI.
    • Default Category - enter a default category to be applied if the attribute category is missing.
    • Always Use the Default Category - configure if the default category should always be set using the Default Category value or only when there is not an attribute.
    • Attributes to Export - enter a comma-separated list of attributes that should be exported as detection fields
    • Use Original Source - determine if the IOC's source will be listed first in ThreatQ.
    • Export Tags - determine if tags are exported.
    • Export Related Adversaries - determine if related adversaries are exported as an association.
    • Export Related Malware - determine if related malware are exported as an association.
  • Updated the following configuration parameter names:
    • Chronicle API Region is now API Region.
    • Chronicle Customer ID is now Customer ID.
    • Default Severity Level is now Severity Level.
    • Default Confidence Level is now Confidence Level.
    • Default Priority Level is now Priority Level.
  • Added additional export context as well as entity and category mapping tables to this guide.
• Version 1.0.0
  • Initial release
