Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The CrowdStrike Falcon Intelligence Action Bundle submits data collections of adversaries and indicators to CrowdStrike Falcon Intelligence for enrichment. The CrowdStrike API queries the submitted objects for enrichment and returns related threat intelligence to be ingested into the ThreatQ library.

The integration provides the following actions:

• CrowdStrike - Enrich IOCS - submits indicators to CrowdStrike to be enriched with related threat intelligence.
• CrowdStrike Falcon Intelligence - Enrich Adversaries - enriches adversaries with Mitre objects.

The actions are compatible with the following system object types:

• Adversaries
• Indicators
  • Malware
  • FQDN
  • IP Address
  • CIDR Block
  • Mutex
  • SHA-1
  • SHA-256
  • MD5
  • Email Address

The actions return the following object types:

• Adversaries
• Attack Patterns (Enrich Adversaries action only)
• Indicators (Enrich IOCs action only)
• Malware (Enrich IOCs action only)

This action is intended for use with ThreatQ TDR Orchestrator (TQO). An active TQO license is required for this feature.

Prerequisites

• An active ThreatQ TDR Orchestrator (TQO) license.
• A CrowdStrike API Hostname.
• A CrowdStrike Client ID.
• A CrowdStrike Client Secret.
• Enrich IOCs action - a data collection containing at least one of the following indicator objects:
  • FQDN
  • IP Address
  • CIDR Block
  • Mutex
  • SHA-1
  • SHA-256
  • MD5
  • Email Address
• Enrich Adversaries action - a data collection containing the Adversary object type.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the action file.
3. Navigate to the integrations management page on your ThreatQ instance.
4. Click on the Add New Integration button.
5. Upload the action file using one of the following methods:
   • Drag and drop the file into the dialog box
   • Select Click to Browse to locate the integration file on your local machine
6. Select the actions to install, when prompted, and then click on Install.

   ThreatQ will inform you if the action already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the action contains changes to the user configuration. The new user configurations will overwrite the existing ones for the action and will require user confirmation before proceeding.

The action(s) will now be installed.  You will still need to configure the action(s).

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Actions option from the Category dropdown (optional).
3. Click on the action entry to open its details page.
4. Enter the following parameters under the Configuration tab:

   The configurations set on this page will be used as the default settings when inserting this action into a new workflow. Updating the configurations on this page will not update any instances of this action that have already been deployed to a workflow. In that scenario, you must update the action’s configurations within the workflow itself.

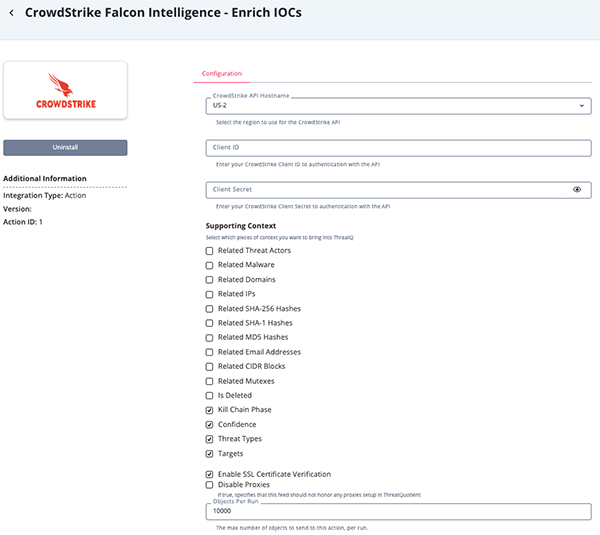

   Enrich IOCs Action Parameters

   Parameter	Description
   CrowdStrike API Host Name	Select the appropriate CrowdStrike host.  Options include: US-1: api.crowdstrike.com US-2: api.us-2.crowdstrike.com (Default) EU-1: api.eu-1.crowdstrike.com US-GOV-1: api.laggar.gcw.crowdstrike.com
   Client ID	Your CrowdStrike Client ID that will be used to authenticate with the CrowdStrike API.
   Client Secret	Your CrowdStrike Secret key.
   Supporting Context	Select the pieces of context to bring into ThreatQ.  Options include: Related Threat Actors Related Malware Related Domains Related IPs Related SHA-256 Hashes Related SHA-1 Hashes Related MD5 Hashes Related Email Addresses Related CIDR Blocks Related Mutexes Is Deleted Kill Chain Phase Confidence Threat Types Targets
   Enable SSL Certificate  Verification	Enable this for the action to validate the host-provided SSL certificate.
   Disable Proxies	Enable this option if the action should not honor proxies set in the ThreatQ UI.
   Objects Per Run	The max number of objects per run to send to this action.  The max value for this parameter is 50,000.

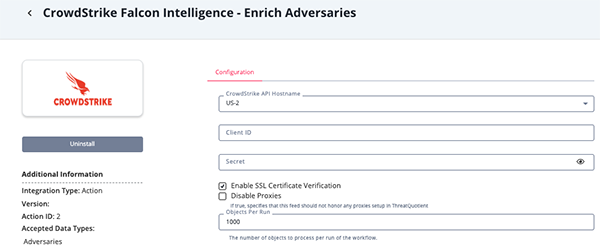

   Enrich Adversaries Action Parameters

   Parameter	Description
   CrowdStrike API Host Name	Select the appropriate CrowdStrike host.  Options include: US-1: api.crowdstrike.com US-2: api.us-2.crowdstrike.com (Default) EU-1: api.eu-1.crowdstrike.com US-GOV-1: api.laggar.gcw.crowdstrike.com
   Client ID	Your CrowdStrike Client ID that will be used to authenticate with the CrowdStrike API.
   Client Secret	Your CrowdStrike Secret key.
   Enable SSL Certificate  Verification	Enable this for the action to validate the host-provided SSL certificate.
   Disable Proxies	Enable this option if the action should not honor proxies set in the ThreatQ UI.
   Objects Per Run	The max number of objects per run to send to this action.  The max value for this parameter is 50,000.



5. Review any additional settings, make any changes if needed, and click on Save.

Actions

The integration provides the following actions:

{
    "ids": ["hash_sha1_c4ac414413dec7dc13436aa8c74f5592bb723eea", "hash_md5_96a6a7a27dde12ca623d679f25fc20e0"]
}

{
    "errors": [
        {
            "code": 404,
            "id": "ip_address_162.214.188.105",
            "message": "Not Found"
        },
        {
            "code": 404,
            "id": "ip_address_45.79.91.89",
            "message": "Not Found"
        },
        {
            "code": 404,
            "id": "ip_address_178.128.23.9",
            "message": "Not Found"
        }
    ],
    "meta": {
        "pagination": {
            "limit": 47,
            "offset": 0,
            "total": 47
        },
        "powered_by": "msa-api",
        "query_time": 0.66362254,
        "trace_id": "66137048-39cf-46c0-afcb-17336f2fb14e"
    },
    "resources": [
        {
            "_marker": "16151501302eb1797d155befd4b8703126cef89e31",
            "actors": [
                "DOPPELSPIDER"
            ],
            "deleted": false,
            "domain_types": [],
            "id": "ip_address_51.178.161.32",
            "indicator": "51.178.161.32",
            "ip_address_types": [],
            "kill_chains": [
                "C2"
            ],
            "labels": [
                {
                    "created_on": 1595643899,
                    "last_valid_on": 1595643899,
                    "name": "ThreatType/Criminal"
                },
                {
                    "created_on": 1595643899,
                    "last_valid_on": 1595643899,
                    "name": "Actor/DOPPELSPIDER"
                },
                {
                    "created_on": 1595643899,
                    "last_valid_on": 1595643899,
                    "name": "ThreatType/Downloader"
                },
                {
                    "created_on": 1595643898,
                    "last_valid_on": 1595644319,
                    "name": "MaliciousConfidence/Low"
                },
                {
                    "created_on": 1595643898,
                    "last_valid_on": 1595644319,
                    "name": "KillChain/C2"
                },
                {
                    "created_on": 1595643899,
                    "last_valid_on": 1595643899,
                    "name": "Malware/DoppelDridex"
                },
                {
                    "created_on": 1595643899,
                    "last_valid_on": 1595643899,
                    "name": "ThreatType/Banking"
                }
            ],
            "last_updated": 1615150130,
            "malicious_confidence": "low",
            "malware_families": [
                "DoppelDridex"
            ],
            "published_date": 1595643898,
            "relations": [
                {
                    "created_date": 1615150129,
                    "id": "hash_sha256_2182a1acbee8bee31f667e412f347addcc8bd1118133b97eeb75f03503b839ce",
                    "indicator": "2182a1acbee8bee31f667e412f347addcc8bd1118133b97eeb75f03503b839ce",
                    "last_valid_date": 1615150129,
                    "type": "hash_sha256"
                },
                {
                    "created_date": 1615150129,
                    "id": "hash_sha1_5c7de95d8c8e6fc59dfb7964982a8b5e3b00483c",
                    "indicator": "5c7de95d8c8e6fc59dfb7964982a8b5e3b00483c",
                    "last_valid_date": 1615150129,
                    "type": "hash_sha1"
                },
                {
                    "created_date": 1615150129,
                    "id": "hash_md5_3306b016f87113678b4ab148c9018acc",
                    "indicator": "3306b016f87113678b4ab148c9018acc",
                    "last_valid_date": 1615150129,
                    "type": "hash_md5"
                }
            ],
            "reports": [],
            "targets": [],
            "threat_types": [
                "Criminal",
                "Downloader",
                "Banking"
            ],
            "type": "ip_address",
            "vulnerabilities": []
        }
    ]
}

{
    "meta": {
        "query_time": 0.055441907,
        "powered_by": "msa-api",
        "trace_id": "a3a0f49d-928d-4c52-81d7-25a1f86af876"
    },
    "resources": [
        "fancy-bear_TA0001_T1078",
        "fancy-bear_TA0042_T1588.006",
        "fancy-bear_TA0043_T1589",
        "fancy-bear_TA0043_T1589.001",
        "fancy-bear_TA0043_T1589.002",
        "fancy-bear_TA0043_T1591",
        "fancy-bear_TA0043_T1595",
        "fancy-bear_TA0043_T1598",
        "fancy-bear_TA0043_T1598.003"
    ],
    "errors": []
}

Enriched Data

Object counts and action runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and action runtime may vary based on system resources and load.

CrowdStrike Falcon Intelligence - Enrich IOCs

CrowdStrike Falcon Intelligence - Enrich Adversaries

Known Issues / Limitations

• CrowdStrike may occasionally respond with a 403 Forbidden error even if the provided access token is still valid. CrowdStrike has attributed this to possible load balancing issues with their servers. In the event of receiving one of these errors, ThreatQ will attempt to reauthenticate on the first 403 Forbidden received, and usually proceed without incident. If it occurs a consecutive time, however, the feed run will complete with errors.
• The new MITRE filter uses cache memory to load all MITRE ATTCK data, with the cache being refreshed every 24 hours.

Change Log

• Version 1.1.0
  • Renamed the CrowdStrike action to the CrowdStrike Falcon Intelligence - Enrich IOCs action.
  • Added a new action: CrowdStrike Falcon Intelligence - Enrich Adversaries.
  • Added the following new configuration parameters to the CrowdStrike Falcon Intelligence - Enrich IOCs action:
    • Enable SSL Certificate Verification - enable or disable verification of the server's SSL certificate.
    • Disable Proxies - determine if the action should honor proxy settings set in the ThreatQ UI.
  • Added Known Issues / Limitations chapter to the guide regarding CrowdStrike server balancing issues and the new MITRE filter cache refresh timing.
  • Renamed integration from CrowdStrike Action to CrowdStrike Falcon Intelligence Action Bundle.
  • Updated minimum ThreatQ version to 6.5.0.
• Version 1.0.0
  • Initial release
