Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Criminal IP Action enables analysts to enrich IP Address indicators with contextual intelligence sourced from the Criminal IP platform, which provides data such as open ports, vulnerabilities, and WHOIS information to help identify malicious activity.

The integration provides the following action:

• Criminal IP - Get Malicious Info - queries the Criminal IP API to enrich an IP Address with intelligence indicating whether the indicator is malicious, along with additional contextual data used to support the assessment of the IOC.

The integration is compatible with and returns enriched IP Address type indicators.

This action is intended for use with ThreatQ TDR Orchestrator (TQO). An active TQO license is required for this feature.

Prerequisites

• An active ThreatQ TDR Orchestrator (TQO) license.
• A Criminal IP API Key.
• A ThreatQ data collection containing IP Address type indicators.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the action zip file.
3. Navigate to the integrations management page on your ThreatQ instance.
4. Click on the Add New Integration button.
5. Upload the action zip file using one of the following methods:
   • Drag and drop the zip file into the dialog box
   • Select Click to Browse to locate the zip file on your local machine

   ThreatQ will inform you if the action already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the action contains changes to the user configuration. The new user configurations will overwrite the existing ones for the action and will require user confirmation before proceeding.

You will still need to configure the action.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.


To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Actions option from the Category dropdown (optional).
3. Click on the action entry to open its details page.

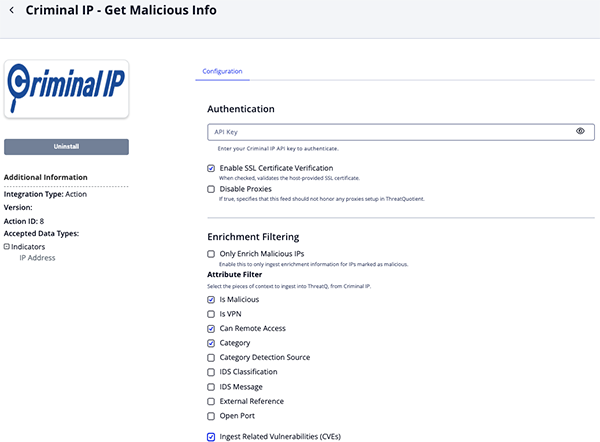

4. Enter the following parameters under the Configuration tab:

   The configurations set on this page will be used as the default settings when inserting this action into a new workflow. Updating the configurations on this page will not update any instances of this action that have already been deployed to a workflow. In that scenario, you must update the action’s configurations within the workflow itself.

   Parameter	Description
   API Key	Enter your Criminal IP API key to authenticate.
   Enable SSL Certificate Verification	Enable this parameter if the action should validate the host-provided SSL certificate.
   Disable Proxies	Enable this parameter if the action should not honor proxies set in the ThreatQ UI.
   Only Enrich Malicious IPs	Enable this parameter to only ingest enrichment information for IPs marked as malicious. This parameter is disabled by default.
   Attribute Filter	Select the pieces of context to ingest. Options include: Is Malicious (default) Is VPN Can Remote Access (default) Category (default) Category Detection Source Open Port IDS Classification IDS Message External Reference
   Ingest Related Vulnerabilities (CVEs)	Enable this parameter to ingest CVEs related to the enriched IP. This parameter is enabled by default.
   Ingest CVEs As	Select the entity type to ingest CVE IDs as in ThreatQ. Options include Vulnerabilities Indicators This parameter is only accessible if the Ingest Related Vulnerabilities (CVEs) parameter is enabled.
   Vulnerability Attribute Filter	Select the pieces of context to ingest with related vulnerabilities. Options include: Affected Product (default) Affected Product Version Affected Vendor (default) CVSSv2 Vector CVSSv2 Score CVSSv3 Vector CVSSv3 Score CWE ID These are only applied if the Ingest Related Vulnerabilities (CVEs) parameter is enabled.
   Objects Per Run	The number of objects to process per run of the workflow. The default value is 10000.



5. Review any additional settings, make any changes if needed, and click on Save.

Actions

The following action is available:

{
  "status": 200,
  "ip": "45.148.10.81",
  "is_malicious": true,
  "is_vpn": false,
  "can_remote_access": true,
  "current_opened_port": {
    "count": 2,
    "data": [
      {
        "socket_type": "tcp",
        "port": 22,
        "protocol": "ssh",
        "product_name": "openssh",
        "product_version": "7.6p1",
        "has_vulnerability": false,
        "confirmed_time": "2023-03-19 13:14:46"
      },
      {
        "socket_type": "tcp",
        "port": 80,
        "protocol": "http",
        "product_name": "apache",
        "product_version": "2.4.29",
        "has_vulnerability": true,
        "confirmed_time": "2023-03-20 08:16:04"
      }
    ]
  },
  "remote_port": {
    "count": 1,
    "data": [
      {
        "socket_type": "tcp",
        "port": 22,
        "protocol": "ssh",
        "product_name": "openssh",
        "product_version": "7.6p1",
        "has_vulnerability": false,
        "confirmed_time": "2023-03-19 13:14:46"
      }
    ]
  },
  "vulnerability": {
    "count": 51,
    "data": [
      {
        "cve_id": "CVE-2023-25690",
        "cwe_ids": [444],
        "edb_ids": [],
        "ports": {
          "tcp": [80],
          "udp": []
        },
        "cvssv2_vector": "",
        "cvssv2_score": 0,
        "cvssv3_vector": "NETWORK",
        "cvssv3_score": 9.8,
        "product_name": "apache",
        "product_version": "2.4.29",
        "product_vendor": "apache"
      },
      {
        "cve_id": "CVE-2022-37436",
        "cwe_ids": [436, 113],
        "edb_ids": [],
        "ports": {
          "tcp": [80],
          "udp": []
        },
        "cvssv2_vector": "",
        "cvssv2_score": 0,
        "cvssv3_vector": "NETWORK",
        "cvssv3_score": 5.3,
        "product_name": "apache",
        "product_version": "2.4.29",
        "product_vendor": "apache"
      }
    ]
  },
  "ids": {
    "count": 2,
    "data": [
      {
        "classification": "3coresec",
        "url": "blacklist.3coresec.net/lists/et-open.txt",
        "message": "ET 3CORESec Poor Reputation IP UDP group 26",
        "source_system": "./snort-2.9.0 10182",
        "confirmed_time": "2022-11-28 21:26:39"
      },
      {
        "classification": "ciarmy",
        "url": "www.cinsscore.com",
        "message": "ET CINS Active Threat Intelligence Poor Reputation IP UDP group 37",
        "source_system": "./snort-2.9.0 10272",
        "confirmed_time": "2023-03-20 07:39:51"
      }
    ]
  },
  "scanning_record": {
    "count": 20,
    "data": [
      {
        "log_date": "Wed, 17 Aug 2022 00:00:00 GMT",
        "dst_port": 80,
        "protocol_type": "tcp",
        "user_agent": "Go-http-client/1.1\r",
        "message": "[17/Aug/2022:07:01:43] GET http://example.com/ HTTP/1.1",
        "confirmed_time": "2022-08-17 00:00:00"
      },
      {
        "log_date": "Sun, 07 Aug 2022 00:00:00 GMT",
        "dst_port": 8090,
        "protocol_type": "tcp",
        "user_agent": "-\r",
        "message": "[07/Aug/2022:16:21:29] Phsa",
        "confirmed_time": "2022-08-07 00:00:00"
      }
    ]
  },
  "ip_category": {
    "count": 6,
    "data": [
      {
        "type": "attack (Low)",
        "detect_source": "C-TAS(igloosec)",
        "confirmed_time": "2022-09-23 17:05:39"
      },
      {
        "type": "bruteforce (fail2ban)",
        "detect_source": "",
        "confirmed_time": "2022-08-18 15:27:50"
      }
    ]
  }
}

Enriched Data

Object counts and action runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and action runtime may vary based on system resources and load.

Change Log

• Version 1.0.0
  • Initial release
