Export Details

ThreatQuotient provides the following details for this export:

Introduction

ThreatQuotient makes it easy for customers to export IOCs to their Palo Alto Firewall.

The implementation is done using Palo Alto’s External Dynamic List (EDL) functionality. An export with IOCs is first created on ThreatQ and the export URL is provided to Palo Alto as an EDL.

Creating the Export

The following section will detail how to create the exports in ThreatQ.

See the Managing Exports topic for more details on ThreatQ exports.

1. Select the Settings icon > Exports.

   The Exports page appears with a table listing all exports in alphabetical order.

2. Click Add New Export

   The Connection Settings dialog box appears.

3. Enter an Export Name.
4. Click Next Step.

   The Output Format dialog box appears.

5. Provide the following information:

   Field	Value
   Which type of information would you like to export?	Indicators
   Output Type	text/plain
   Special Parameters	indicator.status=Active&indicator.deleted= N&indicator.type=FQDN&indicator.class=network
   Output Template	{foreach $data as $indicator} {$indicator.value} *.{$indicator.value} {/foreach}

6. Click on Save Settings and enable the export via the On/Off toggle switch.

Palo Alto: PANOS and Panorama Exports

This section describes the implementation between ThreatQ and Palo Alto firewall. The implementation is done using Palo Alto’s External Dynamic List (EDL) functionality. An export with IOCs is first created on ThreatQ and the export URL is provided to Palo Alto as an EDL. The following details go over the steps to create, and add the EDL to ThreatQ.

Prerequisites

Before you begin the integration between Palo Alto and ThreatQ, confirm that there is a route between both hosts.

Create an export in ThreatQ

The export is a dynamic list of IOCs which should be configured on ThreatQ and provided to a Palo Alto instance to read from.

The following link lists the guidelines for the format of the export list in ThreatQ.

There are separate guidelines for IP, FQDN and URL lists.

These guidelines are both for PANOS and Panorama:

https://docs.paloaltonetworks.com/content/dam/techdocs/en_US/pdf/pan-os/9-0/pan-os-admin/pan-os-admin.pdf

Configure an External Dynamic List (EDL) in PANOS

To add the dynamic list to Palo Alto, follow the instructions on page 1419 of the following guide:

https://docs.paloaltonetworks.com/content/dam/techdocs/en_US/pdf/pan-os/9-0/pan-os-admin/pan-os-admin.pdf

Configure an External Dynamic List (EDL) in Panorama

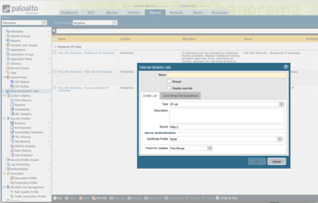

1. Navigate to Device Groups > Objects, and then click on the External Dynamic List in the left pane, about half way down.
2. Add a new dynamic list by clicking on the Add button at the bottom of the screen.

3. Provide a Name, Type, and for source provide the ThreatQ exports URL.

4. Click OK.

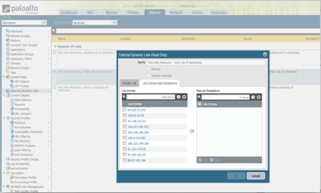

Retrieve an External Dynamic List from the Source

Once the list has been configured you can retrieve the indicators from that list.

Follow the steps on page 1434 in the following PDF: https://docs.paloaltonetworks.com/content/dam/techdocs/en_US/pdf/pan-os/9-0/pan-os-admin/pan-os-admin.pdf

Enforce Policy on an External Dynamic List

To create a policy to enforce rules for the indicators from the EDL, follow the steps on page 1436 in the following PDF: https://docs.paloaltonetworks.com/content/dam/techdocs/en_US/pdf/pan-os/9-0/pan-os-admin/pan-os-admin.pdf

Change Log

• Version 1.0.0
  • Initial release
