Current ThreatQ Version Filter


www.dan.me.uk TOR Node List CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The www.dan.me.uk Tor Node List CDF for ThreatQ provides a full Tor node list (not more than one hour old) in script-readable format.

The integration provides the following feed:

  • www.dan.me.uk Tor Node List - ingests indicators in a pipe-delimited format.

The integration ingests indicators and indicator attributes.

Important Notes:

  • Nodes flagged E are those which allow exit from the Tor network.
  • Nodes flagged X are those which allow exit from the Tor network, but do not publicly advertise that they do so.

The feed source (https://www.dan.me.uk/tornodes) can only be accessed once every 30 minutes. If accessed too often, your IP will be blocked.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the integration file.
  3. Navigate to the integrations management page on your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the integration file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the integration file on your local machine

    ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

  6. The feed will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the OSINT option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:
    Parameter Description
    Only Ingest Exit Nodes If checked, the integration will only ingest nodes which allow exit from the Tor network.  This parameter is unchecked by default, which results in ingesting all nodes.
    Feed URL This parameter is for UI display purposes only.
    Context Filter Select the pieces of context to ingest into the ThreatQ platform.  Options include:
    • TOR Name
    • Router Port
    • Directory Port
    • Flags
    • Version
    • Uptime
    • Contact Info
    • Identify Exit Nodes

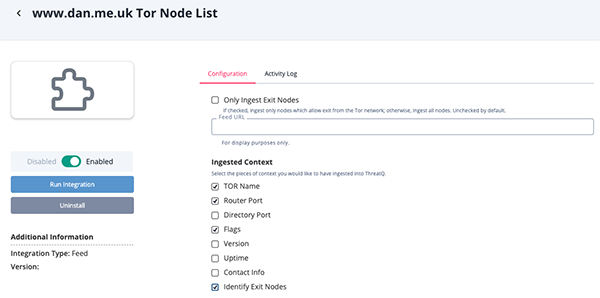

    Configuration Parameters Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

www.dan.me.uk Tor Node List

The feed ingests data using the following pipe-delimited format:

<ip>|<name>|<router-port>|<directory-port>|<flags>|<uptime>|<version>|<contactinfo>

Sample Response:

101.100.136.62|warduckcomingatya|9001|9030|RSDV|6699668|Tor 0.4.1.6|0xFFFFFFFF Warduck <warduck@gmail.com>
103.234.220.195|ASock|443|80|EFHRSDV|1918882|Tor 0.4.1.6|dobby_potter at aol.com or send hedwig
2605:6400:0030:f8f0:b055:151e:5dcf:7ae4|ULayerManning|443|80|FGRSDV|62|Tor 0.4.1.6|noc [AT] ulayer.net

ThreatQ provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
ip Indicator.Value IP Address/IPv6 Address 101.100.136.62 N/A
name Indicator.Attribute TOR Name warduckcomingatya User-configurable
router-port Indicator.Attribute Router Port 9001 User-configurable
directory-port Indicator.Attribute Directory Port 9030 User-configurable
uptime Indicator.Attribute Uptime 6699668 User-configurable. Updatable
flags Indicator.Attribute Flags RSDV If the configuration parameter Only Ingest Exist Nodes is checked and flags contains neither E nor X, the indicator is not ingested. User-configurable
version Indicator.Attribute Version Tor 0.4.1.6 User-configurable
contactinfo Indicator.Attribute Contact 0xFFFFFFFF Warduck \warduck@gmail.com User-configurable
flags Indicator.Attribute Exit Node No Yes if flags contains E or X, No otherwise. User-configurable. Updatable

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

www.dan.me.uk Tor Node List

Metric Result
Run Time 12 min
Indicators 8,660
Indicator Attributes 60,238

Known Issues / Limitations

  • The feed source (https://www.dan.me.uk/tornodes) can only be accessed once every 30 minutes. If accessed too often, your IP will be blocked.
  • ThreatQ 4x instances only - the uptime attribute is not updated and duplicated instead.  You can use the Context Filter configuration parameter to disable the ingestion of this attribute.

Change Log

  • Version 2.0.3
    • Added a new option, Identify Exit Nodes, to the Context Filter configuration parameter.
    • Updated the minimum ThreatQ version to 5.29.0.
  • Version 2.0.2
    • Resolved an issue where the integration did not respect the Context Filter selections set on the configuration page.
  • Version 2.0.1
    • Added a new configuration parameter, Context Filter, which allows you to configure what pieces of information are ingested into the ThreatQ platform.
  • Version 2.0.0
    • Initial release
