VirusTotal LiveHunt CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The VirusTotal LiveHunt CDF ingests and enriches Incident type Events and related indicators into your ThreatQ platform from your VirusTotal LiveHunt environment.

ThreatQ recommends using this integration in conjunction with VirusTotal LiveHunt Operation.  The Operation will push YARA Signatures from ThreatQ to VirusTotal LiveHunt, and the CDF will ingest data related to each signature from VirusTotal LiveHunt back into ThreatQ.

The integration provides the following endpoint:

  • VirusTotal LiveHunt - ingests incident type Events that can be enriched with attributes and related Indicators.

The integration ingests the following system object types:

  • Events
    • Event Attributes
  • Indicators

Installation

This integration can be installed in the My Integration section of your ThreatQ instance. See the Adding an Integration topic for more details.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Commercial option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:
    Parameter Description
    API Key Your VirusTotal LiveHunt API Key to be used in HTTP headers for accessing feed data.
    Ingest Attributes Enabling this parameter will result in the integration ingesting attributes.
    Hashes to Ingest Select which hashes to ingest.  Options include:
    • MD5
    • SHA-1
    • SHA-256 (default)
    • Fuzzy Hash

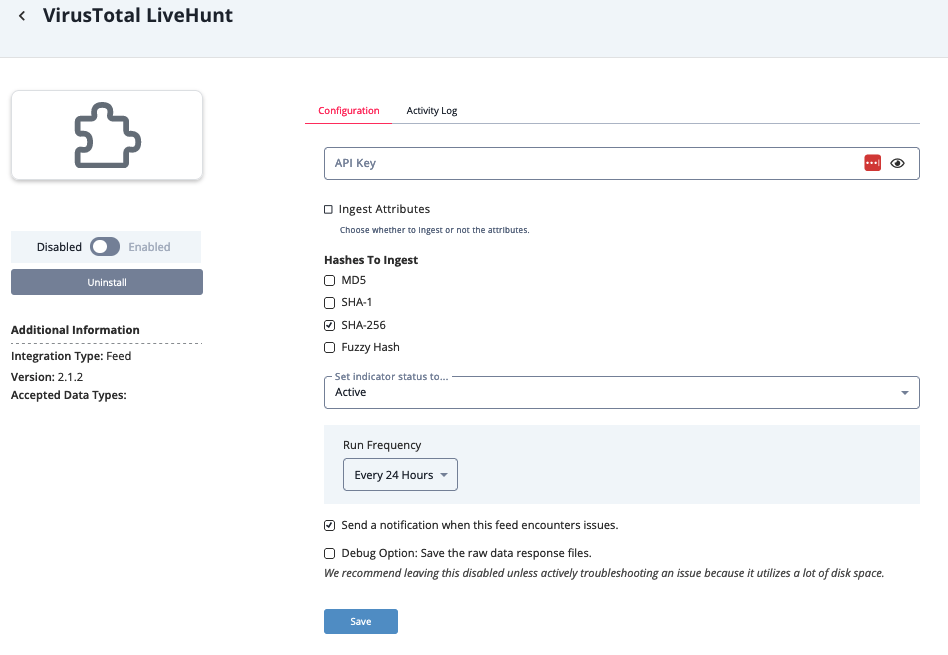

    VirusTotal LiveHunt Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

VirusTotal LiveHunt

The VirusTotal LiveHunt  feed creates and enriches incident type events with attributes and related indicators.

GET https://www.virustotal.com/api/v3/intelligence/hunting_notification_files

Sample Response:

{
  "meta": {
    "count": 200,
    "cursor": "CsABChEKBGRhdGUSCQjM15--xoD9AhKmAWoRc352aXJ1c3RvdGFsY2xvdWRykAELEhNIdW50aW5nTm90aWZpY2F0aW9uInc4OTU5ODUyNzc2LTljZTQxM2RlYjcwNDJmZWRlMDgxNzk2MGI5MzlmYTRiLTY2MWU0MDA4YzkyZTllYjI3ZTVlYmM3OTEyNDQzODBkZjFkZWY5ODBjNjE0Yzc0ZmIzOTkxNGE2YTgxMmJjMWYtMTY3NTY3NDQ1OAwYACAB"
  },
  "data": [
    {
      "attributes": {
        "type_description": "Android",
        "tlsh": "T19D472206B71C992EC873A0B25D5B22BA11591D51AE43FB97B809334C34F7BE44B4EBC9",
        "vhash": "d0720ca6cf2701b262b4f63438410e1e",
        "exiftool": {
          "ZipRequiredVersion": "0",
          "MIMEType": "application/zip",
          "ZipCRC": "0xa8a745df",
          "FileType": "ZIP",
          "ZipCompression": "Deflated",
          "ZipUncompressedSize": "95124",
          "ZipCompressedSize": "15413",
          "FileTypeExtension": "zip",
          "ZipFileName": "AndroidManifest.xml",
          "ZipBitFlag": "0",
          "ZipModifyDate": "1981:01:01 01:01:02"
        },
        "trid": [
          {
            "file_type": "Android Package",
            "probability": 45
          },
          {
            "file_type": "Java Archive",
            "probability": 15.7
          },
          {
            "file_type": "Pocket Code/Catroid Catrobat Project",
            "probability": 12.8
          },
          {
            "file_type": "Sweet Home 3D design (generic)",
            "probability": 12.2
          },
          {
            "file_type": "Mozilla Archive Format (gen)",
            "probability": 8.1
          }
        ],
        "names": [],
        "last_modification_date": 1675682579,
        "type_tag": "android",
        "times_submitted": 1,
        "total_votes": {
          "harmless": 0,
          "malicious": 0
        },
        "size": 25542461,
        "type_extension": "apk",
        "last_submission_date": 1675680601,
        "reputation": 0,
        "downloadable": true,
        "crowdsourced_ids_stats": {
          "high": 0,
          "info": 1,
          "medium": 0,
          "low": 1
        },
        "sha256": "21c5e05926f5507422018876605cedb94bc33985cdf71791c64fa6cbed76a688",
        "tags": [
          "apk",
          "android",
          "obfuscated",
          "runtime-modules",
          "reflection",
          "telephony",
          "detect-debug-environment",
          "checks-gps"
        ],
        "crowdsourced_ids_results": [
          {
            "rule_category": "protocol-command-decode",
            "alert_severity": "low",
            "rule_msg": "(stream_tcp) data sent on stream after TCP reset sent",
            "rule_raw": "alert ( gid:129; sid:8; rev:2; msg:\"(stream_tcp) data sent on stream after TCP reset sent\"; metadata: policy max-detect-ips drop, rule-type preproc; classtype:protocol-command-decode;)",
            "alert_context": [
              {
                "src_ip": "31.13.71.1",
                "src_port": 443
              }
            ],
            "rule_url": "https://www.snort.org/downloads/#rule-downloads",
            "rule_source": "Snort registered user ruleset",
            "rule_id": "129:8"
          },
          {
            "rule_category": "Potential Corporate Privacy Violation",
            "alert_severity": "info",
            "rule_msg": "ET INFO Android Device Connectivity Check",
            "rule_raw": "alert http $HOME_NET any -> $EXTERNAL_NET any (msg:\"ET INFO Android Device Connectivity Check\"; flow:established,to_server; urilen:13; http.method; content:\"GET\"; http.uri; content:\"/generate_204\"; fast_pattern; endswith; http.host; content:\"connectivitycheck.gstatic.com\"; http.accept_enc; content:\"gzip\"; depth:4; endswith; http.header_names; content:!\"Cache\"; content:!\"Referer\"; classtype:policy-violation; sid:2036220; rev:3; metadata:affected_product Android, attack_target Mobile_Client, created_at 2018_09_14, deployment Perimeter, deployment Internal, former_category POLICY, performance_impact Low, signature_severity Minor, tag Connectivity_Check, updated_at 2020_09_16;)",
            "alert_context": [
              {
                "url": "http://connectivitycheck.gstatic.com/generate_204",
                "hostname": "connectivitycheck.gstatic.com",
                "dest_ip": "108.177.119.94",
                "dest_port": 80
              }
            ],
            "rule_url": "https://rules.emergingthreats.net/",
            "rule_source": "Proofpoint Emerging Threats Open",
            "rule_id": "1:2036220"
          }
        ],
        "last_analysis_date": 1675680601,
        "unique_sources": 1,
        "first_submission_date": 1675680601,
        "sha1": "92c0302fb0b3b8f38ea672abf21edc0cc884fa0d",
        "ssdeep": "393216:6qQ+ijgqrnblIt72MfGKPWL6VLy1beU8N2tY/dNyRM/EyZj/wQLQUwc:6qQ+sgWnCQM9UimbY2u/dNyR4EyBoQ02",
        "bundle_info": {
          "highest_datetime": "1981-01-01 01:01:02",
          "lowest_datetime": "1981-01-01 01:01:02",
          "num_children": 2971,
          "extensions": {
            "xml": 605,
            "bin": 1,
            "p0": 1,
            "b": 1,
            "gif": 2,
            "j0": 1,
            "gz": 1,
            "jks": 1,
            "dex": 5,
            "s": 1,
            "w0": 1,
            "txt": 131,
            "ttf": 4,
            "png": 13
          },
          "file_types": {
            "XML": 605,
            "DEX": 5,
            "unknown": 356,
            "Java Bytecode": 1,
            "GIF": 2,
            "JSON": 17,
            "HTML": 1,
            "PNG": 13
          },
          "type": "APK",
          "uncompressed_size": 40792067
        },
        "md5": "53ce73d40657f9b10733b3125c99218d",
        "androguard": {
          "VTAndroidInfo": 2,
          "Libraries": [
            "org.apache.http.legacy",
            "androidx.window.extensions",
            "androidx.window.sidecar"
          ],
          "AndroidApplicationError": false,
          "MinSdkVersion": "21",
          "AndroguardVersion": "4.0",
          "Activities": [
            "br.com.mobills.splash.SplashScreenActivity",
            "br.com.mobills.onboarding.OnboardingWelcomeActivity",
            "br.com.mobills.onboarding.gympass.GympassOnboardingActivity",
            "br.com.mobills.onboarding.goal.OnboardingGoalActivity",
            "br.com.mobills.onboarding.signup.OnboardingSignUpActivity",
            "br.com.mobills.onboarding.signup.OnboardingSignUpSuccessActivity"
          ],
          "certificate": {
            "Subject": {
              "DN": "CN:Carlos Batista",
              "CN": "Carlos Batista"
            },
            "validto": "3011-03-09 20:45:47",
            "serialnumber": "13ebabb1",
            "thumbprint": "abb62a825040a153fb7c59cfcba8a3ee3082626d",
            "validfrom": "2012-11-05 20:45:47",
            "Issuer": {
              "DN": "CN:Carlos Batista",
              "CN": "Carlos Batista"
            }
          },
          "AndroidApplication": 1,
          "RiskIndicator": {
            "APK": {
              "DEX": 5
            },
            "PERM": {
              "INTERNET": 1,
              "INSTANT": 3,
              "NORMAL": 9,
              "PRIVACY": 3,
              "GPS": 2
            }
          },
          "Services": [
            "com.google.android.play.core.assetpacks.AssetPackExtractionService"
          ],
          "AndroidVersionCode": "783",
          "main_activity": "br.com.mobills.splash.SplashScreenActivity",
          "Package": "br.com.gerenciadorfinanceiro.controller",
          "intent_filters": {
            "Services": {
              "br.com.mobills.services.FCMService": {
                "action": [
                  "com.google.firebase.MESSAGING_EVENT"
                ]
              }
            },
            "Activities": {
              "br.com.mobills.views.activities.MainActivity": {
                "action": [
                  "action.mobills.main.open"
                ],
                "category": [
                  "android.intent.category.DEFAULT"
                ]
              }
            },
            "Receivers": {
              "androidx.work.impl.background.systemalarm.ConstraintProxy$BatteryNotLowProxy": {
                "action": [
                  "android.intent.action.BATTERY_OKAY",
                  "android.intent.action.BATTERY_LOW"
                ]
              }
          },
          "AndroidVersionName": "5.82.3",
          "TargetSdkVersion": "33",
          "AndroidApplicationInfo": "APK",
          "Providers": [
            "androidx.core.content.FileProvider",
            "com.salesforce.marketingcloud.MCInitContentProvider",
          ],
          "permission_details": {
            "android.permission.POST_NOTIFICATIONS": {
              "short_description": "Unknown permission from android reference",
              "full_description": "Unknown permission from android reference",
              "permission_type": "normal"
            }
          },
          "Receivers": [
            "br.com.mobills.services.widgets.WidgetValueBroadcast",
            "br.com.mobills.services.widgets.WidgetWithTransactionsListService",
            "br.com.mobills.services.widgets.WidgetWithoutTransactionsListService",
            "br.com.mobills.views.activities.WidgetShortcutProvider"
          ],
          "StringsInformation": [
            "http://ns.adobe.com/xap/1.0/\u0000",
            "http://schemas.android.com/apk/res/android",
          ]
        },
        "magic": "Zip archive data",
        "main_icon": {
          "raw_md5": "b0c61ce5b07caa60f5771e49ba2d34b5",
          "dhash": "d488f6e0e8e8e0c4"
        },
        "last_analysis_stats": {
          "harmless": 0,
          "type-unsupported": 10,
          "suspicious": 0,
          "confirmed-timeout": 0,
          "timeout": 1,
          "failure": 0,
          "malicious": 0,
          "undetected": 63
        },
        "last_analysis_results": {
          "Bkav": {
            "category": "undetected",
            "engine_name": "Bkav",
            "engine_version": "1.3.0.9899",
            "result": null,
            "method": "blacklist",
            "engine_update": "20230206"
          },
          "Lionic": {
            "category": "undetected",
            "engine_name": "Lionic",
            "engine_version": "7.5",
            "result": null,
            "method": "blacklist",
            "engine_update": "20230206"
          },
          "Elastic": {
            "category": "type-unsupported",
            "engine_name": "Elastic",
            "engine_version": "4.0.77",
            "result": null,
            "method": "blacklist",
            "engine_update": "20230203"
          }
        }
      },
      "type": "file",
      "id": "21c5e05926f5507422018876605cedb94bc33985cdf71791c64fa6cbed76a688",
      "links": {
        "self": "https://www.virustotal.com/api/v3/files/21c5e05926f5507422018876605cedb94bc33985cdf71791c64fa6cbed76a688"
      },
      "context_attributes": {
        "notification_id": "8959852776-9ce413deb7042fede0817960b939fa4b-21c5e05926f5507422018876605cedb94bc33985cdf71791c64fa6cbed76a688-1675680601",
        "notification_source_key": "62e613b2",
        "notification_tags": [
          "banbra",
          "21c5e05926f5507422018876605cedb94bc33985cdf71791c64fa6cbed76a688",
          "banker"
        ],
        "ruleset_name": "banbra",
        "notification_source_country": "AR",
        "rule_name": "banbra",
        "notification_snippet": "00 00 72 65 73 2F 6C 61 79 6F 75 74 2F 61 63 74  ..res/layout/act\n69 76 69 74 79 5F *begin_highlight*73 65 6E 68 61 *end_highlight*2E 78 6D 6C C5  ivity_*begin_highlight*senha*end_highlight*.xml.\n98 4F 6C 14 55 1C C7 DF CC 6E B7 BB FD BB 5B 4A  .Ol.U....n....[J\n00 00 1D 00 00 00 72 65 73 2F 6C 61 79 6F 75 74  ......res/layout\n2F 63 61 64 61 73 74 72 6F 5F *begin_highlight*73 65 6E 68 61 *end_highlight*2E  /cadastro_*begin_highlight*senha*end_highlight*.\n78 6D 6C AD 92 3D 6F D4 30 18 C7 1F 5F AE BD 24  xml..=o.0..._..$\n00 9C 04 00 00 1B 00 00 00 72 65 73 2F 6C 61 79  .........res/lay\n6F 75 74 2F 64 69 67 69 74 65 5F *begin_highlight*73 65 6E 68 61*end_highlight*  out/digite_*begin_highlight*senha*end_highlight*\n2E 78 6D 6C 95 93 3D 6B 14 41 18 C7 9F B9 DD BB  .xml..=k.A......\n72 2E 78 6D 6C 00 1D 1D 72 65 73 2F 6C 61 79 6F  r.xml...res/layo\n75 74 2F 61 63 74 69 76 69 74 79 5F *begin_highlight*73 65 6E 68*end_highlight*  ut/activity_*begin_highlight*senh*end_highlight*\n*begin_highlight*61 *end_highlight*2E 78 6D 6C 00 20 20 72 65 73 2F 6C 61 79 6F  *begin_highlight*a*end_highlight*.xml.  res/layo\n6D 6C 00 1D 1D 72 65 73 2F 6C 61 79 6F 75 74 2F  ml...res/layout/\n63 61 64 61 73 74 72 6F 5F *begin_highlight*73 65 6E 68 61 *end_highlight*2E 78  cadastro_*begin_highlight*senha*end_highlight*.x\n6D 6C 00 1E 1E 72 65 73 2F 6C 61 79 6F 75 74 2F  ml...res/layout/\n72 65 73 2F 6C 61 79 6F 75 74 2F 64 69 67 69 74  res/layout/digit\n65 5F *begin_highlight*73 65 6E 68 61 *end_highlight*2E 78 6D 6C 00 26 26 72 65  e_*begin_highlight*senha*end_highlight*.xml.&&re\n73 2F 6C 61 79 6F 75 74 2F 64 72 61 67 5F 69 74  s/layout/drag_it\n43 56 56 00 13 13 43 61 64 61 73 74 72 61 72 20  CVV...Cadastrar \n73 75 61 20 *begin_highlight*73 65 6E 68 61 *end_highlight*00 19 19 43 61 69 78  sua *begin_highlight*senha*end_highlight*...Caix\n61 20 61 70 70 20 6F 72 20 77 65 62 73 69 74 65  a app or website\n69 74 69 65 73 00 19 19 43 6F 6D 6F 20 63 61 64  ities...Como cad\n61 73 74 72 61 72 20 75 6D 61 20 *begin_highlight*73 65 6E 68 61*end_highlight*  astrar uma *begin_highlight*senha*end_highlight*\n3F 00 1C 1D 43 6F 6D 6F 20 66 61 7A 65 72 20 75  ?...Como fazer u\n6D 65 20 64 6F 20 6F 62 6A 65 74 69 76 6F 00 1F  me do objetivo..\n1F 44 69 67 69 74 65 20 73 75 61 20 *begin_highlight*73 65 6E 68*end_highlight*  .Digite sua *begin_highlight*senh*end_highlight*\n*begin_highlight*61 *end_highlight*20 70 61 72 61 20 63 6F 6E 74 69 6E 75 61 72  *begin_highlight*a*end_highlight* para continuar\n07 07 4C 65 69 73 75 72 65 00 0D 0D 4C 65 6D 62  ..Leisure...Lemb\n72 61 72 20 *begin_highlight*73 65 6E 68 61 *end_highlight*00 47 47 4C 65 6D 62  rar *begin_highlight*senha*end_highlight*.GGLemb\n72 65 2D 73 65 20 64 65 20 72 65 67 69 73 74 72  re-se de registr\n\n...",
        "ruleset_id": "8959852776",
        "rule_tags": [
          "banker"
        ],
        "notification_date": 1675684215,
        "match_in_subfile": false
      }
    }
  ]
  "links": {
    "self": "https://www.virustotal.com/api/v3/users/EnglishLFC/hunting_notification_files?count_limit=200&limit=10",
    "next": "https://www.virustotal.com/api/v3/users/EnglishLFC/hunting_notification_files?cursor=CsABChEKBGRhdGUSCQjM15--xoD9AhKmAWoRc352aXJ1c3RvdGFsY2xvdWRykAELEhNIdW50aW5nTm90aWZpY2F0aW9uInc4OTU5ODUyNzc2LTljZTQxM2RlYjcwNDJmZWRlMDgxNzk2MGI5MzlmYTRiLTY2MWU0MDA4YzkyZTllYjI3ZTVlYmM3OTEyNDQzODBkZjFkZWY5ODBjNjE0Yzc0ZmIzOTkxNGE2YTgxMmJjMWYtMTY3NTY3NDQ1OAwYACAB&count_limit=200&limit=10"
  }
}

ThreatQ provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.data[].context_
attributes.ruleset_name		 Event.Attribute Ruleset Name .data[].attributes.
first_submission_date		 'banker' The attributes will only be ingested if the user select this option
.data[].context_
attributes.notifi
cation_source_
country		 Event.Attribute Source Country .data[].attributes.
first_submission_date		 'US' The attributes will only be ingested if the user select this option
.data[].attributes.
magic		 Event.Attribute Magic .data[].attributes.
first_submission_date		 'Dalvik dex file version 035' The attributes will only be ingested if the user select this option
.data[].attributes.
meaningful_name		 Event.Attribute Meaningful Name .data[].attributes.
first_submission_date		 'classes.dex' The attributes will only be ingested if the user select this option
.data[].attributes.
reputation		 Event.Attribute Reputation .data[].attributes.
first_submission_date		 '0' The attributes will only be ingested if the user select this option
.data[].attributes.
trid.file_type		 Event.Attribute File Type .data[].attributes.
first_submission_date		 'Dalvik Dex class' The attributes will only be ingested if the user select this option
.data[].attributes.
trid.probability		 Event.Attribute Probability .data[].attributes.
first_submission_date		 '100' The attributes will only be ingested if the user select this option
.data[].attributes.
type_description		 Event.Attribute Description Type .data[].attributes.
first_submission_date		 'Android' The attributes will only be ingested if the user select this option
.data[].attributes.
type_tag		 Event.Attribute Tag Type .data[].attributes.
first_submission_date		 'android' The attributes will only be ingested if the user select this option
.data[].attributes.
exiftool.FileType
Extension		 Event.Attribute File Extension .data[].attributes.
first_submission_date		 'DEX' The attributes will only be ingested if the user select this option
.data[].attributes.
last_analysis_
results.(key).result		 Event.Attribute (key) Analysis Result .data[].attributes.
first_submission_date		 'Unsafe' The name of this attribute is dynamically set with the value found on (key). We only add this attribute if the value is not null.
.data[].attributes.
md5		 Related.Indicator MD5 .data[].attributes.
first_submission_date		 '52c5d34ffcf797f5
d8de9fb8ae9120c8'		 N/A
.data[].attributes.
sha1		 Related.Indicator SHA-1 .data[].attributes.
first_submission_date		 '552eb372553ee11
5b88714180513da
44cce748da'		 N/A
.data[].attributes.
sha256		 Related.Indicator SHA-256 .data[].attributes.
first_submission_date		 '8775216e22c6501f
c65042c8c3a984fce
0c20b27bdd17c284
93c2318d7bb5cc9'		 N/A
.data[].attributes.
ssdeep		 Related.Indicator Fuzzy Hash .data[].attributes.
first_submission_date		 '49152:vaMqTZeWW
ZsKWQfg+sbwUt1pd
V/eTETEmvHNgyjkGK
eQU6/7knE5KS:iMoo
TsAmMoHe7beQES'		 N/A
.data[].context_
attributes.rule_name		 Event.Type Incident .data[].attributes.
first_submission_date		 'banbra' N/A

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

VirusTotal LiveHunt

Metric Result
Run Time 2 minutes
Events 1
Event Attributes 333
Indicators 6

Known Issues / Limitations

  • Due to the limitation in the API, the manual run will fetch all the data - not just the one for the selected interval.

Change Log

  • Version 2.1.2
    • Added a new configuration parameter, Hashes to Ingest, that allows you to filter which hashes to ingest into the ThreatQ platform.
  • Version 2.1.1
    • Added data ingestion safeguards.  The integration will now check if certain data is present in the JSON response before processing it in order to prevent errors if the feed data is not present.
  • Version 2.1.0
    • Added the ability to perform a manual run.
    • Added new issue to Known Issues / Limitations chapter.
  • Version 2.0.1
    • Fixed an issue where indicators were not ingested into the ThreatQ platform.
  • Version 2.0.0
    • The integration now ingests Incident type Events objects instead of Signatures.  The ingestion of Malware types has also been removed from the integration.
    • Added a new configuration parameter that allows users to select whether or not to ingest attributes.
  • Version 1.1.0
    • Fixed issue for objects that were not being ingested.
  • Version 1.0.0
    • Initial release
