Team Cymru Controller CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Team Cymru Controller CDF ingests Indicators with different types, after processing a zipped xml received as a response.

Prerequisites

You will need the following to run the integration:

  • A Team Cymru Controller Username.
  • A Team Cymru Controller Password.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the integration yaml file.
  3. Navigate to the integrations management page on your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the integration yaml file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the file on your local machine

    ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

  6. The feed will now be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Commercial option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:
    Parameter Description
    Username Your Team Cymru Controller username used for authentication.
    Password You Team Cymru Controller password used for authentication.
    Create MD5/SHA-1 Indicators If enabled, the feed will ingest MD5 and SHA-1 indicators.

    This parameter is not enabled by default.

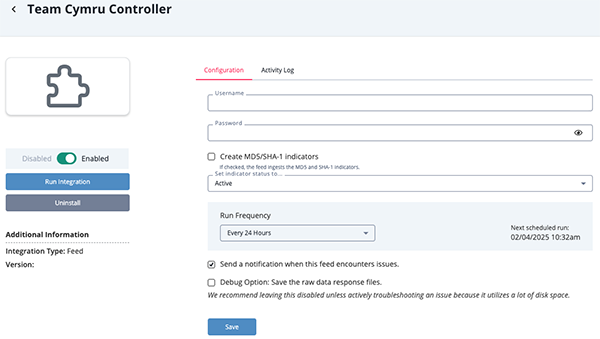

    Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Team Cymru Controller

The main feed used to retrieve indicators data from the Team Cymru Controller endpoint.

GET https://downloads.cymru.com/controller_feed/controllers_{{run_meta.since}}.xml.zip

Sample Response:

<?xml version="1.0"?>
<botnetlist generated="2020-08-25 14:20:02" version="2.0">
  <botnet resolves="0" proto="6" active="1" first_seen="2019-12-27 17:03:52" address="188.251.213.180" type="http" id="6E92AA86-E749-382D-BAA3-56D8FCCE9C85" port="443" family="emotet" subfamily="qbot">
    <http request_type="POST" ssl="0" url="http://188.251.213.180:443/" />
    <controller last_checked="2020-08-25 13:55:44" ip="188.251.213.180" active="1" came_up="2020-08-22 05:50:11" confidence="60" first_active="2019-12-27 17:03:52" />
    <malware sha1="2750b83c5eadcf2d3cfa1e3055627157a4ca07d1" md5="cf418eef4966cedde4b6c4911172bf70" />
    <malware sha1="772f7cd53d6aa898feded856630d72e77721fdc2" md5="74b975a7426fe9407eb77bcdf63cf81b" />
    ....
  </botnet>
  ....
</botnetlist>

ThreatQ provides the following default mapping for this feed, processing only active botnet objects, where active="1":

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Examples Notes
botnetlist[].botnet.
address		 Indicator FQDN or IP Address '188.251.213.180' Processes only active botnet objects, where botnetlist[].botnet.active="1".
botnetlist[].botnet.
port		 Indicator.Attribute Port '443'
botnetlist[].botnet.
family		 Indicator.Attribute Malware Family 'emotet'
botnetlist[].botnet.
subfamily		 Indicator.Attribute Malware Subfamily 'qbot'
botnetlist[].botnet[].
http.url		 Related Indicator URL 'http://188.251.213.180:443/'
botnetlist[].botnet[].
controller.ip		 Related Indicator IP Address '188.251.213.180' Processes only active controller objects, where botnetlist[].botnet[].controller.active="1".
botnetlist[].botnet[].
controller.confidence		 Indicator.Attribute Confidence '60'
botnetlist[].botnet[].
malware.sha1		 Related Indicator SHA-1 '2750b83c5eadcf2d3cfa1e3055
627157a4ca07d1'
botnetlist[].botnet[].
malware.md5		 Related Indicator MD5 'cf418eef4966cedde4b6c49111
72bf70'

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Team Cymru Controller

Metric Result
Run Time 3 hours
Indicators 50,148
Indicator Attributes 19,670

Change Log

  • Version 1.0.1
    • Resolved a TypeError("'NoneType' object is not iterable") error that would occur during feed runs.
  • Version 1.0.0
    • Initial release

PDF Guides

Document ThreatQ Version
Team Cymru Controller CDF Guide v1.0.1 4.23.0 or Greater
Team Cymru Controller CDF Guide v1.0.0 4.23.0 or Greater
