Integration Details

ThreatQuotient provides the following details for this integration:

Current Integration Version	1.0.0
Compatible with ThreatQ Versions	>= 5.20.0
Support Tier	ThreatQ Supported

Introduction

The Splunk Assets CDF integration queries Splunk to ingest assets and identities related to sighting events. If sighting events were already ingested into ThreatQ using ThreatQuotient App for Splunk then the assets and identities will be related to them.

The integration provides the following feed:

• Splunk Assets - ingests assets and identities related to sighting events.

The integration ingests the following object types:

• Assets
• Events
• Identities
• Indicators

Prerequisites

The integration requires the following:

• A Splunk instance
• The following Splunk instance details:
  • Splunk Host
  • Splunk API Port
  • Splunk Username
  • Splunk Password
• A Splunk Search Report (Saved Search) titled: SOCThreatQgetassets

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the integration yaml file.
3. Navigate to the integrations management page on your ThreatQ instance.
4. Click on the Add New Integration button.
5. Upload the integration yaml file using one of the following methods:
   • Drag and drop the file into the dialog box
   • Select Click to Browse to locate the file on your local machine
6. Select the individual feeds to install, when prompted and click Install.

   ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

The feed(s) will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Commercial option from the Category dropdown (optional).

   If you are installing the integration for the first time, it will be located under the Disabled tab.

3. Click on the integration entry to open its details page.

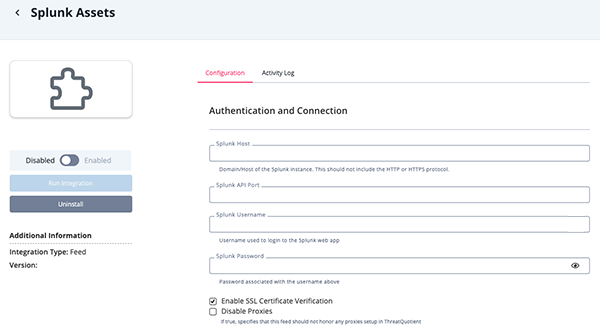

4. Enter the following parameters under the Configuration tab:

   Parameter	Description
   Splunk Host	Enter the domain/host of your Splunk instance.
   Splunk API Port	Enter the port number of the Splunk API.
   Splunk Username	Enter the username used to log into the Splunk web application.
   Splunk Password	Enter the password associated with the username above.
   Enable SSL Certificate Verification	Enable or disable verification of the server's SSL certificate.
   Disable Proxies	Enable this option if the feed should not honor proxies set in the ThreatQ UI.



5. Review any additional settings, make any changes if needed, and click on Save.
6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Splunk Assets

The Splunk Assets feed retrieves the search results from SOCThreatQgetassets Splunk report that were created after the feed start run time.

If a result contains the field affected_asset then a new asset is created using the value of this field.

If a result contains the field affected_user then a new identity is created using the value of this field.

If a result contains the field indicator then the integration gets all the ThreatQ Events of type Sighting that were created after feed start run time, and contain the value of the field indicator. It also gets the ThreatQ Indicator equal to the value of this field. The new asset and identity will be related to the exiting event and indicator in case they exist.

GET https://{{SPLUNK_HOST}}:{{SPLUNK_API_PORT}}/services/search/v2/jobs/export

Sample Request Parameters:

{
  "search": "savedsearch \"SOCThreatQgetassets\" | table *",
  "output_mode": "json",
  "earliest_time": "1735813371",
  "latest_time": "now"
}

Sample Response:

{
  "preview": false,
  "offset": 0,
  "result": {
    "affected_asset": "splunk1.threatq.com",
    "affected_user": "trent21identify",
    "asset_city": "new york",
    "asset_country": "united states",
    "asset_ip": "10.10.10.1",
    "asset_tag": "splunk1",
    "asset_timezone": "EEST",
    "date_hour": "0",
    "date_mday": "9",
    "date_minute": "0",
    "date_month": "january",
    "date_second": "0",
    "date_wday": "thursday",
    "date_year": "2025",
    "date_zone": "0",
    "host": "splunk",
    "identity_nick": "trent21",
    "identity_tag": "fc21",
    "identity_timezone": "EET",
    "identity_work_city": "madrid",
    "identity_work_country": "spain",
    "index": "main",
    "indicator": "cda48fc75952ad12d99e526d0b6bf70a",
    "linecount": "1",
    "punct": ",..,_,_,...,,,,,,,,,--_::._",
    "source": "splunk_input.csv",
    "sourcetype": "asssets_csv",
    "splunk_server": "splunk",
    "time": "2025-01-09 00:00:00.000 UTC",
    "_bkt": "main~4~73D94EC8-B29C-491E-BDD1-CF38C86CDE46",
    "_cd": "4:13",
    "_indextime": "1737538750",
    "_kv": "1",
    "_si": [
      "splunk",
      "main"
    ],
    "_sourcetype": "asssets_csv",
    "_subsecond": ".000",
    "_time": "2025-01-09 00:00:00.000 UTC"
  }
}

ThreatQuotient provides the following default mapping for this feed:

This mapping is based on each item within the [].result from the HTTP response.

Feed Data Path	ThreatQ Entity	ThreatQ Object Type or Attribute Key	Published Date	Examples	Notes
.affected_asset	Asset.Value	N/A	N/A	hostname1	N/A
.asset_tag	Asset.Tag	N/A	N/A	splunk1	N/A
.asset_city	Asset.Attribute	Asset City	N/A	New York	Updatable. Title cased
.asset_country	Asset.Attribute	Asset Country	N/A	United States	Updatable. Title cased
.asset_ip	Asset.Attribute	IP Address	N/A	10.10.10.1	Updatable
.asset_bunit	Asset.Attribute	General Information	N/A	N/A	Updatable
.asset_category	Asset.Attribute	Asset Category	N/A	N/A	Updatable
.asset_cim_entity_zone	Asset.Attribute	CIM Entity Zone	N/A	N/A	Updatable
.asset_lat	Asset.Attribute	Asset Latitude	N/A	N/A	Updatable
.asset_long	Asset.Attribute	Asset Longitude	N/A	N/A	Updatable
.asset_priority	Asset.Attribute	Asset Criticality	N/A	N/A	Updatable
.asset_dns	Asset.Attribute	DNS Name	N/A	N/A	Updatable
.asset_nt_host	Asset.Attribute	NT Host	N/A	N/A	Updatable
.asset_owner	Asset.Attribute	Asset Owner	N/A	N/A	Updatable
.asset_pci_domain	Asset.Attribute	PCI Domain	N/A	N/A	Updatable
N/A	Asset.Attribute	Sighting Occurrences	N/A	1	Updatable. The number of recent ThreatQ Sighting Events where .indicator appears
.affected_user	Identity.Value	N/A	N/A	trent	N/A
.identity_tag	Identity.Tag	N/A	N/A	fc21	N/A
.identity_work_city	Identity.Attribute	Office City	N/A	Madrid	Updatable. Title cased
.identity_work_country	Identity.Attribute	Office Country	N/A	Spain	Updatable. Title cased
.identity_nick	Identity.Attribute	Nickname	N/A	trent21	Updatable
.identity_bunit	Identity.Attribute	General Information	N/A	N/A	Updatable
.identity_category	Identity.Attribute	User Category	N/A	N/A	Updatable
.identity_cim_entity_zone	Identity.Attribute	CIM Entity Zone	N/A	N/A	Updatable
.identity_work_lat	Identity.Attribute	Office Latitude	N/A	N/A	Updatable
.identity_work_long	Identity.Attribute	Office Longitude	N/A	N/A	Updatable
.identity_priority	Identity.Attribute	User Criticality	N/A	N/A	Updatable
.identity_first	Identity.Attribute	First Name	N/A	N/A	Updatable
.identity_last	Identity.Attribute	Last Name	N/A	N/A	Updatable
.identity_suffix	Identity.Attribute	User Suffix	N/A	N/A	Updatable
.identity_email	Identity.Attribute	Email Address	N/A	N/A	Updatable
.identity_phone	Identity.Attribute	Phone Number	N/A	N/A	Updatable
.identity_prefix	Identity.Attribute	Role	N/A	N/A	Updatable
.identity_start_date	Identity.Attribute	User Start Date	N/A	N/A	Updatable
.identity_end_date	Identity.Attribute	User End Date	N/A	N/A	Updatable
.identity_managed_by	Identity.Attribute	Managed By	N/A	N/A	Updatable
.asset_*	Asset.Attribute	*	N/A	N/A	Updatable. All the keys that start with asset_
.identity_*	Identity.Attribute	*	N/A	N/A	Updatable All the keys that start with Identity_

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Metric	Result
Run Time	2 minute
Assets	206
Asset Attributes	424
Identities	424
Identity Attributes	424

Change Log

• Version 1.0.0
  • Initial release
