Securonix Unified Defense SIEM CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Securonix Unified Defense SIEM CDF for ThreatQ enables analysts to ingest statistical reports and identities from Securonix.

The integrations provides the following feeds:

  • Securonix - Identities - pulls all users that interact with the IT infrastructure of the organization.
  • Securonix - Incidents - pulls incidents from Securonix.
  • Securonix - Top Threats - pulls top threat reports from Securonix.
  • Securonix - Top Violations - pulls top violation reports from Securonix.
  • Securonix - Top Violators - pulls top violators reports from Securonix.
  • Securonix - Top Violators by User - pulls top violations reports by the user from Securonix.

The integration ingests the following system objects:

  • Identities
  • Incidents
  • Reports

Prerequisites

The following is required to utilize the integration:

  • A Securonix instance.
  • The Hostname or IP Address for the Securonix instance.
  • Securonix Username and Password.
    • This account must be assigned the following role: ROLE_API.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the integration yaml file.
  3. Navigate to the integrations management page on your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the integration yaml file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the file on your local machine
  6. Select the individual feeds to install, when prompted and click Install.

    ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

The feed(s) will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Commercial option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:

    Securonix - Identities Parameters

    Parameter Description
    Securonix Host / IP Enter your Securonix Hostname or IP Address.
    Securonix Username Enter your Secuornix username.
    Securonix Password Enter the password associated with the username above.
    Enable SSL Certificate Verification Enable this parameter if the feed should validate the host-provided SSL certificate.
    Disable Proxies Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.

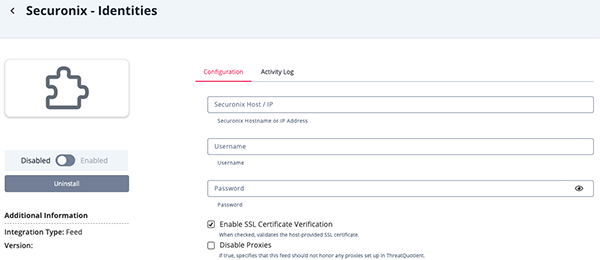

    Identities Configuration Screen

    Securonix - Incidents Parameters

    Parameter Description
    Securonix Host / IP Enter your Securonix Hostname or IP Address.
    Securonix Username Enter your Secuornix username.
    Securonix Password Enter the password associated with the username above.
    Context Filter Select the threat intelligence you to be ingested into ThreatQ. Options include:
    • Violator Text (default)
    • Violator Subtext
    • Violator ID
    • Incident Type (default)
    • Incident ID (default)
    • Incident Status (default)
    • Risk Score (default)
    • Assigned User (default)
    • Assigned Group (default)
    • Priority (default)
    • Reasons (default)
    • Entity (default)
    • Workflow Name (default)
    • Securonix Link (default)
    • Is Whitelisted (default)
    • Is Watchlisted (default)
    Enable SSL Certificate Verification Enable this parameter if the feed should validate the host-provided SSL certificate.
    Disable Proxies Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.

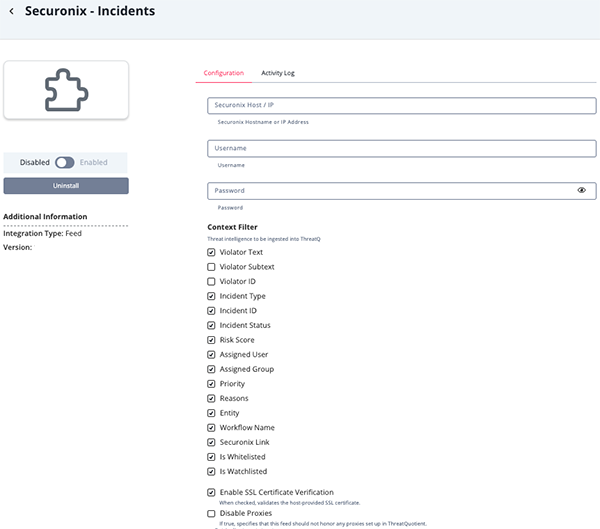

    Incidents Configuration Screen

    Securonix - Top Threats Parameters

    Parameter Description
    Securonix Host / IP Enter your Securonix Hostname or IP Address.
    Securonix Username Enter your Secuornix username.
    Securonix Password Enter the password associated with the username above.
    Date Unit Select the unit of measurement when fetching top threats. Options include:
    • Days (default)
    • Hours
    Date Interval
    (Based on the Date Unit)    		 Select how far back the feed should look back based on the measurement type selected in the Date Unit parameter. Example: if you selected Days as the measurement for the Date Unit parameter and entered 4 in this parameter, the feed interval will be the past 4 days. Options include:
    Date Unit: Hours Date Unit: Days
    • 1
    • 2
    • 6
    • 12
    • 24 (default)
    • 48
    • 72
    • 60
    • 90
    • 7 (default)
    • 14
    • 21
    • 30
    • 60
    • 90
    Top Count Enter the top number of items to fetch. The default value is 5.
    Enable SSL Certificate Verification Enable this parameter if the feed should validate the host-provided SSL certificate.
    Disable Proxies Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.

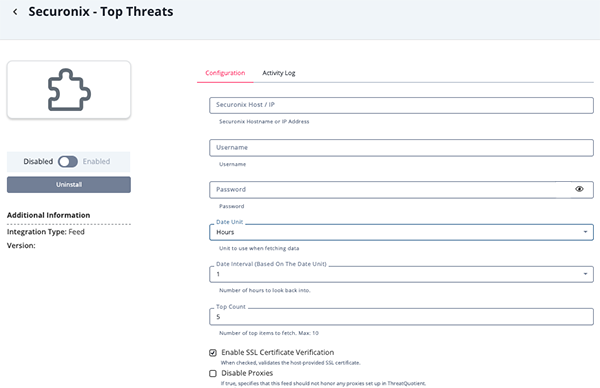

    Top Threats Configuration Screen

    Securonix - Top Violations Parameters

    Parameter Description
    Securonix Host / IP Enter your Securonix Hostname or IP Address.
    Securonix Username Enter your Secuornix username.
    Securonix Password Enter the password associated with the username above.
    Date Unit Select the unit of measurement when fetching top threats. Options include:
    • Days (default)
    • Hours
    Date Interval
    (Based on the Date Unit)    		 Select how far back the feed should look back based on the measurement type selected in the Date Unit parameter. Example: if you selected Days as the measurement for the Date Unit parameter and entered 4 in this parameter, the feed interval will be the past 4 days. Options include:
    Date Unit: Hours Date Unit: Days
    • 1
    • 2
    • 6
    • 12
    • 24 (default)
    • 48
    • 72
    • 60
    • 90
    • 7 (default)
    • 14
    • 21
    • 30
    • 60
    • 90
    Top Count Enter the top number of items to fetch. The default value is 5.
    Enable SSL Certificate Verification Enable this parameter if the feed should validate the host-provided SSL certificate.
    Disable Proxies Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.

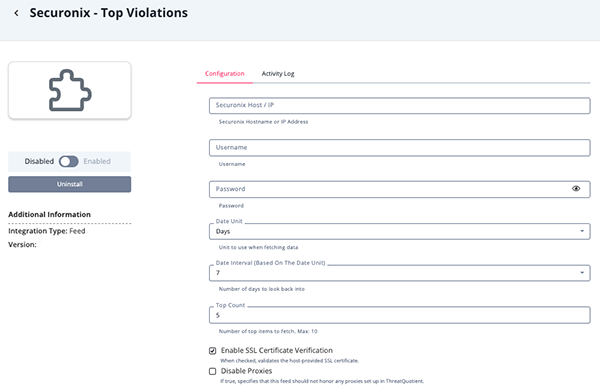

    Top Violations Configuration Screen

    Securonix - Top Violators Parameters

    Parameter Description
    Securonix Host / IP Enter your Securonix Hostname or IP Address.
    Securonix Username Enter your Secuornix username.
    Securonix Password Enter the password associated with the username above.
    Date Unit Select the unit of measurement when fetching top threats. Options include:
    • Days (default)
    • Hours
    Date Interval
    (Based on the Date Unit)    		 Select how far back the feed should look back based on the measurement type selected in the Date Unit parameter. Example: if you selected Days as the measurement for the Date Unit parameter and entered 4 in this parameter, the feed interval will be the past 4 days. Options include:
    Date Unit: Hours Date Unit: Days
    • 1
    • 2
    • 6
    • 12
    • 24 (default)
    • 48
    • 72
    • 60
    • 90
    • 7 (default)
    • 14
    • 21
    • 30
    • 60
    • 90
    Top Count Enter the top number of items to fetch. The default value is 5.
    Enable SSL Certificate Verification Enable this parameter if the feed should validate the host-provided SSL certificate.
    Disable Proxies Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.

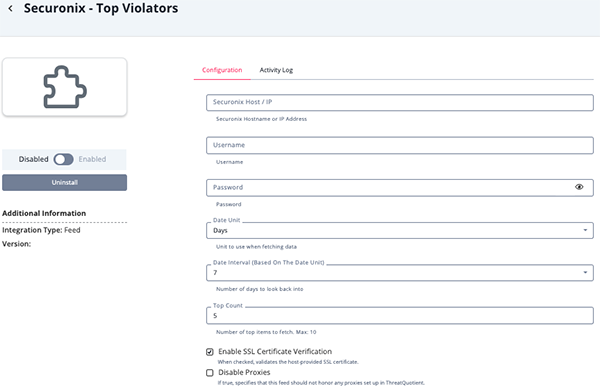

    Top Violators Configuration Screen

    Securonix - Top Violators by User Parameters

    Parameter Description
    Securonix Host / IP Enter your Securonix Hostname or IP Address.
    Securonix Username Enter your Secuornix username.
    Securonix Password Enter the password associated with the username above.
    User Name Search Text Enter an account username to be used to search against the following fields: entityid, u_firstname, u_lastname, u_department, eventcountry, eventcity, violator, accountname, rg_name, u_employeeid, and u_fullname
    Date Unit Select the unit of measurement when fetching top threats. Options include:
    • Days (default)
    • Hours
    Date Interval
    (Based on the Date Unit)    		 Select how far back the feed should look back based on the measurement type selected in the Date Unit parameter. Example: if you selected Days as the measurement for the Date Unit parameter and entered 4 in this parameter, the feed interval will be the past 4 days. Options include:
    Date Unit: Hours Date Unit: Days
    • 1
    • 2
    • 6
    • 12
    • 24 (default)
    • 48
    • 72
    • 60
    • 90
    • 7 (default)
    • 14
    • 21
    • 30
    • 60
    • 90
    Top Count Enter the top number of items to fetch. The default value is 5.
    Enable SSL Certificate Verification Enable this parameter if the feed should validate the host-provided SSL certificate.
    Disable Proxies Enable this parameter if the feed should not honor proxies set in the ThreatQ UI.

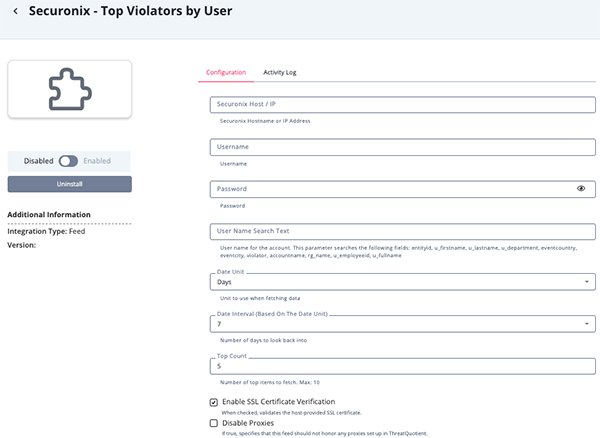

    Top Violators by Username Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Securonix - Identities

The Securonix - Identities feed pulls all users that interact with the IT infrastructure of the organization. These users can include employees, contractors, temporary workers, partners, vendors, suppliers, and customers.

GET https://{{host}}/Snypr/ws/spotter/index/search?query=index=users

Sample Response:

{
  "applicationTz": "EST5EDT",
  "available": false,
  "error": false,
  "events": [
    {
      "createdate": "1674680867000",
      "customfield13": "805306368",
      "customfield2": "CN=Yashasvi Nijhawan,OU=HR,DC=ionxsecure,DC=com",
      "customfield5": "0",
      "customfield6": "0",
      "customfield7": "20220919190515.0Z",
      "customfield8": "20211207045039.0Z",
      "employeeid": "ynijhawan",
      "firstname": "Yashasvi",
      "fullname": "Yashasvi Nijhawan",
      "lastname": "Nijhawan",
      "lastsynctime": "1674681012000",
      "masked": "false",
      "preferredname": "Yashasvi Nijhawan",
      "status": "1",
      "statusdescription": "66048",
      "tenantid": "2",
      "tenantname": "a1t1sipi",
      "usercriticality": "Low",
      "userriskscore": "0.01",
      "usertimezoneoffset": "UTC"
    }
  ]
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.events[].fullname Identity Value N/A .events[].createdate Yashasvi Nijhawan N/A
.events[].employeeid Identity Attribute Employee ID .events[].createdate ynijhawan N/A
.events[].usercriticality Identity Attribute User Criticality .events[].createdate Low Updatable
.events[].usertimezoneoffset Identity Attribute User Timezone .events[].createdate UTC N/A
.events[].userriskscore Identity Attribute User Risk Score .events[].createdate 0.01 Updatable
.events[].lastsynctime Identity Attribute User Last Sync Time .events[].createdate 1674681012000 Updatable .Timestamp value

Securonix - Incidents

The Securonix - Incidents feed pulls incidents from Securonix into ThreatQ as incident objects.

GET https://{{host}}/companies/{{domain}}/Snypr/ws/incident/get

Sample Response:

{
  "status": "OK",
  "result": {
    "data": {
      "totalIncidents": 1.0,
      "incidentItems": [
        {
          "violatorText": "Cyndi Converse",
          "lastUpdateDate": 1566293234026,
          "violatorId": "96",
          "incidentType": "RISK MODEL",
          "incidentId": "100181",
          "incidentStatus": "COMPLETED",
          "riskscore": 0.0,
          "assignedUser": "Account Access 02",
          "assignedGroup": "Administrators",
          "priority": "None",
          "reason": [
            "Threat Model: AWS - CLOUD ACCOUNT COMPROMISE AND DATA EXFILTRATION DETECTED",
            {
              "Policies": [
                "Authentication detected from a rare geolocation on Cloud",
                "AWS - Potential MFA Bypass",
                "Successful Login From Malicious IP",
                "AWS - Suspicious Privilege Escalation Compared to Peers",
                "AWS - Suspicious Access Key Creation",
                "AWS - GuardDuty Disabled",
                "AWS - CloudTrail Logging Stopped",
                "Potential RDS Database Exfiltration Detected",
                "Potential Data Exfiltration via DynamoDB Scan or Query",
                "AWS - Possible S3 Data Exfiltration"
              ]
            }
          ],
          "violatorSubText": "1096",
          "entity": "Users",
          "workflowName": "SOCTeamReview",
          "url": "https://saaspocapp2t14wptp.securonix.net/Snypr/configurableDashboards/view?type=incidentid=100181",
          "isWhitelisted": false,
          "watchlisted": false
        },
        {
          "violatorText": "HENRY PATSUN",
          "lastUpdateDate": 1566293234026,
          "violatorId": "09",
          "incidentType": "RISK MODEL",
          "incidentId": "262170",
          "incidentStatus": "OPEN",
          "riskscore": 0.0,
          "assignedUser": "Account Access 02",
          "assignedGroup": "Administrators",
          "priority": "None",
          "reason": [
            "Number Of Threat: 5"
          ],
          "violatorSubText": "1009",
          "entity": "Users",
          "workflowName": "QA Workflow Basic",
          "url": "https://saaspocapp2t14wptp.securonix.net/Snypr/configurableDashboards/view?type=incidentid=100181",
          "isWhitelisted": false,
          "watchlisted": false
        },
        {
          "violatorText": "172.17.6.112",
          "lastUpdateDate": 1566293234026,
          "violatorId": "96",
          "incidentType": "RISK MODEL",
          "incidentId": "250026",
          "incidentStatus": "OPEN",
          "riskscore": 0.0,
          "assignedUser": "Account Access 02",
          "assignedGroup": "Admin Admin",
          "priority": "None",
          "reason": [
            "Policy: SOAR_PlaybookPolicy"
          ],
          "violatorSubText": "1096",
          "entity": "IOC",
          "workflowName": "SOCTeamReview",
          "url": "https://saaspocapp2t14wptp.securonix.net/Snypr/configurableDashboards/view?type=incidentid=100181",
          "isWhitelisted": false,
          "watchlisted": true
        }
      ]
    }
  }
}

ThreatQuotient provides the following default mapping for this feed based on pulling data out of the result.data.incidentItems[] JSON path:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
data.incidentItems[].<see note> Incident Value N/A N/A Incident Value N/A
data.incidentItems[].isWhitelisted Incident Tag N/A N/A whitelisted whitelisted If True
data.incidentItems[].watchlisted Incident Tag N/A N/A watchlisted watchlisted If True
data.incidentItems[].workflowName Incident Tag N/A N/A SOCTeamReview N/A
data.incidentItems[].assignedGroup Incident Tag N/A N/A Administrators N/A
data.incidentItems[].violatorText Incident Attribute Violator Text N/A Cyndi Converse User-configurable
data.incidentItems[].violatorSubText Incident Attribute Violator Subtext N/A 1096 User-configurable
data.incidentItems[].violatorId Incident Attribute Violator ID N/A 96 User-configurable
data.incidentItems[].incidentType Incident Attribute Incident Type N/A RISK MODEL User-configurable
data.incidentItems[].incidentId Incident Attribute Incident ID N/A 100181 User-configurable
data.incidentItems[].incidentStatus Incident Attribute Status N/A COMPLETED User-configurable. Updatable
data.incidentItems[].riskscore Incident Attribute Risk Score N/A 0.0 User-configurable. Updatable
data.incidentItems[].assignedUser Incident Attribute Assigned User N/A Account Access 02 User-configurable
data.incidentItems[].priority Incident Attribute Priority N/A None User-configurable. Updatable
data.incidentItems[].reason[] Incident Attribute Reason N/A Threat Model: AWS... User-configurable. If the value is string.
data.incidentItems[].reason.Policies[] Incident Description N/A N/A Authentication detected from a rare... N/A
data.incidentItems[].entity Incident Attribute Entity N/A Users User-configurable
data.incidentItems[].workflowName Incident Attribute Workflow N/A SOCTeamReview User-configurable
data.incidentItems[].url Incident Attribute Securonix Link N/A https://saaspocapp2t14wptp.securonix.net/Snypr/configurableDashboards/view?&type=incident&id=100181 User-configurable
data.incidentItems[].isWhitelisted Incident Attribute Is Whitelisted N/A True User-configurable. Updatable
data.incidentItems[].watchlisted Incident Attribute Is Watchlisted N/A False User-configurable. Updatable

Keys used to format the incident value:

  • .violatorText .violatorSubText .reason .priority .riskscore .incidentId

Selected keys are formatted into a title template | .lastUpdateDate | Securonix Incident: {{violatorText}} ({{violatorSubText}}) {{value.reason}} [Priority: {{priority}}; Risk Score: {{riskscore}}; ID: {{incidentId}}] |

Securonix - Top Threats

The Securonix - Top Threats feed pulls top threat reports from Securonix into ThreatQ as report objects.

GET https://{{host}}/Snypr/ws/sccWidget/getTopThreats

Sample Response:

{
  "Response": {
    "Date range": [
      "Jun 11, 2018 11:18:09 AM",
      "Sep 9, 2018 11:18:09 AM"
    ],
    "Total records": 8,
    "Docs": [
      {
        "Threat model id": 118,
        "Threat nodel name": "Patient Data Compromise",
        "Description": "No of Stages: 4, Risk Scoring Scheme:STATIC, Weight:100.0",
        "Criticality": "Low",
        "No of violator": 1,
        "Generation time": 1532388410500
      },
      {
        "Threat model id": 194,
        "Threat nodel name": "Privileged IT User-Sabotage",
        "Description": "No of Stages: 4, Risk Scoring Scheme:STATIC, Weight:100.0",
        "Criticality": "Medium",
        "No of violator": 1,
        "Generation time": 1532372629487
      }
    ]
  }
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.Response.Date range Report Value N/A N/A Securonix Top Threats: Jun 11, 2018 11:18:09 AM -> Sep 9, 2018 11:18:09 AM N/A
.Response.Docs[].<see note> Report Description N/A N/A N/A See note below
.Response.Docs[].Threat model name Report Attribute Top Threat N/A Privileged IT User-Sabotage N/A

Keys used to format the report description:

  • .Threat Model name
  • .Threat Model id
  • .Description
  • .Criticality
  • .No of violator

Securonix - Top Violations

The Securonix - Top Violations feed pulls top violation reports from Securonix into ThreatQ as report objects.

GET https://{{host}}/Snypr/ws/sccWidget/getTopViolations

Sample Response:

{
  "Response": {
    "Date range": [
      "Jun 11, 2018 11:25:55 AM",
      "Sep 9, 2018 11:25:55 AM"
    ],
    "Total records": 38,
    "Docs": [
      {
        "Policy id": 9237,
        "Policy name": "Email to Competitor Domain",
        "Criticality": "Medium",
        "Violation entity": "Activityaccount",
        "Policy category": "ALERT",
        "Threat indicator": "Email to Competitor Domain",
        "Generation time": 1533250072115,
        "No of violator": 14,
        "Description": "Email to Competitor Domain"
      },
      {
        "Policy id": 9236,
        "Policy name": "Abnormal number of emails sent to external domain as compared to peer members",
        "Criticality": "Low",
        "Violation entity": "Activityaccount",
        "Policy category": "ALERT",
        "Threat indicator": "Abnormal number of emails sent to external domain as compared to peer members",
        "Generation time": 1533171483400,
        "No of violator": 1,
        "Description": "Abnormal number of emails sent to external domain as compared to peer members"
      }
    ]
  }
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.Response.Date range Report Value N/A N/A Securonix Top Violations: Jun 11, 2018 11:25:55 AM -> Sep 9, 2018 11:25:55 AM N/A
.Response.Docs[].<see note> Report Description N/A N/A N/A See note below
.Response.Docs[].Threat model name Report Attribute Top Violation N/A Email to Competitor Domain N/A

The following keys are used to format the report description:

  • .Policy name
  • .Policy id
  • .Description
  • .Policy category
  • .Violation entity
  • .Threat indicator
  • .Criticality
  • .No of violator

Securonix - Top Violators and Top Violators by User

The Securonix - Top Violators feed pulls top violators reports from Securonix into ThreatQ as report objects.

Top Violators - GET https://{{host}}/Snypr/ws/sccWidget/getTopViolators
Top Violators by User - GET https://{{host}}/Snypr/ws/sccWidget/getTopViolators?seatchtext{user}

Sample Response:

{
    "Response": {
        "Date range": [
            "Jul 21, 2025 12:03:05 PM",
            "Jul 28, 2025 12:03:05 PM"
        ],
        "Total records": 1,
        "Docs": [{
                 "Generation time": 1753668482985,
                  "Name": "WIN-MIEVBBN67KJ\\ADMINISTRATOR ",
                  "Resource name": "WIN-MIEVBBN67KJ",
                  "Risk score": 8.6,
                  "Violator entity": "Activityaccount"
            }
        ]
    }
}

ThreatQuotient provides the following default mapping for these feeds:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.Response.Date range Report Value N/A N/A Securonix Top Violators: Jul 21, 2025 12:03:05 PM -> Jul 28, 2025 12:03:05 PM N/A
.Response.Docs[].<see note> Report Description N/A N/A N/A See note below
.Response.Docs[].Resource name Report Attribute Top Violators N/A WIN-MIEVBBN67KJ N/A

The following keys are used to format the report description:

  • .Docs[].Name
  • .Docs[].Risk score
  • .Docs[].Violator entity

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Securonix - Identities

Metric Result
Run Time 1 minute
Identity 113
Report Attributes 587

Securonix - Incidents

Metric Result
Run Time 1 minute
Incidents 3
Incident Attributes 45

Securonix - Top Violations

Metric Result
Run Time 1 minute
Report 1
Report Attributes 118

Securonix - Top Violators

Metric Result
Run Time 1 minute
Report 1
Report Attributes 3

Change Log

  • Version 1.2.0 rev-b
    • Guide Update - updated Prerequisites chapter to include the required role, ROLE_API, for the Securonix user account.
  • Version 1.2.0 rev-a
    • Guide Update - added information regarding the new Securonix - Incidents feed.
  • Version 1.2.0
    • Renamed the integration to Securonix Unified Defense SIEM CDF.
    • Added the following new feeds:
      • Securonix - Top Violators -pulls top violators reports from Securonix.
      • Securonix - Top Violators by User - pulls top violations reports by the user from Securonix.
      • Securonix - Identities - pulls all users that interact with the IT infrastructure of the organization.
      • Securonix - Incidents - pulls incidents from Securonix.
    • Renamed the following feeds:
      • Securonix SNYPR - Top Violations is now Securonix - Top Violations.
      • Securonix SNYPR - Top Threats is now Securonix Top Threats.
      • Securonix SNYPR - Incidents is now Securonix - Incidents.
    • Removed the following feed:
      • Securonix SNYPR - Incidents.
    • Add the following configuration parameters to all feeds:
      • Enable SSL Certificate Verification - determine if the feed should validate the host-provided SSL certificate.
      • Disable Proxies - determine if the feed should honor proxies set in the ThreatQ UI.
  • Version 1.0.1
    • Resolved an issue with the Securonix SNTPR - Incidents feed where dictionaries present in data.incidentItems[].reason[] would trigger feed run errors.
    • Updated the minimum ThreatQ version to 5.12.0
  • Version 1.0.0
    • Initial release

PDF Guides

Document ThreatQ Version
Securonix Unified Defense SIEM CDF Guide v1.2.0 5.12.0 or Greater
Securonix SNYPR CDF Guide v1.0.1 5.12.0 or Greater
Securonix SNYPR CDF Guide v1.0.0 4.45 or Greater
