Elastic Security CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Elastic Security CDF allows the automatic ingestion of alerts and cases from Elastic Security into ThreatQ. This enables analysts in ThreatQ to stay up to date with the latest alerts and cases, as well as enabling platform to re-prioritize indicators based on sightings.

Elastic Security unifies SIEM, endpoint security, and cloud security on an open platform, arming SecOps teams to protect, detect, and respond at scale. These analytical and protection capabilities, leveraged by the speed and extensibility of Elasticsearch, enable analysts to defend their organization from threats before damage and loss occur.

The integration provides the following feeds:

  • Elastic Security Alerts - pulls alerts from Elastic Security into ThreatQ.
  • Elastic Security Cases - pulls cases from Elastic Security into ThreatQ.

The integration ingests the following system objects:

  • Assets
  • Attack Patterns
  • Events
  • Incidents
  • Indicators

Prerequisites

The integration requires the following to run:

  • Elastic Security v8.x and newer.
  • Credentials for the Elasticsearch API
  • Credentials for the Kibana API

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the yaml file.
  3. Navigate to the integrations management page on your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the yaml file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the file on your local machine

    ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

  6. When prompted, select the individual feeds to install and click Install. The feed(s) will be added to the integrations page.

You will still need to configure and then enable the feed(s).

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Commercial option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:

    Elastic Security Alerts Parameters

    Parameter Description
    Kibana Connection
    Kibana Hostname / IP Enter your hostname or IP address for your Kibana API.

    You may include an HTTP schema, but it is not required, and will default to HTTPS.
    Kibana Port Enter the port number for your Kibana API. The default value is 5601.
    Elasticsearch Connection & Authentication
    Elasticsearch Hostname / IP Enter your hostname or IP address for your Elasticsearch API.

    You may include an HTTP schema, but it is not required, and will default to HTTPS.
    Elastic Port Enter the port number for your Elasticsearch API. The default value is 9200.
    Verify SSL Enter the port number for your Elasticsearch API. The default value is 9200.
    Username Enter a username to authenticate with the Elasticsearch API.
    Password Enter the password associated with the supplied username, to authenticate with the Elasticsearch API.
    Search Options
    Custom Query Optional - Enter a query in the Lucene query string syntax to filter the search results. This field does not support the full Elasticsearch Query DSL. This query will get appended to the time range query that is default to this feed.
    Ingest Options
    Alert Context Select which pieces of context you would like brought in with each alert. Options include:
    • Related Indicators (default)
    • Tags (default)
    • Elastic Alert ID
    • Elastic Alert Link
    • Severity (default)
    • Risk Score (default)
    • MITRE Tactics (default)
    • MITRE Techniques (default)
    Alert Description Context Select which pieces of context you would like brought into the description of each alert. Options include:
    • Event Details (default)
    • Rule Details (default)
    • Raw Event Message (default)
    • Winlog Details
    Ingest Affected Hosts Enable this parameter to ingest and relate the affected host with each alert. This parameter is enabled by default.
    Host Context If you have enabled the Ingest Affected Hosts parameter, select which pieces of context you would like brought in with each host. Options include:
    • Elastic Host ID
    • Elastic Host Link
    • MAC Address
    • Hostname (default)
    • IP Address (default)
    • Architecture
    • Operating System (default)

    This section will only be displayed if you have enabled the Ingest Affected Hosts parameter.

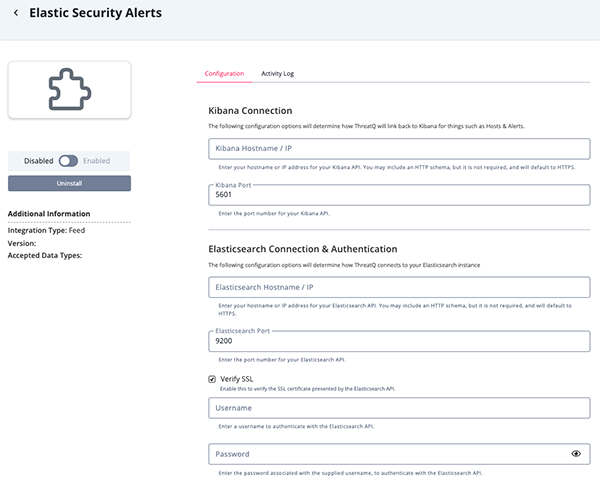

    Security Alerts Configuration Screen

    Elastic Security Cases Parameters

    Parameter Description
    Kibana Connection & Authentication
    Kibana Hostname / IP Enter your hostname or IP address for your Kibana API.

    You may include an HTTP schema, but it is not required, and will default to HTTPS.
    Kibana Port Enter the port number for your Kibana API. The default value is 5601.
    Verify SSL Enable this to verify the SSL certificate presented by the Kibana API.
    Username Enter a username to authenticate with the Kibana API.
    Password Enter the password associated with the supplied username, to authenticate with the Kibana API.
    Elasticsearch Connection & Authentication
    Elasticsearch Hostname / IP Enter your hostname or IP address for your Elasticsearch API.

    You may include an HTTP schema, but it is not required, and will default to HTTPS.
    Elastic Port Enter the port number for your Elasticsearch API. The default value is 9200.
    Verify SSL Enter the port number for your Elasticsearch API. The default value is 9200.
    Username Enter a username to authenticate with the Elasticsearch API.
    Password Enter the password associated with the supplied username, to authenticate with the Elasticsearch API.
    Search Options
    Search Optional - Enter a search term to filter cases by. This will search across both the title and description of each case.
    Severity Filter Select which cases to import into ThreatQ based on their severity level. Options include:
    • Low
    • Medium
    • High (default)
    • Critical (default)
    Ingest Options
    Ingest Comments Enable this parameter to ingest the comments from each case. This parameter is enabled by default.
    Ingest Related Alerts Enable this parameter to ingest and relate the related alerts with each case. This parameter is enabled by default.
    Alert Context Select which pieces of context you would like brought in with each alert. Options include:
    • Related Indicators (default)
    • Tags (default)
    • Elastic Alert ID
    • Elastic Alert Link
    • Severity (default)
    • Risk Score (default)
    • MITRE Tactics (default)
    • MITRE Techniques (default)

    This section will only be displayed if you have enabled the Ingest Related Alerts option under Ingest Options.
    Alert Description Context Select which pieces of context you would like brought into the description of each alert. Options include:
    • Event Details (default)
    • Rule Details (default)
    • Raw Event Message (default)
    • Winlog Details

    This section will only be displayed if you have enabled the Ingest Related Alerts option under Ingest Options.
    Ingest Affected Hosts Enable this parameter to ingest and relate the affected host with each alert. This parameter is enabled by default.
    Host Context If you have enabled the Ingest Affected Hosts parameter, select which pieces of context you would like brought in with each host. Options include:
    • Elastic Host ID
    • Elastic Host Link
    • MAC Address
    • Hostname (default)
    • IP Address (default)
    • Architecture
    • Operating System (default)

    This section will only be displayed if you have enabled the Ingest Affected Hosts parameter.

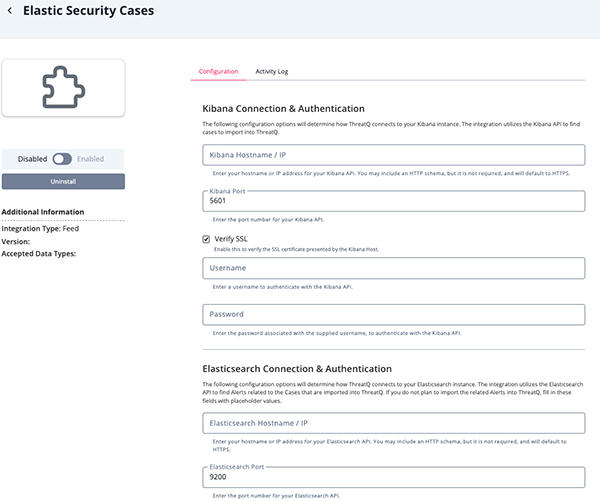

    Security Cases Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Elastic Security Alerts

The Elastic Security Alerts feed periodically pulls alerts from Elastic Security's default alert index into ThreatQ. Alerts will include context about the rule that was triggered, as well as any Threat Intelligence indicator enrichment matches.

GET https://{elasticsearch_host}:{elasticsearch_port}/.alerts-security.alerts-default/_search

Sample Response:

{
  "took": 5,
  "timed_out": false,
  "_shards": {
    "total": 6,
    "successful": 6,
    "skipped": 0,
    "failed": 0
  },
  "hits": {
    "total": {
      "value": 1,
      "relation": "eq"
    },
    "max_score": null,
    "hits": [
      {
        "_index": ".internal.alerts-security.alerts-default-000006",
        "_id": "f56c18f3fa4f56ea8284357078fac19b30e1b465872cd5bbf110d5495e64bae9",
        "_score": null,
        "_source": {
          "kibana.alert.start": "2023-10-27T14:49:36.437Z",
          "kibana.alert.last_detected": "2023-10-27T14:49:36.437Z",
          "kibana.version": "8.8.2",
          "kibana.alert.rule.parameters": {
            "description": "Test",
            "risk_score": 57,
            "severity": "medium",
            "license": "",
            "meta": {
              "from": "5m",
              "kibana_siem_app_url": "http://192.168.50.126:5601/app/security"
            },
            "author": [],
            "false_positives": [],
            "from": "now-420s",
            "rule_id": "91266588-3f85-4d56-a7f1-70bd57927a61",
            "max_signals": 100,
            "risk_score_mapping": [],
            "severity_mapping": [],
            "threat": [],
            "to": "now",
            "references": [],
            "version": 1,
            "exceptions_list": [],
            "immutable": false,
            "related_integrations": [],
            "required_fields": [],
            "setup": "",
            "type": "threat_match",
            "language": "kuery",
            "index": ["winlog-*"],
            "query": "*:*",
            "filters": [],
            "threat_filters": [
              {
                "meta": {
                  "type": "combined",
                  "relation": "AND",
                  "params": [
                    {
                      "query": {
                        "match_phrase": {
                          "threat.indicator.type": "unknown"
                        }
                      },
                      "meta": {
                        "negate": true,
                        "key": "threat.indicator.type",
                        "field": "threat.indicator.type",
                        "params": {
                          "query": "unknown"
                        },
                        "type": "phrase",
                        "disabled": false,
                        "alias": null
                      }
                    },
                    {
                      "meta": {
                        "negate": false,
                        "key": "agent.name",
                        "field": "agent.name",
                        "params": {
                          "query": "ThreatQ"
                        },
                        "type": "phrase",
                        "disabled": false,
                        "alias": null
                      },
                      "query": {
                        "match_phrase": {
                          "agent.name": "ThreatQ"
                        }
                      }
                    }
                  ],
                  "disabled": false,
                  "negate": false,
                  "alias": null
                },
                "query": {},
                "$state": {
                  "store": "appState"
                }
              }
            ],
            "threat_query": "",
            "threat_mapping": [
              {
                "entries": [
                  {
                    "field": "destination_ip",
                    "type": "mapping",
                    "value": "threat.indicator.ip"
                  }
                ]
              }
            ],
            "threat_language": "kuery",
            "threat_index": ["filebeat-*"],
            "threat_indicator_path": "threat.indicator"
          },
          "kibana.alert.rule.category": "Indicator Match Rule",
          "kibana.alert.rule.consumer": "siem",
          "kibana.alert.rule.execution.uuid": "1d3e21cf-d611-4ccb-96d8-4e02bdf4259a",
          "kibana.alert.rule.name": "ThreatQ IOC Match",
          "kibana.alert.rule.producer": "siem",
          "kibana.alert.rule.revision": 3,
          "kibana.alert.rule.rule_type_id": "siem.indicatorRule",
          "kibana.alert.rule.uuid": "a2347660-74d4-11ee-9fe5-e706bbe42d7f",
          "kibana.space_ids": ["default"],
          "kibana.alert.rule.tags": [],
          "@timestamp": "2023-10-27T14:49:36.421Z",
          "destination_ip": "192.206.249.184",
          "timestamp": "2023-10-27T10:47:00",
          "threat": {
            "enrichments": [
              {
                "indicator": {
                  "confidence": "Low",
                  "ip": "192.206.249.184",
                  "type": "ipv4-addr",
                  "port": 80,
                  "provider": "ThreatQuotient"
                },
                "feed": {
                  "name": "[Filebeat] ThreatQuotient"
                },
                "matched": {
                  "atomic": "192.206.249.184",
                  "field": "destination_ip",
                  "id": "U8EufPnem4Atz+D7CHikv/Iepfw=",
                  "index": ".ds-filebeat-8.8.1-2023.10.03-000004",
                  "type": "indicator_match_rule"
                }
              }
            ]
          },
          "event.kind": "signal",
          "kibana.alert.original_time": "2023-10-27T14:47:00.000Z",
          "kibana.alert.ancestors": [
            {
              "id": "l1qacYsBjzKYdBVA3leI",
              "type": "event",
              "index": "winlog-5",
              "depth": 0
            }
          ],
          "kibana.alert.status": "active",
          "kibana.alert.workflow_status": "open",
          "kibana.alert.depth": 1,
          "kibana.alert.reason": "event created medium alert ThreatQ IOC Match.",
          "kibana.alert.severity": "medium",
          "kibana.alert.risk_score": 57,
          "kibana.alert.rule.actions": [],
          "kibana.alert.rule.author": [],
          "kibana.alert.rule.created_at": "2023-10-27T14:25:10.525Z",
          "kibana.alert.rule.created_by": "admin",
          "kibana.alert.rule.description": "Test",
          "kibana.alert.rule.enabled": true,
          "kibana.alert.rule.exceptions_list": [],
          "kibana.alert.rule.false_positives": [],
          "kibana.alert.rule.from": "now-420s",
          "kibana.alert.rule.immutable": false,
          "kibana.alert.rule.interval": "2m",
          "kibana.alert.rule.indices": ["winlog-*"],
          "kibana.alert.rule.license": "",
          "kibana.alert.rule.max_signals": 100,
          "kibana.alert.rule.references": [],
          "kibana.alert.rule.risk_score_mapping": [],
          "kibana.alert.rule.rule_id": "91266588-3f85-4d56-a7f1-70bd57927a61",
          "kibana.alert.rule.severity_mapping": [],
          "kibana.alert.rule.threat": [],
          "kibana.alert.rule.to": "now",
          "kibana.alert.rule.type": "threat_match",
          "kibana.alert.rule.updated_at": "2023-10-27T14:39:24.973Z",
          "kibana.alert.rule.updated_by": "admin",
          "kibana.alert.rule.version": 1,
          "kibana.alert.uuid": "f56c18f3fa4f56ea8284357078fac19b30e1b465872cd5bbf110d5495e64bae9",
          "kibana.alert.rule.meta.from": "5m",
          "kibana.alert.rule.meta.kibana_siem_app_url": "http://192.168.50.126:5601/app/security",
          "kibana.alert.rule.risk_score": 57,
          "kibana.alert.rule.severity": "medium"
        },
        "sort": [1698418176421]
      }
    ]
  }
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.[kibana.alert.reason],
.[kibana.alert.severity], .[kibana.alert.risk_score] 		Event Title Alert {{ Data Path to Published Date }} .[kibana.alert.start] Fields are concatenated together to form the title
.[kibana.alert.rule.tags] Tag N/A N/A N/A N/A
.[kibana.alert.uuid] Event Attribute Elastic Alert ID N/A N/A N/A
.[kibana.alert.uuid] Event Attribute Elastic Alert Link N/A N/A Concatenated with the Kibana URL
.[kibana.alert.severity] Event Attribute Severity N/A Medium Title-cased, Updated at ingestion
.[kibana.alert.risk_score] Event Attribute Risk Score N/A 97 Updated at ingestion
.[kibana.alert.rule.
parameters].threat[].name		 Event Attribute Tactic N/A Medium If the .framework is MITRE ATT&CK
.host.name Asset Value N/A   N/A N/A
.host.id Asset Attribute Elastic Host ID   N/A N/A
.host.id Asset Attribute Elastic Host Link   N/A Concatenated with the Kibana URL
.host.mac Asset Attribute MAC Address   N/A N/A
.host.hostname Asset Attribute Hostname   N/A N/A
.host.ip Asset Attribute IP Address   N/A N/A
.host.architecture Asset Attribute Architecture   N/A N/A
.host.os.name Asset Attribute Operating System   N/A N/A
.[kibana.alert.rule.parameters].
threat[].technique.id, .[kibana.alert.rule.parameters].
threat[].technique.name		 Attack Pattern N/A N/A N/A If the .framework is MITRE ATT&CK
.threat.enrichments[].
matched.atomic		 Indicator .threat.enrichments
[].indicator.type		 N/A N/A Type is mapped from the ECS type to ThreatQ type
.threat.enrichments[].
indicator.confidence		 Indicator Attribute Confidence N/A Low Updated at ingestion
.threat.enrichments[].
indicator.port		 Indicator Attribute Port N/A 80 N/A
.threat.enrichments[].
indicator.provider		 Indicator Attribute Provider N/A ThreatQuotient N/A
.threat.enrichments[].
indicator.reference		 Indicator Attribute External Reference N/A N/A N/A
.threat.enrichments[].
indicator.marking.tlp		 Indicator TLP N/A N/A GREEN N/A
.threat.enrichments[].
indicator.description		 Indicator Description N/A N/A N/A N/A

Elastic Security Alerts Supplemental

The Elastic Security Alerts supplemental feed fetches alerts related to a given case.

GET https://{kibana_host}:{kibana_port}/api/cases/{case_id}/alerts

Sample Response:

[
  {
    "id": "77af630161ee049878781dde394e111a0acefeb69372bce2669104f6930a1f6c",
    "index": ".internal.alerts-security.alerts-default-000001",
    "attached_at": "2023-06-20T17:08:06.876Z"
  },
  {
    "id": "3ee4fa13be338ebc1eca707c46c255f5e469b39989ce9635080e80b96cc3fa21",
    "index": ".internal.alerts-security.alerts-default-000001",
    "attached_at": "2023-06-20T17:08:24.967Z"
  }
]

Mapping for this supplemental feed is handled by calling the Elastic Security Alerts primary feed.

Elastic Security Alerts by IDs Supplemental

The Elastic Security Alerts by IDs supplemental feed fetches the alert details for alerts related to a given case.

GET https://{elasticsearch_host}:{elasticsearch_port}/.alerts-security.alerts-default/_search?q=_id:({alert_id})

Sample Response:

{
  "took": 5,
  "timed_out": false,
  "_shards": {
    "total": 5,
    "successful": 5,
    "skipped": 0,
    "failed": 0
  },
  "hits": {
    "total": {
      "value": 2,
      "relation": "eq"
    },
    "max_score": 1,
    "hits": [
      {
        "_index": ".internal.alerts-security.alerts-default-000001",
        "_id": "77af630161ee049878781dde394e111a0acefeb69372bce2669104f6930a1f6c",
        "_score": 1,
        "_source": {
          "kibana.alert.severity": "critical",
          "agent": {
            "name": "DESKTOP-O0SATNR",
            "id": "74a8f1c0-f82b-46f2-9153-31805738d2f3",
            "type": "winlogbeat",
            "ephemeral_id": "13ddbc5f-1886-4d83-ae24-429be7b832ac",
            "version": "8.8.1"
          },
          "kibana.alert.rule.references": [
            "https://www.iana.org/assignments/iana-ipv4-special-registry/iana-ipv4-special-registry.xhtml"
          ],
          "kibana.alert.rule.updated_by": "admin",
          "kibana.alert.case_ids": ["05efc8b0-0f8d-11ee-ac48-ad9ca4c1d49d"],
          "kibana.alert.rule.threat": [
            {
              "framework": "MITRE ATT&CK",
              "technique": [],
              "tactic": {
                "reference": "https://attack.mitre.org/tactics/TA0011/",
                "name": "Command and Control",
                "id": "TA0011"
              }
            },
            {
              "framework": "MITRE ATT&CK",
              "technique": [
                {
                  "reference": "https://attack.mitre.org/techniques/T1021/",
                  "name": "Remote Services",
                  "subtechnique": [],
                  "id": "T1021"
                }
              ],
              "tactic": {
                "reference": "https://attack.mitre.org/tactics/TA0008/",
                "name": "Lateral Movement",
                "id": "TA0008"
              }
            },
            {
              "framework": "MITRE ATT&CK",
              "technique": [
                {
                  "reference": "https://attack.mitre.org/techniques/T1190/",
                  "name": "Exploit Public-Facing Application",
                  "subtechnique": [],
                  "id": "T1190"
                }
              ],
              "tactic": {
                "reference": "https://attack.mitre.org/tactics/TA0001/",
                "name": "Initial Access",
                "id": "TA0001"
              }
            }
          ],
          "kibana.alert.original_event.original": "Process Create:\nRuleName: technique_id=T1059,technique_name=Command-Line Interface\nUtcTime: 2023-06-20 17:03:09.368\nProcessGuid: {ef68b829-dbcd-6491-df33-000000000200}\nProcessId: 12328\nImage: C:\\Windows\\System32\\cmd.exe\nFileVersion: 10.0.19041.746 (WinBuild.160101.0800)\nDescription: Windows Command Processor\nProduct: Microsoft® Windows® Operating System\nCompany: Microsoft Corporation\nOriginalFileName: Cmd.Exe\nCommandLine: C:\\Windows\\system32\\cmd.exe /c \"\"\\\\tsclient\\tmp\\naughty_malware.bat\"\"\nCurrentDirectory: C:\\Users\\user\\Desktop\\\nUser: DESKTOP-O0SATNR\\user\nLogonGuid: {ef68b829-647c-6490-c871-780700000000}\nLogonId: 0x77871C8\nTerminalSessionId: 7\nIntegrityLevel: Medium\nHashes: SHA1=F1EFB0FDDC156E4C61C5F78A54700E4E7984D55D,MD5=8A2122E8162DBEF04694B9C3E0B6CDEE,SHA256=B99D61D874728EDC0918CA0EB10EAB93D381E7367E377406E65963366C874450,IMPHASH=272245E2988E1E430500B852C4FB5E18\nParentProcessGuid: {ef68b829-bdea-6490-9c2e-000000000200}\nParentProcessId: 4252\nParentImage: C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe\nParentCommandLine: \"C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe\" \nParentUser: DESKTOP-O0SATNR\\user",
          "kibana.alert.original_event.code": "1",
          "kibana.alert.rule.description": "This rule detects network events that may indicate the use of RDP traffic from the Internet. RDP is commonly used by system administrators to remotely control a system for maintenance or to use shared resources. It should almost never be directly exposed to the Internet, as it is frequently targeted and exploited by threat actors as an initial access or backdoor vector.",
          "kibana.alert.rule.tags": [
            "Elastic",
            "Host",
            "Network",
            "Threat Detection",
            "Command and Control",
            "Host"
          ],
          "kibana.alert.rule.producer": "siem",
          "kibana.alert.rule.to": "now",
          "kibana.alert.rule.created_by": "admin",
          "kibana.alert.rule.timestamp_override": "event.ingested",
          "ecs": {
            "version": "8.0.0"
          },
          "kibana.alert.risk_score": 99,
          "host": {
            "hostname": "DESKTOP-O0SATNR",
            "os": {
              "build": "19045.2965",
              "kernel": "10.0.19041.2965 (WinBuild.160101.0800)",
              "name": "Windows 10 Pro",
              "type": "windows",
              "family": "windows",
              "version": "10.0",
              "platform": "windows"
            },
            "ip": ["10.206.249.163"],
            "name": "DESKTOP-O0SATNR",
            "id": "ef68b829-ef72-44c6-ad80-c6e4a44afa2d",
            "mac": ["1E-6D-03-FE-ED-C3"],
            "architecture": "x86_64"
          },
          "kibana.alert.rule.name": "Powershell Code Execution",
          "event.kind": "signal",
          "event.original": "Process Create:\nRuleName: technique_id=T1059,technique_name=Command-Line Interface\nUtcTime: 2023-06-20 17:03:09.368\nProcessGuid: {ef68b829-dbcd-6491-df33-000000000200}\nProcessId: 12328\nImage: C:\\Windows\\System32\\cmd.exe\nFileVersion: 10.0.19041.746 (WinBuild.160101.0800)\nDescription: Windows Command Processor\nProduct: Microsoft® Windows® Operating System\nCompany: Microsoft Corporation\nOriginalFileName: Cmd.Exe\nCommandLine: C:\\Windows\\system32\\cmd.exe /c \"\"\\\\tsclient\\tmp\\naughty_malware.bat\"\"\nCurrentDirectory: C:\\Users\\user\\Desktop\\\nUser: DESKTOP-O0SATNR\\user\nLogonGuid: {ef68b829-647c-6490-c871-780700000000}\nLogonId: 0x77871C8\nTerminalSessionId: 7\nIntegrityLevel: Medium\nHashes: SHA1=F1EFB0FDDC156E4C61C5F78A54700E4E7984D55D,MD5=8A2122E8162DBEF04694B9C3E0B6CDEE,SHA256=B99D61D874728EDC0918CA0EB10EAB93D381E7367E377406E65963366C874450,IMPHASH=272245E2988E1E430500B852C4FB5E18\nParentProcessGuid: {ef68b829-bdea-6490-9c2e-000000000200}\nParentProcessId: 4252\nParentImage: C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe\nParentCommandLine: \"C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe\" \nParentUser: DESKTOP-O0SATNR\\user",
          "kibana.alert.workflow_status": "open",
          "kibana.alert.rule.uuid": "b0439140-0f81-11ee-ac48-ad9ca4c1d49d",
          "kibana.alert.original_event.created": "2023-06-20T17:03:10.536Z",
          "kibana.alert.rule.risk_score_mapping": [],
          "kibana.alert.rule.interval": "5m",
          "kibana.alert.reason": "event on DESKTOP-O0SATNR created critical alert Powershell Code Execution.",
          "kibana.alert.rule.type": "query",
          "tags": ["beats_input_codec_plain_applied"],
          "kibana.alert.start": "2023-06-20T17:04:15.485Z",
          "event.provider": "Microsoft-Windows-Sysmon",
          "kibana.alert.rule.immutable": false,
          "event.code": "1",
          "kibana.alert.rule.timeline_title": "Comprehensive Network Timeline",
          "event.created": "2023-06-20T17:03:10.536Z",
          "kibana.alert.depth": 1,
          "kibana.alert.rule.enabled": true,
          "kibana.alert.rule.version": 100,
          "kibana.alert.rule.from": "now-540s",
          "kibana.alert.rule.parameters": {
            "severity_mapping": [],
            "references": [
              "https://www.iana.org/assignments/iana-ipv4-special-registry/iana-ipv4-special-registry.xhtml"
            ],
            "description": "This rule detects network events that may indicate the use of RDP traffic from the Internet. RDP is commonly used by system administrators to remotely control a system for maintenance or to use shared resources. It should almost never be directly exposed to the Internet, as it is frequently targeted and exploited by threat actors as an initial access or backdoor vector.",
            "language": "kuery",
            "type": "query",
            "timestamp_override_fallback_disabled": false,
            "exceptions_list": [],
            "timestamp_override": "event.ingested",
            "from": "now-540s",
            "timeline_id": "300afc76-072d-4261-864d-4149714bf3f1",
            "severity": "critical",
            "max_signals": 100,
            "risk_score": 99,
            "risk_score_mapping": [],
            "author": ["Elastic"],
            "query": "technique_name=PowerShell AND naughty* AND powershell*",
            "index": ["winlogbeat-*"],
            "filters": [],
            "version": 100,
            "rule_id": "0d2f3215-97de-4dca-b367-f635c3466ff8",
            "license": "Elastic License v2",
            "required_fields": [],
            "immutable": false,
            "related_integrations": [],
            "timeline_title": "Comprehensive Network Timeline",
            "meta": {
              "from": "4m"
            },
            "setup": "",
            "false_positives": [
              "Some network security policies allow RDP directly from the Internet but usage that is unfamiliar to server or network owners can be unexpected and suspicious. RDP services may be exposed directly to the Internet in some networks such as cloud environments. In such cases, only RDP gateways, bastions or jump servers may be expected expose RDP directly to the Internet and can be exempted from this rule. RDP may be required by some work-flows such as remote access and support for specialized software products and servers. Such work-flows are usually known and not unexpected."
            ],
            "threat": [
              {
                "framework": "MITRE ATT&CK",
                "technique": [],
                "tactic": {
                  "reference": "https://attack.mitre.org/tactics/TA0011/",
                  "name": "Command and Control",
                  "id": "TA0011"
                }
              },
              {
                "framework": "MITRE ATT&CK",
                "technique": [
                  {
                    "reference": "https://attack.mitre.org/techniques/T1021/",
                    "name": "Remote Services",
                    "subtechnique": [],
                    "id": "T1021"
                  }
                ],
                "tactic": {
                  "reference": "https://attack.mitre.org/tactics/TA0008/",
                  "name": "Lateral Movement",
                  "id": "TA0008"
                }
              },
              {
                "framework": "MITRE ATT&CK",
                "technique": [
                  {
                    "reference": "https://attack.mitre.org/techniques/T1190/",
                    "name": "Exploit Public-Facing Application",
                    "subtechnique": [],
                    "id": "T1190"
                  }
                ],
                "tactic": {
                  "reference": "https://attack.mitre.org/tactics/TA0001/",
                  "name": "Initial Access",
                  "id": "TA0001"
                }
              }
            ],
            "to": "now"
          },
          "kibana.alert.rule.revision": 2,
          "log": {
            "level": "information"
          },
          "kibana.alert.status": "active",
          "kibana.alert.last_detected": "2023-06-20T17:04:15.485Z",
          "kibana.alert.ancestors": [
            {
              "depth": 0,
              "index": "winlogbeat-8.8.1",
              "id": "hH7C2YgBjzKYdBVAzrH9",
              "type": "event"
            }
          ],
          "kibana.alert.rule.exceptions_list": [],
          "kibana.alert.rule.actions": [],
          "kibana.alert.rule.rule_type_id": "siem.queryRule",
          "kibana.alert.original_event.provider": "Microsoft-Windows-Sysmon",
          "kibana.alert.rule.timeline_id": "300afc76-072d-4261-864d-4149714bf3f1",
          "@version": "1",
          "kibana.alert.rule.license": "Elastic License v2",
          "kibana.alert.original_event.kind": "event",
          "kibana.alert.rule.severity_mapping": [],
          "winlog": {
            "computer_name": "DESKTOP-O0SATNR",
            "process": {
              "pid": 7876,
              "thread": {
                "id": 6992
              }
            },
            "channel": "Microsoft-Windows-Sysmon/Operational",
            "event_data": {
              "Company": "Microsoft Corporation",
              "ParentImage": "C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe",
              "LogonGuid": "{ef68b829-647c-6490-c871-780700000000}",
              "User": "DESKTOP-O0SATNR\\user",
              "Description": "Windows Command Processor",
              "OriginalFileName": "Cmd.Exe",
              "TerminalSessionId": "7",
              "IntegrityLevel": "Medium",
              "ParentProcessId": "4252",
              "Product": "Microsoft® Windows® Operating System",
              "ParentUser": "DESKTOP-O0SATNR\\user",
              "Image": "C:\\Windows\\System32\\cmd.exe",
              "ProcessGuid": "{ef68b829-dbcd-6491-df33-000000000200}",
              "UtcTime": "2023-06-20 17:03:09.368",
              "CurrentDirectory": "C:\\Users\\user\\Desktop\\",
              "CommandLine": "C:\\Windows\\system32\\cmd.exe /c \"\"\\\\tsclient\\tmp\\naughty_malware.bat\"\"",
              "Hashes": "SHA1=F1EFB0FDDC156E4C61C5F78A54700E4E7984D55D,MD5=8A2122E8162DBEF04694B9C3E0B6CDEE,SHA256=B99D61D874728EDC0918CA0EB10EAB93D381E7367E377406E65963366C874450,IMPHASH=272245E2988E1E430500B852C4FB5E18",
              "FileVersion": "10.0.19041.746 (WinBuild.160101.0800)",
              "ProcessId": "12328",
              "ParentProcessGuid": "{ef68b829-bdea-6490-9c2e-000000000200}",
              "ParentCommandLine": "\"C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe\" ",
              "LogonId": "0x77871c8",
              "RuleName": "technique_id=T1059,technique_name=Command-Line Interface"
            },
            "opcode": "Info",
            "version": 5,
            "record_id": 57378,
            "event_id": "1",
            "task": "Process Create (rule: ProcessCreate)",
            "provider_guid": "{5770385f-c22a-43e0-bf4c-06f5698ffbd9}",
            "api": "wineventlog",
            "provider_name": "Microsoft-Windows-Sysmon",
            "user": {
              "identifier": "S-1-5-18",
              "domain": "NT AUTHORITY",
              "name": "SYSTEM",
              "type": "User"
            }
          },
          "kibana.alert.rule.max_signals": 100,
          "kibana.alert.rule.updated_at": "2023-06-20T17:04:10.727Z",
          "kibana.alert.rule.risk_score": 99,
          "kibana.alert.rule.author": ["Elastic"],
          "kibana.alert.rule.false_positives": [
            "Some network security policies allow RDP directly from the Internet but usage that is unfamiliar to server or network owners can be unexpected and suspicious. RDP services may be exposed directly to the Internet in some networks such as cloud environments. In such cases, only RDP gateways, bastions or jump servers may be expected expose RDP directly to the Internet and can be exempted from this rule. RDP may be required by some work-flows such as remote access and support for specialized software products and servers. Such work-flows are usually known and not unexpected."
          ],
          "message": "Process Create:\nRuleName: technique_id=T1059,technique_name=Command-Line Interface\nUtcTime: 2023-06-20 17:03:09.368\nProcessGuid: {ef68b829-dbcd-6491-df33-000000000200}\nProcessId: 12328\nImage: C:\\Windows\\System32\\cmd.exe\nFileVersion: 10.0.19041.746 (WinBuild.160101.0800)\nDescription: Windows Command Processor\nProduct: Microsoft® Windows® Operating System\nCompany: Microsoft Corporation\nOriginalFileName: Cmd.Exe\nCommandLine: C:\\Windows\\system32\\cmd.exe /c \"\"\\\\tsclient\\tmp\\naughty_malware.bat\"\"\nCurrentDirectory: C:\\Users\\user\\Desktop\\\nUser: DESKTOP-O0SATNR\\user\nLogonGuid: {ef68b829-647c-6490-c871-780700000000}\nLogonId: 0x77871C8\nTerminalSessionId: 7\nIntegrityLevel: Medium\nHashes: SHA1=F1EFB0FDDC156E4C61C5F78A54700E4E7984D55D,MD5=8A2122E8162DBEF04694B9C3E0B6CDEE,SHA256=B99D61D874728EDC0918CA0EB10EAB93D381E7367E377406E65963366C874450,IMPHASH=272245E2988E1E430500B852C4FB5E18\nParentProcessGuid: {ef68b829-bdea-6490-9c2e-000000000200}\nParentProcessId: 4252\nParentImage: C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe\nParentCommandLine: \"C:\\Windows\\System32\\WindowsPowerShell\\v1.0\\powershell.exe\" \nParentUser: DESKTOP-O0SATNR\\user",
          "kibana.alert.rule.consumer": "siem",
          "kibana.alert.rule.indices": ["winlogbeat-*"],
          "kibana.alert.rule.category": "Custom Query Rule",
          "event.action": "Process Create (rule: ProcessCreate)",
          "@timestamp": "2023-06-20T17:04:15.475Z",
          "kibana.alert.rule.created_at": "2023-06-20T15:46:57.754Z",
          "kibana.alert.original_event.action": "Process Create (rule: ProcessCreate)",
          "kibana.alert.rule.severity": "critical",
          "kibana.alert.rule.execution.uuid": "cffe64f8-ee5a-4a30-a9ee-97648c304490",
          "kibana.space_ids": ["default"],
          "kibana.alert.uuid": "77af630161ee049878781dde394e111a0acefeb69372bce2669104f6930a1f6c",
          "kibana.version": "8.8.1",
          "kibana.alert.rule.meta.from": "4m",
          "kibana.alert.original_time": "2023-06-20T17:03:09.380Z",
          "kibana.alert.rule.rule_id": "0d2f3215-97de-4dca-b367-f635c3466ff8"
        }
      }
    ]
  }
}

Mapping for this supplemental feed is handled by calling the Elastic Security Alerts primary feed.

Elastic Security Cases

The Elastic Security Cases feed periodically pulls cases from Elastic Security's default alert index into ThreatQ.

GET https://{kibana_host}:{kibana_port}/api/cases/_find

Sample Response:

{
  "page": 1,
  "per_page": 1,
  "total": 3,
  "cases": [
    {
      "id": "1b5eed40-1053-11ee-ac48-ad9ca4c1d49d",
      "version": "WzcyNjA2Miw2XQ==",
      "comments": [],
      "totalComment": 0,
      "totalAlerts": 2,
      "title": "Investigating possible Lockbit Campaign",
      "tags": [],
      "description": "...",
      "settings": {
        "syncAlerts": true
      },
      "owner": "securitySolution",
      "duration": null,
      "closed_at": null,
      "closed_by": null,
      "created_at": "2023-06-21T16:46:02.263Z",
      "created_by": {
        "username": "admin",
        "full_name": "",
        "email": "",
        "profile_uid": "u_jGl25bVBBBW96Qi9Te4V37Fnqchz_Eu4qB9vKrRIqRg_0"
      },
      "updated_at": "2023-06-21T16:46:41.936Z",
      "updated_by": {
        "full_name": "",
        "profile_uid": "u_jGl25bVBBBW96Qi9Te4V37Fnqchz_Eu4qB9vKrRIqRg_0",
        "email": "",
        "username": "admin"
      },
      "assignees": [],
      "connector": {
        "id": "none",
        "name": "none",
        "type": ".none",
        "fields": null
      },
      "external_service": null,
      "severity": "low",
      "status": "open"
    }
  ],
  "count_open_cases": 3,
  "count_in_progress_cases": 0,
  "count_closed_cases": 0
}

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Published Date Examples Notes
.title Incident Title N/A .created_at N/A N/A
.created_by.full_name,
.created_by.username,
.created_by.email 		Incident Attribute Created By .created_at N/A N/A
.closed_by.full_name,
.closed_by.username,
.closed_by.email 		Incident Attribute Closed By .created_at N/A N/A
.closed_at Incident Attribute Closed At .created_at N/A N/A
.owner Incident Attribute Owner .created_at N/A N/A
.updated_by.full_name,
.updated_by.username,
.updated_by.email 		Incident Attribute Updated By .created_at N/A Updated at ingestion
.updated_at Incident Attribute Updated At .created_at N/A Updated at ingestion

This feed also may bring in Alerts. The mapping for those can be found in the Elastic Security Alerts Mapping section.

Elastic Security Cases Supplemental

The Elastic Security Cases supplemental feed fetches alerts related to a given case.

GET https://{kibana_host}:{kibana_port}/api/cases/{case_id}/alerts

Sample Response:

[
  {
    "id": "77af630161ee049878781dde394e111a0acefeb69372bce2669104f6930a1f6c",
    "index": ".internal.alerts-security.alerts-default-000001",
    "attached_at": "2023-06-20T17:08:06.876Z"
  },
  {
    "id": "3ee4fa13be338ebc1eca707c46c255f5e469b39989ce9635080e80b96cc3fa21",
    "index": ".internal.alerts-security.alerts-default-000001",
    "attached_at": "2023-06-20T17:08:24.967Z"
  }
]

Mapping for this supplemental feed is handled by calling the primary Elastic Security Cases feed.

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Elastic Security Alerts

Metric Result
Run Time 1 minute
Indicators 1
Events 32
Event Attributes 128
Assets 1

Elastic Security Cases

Metric Result
Run Time 1 minute
Incidents 2
Incident Attributes 8
Events 3
Event Attributes 15
Attack Patterns 2
Assets 1

Change Log

  • Version 1.0.2
    • Updated the pagination for the Elastic Security Alerts feed to ingest all alerts.
  • Version 1.0.1
    • Updated the configuration screen logic for both feeds.
      • Both feeds - the Host Context fields will now only be displayed if you have selected the Ingest Affected Hosts parameter.
      • Security Cases Feed - the Alert Context and Alert Description Context sections will now only be displayed if you have selected Ingest Related Alerts under Ingest Options.
  • Version 1.0.0
    • Initial release

PDF Guides

Document ThreatQ Version
Elastic Security CDF Guide v1.0.2 5.18.0 or Greater
Elastic Security CDF Guide v1.0.1 5.18.0 or Greater
Elastic Security CDF Guide v1.0.0 5.18.0 or Greater
