Cisco Threat Grid CDF

The web format of this guide reflects the most current release.  Guides for older iterations are available in PDF format.

Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The Cisco Threat Grid CDF is a sandbox which allows the detonation of samples to generate analysis reports. The Cisco Threat Grid CDF for ThreatQ enables a user to ingest their organization's sample analysis reports from Threat Grid. These samples can be filtered down by their threat score, so you are able to ingest only the detonations that your organization deems important to track.

The CDF provides the following feeds:

  • Cisco Threat Grid - ingests analyses as Report Objects within ThreatQ.
  • Get Analysis (Supplemental) - fetches the full analysis report JSON from Threat Grid's API.
  • Get Sample (Supplemental) - fetches samples from Threat Grid.

The integration ingests the following system object types:

  • Attack Patterns
    • Attack Pattern Attributes
  • Files (attachments)
  • Indicators
    • Indicator Attributes
  • Reports
    • Report Attributes
  • TTPs
    • TTP Attributes

Prerequisites

The following is required to use the integration:

  • A Cisco Threat Grid Hostname and API Key.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

  1. Log into https://marketplace.threatq.com/.
  2. Locate and download the integration file.
  3. Navigate to the integrations management page on your ThreatQ instance.
  4. Click on the Add New Integration button.
  5. Upload the integration file using one of the following methods:
    • Drag and drop the file into the dialog box
    • Select Click to Browse to locate the integration file on your local machine

    ThreatQ will inform you if the feed already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the feed contains changes to the user configuration. The new user configurations will overwrite the existing ones for the feed and will require user confirmation before proceeding.

  6. The feed will be added to the integrations page. You will still need to configure and then enable the feed.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.

To configure the integration:

  1. Navigate to your integrations management page in ThreatQ.
  2. Select the Commercial option from the Category dropdown (optional).

    If you are installing the integration for the first time, it will be located under the Disabled tab.

  3. Click on the integration entry to open its details page.
  4. Enter the following parameters under the Configuration tab:
    Parameter Description
    Threat Grid Host Enter your Threat Grid host.

    Default: panacea.threatgrid.com
    API Key

    Enter your Cisco threat Grid API key for authentication.
    Threat Score Criteria Select the threat scores you would like to ingest:
    • Critical (default)
    • High (default)
    • Medium
    • Low
    IOC Severity Threshold Enter a threshold severity for ingested IOCs

    Default: 50
    Apply Severity Threshold to Domains as well
    Ingest Samples Enabling this will import the malware samples into ThreatQ.  This option is disabled by default.

    You must enable downloading sample content via the API in your Threat Grid Account Profile.
    Ingest Behavioral Indicators As Select the object type you would like behavioral indicators stored in
    • TTP (default)
    • Attack Pattern
    Disable Proxies Enable/disable this option to set whether the feed will honor proxies set in ThreatQ.
    Verify SSL Enable/disable this option to set whether the feed will verify SSL connections with the provider.
    Only Ingest Organizational Data Enable this parameter to only ingest organizational data.

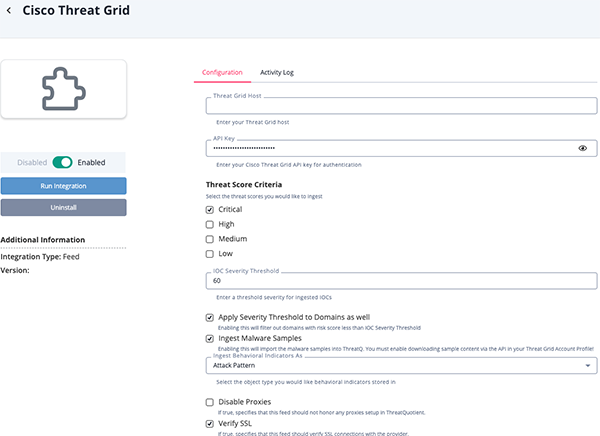

    Configuration Screen
  5. Review any additional settings, make any changes if needed, and click on Save.
  6. Click on the toggle switch, located above the Additional Information section, to enable it.

ThreatQ Mapping

Cisco Threat Grid

The Cisco Threat Grid feed ingests analyses as Report Objects within ThreatQ. Any metadata surrounding the reports will be included, as well as related IOCs, related TTPs, and their relevant attribution.

GET https://panacea.threatgrid.com/api/v2/search/submissions

Sample Response:

{
  "api_version": 2,
  "id": 6654269,
  "data": {
    "index": 0,
    "total": 5,
    "took": 486,
    "timed_out": false,
    "items_per_page": 10,
    "current_item_count": 5,
    "items": [
      {
        "score": 1000000,
        "matches": {},
        "item": {
          "properties": {
            "metadata": null
          },
          "tags": [],
          "vm_runtime": 300,
          "md5": "2128689698b9a7e496b20bac4ddd42b1",
          "private": false,
          "organization_id": 12882,
          "state": "succ",
          "login": "strivers",
          "sha1": "4d6f2012d5521f240f10b53c769d250d02cd5697",
          "sample": "898bf464b34b3806d9f817004fc31533",
          "filename": "9S659EHDCSI72649DS.doc",
          "analysis": {
            "metadata": {
              "sandcastle_env": {
                "controlsubject": "win7-x64-intel-2020.06.17",
                "vm": "win7-x64",
                "vm_id": "898bf464b34b3806d9f817004fc31533",
                "sample_executed": 1597133073,
                "analysis_end": "2020-08-11T08:10:10Z",
                "analysis_features": [],
                "analysis_start": "2020-08-11T08:03:45Z",
                "display_name": "Windows 7 64-bit",
                "run_time": 300,
                "sandcastle": "3.5.62.17003.0a6e3cc14-1",
                "current_os": "7601.18798.amd64fre.win7sp1_gdr.150316-1654"
              },
              "submitted_file": {
                "magic": "Composite Document File V2 Document, Little Endian, Os: Windows, Version 6.1, ...",
                "sha1": "4d6f2012d5521f240f10b53c769d250d02cd5697",
                "filename": "9S659EHDCSI72649DS.doc",
                "sha256": "10281a188a26dbb10562bdc6f5467abad4b0e7fe73672b48a11fdd55819f81f3",
                "type": "doc",
                "md5": "2128689698b9a7e496b20bac4ddd42b1"
              },
              "general_details": {
                "report_created": "2020-08-11T08:10:17Z",
                "sandbox_version": "pilot-d",
                "sandbox_id": "mtv-work-028"
              },
              "malware_desc": [
                {
                  "sha1": "4d6f2012d5521f240f10b53c769d250d02cd5697",
                  "magic": "Composite Document File V2 Document, Little Endian, Os: Windows, Version 6.1 ...",
                  "filename": "9S659EHDCSI72649DS.doc",
                  "size": 80896,
                  "sha256": "10281a188a26dbb10562bdc6f5467abad4b0e7fe73672b48a11fdd55819f81f3",
                  "type": "doc",
                  "md5": "2128689698b9a7e496b20bac4ddd42b1"
                }
              ],
              "analyzed_file": {
                "magic": "Composite Document File V2 Document, Little Endian, Os: Windows, Version 6.1 ...",
                "sha1": "4d6f2012d5521f240f10b53c769d250d02cd5697",
                "filename": "9S659EHDCSI72649DS.doc",
                "sha256": "10281a188a26dbb10562bdc6f5467abad4b0e7fe73672b48a11fdd55819f81f3",
                "type": "doc",
                "md5": "2128689698b9a7e496b20bac4ddd42b1"
              }
            },
            "behaviors": [
              {
                "name": "antivirus-flagged-artifact",
                "threat": 72,
                "title": "Artifact Flagged by Antivirus"
              },
              ...
            ],
            "threat_score": 100
          },
          "status": "job_done",
          "submitted_at": "2020-08-11T08:03:44Z",
          "sha256": "10281a188a26dbb10562bdc6f5467abad4b0e7fe73672b48a11fdd55819f81f3"
        }
      }
    ]
  }
}

The integration does not use any fields from the above API response within ThreatQ. The supplemental feed id udrf to fetch the full analysis results. That JSON data is parsed for metadata, IOCs, TTPs, etc.

Get Analysis (Supplemental)

The Get Analysis supplemental feed will fetch the full analysis report JSON from Threat Grid's API.

GET https://panacea.threatgrid.com/api/v2/samples/{id}/analysis.json

Sample Response:

{
	"version": 4,
	"versions": {
	  "version": "4.0",
	  "network": {
		"version": "2.0"
	  },
	  "file": {
		"version": "2.0",
		"html": "0.0",
		"ini": "0.0",
		"js": "0.0",
		"lnk": "2.0",
		"pdf": "0.0",
		"pe": "0.0",
		"rtf": "0.0",
		"txt": "0.0"
	  },
	  "yara": "1.0",
	  "reversing_labs": "1.0",
	  "virustotal": "1.0",
	  "cognitive": "1.0",
	  "heuristic_model": "0.0.20190722T000000Z"
	},
	"metadata": {
	  "general_details": {
		"report_created": 1583750398,
		"sandbox_version": "pilot-d",
		"sandbox_id": "mtv-work-087"
	  },
	  "sandcastle_env": {
		"vm_id": "43a5ae8937855851ee142092d4cd6642",
		"current_os": "7601.18798.amd64fre.win7sp1_gdr.150316-1654",
		"analysis_start": 1583750035,
		"analysis_end": 1583750394,
		"run_time": 300,
		"sample_executed": 1583750081,
		"sandcastle": "3.5.51.16706.30e43d500-1",
		"vm": "win7-x64",
		"controlsubject": "win7-x64-intel-2020.02.03",
		"display_name": "Windows 7 64-bit",
		"analysis_features": []
	  },
	  "malware_desc": [
		{
		  "filename": "woodguilt.com%2F87229782.png.url",
		  "size": 49,
		  "md5": "a28a6b6e8924ec4173241a8eff8bf8d3",
		  "sha1": "45d2abc7ff3693bb8a0d93fffc36561be28cccb3",
		  "sha256": "48c02c817adef30b675938044d65862e920c494ec13e60567f2c7aca3d7cc07b",
		  "magic": "MS Windows 95 Internet shortcut text (URL=<woodguilt.com/87229782.png>), ASCII text",
		  "type": "url"
		}
	  ]
	},
	"warnings": [],
	"iocs": [
	  {
		"category": [
		  "domain"
		],
		"hits": 1,
		"description": "This indicator indicates that a DNS query was performed to an unregistered domain name...",
		"title": "DNS Query Returned Non-Existent Domain",
		"data": [
		  {
			"Query_Type": "A",
			"Query_ID": 20750,
			"Query_Data": "woodguilt.com",
			"Answer_Code": "NXDOMAIN",
			"Network_Stream": 7
		  }
		],
		"tags": [
		  "communication"
		],
		"truncated": false,
		"confidence": 75,
		"mitre-tactics": [],
		"heuristic_coefficient": -1.88155557784,
		"orbital-queries": [],
		"mitre-techniques": [],
		"ioc": "dns-query-nxdomain",
		"severity": 25
	  },
	  {
		"category": [
		  "network-information"
		],
		"hits": 1,
		"description": "A name resolution query using the NetBIOS API was made. NetBIOS is used to facilitate computers...",
		"title": "NetBIOS Name Resolution Query",
		"data": [
		  {
			"Domain": "WOODGUILT.COM"
		  }
		],
		"tags": [
		  "netbios"
		],
		"truncated": false,
		"confidence": 60,
		"mitre-tactics": [],
		"heuristic_coefficient": 1.42572787641,
		"orbital-queries": [],
		"mitre-techniques": [],
		"ioc": "netbios-query",
		"severity": 60
	  }
	],
	"threat": {
	  "heuristic_score": 0,
	  "threat_score": 36,
	  "bucket": "doc",
	  "heuristic_raw_score": -5.0775348811833245
	},
	"dynamic": {
	  "processes": {
		"11": {
		  "registry_keys_read": [],
		  "pid": 428,
		  "kpid": "0xfffffa80027f37a0",
		  "files_deleted": [],
		  "files_created": [
			"\\Users\\Administrator\\AppData\\Roaming\\Microsoft\\Protect\\S-1-5-21-2580483871-590521980-3826313501-500\\b0cc0ca3-d62b-440a-b6c1-e54b3ecf60a2"
		  ],
		  "file_transactions": [],
		  "sockets": [],
		  "files_checked": [],
		  "sockets_traffic": [],
		  "errors": [],
		  "monitored": true,
		  "registry_keys_deleted": [],
		  "ppid": null,
		  "mutants_opened": [],
		  "memory": [
			{
			  "protect": [
				"PAGE_READWRITE"
			  ],
			  "process": "0xfffffa80027f37a0",
			  "allocation_type": [
				"MEM_COMMIT"
			  ],
			  "entry": [
				{
				  "size": "0x44",
				  "base_address": "0x0"
				},
                ...
			  ],
			  "zero_bits": 0,
			  "process_handle": "0x3f4"
			},
            ...
		  ],
		  "new": false,
		  "registry_keys_opened": [
			{
			  "access": [
				"ENUMERATE_SUB_KEYS",
				"NOTIFY",
				"QUERY_VALUE",
				"READ_CONTROL"
			  ],
			  "options": [
				"REG_OPTION_NON_VOLATILE"
			  ],
			  "name": "REGISTRY\\MACHINE\\SYSTEM\\CONTROLSET001\\CONTROL\\SECURITYPROVIDERS\\SCHANNEL"
			},
            ...
		  ],
		  "parent": "",
		  "startup_info": {
			"upid": 428,
			"shell_info": "C:\\Windows\\system32\\lsass.exe",
			"current_directory": "C:\\Windows\\system32\\",
			"command_line": "C:\\Windows\\system32\\lsass.exe",
			"uthread": 0,
			"desktop_info": "",
			"tid": "0xfffffa80027b7b50",
			"image_pathname": "C:\\Windows\\system32\\lsass.exe",
			"dll_path": "C:\\Windows\\system32;C:\\Windows\\system32;C:\\Windows\\system;C:\\Windows;.;C:\\Windows\\system32;...",
			"runtime_data": "",
			"window_title": "C:\\Windows\\system32\\lsass.exe",
			"incomplete": false
		  },
		  "process_name": "lsass.exe",
		  "registry_keys_modified": [
			{
			  "value_name": "LanguageList",
			  "data_type": "MULTI_SZ",
			  "data": "en-US\u0000en\u0000\u0000",
			  "name": "REGISTRY\\USER\\.DEFAULT\\SOFTWARE\\CLASSES\\LOCAL SETTINGS\\MUICACHE\\3E\\52C64B7E"
			},
            ...
		  ],
		  "threads": [
			{
			  "return": 0,
			  "thread": "0x00000000",
			  "process": "0x00000000",
			  "create_suspended": "0x1",
			  "client_id": 8397322214375721288,
			  "process_handle": "0x80000238"
			},
			...
		  ],
		  "mutants_created": [],
		  "analyzed_because": "Process activity after target sample started.",
		  "files_modified": [
			"\\Users\\Administrator\\AppData\\Roaming\\Microsoft\\Protect\\S-1-5-21-2580483871-590521980-3826313501-500\\Preferred",
			"\\Users\\Administrator\\AppData\\Roaming\\Microsoft\\Protect\\S-1-5-21-2580483871-590521980-3826313501-500\\b0cc0ca3-d62b-440a-b6c1-e54b3ecf60a2"
		  ],
		  "atoms_added": [],
		  "children": [],
		  "registry_keys_created": [],
		  "files_read": [
			"\\Users\\Administrator\\AppData\\Roaming\\Microsoft\\Protect\\S-1-5-21-2580483871-590521980-3826313501-500\\Preferred"
		  ],
		  "time": "Mon, 09 Mar 2020 10:34:42 UTC"
		},
        ...
	  },
	  "extracted_keys": [
		{
		  "pattern": "openssl",
		  "key": "AAAAAAAAAABSU0RTt6U4JJaqwk+5GKG0zGzxwAEAAABITmV0Q2ZnLnBkYgAAAAAA",
		  "offset": 508270176
		},
		...
	  ]
	},
	"disk": {
	  "mbr": {
		"hashes": {
		  "orig": {
			"md5": "9e9e7db0e9aae4e1c0368a303657893e",
			"sha1": "3ef2fda0124bc0011632e128da23341f3ef369f5",
			"sha256": "03b44beb83adb31d85667b4cd806cb28a96cef9f3bc815b2ba7c8c68021607b8"
		  },
		  "curr": {
			"md5": "9e9e7db0e9aae4e1c0368a303657893e",
			"sha1": "3ef2fda0124bc0011632e128da23341f3ef369f5",
			"sha256": "03b44beb83adb31d85667b4cd806cb28a96cef9f3bc815b2ba7c8c68021607b8"
		  }
		},
		"contents": {
		  "orig": "3\u00c0\u008e\u00d0\u00bc\u0000|\u008e\u00c0\u008e\u00d8\u00be\u0000|\u00bf\u0000\u0006\u00b9\u0000...",
		  "curr": "3\u00c0\u008e\u00d0\u00bc\u0000|\u008e\u00c0\u008e\u00d8\u00be\u0000|\u00bf\u0000\u0006\u00b9\u0000..."
		},
		"changed": false
	  },
	  "partition_tables": {
		"orig": [
		  {
			"start": 1048576,
			"type": 7,
			"size": 104857600
		  },
		  ...
		],
		"curr": [
		  {
			"start": 1048576,
			"type": 7,
			"size": 104857600
		  },
		  ...
		],
		"changed": false,
		"changes": {}
	  }
	},
	"network": {
	  "1": {
		"bytes": 664,
		"bytes_missed": 0,
		"bytes_orig": 0,
		"bytes_orig_payload": 0,
		"bytes_payload": 608,
		"bytes_resp": 664,
		"bytes_resp_payload": 608,
		"conn_state": "SHR",
		"decoded": [
		  {
			"client_ip": "192.168.1.41",
			"client_mac": "00:50:a5:4a:ec:7b",
			"dns_servers": [
			  "192.168.1.1"
			],
			"lease_time": 1200,
			"netmask": "255.255.255.0",
			"routers": [
			  "192.168.1.1"
			],
			"server_ip": "192.168.1.1",
			"type": "DHCP_ACK"
		  }
		],
		"dst": "192.168.1.1",
		"dst_port": 67,
		"duration": 0.004355,
		"history": "^d",
		"packets": 2,
		"packets_orig": 0,
		"packets_resp": 2,
		"protocol": "DHCP",
		"service": "dhcp",
		"session": 1,
		"src": "192.168.1.41",
		"src_port": 68,
		"transport": "UDP",
		"ts_begin": 1583750059.184499,
		"ts_end": 1583750059.188854,
		"uid": "CnmnL8FPcbmixXLv1"
	  },
      ...
	},
	"annotations": {
	  "network": {
		"204.79.197.200": {
		  "country": "US",
		  "ts": "2020-03-09T10:39:51Z",
		  "reverse_dns": [
			"a-0001.a-msedge.net"
		  ],
		  "country_name": "United States",
		  "org": "Microsoft Corporation",
		  "asn": 8068
		},
        ...
	  }
	},
	"artifacts": {
	  "24": {
		"antivirus": {
		  "reversing_labs": {
			"status": "UNKNOWN",
			"scanner_count": 0,
			"scanner_match": 0,
			"threat_name": "",
			"query_hash": {
			  "sha256": "7e9422f3ff99cd583d23daac980b4bbfa9f9da7db7daf5d0698312f9998e71e5"
			},
			"first_seen": "0001-01-01T00:00:00Z",
			"threat_level": 0,
			"trust_factor": 0,
			"last_seen": "0001-01-01T00:00:00Z"
		  }
		},
		"created-time": 0,
		"created_by": [],
		"entropy": 3.3735620533361894,
		"executed_from": [],
		"magic-type": "data",
		"md5": "41f805506d2635ed832726196191973c",
		"mime-type": "application/octet-stream; charset=binary",
		"modified_by": [],
		"origin": "extracted",
		"path": "/\u0005kjjaqfajn2c0uzgv1l4qy5nfwe",
		"read_by": [],
		"relation": {
		  "process": null,
		  "extracted_from": [
			"5"
		  ],
		  "contains": null,
		  "network": null
		},
		"sha1": "1c8f8f62a7f60281a882d65cc7602afdf9190e98",
		"sha256": "7e9422f3ff99cd583d23daac980b4bbfa9f9da7db7daf5d0698312f9998e71e5",
		"size": 168,
		"type": "",
		"whitelist": []
	  },
      ...
	},
	"status": {
	  "origin": "sandcastle",
	  "ran": true,
	  "vm": "win7-x64",
	  "playbook": "default",
	  "id": "43a5ae8937855851ee142092d4cd6642",
	  "analysis_submitted_at": 1583750033,
	  "state": "proc",
	  "ven": "phl-ven",
	  "sha256": "48c02c817adef30b675938044d65862e920c494ec13e60567f2c7aca3d7cc07b",
	  "status": "Updating analysis status.",
	  "running_on": "mtv-work-087",
	  "analysis_started_at": 1583750035,
	  "md5": "a28a6b6e8924ec4173241a8eff8bf8d3",
	  "vm_runtime": 300,
	  "sha1": "45d2abc7ff3693bb8a0d93fffc36561be28cccb3",
	  "sample_started_at": 1583750081,
	  "queue": "NA",
	  "original_filename": "woodguilt.com%2F87229782.png.url"
	},
	"domains": {
	  "woodguilt.com": {
		"status": "indeterminate",
		"content_categories": [],
		"security_categories": []
	  },
	  ...
	}
  }

ThreatQuotient provides the following default mapping for this feed:

Feed Data Path ThreatQ Entity ThreatQ Object Type or Attribute Key Normalization Published Date Notes
data.status.original_
filename		 Report.
Value		 N/A data.status.analysis
_started_at		 woodguilt.com%2
F87229782.png.url		 Limited to 50 chars
data.metadata.
malware_desc[].
filename		 Attachment.
Title		 N/A data.status.analysis
_started_at		 woodguilt.com%2F
87229782.png.url		 Limited to 50 chars. User-configurable.
data.status.id Report.
Attribute		 Threat Grid Link data.status.analysis
_started_at		 43a5ae893785585
1ee142092d4cd66
42		 Formatted into URL
data.status.vm Report.
Attribute		 Threat Grid VM data.status.analysis
_started_at		 win7-x64 N/A
data.status.
playbook		 Report.
Attribute		 Threat Grid Playbook data.status.analysis
_started_at		 default N/A
data.threat.
heuristic_score		 Indicator/
Report.
Attribute		 Heuristic Score data.status.analysis
_started_at		 0 Updatable
data.threat.
threat_score		 Indicator/
Report.
Attribute		 Threat Score data.status.analysis
_started_at		 36 Updatable
data.metadata.
malware_desc[].
filename		 Indicator.
Value		 Filename data.status.analysis
_started_at		 woodguilt.com%2F
87229782.png.url		 N/A
data.metadata.
malware_desc[].
magic		 Indicator.
Value		 URL data.status.analysis
_started_at		 MS Windows 95 Internet shortcut
text (URL=<woodguilt.
com/872
29782.png>), ASCII text		 Value is split so we can get the actual URL
data.metadata.
malware_desc[].
md5		 Indicator.
Value		 MD5 data.status.analysis
_started_at		 a28a6b6e8924ec417
3241a8eff8bf8d3		 N/A
data.metadata.
malware_desc[].
sha1		 Indicator.
Value		 sha1 data.status.analysis
_started_at		 45d2abc7ff3693bb8a
0d93fffc36561be28c
ccb3		 N/A
data.metadata.
malware_desc[].
sha256		 Indicator.
Value		 SHA-256 data.status.analysis
_started_at		 48c02c817adef30b67
5938044d65862e920
c494ec13e60567f2c7
aca3d7cc07b		 N/A
data.metadata.
iocs[].title		 TTP/
Attack Pattern.
Value		 N/A data.status.analysis
_started_at		 DNS Query Returned Non-Existent Domain User-configurable.
data.metadata.
iocs[].description		 TTP/
Attack Pattern.
Description		 N/A data.status.analysis
_started_at		 his indicator indicates that a DNS
query was performed to an unregistered domain name..		 N/A
data.metadata.
iocs[].mitre-tactics[]		 TTP.Value N/A data.status.analysis
_started_at		 N/A If no mapping found, just title case, Mapped: {MITRE ID} -
data.metadata.
iocs[].mitre-tec
hniques[]		 TTP/
Attack Pattern
.Attribute		 Technique data.status.analysis
_started_at		 N/A Title-cased
data.metadata.
iocs[].data[].Path		 Indicator
.Value		 File Path data.status.analysis
_started_at		 N/A N/A
data.metadata.
iocs[].data[].Domain		 Indicator.
Value		 FQDN data.status.analysis
_started_at		 N/A N/A
data.metadata.
iocs[].data[].URL		 Indicator.
Value		 URL data.status.analysis
_started_at		 N/A N/A
data.metadata.
iocs[].data[].IP		 Indicator.
Value		 IP Address data.status.analysis
_started_at		 N/A N/A
data.metadata.
iocs[].data[].SHA256		 Indicator.
Value		 SHA-256 data.status.analysis
_started_at		 N/A N/A
data.metadata.
iocs[].data[].
Process_Name		 Indicator.
Value		 Filename data.status.analysis
_started_at		 N/A Status: Indirect
data.metadata.
iocs[].data[].
Original_Filename		 Indicator.
Value		 Filename data.status.analysis
_started_at		 N/A N/A
data.metadata.
iocs[].data[].
Antivirus_Result		 TTP/Attack Pattern/
Indicator.
Attribute		 Antivirus Detection data.status.analysis
_started_at		 N/A N/A
data.metadata.
iocs[].data[].Security		 TTP/Attack Pattern/
Indicator.
Attribute		 Security Category data.status.analysis
_started_at		 N/A N/A
data.metadata.
iocs[].data[].Category		 TTP/Attack Pattern/
Indicator.
Attribute		 Content Category data.status.analysis
_started_at		 N/A N/A
data.metadata.
iocs[].Category		 TTP/Attack Pattern.
Attribute		 Category data.status.analysis
_started_at		 domain N/A
data.metadata.
iocs[].ioc		 TTP/Attack Pattern.
Attribute		 Indicator data.status.analysis
_started_at		 dns-query-nxdomain A programmatic name for the TTP
data.metadata.
iocs[].severity		 TTP/Attack Pattern.
Attribute		 Severity data.status.analysis
_started_at		 25 Updatable
data.metadata.
iocs[].tags		 TTP/Attack Pattern.
Attribute		 Tag data.status.analysis
_started_at		 communication N/A
data.metadata.
iocs[].suspected-
sample-categories		 TTP/Attack Pattern.
Attribute		 Suspected Sample Category data.status.analysis
_started_at		 N/A N/A
data.metadata.
domains.{domain}		 Indicator.
Value		 FQDN data.status.analysis
_started_at		 N/A Domains with status innocuous are filtered out.
data.metadata.
domains.{domain}.
content_
categories		 Indicator.
Attribute		 Content Category data.status.analysis
_started_at		 N/A N/A
data.metadata.
domains.{domain}.
security_
categories		 Indicator.
Attribute		 Security Category data.status.analysis
_started_at		 N/A N/A
data.metadata.
domains.
{domain}.status		 Indicator.
Attribute		 Status data.status.analysis
_started_at		 indeterminate Updatable
data.metadata.
domains.{domain}.risk_
info.risk_score		 Indicator.
Attribute		 Risk Score data.status.analysis
_started_at		 50 Updatable

Get Sample (Supplemental)

This supplemental feed will fetch the sample from Threat Grid

GET https://panacea.threatgrid.com/api/v2/samples/{id}/analysis/sample.zip

There is no mapping for this supplemental feed.

Average Feed Run

Object counts and Feed runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and Feed runtime may vary based on system resources and load.

Cisco Threat Grid

Metric Result
Run Time 1 minute
Attack Patterns 44
Attack Pattern Attributes 332
Indicators 46
Indicator Attributes 85
Report 1
Report Attributes 5
TTPs 9

Change Log

  • Version 1.1.1
    •  Added the following new configuration parameter:
      • Apply Severity Threshold to Domains as well -  filter out domains with risk score less than set IOC Severity Threshold.
    • Removed the following configuration parameter:
      • Only Ingest Organizational Data.
  • Version 1.1.0
    • Updated the authentication method for the integration.
    • Added a configuration field: Only Ingest Organizational Data.
  • Version 1.0.9
    • Resolved an issue where users would encounter a RuntimeError('missing 2 required positional arguments: 'name' and 'value' ') message.
  • Version 1.0.8
    • Resolved an issue where users would encounter a RuntimeError('Cannot unset key on non-Mapping value') message.
  • Version 1.0.7
    • Resolved an issue where users would encounter an error when creating objects from threat data.
  • Version 1.0.6
    • Resolved an issue that would cause the following error when ingesting data: Error creating objects from threat data....
  • Version 1.0.5
    • Added improved efficiency of the filter chain.
  • Version 1.0.4
    • Added enable/disable configuration options for ThreatQ proxies and SSL verification.
  • Version 1.0.3
    • Fixed an issue where users encountered empty key errors from supplement runs.
  • Version 1.0.2
    • Fixed issue with empty key error in received response
    • Now ingests new URL indicators
  • Version 1.0.1
    • Fixed filter error during ingestion
  • Version 1.0.0
    • Initial release
