Integration Details

ThreatQuotient provides the following details for this integration:

Current Integration Version	2.0.0
Compatible with ThreatQ Versions	>= 5.6.0
Recommended QRadar SOAR Versions	>=51.0.0.0
Support Tier	ThreatQ Supported

Introduction

The ThreatQ Functions App for IBM Security SOAR gives IR teams the ability to leverage ThreatQ to enrich incidents and artifacts with your curated and prioritized threat intelligence data.

The app provides a set of functions that allow users to interact with ThreatQ including, but not limited to:

• searching for indicators
• adding attributes
• exporting incidents

The app also includes a set of playbooks that demonstrate how to use these functions to get your IR team the information they need to make efficient decisions.

Prerequisites

The following is required to utilize the app:

• ThreatQ Username, Pass and API Credential (CID)

  You can also use your OAuth Client ID and Client Secret.

• IBM Security QRadar SOAR Administrator Privileges
• IBM Security App Host

Generating ThreatQ OAuth Client ID and Client Secret

Use the following steps to generate an OAuth Client ID and Client Secret IF you elect not authenticate via your ThreatQ username and password.

Installation

Perform the following steps to install the app:

1. Download the ThreatQ Functions App from the IBM X-Force App Exchange.
2. Log into your IBM Security QRadar SOAR (Resilient) instance.
3. Navigate to User Profile > Administrator Settings > Apps.
4. Install the ThreatQ Functions App

   You must allow the installation of the app’s customization settings to use the app.

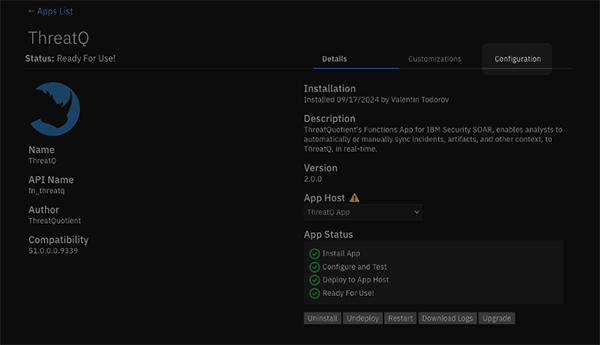

5. Click on the Configuration tab to open the app’s configuration page.

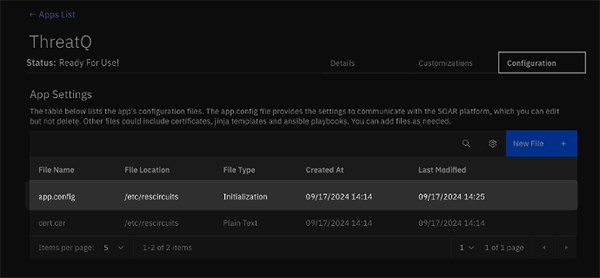

6. Click on the app.config entry within the App Settings table.  This will display two new sections: File Content and Secrets.

7. Click on the Add Secret button, located in the Secrets section, to enter in the fields you see in the File Content section:

   Field	Description
   TQ_HOST	Your ThreatQ Hostname.
   TQ_USER	Your ThreatQ username.   This is required if you are not using OAuth authentication.
   TQ_PASSWORD	The password associated with your ThreatQ username.  This field is encrypted.   This is required if you are not using OAuth authentication.
   TQ_CID	Your ThreatQ API Credential. This is required if you are not using OAuth authentication.
   TQ_CLIENT_ID	The Client ID for the app.  This is required if you are not using the user-authentication. Steps for generating the Client ID can be found under the Prerequisite chapter.
   TQ_CLIENT_SECRET	The Client Secret for the App.  This field is encrypted. This is required if you are not using the user-authentication. Steps for generating the Client ID can be found under the Prerequisite chapter.

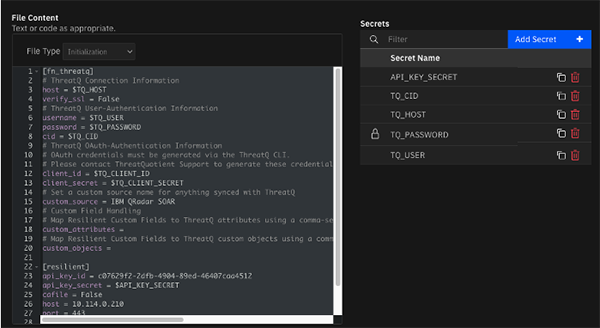

8. You can also manually modify the File Contents for fields such as “custom_source” and “custom_attributes,”

   If your IBM Security QRadar SOAR instance is using a self-signed certificate, set the “cafile” field to “False” under the “resilient” section

   If your ThreatQ instance is using a self-signed certificate, set the “verify_ssl” field to “False” under the “fn_threatq” section.

9. Click on the Save and Push Changes button to save your configurations.

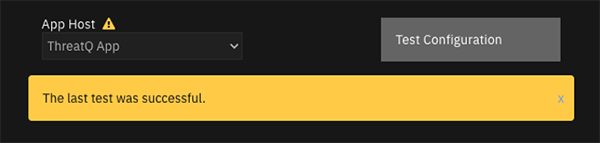

10. Click on the Test Configuration button to ensure everything is working properly.  You will receive a "The last test was successful" message if the configuration is correct.


    Any errors will be displayed in a red error message with error details.

11. Navigate back to the Details page for your app. You should now be allowed to deploy your app.

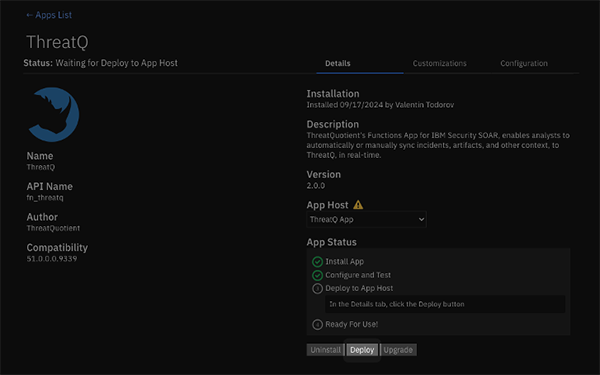

12. Select the App Host to install the app onto and then click Deploy.


    The installation process may take up to a few minutes • In the event that an error occurs, download the app logs and share them with the ThreatQuotient Support Team.

Configuration

The table below contains the specifications for the app.config file.

Parameter	>Description
host	Required. Enter the hostname or IP address to your ThreatQ server. Do not include a scheme or a URL path.
verify_ssl	True/False. Disabling this option will allow the app to skip SSL verification when connecting to your ThreatQ server.
username	Required if using user-authentication. Enter the username for a local ThreatQ account with at least Primary Contributor permissions.
password	Required if using user-authentication. Enter the password associated with the provided ThreatQ username.
cid	Required if using user-authentication. Enter your API Credential, found in your ThreatQ user profile.
client_id	Required if using Client Credentials to authenticate. Enter your OAuth Client ID. Obtain these credentials by contacting the ThreatQ Support Team.
client_secret	Required if using Client Credentials to authenticate. Enter your OAuth Client Secret. Obtain these credentials by contacting the ThreatQ Support Team.
custom_source	Required. Enter the source name to apply to all intelligence added to ThreatQ from IBM Security QRadar SOAR.
custom_attributes	Enter a comma-separated list of key/value pairs where the key is the Resilient Field's API name and the value is the ThreatQ Attribute Name. Each key value pair should be separated by an equals (`=`) character. Example: target_country=Target Country, target_sector=Target Sector
custom_objects	Enter a comma-separated list of key/value pairs where the key is the Resilient Field's API name and the value is the ThreatQ Object Type. Each key value pair should be separated by an equals (`=`) character. Example: threat_actor=adversaries, malware_family=malware

Customizations

The ThreatQ Functions App for IBM Security QRadar SOAR comes with various Functions, Rules, and Playbooks to seamlessly integrate with ThreatQ.

Playbooks

* Disabled by default

Name	Description
ThreatQ: Add Attribute to Artifact	A menu item allowing you to add an attribute directly to an artifact in ThreatQ.
ThreatQ: Add Tags to Artifact	A menu item allowing you to add a tags directory to an artifact in ThreatQ.
ThreatQ: Automatically Export Artifact *	An automated playbook to automatically export artifacts to ThreatQ.
ThreatQ: Automatically Export Incident *	An automated playbook to automatically export incidents to ThreatQ.
ThreatQ: Automatically Find Artifact Hits	An automated playbook to automatically perform artifact lookups against ThreatQ, returning hits back to IBM Security QRadar SOAR.
ThreatQ: Export Artifact	A menu item to export an artifact to ThreatQ, manually.
ThreatQ: Export Incident	A menu item to export an incident to ThreatQ, manually.
ThreatQ: Find Artifact Hits	A menu item to perform an artifact lookup against ThreatQ, manually. Hits will be returned back to IBM Security QRadar SOAR.
ThreatQ: Find Related Artifacts	A menu item to perform a lookup for all related indicators to a given artifact in ThreatQ. Related indicators will be added as artifacts to the corresponding incident.
ThreatQ: Find Related Malware (Example)	An example playbook for a menu item that will perform a lookup in ThreatQ for malware related to the given artifact.

Functions

Name	Description
ThreatQ: Add Artifact Attribute	A function to add an attribute to an artifact in ThreatQ.
ThreatQ: Add Artifact Tags	A function to add tags to the corresponding artifact in ThreatQ.
ThreatQ: Export Artifact	A function to export an artifact to ThreatQ.
ThreatQ: Export Incident	A function to export an incident to ThreatQ.
ThreatQ: Find Artifact Hits	A function to perform an artifact lookup in ThreatQ.
ThreatQ: Find Related Artifacts	A function to find indicators (artifacts) from ThreatQ that are related to an input artifact from IBM Security QRadar SOAR.
ThreatQ: Search Threat Library	A function to search your ThreatQ Threat Library.
ThreatQ: Set Artifact Status	A function to set the status of an artifact in ThreatQ.

Rules

* Disabled by default

Name	Description
ThreatQ: Import Attachment	A menu item to import an incident attachment into ThreatQ.
ThreatQ: Set Task Status *	A menu item to manually set a task’s status in ThreatQ.
ThreatQ: Sync Tasks *	An automated rule to automatically export tasks to ThreatQ.

Usage

By default, all menu item Playbooks are enabled, however, nearly all automated Playbooks are disabled.

If you would like incidents and artifacts to automatically sync to your connected ThreatQ instance, enable the following Playbooks:

• ThreatQ: Automatically Export Incidents
• ThreatQ: Automatically Export Artifacts

The only automated Playbook that is enabled by default is the ThreatQ: Automatically Find Artifact Hits playbook. This Playbook replicates the functionality that was previously part of the ThreatQ CTS App for IBM Security QRadar SOAR. This Playbook will automatically perform lookups of supported artifacts, returning the results to the hits section for the artifact. It will also populate the Artifact Hits datatable in the ThreatQ Tab that gets added to Incidents.

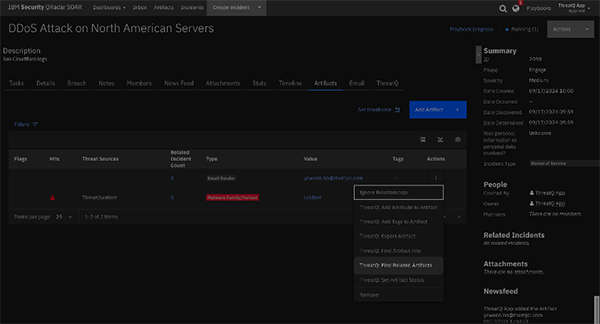

All other menu item Playbooks will be available to use in the drop-downs for artifacts and incidents.

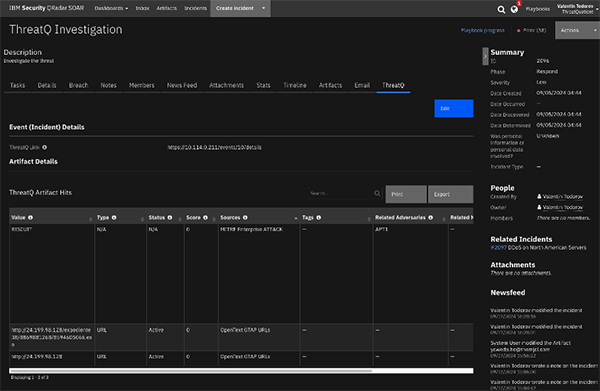

Exported incidents will appear in ThreatQ as Event Objects with the type, Incident. Each event will include the incident description, fields, tags, and related artifacts.

Migrating from V1 to V2

The v2 release of the ThreatQ App for IBM Security QRadar SOAR introduces a number of changes to the app. These changes were implemented to not only improve the overall user experience, but also to provide a more robust and feature-rich integration with ThreatQ. The ThreatQuotient team has migrated most of the functionality away from using Rules & Workflows to using Functions & Playbooks. This change gives you more functionality and more control over the integration. It will also allow you to combine the integration's functionality with existing Workflows and Playbooks.

Before performing the upgrade steps, ensure that you have alerted the proper teams of the upcoming downtime and changes.

While this app supports installation onto an App Host, Edge Gateway, or Integration Server, it is highly recommended to install it onto an App Host.

Removing the v1 App Customizations

The following steps need to be taken to migrate from v1 to v2 by removing the v1 app customizations:

1. Login to your IBM Security QRadar SOAR instance as an administrator.
2. Open your Administrator Settings and navigate to the Threat Sources tab.
3. Turn off the ThreatQ entry.
4. Open your Customization Settings and navigate to the Rules tab.
5. Delete the following rules:
   • ThreatQ: Find Related Indicators
   • ThreatQ: Historical Sync
   • ThreatQ: Mark as False Positive
   • ThreatQ: Mark as True Positive
   • ThreatQ: Sync Comment
   • ThreatQ: Sync Incident
   • ThreatQ: Sync Incident Now
   • ThreatQ: Sync Indicator
   • ThreatQ: Sync Indicator Now
6. Navigate to the Functions tab.

7. Delete the following functions:

   • threatq_add_indicator
   • threatq_find_related_indicators
   • threatq_mark_as_false_positive
   • threatq_mark_as_true_positive
8. Navigate to the Destinations tab.
9. Delete the following message destinations (if they exist):
   • fn_threatq
   • ThreatQ

Removing Action Fields - Optional

You can optionally remove the "action fields" that were used in the v1 app. These fields were used when invoking the Rules. To remove these fields, follow these steps:

1. Login to your IBM Security QRadar SOAR instance as an administrator.
2. Open your Administrator Settings and navigate to the Rules tab.
3. Select ThreatQ: Import Attachment to open it's configuration.
4. At the bottom of the Activities section, expand the Show Activity Fields section.
5. On the right hand side of the page, you will see a list of existing fields. Edit & delete the following fields:
   • ThreatQ: Created After Date
   • ThreatQ: Historically Sync Tasks
   • ThreatQ: Parse Indicators
   • ThreatQ: Remove Artifact After Marking

Uninstall Python Packages

If you are using the v1 app, you are more than likely running it on a Resilient Integration Server. This is a linux-based server that runs all of your QRadar SOAR apps.

To uninstall the v1 Python packages for both the ThreatQ CTS App and ThreatQ Functions App, follow these steps:

1. SSH into your Resilient Integration Server.
2. Gain root privileges by running sudo su and entering your password.
3. Locate your .resilient directory in your home directory and cd into it.
4. Run ls to list the contents of the directory.

   If you do not see a functions-env or cts-env directory, either the ThreatQ App (v1) was not installed, or it was installed in a different location. Once you locate the directory, cd into it and continue the steps.

5. Run the following to view your current app configuration file.
   cat app.config

   Copy Code

   It is highly recommend copying this configuration to a safe location for reference later when configuring the v2 app.

6. Run the following command to remove the ThreatQ Functions App (if installed):
   rm -rf functions-env

   Copy Code

7. Run the following command to remove the ThreatQ CTS App (if installed):
   rm -rf cts-env

   Copy Code

8. Run the following command to remove the ThreatQ Functions App service (if installed):
   rm -rf /etc/systemd/system/resilient_circuits_functions.service

   Copy Code

9. Run the following command to remove the ThreatQ CTS App service (if installed):
   rm -rf /etc/systemd/system/resilient_circuits_cts.service

   Copy Code

10. Run the following command to reload the systemd daemon:
    systemctl daemon-reload

    Copy Code

11. If you are not using the Integration Server for any other apps, you can decommission it.

Uninstall the ThreatQ Threat Source

Previously, ThreatQ offered an App specifically for use as a Custom Threat Service (CTS). This app is no longer necessary with the v2 app. The v2 app achieves the same result, without the need for a second app. To remove the ThreatQ CTS App, follow these steps:

1. SSH into your Resilient Server as resadmin.
2. Run the following command with root privileges:
   sudo resutil threatservicedel -name "ThreatQ"

   Copy Code

3. The ThreatQ entry in the Administrator Settings -> Threat Sources tab should now be removed.

Install V2

To install the v2 app, follow the steps in the Installation chaper of this document.

The v2 app will automatically install any necessary customizations into the QRadar SOAR platform. Once installed, you will need to configure & deploy the app to an App Host. For additional documentation, please refer to ThreatQ's official Help Center.

Important Notes

The following are notes about the v2 app's functionality:

• By default, the ThreatQ: Find Artifact Hits playbook is enabled and will automatically run when a new artifact is added to an incident. This playbook will enrich the artifact with hits from ThreatQ and populate the ThreatQ Artifact Hits data table in the ThreatQ incident tab.
• By default, the ThreatQ: Automatically Export Incident and ThreatQ: Automatically Export Artifact playbooks are disabled. If you would like all new incidents & artifacts to be synced to your ThreatQ instance, you can enable these playbooks. If you would like to sync incidents & artifacts on an ad-hoc basis, use the ThreatQ: Export Incident and ThreatQ: Export Artifact playbooks, which are enabled by default (as menu items).
• The app includes a sample playbook called, ThreatQ: Find Related Malware (Example). This playbook demonstrates how to execute a Threat Library search in ThreatQ. This example executes a Threat Library search looking for malware related to a given indicator (artifact). Findings will be added as artifacts to the incident. This playbook is disabled by default.

Troubleshooting

Connection Error when Testing Configuration

If you successfully deploy the App to the App Host, but the Test Configuration button/action is failing, the first thing to do is read the error message and see what the issue is.

Certificate Error

If you are receiving a certificate error when running the configuration test, you may need to temporarily disable SSL verification.

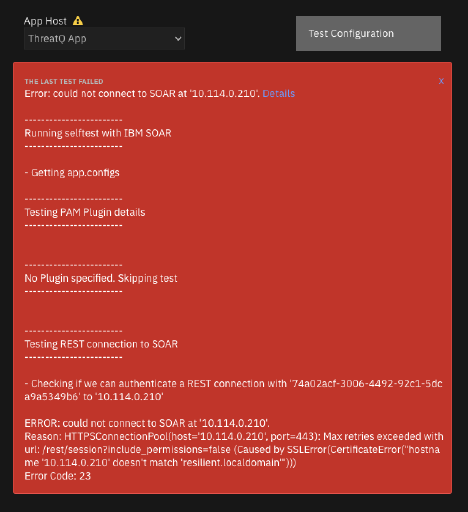

Here is a sample of the error you may be receiving:

In this case, it’s erroring out because the certificate for our IBM SOAR instance is misconfigured. For one, we are using a self-signed certificate. Second, our configuration (app.config) uses the IP to connect to our IBM SOAR instance. However, our self-signed certificate is configured with resilient.localdomain as the CN (hostname). This causes the error above.

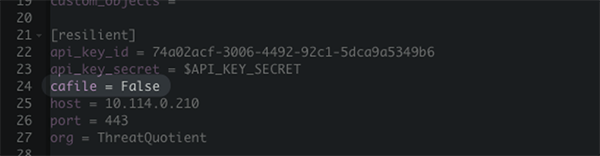

The fix is simply to remove the cafile from the app.config file, setting it to False instead. Then, saving and pushing the changes to the App Host.

Open your app.config file via the UI of your IBM QRadar SOAR instance, from within your App’s settings. Then, modify the file content so that cafile = False:

Change Log

• Version 2.0.0
  • Merged functionality of the CTS App into this App (Functions App).
  • Converted App functionality to use Playbooks instead of Rules/Workflows for many of the functions.
  • Added new Functions:
    • Add Artifact Attribute
    • Add Artifact Tag
    • Set Artifact Status
    • Export Incident
    • Export Artifact
    • Find Artifact Hits
    • Find Related Artifacts
    • Search Threat Library
  • Added new Playbooks:
    • ThreatQ: Automatically Export Incident
    • ThreatQ: Automatically Export Artifact
    • ThreatQ: Automatically Find Artifact Hits
    • ThreatQ: Find Related Artifacts
    • ThreatQ: Export Incident
    • ThreatQ: Export Artifact
    • ThreatQ: Find Artifact Hits
    • ThreatQ: Add Attribute to Artifact
    • ThreatQ: Add Tags to Artifact
    • ThreatQ: Set Artifact Status
    • ThreatQ: Find Related Malware (Example)
  • Added a new Incident Tab: ThreatQ. This displays the ThreatQ Link field, ThreatQ Artifact Hits datatable, and other ThreatQ-related fields.
  • Added a new datatable: ThreatQ Artifact Hits.  This displays immediate information about artifacts with ThreatQ hits.
  • Added a new field: ThreatQ Link.  This provides a link back to ThreatQ from IBM QRadar SOAR.
  • Added support for authenticating using OAuth Client ID and Secret.
  • Added support for controlling the SSL verification toggle when connecting to ThreatQ.
  • Added support for App Host deployments.
  • Updated the minimum IBM Resilient version to v51.0.0.
• Version 1.1.1
  • Threat Library SDK migration.
• Version 1.0.0
  • Initial release
