Integration Details

ThreatQuotient provides the following details for this integration:

Introduction

The ThreatQ Action Bundle for Microsoft Azure Sentinel provides actions that are used to enrich a specific collection and to add or delete them to/from your Microsoft Azure Sentinel instance.

The action yaml installs the following actions:

• Microsoft Azure Sentinel Enrich Indicators - queries indicators in the Threat Library against Microsoft Sentinel and enriches them with the returned data.
• Microsoft Azure Sentinel Add Tag - adds user defined tags to indicators in a data collection both in the Microsoft Sentinel context and in TQ.
• Microsoft Azure Sentinel Export Collection - queries indicators in the Threat Library against Microsoft Sentinel and adds them if not present.
• Microsoft Defender ATP Export Collection - adds the indicators in the Threat Library to Microsoft Defender ATP.
• Microsoft Azure Sentinel Delete Collection - queries indicators in the Threat Library against Microsoft Sentinel and deletes them if present.
• Microsoft Azure Sentinel Create Incidents - uses ThreatQ objects to create incidents in Microsoft Sentinel.

The actions are compatible with the following object types:

• Campaigns
• Events
• Incidents
• Indicators

  CIDR Block Email Address Filename File Path FQDN IP Address

  IPv6 Address Mutex URL SHA-1 SHA-256 MD5

The actions return the following enriched system objects:

• Campaigns
  • Campaign Attributes
• Events
  • Event Attributes
• Incidents
  • Incident Attributes
• Indicators
  • Indicator Attributes

This action bundle is intended for use with ThreatQ TDR Orchestrator (TQO). An active TQO license is required for this feature.

Prerequisites

• An active ThreatQ TDR Orchestrator (TQO) license.
• A data collection containing at least one of the following indicator objects:
  • CIDR Block
  • Email Address
  • Filename
  • File Path
  • FQDN
  • IP Address
  • IPv6 Address
  • Mutex
  • URL
  • SHA-1
  • SHA-256
  • MD5
• Application set up for Microsoft Azure
• Set Graph API Permissions
• Apply the Microsoft Contributor Role

Configure New Application

Before installing the integration on the ThreatQ side, you will need to configure a new application on Microsoft Azure. The following link will take you to Microsoft's documentation on how to connect Azure Sentinel to ThreatQ via an Azure Application. In the guide, you can skip step 4 as that step is handled by the ThreatQ integration.

https://docs.microsoft.com/en-us/azure/sentinel/connect-threat-intelligence#connect-azure-sentinel-to-your-threat-intelligence-platform

Alternatively, you can follow the instructions from the link below, without skipping any of the steps:

https://learn.microsoft.com/en-us/azure/sentinel/connect-threat-intelligence-tip#connect-azure-sentinel-to-your-threat-intelligence-platform

Use the following steps if you select Azure Sentinel as the Target in the connector configuration settings.

https://learn.microsoft.com/en-us/azure/sentinel/connect-threat-intelligence-upload-api

Applying Graph API Permissions

1. Navigate to your Azure App Registrations portal and open the ThreatQ integration app.

   You can also search for App Registrations and then select the first option.

2. Open the ThreatQ integration App's configuration page.
3. Open the API Permissions tab located on the sidebar.
4. Click on the Add a Permission button.
5. Select the Microsoft Graph API.
6. Click on the Application Permissions option.
7. Search for ThreatIndicators and enable the ThreatIndicators.ReadWrite.OwnedBy entry.
8. Search for SecurityAlert and enable the SecurityAlert.ReadWrite.All entry.
9. Click on Add Permissions to add the two entries that have been enabled.

You may need an administrator to grant admin consent after the permissions above have been applied.

Applying the Microsoft Contributor Role

The Microsoft Sentinel Contributor role should be assigned to application if you are using Microsoft Azure US Government Cloud environment.

1. Navigate to your Azure App Registrations portal and open the Log Analytics workspace.

   You can also search for Log Analytics workspaces and then select the first option.

2. Open the workspace that contains your Microsoft Sentinel instance.
3. Click on the Access Control (IAM) tab.
4. Click on the Add dropdown and select the Add Role Assignment option.
5. Search for Microsoft Sentinel Contributor in the Add Role wizard and then click on Next.
6. Click on the Select Members button to open the search modal.
7. Use the search modal to search for your ThreatQ app registration.
8. Use the Select button to select the ThreatQ app.
9. Click on the Review + Assign button.
10. Review the assignment and then click on the Review + Assign button again.
11. You will now be able to see the role assignment you just added.

    This information will not be accessible from the App's configuration page.

Installation

Perform the following steps to install the integration:

The same steps can be used to upgrade the integration to a new version.

1. Log into https://marketplace.threatq.com/.
2. Locate and download the action zip file.
3. Navigate to the integrations management page on your ThreatQ instance.
4. Click on the Add New Integration button.
5. Upload the action zip file using one of the following methods:
   • Drag and drop the zip file into the dialog box
   • Select Click to Browse to locate the zip file on your local machine

   ThreatQ will inform you if the action already exists on the platform and will require user confirmation before proceeding. ThreatQ will also inform you if the new version of the action contains changes to the user configuration. The new user configurations will overwrite the existing ones for the action and will require user confirmation before proceeding.

You will still need to configure the action.

Configuration

ThreatQuotient does not issue API keys for third-party vendors. Contact the specific vendor to obtain API keys and other integration-related credentials.


To configure the integration:

1. Navigate to your integrations management page in ThreatQ.
2. Select the Actions option from the Category dropdown (optional).
3. Click on the action entry to open its details page.
4. Enter the following parameters under the Configuration tab:

   The configurations set on this page will be used as the default settings when inserting this action into a new workflow. Updating the configurations on this page will not update any instances of this action that have already been deployed to a workflow. In that scenario, you must update the action’s configurations within the workflow itself.

   Enrich Indicators Action Parameters

   Parameter	Description
   Tenant ID	Your Azure Tenant ID which can be retrieved from the App Registrations page in Azure Active Directory.
   Client ID	Your Azure Client ID that can be retrieved from the App Registrations page in Azure Active Directory.
   Client Secret	Your Azure Client Secret which can be retrieved from the Certificates & Secrets section.
   Subscription ID	Your Azure subscription ID, obtained from the Log Analytics Workspaces.
   Resource Group	The name of the resource group within the user's subscription, obtained from the Log Analytics Workspaces.
   Workspace Name	The name of the workspace, obtained from the Log Analytics Workspaces.
   Microsoft Azure Type	Select the Microsoft Azure cloud environment. Options include: Microsoft Azure Global Microsoft Azure US Government
   Enable SSL Certificate  Verification	Enable this for the action to validate the host-provided SSL certificate.
   Disable Proxies	Enable this option if the action should not honor proxies set in the ThreatQ UI.
   Objects Per Run	The max number of objects for the action to submit per run.

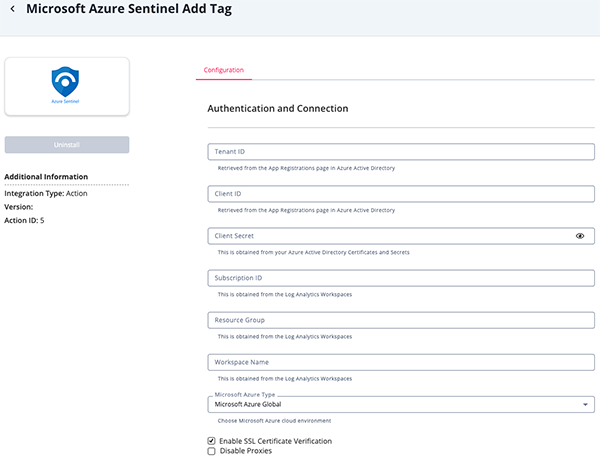

   Add Tag Action Parameters

   Parameter	Description
   Tenant ID	Your Azure Tenant ID which can be retrieved from the App Registrations page in Azure Active Directory.
   Client ID	Your Azure Client ID that can be retrieved from the App Registrations page in Azure Active Directory.
   Client Secret	Your Azure Client Secret which can be retrieved from the Certificates & Secrets section.
   Subscription ID	Your Azure subscription ID, obtained from the Log Analytics Workspaces.
   Resource Group	The name of the resource group within the user's subscription, obtained from the Log Analytics Workspaces.
   Workspace Name	The name of the workspace, obtained from the Log Analytics Workspaces.
   Microsoft Azure Type	Select the Microsoft Azure cloud environment. Options include: Microsoft Azure Global Microsoft Azure US Government
   Enable SSL Certificate  Verification	Enable this for the action to validate the host-provided SSL certificate.
   Disable Proxies	Enable this option if the action should not honor proxies set in the ThreatQ UI.
   Tags	Enter a list of tags to be appended (separated by a comma).
   Objects Per Run	The max number of objects for the action to submit per run.

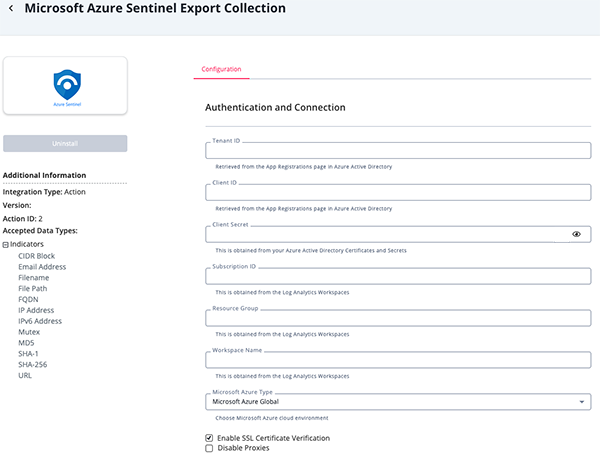

   Export Collection Action Parameters

   Parameter	Description
   Tenant ID	Your Azure Tenant ID which can be retrieved from the App Registrations page in Azure Active Directory.
   Client ID	Your Azure Client ID that can be retrieved from the App Registrations page in Azure Active Directory.
   Client Secret	Your Azure Client Secret which can be retrieved from the Certificates & Secrets section.
   Subscription ID	Your Azure subscription ID, obtained from the Log Analytics Workspaces.
   Resource Group	The name of the resource group within the user's subscription, obtained from the Log Analytics Workspaces.
   Workspace Name	The name of the workspace, obtained from the Log Analytics Workspaces.
   Workspace ID	The ID of the workspace obtained from the Log Analytics Workspaces.
   Microsoft Azure Type	Select the Microsoft Azure cloud environment. Options include: Microsoft Azure Global Microsoft Azure US Government
   Enable SSL Certificate  Verification	Enable this for the action to validate the host-provided SSL certificate.
   Disable Proxies	Enable this option if the action should not honor proxies set in the ThreatQ UI.
   Default Expiration Days	Enter the number of days the indicators remain valid.
   Hostname	Your ThreatQ Hostname.
   Related Context Filter	Select the pieces of context that should be exported. Options include: Indicator Descriptions Malware Family Attribute Attributes Having Valid Kill Chain Phases Related Adversaries
   Default Threat Type	Select the default threat type to apply to the exported IOCs if no suitable attribute exits.
   Always use the selected Default Threat Type	Enable this field to always use the Default Threat Type selected above. If this parameter is disabled, the Default Threat Type is set only if there is no attribute that can be used
   Objects Per Run	The max number of objects for the action to submit per run.

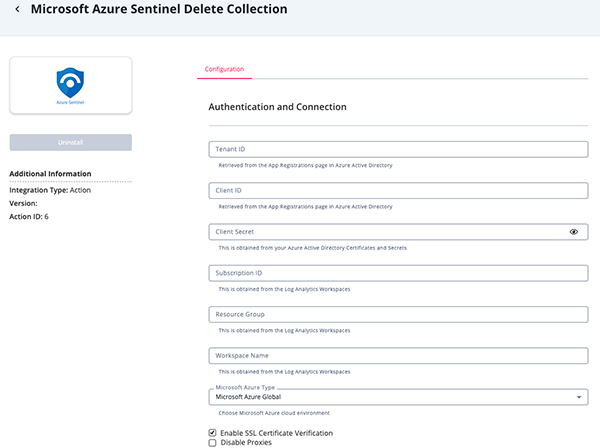

   Delete Collection Action Parameters

   Parameter	Description
   Tenant ID	Your Azure Tenant ID which can be retrieved from the App Registrations page in Azure Active Directory.
   Client ID	Your Azure Client ID that can be retrieved from the App Registrations page in Azure Active Directory.
   Client Secret	Your Azure Client Secret which can be retrieved from the Certificates & Secrets section.
   Subscription ID	Your Azure subscription ID, obtained from the Log Analytics Workspaces.
   Resource Group	The name of the resource group within the user's subscription, obtained from the Log Analytics Workspaces.
   Workspace Name	The name of the workspace, obtained from the Log Analytics Workspaces.
   Microsoft Azure Type	Select the Microsoft Azure cloud environment. Options include: Microsoft Azure Global Microsoft Azure US Government
   Enable SSL Certificate  Verification	Enable this for the action to validate the host-provided SSL certificate.
   Disable Proxies	Enable this option if the action should not honor proxies set in the ThreatQ UI.
   Objects Per Run	The max number of objects for the action to submit per run.

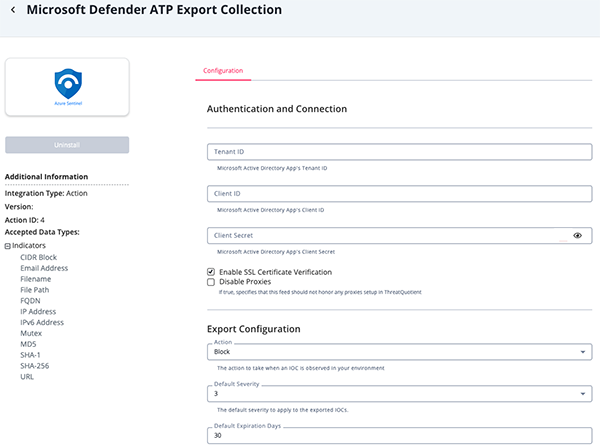

   Defender ATP Export Collection Action Parameters

   Parameter	Description
   Tenant ID	Your Microsoft Active Directory App's Tenant ID.
   Client ID	Your Microsoft Active Directory App's Client ID.
   Client Secret	Your Microsoft Active Directory App's Client Secret.
   Enable SSL Certificate  Verification	Enable this for the action to validate the host-provided SSL certificate.
   Disable Proxies	Enable this option if the action should not honor proxies set in the ThreatQ UI.
   Action	The action to take when an IOC is observed in your environment.  Options include: Unknown Allow Block Alert
   Default Severity	The default severity to apply to the exported IOCs if attribute Severity is not present.  The range available is 0 - 5.   The Default Severity value can be overwritten by adding an indicator attribute whose name is Severity and whose value is between 0-5 (inclusive).
   Default Expiration Days	Enter the number of days the indicators remain valid.
   Hostname	Your ThreatQ Hostname.
   Default Threat Type	Select the default threat type to apply to the exported IOCs if no suitable attribute exits.  Options include: Botnet C2 Compromised CryptoMining Darknet DDoS MaliciousUrl Malware Phishing Proxy PUA WatchList The Default Threat Type value can be overwritten by adding an indicator attribute whose value is a valid Threat Type value (based on the above options for Default Threat Type) or is an alias of a valid Threat Type based on the following mapping: aliases = { 'C2': ['command and control', 'c&c', 'command & control'], 'DDoS': ['denial of service'], 'CryptoMining': ['crypto', 'mining', 'crypto miner'], 'Botnet': ['bot'] }
   Always use the selected Default Threat Type	Enable this parameter to configure the action to always use the Default Threat Type selected above. If this parameter is disabled, the Default Threat Type is set only if there is no attribute that can be used
   Related Context Filter	Select the pieces of context that should be exported.  Options include: Indicator Descriptions Malware Family Attribute Attributes Having Valid Kill Chain Phases Related Adversaries
   Behavior for URL indicators without a scheme defined	Defines how data collection URL indicators should be handled. Microsoft needs a scheme (http/https) defined for URL indicators.  Options include: Skip Indicators Add "http" Add "https"
   Objects Per Run	The max number of objects for the action to submit per run.

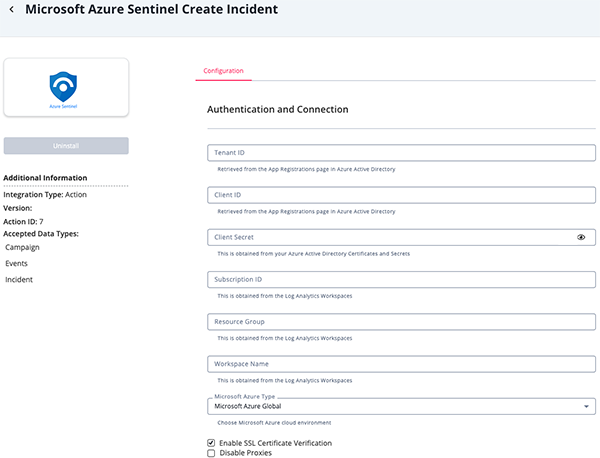

   Create Incident Action Parameters

   Parameter	Description
   Tenant ID	Your Azure Tenant ID which can be retrieved from the App Registrations page in Azure Active Directory.
   Client ID	Your Azure Client ID that can be retrieved from the App Registrations page in Azure Active Directory.
   Client Secret	Your Azure Client Secret which can be retrieved from the Certificates & Secrets section.
   Subscription ID	Your Azure subscription ID, obtained from the Log Analytics Workspaces.
   Resource Group	The name of the resource group within the user's subscription, obtained from the Log Analytics Workspaces.
   Workspace Name	The name of the workspace, obtained from the Log Analytics Workspaces.
   Microsoft Azure Type	Select the Microsoft Azure cloud environment. Options include: Microsoft Azure Global Microsoft Azure US Government
   Enable SSL Certificate  Verification	Enable this for the action to validate the host-provided SSL certificate.
   Disable Proxies	Enable this option if the action should not honor proxies set in the ThreatQ UI.
   Severity	The action to take when an IOC is observed in your environment.  Options include: Informational Allow Block Alert
   Status	The status of the incident that will be created. Options include: New Active Closed
   Classification	Select the reason for closing the incident.  Options include: Benign Positive False Positive True Positive Undetermined This parameter will only be available if you selected Closed as your Status.
   Classification Comment	Enter a reason for closing the incident.  This parameter will only be available if you selected Closed as your Status.
   Classification Reason	Select the classification reason for why the incident was closed.  Options include: Inaccurate Data Incorrect Alert Logic Suspicious Activity Suspicious But Expected This parameter will only be available if you selected Closed as your Status.
   Owner Email	The email of user the incident will be assigned to.
   Objects Per Run	The max number of objects for the action to submit per run.



5. Review any additional settings, make any changes if needed, and click on Save.

Actions

The following actions are available:

Form URL-Encoded
{"keywords": "114.33.22.185"}

{
  "value": [
   {
        "id": "/subscriptions/f1c10b41-49ff-4791-b366-b3bbb37fca4c/resourceGroups/group1/providers/Microsoft.OperationalInsights/workspaces/tqsentinal/providers/Microsoft.SecurityInsights/threatIntelligence/46a89ec4-edc9-811f-1700-99f8b261ca6a",
        "name": "46a89ec4-edc9-811f-1700-99f8b261ca6a",
        "etag": "\"35007697-0000-0100-0000-6273b4eb0000\"",
        "type": "Microsoft.SecurityInsights/threatIntelligence",
        "kind": "indicator",
        "properties": {
            "confidence": 0,
            "created": "2022-01-25T15:24:50.2947152Z",
            "extensions": {
                "sentinelExtension": {
                    "severity": null
                },
                "isg-source-ext": {
                    "azureTenantId": "0b5a4827-4085-4ca9-a477-69bfd6ec7b76",
                    "networkIPv4": "114.33.22.185",
                    "targetProduct": "Azure Sentinel",
                    "threatType": "Darknet",
                    "id": "0FAAB80706511F8F98301255D29FA34D1319303EC2A07374B85155E63E5A6CE4",
                    "ingestedDateTime": "2022-01-25T15:24:18.259557+00:00",
                    "action": "allow",
                    "additionalInformation": "https://127.0.0.1/indicators/6793/details",
                    "activityGroupNames": [],
                    "confidence": 0,
                    "description": "IOC exported from ThreatQ",
                    "expirationDateTime": "2022-07-25T15:22:43+00:00",
                    "externalId": "6793",
                    "isActive": true,
                    "killChain": [],
                    "lastReportedDateTime": "2022-01-25T12:54:53+00:00",
                    "malwareFamilyNames": [],
                    "severity": 5,
                    "tags": [],
                    "tlpLevel": "unknown"
                }
            },
            "externalId": "indicator--001c5557-1145-5521-9967-eebe843d32ff",
            "externalLastUpdatedTimeUtc": "2022-01-25T15:24:18.259557Z",
            "lastUpdatedTimeUtc": "2022-01-25T15:24:50.2947486Z",
            "source": "SecurityGraph",
            "threatIntelligenceTags": [
                "tg1",
                "Test_tag",
                " Tag_2"
            ],
            "displayName": "Custom Threat Intelligence",
            "description": "IOC exported from ThreatQ",
            "threatTypes": [
                "Darknet"
            ],
            "parsedPattern": [
                {
                    "patternTypeKey": "ipv4-addr",
                    "patternTypeValues": [
                        {
                            "valueType": "ipv4-addr",
                            "value": "114.33.22.185"
                        }
                    ]
                }
            ],
            "pattern": "[ipv4-addr:value = '114.33.22.185']",
            "patternType": "stix",
            "validFrom": "2022-01-25T15:24:18.259557Z",
            "validUntil": "2022-07-25T15:22:43Z"
        }
    }
  ]
}

Form URL-Encoded
{"threatIntelligenceTags": "tag1"}

{
    "id": "/subscriptions/f1c10b41-49ff-4791-b366-b3bbb37fca4c/resourceGroups/group1/providers/Microsoft.OperationalInsights/workspaces/tqsentinal/providers/Microsoft.SecurityInsights/threatIntelligence/68cb63da-7104-79ea-3e90-0d48e8da87d3",
    "name": "68cb63da-7104-79ea-3e90-0d48e8da87d3",
    "etag": "\"3500e992-0000-0100-0000-6273b2440000\"",
    "type": "Microsoft.SecurityInsights/threatIntelligence",
    "kind": "indicator",
    "properties": {
        "confidence": 0,
        "created": "2022-01-25T15:24:46.0253884Z",
        "extensions": {
            "sentinelExtension": {
                "severity": null
            },
            "isg-source-ext": {
                "azureTenantId": "0b5a4827-4085-4ca9-a477-69bfd6ec7b76",
                "networkIPv4": "82.157.168.58",
                "targetProduct": "Azure Sentinel",
                "threatType": "Darknet",
                "id": "FD300635CCE291874D9261CF32C969E040BF170383F3498783DCB46044F9D4C4",
                "ingestedDateTime": "2022-01-25T15:23:56.0167939+00:00",
                "action": "allow",
                "additionalInformation": "https://127.0.0.1/indicators/4856/details",
                "activityGroupNames": [],
                "confidence": 0,
                "description": "IOC exported from ThreatQ",
                "expirationDateTime": "2022-07-25T15:22:43+00:00",
                "externalId": "4856",
                "isActive": true,
                "killChain": [],
                "lastReportedDateTime": "2022-01-25T12:53:37+00:00",
                "malwareFamilyNames": [],
                "severity": 5,
                "tags": [],
                "tlpLevel": "unknown"
            }
        },
        "externalId": "indicator--ffdafea4-f410-5a4a-bc71-a1f1e2d2b9ab",
        "externalLastUpdatedTimeUtc": "2022-01-25T15:23:56.0167939Z",
        "lastUpdatedTimeUtc": "2022-01-25T15:24:46.0254189Z",
        "source": "SecurityGraph",
        "threatIntelligenceTags": [
            "tag1",
            "tag2"
        ],
        "displayName": "Custom Threat Intelligence",
        "description": "IOC exported from ThreatQ",
        "threatTypes": [
            "Darknet"
        ],
        "parsedPattern": [
            {
                "patternTypeKey": "ipv4-addr",
                "patternTypeValues": [
                    {
                        "valueType": "ipv4-addr",
                        "value": "82.157.168.58"
                    }
                ]
            }
        ],
        "pattern": "[ipv4-addr:value = '82.157.168.58']",
        "patternType": "stix",
        "validFrom": "2022-01-25T15:23:56.0167939Z",
        "validUntil": "2022-07-25T15:22:43Z"
    }
}

{
  "kind": "indicator",
  "properties": {
      "confidence": 60,
      "created": "2024-09-02 06:17:59+00:00",
      "description": "IOC exported from ThreatQ. Details page: test.com/indicators/518389/details , IOC Description: Description 2 , IOC Description: Description 1 , Malware families: this is a fam , Adversaries: Action Fraud",
      "displayName": "ThreatQ Identified IOC",
      "externalReferences": [
          {
              "externalId": 518389,
              "sourceName": "ThreatQ",
              "url": "test.com/indicators/518389/details"
          }
      ],
      "kill_chain_phases": [],
      "labels": [
          "ipscontactedbyadetectedfile",
          "self-signed",
          "untitled_yara_ruleset"
      ],
      "modified": "2024-09-02 06:17:59+00:00",
      "pattern": "[ipv4-addr:value = '142.251.111.138']",
      "patternType": "ipv4-addr",
      "source": "ThreatQ",
      "threatIntelligenceTags": [
          "External Source: VirusTotal IOC Stream",
          "External Source: Adversary Reader"
      ],
      "validFrom": "2024-09-02 06:17:59+00:00",
      "validUntil": "2024-08-27T00:00:00Z"
  }
}

{
    "etag": "\"060047e2-0000-0100-0000-66d5589b0000\"",
    "id": "/subscriptions/f1c10b41-49ff-4791-b366-b3bbb37fca4c/resourceGroups/group1/providers/Microsoft.OperationalInsights/workspaces/tqsentinal/providers/Microsoft.SecurityInsights/threatIntelligence/main/indicators/c2ec8116-0ffb-234c-0843-0c96c86ec537",
    "kind": "indicator",
    "name": "c2ec8116-0ffb-234c-0843-0c96c86ec537",
    "properties": {
        "confidence": 60,
        "created": "2024-08-09T07:01:57+00:00",
        "description": "IOC exported from ThreatQ. Details page: test.com/indicators/518389/details , IOC Description: Description 2 , IOC Description: Description 1 , Malware families: this is a fam , Adversaries: Action Fraud",
        "displayName": "ThreatQ Identified IOC",
        "extensions": {
            "sentinel-ext": {
                "severity": null
            }
        },
        "externalId": "indicator--de717f85-8063-6ac7-63a8-e2a6fbce9daa",
        "externalReferences": [
            {
                "externalId": "518389",
                "sourceName": "ThreatQ",
                "url": "test.com/indicators/518389/details"
            }
        ],
        "labels": [
            "External Source: VirusTotal IOC Stream",
            "External Source: Adversary Reader",
            "ipscontactedbyadetectedfile",
            "self-signed",
            "untitled_yara_ruleset"
        ],
        "lastUpdatedTimeUtc": "2024-09-02T06:18:03.3900744Z",
        "parsedPattern": [
            {
                "patternTypeKey": "ipv4-addr",
                "patternTypeValues": [
                    {
                        "value": "142.251.111.138",
                        "valueType": "ipv4-addr"
                    }
                ]
            }
        ],
        "pattern": "[ipv4-addr:value = '142.251.111.138']",
        "patternType": "ipv4-addr",
        "source": "ThreatQ",
        "threatIntelligenceTags": [
            "External Source: VirusTotal IOC Stream",
            "External Source: Adversary Reader",
            "ipscontactedbyadetectedfile",
            "self-signed",
            "untitled_yara_ruleset"
        ],
        "validFrom": "2024-09-02T06:17:59+00:00",
        "validUntil": "2024-08-27T00:00:00Z"
    },
    "type": "Microsoft.SecurityInsights/threatIntelligence/main/indicators"
}

aliases = {
    'C2': ['command and control', 'c&c', 'command & control'],
    'DDoS': ['denial of service'],
    'CryptoMining': ['crypto', 'mining', 'crypto miner'],
    'Botnet': ['bot']
}

Form URL-Encoded
{
    "value": [
        {
            "azureTenantId": "{{TENANT_ID}}",
            "action": "Block",
            "description": "IOC exported from ThreatQ.",
            "labels": [
                "tag1"
            ],
            "lastReportedDateTime": "2023-03-08T10:53:30Z",
            "isActive": true,
            "externalId": "79",
            "confidence": 70,
            "threatType": "WatchList",
            "targetProduct": "Microsoft Defender ATP",
            "expirationDateTime": "2023-06-08T10:53:30Z",
            "severity": 3,
            "killChain": [
                "Delivery"
            ],
            "additionalInformation": "{{THREATQ_HOSTNAME}}/indicators/79/details",
            "malwareFamilyNames": [
                "Trojan"
            ],
            "activityGroupNames": [
                "APT40"
            ],
            "fileHashValue": "008b81f89405228597eae8bc5066a768",
            "fileHashType": "md5"
        }
    ]
}

{
  "@odata.context": "https://graph.microsoft.com/beta/$metadata#Collection(microsoft.graph.tiIndicator)",
  "value": [
    {
      "action": "block",
      "activityGroupNames": [],
      "additionalInformation": "{{THREATQ_HOSTNAME}}/indicators/79/details",
      "azureTenantId": "TENANT_ID",
      "confidence": 70,
      "description": "IOC exported from ThreatQ",
      "diamondModel": null,
      "domainName": null,
      "emailEncoding": null,
      "emailLanguage": null,
      "emailRecipient": null,
      "emailSenderAddress": null,
      "emailSenderName": null,
      "emailSourceDomain": null,
      "emailSourceIpAddress": null,
      "emailSubject": null,
      "emailXMailer": null,
      "expirationDateTime": "2023-06-08T10:53:30Z",
      "externalId": "7275",
      "fileCompileDateTime": null,
      "fileCreatedDateTime": null,
      "fileHashType": "md5",
      "fileHashValue": "008b81f89405228597eae8bc5066a768",
      "fileMutexName": null,
      "fileName": null,
      "filePacker": null,
      "filePath": null,
      "fileSize": null,
      "fileType": null,
      "id": "34636",
      "ingestedDateTime": null,
      "isActive": true,
      "killChain": [],
      "knownFalsePositives": null,
      "lastReportedDateTime": "2023-03-08T10:53:30Z",
      "malwareFamilyNames": [],
      "networkCidrBlock": null,
      "networkDestinationAsn": null,
      "networkDestinationCidrBlock": null,
      "networkDestinationIPv4": null,
      "networkDestinationIPv6": null,
      "networkDestinationPort": null,
      "networkIPv4": null,
      "networkIPv6": null,
      "networkPort": null,
      "networkProtocol": null,
      "networkSourceAsn": null,
      "networkSourceCidrBlock": null,
      "networkSourceIPv4": null,
      "networkSourceIPv6": null,
      "networkSourcePort": null,
      "passiveOnly": null,
      "severity": 3,
      "tags": [],
      "targetProduct": "Microsoft Defender ATP",
      "threatType": "WatchList",
      "tlpLevel": null,
      "url": null,
      "userAgent": null,
      "vendorInformation": null
    }
  ]
}

{
  "properties": {
    "severity": "High",
    "status": "Closed",
    "title": "Grandoreiro",
    "description": "Grandoreiro is a major cybersecurity threat.",
    "labels": [
      "malware"
    ],
    "firstActivityTimeUtc": "2024-03-14T08:23:00Z",
    "lastActivityTimeUtc": "2024-04-01T08:23:00Z",
    "classification": "FalsePositive",
    "classificationComment": "Incident investigation was finished.",
    "classificationReason": "InaccurateData",
    "owner":{
      "email": "user1@threatq.onmicrosoft.com"
    }
  }
}

{
  "id": "/subscriptions/f1c10b41-49ff-4791-b366-b3bbb37fca4c/resourceGroups/group1/providers/Microsoft.OperationalInsights/workspaces/tqsentinal/providers/Microsoft.SecurityInsights/Incidents/tq_incident_601",
  "name": "tq_incident_601",
  "etag": "\"05007801-0000-0100-0000-660e51af0000\"",
  "type": "Microsoft.SecurityInsights/Incidents",
  "properties": {
    "title": "Grandoreiro",
    "description": "Grandoreiro is a major cybersecurity threat.",
    "severity": "Hign",
    "status": "Closed",
    "classification": "FalsePositive",
    "classificationReason": "InaccurateData",
    "classificationComment": "Incident investigation was finished.",
    "owner": {
      "objectId": null,
      "email": "user1@threatq.onmicrosoft.com",
      "assignedTo": null,
      "userPrincipalName": null,
      "ownerType": "Unknown"
    },
    "labels": [
      {
        "labelName": "malware",
        "labelType": "User"
      }
    ],
    "firstActivityTimeUtc": "2024-03-14T08:23:00Z",
    "lastActivityTimeUtc": "2024-04-01T08:23:00Z",
    "lastModifiedTimeUtc": "2024-04-01T08:23:00Z",
    "createdTimeUtc": "2024-03-14T08:23:00Z",
    "incidentNumber": 25529,
    "additionalData": {
      "alertsCount": 0,
      "bookmarksCount": 0,
      "commentsCount": 0,
      "alertProductNames": [],
      "tactics": [],
      "techniques": []
    },
    "relatedAnalyticRuleIds": [],
    "incidentUrl": "https://portal.azure.com/#asset/Microsoft_Azure_Security_Insights/Incident/subscriptions/f1c10b41-49ff-4791-b366-b3bbb37fca4c/resourceGroups/group1/providers/Microsoft.OperationalInsights/workspaces/tqsentinal/providers/Microsoft.SecurityInsights/Incidents/tq_incident_601",
    "providerName": "Azure Sentinel",
    "providerIncidentId": "25529"
  }
}

Enriched Data

Object counts and action runtime are supplied as generalities only - objects returned by a provider can differ based on credential configurations and action runtime may vary based on system resources and load.

Microsoft Azure Sentinel Enrich Indicators

Microsoft Azure Sentinel Add Tag

Microsoft Azure Sentinel Create Incident

Known Issues / Limitations

• The following is a known Microsoft Azure Sentinel API bug.  Attempting to upload indicators that were previously deleted from the platform will result in an API error.  The error states that you cannot update the indicators.   This is due to the indicators still existing on the platform, in some format, despite being deleted.

• The function Microsoft Azure Sentinel Export Collection needs a STIX identifier for each indicator that is uploaded to Microsoft Sentinel. Right now this identifier is generated random.

Change Log

• Version 1.1.4
  • Removed the Microsoft Azure Sentinel Export IoC action.
• Version 1.1.3
  • The Microsoft Azure Sentinel Export Collection action now uses the attribute Threat Type to set the Threat types in Azure.
• Version 1.1.2
  • Added support for Microsoft US Government Cloud environments for all actions except Microsoft ATP Export Collection.
  • Added the following new configuration parameters:
    • Microsoft Azure Type - (all actions except Microsoft ATP Export Collection) allows you to select the Microsoft Azure Cloud environment. Options include Microsoft Azure Global and Microsoft Azure US Government.
    • Enable SSL Certificate Verification - enable or disable verification of the server's SSL certificate.
    • Disable Proxies - determine if the action should honor proxy settings set in the ThreatQ UI.
• Version 1.1.1
  • Added additional functionality to the Microsoft Sentinel Export Collection action:
    • The action will now use the Valid Until from the IOC to set in Microsoft Azure Sentinel.
    • The IOC source is now added as a Tag.
    • Updated the list name from Custom Threat Intelligence to ThreatQ Identified IOC.
    • Updated the source from Microsoft Sentinel to ThreatQ.
• Version 1.1.0
  • Added additional functionality to the Microsoft Sentinel Export IOC action:
    • The action will now export the description of the IOC.
    • The action will now use the Valid Until from the IOC to set in Microsoft Azure Sentinel.
    • The IOC source is now added as a Tag.
    • Updated the list name from Custom Threat Intelligence to ThreatQ Identified IOC.
    • Updated the source from Microsoft Sentinel to ThreatQ.
• Version 1.0.5
  • Resolved an issue where actions applied the wrong source name to objects.
• Version 1.0.4
  • Added a new action: Microsoft Azure Sentinel Export IOC.
• Version 1.0.3
  • Added a new action: Microsoft Azure Sentinel Create Incident.
  • Updated the minimum ThreatQ version to 5.25.0.
• Version 1.0.2
  • Added support for the following indicator types: CIDR Block, Email Address, Filename, File Path, IPv6 Address, Mutex, and SHA-1.
  • Added the ability to collection export more information using the Microsoft Azure Sentinel Export Collection action.  New parameters include:
    • Related Context Filter
    • Default Threat Type
    • Always use the selected Default Threat Type
  • Added a new action: Microsoft Defender ATP Export Collection.  This action allows users to export indicators to Microsoft Defender ATP.
• Version 1.0.1
  • Updated the API endpoint for the Microsoft Azure Sentinel Export Collection action.
  • Added a new Known Issue for the Microsoft Azure Sentinel Export Collection action.
  • Added support for the Microsoft logo. Installing the action bundle via the zip file will display the logo on the action details and orchestrator builder screens.
• Version 1.0.0
  • Initial release
